S9ADECT34-S37TAMDigital Cordless Phone - Base Unit

Product Definition Document SunCorp Communications (Europe) Ltd. PD343 Product Definition Document Version 1.1 Customer:XACT Country:USA Model:XD6451 / XHB401 Roadmap Number:DECT 34-2 Cabinet Reference:T21 FCC INTERFERENCE INFORMATION x FCC Interference Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio com- munications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is “receiving” the interference. • Reorient or relocate and increase the separation between the telecommunications equip- ment and receiving antenna. • Connect the telecommunications equipment into an outlet on a circuit different from that to which the receiving antenna is connected. •Consult the dealer or an experienced radio/TV technician for help. FCC RF Radiation Exposure Statement The installation of the base unit should allow at least 20 centimeter between the base and persons in compliance with FCC RF exposure guidelines. For body worn operation, the portable part (handset) has been tested and meets FCC RF exposure guidelines. This device must not be co-located or operating in conjunction with any other antenna or transmitter.The changes or modifications not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. FCC Part 15.19 FCC Part 15.21 FCC Part 15.105(b) FCC Part 2.1091 FCC Part 2.1093 Consumer Information: a) This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottomof this equipment is a label that contains, among other information, a product identifier in the format US:AAAEQ##TXXXX. If requested, this number must be provided to the telephone company. b) An applicable certification jacks Universal Service Order Codes (USOC) for the equipment is provided (i.e., RJ11C) in the packaging with each piece of approved terminal equipment. c) A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details. d) The REN is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company. [For products approved after July 23, 2001, the REN for this product is part of the product identifier that has the format US:AAAEQ##TXXXX. The digits represented by ## are the REN without a decimal point (e.g., 03 is a REN of 0.3). For earlier products, the REN is separately shown on the label.] e) If this equipment XD6451;XHB401 causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary. f) The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service. g) Should you experience trouble with this equipment, please contact: Company name: XACT COMMUNICATION,LLC. Address: 105 Madison Avenue New York, NY 10016 Telephone: 212 481 7950 for repair or warranty information. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved. h) Please follow instructions for repairing if any (e.g. battery replacement section); otherwise do not alternate or repair any parts of device except specified. i) Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service commission or corporation commission for information. j)NOTICE: If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of thisXD6451;XHB401 does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. k) This equipment is hearing aid compatible. ''This product meets the applicable Industry Canada technical specifications.” Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must …

Text truncated - open the document above for the full version.

Suncorp Communications Limited Room 1907-08, Harcourt House, 39 Gloucester Road, Wanchai, Hong Kong. Tel: +85225726111 Fax: +85225720880 ***************************************************************************************************** Date: 20 / 11 / 2006 To whom it may concern, Declarations FCC ID: S9ADECT34-S37TAM I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the handset will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device meets the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Operation Condition Descriptions Reaction of Base Unit Reaction of Handset 1 Switch-off companion device A / B / C / NA A / B / C / NA 2 On Hook by companion device A / B / C / NA A / B / C / NA 3 Switch-off device A / B / C / NA A / B / C / NA 4 On Hook on device side A / B / C / NA A / B / C / NA 5 Remove power from device A / B / C / NA A / B / C / NA 6 Remove power from companion device A / B / C / NA A / B / C / NA A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. NA – Not applicable represents the base unit does not contain a hook switch or a power off switch. If you have questions or need further information, please contact the undersigned. Title: Head of Engineering Department

:

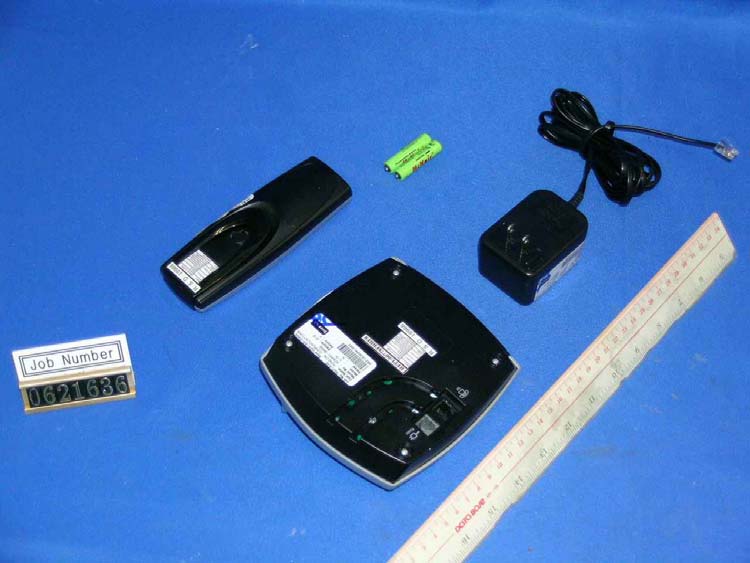

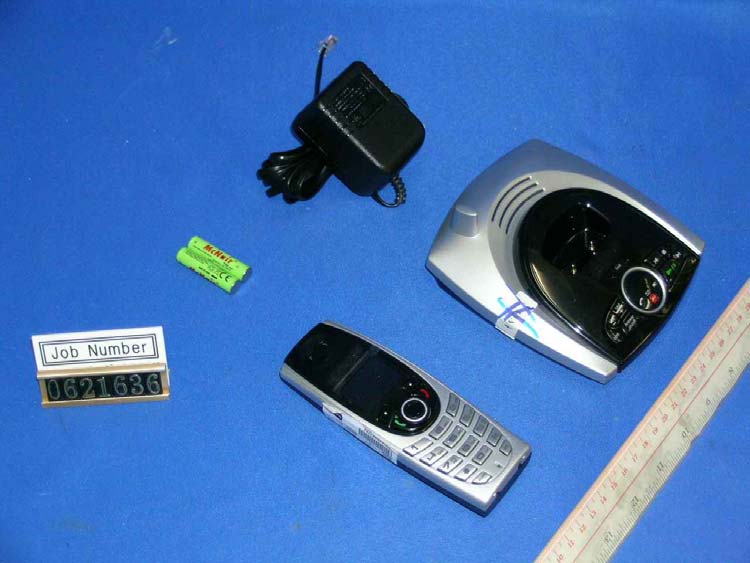

INTERTEK TESTING SERVICES External Photos FCC ID: S9ADECT34-S37TAM external photos - 1 of 2 INTERTEK TESTING SERVICES External Photos FCC ID: S9ADECT34-S37TAM external photos - 2 of 2

Edge XD6451 Base Edge XHB401 Base XACT XD6451 XHB401 Labels 2 (6 Nov 06) Edge XD6451 Handset Edge XHB401 Handset FCC ID: S9ADECT34-S37TAM IC: 6801A-D34S37 This unit complies with Part 68 FCC Rules. FCC REG NO. US:SCLW400BD34S37TAM USOC RJ11C REN0.0B XD6451 Digital Cordless Telephone w/ Answering Machine 38mm x 14mm 38mm x 16mm 38mm x 18mm Remote Access Code Default: 0000 _ _ _ _ 13mm x 11mm 30mm x 5mm Edge XD6451 XHB401 Serial Number Label Size Edge XD6451 XHB401 ETL Logo Size (1: 1 Scale) 9.6mm x 9.6mm For more information visit us www.getxact.com This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. MADE IN CHINA 3099759 Privacyofcommunicationsisnot guaranteed when using this telephone I.T.E. HAC SC For more information visit us www.getxact.com MADE IN CHINA I.T.E. SC 3099759 XHB401 Digital Cordless Telephone Handset Serial Number Label MODEL NO: XD6451 FCC ID: S9ADECT33-S37 IC:6801A-D33S37 CAUTION: TO REDUCE RISK OF INJURY USE ONLY THE TYPE OF BATTERY INCLUDED 35mm x 8.5mm MODEL NO: XHB401 FCC ID: S9ADECT33-S37 IC:6801A-D33S37 CAUTION: TO REDUCE RISK OF INJURY USE ONLY THE TYPE OF BATTERY INCLUDED 35mm x 8.5mm Notes 03/11/06 Jenny Nim New Issue 06/11/06 Jenny Nim Corrected IC ID of base label from Dect33 to Dect34.

INTERTEK TESTING SERVICES Internal photos FCC ID: S9ADECT34-S37TAM internal photos - 1 of 3 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: S9ADECT34-S37TAM internal photos - 2 of 3 Base Unit Main PCB solder side Base Unit Oscillator PCB comp side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: S9ADECT34-S37TAM internal photos - 3 of 3 Base Unit Oscillator PCB comp side (View 2) Base Unit Oscillator PCB comp side (View 3)

INTERTEK TESTING SERVICES FCC ID: S9ADECT34-S37TAM RF exposure - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the base unit of tested model of XD6451, the maximum field strength measured (FS) was 111.4 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor in five-handsets operation is 25%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power = (FS*D) 2 / 30 = 41.41 mW The radiated (EIRP) source-based time-averaging output power = (41.41 * 0.250) mW = 10.35 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0021 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: S9ADECT34-S37TAM 26bw - 1 of 6 Plot 1A Plot 1B A0 INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: S9ADECT34-S37TAM 26bw - 2 of 6 Plot 1C Plot 1D A0 INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: S9ADECT34-S37TAM 26bw - 3 of 6 Plot 1E Plot 1F A0 INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: S9ADECT34-S37TAM 26bw - 4 of 6 Plot 1G Plot 1H A0 INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: S9ADECT34-S37TAM 26bw - 5 of 6 Plot 1I Plot 1J A0 INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: S9ADECT34-S37TAM 26bw - 6 of 6 Plot 1K Plot 1L A0

Report No.: 06216361 Talk Mode Ctrl No.: N/A PAGE 1 Tested By:Hong, Report No.:06216361 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 1 15 9k 30M EW0090 21 9k 30M EW0698 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 110 F15Q F15A Report No.: 06216361 Talk Mode Ctrl No.: N/A Tested By:Hong, Report No.:06216361 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: no Results

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: S9ADECT34-S37TAM inband - 1 of 2 Plot 4A Plot 4B A0 INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: S9ADECT34-S37TAM inband - 2 of 2 Plot 4C Plot 4D A0

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: S9ADECT34-S37TAM peaktp - 1 of 2 Plot 2A Plot 2B A0 INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: S9ADECT34-S37TAM peaktp - 2 of 2 Plot 2C Plot 2D A0

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: S9ADECT34-S37TAM psd - 1 of 2 Plot 3A Plot 3B A0 INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: S9ADECT34-S37TAM psd - 2 of 2 Plot 3C Plot 3D A0

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2784 5487 Website: www.hk.intertek-etlsemko.com Suncorp Communications Limited Application For 47 CFR Part 15 Certification Unlicensed Personal Communication Service Devices (Base Unit) FCC ID: S9ADECT34-S37TAM Test Report Number: 06216361 Issue Date: November 22, 2006 KL/ Ann Choy INTERTEK TESTING SERVICES Test Report Number: 06216361 Page 1 of 72 FCC ID: S9ADECT34-S37TAM LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: Summary of Tests EXHIBIT 2: General Description EXHIBIT 3: System Test Configuration EXHIBIT 4: Measurement Results EXHIBIT 5: Equipment Photographs EXHIBIT 6: Product Labelling EXHIBIT 7: Technical Specifications EXHIBIT 8: Instruction Manual EXHIBIT 9: Declaration EXHIBIT 10: UTAM Affidavit EXHIBIT 11: Confidentiality Request INTERTEK TESTING SERVICES Test Report Number: 06216361 Page 2 of 72 FCC ID: S9ADECT34-S37TAM MEASUREMENT/TECHNICAL REPORT Suncorp Communications Limited - Model: XD6451 FCC ID: S9ADECT34-S37TAM This report concerns (check one:) Original Grant X Class II Change Equipment Type : PUB - Part 15 Unlicensed PCS Base Station Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : __________________ Date Company Name agrees to notify the Commission by: Date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart D for Unlicensed Personal Communication Service Device - the new 47 CFR [04-05-05 Edition] Provision. Report prepared by: Lam Chun Cheong, Kenneth Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone : 852-2173-8474 Fax: 852-2741-1693 INTERTEK TESTING SERVICES Test Report Number: 06216361 Page 3 of 72 FCC ID: S9ADECT34-S37TAM Table of Contents 1.0 Summary of Test Results........................................................................................ 7 2.0 General Description............................................................................................... 10 2.1 Product Description ............................................................................................... 10 2.2 Technical Description ............................................................................................ 10 2.3 Related Submittal(s) Grants .................................................................................. 11 2.4 Test Methodology.................................................................................................. 11 2.5 Test Facility ........................................................................................................... 11 3.0 System Test Configuration.................................................................................... 13 3.1 Justification ........................................................................................................... 13 3.2 Conducted Emission Test Configuration ................................................................ 14 3.3 Conducted Monitoring and Operational Test Configuration.................................... 14 3.4 EUT Exercising Software....................................................................................... 14 3.5 Support Equipment List and Description ................................................................ 15 3.6 Measurement Uncertainty ..................................................................................... 16 3.7 Equipment Modification ......................................................................................... 16 4.0 Measurement Results............................................................................................ 18 4.1 Antenna Requirement........................................................................................... 18 4.2 Digital Modulation Techniques............................................................................... 18 4.3 Emission Bandwidth.............................................................................................. 19 4.4 Directional Gain of the Antenna ............................................................................. 21 4.5 Peak Transmit Power ............................................................................................ 22 4.6 Power Spectral Density ......................................................................................... 23 4.7 Automatic Discontinuation of Transmission............................................................ 24 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 25 4.9 Emissions Outside the Sub-Band .......................................................................... 26 4.9.1 Field Strength Calculation................................................................................... 27 4.9.2 Average Factor Calculation and Transmitter ON Time Measurements ................ 28 4.9.3 Radiated Emissions Configuration Photographs ................................................. 29 4.9.4 Radiated Emissions Data ................................................................................... 30 4.10 AC Power Lines Conducted Emissions from Transmitter portion of EUT .............. 34 4.10.1 AC Power Lines Conducted Emissions Configuration Photographs................... 35 4.10.2 AC…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: S9ADECT34-S37TAM config photos (radiated emission – base unit) - 1 of 1 Radiated Emission – Base Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: S9ADECT34-S37TAM config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: S9ADECT34-S37TAM config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
