S9ADECT64-S96-B11US DECT PHONE- BASE

DECT 64-S96+B11 GAP MMI Specification Document Version 1.0 1 of 40 FCC INTERFERENCE INFORMATION x FCC Interference Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio com- munications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is “receiving” the interference. • Reorient or relocate and increase the separation between the telecommunications equip- ment and receiving antenna. • Connect the telecommunications equipment into an outlet on a circuit different from that to which the receiving antenna is connected. FCC RF Radiation Exposure Statement The installation of the base unit should allow at least 20 centimeter between the base and persons in compliance with FCC RF exposure guidelines. For body worn operation, the portable part (handset) has been tested and meets FCC RF exposure guidelines. This device must not be co-located or operating in conjunction with any other antenna or transmitter.The changes or modifications not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. FCC Part 15.19 FCC Part 15.21 FCC Part 15.105(b) FCC Part 2.1091 FCC Part 2.1093 6 ongratulations on your selection of this quality product byXACT Communication. With proper care and adherence to the set-up and user instructions in this Owner's Manual, this unit will provide you with years of trouble-free service. XACTis committed to providing quality products that fit your needs.We would like to have any comments or suggestions you might have on this product.You may mail your comments to: XACT Communication, LLC 105 Madison Avenue New York, NY 10016 [email protected] WHAT’S IN THE BOX? User manual Edge 1.4 handset Edge 1.4 base station Line cord Power adapter for base station Battery door 2 x AAA rechargeable batteries Warranty information In the event that any item is missing or if you find any mismatch or damage, promptly contact your retailer. C Revision History Revision document Author Date Comments DECT 10 Version 1.0 Yamada 17 Jan. 05 Initial document for DECT 10 Version 1.1 Yamada 28 Jan. 05 Add two redial digits limit Change the LCD dots to 5 X 8 from 5 X 7 Add DECT 24 Add KPN operation detail Add DECT 15 option for handset VMWI handling Change back the arrow icon to be LEFT and RIGHT Version 1.2 Yamada 01 Feb. 05 Change the CID display and add the EEPROM setting for display word. Add the VMWI indication option on the base LED. Change to user programmable for two direct access button Version 1.3 Yamada 02 Feb. 05 Modify the operation for VMWI Add the month and date setting on the menu Short press “R” key to indicate DD / MM for 3 seconds. Version 1.4 Yamada 02 Mar. 05 Change the H/S ringer melody to 10 from 5. Change the H/S ringer volume to 5 from 3. 4 Poly tone Ringer for handset. Add EEPROM setting option for Power ON/OFF function enable disable. Add RPAS enable/disable menu inside base setting menu. Add more for default setting Add Handfree mode speaker volume control. Version 1.5 Yamada 11 Mar. 05 Change the text input character table and changing the case method. Version 1.6 Yamada 03 May 2005 Add the Date setting menu operation. Add more explanation for Re-dial size limit Add frequency changing option for Latin American Version 1.7 Yamada 17 May 2005 Change the two Hot key operation Version 1.8 Yamada 14 July 2005 Change the phonebook size (20 digits -> 24 digits) Change the VMWI icon and TAM icon. Change the alarm icon turn off timing. Change the flashing rate for base VMWI LED indication. (DECT 20 base option) Add the option for un-read SMS message indication on the base unit. (DECT20 base option) Version 1.0 for DECT 64 Yamada 04 May 2006 Change to DECT 64 MMI document 2 of 40 Contents 1 FEATURES OF SUNCORP GAP DECT..............................................................6 1.1 Purpose of this document......................................................................................................... 6 1.2 General features.........................................................................................................................6 1.3 Handset description...................................................................................................................7 1.3.1 Handset keypad.....................................................................................................................7 1.3.2 LCD display...........................................................................................................................9 1.3.3 Standby display ................................................................................................................... 10 1.3.4 LED......................................................................................................................................10 1.3.5 Tones...................................................................................................................................10 1.4…

Text truncated - open the document above for the full version.

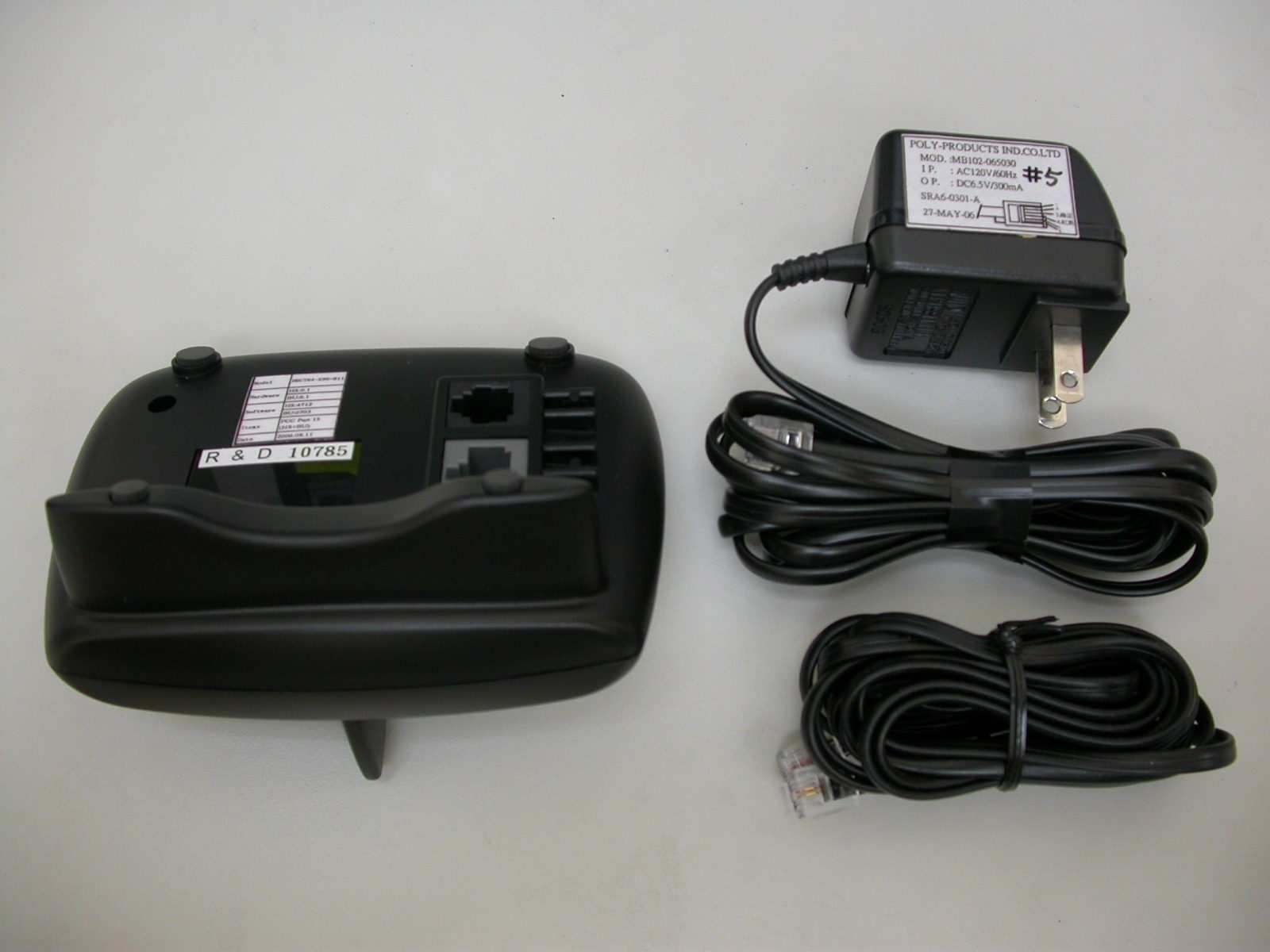

FCC ID: S9ADECT64-S96-B11 ETC Report No.: 06-10-MAS-123-02 IC ID: 6801A-D64S9611 Page A1 of A1 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT

FCC ID Label_Location

FCC ID: S9ADECT64-S96-B11 ETC Report No.: 06-10-MAS-123-02 IC ID: 6801A-D64S9611 Page B1 of B3 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT FCC ID: S9ADECT64-S96-B11 ETC Report No.: 06-10-MAS-123-02 IC ID: 6801A-D64S9611 Page B2 of B3 3. Front view of PCB1 4. Rear view of PCB1 FCC ID: S9ADECT64-S96-B11 ETC Report No.: 06-10-MAS-123-02 IC ID: 6801A-D64S9611 Page B3 of B3 5. Front view of PCB2

FCC ID: S9ADECT64-S96-B11 Sheet 29 of 88 Sheets IC ID: 6801A-D64S9611 ETC Report No.: 06-10-MAS-123-02 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong 6.11 Safety exposure levels 6.11.1 Standard Applicable: FCC 15.319(i) UPCS devices are subject to the radio frequency radiation exposure requirements specified in FCC parts 1.1307 (b), 2.1091 and 2.1093, as appropriate. All equipment shall be considered to operate in a “general population / uncontrolled environment. For portable devices tests according to IEEE 1528 are requested, if applicable. 6.11.2 Measurement procedure Consideration of radio frequency radiation exposure for EUT is done as SAR test according IEEE1528 (for PP) MPE calculation as below (for FP, Repeater) SAR test results: not applicable MPE calculation: The EUT is considered as a mobile device according to OET Bulletin 65, Edition -97-01. Therefore distance to human body of min. 20 cm is determined. The limit of Power density for General Population / Umcontrolled Exposure is 1.0 mW/cm². Formula: S = EIRP / 4πR² EIRP = Output power + Ant. gain Calculation: EIRP Radiated Power (dBm) 23.29 EIRP Radiated Power (mW) 213.3 R Distance (cm) 20 S Power Density (mW/cm²) 0.042 6.11.3 Results： ：： ：Comply

FCC ID: S9ADECT64-S96-B11 Sheet 1 of 88 Sheets IC ID: 6801A-D64S9611 ETC Report No.: 06-10-MAS-123-02 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong CONFORMANCE TEST REPORT FOR FCC Part 15, subpart D Industry Canada RSS-213, Issue 2 Report No.: 06-10-MAS-123-02 Client: Suncorp Communications Limited Product: US DECT PHONE - BASE (FP) Model: XD6210 ; XHB210 FCC ID: S9ADECT64-S96-B11 IC ID: 6801A-D64S9611 Manufacturer/supplier: Shenzhen Top Guo Wei Electronics Co., Ltd Date test item received: 2006/10/19 Date test campaign completed: 2006/12/29 Date of issue: 2006/12/29 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 88 pages Total number of pages of photos: External photos 1 pages Internal photos 3 pages Setup photos 2 pages Test Engineer Checked By Approved By Eric Lin James Jeff Pong FCC ID: S9ADECT64-S96-B11 Sheet 2 of 88 Sheets IC ID: 6801A-D64S9611 ETC Report No.: 06-10-MAS-123-02 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Table of Contents Page 1 GENARAL INFORMATION .........................................................................................................4 1.1 Testing Laboratory.....................................................................................................................4 1.2 Client Information.......................................................................................................................4 1.3 Manufacturer...............................................................................................................................4 2 TEST INFORMATION ..................................................................................................................5 2.1 Description of Tested Device(s)..............................................................................................5 2.2 Test Environment.......................................................................................................................5 3 TEST REPORT SUMMARY ........................................................................................................6 3.1 Test Summary............................................................................................................................6 3.2 Other Comments........................................................................................................................7 4 TEST SETUP .................................................................................................................................8 4.1 Frequency and Timing Measurements...................................................................................8 4.2 Conducted Emission Tests......................................................................................................8 4.3 Radiated Emission Tests..........................................................................................................9 4.4 Power line Conducted Tests....................................................................................................9 4.5 Monitoring Tests.......................................................................................................................10 5 TEST EQUIPMENT LIST ...........................................................................................................11 6 TEST RESULT ............................................................................................................................12 6.1 Coordination with fixed microwave........................................................................................12 6.2 Cross Reference......................................................................................................................13 6.3 Labeling Requirements...........................................................................................................15 6.4 Power line Conducted Emissions..........................................................................................16 6.5 Antenna Requirement.............................................................................................................19 6.6 Digital Modulation Techniques...............................................................................................19 6.7 Peak Transmit Power..............................................................................................................20 6.8 Power Spectral Density...........................................................................................................24 6.9 Antenna Gain............................................................................................................................28 6.10 Automatic discontinuation of transmission........................................................................28 6.11 Safety exposure levels..........................................................................................................29 6.12 Emission Bandwidth B..........................................................................................................30 6.13 Monitoring time.......................................................................................................................34 6.14 Monitoring threshold..............................................................................................................35 6.15 Maximum transmit period.....................................................................................................36 6.16 System Acknowledgement...................................................................................................38 FCC ID: S9ADECT64-S96-B11 Sheet 3 of 88 Sheets IC ID: 6801A-D64S9611 ETC Report No.: 06-10-MAS-123-02 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong 6.17…

Text truncated - open the document above for the full version.

FCC ID: S9ADECT64-S96-B11 ETC Report No.: 06-10-MAS-123-02 IC ID: 6801A-D64S9611 Page 1 of 2 Photos of Radiation Measuring Setup FCC ID: S9ADECT64-S96-B11 ETC Report No.: 06-10-MAS-123-02 IC ID: 6801A-D64S9611 Page 2 of 2 Photos of Conduction Measuring Setup
