S9ADECT33-B70-B31US DECT PHONE--BASE

User Guide xvp5604 • 1.4" Color Display • 100 Name Phonebook • Versatile Handset Position • Extended Battery Life FCC INTERFERENCE INFORMATION x FCC Interference Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio com- munications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is “receiving” the interference. • Reorient or relocate and increase the separation between the telecommunications equip- ment and receiving antenna. • Connect the telecommunications equipment into an outlet on a circuit different from that to which the receiving antenna is connected. FCC RF Radiation Exposure Statement The installation of the base unit should allow at least 20 centimeter between the base and persons in compliance with FCC RF exposure guidelines. For body worn operation, the portable part (handset) has been tested and meets FCC RF exposure guidelines. This device must not be co-located or operating in conjunction with any other antenna or transmitter.The changes or modifications not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. FCC Part 15.19 FCC Part 15.21 FCC Part 15.105(b) FCC Part 2.1091 FCC Part 2.1093 This product meets the applicable Industry Canada technical specifications The Ringer Equivalence Number is an indication of the maximum number of devices allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the RENs of all the devices does not exceed five Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Handset Panel Layout Soft Key 1 Standby Mode: Press to enter Menu Menu Mode: Press to select current Menu option Talk On/Handsfree Use to make and receive calls Lets you make and receive calls using the built-in handset loudspeaker Soft Key 2To enter the Skype Buddy ListGo back in menuMute microphone (in call mode)Talk Off Press to end a callExit Menu/Return to idleSwitch handset power off (long press)Scroll DownTo enter Skype Buddy ListScroll through menu options, calls lists and phonebook entriesReceiver volume down (in call mode) Scroll Up Enter Skype Dialled Calls List Scroll through menu options, calls lists and phonebook entries Receiver volume up (in ccall mode) Int Intercom Use to make internal calls and transfer calls Back KeyDelete/Clear digits when entering or editing text Space key Enter a space when entering or editing text INT Page 1 SKYPE ™ DISPLAY ICONS OfflineOnlineAwayNot AvailableDo Not DisturbSkype MeInvisible Own Status icons: Missed CallsNew VoicemailMissed Chat Reminder icons:Call icons: Skype Call Buddy Status icons: SkypeOutSkypeOut InactiveSkypeOut Blocked OfflineOnlineAwayNot AvailableDo Not DisturbSkype MeInvisible BlockedCall ForwardedMobile Away Mobile Not AvailableMobile OnlineOffline SkypeOutOffline VoicemailPendingSkypecastsSkypecasts Offline Other icons: Call on Hold Page 2 DISPLAY ICONS Menu Skype Handset 1 Description Status Icon Handset Battery Charge LevelSkype Status Handset 1 Handset Name MenuSkype Use Soft Key 2Use Soft Key 1 Menu Map Select Back Contact Select Back Search Contact Add Entry Copy PhonebookMemory StatusDelete Phonebook Press Soft Key 1 to enter Contacts Menu Select Back Clock & Alarm Select Back Date & Time Clock & Alarm Alarm Time Format Press Soft Key 1 to enter Clock & Alarm Menu Select Back Registration Select Back Register Handset Registration Select Base De-register Press Soft Key 1 to enter Registration Menu Menu Skype Handset 1 Options Back Nush Buddy List PeterTomSandraPaul Select Back Manage Buddy Options Set StatusActive ViewSkype Credit Missed CallsVoicemail Press Soft Key 1 or Down key to enter your Skype Buddy List Press Soft Key 1 to select Options Select Back Ringtone Set Handset Ringer Volume Receiver VolumeHandset NameLanguageWallpaperScreensaverLight TimeoutDisplay ContrastAuto TalkKey BeepMenu Color Select Back Ringtone Set Base Ringer Volume Factory ResetSystem PINArea Code Select Back Settings Select Back Set Handset Settings Set Base Press Soft Key 1 to enter Settings Menu Select Set Handset or Set Base then press Soft Key 1 to enter Press Soft Key 1 to enter Menu Tree Press Down key to scroll through the Menu Map Page 3 Making CallsTo make a Skype call:1. Select Skype using the Soft Key 2 to enter your Skype Buddy List. 2. Press Up or Down to highlight the buddy you want to call. 3. Press TALK to dial out. Note : The Down key can also be used to access your buddy list. To make a SkypeOut call (Pre Dialling):1. Enter your destination number. If you make a mistake, press BACK . O2. Press TALK to dial out. To make a SkypeOut call (from the Buddy List):1. Select Skype using the Soft Key 2 or Down to enter your Buddy List. 2. Press Up…

Text truncated - open the document above for the full version.

ID Label_Location_FP BOTTOM

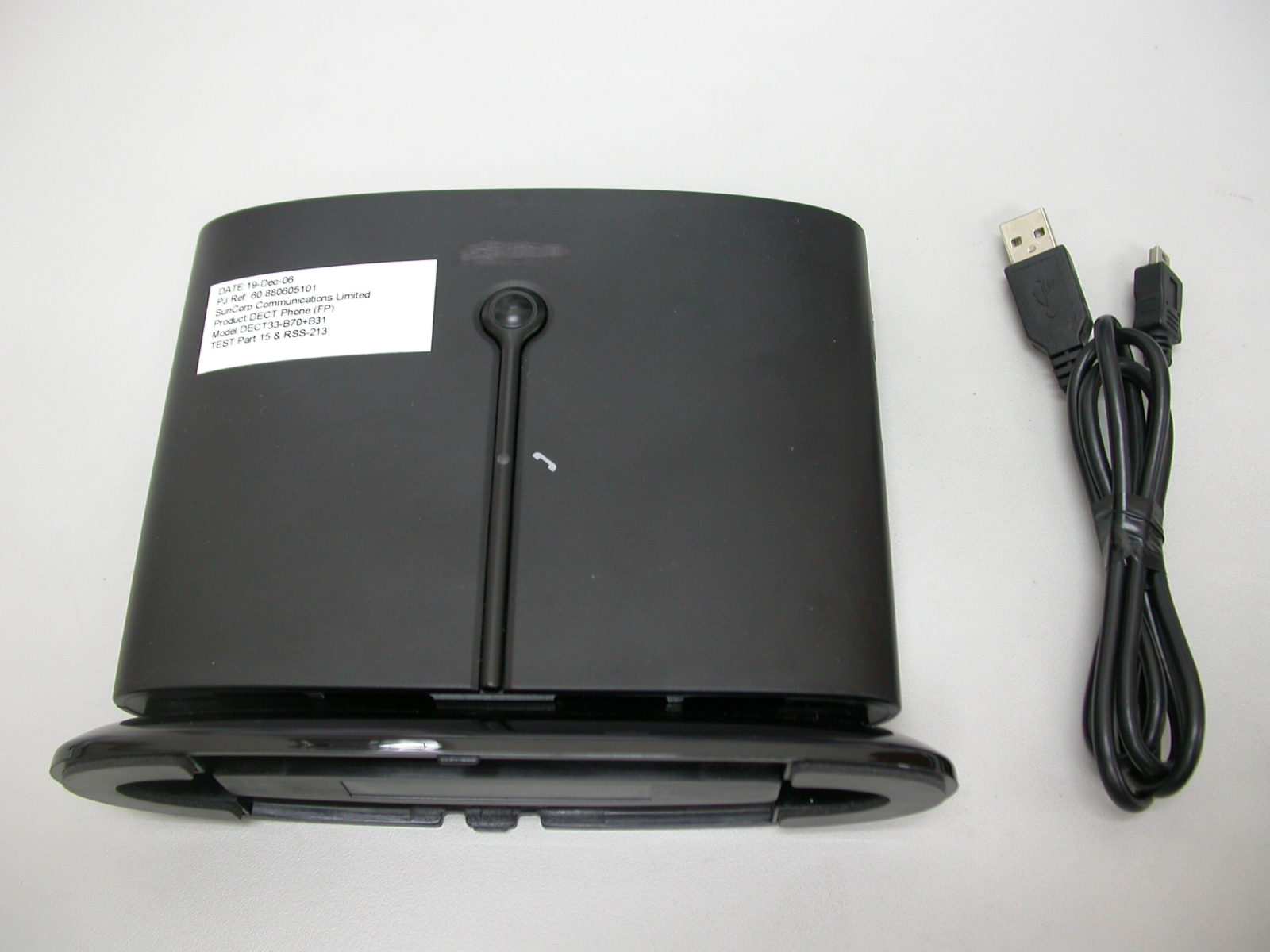

FCC ID: S9ADECT33-B70-B31 ETC Report No.: 06-12-MAS-201-02 IC ID: 6801A-D33B7031 Page A1 of A1 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT

ID Label_Location_FP BOTTOM

FCC ID: S9ADECT33-B70-B31 ETC Report No.: 06-12-MAS-201-02 IC ID: 6801A-D33B7031 Page B1 of B4 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT FCC ID: S9ADECT33-B70-B31 ETC Report No.: 06-12-MAS-201-02 IC ID: 6801A-D33B7031 Page B2 of B4 3. Front view of PCB1 4. Front view of PCB1 FCC ID: S9ADECT33-B70-B31 ETC Report No.: 06-12-MAS-201-02 IC ID: 6801A-D33B7031 Page B3 of B4 5. Rear view of PCB1 6. Front view of PCB2 FCC ID: S9ADECT33-B70-B31 ETC Report No.: 06-12-MAS-201-02 IC ID: 6801A-D33B7031 Page B4 of B4 7. Rear view of PCB1

FCC ID: S9ADECT33-B70-B31 Sheet 1 of 89 Sheets IC ID: 6801A-D33B7031 ETC Report No.: 06-12-MAS-201-02 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong CONFORMANCE TEST REPORT FOR FCC Part 15, subpart D Industry Canada RSS-213, Issue 2 Report No.: 06-12-MAS-201-02 Client: Suncorp Communications Limited Product: US DECT PHONE - BASE (FP) Model: XVP5604 ; XHB564 FCC ID: S9ADECT33-B70-B31 IC ID: 6801A-D33B7031 Manufacturer/supplier: Shenzhen Top Guo Wei Electronics Co., Ltd Date test item received: 2006/12/20 Date test campaign completed: 2007/01/25 Date of issue: 2007/02/06 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 89 pages Total number of pages of photos: External photos 1 pages Internal photos 4 pages Setup photos 2 pages Test Engineer Checked By Approved By Eric Lin, James Joe Hsieh Jeff Pong FCC ID: S9ADECT33-B70-B31 Sheet 2 of 89 Sheets IC ID: 6801A-D33B7031 ETC Report No.: 06-12-MAS-201-02 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Table of Contents Page 1 GENARAL INFORMATION.........................................................................................................4 1.1 Testing Laboratory.....................................................................................................................4 1.2 Client Information.......................................................................................................................4 1.3 Manufacturer...............................................................................................................................4 2 TEST INFORMATION..................................................................................................................5 2.1 Description of Tested Device(s)..............................................................................................5 2.2 Test Environment.......................................................................................................................5 3 TEST REPORT SUMMARY........................................................................................................6 3.1 Test Summary............................................................................................................................6 3.2 Other Comments........................................................................................................................7 4 TEST SETUP.................................................................................................................................8 4.1 Frequency and Timing Measurements...................................................................................8 4.2 Conducted Emission Tests......................................................................................................8 4.3 Radiated Emission Tests..........................................................................................................9 4.4 Power line Conducted Tests....................................................................................................9 4.5 Monitoring Tests.......................................................................................................................10 5 TEST EQUIPMENT LIST...........................................................................................................11 6 TEST RESULT............................................................................................................................12 6.1 Coordination with fixed microwave........................................................................................12 6.2 Cross Reference......................................................................................................................13 6.3 Labeling Requirements...........................................................................................................15 6.4 Power line Conducted Emissions..........................................................................................16 6.5 Antenna Requirement.............................................................................................................19 6.6 Digital Modulation Techniques...............................................................................................19 6.7 Peak Transmit Power..............................................................................................................20 6.8 Power Spectral Density...........................................................................................................24 6.9 Antenna Gain............................................................................................................................28 6.10 Automatic discontinuation of transmission........................................................................28 6.11 Safety exposure levels..........................................................................................................29 6.12 Emission Bandwidth B..........................................................................................................30 6.13 Monitoring time.......................................................................................................................34 6.14 Monitoring threshold..............................................................................................................35 6.15 Maximum transmit period.....................................................................................................36 6.16 System Acknowledgement...................................................................................................38 FCC ID: S9ADECT33-B70-B31 Sheet 3 of 89 Sheets IC ID: 6801A-D33B7031 ETC Report No.: 06-12-MAS-201-02 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kon…

Text truncated - open the document above for the full version.

FCC ID: S9ADECT33-B70-B31 ETC Report No.: 06-12-MAS-201-02 IC ID: 6801A-D33B7031 Page 1 of 2 Photos of Radiation Measuring Setup FCC ID: S9ADECT33-B70-B31 ETC Report No.: 06-12-MAS-201-02 IC ID: 6801A-D33B7031 Page 2 of 2 Photos of Conduction Measuring Setup
