S9ADECT33-S37US DECT PHONE - BASE

xd6401 DECT 6.0 Cordless Telephone with Caller ID 3 x CONTENTS Important Information 6What’s in the box? 7For your safety 7Installation requirements 7Need help Your Phone Overview 8Overview of the handset 9Handset Keys 10Display icons 11Base station overview 12Menu navigation Connect 13Connect to the base station 13Position the base station 14Connect the cables Install 15Install and charge the handset batteries 15Battery life and range 16Out of range 17Setting up your phone Call 18Make a call 20Call in progress TABLE OF CONTENTS CONTENTS(cont.) 22Hotkeys 22Intercom 23Three party conference call 23Call waiting 24Caller identification 24Voicemail Phonebook 25View and dial phonebook entries 26Edit phonebook entry 28Copying phonebook entries 29Dialing code 30Useful numbers Calls List 32Calls List 33Viewing the calls list 35Access the redial list Clock & Alarm 36Date & time 37Alarm Settings 38Handset setting 45Base settings 47System PIN 47Factory Default 4 CONTENTS(cont.) Registration 48Registration 50Switch Bases Troubleshooting 52Troubleshooting General Information 54Conformity 55Recycling and disposal TABLE OF CONTENTS 5 x 6 ongratulations on your selection of this quality product byXACT Communication. With proper care and adherence to the set-up and user instructions in this Owner's Manual, this unit will provide you with years of trouble-free service. XACTis committed to providing quality products that fit your needs.We would like to have any comments or suggestions you might have on this product.You may mail your comments to: XACT Communication, LLC 105 Madison Avenue New York, NY 10016 [email protected] WHAT’S IN THE BOX? User manual Edge 1.4 handset Edge 1.4 base station Line cord Power adapter for base station Battery door 2 x AAA rechargeable batteries Warranty information In the event that any item is missing or if you find any mismatch or damage, promptly contact your retailer. C FOR YOUR SAFETY 7 x FOR YOUR SAFETY This equipment is not designed to make emergency calls in the event of a power failure. An alternative means of communication must be available to make emergency calls when this phone has no power. • Do not allow the product to come into contact with liquid. • Do not open it as you could be exposed to high voltages. • Never use any battery type other than the one supplied.There is a risk of explosion if the batteries are replaced by an incorrect type. Dispose of used batteries according to all applicable laws and regulations. • When the phone is ringing or when activating the speaker phone, please do not hold the handset too close to your ear as it may damage your hearing. INSTALLATION REQUIREMENTS This product requires an electrical supply of 110 volts of alternating current. In case of power failure, the communication will be lost.The electrical network is classified as hazardous according to criteria in the standardUL 60-950.The only way to power down this product is to unplug the power supply unit from the electrical outlet. Ensure the electrical outlet is located close to the apparatus and is always easily accessible. The voltage on the network is classified asTNV-3 (Telecommunication Network Voltages), as defined in the standard EN 60-950. NEED HELP? Troubleshooting on Page 50-53 Online Help: www.getxact.com 8 OVERVIEW OF THE HANDSET Earpiece Right soft key/Contacts End call/Exit menu key Down key Alphanumeric keypad Intercom keyFlash key Talk/Speakerphone key Up key Left soft key/Menu LCD screen Microphone HANDSET KEYS 9 x HANDSET KEYS SOFT KEYS The soft keys are the and keys directly below the screen. Up/Down Key Scroll through lists and menus Increase earpiece volume or speaker volume Answer a call Switch between handset and speakerphone during a call End a call Exit a menu key Alphanumeric keypad Switch between phone calls Intercom Right soft key (Menu) Left soft key (Contacts) PressTo 10 DISPLAY ICONS Status IconDescription Handset battery charge level Ringer volume is set to ‘off’ Alarm clock is activated Reminder IconDescription New voicemail messages on your network answer service Missed call BASE STATION OVERVIEW 11 x BASE STATION OVERVIEW Here is a quick view of the menu options available on your phone. For a full explanation of each menu option, see the detailed sections in this User Manual. MENU Add Names, edit and manage your phonebook entries Calls Lists Displaydetails missed, received, dialed and network voicemail calls. Call, save or delete numbers. Useful NumbersStore up to 10 important phone numbers for easy dialing Clock & AlarmSet the date and time, set an alarm time Handset SettingsSet ring tone, ringer volume, receiver volume, handset name, language, wallpaper, screensaver and more on the handset. Base SettingsSet dialing mode, ring priority, system PIN, master reset and more on the base station RegistrationRegister and unregister handsets. Select preferred base. Paging key Paging key Charge Indicator In-use Indicator MENU NAVIGATION The basic steps of navigating through the menus and on-screen options: (1) From the standby screen, press Menu. The main menu is opened. (2) Use scroll through the options and press Selectto open the menu displayed. (3) Use the and soft keys to select on-screen options, eg. Selectto choose the highlighted option, or Backto return to the previous menu. STANDBY MODE If you do not press any button on the handset for 30 seconds the display will automatically return to standby mode. It will also return to standby mode if the handset is placed on the base station. 12 CONNECT TO THE BASE STATION CONNECT TO THE BASE STATION Note:The position in which you placed the base station can have an effect on the range and performance of your phone. Avoid placing the base station too close to large metal objects such as filing cabinets, radiators or electrical appliances. This can impair the range and sound quality. Buildings with thick internal and external walls may impair transmission of signals to and from the base. P…

Text truncated - open the document above for the full version.

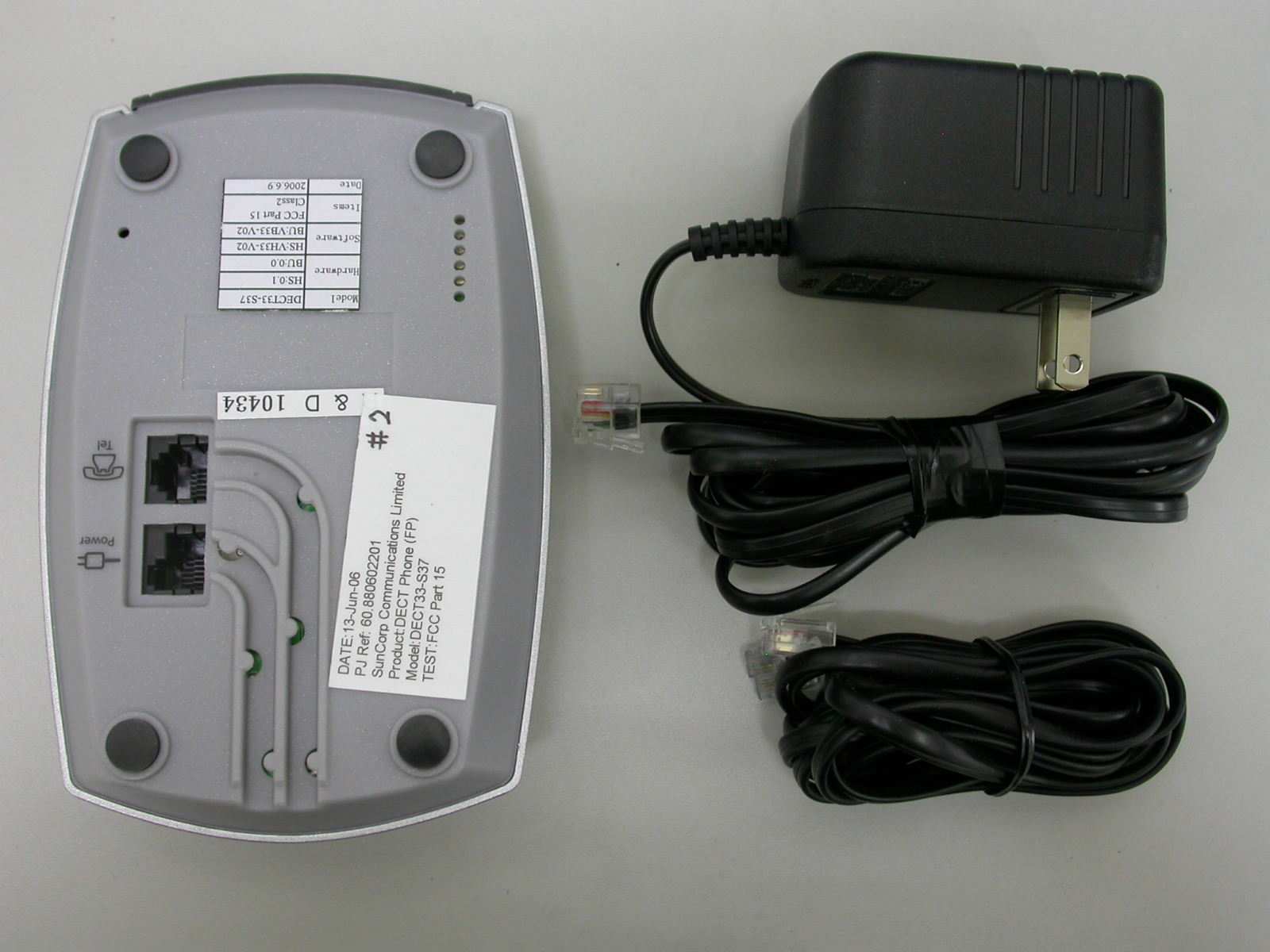

ETC Report No.: 06-06-MAS-195-02 Page A1 of A1 FCC ID: S9ADECT33-S37 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT

FCC ID Label_Location

ETC Report No.: 06-06-MAS-195-02 Page B1 of B3 FCC ID: S9ADECT33-S37 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT ETC Report No.: 06-06-MAS-195-02 Page B2 of B3 FCC ID: S9ADECT33-S37 3. Front view of PCB 4. Rear view of PCB ETC Report No.: 06-06-MAS-195-02 Page B3 of B3 FCC ID: S9ADECT33-S37 5. Front view of PCB2

ETC Report No.: 06-06-MAS-195-02 Sheet 32 of 93 Sheets FCC ID: S9ADECT33-S37 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong 6.11 Safety exposure levels 6.11.1 Standard Applicable: FCC 15.319(i) UPCS devices are subject to the radio frequency radiation exposure requirements specified in FCC parts 1.1307 (b), 2.1091 and 2.1093, as appropriate. All equipment shall be considered to operate in a “general population / uncontrolled environment. For portable devices tests according to IEEE 1528 are requested, if applicable. 6.11.2 Measurement procedure Consideration of radio frequency radiation exposure for EUT is done as SAR test according IEEE1528 (for PP) MPE calculation as below (for FP, Repeater) SAR test results: not applicable MPE calculation: The EUT is considered as a mobile device according to OET Bulletin 65, Edition -97-01. Therefore distance to human body of min. 20 cm is determined. The limit of Power density for General Population / Umcontrolled Exposure is 1.0 mW/cm². Formula: S = EIRP / 4πR² Calculation: EIRP Radiated Power (dBm) 20.00 EIRP Radiated Power (mW) 100.0 R Distance (cm) 20 S Power Density (mW/cm²) 0.020 6.11.3 Results ： ：： ：Comply

ETC Report No.: 06-06-MAS-195-02 Sheet 1 of 93 Sheets FCC ID: S9ADECT33-S37 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong CONFORMANCE TEST REPORT FOR FCC Part 15, subpart D Report No.: 06-06-MAS-195-02 Client: Suncorp Communications Limited Product: US DECT PHONE - BASE (FP) Model: DECT33-S37 FCC ID: S9ADECT33-S37 Manufacturer/supplier: Shenzhen Top Guo Wei Electronics Co., Ltd Date test item received: 2006/06/07 Date test campaign completed: 2006/07/06 Date of issue: 2006/07/06 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 93 pages Total number of pages of photos: External photos 1 pages Internal photos 3 pages Setup photos 2 pages Test Engineer Checked By Approved By James Cheng Joe Hsieh Jeff Pong ETC Report No.: 06-06-MAS-195-02 Sheet 2 of 93 Sheets FCC ID: S9ADECT33-S37 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Table of Contents Page 1 GENARAL INFORMATION..............................................................................................4 1.1 Testing Laboratory ........................................................................................................4 1.2 Client Information ..........................................................................................................4 1.3 Manufacturer .................................................................................................................4 2 TEST INFORMATION ......................................................................................................5 2.1 Description of Tested Device(s) ....................................................................................5 2.2 Test Environment ..........................................................................................................5 3 TEST REPORT SUMMARY.............................................................................................6 3.1 Test Summary...............................................................................................................6 3.2 Other Comments...........................................................................................................7 4 TEST SETUP ...................................................................................................................8 4.1 Frequency and Timing Measurements..........................................................................8 4.2 Conducted Emission Tests ...........................................................................................8 4.3 Radiated Emission Tests ..............................................................................................9 4.4 Power line Conducted Tests .........................................................................................9 4.5 Monitoring Tests..........................................................................................................10 5 TEST EQUIPMENT LIST ...............................................................................................11 6 TEST RESULT...............................................................................................................12 6.1 Coordination with fixed microwave ..............................................................................12 6.2 Cross Reference .........................................................................................................13 6.3 Labeling Requirements ...............................................................................................14 6.4 Power line Conducted Emissions................................................................................15 6.5 Antenna Requirement .................................................................................................22 6.6 Digital Modulation Techniques ....................................................................................22 6.7 Peak Power Output .....................................................................................................23 6.8 Power Spectral Density ...............................................................................................27 6.9 Antenna Gain ..............................................................................................................31 6.10 Automatic discontinuation of transmission ................................................................31 6.11 Safety exposure levels ..............................................................................................32 6.12 Emission Bandwidth B ..............................................................................................33 6.13 Monitoring time..........................................................................................................37 6.14 Monitoring threshold..................................................................................................37 6.15 Maximum transmit period ..........................................................................................38 6.16 System Acknowledgement ........................................................................................40 ETC Report No.: 06-06-MAS-195-02 Sheet 3 of 93 Sheets FCC ID: S9ADECT33-S37 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong 6.18 Random waiting ........................................................................................................57 6.19 Monitoring bandwidth and reaction time....................................................................58 6.20 Monitoring antenna ...................................................................................................65 6.21 Monitoring threshold relaxation .................................................................................66 6.22 Duplex system LBT ............…

Text truncated - open the document above for the full version.

ETC Report No.: 06-06-MAS-195-02 Sheet 1 of 2 Sheets FCC ID: S9ADECT33-S37 Photos of Radiation Measuring Setup ETC Report No.: 06-06-MAS-195-02 Sheet 2 of 2 Sheets FCC ID: S9ADECT33-S37 Photos of Conduction Measuring Setup
