Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
IMPORTANT SAFETY INSTRUCTIONS x IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, basic safety precautions should always be followed to reduce risk of fire, electric shock and injury to persons, including the following: 1. Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. 2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. 3. Do not use the telephone to report a gas leak in the vicinity of the leak. 4. Use only the power supplies that come with this unit (Type no. MB102-065030andLF093 00D-41). Use only McNair brand Ni-MH type rechargable batteries of type no. MH- AAA550mAh. Do not dispose of batteries in a fire.They may explode. Check with local codes for possible special disposal instructions. 5. Plug the adaptor to the socket-outlet that is near the equipment and shall be easily accessi- ble. 6. CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. SAVE THESE INSTRUCTIONS FCC INTERFERENCE INFORMATION x FCC Interference Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio com- munications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is “receiving” the interference. • Reorient or relocate and increase the separation between the telecommunications equip- ment and receiving antenna. • Connect the telecommunications equipment into an outlet on a circuit different from that to which the receiving antenna is connected. FCC RF Radiation Exposure Statement The installation of the base unit should allow at least 20 centimeter between the base and persons in compliance with FCC RF exposure guidelines. For body worn operation, the portable part (handset) has been tested and meets FCC RF exposure guidelines. This device must not be co-located or operating in conjunction with any other antenna or transmitter.The changes or modifications not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. 1.1 Handset description 1.1.1 Handset keypad Some keys have more than one usage depending on the MMI state (standby, in call, menu mode). The table hereafter gives all the possible actions for each key. In the following chapters, the reference for one key will be indicated with the main action of the key. Sometimes the second (or third) meaning will be indicated as follows: KEY_USE1/KEY_USE2. Talk mode Menu mode Key name Standby mode Incoming call from incoming call Outgoing call Phoneboo k mode KEY_MENU/OK MENU Enter menu confirm confirm KEY_LNR Redial/Pause Enter Redial list Pause Redial (first key in call) Pause (after first key) Pause KEY_UP/CLIP Enter CLIP list Ringer volume up Receiver Volume Up Receiver Volume Up choose choose KEY_DOWN/CLIP Enter CLIP list Ringer volume down Receiver Volume Down Receiver Volume Down choose choose KEY_MEM/EXIT Enter Phonebook Enter Phonebook Enter Phonebook Exit Exit KEY_CLEAR X Toggle Mute Toggle Mute Clear Clear KEY_HOOK Go in TALK mode Go in TALK mode Standby mode Standby mode KEY_INT Int Intercom Transfer the call Transfer the call KEY_R/POWER R Power off (hold) Flash Flash KEY_0 0 Pre-dial 0 Dial 0 Dial 0 0 KEY_1 1 Pre-dial 1 (DDK1:Long) Dial 1 Dial 1 1 KEY_2 2 Pre-dial 2 (DDK2:Long) Dial 2 Dial 2 2 KEY_3 3 Pre-dial 3 Dial 3 Dial 3 3 KEY_4 4 Pre-dial 4 Dial 4 Dial 4 4 KEY_5 5 Pre-dial 5 Dial 5 Dial 5 5 1 of 25 KEY_6 6 Pre-dial 6 Dial 6 Dial 6 6 KEY_7 7 Pre-dial 7 Dial 7 Dial 7 7 KEY_8 8 Pre-dial 8 Dial 8 Dial 8 8 KEY_9 9 Pre-dial 9 Dial 9 Dial 9 9 KEY_STAR/LOCK * Pre-dial * Toggle key lock (Hold) Dial * Go into DTMF mode from pulse Dial * Go into DTMF mode from pulse * KEY_HASH # Pre-dial # Dial # Go into Conference call Dial # Go into Conference call # Short press is less than 1 second Long press is more than 1.5 second Hold is press and hold more than 3 seconds 2 of 25 1.1.2 LCD display The LCD display is composed of 12 characters in capital letter form (12 * 14 segments alphanumeric chars) and 16 icons. The definition of the icons is as follows: Icon NAME Definition HOOK_IND Off hook indicator EXT EXT External call engaged INT INT Internal call engaged NEW_CLIP_IND Caller identification available /new numbers in call listing CLIP_ANSWERED indicate answered call CLIP_UNANSWER ED indicate unanswered call PHONEBOOK_IND Phonebook indicator MENU_IND Menu indicator BATTERY 3 levels battery indicator 1 segment: weak, 2 segments: medium, 3 segments: full The segments scroll during battery recharging and stop scrolling when battery is full LOCK_IND Handset keypad locked ANTENNA Signal strength indicator. The icon is steady when handset is locked to its base The icon flashes when the handset is unlocked or not subscribed to any base W LEFT_ARROW Indicates that displayed number is longer than the scr…
Text truncated - open the document above for the full version.

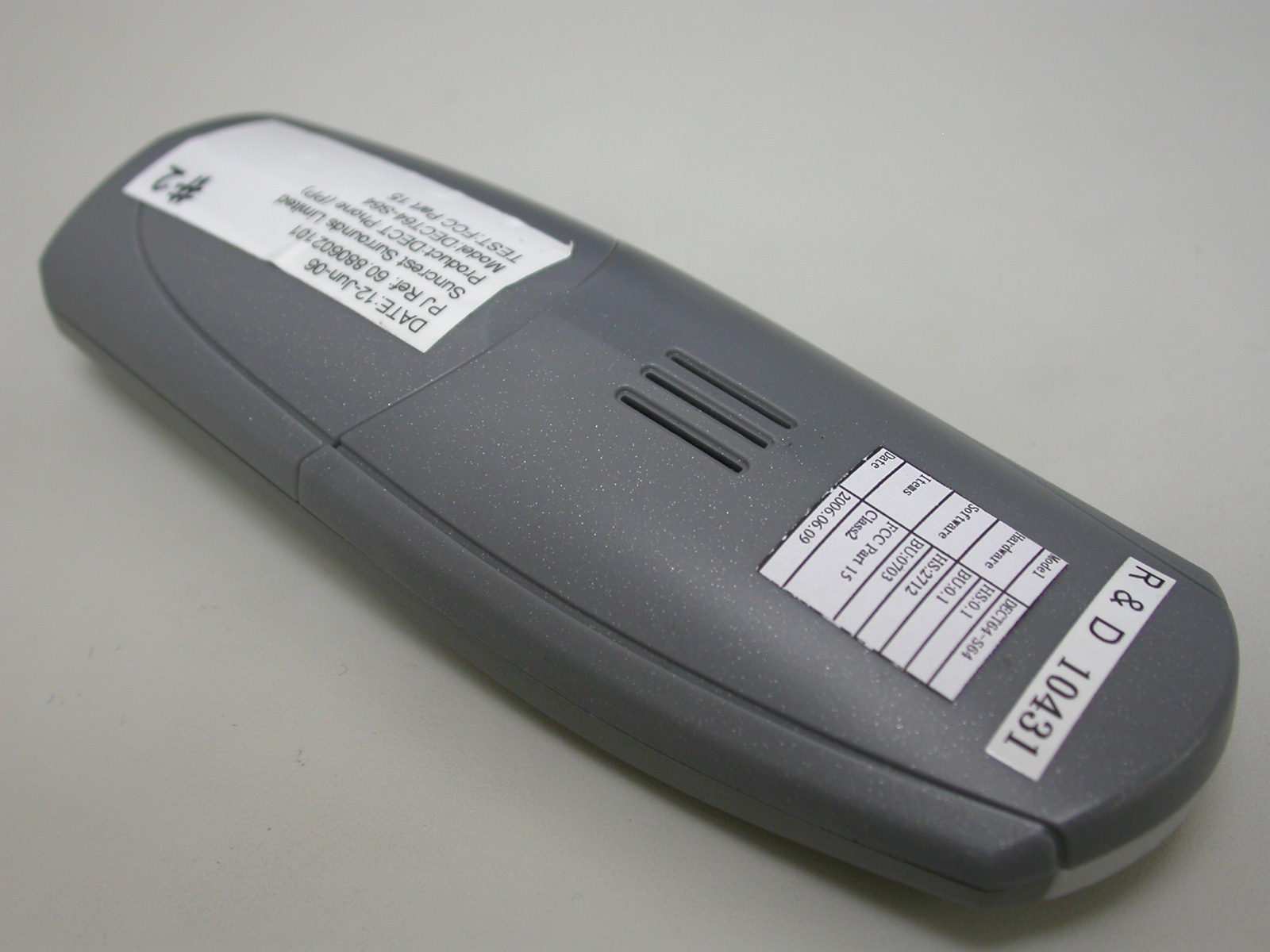

FCC ID: S9ADECT64-S64 ETC Report No.: 06-06-MAS-178-01 Page A1 of A1 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT
FCC ID Label_Location
FCC ID: S9ADECT64-S64 ETC Report No.: 06-06-MAS-178-01 Page B1 of B3 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT FCC ID: S9ADECT64-S64 ETC Report No.: 06-06-MAS-178-01 Page B2 of B3 3. Front view of PCB1 4. Rear view of PCB1 FCC ID: S9ADECT64-S64 ETC Report No.: 06-06-MAS-178-01 Page B3 of B3 5. Front view of PCB2
FCC ID: S9ADECT64-S64 Page 1 of 60 Report No.: 06-06-MAS-178-03 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong FCC ID: S9ADECT64-S64 Report No.: 06-06-MAS-178-03 Client: Suncorp Communications Limited Product: US DECT Handset Model: DECT64-S64 Manufacturer/supplier: Shenzhen Guo Wei Electronics Co., Ltd. Date test item received: 2006/06/13 Date test campaign completed: 2006/07/13 Date of issue: 2006/07/18 Test Result: ■ Compliance □ Not Compliance Statement of Compliance: The SAR values measured for the test sample are below the maximum recommended level of 1.6 mW/g averaged over any 1g tissue according to FCC OET Bulletin 65 Supplement C (Edition 01-01) and Industry Canada RSS-102 (Issue 2, 2005). The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 60 pages Test Engineer Eric Lin Checked by Joe Hsieh Approved by TÜV HK Jeff Pong The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. SAR Evaluation Report for FCC OET Bulletin 65 Supplement C and Industry Standard RSS-102 Issue 2 FCC ID: S9ADECT64-S64 Page 2 of 60 Report No.: 06-06-MAS-178-03 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Applicant Information Client : Suncorp Communications Limited Address : Room 1907-08, Harcourt House, 39 Gloucester Road, Wanchai, Hong Kong Contact : CW Cheung Title : Head of Engineering Department Manufacturer : Shenzhen Guo Wei Electronics Co., Ltd. Address : No.68 Guowei Road, Liantang Industrial District, Shenzhen, P.R.C. EUT : UPCS DECT Cordless Handset Trade Name : SUNCORP Model No. : DECT64-S64 Standard Applied : FCC OET 65 Supplement C (Edition 01-01, June 2001) Industry Standard RSS-102 Issue 2 (November 2005) IEEE Standard 1528-2003 Test Location : Electronics Testing Center, Taiwan (www.etc.org.tw) No.8, Lane 29, Wenming RD.,LeShan Tsuen, GuiShan Shiang,Taoyuan County 33383, Taiwan, R.O.C. The US DECT handset of DECT64-S64 is in compliance with the FCC Report and Order 93-326 and Health Canada Safety Code 6, and the tests were performed according to the FCC OET65c and RSS-102 Issue 2 for uncontrolled exposure. FCC ID: S9ADECT64-S64 Page 3 of 60 Report No.: 06-06-MAS-178-03 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Table of Contents EXECUTIVE SUMMARY........................................................................................................................ 5 1. GENERAL INFORMATION............................................................................................................. 6 1.1 Description of Equipment Under Test ..................................................................................... 6 1.2 Photograph of EUT .................................................................................................................. 6 1.3 Environment Conditions .......................................................................................................... 7 1.4 FCC Requirements for SAR Compliance Testing ................................................................... 7 1.4.1 RF Exposure Limits ..........................................................................................................................7 1.5 The SAR Measurement Procudure for Mobile ........................................................................ 8 1.5.1 General Requirements.......................................................................................................................8 1.5.2 Phantom Requirements .....................................................................................................................8 1.5.3 Test Positions ....................................................................................................................................8 1.5.4 Test Procedures...............................................................................................................................10 2 D ESCRIPTION OF THE TEST EQUIPMENT.................................................................................. 11 2.1 Test Equipment List ............................................................................................................... 11 2.2 DASY4 Measurement System Diagram: ............................................................................... 12 2.3 DASY4 Measurement Server................................................................................................. 13 2.4 DAE (Data Acquisition Electronics)...................................................................................... 14 2.5 Phantom.................................................................................................................................. 15 2.6 Device Holder ........................................................................................................................ 15 2.7 Specifications of Probes ......................................................................................................... 16 2.8 SAR Measurement Procedures in DASY4............................................................................. 16 2.9 Simulating Liquids ................................................................................................................. 17 2.10 System Performance Check.................................................................................................... 17 2.10.1 Purpose .......................................................................................................................................17 2.10.2 System Performance Check Procedure................…
Text truncated - open the document above for the full version.
FCC ID: S9ADECT64-S64 Page 34 of 60 Report No.: 06-06-MAS-178-03 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Left Head FCC ID: S9ADECT64-S64 Page 35 of 60 Report No.: 06-06-MAS-178-03 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Left Cheek FCC ID: S9ADECT64-S64 Page 36 of 60 Report No.: 06-06-MAS-178-03 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong FCC ID: S9ADECT64-S64 Page 37 of 60 Report No.: 06-06-MAS-178-03 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Left Tilted FCC ID: S9ADECT64-S64 Page 38 of 60 Report No.: 06-06-MAS-178-03 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Right Head FCC ID: S9ADECT64-S64 Page 39 of 60 Report No.: 06-06-MAS-178-03 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Right Cheek FCC ID: S9ADECT64-S64 Page 40 of 60 Report No.: 06-06-MAS-178-03 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Right Tilted FCC ID: S9ADECT64-S64 Page 41 of 60 Report No.: 06-06-MAS-178-03 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Left Cheek FCC ID: S9ADECT64-S64 Page 42 of 60 Report No.: 06-06-MAS-178-03 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Left Cheek FCC ID: S9ADECT64-S64 Page 43 of 60 Report No.: 06-06-MAS-178-03 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong ANNEX C: DIPOLE CERTIFICATE FCC ID: S9ADECT64-S64 Page 44 of 60 Report No.: 06-06-MAS-178-03 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong FCC ID: S9ADECT64-S64 Page 45 of 60 Report No.: 06-06-MAS-178-03 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong FCC ID: S9ADECT64-S64 Page 46 of 60 Report No.: 06-06-MAS-178-03 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong FCC ID: S9ADECT64-S64 Page 47 of 60 Report No.: 06-06-MAS-178-03 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong FCC ID: S9ADECT64-S64 Page 48 of 60 Report No.: 06-06-MAS-178-03 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong FCC ID: S9ADECT64-S64 Page 49 of 60 Report No.: 06-06-MAS-178-03 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong FCC ID: S9ADECT64-S64 Page 50 of 60 Report No.: 06-06-MAS-178-03 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong FCC ID: S9ADECT64-S64 Page 51 of 60 Report No.: 06-06-MAS-178-03 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong FCC ID: S9ADECT64-S64 Page 52 of 60 Report No.: 06-06-MAS-178-03 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong ANNEX D: PROBE CERTIFICATE FCC ID: S9ADECT64-S64 Page 53 of 60 Report No.: 06-06-MAS-178-03 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong FCC ID: S9ADECT64-S64 Page 54 of 60 Report No.: 06-06-MAS-178-03 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong FCC ID: S9ADECT64-S64 Page 55 of 60 Report No.: 06-06-MAS-178-03 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong FCC ID: S9ADECT64-S64 Page 56 of 60 Report No.: 06-06-MAS-178-03 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong FCC ID: S9ADECT64-S64 Page 57 of 60 Report No.: 06-06-MAS-178-03 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong FCC ID: S9ADECT64-S64 Page 58 of 60 Report No.: 06-06-MAS-178-03 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong FCC ID: S9ADECT64-S64 Page 59 of 60 Report No.: 06-06-MAS-178-03 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong FCC ID: S9ADECT64-S64 Page 60 of 60 Report No.: 06-06-MAS-178-03 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong
FCC ID: S9ADECT64-S64 ETC Report No. :06-06-MAS-178-01 Sheet 1 of 78 Sheets Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC Part 15, subpart D Report No.: 06-06-MAS-178-01 Client: Suncorp Communications Limited Product: DECT PHONE (PP) Model: DECT64-S64 FCC ID: S9ADECT64-S64 Manufacturer/supplier: Shenzhen Guo Wei Electronics Co., Ltd Date test item received: 2006/06/21 Date test campaign completed: 2006/08/10 Date of issue: 2006/08/15 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 78 pages Total number of pages of photos: External photos 1 pages Internal photos 3 pages Setup photos 2 pages Test Engineer Checked By Approved By Eric Lin Joe Hsieh Jeff Pong TÜV Hong Kong Ltd. - TÜV SÜD Group Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Kowloon FCC ID: S9ADECT64-S64 ETC Report No. :06-06-MAS-178-01 Sheet 2 of 78 Sheets Rev. No 1.0 Table of Contents Page 1 GENARAL INFORMATION...............................................................................................................4 1.1 Testing Laboratory...........................................................................................................................4 1.2 Client Information.............................................................................................................................4 1.3 Manufacturer....................................................................................................................................4 2 TEST INFORMATION........................................................................................................................5 2.1 Description of Tested Device(s)....................................................................................................5 2.2 Test Environment.............................................................................................................................5 3 TEST REPORT SUMMARY..............................................................................................................6 3.1 Test Summary..................................................................................................................................6 3.2 Other Comments.............................................................................................................................7 4 TEST SETUP.......................................................................................................................................8 4.1 Frequency and Timing Measurements........................................................................................8 4.2 Conducted Emission Tests............................................................................................................8 4.3 Radiated Emission Tests................................................................................................................9 4.4 Power line Conducted Tests..........................................................................................................9 4.5 Monitoring Tests............................................................................................................................10 5 TEST EQUIPMENT LIST................................................................................................................11 6 TEST RESULT..................................................................................................................................12 6.1 Coordination with fixed microwave.............................................................................................12 6.2 Cross Reference............................................................................................................................13 6.3 Labeling Requirements.................................................................................................................14 6.4 Power line Conducted Emissions...............................................................................................15 6.5 Antenna Requirement...................................................................................................................16 6.6 Digital Modulation Techniques....................................................................................................16 6.7 Peak Transmit Power....................................................................................................................17 6.8 Power Spectral Density................................................................................................................21 6.9 Antenna Gain.................................................................................................................................25 6.10 Automatic discontinuation of transmission..............................................................................25 6.11 Safety exposure levels...............................................................................................................26 6.12 Emission Bandwidth B................................................................................................................27 6.13 Monitoring time............................................................................................................................31 6.14 Monitoring threshold...................................................................................................................31 6.15 Maximum transmit period...........................................................................................................32 6.16 System Acknowledgement.........................................................................................................34 FCC ID: S9ADECT64-S64 ETC Report No. :06-06-MAS-178-01 Sheet 3 of 78 Sheets Rev. No 1.0 6.17 Least Interfered Channel, LIC..................................................................…
Text truncated - open the document above for the full version.
FCC ID: S9ADECT64-S64 ETC Report No.: 06-06-MAS-178-01 Page 1 of 2 Photos of Radiation Measuring Setup x-axis FCC ID: S9ADECT64-S64 ETC Report No.: 06-06-MAS-178-01 Page 2 of 2 y-axis z-axis
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15D | 1.92 GHz - 1.93 GHz | 90.00 mW |

US DECT PHONE--BASE
Equipment Class
JBP - Part 15 Class B Computing Device Peripheral
Digital Cordless Phone - Base Unit
Equipment Class
PUB - Part 15 Unlicensed PCS Base Station
US DECT PHONE- HEADSET
Equipment Class
PUE - Part 15 Unlicensed PCS portable Tx held to ear
US DECT PHONE - HEADSET
Equipment Class
PUE - Part 15 Unlicensed PCS portable Tx held to ear
US DECT PHONE- BASE
Equipment Class
PUB - Part 15 Unlicensed PCS Base Station
