S9AWDCT45-AS2.4GHz WDCT Color Display

Important Instructions & Information 3 R0 Important Instructions & Information This User Guide provides you with all the information you need to get the most from your phone. You must first set up your phone before you can use it. This doesn’t take long and is easy to do. Just follow the simple instructions on the next few pages. Need help? If you have any problems setting up or using your Suncorp WDCT Color Display WDCT45-AS telephone, contact the Help line at 86-755-2573-3333. Alternatively, you may find the answer in ‘ Troubleshooting Tips’ at the back of this guide. Did you receive everything? • WDCT45-AS base • WDCT45-AS handset • 2 x NiMH AAA rechargeable batteries • Battery compartment cover • AC power adaptor • Telephone line cord • Belt Clip In addition: If you have purchased one or more additional handsets (T1261), you will have received the following for each additional handset: • T1261 handset • T1261 charger • 2 x NiMH AAA Rechargeable batteries • Battery compartment cover • AC power adaptor • Belt Clip 4 Important Instructions & Information R0 Important Safety Instructions To reduce the risk of fire. Electric shock, and injury to persons when using your telephone equipment, basic safety precautions should always be followed which includes the following: 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the product 3. Unplug the equipment from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 4. Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink, or laundry tub, in a wet basement or near a swimming pool. 5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product. 6. This product should be operated only from the power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your dealer or local power company. 7. Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by persons walking on it. 8. Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock. 9. Slots and openings in the cabinet at the back or bottom are provided for ventilation to protect it from overheating. These openings should never be blocked or covered. The openings should never be blocked by placing the product on the bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed in a built-in installation unless proper ventilation is provided. 10. Never push objects of any kind into this product through cabinets slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the product. 11. Do not use the telephone to report a gas leak in the vicinity of the leak. 12. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. 13. To reduce the risk of electric shock, do not disassemble this product, but take it to a qualified service contractor when some service or repair work is required. Opening or removing covers may expose you to dangerous voltage or other risks. Incorrect reassembly can cause electric shock when the unit is subsequently used. 14. Unplug the product from the wall outlet and refer to servicing to qualified personnel under the following conditions: A. If Liquid has been spilled into the product. B. When the power supply cord or plug is damaged or frayed. C. If the product does not operate normally by following the instruction manual. D. If the product has been dropped or the cabinet has been damaged. E. If the product exhibits a distinctive change in performance. Important Instructions & Information 5 R0 Battery Safety Instruction CAUTION: To reduce the risk of fire or personal injury, read and follow these instructions: 1. Use only the following type and size handset batteries: DC 1.2V, 750 mAh, Ni-MH (Nickel Metal Hydride), AAA size batteries (2 each). 2. When inserting the batteries into the product, the proper polarity or direction must be observed. Reverse insertion of the batteries can cause charging that may result in leakage or explosion. 3. Do not dispose of the batteries in a fire. The cell may explode. Check with local codes for possible special disposal instructions. 4. Do not open or mutilate the batteries. Released electrolyte is corrosive and may cause damage to the eyes and skin. It may be toxic if swallowed. 5. Exercise care in handling the battery in order not to short the battery with conduction material such as rings, bracelets and keys. The battery or conductor may overheat and cause burns. 6. Recharge only the batteries provided with or identified for use with this product. The battery may leak corrosive electrolyte or explode if it is not the correct type. 7. Do not attempt to rejuvenate the battery provided with or identified for use with this product by heating them. Sudden released of the electrolyte may occur causing damage to the eyes or skin. 8. Remove the batteries form the product if the product will not be used for a long period of time (over 30 days) since during this time the batteries may leak in the product. 9. Discard dead batteries as soon as possible since dead batteries are more likely to leak in the product. 10. Do not store this product, or the batteries provide, in high temperature areas. Batteries that are stored in a freezer or refrigerator for the purpose of extending shelf life should be stabilized at room temperature prior to use. 11. Disconnect telephone lines before installing batteries. 12. When replacing batteries, all batteries should be replaced at the same time. Mixing fresh and discharged batteries could increase inte…

Text truncated - open the document above for the full version.

SUNCORP COMMUNICATIONS LIMITED Room 1907-8, Harcourt House,39 Gloucester Road, Wanchai, Hong Kong. Tel: +852-2572-6111 Fax: +852-2572-0880 Authorization Letter 09 September,2005 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 Dear Sir / Madam, We, the undersigned, hereby authorize ELECTRONICS TESTING CENTER, TAIWAN, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ELECTRONICS TESTING CENTER, TAIWAN on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ELECTRONICS TESTING CENTER, TAIWAN as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. By: By: CW Cheung (Signature) (Printed) Title : Head of Engineering Department Applicant: Suncorp Communications Limited Address : Room 1907-08, Harcourt House,39 Gloucester Road,Wanchai,Hong Kong Tel :+852-2572-6111 Fax: +852-2572-0880 Date :September 9 th ,2005

SUNCORP COMMUNICATIONS LIMITED Room 1907-8, Harcourt House,39 Gloucester Road, Wanchai, Hong Kong. Tel: +852-2572-6111 Fax: +852-2572-0880 Confidential Requirement Federal Communications Commission FCC ID: S9AWDCT45-AS Product Name: 2.4GHz WDCT Color Display Model Name: WDCT45-AS Trade Name: Suncorp Dear Sir: In accordance with 47 C.F.R. Section 0.459, we would like to request confidentiality on some exhibits we submitted for above application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: Block Diagram and Schematics and Operation Description. By: By: CW Cheung (Signature) (Printed) Title : Head of Engineering Department Applicant : Suncorp Communications Limited Address : Room 1907-08, Harcourt House, 39 Gloucester Road,Wanchai,Hong Kong Tel : +852-2572-6111 Fax: +852-2572-0880 Date : September 9 th ,2005

Helen Zhao Subject: FW: Urgent! - Suncorp Communications Limited, FCC ID: S9AWDCT45-AS, Assessment NO.: AN05T5197, Notice#1 From: iris Sent: Tuesday, October 18, 2005 12:40 AM To: Helen Zhao Subject: Re: Urgent! - Suncorp Communications Limited, FCC ID: S9AWDCT45-AS, Assessment NO.: AN05T5197, Notice#1 Dear Helen, #1-#6: Pls find the revised SAR report. #7: Pls find the attachment. Best Regards, Iris Lin Question #1: SAR Test Plots - Please provide a "color" copy (SAR Report Part 5). It is very difficult to find hot spot, as well as other detailed information, based upon black-white images. Question #2: SAR Test plots - Please justify why duty cycle = 1:12 was selected during the SAR test. Question #3: SAR Test Plots - Please explain why only one left section plot at low channel was included. Question #4: SAR Test Plots - Please indicate Ambient and liquid temperatures. Question #5: SAR test plots show head position was tested on 9/2/05, however there is no system performance check data for 9/2/05 listed on the SAR report, section 2.6.3. Please explain. Question #6: SAR System performance check plots were not submitted. Please note "SAR Report part 4" is missing, please check. Please make sure it is in color copy and include Ambient and liquid temperatures Question #7: Please address the following requirements as listed on Section 15.247(a)(1). Pseudorandom Frequency Hopping Sequence Describe how the hopping sequence is generated. Provide an example of the hopping sequence channels, in order to demonstrate that the sequence meets the requirement specified in the definition of a frequency hopping spread spectrum system, found in Section 2.1. Equal Hopping Frequency Use Describe how each individual EUT meets the requirement that each of its hopping channels is used equally on average (e.g., that each new transmission event begins on the next channel in the hopping sequence after the final channel used in the previous transmission event). System Receiver Input Bandwidth Describe how the associated receiver(s) complies with the requirement that its input bandwidth (either RF or IF) matches the bandwidth of the transmitted signal. System Receiver Hopping Capability Describe how the associated receiver(s) has the ability to shift frequencies in synchronization with the transmitted signals. ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET94S-09-023-02 1 Questions Question #2: SAR Test plots - Please justify why duty cycle = 1:12 was selected during the SAR test. Question #10: SAR Test report section 3.4 - The setup photos show that there is some kind of material, might be paper, used as reference mark on the EUT, please note it is not allowed, even though, the depth may be very little, still it may change SAR value. So please mark the reference line using pen, then remove the material, repeat the test at the channel with the highest SAR value. 2 Reply to Questions 2.1 Reply to Question #2 To use a spectrum (R&S FUS46) to scan with time domain the air-interface nearby of the handset under test and get the following picture: Ref 5 dBmAtt 10 dB * A * RBW 1 MHz VBW 1 MHz SWT 30 ms VIEW 1 AP -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -21.90 dBm 4.423077 ms 2 Delta 2 [T1 ] -1.01 dB 817.307692 μs 3 Delta 3 [T1 ] 0.00 dB 10.000000 ms Date: 13.OCT.2005 20:14:59 The duty period was between point 1 and 2 marked and the value was about 0.8 ms. The cycle-period was between point 1 and 3 marked and the value was 10ms. So, the duty cycle can be calculated by 0.8/10, the value is 0.08 and it is very close to 1: 12.

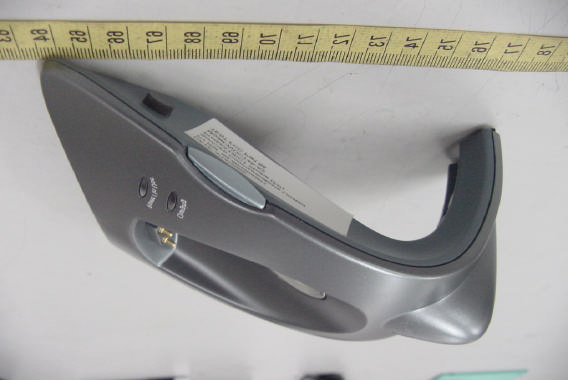

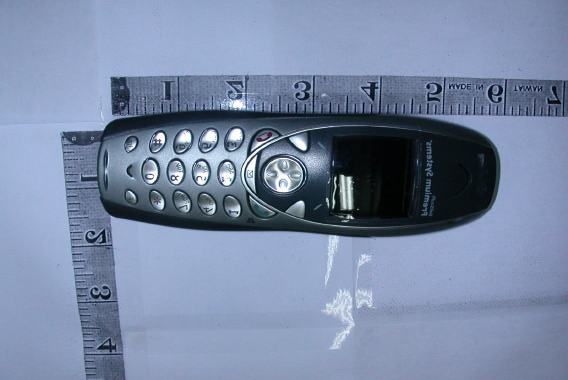

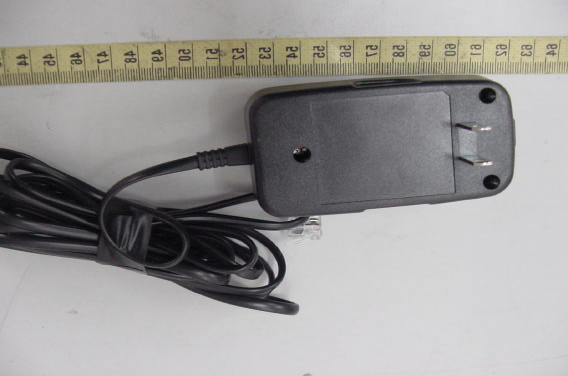

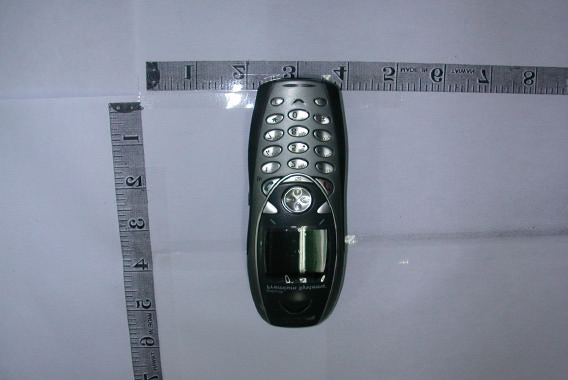

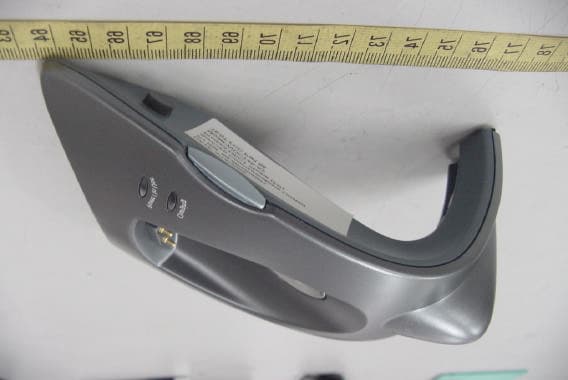

ETC Report No. : ET94R-07-090 FCC ID. : S9AWDCT45-AS Rev. No 1.0 CONSTRUCTED PHOTOS of EUT A. Base Unit 1. Front View of Base Unit 2. Rear View of Base Unit ETC Report No. : ET94R-07-090 FCC ID. : S9AWDCT45-AS Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Side View of Base Unit 4. Side View of Base Unit ETC Report No. : ET94R-07-090 FCC ID. : S9AWDCT45-AS Rev. No 1.0 CONSTRUCTED PHOTOS of EUT B. Handset 1. Front View of Handset 2. Rear View of Handset ETC Report No. : ET94R-07-090 FCC ID. : S9AWDCT45-AS Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Side View of Handset 4. Side View of Handset ETC Report No. : ET94R-07-090 FCC ID. : S9AWDCT45-AS Rev. No 1.0 CONSTRUCTED PHOTOS of EUT C. Adaptor 1. Front View of Adaptor 2. Rear View of Adaptor

ETC Report No. : ET94R-07-090 FCC ID. : S9AWDCT45-AS Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 5. Internal View of Base Unit 6. Component View of Base Unit’s Main PCB ETC Report No. : ET94R-07-090 FCC ID. : S9AWDCT45-AS Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 7. Component View of Base Unit’s Main PCB 8. Solder View of Base Unit’s Main PCB ETC Report No. : ET94R-07-090 FCC ID. : S9AWDCT45-AS Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 5. Internal View of Handset ETC Report No. : ET94R-07-090 FCC ID. : S9AWDCT45-AS Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 6. Component View of Handset’s Main PCB 7. Component View of Handset’s Main PCB ETC Report No. : ET94R-07-090 FCC ID. : S9AWDCT45-AS Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 8. Solder View of Handset‘s Main PCB ETC Report No. : ET94R-07-090 FCC ID. : S9AWDCT45-AS Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Internal View of Adaptor ETC Report No. : ET94R-07-090 FCC ID. : S9AWDCT45-AS Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 4. Component View of Adaptor‘s Main PCB 5. Solder View of Adaptor‘s Main PCB

ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET94S-09-023 Page 1 of 30 Electronics Testing Center, Taiwan (ETC) Rev. No.1.1c 1 SAR Evaluation Report for FCC OET Bulletin 65 Supplement C Report No.: ET94S-09-023 Client: Suncorp Communications Limited Product: 2.4GHz WDCT Color Display Model: WDCT45-AS Manufacturer/supplier: Shenzhen Guo Wei Electronics Co. Ltd Date test item received: 2005/08/29 Date test campaign completed: 2005/10/11 Date of issue: 2005/10/12 Test Result: ■ Compliance □ Not Compliance Statement of Compliance: The SAR values measured for the test sample are below the maximum recommended level of 1.6 mW/g averaged over any 1g tissue according to FCC OET Bulletin 65 Supplement C (Edition 01-01). The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 30 pages Total number of pages of annex: 48 pages Test Engineer Mark Chang Justin Ma Checked by Joe Hsieh Approved by Win-Po Tsai 0371 ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET94S-09-023 Page 2 of 30 Electronics Testing Center, Taiwan (ETC) Rev. No.1.1c 2 The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. Applicant Information Client : Suncorp Communications Limited Address : Room 1907-08, Harcourt House, 39 Gloucester Road, Wanchai, Hong Kong Contact : CW Cheung ([email protected] ) Title : Head of Engineering Department Manufacturer : Shenzhen Guo Wei Electronics Co. Ltd Address : No. 68 Guowei Road, Liantang Industrial District, Shenzhen, P.R.C. EUT : 2.4GHz WDCT Color Display Trade Name : SunCorp Model No. : WDCT45-AS Standard Applied : FCC OET 65 Supplement C (Edition 01-01, June 2001) The Suncorp DECT handset WDCT45-AS is in compliance with the FCC Report and Order 93-326 and the tests were performed according to the FCC OET65c. Laboratory Introduction: Electronics Testing Center, Taiwan is recognized, filed and mutual recognition arrangement as following: n ISO9001: TüV Product Service o ISO/IEC 17025: BSMI, CNLA, DGT, NVLAP, CCIBLAC, UL, Compliance p Filing: FCC, Industry Canada, VCCI q MRA: Australia, Hong Kong, New Zealand, Singapore, USA, Japan, Korea, China, APLAC through CNLA Laboratory Information: ELECTRONICS TESTING CENTER, TAIWAN NO.8, LANE 29, WEN-MING RD., LO-SHAN TSUN, KUI-SHAN HSIANG, TAOYUAN HSIEN 33383 TAIWAN, R.O.C. TEL: (03) 3276170~4 INT: +886-3-3276170~4 FAX: (03) 3276188 INT: +886-3-3276188 Internet: www.etc.org.tw ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET94S-09-023 Page 3 of 30 Electronics Testing Center, Taiwan (ETC) Rev. No.1.1c 3 Table of Contents EXECUTIVE SUMMARY........................................................................................................................ 5 1. GENERAL INFORMATION............................................................................................................. 6 1.1 Description of Equipment Under Test .......................................................................................... 6 1.2 Photograph of EUT .................................................................................................................. 6 1.3 Environment Conditions .......................................................................................................... 7 1.4 FCC Requirements for SAR Compliance Testing ................................................................... 7 1.4.1 RF Exposure Limits ..........................................................................................................................7 1.5 The SAR Measurement Procudure for Mobile ........................................................................ 8 1.5.1 General Requirements.......................................................................................................................8 1.5.2 Phantom Requirements .....................................................................................................................8 1.5.3 Test Positions ....................................................................................................................................8 1.5.4 Test Procedures .................................................................................................................................9 1.5.4 Test Procedures ...............................................................................................................................10 2 DESCRIPTION OF THE TEST EQUIPMENT.................................................................................. 10 2.1 Test Equipment List .................................................................................................................... 10 2.2 DASY4 Measurement System Diagram: .................................................................................... 12 2.3 DASY4 Measurement Server................................................................................................. 13 2.4 DAE (Data Acquisition Electronics)...................................................................................... 14 2.5 Phantom.................................................................................................................................. 14 2.6 Device Holder ........................................................................................................................ 15 2.7 Specifications of Probes ......................................................................................................... 16 2.8 SAR Measurement Procedures in DASY4 ............................................................................ 16 2.9 Simulating Liquids ................................................................…

Text truncated - open the document above for the full version.

ETC Report No.: ET94S-09-023 Page A1 of A1 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT

ETC Report No.: ET94S-09-023 Page B1 of B3 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT ETC Report No.: ET94S-09-023 Page B2 of B3 3. Front view of PCB 4. Front view of PCB ETC Report No.: ET94S-09-023 Page B3 of B3 5. Front view of PCB

ANNEX C System Performance Check Head Date/Time: 9/2/2005 10:34:30 AM Date/Time: 9/2/2005 10:37:39 AM Test Laboratory: Electronics Testing Center, Taiwan DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:764 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.82 mho/m; ε r = 38.2; ρ = 1000 kg/m 3 Medium parameters used: σ = 1.82384 mho/m, ε r = 38.1578; ρ = 1000 kg/m 3 Air temperature: 21.9 degC; Liquid temperature: 21.8 degC; Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1791; ConvF(4.58, 4.58, 4.58); Calibrated: 11/26/2004 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection)Sensor-Surface: 0mm (Fix Surface) - Electronics: DAE4 Sn629; Calibrated: 10/12/2004 - Phantom: SAM 12-1; Type: SAM4.0; Serial: TP-1346 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 SPC_H/Area Scan (31x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 16.6 mW/g SPC_H/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 94.4 V/m; Power Drift = -0.011 dB Peak SAR (extrapolated) = 28.0 W/kg SAR(1 g) = 12.9 mW/g; SAR(10 g) = 5.92 mW/g Maximum value of SAR (measured) = 14.5 mW/g SPC_H/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of Total (measured) = 72.7 V/m 0 dB = 14.5mW/g Date/Time: 10/11/2005 4:06:06 PMDate/Time: 10/11/2005 4:03:52 PMDate/Time: 10/11/2005 4:05:27 PM Test Laboratory: Electronics Testing Center, Taiwan DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:764 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.82 mho/m; ε r = 38.2; ρ = 1000 kg/m 3 Medium parameters used: σ = 1.82384 mho/m, ε r = 38.1578; ρ = 1000 kg/m 3 Air temperature: 23.3 degC; Liquid temperature: 20.5 degC; Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1791; ConvF(4.58, 4.58, 4.58); Calibrated: 11/26/2004 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection)Sensor-Surface: 0mm (Fix Surface) - Electronics: DAE4 Sn629; Calibrated: 10/12/2004 - Phantom: SAM 12-1; Type: SAM4.0; Serial: TP-1346 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 H_SPC/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 95.4 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 27.9 W/kg SAR(1 g) = 12.9 mW/g; SAR(10 g) = 5.95 mW/g Maximum value of SAR (measured) = 14.3 mW/g H_SPC/Area Scan (21x51x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 15.4 mW/g H_SPC/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of Total (measured) = 72.1 V/m 0 dB = 14.3mW/g System Performance Check Body Date/Time: 9/5/2005 2:07:14 PMDate/Time: 9/5/2005 2:09:12 PM Test Laboratory: Electronics Testing Center, Taiwan SystemPerformanceCheck-D2450-BSL DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:764 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.98 mho/m; ε r = 50.8; ρ = 1000 kg/m 3 ; Air Temperature 22.3 deg C; Liquid Temperature 21.9 deg C; Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1791; ConvF(4.31, 4.31, 4.31); Calibrated: 11/26/2004 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE4 Sn629; Calibrated: 10/12/2004 z Phantom: SAM 12 - 2; Type: SAM4.0; Serial: TP-1347 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 B_2450MHz_SPC-050905/Area Scan (21x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 14.9 mW/g B_2450MHz_SPC-050905/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 90.0 V/m; Power Drift = -0.023 dB Peak SAR (extrapolated) = 28.7 W/kg SAR(1 g) = 13 mW/g; SAR(10 g) = 6.03 mW/g Maximum value of SAR (measured) = 14.3 mW/g 0 dB = 14.3mW/g Left Head Date/Time: 9/2/2005 2:58:41 PMDate/Time: 9/2/2005 3:06:45 PM Test Laboratory: Electronics Testing Center, Taiwan DASY4-WDCT45-A2 DUT: WDCT45-A2; Type: 2.4GHz_DECT; Serial: R&D08067 Communication System: DECT; Frequency: 2402 MHz;Duty Cycle: 1:12 Medium parameters used: f = 2402 MHz; σ = 1.79 mho/m; ε r = 38.4; ρ = 1000 kg/m 3 Air temperature: 21.5 degC; Liquid temperature: 22.2 degC; Phantom section: Left Section DASY4 Configuration: z Probe: ET3DV6 - SN1791; ConvF(4.58, 4.58, 4.58); Calibrated: 11/26/2004 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE4 Sn629; Calibrated: 10/12/2004 z Phantom: SAM 12 - 2; Type: SAM4.0; Serial: TP-1347 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 2.4GHz_DECT_LC_LOW/Area Scan (141x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.252 mW/g 2.4GHz_DECT_LC_LOW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.9 V/m; Power Drift = -0.344 dB Peak SAR (extrapolated) = 0.410 W/kg SAR(1 g) = 0.219 mW/g; SAR(10 g) = 0.122 mW/g Warning: Maximum averaged SAR over 10 g is located on the boundary of the measurement cube. This cube might not incorporate the absolute averaged SAR. Please consider a refinement of the Area Scan measurement. Maximum value of SAR (measured) = 0.238 mW/g 0 dB = 0.238mW/g Date/Time: 9/2/2005 3:31:43 PMDate/Time: 9/2/2005 3:39:45 PM Test Laboratory: Electronics Testing Center, Taiwan DASY4-WDCT45-A2 DUT: WDCT45-A2; Type: 2.4GHz_DECT; Serial: R&D08067 Communication System: DECT; Frequency: 2441 MHz;Duty Cycle: 1:12 Medium parameters used: f = 2441 MHz; σ = 1.82 mho/m; ε r = 38.2; ρ = 1000 kg/m 3 ; Air temperature:21.3; Liquid temperature: 22.1;Phantom section: Left Section DASY4 Configuration: z Probe: ET3DV6 - SN1791; ConvF(4.58, 4.58, 4.58); Calibrated: 11/26/2004 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE4 Sn629; Calibrated: 10/12/2004 z Phanto…

Text truncated - open the document above for the full version.

ETC Report No.: ET94S-09-023ANNEX DPage 1/9 ETC Report No.: ET94S-09-023ANNEX DPage 2/9 ETC Report No.: ET94S-09-023ANNEX DPage 3/9 ETC Report No.: ET94S-09-023ANNEX DPage 4/9 ETC Report No.: ET94S-09-023ANNEX DPage 5/9 ETC Report No.: ET94S-09-023ANNEX DPage 6/9 ETC Report No.: ET94S-09-023ANNEX DPage 7/9 ETC Report No.: ET94S-09-023ANNEX DPage 8/9 ETC Report No.: ET94S-09-023ANNEX DPage 9/9

ETC Report No.: ET94S-09-023ANNEX EPage 1/9 ETC Report No.: ET94S-09-023ANNEX EPage 2/9 ETC Report No.: ET94S-09-023ANNEX EPage 3/9 ETC Report No.: ET94S-09-023ANNEX EPage 4/9 ETC Report No.: ET94S-09-023ANNEX EPage 5/9 ETC Report No.: ET94S-09-023ANNEX EPage 6/9 ETC Report No.: ET94S-09-023ANNEX EPage 7/9 ETC Report No.: ET94S-09-023ANNEX EPage 8/9 ETC Report No.: ET94S-09-023ANNEX EPage 9/9

ETC Report No.: ET94S-09-023 ANNEX F Left: Relative Humidity Right: Ambient Temperature Page 1/1

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. 2.4GHz WDCT Color Display Model WDCT45-AS FCC ID. S9AWDCT45-AS for APPLICANT Suncorp Communications Limited ADDRESS Room 1907-08, Harcourt House, 39 Gloucester Road, Wanchai, Hong Kong Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5 , DING FU TSUN, LINKOU HSIANG, TAIPEI HSIEN, TAIWA, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail : [email protected] Report Number : ET94R-07-090 ETC Report No. : ET94R-07-090 FCC ID. : S9AWDCT45-AS Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Suncorp Communications Limited : Room 1907-08, Harcourt House, 39 Gloucester Road, Wanchai, Hong Kong Manufacturer : Suncorp Communications Limited : Room 1907-08, Harcourt House, 39 Gloucester Road, Wanchai, Hong Kong Description of EUT : a) Type of EUT : 2.4GHz WDCT Color Display b) Trade Name : Suncorp c) Model No. : WDCT45-AS d) Power Supply : Model:4116-A40848 I/P: AC 110/230V, 50/60Hz, 50mA O/P: DC 6.5V, 180mA/150mA e) Frequency Range : 2401.056MHz-2480.544MHz Regulation Applied : FC…
