SA3-AGN3012MP1100MP312gR mPCI 1x2 b/g RoHS Card

tel: 650-726-1263 fax: 650-726-1252 [email protected] Thomas N. Cokenias EMC &Radio Approvals Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018 Compliance Certification Services 15 May 2006 561F Monterey Road Morgan Mill CA 95037 Attention: Application Examiner Reviewing Engineer Applicant: Airgo Networks Inc. FCC ID SA3-AGN3012MP1100 Description: 802.11bg 1x2mPCI radio module Re: Request for confidentiality per section 0.459 of the Rules To whom it may concern, Request is hereby submitted, on behalf of my client Airgo Networks Inc. to withhold from public review, for an indefinite period of time, certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Schematics Block Diagrams Operational Description ODM Installation instructions Rationale for request for confidentiality: Airgo has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. If you have questions or need further information, please contact the undersigned. Sincerely, tel: 650-726-1263 fax: 650-726-1252 [email protected] THOMAS N. COKENIAS EMC Consultant/Agent for Airgo Networks Inc.

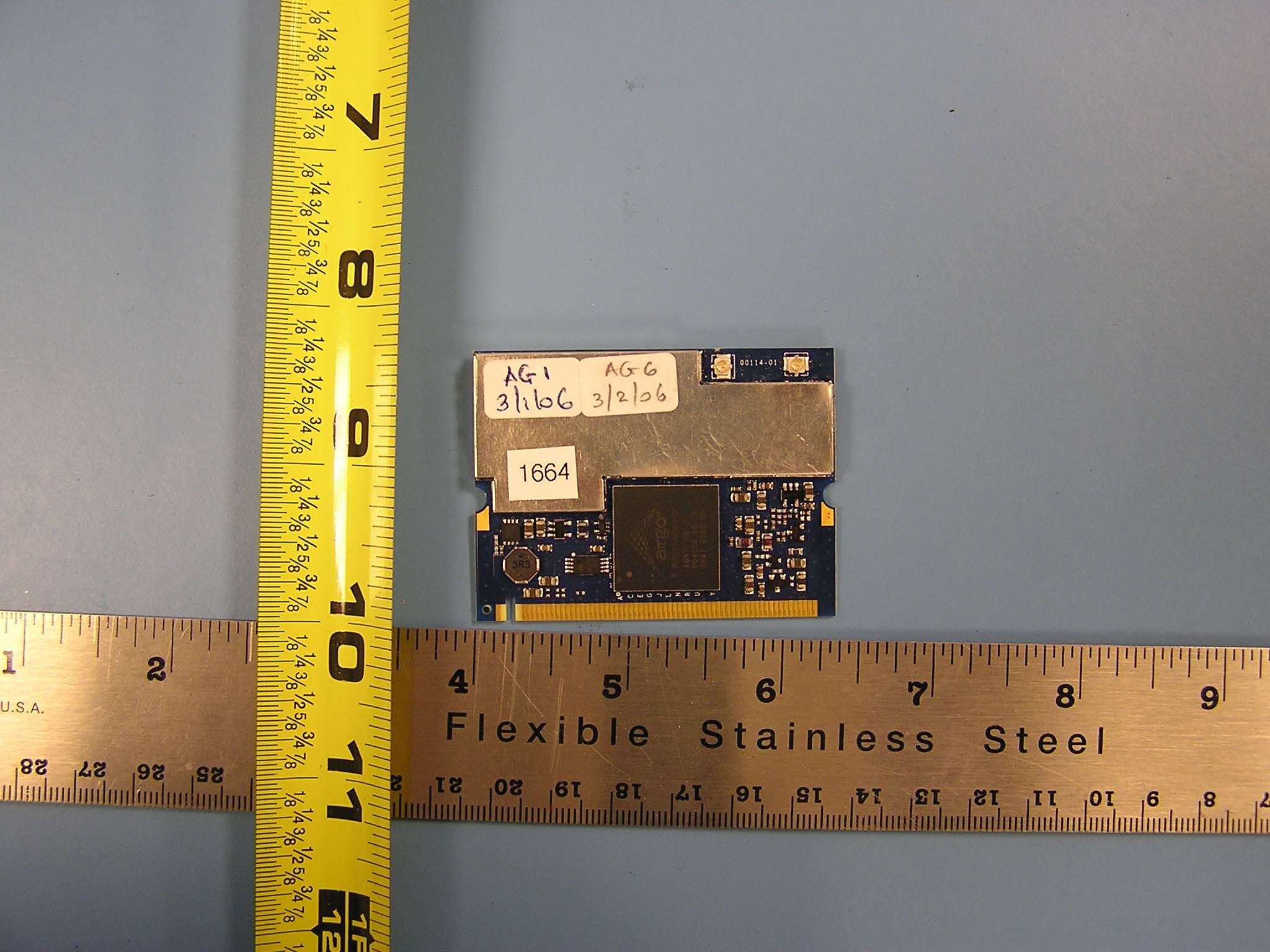

Airgo Networks Inc. FCC ID: : SA3-AGN3012MP1100 Request for transmitter modular approval 1 X2 MIMO mPCI Module Characteristics ItemRequirementsEUT 1Have its own RF shieldingDevice is equipped with Metal shielding to cover RF section. Refer to external photos 2Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic or microprocessor inputs. 3Have it own power supply regulationInternal power regulator. Refer to Block diagram 4Meet the antenna requirements of Section 15.203 Device is equipped with unique antenna ( Hirose) connector. Refer to external photos 5Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested on an extender board connected to laptop. Refer to setup photos. 6Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. Two proposed FCC ID label format are included in the filing. One of label is to be placed on the module and the other label is to be placed on the outside of system. Refer to FCC ID label format and location file. 7The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. Refer to “User’s Guide” Exhibit 8Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). MPE calculations submitted for 2 dBi antennas.

Airgo Networks, Inc. 900 Arastradero Road Palo Alto, CA 94304 TEL 650.475.1900 FAX 650.475.1708 www.airgonetworks.com 900 Arastradero Road Palo Alto, CA 94304 +1 650 475 1900 www.airgonetworks.com October 12, 2005 For equipment containing an AGN3012MP-11 module, channel restriction to meet regulatory requirements is a function of country code and channel list programmed into EEPROM during manufacturing. For AGN3012MP-11 sold in the FCC/IC regulatory domains, the US ISO country code is programmed into EEPROM along with a channel list that limits 2.4 GHz channels to 1 through 11 (2412-2462 MHz) during the manufacturing process. EEPROM programmatic change or override is not provided as an end-user software option.

Airgo Networks Airgo 3000 Series 1x2 miniPCI adapter FCC ID: SA3-AGN3012MP1100 FCC ID: SA3-AGN3012MP1100 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference than may cause undesired operation IC: 5215A-3012MP11 Model: AGN3012MP-11 FCC Label Location PROPOSED FCC ID LABEL FOR HOST DEVICE Airgo Networks This device contains FCC ID: SA3-AGN3012MP1100

APPROVAL SHEET CUSTOMER FILE NO . : ESCRIPTION : 802.11 a+b ANTENNIQUES P/N : FCF-003-103-02 CUSTOMER P/N : DATE : 91 9 18 Customer Approval Antenniques Co.,Ltd 12265 TEL02-2668-5793 FAX02-2668-5795 5F,No.6,Laine 122, Sec 2,Ganyun St, Shulin Chulin City, Taipei Hsien,238 Taiwan R.O.C. [email protected] www.antenniques.com.tw TECHNICAL DATA Electrical Properties Frequency Range 2.42.5GHz & 5.15~5.85 GHz Impedance 50 Ohm nominal VSWR 2.0 Gain 5.15`~~5.85 GHz GAIN 3dBi : 2.4~~~2.5 GHZ GAIN 2dBi Radiation Omni Polarization Vertical Electrical Wave Dipole ARRAY Connector IPEX Plug Mechanical Properties Antenna Cover PU Color Black Operation Temperature2060 Storage Temperature -3075 SPECIFICATION OF COAX 50 Ohms AWG32 CORE PTFE D=1.13 mm AXON’CABLE S.A.S. CABLE & INTERCONNECT ROUTE DE CHALONS-SUR-MARNE 51210 MONTMIRAIL-FRANCE Tel : (33) 03 26 81 70 00 Fax : (33) 03 26 81 28 83 e-mail : [email protected] N° P530738A Page 1/1 This document is the property of AXON’CABLE SA, and is issued on the condition that it is not copied or disclosed to any third party without prior written consent from AXON’CABLE SA Index Date Designed by Approval Description of the Modifications A 02/04/02 PV SW CREATION I – Scope This specification presents a PTFE jacketed COAXIAL cable AWG32, 1.13 mm O.D.for internal wiring of electronic equipment, such as Computer / Notebook with wireless communication systems. II – Construction Item Unit Details Material - Silver Plated Copper Composition No./mm AWG32 or 7 x 0.079 1-Inner Conductor Nom. O.D. mm 0.237 Material - Extruded PTFE Nom. O.D. mm 0.68 2-Dielectric Color - Natural Material - Tin Plated Copper Composition - Braided Shield AWG44 3-Outer Conductor Approx. O.D. mm 0.90 Material - Extruded FEP O.D. (mm) mm 1.13±0.05 5-Outer Jacket Color - P530738A^ P530738A^V1 P530738A^V2 : Light Grey : Black : Dark Grey III – Characteristics Item Unit Nom. Value Inner Conductor resistance @20°C Ω/km 525 max. Characteristic Impedance Ω 50 ± 2 Capacitance PF/m 98 @ 1.0 GHz 1.8 @ 1.5 GHz 2.3 @ 2.0 GHz 2.6 @ 2.45 GHz 3.0 @ 5.2 GHz 4.6 Nom. Attenuation (dB/m) @ 5.8 GHz 5.0 Temperature Rating °C 150 Approx. Weight g/m 3.5

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR MP312gR mPCI 1x2 b/g RoHS Card MODEL NUMBER: AGN3012MP-11 FCC ID: SA3-AGN3012MP1100 REPORT NUMBER: 06U10128-1 ISSUE DATE: MAY 3, 2006 Prepared for AIRGO NETWORKS, INC. 900 ARASTADERO RD. PALO ALTO, CA 94304, USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 06U10128-1 DATE: MAY 3, 2006 EUT: MP312gR mPCI 1x2 b/g RoHS CARD FCC ID: SA3-AGN3012MP1100 Page 2 of 112 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 5/3/2006 Initial Release A. Ilarina REPORT NO: 06U10128-1 DATE: MAY 3, 2006 EUT: MP312gR mPCI 1x2 b/g RoHS CARD FCC ID: SA3-AGN3012MP1100 Page 3 of 112 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS............................................................................................. 4 2. TEST METHODOLOGY .................................................................................................................. 5 3. FACILITIES AND ACCREDITATION .......................................................................................... 5 4. CALIBRATION AND UNCERTAINTY.......................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST............................................................................................................6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. MAXIMUM OUTPUT POWER .................................................................................................... 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................................. 6 5.4. SOFTWARE AND FIRMWARE .................................................................................................... 6 5.5. WORST-CASE CONFIGURATION AND MODE......................................................................... 6 5.6. DESCRIPTION OF TEST SETUP ................................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT ................................................................................ 9 7. LIMITS AND RESULTS ................................................................................................................. 10 7.1. CHANNEL TESTS FOR THE 2400 TO 2483.5 MHz BAND ...................................................... 10 7.1.1. 6 dB BANDWIDTH ........................................................................................................... 10 7.1.2. 99% BANDWIDTH............................................................................................................ 20 7.1.3. PEAK OUTPUT POWER .................................................................................................. 30 7.1.4. MAXIMUM PERMISSIBLE EXPOSURE ........................................................................ 40 7.1.5. AVERAGE POWER........................................................................................................... 43 7.1.6. PEAK POWER SPECTRAL DENSITY ............................................................................ 45 7.1.7. CONDUCTED SPURIOUS EMISSIONS.......................................................................... 55 7.2. RADIATED EMISSIONS.............................................................................................................72 7.2.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 72 7.2.2. TRANSMITTER ABOVE 1 GHz - WITH WHIP ANTENNAS ....................................... 75 7.2.3. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz ........................................... 102 7.3. POWERLINE CONDUCTED EMISSIONS .............................................................................. 104 8. SETUP PHOTOS ............................................................................................................................ 108 REPORT NO: 06U10128-1 DATE: MAY 3, 2006 EUT: MP312gR mPCI 1x2 b/g RoHS CARD FCC ID: SA3-AGN3012MP1100 Page 4 of 112 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: AIRGO NETWORKS, INC. 900 ARASTADERO RD. PALO ALTO, CA 94304, USA EUT DESCRIPTION: MP312gR mPCI 1x2 b/g RoHS CARD MODEL: AGN3012MP-11 SERIAL NUMBER: 1663,1655,1794 DATE TESTED: April 4 – 17, 2006 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are…

Text truncated - open the document above for the full version.

REPORT NO: 06U10128-1 DATE: MAY 3, 2006 EUT: MP312gR mPCI 1x2 b/g RoHS CARD FCC ID: SA3-AGN3012MP1100 Page 108 of 112 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 06U10128-1 DATE: MAY 3, 2006 EUT: MP312gR mPCI 1x2 b/g RoHS CARD FCC ID: SA3-AGN3012MP1100 Page 109 of 112 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 06U10128-1 DATE: MAY 3, 2006 EUT: MP312gR mPCI 1x2 b/g RoHS CARD FCC ID: SA3-AGN3012MP1100 Page 110 of 112 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED BACK PHOTO REPORT NO: 06U10128-1 DATE: MAY 3, 2006 EUT: MP312gR mPCI 1x2 b/g RoHS CARD FCC ID: SA3-AGN3012MP1100 Page 111 of 112 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 06U10128-1 DATE: MAY 3, 2006 EUT: MP312gR mPCI 1x2 b/g RoHS CARD FCC ID: SA3-AGN3012MP1100 Page 112 of 112 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT LINE CONDUCTED BACK PHOTO
