SA3-AGN3022UB1100Airgo 3000 Series USB Adapter 2X2

Installation and User Guide Wireless LAN Client Adapter Installation and User Guide: Wireless LAN Client Published December 2005 Copyright © 2004, 2005 by Airgo Networks. All Rights Reserved. No part of this work may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of unless such copying is expressly permitted by U.S. copyright law. Page 2 of 46 Installation and User Guide: Wireless LAN Client Contents Contents.......................................................................................................................................... 3 Preface............................................................................................................................................. 4 Overview......................................................................................................................................... 5 Device Types.............................................................................................................................. 5 Shipping Package Contents......................................................................................................... 5 System Requirements.................................................................................................................. 5 Inserting and Removing the Wireless LAN Client Adapter....................................................... 5 Checking Adapter Activity..................................................................................................... 7 Installing the Wireless LAN Client Adapter Driver and Client Utility...................................... 7 Installation Steps..................................................................................................................... 7 Custom Installation................................................................................................................... 13 Uninstalling the Client Utility and Drivers............................................................................... 15 Introduction to the Client Utility................................................................................................... 16 Service Set Identifiers............................................................................................................... 16 Wireless Bands and Channels................................................................................................... 16 Client Utility Overview............................................................................................................. 17 Accessing the Client Utility...................................................................................................... 17 Using the Tray Icon.............................................................................................................. 17 Navigating the User Interface................................................................................................... 19 Default View......................................................................................................................... 19 Networks Tab........................................................................................................................ 23 Profiles.................................................................................................................................. 27 Monitoring Network Status................................................................................................... 29 Configuration Overview............................................................................................................... 33 Scanning for Available Networks............................................................................................. 33 Working with Profiles............................................................................................................... 34 Wireless Security...................................................................................................................... 36 Regulatory..................................................................................................................................... 39 Glossary........................................................................................................................................ 40 Index............................................................................................................................................. 46 Installation and User Guide: Wireless LAN Client Page 3 of 46 Preface This guide explains how to install and configure the Wireless LAN Client Adapter, which provides PC laptop and desktop users with access to 802.11 access points. The guide is intended for business and consumer users who want to install and configure the Wireless LAN Client Adapter quickly and easily. It is also intended for users who are interested in advanced configuration and troubleshooting. The products include the following device options: ¾ PC Card adapter for use in laptop and notebook computers ¾ Mini PCI adapter for use in laptop computer mini-PCI expansion slots The Client Utility, a software tool designed to provide basic configuration options for the device, is shipped with each unit along with the device drivers. Organization of this Guide This guide consists of the following chapters: Chapter 1 describes the features of the Wireless LAN Client Adapter and explains how to install it. Chapter 2 provides an overview of the Client Utility. Chapter 3 describes the configuration settings of the Client Utility. Glossary defines terms that apply to wireless and networking technology and the product suite. Conventions Used in this Guide This guide uses the following conventions for instructions and information. Notes, Cautions, and Warnings Notes, cautions, and time-saving tips us…

Text truncated - open the document above for the full version.

AGN3022UB-11 802.11b/g USB Radio Installation and User Guide Product Labeling The AGN3022UB-11 radio transmitter module is authorized only for use in a device where the antenna may be installed such that 20 cm can be maintained between the antenna and the users. End-user products containing AGN3022UB-11 modules MUST have affixed to their labels the following phrase: This product contains FCC ID: SA3-AGN3022UB1100 module Product Usage This device is intended only for OEM/ODM integrators under the following conditions: 1. The antenna must be installed such that 20 cm is maintained between the antenna and users. 2. The transmitter module may not be co-located with any other transmitter or antenna. 3. Use only authorized antenna(s) as described in the FCC filing under FCCID:SA3-AGN3022UB1100 The OEM/ODM integrator is responsible for testing their product for any additional compliance mandates required when this module is installed within an end-user product. i IMPORTANT NOTE: In the event that these conditions cannot be met, then the FCC authorization is no longer considered valid and the FCC ID number cannot be used on the final product and thus the OEM/ODM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. Product Documentation Following RF exposure information shall be supplied in end-users manual for products containing the AGN3022UB-11: IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Airgo Networks Inc. Page xx of yy January 2006 Airgo Networks Proprietary Information

Airgo Networks, Inc. 900 Arastradero Road Palo Alto, CA 94304 TEL 650.475.1900 FAX 650.475.1708 www.airgonetworks.com 900 Arastradero Road Palo Alto, CA 94304 +1 650 475 1900 www.airgonetworks.com Date: January 3, 2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Testing Division of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS Testing Division as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; Airgo Networks, Inc. 900 Arastradero Road Palo Alto, CA 94304 TEL 650.475.1900 FAX 650.475.1708 www.airgonetworks.com e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, John Quigley Vice President of Engineering Airgo Networks, Inc. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

Airgo Networks, Inc. 900 Arastradero Road Palo Alto, CA 94304 TEL 650.475.1900 FAX 650.475.1708 www.airgonetworks.com 900 Arastradero Road Palo Alto, CA 94304 +1 650 475 1900 www.airgonetworks.com DATE: January 3, 2006 Federal Communications Commission Equipment Authorization branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Request for Confidentiality Gentlemen: In reference to the application under FCC ID: SA3-AGN3022UB1100 and pursuant to Sections 0.457(d)(l)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of the accompanying information as outlined below: Schematics Block Diagrams Theory of Operation These documents contain detailed system and equipment description and related information about the product that Airgo Networks considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Airgo Networks considers that this information would be of benefit to its competitors, and that disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, John Quigley Vice President of Engineering Airgo Networks, Inc.

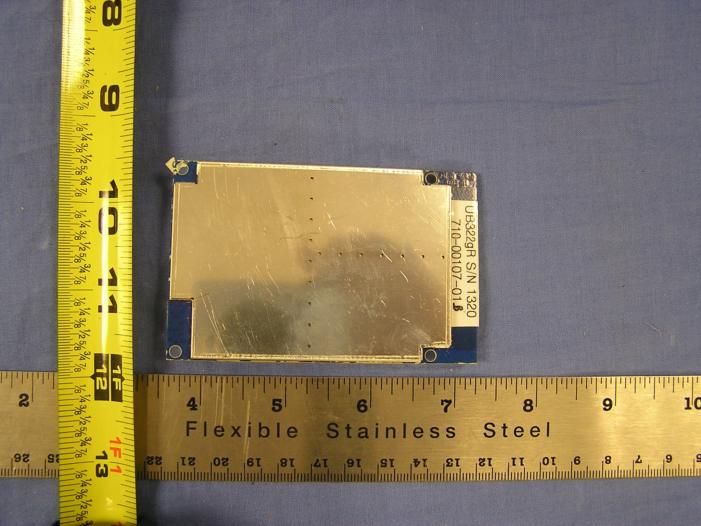

Airgo Networks Inc. FCC ID: SA3-AGN3022UB1100 Request for transmitter modular approval 2X2 USB Transceiver Module Characteristics Item Requirements EUT 1 Have its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer to external photos 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic or microprocessor inputs. 3 Have it own power supply regulation Internal power regulator. Refer to Block diagram 4 Meet the antenna requirements of Section 15.203 Device is equipped with unique antenna ( Hirose) connector. Refer to external photos 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested on an extender board connected to laptop. Refer to setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. Two proposed FCC ID label format are included in the filing. One of label is to be placed on the module and the other label is to be placed on the outside of system. Refer to FCC ID label format and location file. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. Refer to “User’s Guide” Exhibit 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). MPE calculations submitted for 3 dBi antennas. Product will not be used in portable devices.

Airgo Networks, Inc. 900 Arastradero Road Palo Alto, CA 94304 TEL 650.475.1900 FAX 650.475.1708 www.airgonetworks.com 900 Arastradero Road Palo Alto, CA 94304 +1 650 475 1900 www.airgonetworks.com October 12, 2005 For equipment containing an AGN3023MX-01 module, channel restriction to meet regulatory requirements is a function of country code and channel list programmed into EEPROM during manufacturing. For AGN3023MX-01 sold in the FCC/IC regulatory domains, the US ISO country code is programmed into EEPROM along with a channel list that limits 2.4 GHz channels to 1 through 11 (2412-2462 MHz) during the manufacturing process. EEPROM programmatic change or override is not provided as an end-user software option.

Airgo 3000 Series USB Adapter for 2.4 GHz Client Applications Model Number: AGN3022UB-1

Airgo Networks Airgo 3000 Series USB Adapter 2x2 FCC ID: SA3- AGN3022UB1100 FCC ID: SA3-AGN3022UB1100 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference than may cause undesired operation IC ID: 5215A-3022UB11 Model No.: AGN3022UB-11 PROPOSED FCC ID LABEL FOR HOST DEVICE Airgo Networks This device contains FCC ID: SA3- AGN3022UB1100

APPROVAL SHEET CUSTOMER FILE NO . : ESCRIPTION : 802.11 a+b ANTENNIQUES P/N : FCF-003-103-02 CUSTOMER P/N : DATE : 91 9 18 Customer Approval Antenniques Co.,Ltd 12265 TEL02-2668-5793 FAX02-2668-5795 5F,No.6,Laine 122, Sec 2,Ganyun St, Shulin Chulin City, Taipei Hsien,238 Taiwan R.O.C. [email protected] www.antenniques.com.tw TECHNICAL DATA Electrical Properties Frequency Range 2.42.5GHz & 5.15~5.85 GHz Impedance 50 Ohm nominal VSWR 2.0 Gain 5.15`~~5.85 GHz GAIN 3dBi : 2.4~~~2.5 GHZ GAIN 2dBi Radiation Omni Polarization Vertical Electrical Wave Dipole ARRAY Connector IPEX Plug Mechanical Properties Antenna Cover PU Color Black Operation Temperature2060 Storage Temperature -3075 SPECIFICATION OF COAX 50 Ohms AWG32 CORE PTFE D=1.13 mm AXON’CABLE S.A.S. CABLE & INTERCONNECT ROUTE DE CHALONS-SUR-MARNE 51210 MONTMIRAIL-FRANCE Tel : (33) 03 26 81 70 00 Fax : (33) 03 26 81 28 83 e-mail : [email protected] N° P530738A Page 1/1 This document is the property of AXON’CABLE SA, and is issued on the condition that it is not copied or disclosed to any third party without prior written consent from AXON’CABLE SA Index Date Designed by Approval Description of the Modifications A 02/04/02 PV SW CREATION I – Scope This specification presents a PTFE jacketed COAXIAL cable AWG32, 1.13 mm O.D.for internal wiring of electronic equipment, such as Computer / Notebook with wireless communication systems. II – Construction Item Unit Details Material - Silver Plated Copper Composition No./mm AWG32 or 7 x 0.079 1-Inner Conductor Nom. O.D. mm 0.237 Material - Extruded PTFE Nom. O.D. mm 0.68 2-Dielectric Color - Natural Material - Tin Plated Copper Composition - Braided Shield AWG44 3-Outer Conductor Approx. O.D. mm 0.90 Material - Extruded FEP O.D. (mm) mm 1.13±0.05 5-Outer Jacket Color - P530738A^ P530738A^V1 P530738A^V2 : Light Grey : Black : Dark Grey III – Characteristics Item Unit Nom. Value Inner Conductor resistance @20°C Ω/km 525 max. Characteristic Impedance Ω 50 ± 2 Capacitance PF/m 98 @ 1.0 GHz 1.8 @ 1.5 GHz 2.3 @ 2.0 GHz 2.6 @ 2.45 GHz 3.0 @ 5.2 GHz 4.6 Nom. Attenuation (dB/m) @ 5.8 GHz 5.0 Temperature Rating °C 150 Approx. Weight g/m 3.5

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR AIRGO 3000 SERIES USB ADAPTER 2X2 MODEL NUMBER: AGN3022UB-11 FCC ID: SA3-AGN3022UB1100 REPORT NUMBER: 05U3719-1C ISSUE DATE: JANUARY 23, 2006 Prepared for AIRGO NETWORKS 900 ARASTRADERO ROAD PALO ALTO, CA 94304 U.S.A. Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 05U3719-1C DATE: JANUARY 23, 2006 EUT: AIRGO 3000 SERIES USB ADAPTER 2X2 FCC ID: SA3-AGN3022UB1100 Page 2 of 161 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By A 1/17/06 Initial Issue DG B 1/20/06 Update BW tables with correct channels, add power bonding calculation formula to peak power and PSD procedure. DG C 1/23/06 Added MIMO/SIMO software functionality statement and updated max power table. DG REPORT NO: 05U3719-1C DATE: JANUARY 23, 2006 EUT: AIRGO 3000 SERIES USB ADAPTER 2X2 FCC ID: SA3-AGN3022UB1100 Page 3 of 161 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS............................................................................................. 4 2. TEST METHODOLOGY .................................................................................................................. 5 3. FACILITIES AND ACCREDITATION .......................................................................................... 5 4. CALIBRATION AND UNCERTAINTY.......................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 4.3. DESCRIPTION OF EUT ..............................................................................................................6 4.4. MAXIMUM OUTPUT POWER .................................................................................................... 6 4.5. DESCRIPTION OF AVAILABLE ANTENNAS .............................Error! Bookmark not defined. 4.6. SOFTWARE AND FIRMWARE ....................................................Error! Bookmark not defined. 4.7. WORST-CASE CONFIGURATION AND MODE......................................................................... 7 4.8. DESCRIPTION OF TEST SETUP ................................................................................................ 7 5. TEST AND MEASUREMENT EQUIPMENT ................................................................................ 9 6. LIMITS AND RESULTS ................................................................................................................. 10 6.1. CHANNEL TESTS FOR THE 2400 TO 2483.5 MHz BAND ...................................................... 10 6.1.1. 6 dB BANDWIDTH ........................................................................................................... 10 6.1.2. 99% BANDWIDTH............................................................................................................ 33 6.1.3. PEAK OUTPUT POWER .................................................................................................. 56 6.1.4. MAXIMUM PERMISSIBLE EXPOSURE ........................................................................ 78 6.1.5. AVERAGE POWER........................................................................................................... 81 6.1.6. PEAK POWER SPECTRAL DENSITY ............................................................................ 83 6.1.7. CONDUCTED SPURIOUS EMISSIONS........................................................................ 105 6.2. RADIATED EMISSIONS........................................................................................................... 126 6.2.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ............................................... 126 6.2.2. TRANSMITTER ABOVE 1 GHz FOR 2400 TO 2483.5 MHz BAND ........................... 129 6.2.3. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz ........................................... 149 6.3. POWERLINE CONDUCTED EMISSIONS .............................................................................. 153 7. SETUP PHOTOS ............................................................................................................................ 157 REPORT NO: 05U3719-1C DATE: JANUARY 23, 2006 EUT: AIRGO 3000 SERIES USB ADAPTER 2X2 FCC ID: SA3-AGN3022UB1100 Page 4 of 161 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: AIRGO NETWORKS 900 ARASTRADERO ROAD PALO ALTO, CA 94304 U.S.A. EUT DESCRIPTION: AIRGO 3000 SERIES USB ADAPTER 2X2 MODEL: AGN3022UB-11 SERIAL NUMBER: 1320 DATE TESTED: OCTOBER 7, 2005 – JANUARY 19, 2006 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so …

Text truncated - open the document above for the full version.

REPORT NO: 05U3719-1 DATE: JANUARY 17, 2006 EUT: AIRGO 3000 SERIES USB ADAPTER 2X2 FCC ID: SA3-AGN3022UB1100 Page 159 of 163 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 7. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 05U3719-1 DATE: JANUARY 17, 2006 EUT: AIRGO 3000 SERIES USB ADAPTER 2X2 FCC ID: SA3-AGN3022UB1100 Page 160 of 163 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 05U3719-1 DATE: JANUARY 17, 2006 EUT: AIRGO 3000 SERIES USB ADAPTER 2X2 FCC ID: SA3-AGN3022UB1100 Page 161 of 163 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED BACK PHOTO REPORT NO: 05U3719-1 DATE: JANUARY 17, 2006 EUT: AIRGO 3000 SERIES USB ADAPTER 2X2 FCC ID: SA3-AGN3022UB1100 Page 162 of 163 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 05U3719-1 DATE: JANUARY 17, 2006 EUT: AIRGO 3000 SERIES USB ADAPTER 2X2 FCC ID: SA3-AGN3022UB1100 Page 163 of 163 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT LINE CONDUCTED BACK PHOTO
