SA3-AGN3022MP11002x2 Mini PCI MIMO RoHS Radio Module

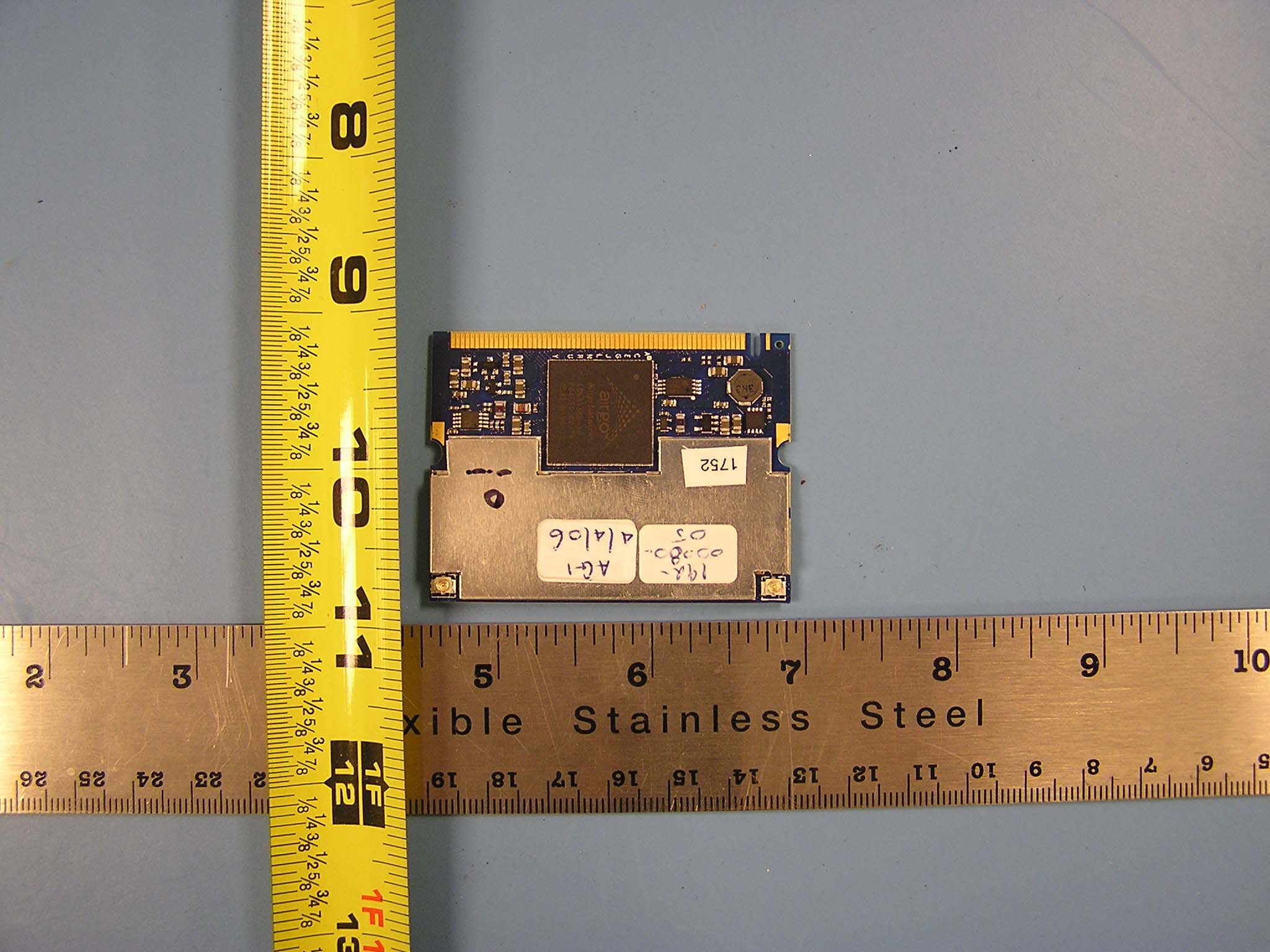

Airgo Networks Inc. FCC ID: SA3-AGN3022MP1100 Request for transmitter modular approval 2X2 MIMO mPCI Module Characteristics Item Requirements EUT 1 Have its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer to external photos 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic or microprocessor inputs. 3 Have it own power supply regulation Internal power regulator. Refer to Block diagram 4 Meet the antenna requirements of Section 15.203 Device is equipped with unique antenna ( Hirose) connector. Refer to external photos 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested on an extender board connected to laptop. Refer to setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. Two proposed FCC ID label format are included in the filing. One of label is to be placed on the module and the other label is to be placed on the outside of system. Refer to FCC ID label format and location file. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. Refer to “User’s Guide” Exhibit 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). MPE calculations submitted for 2 dBi antennas.

1 Mike Kuo From: Claire Hoque Sent: Wednesday, April 26, 2006 12:52 PM To: Mike Kuo Cc: Alvin Ilarina; Michael Heckrotte; Christine Vu Subject: answer: 06U10181 Airgo Networks, FCC ID: SA3-AGN3022MP1100, Assessment NO.: AN06T5691, Notice#1 Attachments: Guide_IU_AGN3022MP1100_(MP322gR)_640_00115_00.pdf; 06U10181-1B FCC DTS Report.pdf; 2x2mPCI label(revised).pdf Guide_IU_AGN3022 MP1100_(MP322 g... 06U10181-1B FCC DTS Report.pd... 2x2mPCI bel(revised).pdf (86 Hi Mike, Pls see our answer below. And pls help to issue grant today. Question #1 : Please list the modulation type and data rate that was used during final compliance tests. Section 5.5 of EMC test report indicated the worst case investigation but did not provide the mode of investigation used during the preliminary tests. <answer> 802.11b, CCK modulation, 1 Mbps data rate 802.11g, OFDM modulation, 6 Mbps data rate SIMO, OFDM modulation, 12 Mbps data rate MIMO, OFDM modulation, 48 Mbps data rate Question #2: Section 7.1.3, please list the formula used to calculate the total output power. <answer> (Peak Power)= 10*LOG(10^((Chain 0 Power)/10) + 10^((Chain 1 Power)/10),10) Question #3: PSD measurement: The method used for PSD measurement does not comply with DTS measurement procedure published on May 09, 2005. Please redo the PSD measurement . The requirement for PSD measurement is stated below: Since output power is measured with output power option 2/ Method 1, then you have to measure PSD with PSD option 2. Section 15.247(d) ¡V Power spectral density (PSD). The same method of determining the conducted output power shall be used to determine the power spectral density. If a peak output power is measured, then a peak power spectral density measurement is required. If an average output power is measured, then an average power spectral density measurement should be used. Use PSD Option 1 if Power output Option 1 was used. Use PSD Option 2 if power output Option 2 was used. <answer>report is revised to address this issue. Question #4: The installation and user guideline is written for Cardbus card only. Please provide OEM installation instruction for this mini-PCI card. <answer>attached pls find OEM installation manual. Question #5: Please provide label instruction for the OEM integrator and label format that will be used by the OEM installer on the final system. <answer>attached pls find revised label. Thanks, Claire -----Original Message----- From: Mike Kuo Sent: Monday, April 24, 2006 6:17 PM 2 To: Mike Kuo Subject: Airgo Networks, FCC ID: SA3-AGN3022MP1100, Assessment NO.: AN06T5691, Notice#1 Question #1 : Please list the modulation type and data rate that was used during final compliance tests. Section 5.5 of EMC test report indicated the worst case investigation but did not provide the mode of investigation used during the preliminary tests. Question #2: Section 7.1.3, please list the formula used to calculate the total output power . Question #3: PSD measurement: The method used for PSD measurement does not comply with DTS measurement procedure published on May 09, 2005. Please redo the PSD measurement . The requirement for PSD measurement is stated below: Since output power is measured with output power option 2/ Method 1, then you have to measure PSD with PSD option 2. Section 15.247(d) ¡V Power spectral density (PSD). The same method of determining the conducted output power shall be used to determine the power spectral density. If a peak output power is measured, then a peak power spectral density measurement is required. If an average output power is measured, then an average power spectral density measurement should be used. Use PSD Option 1 if Power output Option 1 was used. Use PSD Option 2 if power output Option 2 was used. Question #4: The installation and user guideline is written for Cardbus card only. Please provide OEM installation instruction for this mini-PCI card. Question #5: Please provide label instruction for the OEM integrator and label format that will be used by the OEM installer on the final system. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

tel: 650-726-1263 fax: 650-726-1252 [email protected] Thomas N. Cokenias EMC &Radio Approvals Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018 Compliance Certification Services 15 May 2006 561F Monterey Road Morgan Mill CA 95037 Attention: Application Examiner Reviewing Engineer Applicant: Airgo Networks Inc. FCC ID SA3-AGN3022MP1100 Description: 802.11bg 2x2 MIMO mPCI radio module Re: Request for confidentiality per section 0.459 of the Rules To whom it may concern, Request is hereby submitted, on behalf of my client Airgo Networks Inc. to withhold from public review, for an indefinite period of time, certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Schematics Block Diagrams Operational Description ODM Installation Instructions Rationale for request for confidentiality: Airgo has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. If you have questions or need further information, please contact the undersigned. Sincerely, tel: 650-726-1263 fax: 650-726-1252 [email protected] THOMAS N. COKENIAS EMC Consultant/Agent for Airgo Networks Inc.

Airgo Networks, Inc. 900 Arastradero Road Palo Alto, CA 94304 TEL 650.475.1900 FAX 650.475.1708 www.airgonetworks.com 900 Arastradero Road Palo Alto, CA 94304 +1 650 475 1900 www.airgonetworks.com October 12, 2005 For equipment containing an AGN3022MP-11 module, channel restriction to meet regulatory requirements is a function of country code and channel list programmed into EEPROM during manufacturing. For AGN3022MP-11 sold in the FCC/IC regulatory domains, the US ISO country code is programmed into EEPROM along with a channel list that limits 2.4 GHz channels to 1 through 11 (2412-2462 MHz) during the manufacturing process. EEPROM programmatic change or override is not provided as an end-user software option.

Airgo Networks Airgo 3000 Series 2x2 miniPCI adapter FCC ID: SA3-AGN3022MP1100 FCC ID: SA3-AGN3022MP1100 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference than may cause undesired operation IC 5215A-3022MP11 Model: AGN3022MP-11 FCC Label Location PROPOSED FCC ID LABEL FOR HOST DEVICE Airgo Networks This device contains FCC ID: SA3-AGN3022MP1100

1 l Product type l Bluetooth antenna l Model number l ASUS / A6J l Revision l R01 l Part No. / Yageo / Bluetooth l CAN4313 382 012451B l Part No. / ASUS / Bluetooth l 14G152066000 Yageo (Taiwan) Ltd. 16, west 3rd Street, N.E.P.Z Kaohsiung, 811 Taiwan, R.O.C Yageo Electronics (China) Co, Ltd No. 10, Zhu Yuan Road, Suzhou New District, Suzhou, PRC R01 Jan. 04 06 2.45 GHz Single Band Bluetooth Antenna with Cable & Connector for IEEE802.11b, UNII Yageo Part Number: Bluetooth: CAN4313 382 012451B (BT) BY / Howard.Chuang DATE / Jan 04, 2006 2 Table of contents 1. Specifications 1.1 Specifications 3 1.2 Antenna dimension / Cable length 3 1.3 Packing spec. 3 1.4 Antenna pictures 3 2. Test methodology 2.1 Test equipment 4 2.2 Test setup 4 2.2.1 Frequency range 4 2.2.2 Antenna configuration 4 2.2.3 VSWR 4 2.2.4 Radiation pattern and gain 5 3. Performance data 3.1 VSWR in the fixture (Bluetooth antenna) 6 3.2 Radiation pattern and gain 7 3.2.1 Low Frequency (2.40GHz~2.50GHz) / Bluetooth 7 3.2.2 Average gain summary (Bluetooth antenna) 7 4. Antenna drawing 8 5. Reliability data for antenna patch 9 6. Ordering information: Yageo ordering P/N code 10 7. Revision control 11 3 1. Specifications 1.1 Specifications for antennas Frequency range (GHz) 2.40 ~ 2.50 for 802.11b VSWR 2.50 for 2.4GHz band For BT Peak gain (dBi) 2.01 dBi for 2.4GHz band (BT) MiniPCI Connector Ipex / Hirose / Speed Tech or Compatible Impedance 50Ω Operating Temperature -40~90°C Maximum Power 1W Polarization Linear Radiation pattern Omni-directional 1.2 Antenna Dimension / Cable length Product ASUS / A6J Bluetooth (Base) 33.6*9.4*0.4 mm / 30.0 mm, Color White or Black 1.3 Packing Spec. Product For Example Inner tray 60 Carton box 265*100 1.4 Antenna Pictures Bluetooth 4 2. Test Methodology 2.1 Test equipment The equipment for the antenna measurement we used is as follows. A. Agilent 8753ET / 8719D Network Analyzer to measure the VSWR and input impedance. B. Three-dimensional anechoic chamber to measure the gain (Standard dipole and horn were used to calibrate the chamber) C. Digital caliper to measure the dimensions. D. Climatic chamber for mechanical tests. 2.2 Test setup 2.2.1 Frequency Range 2 2 . . 4 4 0 0 ~ ~ 2 2 . . 5 5 0 0 G G H H z z 2.2.2 Antenna configuration The antenna basically has two parts; the stamping and the cable assembly with the connector on one side. The detailed drawing is attached. 2.2.3 VSWR The VSWR is measured with Agilent 8753ET / 8719D network analyzer. All the measurements are performed with the customer provided fixture. Figure 1 shows the schematic diagram for measuring VSWR. Test port cable Figure 1. The schematic diagram for measuring VSWR D.U.T Agilent 8753ET Network Analyzer 5 2.2.4 Radiation pattern and gain The radiation pattern must have the omni-directional characteristic in both positions. The radiation pattern measurements are performed in the three- dimensional anechoic chamber. The chamber provides less than –30dB reflectivity from 800MHz through 8GHz. The chamber is calibrated using both standard dipole and horn antenna. The gain here is expressed as dBi that standardizes the isotropic antenna. The gain measurements are also performed in the same chamber described previously. Figure 2 shows the schematic diagram for measuring radiation pattern and gain. Figure 2. The schematic diagram for measuring radiation pattern and gain 2D Anechoic chamber Probe array Controller RF Unit (0.4 ~ 6GHz) Primary Synthesizer Auxiliary Synthesizer Motion Controller Data Acquisition & Processing PC 6 3. Performance Data 3.1 VSWR in the fixture (Main antenna) 1.87VSWR at 2500MHz 1.52VSWR at 2450MHz 1.35VSWR at 2400MHz ValueTest 1.87VSWR at 2500MHz 1.52VSWR at 2450MHz 1.35VSWR at 2400MHz ValueTest 7 3.2 Radiation pattern and gain 3.2.1 Low Frequency (2.40GHz~2.50GHz) / Bluetooth Antenna 2.40GHz 8 2.45GHz 9 2.50GHz 3.2.2 Average gain (dBi) summary H-polV-polTotalH-polV-polTotal 2400(MHz) 2.01-3.052.03-3.61-10.01-3.25 2450(MHz) 0.84-3.260.88-4.43-10.58-4.08 2500(MHz) 0.81-2.510.83-4.39-10.27-4.03 Bluetooth Antenna Gain Average (dBi) Frequency Max Value (dBi) 10 4. Antenna Drawing mm BT Antenna Mini Pci 11 5. Reliability Data For Antenna Patch (Reference To IEC) IEC 384-10/ CECC 32 100 CLAUSE IEC 60068-2 TEST METHOD TEST PROCEDURE REQUIREMENTS 4.12 4(Na) Rapid change of temperature -40 °C (30 minutes) to +90 °C (30 minutes); 5 cycles No visible damage Central Freq. Change ± 6% 4.14 3(Ca) Damp heat 500 ± 12 hours at 40 °C; 90 to 95 % RH No visible damage 2 hours recovery Central Freq. Change ± 6% 4.15 Endurance 500 ± 12 hours at 90 °C; No visible damage 2 hours recovery Central Freq. Change ± 6% 12 6. Ordering Information: Yageo Ordering P/N Code The antennas may be ordered by using the Yageo P/N ordering code. These code numbers can be determined by the following rules: CAN4313 3 82 01 245 1B F C M S T A P F. Family Code CAN43 = Antenna C. Packing Type Code 13 = Bulk (1000 pcs) M. Materials Code 3 = High Frequency Material S. Size/Series Code 82 = 33.6*9.4*0.4 mm Bluetooth Antenna T. Tolerance/Cable 01 = Cable 1 Main Antenna, White or Black A. Working Frequency 245 = 2.45 GHz Band For BT P. Packing 1B = 1000 pcs packing 13 7. Revision Control Revision Date Content Remark R01 Mar. 30, 2005 New issued, metal antenna N/A.

1 l Product type l WLAN antenna l Model number l ASUS / A6 l Revision l R06 l Part No. / YAGEO / Main+ Aux l CAN4313 382 012501B l Part No. / ASUS / Main+ Aux l 14G152043000 Yageo (Taiwan) Ltd. 16, west 3rd Street, N.E.P.Z Kaohsiung, 811 Taiwan, R.O.C Yegeo Electronics (China) Co, Ltd No. 10, Zhu Yuan Road, Suzhou New District, Suzhou, PRC R02 Nov. 01, 04 R03 Nov. 08, 04 R04 Aug. 17, 05 2.45/5GHz Multi Band Antenna with Cable & Connector for IEEE802.11b, 11g, 11a, UNII Yageo Part Number: Main+ Aux: CAN4313 382 012501B R05 Nov. 16, 05 BY / Howard.Chuang DATE / Jan. 04, 2006 R06 Jan. 04, 06 2 Table of contents 1. Specifications 1.1 Specifications 3 1.2 Antenna dimension / Cable length 3 1.3 Packing spec. 3 1.4 Antenna pictures 3 2. Test methodology 2.1 Test equipment 4 2.2 Test setup 4 2.2.1 Frequency range 4 2.2.2 Antenna configuration 4 2.2.3 VSWR 4 2.2.4 Radiation pattern and gain 5 3. Performance data 3.1 VSWR in the fixture (Main/Aux antenna) / 15” 6 3.2 Radiation pattern and gain (Main) / 15” 7 3.2.1 Radiator Frequency (2.40GHz~5.85GHz) / 15” 8 3.2.2 Average gain summary (Main/Aux antenna) 9 4. Antenna Assembly Summary 10 5. Antenna drawing 11 6. Reliability data for antenna patch 11 7. Ordering information: Yageo ordering P/N code 12 8. Revision control 13 3 1. Specifications 1.1 Specifications for antennas Frequency range (GHz) 2.40 ~ 2.50 for 802.11b/g 5.15 ~ 5.85 for 802.11a VSWR 2.50 for 2.4GHz band For WL 2.85 for 5.0GHz band For WL Peak gain (dBi) 0.40 dBi for 2.4GHz band 0.67 dBi for 5.0GHz band MiniPCI Connector Ipex / Hirose or Compatible Impedance 50Ω Operating Temperature -40~90°C Maximum Power 1W Polarization Linear Radiation pattern Omni-directional 1.2 Antenna Dimension / Cable length Product ASUS / A6 Main antenna (LCD) 50.0*7.0*0.5 mm / 590.0 mm, Color Black Aux antenna (LCD) 50.0*7.0*0.5 mm / 730.0 mm, Color White or Gray 1.3 Packing Spec. Product For Example Inner tray 60 Carton box 265*100 1.4 Antenna Pictures 4 2. Test Methodology 2.1 Test equipment The equipment for the antenna measurement we used is as follows. A. Agilent 8753ET / 8719D Network Analyzer to measure the VSWR and input impedance. B. Three-dimensional anechoic chamber to measure the gain (Standard dipole and horn were used to calibrate the chamber) C. Digital caliper to measure the dimensions. D. Climatic chamber for mechanical tests. 2.2 Test setup 2.2.1 Frequency Range 2 2 . . 4 4 0 0 ~ ~ 2 2 . . 5 5 0 0 G G H H z z , , 5 5 . . 1 1 5 5 ~ ~ 5 5 . . 8 8 5 5 G G H H z z 2.2.2 Antenna configuration The antenna basically has two parts; the stamping and the cable assembly with the connector on one side. The detailed drawing is attached. 2.2.3 VSWR The VSWR is measured with Agilent 8753ET / 8719D network analyzer. All the measurements are performed with the customer provided fixture. Figure 1 shows the schematic diagram for measuring VSWR. Test port cable Figure 1. The schematic diagram for measuring VSWR D.U.T Agilent 8753ET Network Analyzer 5 2.2.4 Radiation pattern and gain The radiation pattern must have the omni-directional characteristic in both positions. The radiation pattern measurements are performed in the three- dimensional anechoic chamber. The chamber provides less than –30dB reflectivity from 800MHz through 8GHz. The chamber is calibrated using both standard dipole and horn antenna. The gain here is expressed as dBi that standardizes the isotropic antenna. The gain measurements are also performed in the same chamber described previously. Figure 2 shows the schematic diagram for measuring radiation pattern and gain. Figure 2. The schematic diagram for measuring radiation pattern and gain 2D Anechoic chamber Probe array Controller RF Unit (0.4 ~ 6GHz) Primary Synthesizer Auxiliary Synthesizer Motion Controller Data Acquisition & Processing PC 6 3. Performance Data 3.1 VSWR in the fixture (Main antenna) / 15” 2.5 2.85 (Main antenna) 2.5 2.85 (Aux antenna) 7 3.2 Radiation pattern and gain 3.2.1 Low Frequency (2.40GHz~2.50GHz) / Main Antenna / 15” 2.4GHz 2.5GHz 3.2.2 Middle Frequency (5.15GHz~5.35GHz) / Main Antenna 5.15GHz5.35GHz 5.47GHz 3.2.3 High Frequency (5.47GHz~5.85GHz) / Main Antenna 5.725GHz 5.85GHz 8 3.2.4 Low Frequency (2.40GHz~2.50GHz) / Aux Antenna / 15” 2.4GHz 2.5GHz 3.2.5 Middle Frequency (5.15GHz~5.35GHz) / Aux Antenna 5.15GHz5.35GHz 5.47GHz 3.2.6 High Frequency (5.47GHz~5.85GHz) / Aux Antenna 5.725GHz 5.85GHz 9 3.2.7 Average gain (dBi) summary H-polV-polTotalH-polV-polTotal 2400(MHz) -0.580.400.42-5.80-6.51-4.12 PASS 2500(MHz) -1.42-0.09-0.04-6.25-7.60-4.91 PASS 5150(MHz) 0.570.130.79-6.16-5.98-3.96 PASS 5350(MHz) -1.04-0.64-0.18-5.70-6.05-3.87 PASS 5470(MHz) -0.89-0.94-0.56-5.85-6.08-3.99 PASS 5725(MHz) -0.67-1.22-0.62-6.88-6.62-4.74 PASS 5850(MHz) 0.12-0.460.12-5.84-5.62-3.74 PASS Average (dBi) FrequencyPASS/NG Max Value (dBi) Main Antenna Gain Main For 15” H-polV-polTotalH-polV-polTotal 2400(MHz) -0.84-0.080.38-4.90-5.67-3.20 PASS 2500(MHz) -1.47-0.050.36-5.34-6.80-4.01 PASS 5150(MHz) -0.86-0.240.58-5.95-5.76-3.99 PASS 5350(MHz) -1.18-0.02-0.02-5.88-4.84-3.48 PASS 5470(MHz) -0.55-0.250.68-5.57-5.53-3.65 PASS 5725(MHz) 0.67-1.020.97-7.23-5.85-4.65 PASS 5850(MHz) 0.660.160.66-6.04-5.96-4.12 PASS Average (dBi) FrequencyPASS/NG Max Value (dBi) Aux Antenna Gain Aux For 15” 10 4. Antenna Assembly Summary 1A Antenna Part Number 1B Manufacture 1C Antenna Type 1D Cable Assembly Part Number and Information 1E Peak Gain W/ Cable loss (dBi) 1F Peak Gain w/o Cable Loss (dBi) 1G VSWR 1H Cable Loss (dBi) 2400-2500MHz 0.40 dBi (peak) 2400-2500MHz 1.77 dBi (peak) 2400-2500MHz 2.50 max 2400-2500MHz 1.37 dBi (peak) 5150-5350MHz 0.57 dBi (peak) 5150-5350MHz 1.90 dBi (peak) 5150-5350MHz 2.85 max 5150-5350MHz 1.33 dBi (peak) 5470-5725MHz -0.67 dBi (peak) 5470-5725MHz 1.37 dBi (peak) 5470-5725MHz 2.85 max 5470-5725MHz 2.04 dBi (peak) P/N: CAN4313382012501B Main Antenna 15” LCD Yageo Corporation PIFA Connector: (Hirose U.FL-LP) (Ipex MHF) 50 ohm Coaxial. Length: 590mm diameter: 1.13mm 5725-5850MHz…

Text truncated - open the document above for the full version.

APPROVAL SHEET CUSTOMER FILE NO . : ESCRIPTION : 802.11 a+b ANTENNIQUES P/N : FCF-003-103-02 CUSTOMER P/N : DATE : 91 9 18 Customer Approval Antenniques Co.,Ltd 12265 TEL02-2668-5793 FAX02-2668-5795 5F,No.6,Laine 122, Sec 2,Ganyun St, Shulin Chulin City, Taipei Hsien,238 Taiwan R.O.C. [email protected] www.antenniques.com.tw TECHNICAL DATA Electrical Properties Frequency Range 2.42.5GHz & 5.15~5.85 GHz Impedance 50 Ohm nominal VSWR 2.0 Gain 5.15`~~5.85 GHz GAIN 3dBi : 2.4~~~2.5 GHZ GAIN 2dBi Radiation Omni Polarization Vertical Electrical Wave Dipole ARRAY Connector IPEX Plug Mechanical Properties Antenna Cover PU Color Black Operation Temperature2060 Storage Temperature -3075 SPECIFICATION OF COAX 50 Ohms AWG32 CORE PTFE D=1.13 mm AXON’CABLE S.A.S. CABLE & INTERCONNECT ROUTE DE CHALONS-SUR-MARNE 51210 MONTMIRAIL-FRANCE Tel : (33) 03 26 81 70 00 Fax : (33) 03 26 81 28 83 e-mail : [email protected] N° P530738A Page 1/1 This document is the property of AXON’CABLE SA, and is issued on the condition that it is not copied or disclosed to any third party without prior written consent from AXON’CABLE SA Index Date Designed by Approval Description of the Modifications A 02/04/02 PV SW CREATION I – Scope This specification presents a PTFE jacketed COAXIAL cable AWG32, 1.13 mm O.D.for internal wiring of electronic equipment, such as Computer / Notebook with wireless communication systems. II – Construction Item Unit Details Material - Silver Plated Copper Composition No./mm AWG32 or 7 x 0.079 1-Inner Conductor Nom. O.D. mm 0.237 Material - Extruded PTFE Nom. O.D. mm 0.68 2-Dielectric Color - Natural Material - Tin Plated Copper Composition - Braided Shield AWG44 3-Outer Conductor Approx. O.D. mm 0.90 Material - Extruded FEP O.D. (mm) mm 1.13±0.05 5-Outer Jacket Color - P530738A^ P530738A^V1 P530738A^V2 : Light Grey : Black : Dark Grey III – Characteristics Item Unit Nom. Value Inner Conductor resistance @20°C Ω/km 525 max. Characteristic Impedance Ω 50 ± 2 Capacitance PF/m 98 @ 1.0 GHz 1.8 @ 1.5 GHz 2.3 @ 2.0 GHz 2.6 @ 2.45 GHz 3.0 @ 5.2 GHz 4.6 Nom. Attenuation (dB/m) @ 5.8 GHz 5.0 Temperature Rating °C 150 Approx. Weight g/m 3.5

REPORT NO: 06U10181-1B DATE: APRIL 26, 2006 EUT: 2x2 MiniPCI MIMO RoHS RADIO MODULE FCC ID: SA3-AGN3022MP1100 Page 151 of 233 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. LOW CH RESTRICTED, AVG (802.11b mode, Vertical) REPORT NO: 06U10181-1B DATE: APRIL 26, 2006 EUT: 2x2 MiniPCI MIMO RoHS RADIO MODULE FCC ID: SA3-AGN3022MP1100 Page 152 of 233 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RESTRICTED BANDEDGE (b MODE, HIGH CHANNEL, HORIZONTAL) HIGH CH RESTRICTED, PEAK (802.11b mode, Horizontal) REPORT NO: 06U10181-1B DATE: APRIL 26, 2006 EUT: 2x2 MiniPCI MIMO RoHS RADIO MODULE FCC ID: SA3-AGN3022MP1100 Page 153 of 233 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. HIGH CH RESTRICTED, AVG (802.11b mode, Horizontal) REPORT NO: 06U10181-1B DATE: APRIL 26, 2006 EUT: 2x2 MiniPCI MIMO RoHS RADIO MODULE FCC ID: SA3-AGN3022MP1100 Page 154 of 233 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RESTRICTED BANDEDGE (b MODE, HIGH CHANNEL, VERTICAL) HIGH CH RESTRICTED, PEAK (802.11b mode, Vertical) REPORT NO: 06U10181-1B DATE: APRIL 26, 2006 EUT: 2x2 MiniPCI MIMO RoHS RADIO MODULE FCC ID: SA3-AGN3022MP1100 Page 155 of 233 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. HIGH CH RESTRICTED, AVG (802.11b mode, Vertical) REPORT NO: 06U10181-1B DATE: APRIL 26, 2006 EUT: 2x2 MiniPCI MIMO RoHS RADIO MODULE FCC ID: SA3-AGN3022MP1100 Page 156 of 233 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. HARMONICS AND SPURIOUS EMISSIONS (b MODE) 04/10/06 High Frequency Measurement Compliance Certification Services, Morgan Hill Open Field Site Test Engr: Ninous Davoudi Project #: 06U10181 Company:Airgo EUT Descrip.:2x2 mPCI Board with RFMD Power Amplifier EUT M/N: Test Target: FCC Mode Oper: Transmit b mode fMeasurement FrequencyAmpPreamp GainAvg LimAverage Field Strength Limit DistDistance to AntennaD CorrDistance Correct to 3 metersPk LimPeak Field Strength Limit ReadAnalyzer ReadingAvgAverage Field Strength @ 3 mAvg MarMargin vs. Average Limit AFAntenna FactorPeakCalculated Peak Field StrengthPk MarMargin vs. Peak Limit CLCable LossHPFHigh Pass Filter fDistRead PkRead Avg.AFCLAmpD CorrFltrPeakAvgPk LimAvg LimPk MarAvg MarNotes GHz(m)dBuVdBuVdB/mdBdBdBdBdBuV/mdBuV/mdBuV/mdBuV/mdBdB(V/H) b mode L ch 4.8243.057.752.733.73.1-44.50.00.650.645.674.054.0-23.4-8.4V 7.2363.054.145.535.43.5-43.70.00.649.941.474.054.0-24.1-12.6V 9.6483.048.236.737.53.9-41.50.00.848.837.374.054.0-25.2-16.7V 12.0603.048.537.138.54.3-42.30.00.949.938.574.054.0-24.1-15.5V no signal detected above this frequency 4.8243.055.148.333.73.1-44.50.00.648.041.274.054.0-26.0-12.8H 7.2363.050.939.635.43.5-43.70.00.646.835.474.054.0-27.2-18.6H 9.6483.048.136.437.53.9-41.50.00.848.837.074.054.0-25.2-17.0H no signal detected above this frequency b mode M ch 4.8743.046.240.234.03.0-34.90.00.648.942.97454-25.1-11.1H 7.3113.044.835.135.94.2-34.70.00.650.841.17454-23.2-12.9H 9.7483.043.032.337.74.7-35.00.00.851.240.57454-22.8-13.5H, NOISE FLOOR no signal detected above this frequency 4.8743.045.838.334.03.0-34.90.00.648.541.07454-25.5-13.0V 7.3113.045.036.435.94.2-34.70.00.651.042.47454-23.0-11.6V 9.7483.043.432.637.74.7-35.00.00.851.640.87454-22.4-13.2V, NOISE FLOOR no signal detected above this frequency b mode H ch 4.9243.054.449.533.83.1-44.60.00.647.442.574.054.0-26.6-11.5V 7.3863.050.838.735.63.5-43.60.00.647.034.974.054.0-27.0-19.1V 9.8483.047.336.437.63.9-40.90.00.848.737.874.054.0-25.3-16.2V no signal detected above this frequency 4.9243.055.450.133.83.1-44.60.00.648.443.174.054.0-25.6-10.9H 7.3863.050.338.535.63.5-43.60.00.646.534.874.054.0-27.5-19.2H 9.8483.047.437.337.63.9-40.90.00.848.738.774.054.0-25.3-15.3H no signal detected above this frequency REPORT NO: 06U10181-1B DATE: APRIL 26, 2006 EUT: 2x2 MiniPCI MIMO RoHS RADIO MODULE FCC ID: SA3-AGN3022MP1100 Page 157 of 233 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RESTRICTED BANDEDGE (g MODE, LOW CHANNEL, HORIZONTAL) LOW CH RESTRICTED, PEAK (802.11g mode, Horizontal) REPORT NO: 06U10181-1B DATE: APRIL 26, 2006 EUT: 2x2 MiniPCI MIMO RoHS RADIO MODULE FCC ID: SA3-AGN3022MP1100 Page 158 of 233 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. LOW CH RESTRICTED, AVG (802.11g mode, Horizontal) REPORT NO: 06U10181-1B DATE: APRIL 26, 2006 EUT: 2x2 MiniPCI MIMO RoHS RADIO MODULE FCC ID: SA3-AGN3022MP1100 Page 159 of 233 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. R…

Text truncated - open the document above for the full version.

REPORT NO: 06U10181-1 DATE: APRIL 18, 2006 EUT: 2x2 MiniPCI MIMO RoHS RADIO MODULE FCC ID: SA3-AGN3022MP1100 Page 227 of 233 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 06U10181-1 DATE: APRIL 18, 2006 EUT: 2x2 MiniPCI MIMO RoHS RADIO MODULE FCC ID: SA3-AGN3022MP1100 Page 228 of 233 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 06U10181-1 DATE: APRIL 18, 2006 EUT: 2x2 MiniPCI MIMO RoHS RADIO MODULE FCC ID: SA3-AGN3022MP1100 Page 229 of 233 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED BACK PHOTO REPORT NO: 06U10181-1 DATE: APRIL 18, 2006 EUT: 2x2 MiniPCI MIMO RoHS RADIO MODULE FCC ID: SA3-AGN3022MP1100 Pag…
