PePLink Surf User’s Manual Document Version : 2.6 Firmware Version : 6.0.4 Date : 2006-02-10 PePLink Surf User’s Manual v2.6 Copyright © 1999-2006 PePLink Ltd. All Rights Reserved Page 2 of 32 Table of Content 1 Copyright 3 2 Disclaimer 3 3 Product Description 4 3.1 Features 4 3.2 Hardware Setup 5 3.3 LED Description 6 4 Using the PePLink Surf 9 4.1 First Time Setup 10 4.2 Settings Details 13 4.3 Advanced Settings: Port Forward 15 4.4 WPA/WPA2 with 802.1x Authentication 16 4.5 Test the Setup 19 4.6 Firmware Upgrade 20 4.7 Debug Page 21 4.8 Restore to Factory Defaults 22 4.9 System Settings 23 5 Appendix - Demo CA and Server Certification Generation Instructions 28 5.1 Prerequisite 28 5.2 Create your own Certificate Authority (CA) 28 5.3 Create a server certificate request from your servers 29 5.4 Sign the server certificate with your own CA 31 PePLink Surf User’s Manual v2.6 Copyright © 1999-2006 PePLink Ltd. All Rights Reserved Page 3 of 32 1 Copyright Copyright © 2006 by PePLink Ltd. The content of this documentation may not be reproduced in any part or as a whole without the prior written permission of PePLink Ltd. 2 Disclaimer PePLink does not assume any liability arising out of the application or use of any products, or software described herein. Neither does it convey any license under its patent right nor the patent rights of others. PePLink further reserves the right to make changes in any products described herein without notice. This documentation is subject to change without notice. PePLink Surf User’s Manual v2.6 Copyright © 1999-2006 PePLink Ltd. All Rights Reserved Page 4 of 32 3 Product Description PePLink Surf, formerly known as MANGA Surf, is a Wi-Fi Station Mode (Client) Router with WPA, WPA2 and 802.1x supplicant support. It is designed to act as a Wireless router which connects to Wireless Broadband Internet Service and allows LAN users to access the Internet via it. It associates to a service provider and authenticates using 802.1x (if needed) on start up. Upon successful association and authentication, it will acquire an IP address from the service provider using DHCP. A DHCP server is built-in on its LAN port. Network Address Translation is performed for all outbound connections. Thus it supports multiple terminals to access the Internet simultaneously. 3.1 Features • 10/100 Ethernet interface with auto-crossover detection • Reset button for restoring settings to factory defaults • Signal strength LED for showing the current signal strength • WPA/WPA2-Personal and WPA/WPA2-Enterprise support • Network Address Translation (NAT) routing • Built-in DHCP server • Inbound port range forwarding PePLink Surf User’s Manual v2.6 Copyright © 1999-2006 PePLink Ltd. All Rights Reserved Page 5 of 32 3.2 Hardware Setup 1. Attach the provided antenna to the left most antenna connector 2. Connect the LAN port to the computer’s Ethernet port with an Ethernet cable. 3. Connect the end of the included power adapter to the power socket (labeled “DC 5V”) on PePLink Surf. 4. Power on the power adaptor. PePLink Surf User’s Manual v2.6 Copyright © 1999-2006 PePLink Ltd. All Rights Reserved Page 6 of 32 3.3 LED Description L E D C o l o r S t a t u s Description G r e e n O n Power is on P o w e r O f f Power is off G r e e n S o l i d Received signal is Excellent, Very Good and Good S t a t u sG r e e n B l i n k i n g Received signal is Low PePLink Surf User’s Manual v2.6 Copyright © 1999-2006 PePLink Ltd. All Rights Reserved Page 7 of 32 A m b e r B l i n k i n g Received signal is Very Low A m b e r S o l i d No wireless signal is detected O f f Booting up / Upgrading firmware G r e e n O n Ethernet is connected G r e e n B l i n k i n g Sending/Receiving data L A N O f f Ethernet is not connected W i - F i G r e e n O n Associated with an access point PePLink Surf User’s Manual v2.6 Copyright © 1999-2006 PePLink Ltd. All Rights Reserved Page 8 of 32 G r e e n B l i n k i n g Sending/Receiving data O f f Not associated with any access point This is the Signal Strength and Status LED state conversion table. Received Signal Strength Status LED Indication on the web based power meter > -70 Solid Green Excellent -70 to -74 Solid Green Very good -75 to -79 Solid Green Good -80 to -84 Blinking Green Low -85 to -87 Blinking Amber Very Low -87 to -89 Blinking Amber Very Low -89 < Blinking Amber Very Low PePLink Surf User’s Manual v2.6 Copyright © 1999-2006 PePLink Ltd. All Rights Reserved Page 9 of 32 4 Using the PePLink Surf You should set up your computer’s LAN interface to obtain an IP address automatically. If you do so, you should have set it up correctly. In order to do so, select the “Start” menu, “Control Panel” and then “Network Connections”. Right click on the “Local Area Connection” icon, choose “Properties”, double click on the item “Internet Protocol (TCP/IP)” from the list. On the screen, just set it as follows: Click the “OK” button to confirm the change. PePLink Surf User’s Manual v2.6 Copyright © 1999-2006 PePLink Ltd. All Rights Reserved Page 10 of 32 4.1 First Time Setup On your PC, start a web browser, e.g. Internet Explorer, Mozilla Firefox, etc. Visit an Internet web site. If you are not associated to an access point, you should be redirected to a logon page. Or you can go also go to this URL http://192.168.20.1/ The page will look like this. Once it is associated to an access point, you can also access the page from this URL: https://wan.ip.addr.here:8000/ Login ID and password are “admin” and “MSurf000”. PePLink Surf User’s Manual v2.6 Copyright © 1999-2006 PePLink Ltd. All Rights Reserved Page 11 of 32 Click the “Advanced Config” button to enter the parameters of the access point to associate to. You should see this screen: In the field “SSID” under Wireless Settings, input the access point’s SSID (sometimes it is called “network name”). According to the setting of the Access Point you are associating to, you may choose different “Authentication setting”. If “Static WE…

Text truncated - open the document above for the full version.

FCC ID: SAN-SURF200BG-C5 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

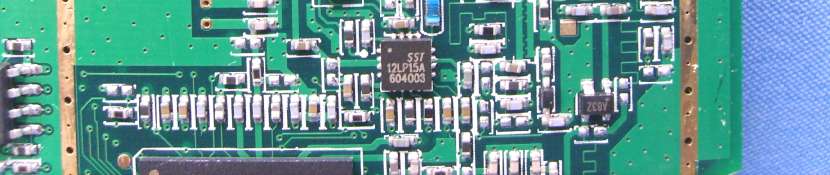

Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8

Report No.: SA951016H04 1 RF EXPOSURE REPORT REPORT NO.: SA951016H04 MODEL NO.: PePLink Surf 200BG, PePLink Surf 200BG-AP FCC ID: SAN-SURF200BG-C5 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: PePLink Ltd. ADDRESS: 2302, Tai Tung Building 8 Fleming Road, Wanchai, Hong Kong ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA951016H04 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No.: SA951016H04 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA951016H04 4 6. Test Results 6.1 Antenna Gain There is one antenna provided to this EUT as below: Antenna TypeGain (dBi)Cable loss (dB)Net Gain (dBi)Connector Type Dipole Antenna 5 0.7 4.3 Reverse TNC The maximum Gain measured in Fully Anechoic Chamber is 4.3dBi or 2.691535(numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412118.8500.0641.0 62437237.1370.1271.0 112462133.3520.0711.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412118.8500.0641.0 62437354.8130.1901.0 112462118.8500.0641.0

Report No.: RF951016H041Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.: RF951016H04 MODEL NO.: PePLink Surf 200BG, PePLink Surf 200BG-AP RECEIVED: Oct 16, 2006 TESTED: Oct. 16 to 18, 2006 ISSUED: Oct. 19, 2006 APPLICANT: PePLink Ltd. ADDRESS: 2302, Tai Tung Building 8 Fleming Road, Wanchai, Hong Kong ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 71 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF951016H042Report Format Version 2.0.5 Table of Contents 1CERTIFICATION....................................................................................................4 2SUMMARY OF TEST RESULTS...........................................................................5 3GENERAL INFORMATION....................................................................................6 3.1GENERAL DESCRIPTION OF EUT......................................................................6 3.2DESCRIPTION OF TEST MODES........................................................................8 3.3TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:.......................9 3.4GENERAL DESCRIPTION OF APPLIED STANDARDS....................................11 3.5DESCRIPTION OF SUPPORT UNITS................................................................12 3.6CONFIGURATION OF SYSTEM UNDER TEST.................................................13 4TEST TYPES AND RESULTS.............................................................................14 4.1CONDUCTED EMISSION MEASUREMENT......................................................14 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT...................................14 4.1.2TEST INSTRUMENTS.........................................................................................14 4.1.3TEST PROCEDURES..........................................................................................15 4.1.4TEST SETUP........................................................................................................15 4.1.5EUT OPERATING CONDITIONS........................................................................16 4.1.6TEST RESULTS...................................................................................................17 4.2RADIATED EMISSION MEASUREMENT...........................................................21 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT........................................21 4.2.2TEST INSTRUMENTS.........................................................................................22 4.2.3TEST PROCEDURES..........................................................................................23 4.2.4TEST SETUP........................................................................................................24 4.2.5EUT OPERATING CONDITIONS........................................................................24 4.2.6TEST RESULTS...................................................................................................25 4.2.7TEST RESULTS - DSSS......................................................................................27 4.2.8TEST RESULTS - OFDM.....................................................................................34 4.36dB BANDWIDTH MEASUREMENT...................................................................41 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT................................................41 4.3.2TEST INSTRUMENTS.........................................................................................41 4.3.3TEST PROCEDURE............................................................................................42 4.3.4TEST SETUP........................................................................................................42 4.3.5EUT OPERATING CONDITIONS........................................................................42 4.3.6TEST RESULTS –DSSS......................................................................................43 4.3.7TEST RESULTS-OFDM.......................................................................................46 4.4MAXIMUM PEAK OUTPUT POWER..................................................................49 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..................49 4.4.2TEST INSTRUMENTS.........................................................................................49 Report No.: RF951016H043Report Format Version 2.0.5 4.4.3TEST PROCEDURES..........................................................................................50 4.4.4TEST SETUP........................................................................................................50 4.4.5EUT OPERATING CONDITIONS........................................................................50 4.4.6TEST RESULTS – DSSS.....................................................................................51 4.4.7TEST RESULTS –OFDM.....................................................................................52 4.5POWER SPECTRAL DENSITY MEASUREMENT.............................................53 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT..........................53 4.5.2TEST INSTRUMENTS.........................................................................................53 4.5.3TEST PROCEDURE............................................................................................54 4.5.4TEST SETUP........................................................................................................54 4.5.5EUT OPERATING CONDITIONS................................................................…

Text truncated - open the document above for the full version.

Report No.: RF951016H0468Report Format Version 2.0.5 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 951016H04 951016H04 Report No.: RF951016H0469Report Format Version 2.0.5 RADIATED EMISSION TEST 951016H04 951016H04
