SAZ-3945ABGXPCIAShuttle XPC (Wireless 802.11a+b+g)

chapter 1 getting to know the basics 1-1 Shuttle Model name: Xyy0yy (cy ould be 0~9 , A~Z or blank to denote different color of enclo
chapter 1 getting to know the basics 1-2 CHAPTER ONE GETTING TO KNOW THE BASICS Thischapter introduces the features and components of the computer.
chapter 1 getting to know the basics 1-3 Performance Features „ High Performance Processor with Napa Chipset The notebook PC is equipped with a powerful Mobile Intel Pentium M dual-core processor. Together with the latest Napa chipset and technologies, the system offers very advanced PC performances. „ Advanced Graphic Engine The system is built with ATI Mobility M54-P with 128MB DDR2 dedicated frame buffer. The PCI-Expresshigh-end graphic engine offers excellent graphic performance for the most demanding professionals or gamers. The advanced graphic chip also incorporates a hardware-based motion-compensation engine, which gives you smooth MPEG video playback. DirectX 9 graphics capability also adds realism to PC games. „ Built-in Multiple Card Reader There is built-in 4-in-1 card reader to access many of the portable media formats (SD Card, MS Card, MMC Card, and MS-Pro Card). „ Gigabit Ethernet Port The system provides built-in10/100/1000MbpsEthernet network adapter for high bandwidth networkconnection. „ Firewire (IEEE1394 / 1394a) and USB2.0 ports In addition to a full array of built-in I/O por ts, the computer offers IEEE1394 for ultra high-speed connection to high bandwidthdigital video devices and USB2.0 ports to connect to any USB-based peripheral devices. „ Wireless LAN The internal Wireless LAN module allows your notebook to connect wirelessly to other 802.11-enabled systems, devices, or network.
chapter 1 getting to know the basics 1-4 Package Content Please take a moment to make sure you have the following content in the box. [ Proposal: Will take a live black and white picture of the actual items.]
chapter 1 getting to know the basics 1-5 System At A Glance Front View Warning:Do not place any heavy objects on the top of computer. This may damage the unit 1. Power / Suspend Button The power/suspend button turns the computer on and off and it also acts as a system suspend key. Press momentarily to turn on the system. Press and hold for at least 4 seconds to turn off the system. How this key behaves can be defined in [Start > Settings > Control Panel > Power Options > Advanced] menu. Press the power / suspend button again to return from the suspend mode. (See Chapter 3 for more details on system suspend function.) 2. 4-in-1 Card Reader The 4-in-1 Card Reader supports SD Card, MS Card, MMC Card, and MS-Pro Card. 3. USB2.0 Port (x1) The Universal Serial Bus (USB2.0-compliant) port allows you to
chapter 1 getting to know the basics 1-6 connect a wide variety of devices to your computer at a rate of up to 480 Mbps. This port conforms to the latest USB2.0 plug-and-play standards. 4. Ventilation Grill The fan grill is where air is exchanged to dissipate the internal heat. Do not block this airway completely. 5. Optical Drive and Disk Eject Button and Manual Eject Key Hole If your computer comes with the Combo drive, DVD-RW, DVD+RW, or DVD-Dual drive, you may save data onto a CD-R / CD-RW or DVD RW disc. Press the eject button to eject the disk tray. The manual eject keyhole allows you to manually eject a jammed disk. This is a tray-less(slot-in) type of Optical Drive. To Load a CD: Gently insert the disc into the slot opening and XPC will automatically load-in the rest of the disc. To Eject a CD: Push the Eject Button and the disc will be ejected automatically.
chapter 1 getting to know the basics 1-7
chapter 1 getting to know the basics 1-8 Rear Views Warning:Do not block the Fan Grill outlet. Place the machine on hard surface only. The bottom case may get very hot. 1. Power Jack (DC-in) The DC-out jack of the AC Adapter connects here and powers the computer. 2. DVI-I Port The DVI-I video output port is for connecting the external LCD monitor or projector. 3. Ethernet / LAN Port The port connects to a network hub via the RJ-45 cable and also conforms to 10/100/1000Base-TX transmission protocol. 4. S/PDIF-out Jack You may connect the S/PDIF output to an external DTS, AC3, or PCM sound processor / decoder in your home stereo system.
chapter 1 getting to know the basics 1-9 5. USB2.0 Port (x2) The Universal Serial Bus (USB2.0-compliant) port allows you to connect a wide variety of devices to your computer at a rate of up to 480 Mbps. This port conforms to the latest USB2.0 plug-and-play standards. 6. TV (S-Video) Port The S-Video port permits you to redirect the screen output to a television set or any analog video playback device. This TV Port is copyright protected; when DVD movie is played, the output is scrambled to prevent analog recording. 7. Stereo Headphone / Line-out Jack The stereo headphone jack (3.5-mm diameter) is where you connect to the headphones or external speakers. 8. Audio Line-in Jack The Audio Line-in jack (3.5-mm diameter) is where you connect an external audio input source such as a CD Player. 9. Microphone Jack The microphone jack (3.5-mm diameter) is where you connect a microphone. 10. Firewire / IEEE1394 / 1394a Port This is a high-speed serial data port. You may connect any Fire-wire-ready device to this port. 11. USB2.0 Port (x2) The Universal Serial Bus (USB2.0-compliant) port allows you to connect a wide variety of devices to your computer at a rate of
chapter 1 getting to know the basics 1-10 up to 480 Mbps. This port conforms to the latest USB2.0 plug-and-play standards. 12. Ventilation Grill The fan grill is where air is exchanged to dissipate the internal heat. Do not block this airway completely.

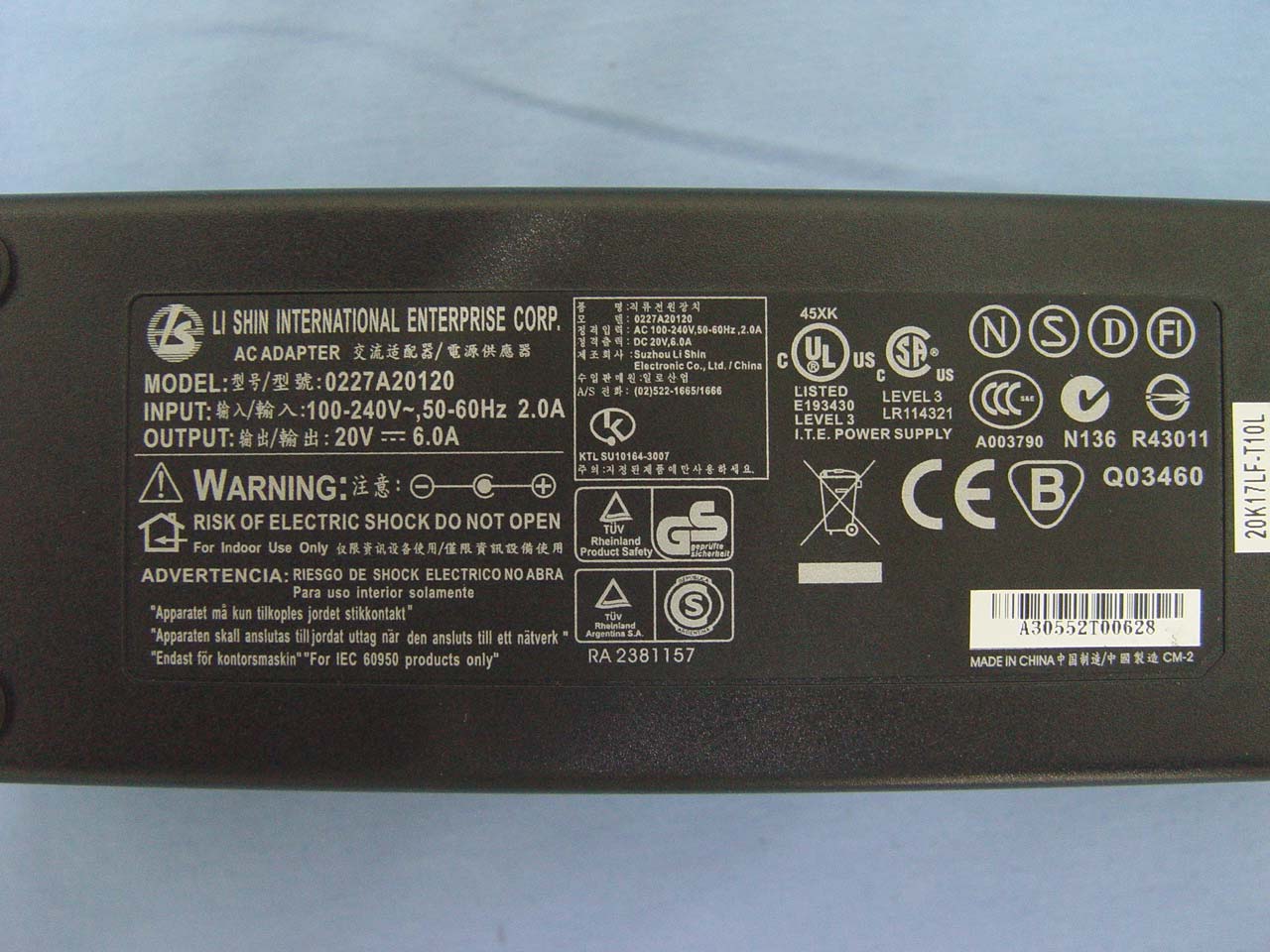

chapter 1 getting to know the basics 1-11 AC Adapter 1. DC-out Connector The DC-out connector docks to the power jack (DC-in) on the computer. 2. LED Lamp The LED lamp appears green when the unit is plugged into a valid AC source. 3. Adapter The adapter conve…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 60306001 Date of Issue: May 8, 2006 Page 1 Total Page: 12 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 60306001 Date of Issue: May 8, 2006 Page 2 Rev. 00 Compliance Certification Services Inc. Report No: 60306001 Date of Issue: May 8, 2006 Page 3 Rev. 00 Compliance Certification Services Inc. Report No: 60306001 Date of Issue: May 8, 2006 Page 4 Rev. 00

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)•This device may not cause harmful interference. (2)•This device must accept any interference received, including interference that maycause undesired operation.

Compliance Certification Services Inc. Report No: 60306001 Date of Issue: May 8, 2006 Page 5 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 60306001 Date of Issue: May 8, 2006 Page 6 Rev.00 Compliance Certification Services Inc. Report No: 60306001 Date of Issue: May 8, 2006 Page 7 Rev.00 Compliance Certification Services Inc. Report No: 60306001 Date of Issue: May 8, 2006 Page 8 Rev.00 Compliance Certification Services Inc. Report No: 60306001 Date of Issue: May 8, 2006 Page 9 Rev.00 Compliance Certification Services Inc. Report No: 60306001 Date of Issue: May 8, 2006 Page 10 Rev.00 Compliance Certification Services Inc. Report No: 60306001 Date of Issue: May 8, 2006 Page 11 Rev.00 Compliance Certification Services Inc. Report No: 60306001 Date of Issue: May 8, 2006 Page 12 Rev.00

Compliance Certification Services Inc. Report No: 60306001-RP1 FCC ID: SAZ-3945ABGXPCIA Date of Issue: May 12, 2006 Page 1 Total Page: 6 Rev. 00 APPENDIX II RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Shuttle XPC (Wireless 802.11a+b+g) Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.725GHz ~ 5.850GHz WLAN: 5.15GHz ~ 5.35GHz Others: ______________________ Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11b: 16.32 dBm (42.85mW) IEEE 802.11g: 16.07 dBm (40.46mW) Antenna gain (Max) 0.56 dBi (Numeric gain: 1.14) Evaluation applied MPE Evaluation SAR Evaluation N/A Remark: 1. The maximum output power is 16.32dBm (42.85mW) at 2437MHz (with 1.14 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. TEST RESULTS No non-compliance noted. Compliance Certification Services Inc. Report No: 60306001-RP1 FCC ID: SAZ-3945ABGXPCIA Date of Issue: May 12, 2006 Page 2 Rev. 00 Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure EUT output power = 42.85mW Numeric Antenna gain = 1.14 Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Æ Power density = 0.0097 mW / cm2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.) Compliance Certification Services Inc. Report No: 60306001-RP1 FCC ID: SAZ-3945ABGXPCIA Date of Issue: May 12, 2006 Page 3 Rev. 00 EUT Specification EUT Shuttle XPC (Wireless 802.11a+b+g) Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.725GHz ~ 5.850GHz WLAN: 5.15GHz ~ 5.35GHz Others: ______________________ Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11a: 15.84 dBm (38.37mW) Antenna gain (Max) 1.91 dBi (Numeric gain: 1.55) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 15.84dBm (38.37mW) at 5825MHz (with 1.55 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. TEST RESULTS No non-compliance noted. Compliance Certification Services Inc. Report No: 60306001-RP1 FCC ID: SAZ-3945ABGXPCIA Date of Issue: May 12, 2006 Page 4 Rev. 00 Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure EUT output power = 38.37mW Numeric Antenna gain = 1.55 Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Æ Power density = 0.0118 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.) Compliance Certification Services Inc. Report No: 60306001-RP1 FCC ID: SAZ-3945ABGXPCIA Date of Issue: May 12, 2006 Page 5 Rev. 00 EUT Specification EUT Shuttle XPC (Wireless 802.11a+b+g) Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.725GHz ~ 5.850GHz WLAN: 5.15GHz ~ 5.35GHz Others: ______________________ Device category Portable (<20cm separation) Mobile (>20cm separation) Others: ___________________ Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 18.68 dBm (73.79mW) Antenna gain (Max) 2.09 dBi (Numeric gain: 1.62) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 18.68dBm (73.79mW) at 5320MHz (with 1.62 nume…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 60306001-RP1 FCC ID: SAZ-3945ABGXPCIA Date of Issue: May 12, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 47 Rev. 00 FCC 47 CFR PART 15 SUBPART E TEST REPORT For Shuttle XPC (Wireless 802.11a+b+g) Trade Name: Shuttle Model: Xyy0yy (y=0~9) Issued to UNIWILL COMPUTER CORP. 3F, No.43, Wu Chiuan Rd, Wu Cu Ind., Park, Ta i p e i , Ta i w a n , R . O . C . Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No: 60306001-RP1 FCC ID: SAZ-3945ABGXPCIA Date of Issue: May 12, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 6 3.1 EUT CONFIGURATION................................................................................................... 6 3.2 EUT EXERCISE.............................................................................................................. 6 3.3 GENERAL TEST PROCEDURES........................................................................................ 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.................................. 7 3.5 DESCRIPTION OF TEST MODES....................................................................................... 7 4. INSTRUMENT CALIBRATION................................................................................................. 8 4.1 MEASURING INSTRUMENT CALIBRATION................................................................. 8 4.2 MEASUREMENT EQUIPMENT USED .................................................................. 8 5. FACILITIES AND ACCREDITATIONS ................................................................................... 9 5.1 FACILITIES................................................................................................................... 9 5.2 EQUIPMENT.................................................................................................................. 9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS................................................................ 10 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 11 6.1 SETUP CONFIGURATION OF EUT.................................................................................. 11 6.2 SUPPORT EQUIPMENT................................................................................................. 11 7. FCC PART 15 REQUIREMENTS............................................................................................. 12 7.1 26 DB EMISSION BANDWIDTH..................................................................................... 12 7.2 PEAK POWER.............................................................................................................. 15 7.3 BAND EDGES MEASUREMENT.......................................................................... 19 7.4 PEAK POWER SPECTRAL DENSITY............................................................................... 24 7.5 PEAK EXCURSION....................................................................................................... 27 7.6 RADIATED UNDESIRABLE EMISSION........................................................................... 30 7.7 CONDUCTED UNDESIRABLE EMISSION........................................................................ 36 7.8 POWERLINE CONDUCTED EMISSIONS.......................................................................... 39 7.9 TRANSMISSION IN ABSENCE OF DATA......................................................................... 42 7.10 FREQUENCY STABILITY.............................................................................................. 42 APPENDIX I RADIO FREQUENCY EXPOSURE ....................................................................... 43 APPENDIX II PHOTOGRAPHS OF TEST SETUP...................................................................... 45 Compliance Certification Services Inc. Report No: 60306001-RP1 FCC ID: SAZ-3945ABGXPCIA Date of Issue: May 12, 2006 Page 4 Rev. 00 2. EUT DESCRIPTION Product Shuttle XPC (Wireless 802.11a+b+g) Trade Name Shuttle Model Xyy0yy (y=0~9) Model Discrepancy 1. All the specification and layout are identical except they come with different model numbers. 2. “y” could be 0-9 to denote different color of enclosure. Power Supply LI SHIN INTERNATIONAL ENTERPRISE CORP. / 0227A20120 I/P: AC 100-240V, 2.0A, 50-60Hz O/P: DC 20V, 6.0A Frequency Range 5.15 ~ 5.35 GHz Transmit Power 18.68 dBm Modulation Technique OFDM (QPSK, BPSK, 16-QAM, 64-QAM) Transmit Data Rate 54, 48, 36, 24, 18, 12, 9, 6 Mbps Number of Channels 8 Channels Antenna Specification PCB Antanna / Gain: 2.09 dBi Compliance Certification Services Inc. Report No: 60306001-RP1 FCC ID: SAZ-3945ABGXPCIA Date of Issue: May 12, 2006 Page 5 Rev. 00 Operation Frequency: UNLICENSED NATIONAL INFORMATION INFRASTRUCTURE (U-NII) CHANNEL MHz 36 5180 40 5200 44 5220 48 5240 52 5260 56 5280 60 5300 64 5320 Remark: 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: SAZ-3945ABGXPCIA filing to comply with Section 15.407 of the FCC Part 15, Subpart E Rules. Compliance Certificat…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 60306001-RP1 FCC ID: SAZ-3945ABGXPCIA Date of Issue: May 12, 2006 Page 45 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emission Set Up Photo Compliance Certification Services Inc. Report No: 60306001-RP1 FCC ID: SAZ-3945ABGXPCIA Date of Issue: May 12, 2006 Page 46 Rev. 00 Radiated Emission Set up Photos Compliance Certification Services Inc. Report No: 60306001-RP1 FCC ID: SAZ-3945ABGXPCIA Date of Issue: May 12, 2006 Page 47 Rev. 00 Powerline Conducted Emissions Setup Photos
