SAZ-GUBTCRQ2426Notebook PC

1 I I I N N N T T T R R R O O O D D D U U U C C C T T T I I I O O O N N N Welcome to the Notebook PC Thank you for purchasing your new notebook. Your Notebook features the latest advances in portable computing technology. Your new notebook will meet your computing needs both today and in the future with modular design provides maximum expandability without compromising portability. There are a wide range of wireless home entertainment and networking products to experience digital entertainment in a truly connected home without the need for messy cables and wiring. U SING THE U SER G UIDE This user guide has been designed to explain all of the important features and functions of your new notebook and the Microsoft Windows XP Home Edition operating system. 2 System At A Glance F RONT V IEW 3 1. LCD L ATCH The LCD latch unlock the LCD panel. 2. K EYBOARD The keyboard is used to enter data. It has an embedded numeric keypad and cursor control keys. 3. GPS GPS (Global Positioning Service) 4. W IRELESS AND B LUETOOTH O N /O FF K EY Press the On/Off key repeatedly to select one or both of wireless and Bluetooth to enable or disable. When Wireless icon (key top) appears green, the wireless LAN function is enabled. 5. W IRELESS AND B LUETOOTH O N /O FF K EY Press the On/Off key repeatedly to select one or both of wireless and Bluetooth to enable or disable. 6. M ICROSOFT O UTLOOK K EY Press this key to open the Microsoft Outlook to receive and send mail. 7. I NTERNET Q UICK K EY The Internet Quick Key launches the Internet Explore. 4 8. P OWER B UTTON The power button turns the notebook on and off. Press momentarily to turn on the system. Press and hold for at least 3~4 seconds to turn off the system. How this key behaves can be defined in [Start > Settings > Control Panel > Power Options > Advanced] menu. 9. K EYBOARD The keyboard is used to enter data. It has an embedded numeric keypad and cursor control keys. (See Keyboard Section for details.) 10. O PTICAL F INGERPRINT R EADER Place your finger gently on the glass window and slide your finger from top to bottom. You will need to use this security feature with an application. 11. LCD L ATCH The LCD latch locks the LCD panel. 12. LED S TATUS I NDICATOR The LED Status Indicator displays the operating status of your notebook. When a certain function is enabled, an LED will light up. The following section describes its indication. System Status Indicator LED Graphic Symbol Indication Green light indicates the hard drive and/or optical drive is being accessed. 5 Green light indicates the numeric keypad is activated. Green light indicates the cap-lock is activated. Green light indicates the scroll-lock is activated. Green light indicates the GPS (Global Positioning Service) is activated. Green light indicates the bluetooth is activated. Green light indicates the wireless is activated. 13. B UILT - IN S TEREO S PEAKERS The built-in speakers output the sound in stereo. 14. T HE B UILT -I N M ICROPHONE The built-in microphone is located directly at the left of the keyboard. 15. T OUCH P AD The dual-button TouchPad is located below the keyboard. The TouchPad is hardware-compatible with the IBM PS/2 mouse and software-compatible with the Microsoft mouse. 16. S USPEND LED I NDICATOR Indicates when the Notebook is in Suspend mode. 17. B ATTERY LED I NDICATOR Indicates when the primary rechargeable battery is being dis-charged. LED Graphic Symbol Indication Blinking green light indicates the notebook is in suspend mode. 6 Blinking orange light indicates the battery is being charged when the system is turn ON. Blinking red light indicates the battery is being charged in when the system is turn OFF. Blinking green light indicates the battery power is currently low. 18. T OUCH P AD B UTTONS The buttons below the TouchPad correspond to the left and right buttons on a standard mouse. L EFT V IEW 1. K ENSINGTON L OCK K EYHOLE Your computer includes a keyhole to be used with a standard Kensington lock. You can connect the Notebook lock to a large object with the Kensington lock to prevent theft of your Notebook. 2. V ENTILATION G RILL The fan grill is where air is exchanged to dissipate the internal heat. Do not block this airway completely. 7 3. 1394 USB A fast external bus standard that supports data transfer rates of up to 400 Mbps (400 million bits per second). Can be used to connect up 63 external devices, also supports isochronous data -- delivering data at a guaranteed rate. This makes it ideal for devices that need to transfer high levels of data in real-time, such as video devices. Also supports both Plug-and-Play and hot plugging, and also provides power to peripheral devices. 4. M ICROPHONE J ACK The microphone jack (3.5-mm diameter) is where you connect a microphone. 5. W IRELESS AND B LUETOOTH O N /O FF K EY Press the On/Off key repeatedly to select one or both of wireless and Bluetooth to enable or disable. When Wireless icon (key top) appears green, the wireless LAN function is enabled. 6. S TEREO H EADPHONE / SPDIF- OUT J ACK The stereo headphone jack (3.5-mm diameter) is where you connect the headphones or external speakers. Alternatively, you may connect the SPDIF output to an external DTS, AC3, or PCM sound processor / decoder in your home stereo system. 7. USB 2.0 P ORT (X2) The Universal Serial Bus (USB2.0-compliant) port allows you to connect a wide variety of devices to your computer at a rate of up to 480 Mbps. This port conforms to the latest USB2.0 plug-and-play standards. 8. PC C ARD S LOT (T YPE I & II PCMCIA) The slot is where PC Card (Type II PCMCIA) is inserted. The system also supports 1394, Smart card and 4-1 card reader. 8 9. C ARD E JECT B UTTON Press the eject button to release the PC Card. R IGHT V IEW 1. B ATTERY P ACK The battery pack is a built-in power source for the notebook. 2. O PTICAL D RIVE If your computer comes with the CD-RW/DVD Combo/DVD Dual, you may save data onto a CD-R / CD-RW or DVD RW disc. 3. D ISK E JECT B …

Text truncated - open the document above for the full version.

Chris Harvey From: lucy.tsai [[email protected]] on behalf of application [[email protected]] Sent: Tuesday, May 09, 2006 5:49 AM To: [email protected] Cc: Mike Kuo Subject: Re ： UNIWILL COMPUTER CORP., FCC ID: SAZ-GUBTCRQ2426, Assessment NO.: AN06T5664, Notice#1 Attachments: X51IAx (x=0~9 or a~z or blank) Test Rpt for Part 22&24 Revsied 0427.pdf; X51IAx (x=0~9 or a~z or blank) Internal Photo-1 Revised 0427.pdf; X51IAx (x=0~9 or a~z or blank) UerMan_Revised.pdf; Uniwill X51I Series FCC IC Antenna Auth ltr_WM3945ABG.pdf Page 1 of 3 5/10/2006 Dear Chris: Sorry for the delay and please refer to below for our reply. Besides, as for BT portion, please refer to Application-Amanda's email dated Apr. 18 for details. Thank you and Best regards Amanda Dear Lucy Tsai: I have preformed the review of the above TCB application (GPRS Pt. 22/24 portion) and find that the following items need to be addressed before the application review can be completed: 1. This Notebook PC apparently has a collocated Intel WLAN Module (according to the Label and manual exhibits this is FCC ID: PD9WM3945ABG). This collocated situation is not completely documented in this application. What antenna is being used with the WLAN module and has this antenna been approved for use with the Intel WLAN module? Ans: The antenna is PIFA which has been certified under Intel FCC ID:PD9WM3945ABG. Please refer to attached Intel authorization letter for details. <charvey- [email protected]> 2006/04/18 12:09 AM 收件人： <[email protected]> 副本抄送： <[email protected]> 主旨： UNIWILL COMPUTER CORP., FCC ID: SAZ-GUBTCRQ2426, Assessment NO.: AN06T5664, Notice#1 2. Page 2 of the Agency Regulatory Notices portion of the user's manual has a typo (missing the PD9 Grantee code) in the WLAN FCC ID that must be corrected. Please submit the revised Manual. Ans: User manual revised as attached. 3. Please provide an RF Exposure exhibit (SAR or MPE as applicable) and antenna position diagram/photo that documents the position of the antennas for this device with respect to the other antennas and the users. Are all antennas at least 20cm from the other antennas and from the user? If this device is Portable (<20cm separation to the user) then SAR testing may be required for the WLAN and/or GPRS and Bluetooth transmissions. If the antennas are within 20cm from each other then collocated RF Exposure may be required. Ans: Antennas of WLAN and GPRS located are at least 20cm from user that SAR evulation testing are not required. Please refer to revised EUT internal photos-1 for details. Please note that if the Intel WLAN module in this device uses an antenna that was not approved for use with the module, or if the WLAN antenna is collocated (within 20cm) with the GPRS or Bluetooth antenna, then a Class II Permissive Change application may be required for the Intel WLAN module. Ans: The antenna has already been certified under Intel WLAN FCC ID: PD9WM3945ABG and it's not necessary to do additonal Class II permissive change. Please refer to attached Intel authorization letter for details. 4. Please provide the following exhibits for the GPRS Portion of this device: Schematic Diagram for the RF portion Technical Operational Description for this GPRS operation of this device (exhibit provided has just a simple block diagram) Tune-Up Procedure Parts List DC Voltages/Currents for the RF portion Block Diagram for the RF portion Ans: Please refer to Mike's email for above documents because the documents were sent to Mike directly by the GPRS manufacturer. 5. The RF Test report has some data with the high channel of 848.7 MHz and some with 848.8 MHz. Please clarify the center frequency of the high channel and ensure that the test data shows compliance with all requirements of FCC Pt. 22. Ans: 848.7MHz is the correct frequecy of high channel, please have the revised test report. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Best regards, Page 2 of 3 5/10/2006 Chris Harvey [email protected] Page 3 of 3 5/10/2006

Chris Harvey From: lucy.tsai [[email protected]] Sent: Wednesday, May 10, 2006 9:16 PM To: Chris Harvey Cc: [email protected]; [email protected]; 'MIKE KUO (CCSEMC)' Subject: Re ： RE: Re $B!'(B UNIWILL COMPUTER CORP., FCC ID: SAZ-GUBTCRQ2426, Assessment NO.: AN06T5664, Notice#2 Attachments: X51IAx (x=0~9 or a~z or blank) APPENDIX for GPRS.pdf Page 1 of 2 5/11/2006 Dear Chris, Attached please find the MPE report for GPRS portion. As for WLAN, since the Intel WLAN was certified as modular approval and its grant condition didn't change when incorporated into UniWill's laptop, so please refer to Intel FCC ID for details. Best Regards, Lucy Lucy, thank you for your response. Thank you for pointing me to the scanned page in the report. As for the MPE exhibit, I must wait for this RF Exposure exhibit before I can recommend this for Grant. Best regards, Chris Harvey From: lucy.tsai [mailto:[email protected]] Sent: Wednesday, May 10, 2006 11:51 AM To: [email protected] Cc: [email protected]; [email protected] Subject: Re ： UNIWILL COMPUTER CORP., FCC ID: SAZ-GUBTCRQ2426, Assessment NO.: AN06T5664, Notice#2 "Chris Harvey" <[email protected]> 2006/05/10 11:49 PM 收件人： "'lucy.tsai'" <[email protected]>, <[email protected]> 副本抄送： <[email protected]>, <[email protected]>, "'MIKE KUO \(CCSEMC\)'" <[email protected]> 主旨： RE: Re ： UNIWILL COMPUTER CORP., FCC ID: SAZ-GUBTCRQ2426, Assessment NO.: AN06T5664, Notice#2 Dear Chris, We didn't submit the revised report for Bluetooth because the version of Ansi C63.4 was indicated in page 3 in the submitted report. It's a scanned page, so maybe that's why you didn't notice. As for the MPE result, we will submit it by tomorrow morning. (Taipei time= 6:00 pm US time) So if possible, can you please help to prepare a evaluation report to Mike firstly because the customer is very urgent in getting the grant? Thank you for your help in advance. Best Regards, Lucy Dear Lucy Tsai, Thank you for the response to Notice #1. I have received all the responses, including the responses for the exhibits from Mike Kuo. Question #2 in Notice #1 requested that an MPE calculation exhibit be submitted for this application. You have documented that both the WLAN and WWAN antennas are >20cm from the body (top of LCD screen). Please submit an MPE calculation that shows compliance with the Mobile RF Exposure requirements of FCC 2.1093 for the WLAN and WWAN operation of this device. Also, please note that I did not receive the revised report for the Bluetooth portion of this application (AN06T5663) documenting the version of ANSI C63.4 used for testing. Please resubmit to [email protected]. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Best regards, Chris Harvey [email protected] <charvey- [email protected]> 2006/05/10 11:10 PM 收件人： <[email protected]> 副本抄送： <[email protected]>, <[email protected]> 主旨： UNIWILL COMPUTER CORP., FCC ID: SAZ-GUBTCRQ2426, Assessment NO.: AN06T5664, Notice#2 Page 2 of 2 5/11/2006

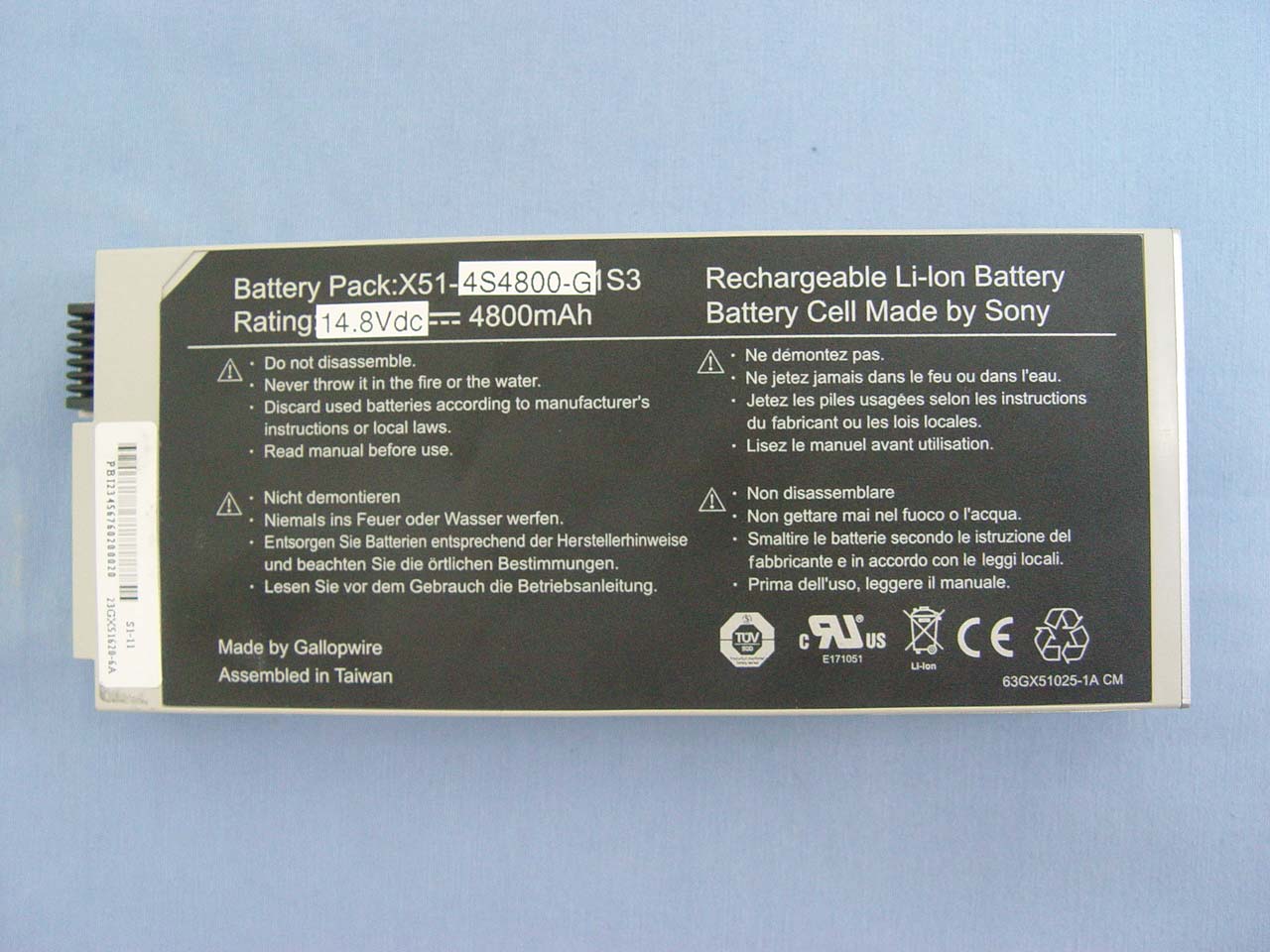

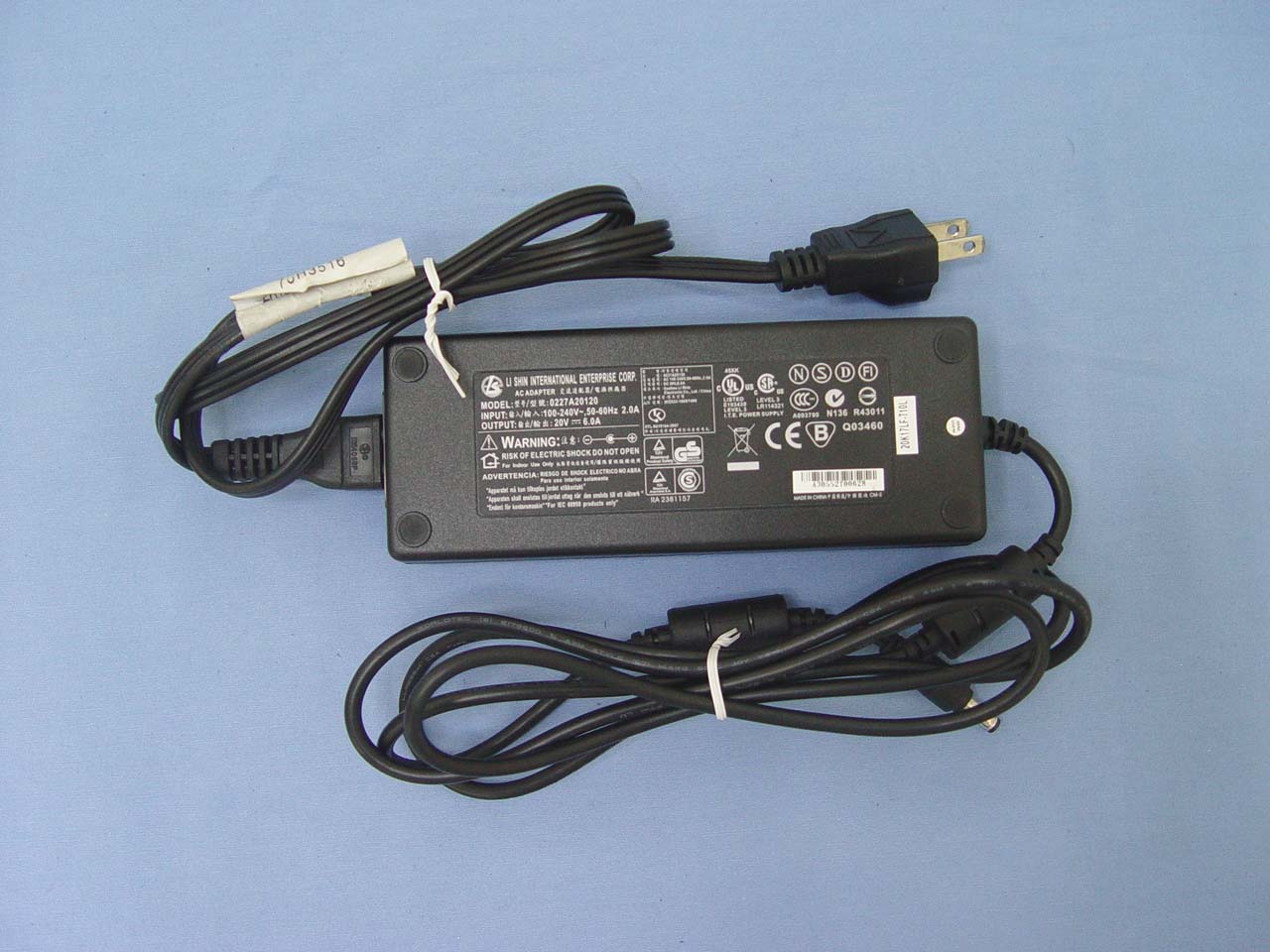

Compliance Certification Services Inc. Report No: 60313103 Date of Issue: April 8, 2006 Page 1 Total Page: 21 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 60313103 Date of Issue: April 8, 2006 Page 2 Rev. 00 Compliance Certification Services Inc. Report No: 60313103 Date of Issue: April 8, 2006 Page 3 Rev. 00 Compliance Certification Services Inc. Report No: 60313103 Date of Issue: April 8, 2006 Page 4 Rev. 00 Compliance Certification Services Inc. Report No: 60313103 Date of Issue: April 8, 2006 Page 5 Rev. 00

Compliance Certification Services Inc. Report No: 60313103 Date of Issue: April 8, 2006 Page 6 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 60313103 Date of Issue: April 8, 2006 Page 7 Rev. 00 Compliance Certification Services Inc. Report No: 60313103 Date of Issue: April 8, 2006 Page 8 Rev.00 Compliance Certification Services Inc. Report No: 60313103 Date of Issue: April 8, 2006 Page 9 Rev.00 Compliance Certification Services Inc. Report No: 60313103 Date of Issue: April 8, 2006 Page 10 Rev. 00 Compliance Certification Services Inc. Report No: 60313103 Date of Issue: April 8, 2006 Page 11 Rev. 00 Compliance Certification Services Inc. Report No: 60313103 Date of Issue: April 8, 2006 Page 12 Rev. 00 Compliance Certification Services Inc. Report No: 60313103 Date of Issue: April 8, 2006 Page 13 Rev. 00

Compliance Certification Services Inc. Report No: 60313103 Date of Issue: April 8, 2006 Page 14 Rev. 00 Compliance Certification Services Inc. Report No: 60313103 Date of Issue: April 8, 2006 Page 15 Rev. 00 Bluetooth Module Compliance Certification Services Inc. Report No: 60313103 Date of Issue: April 8, 2006 Page 16 Rev. 00 Compliance Certification Services Inc. Report No: 60313103 Date of Issue: April 8, 2006 Page 17 Rev. 00 GPS + GPRS Module Compliance Certification Services Inc. Report No: 60313103 Date of Issue: April 8, 2006 Page 18 Rev. 00 GPS Module Compliance Certification Services Inc. Report No: 60313103 Date of Issue: April 8, 2006 Page 19 Rev. 00 GPRS Module Compliance Certification Services Inc. Report No: 60313103 Date of Issue: April 8, 2006 Page 20 Rev.00 Compliance Certification Services Inc. Report No: 60313103 Date of Issue: April 8, 2006 Page 21 Rev.00 Bluetooth Antenna GPRS Antenna

Well Green Technology Co., Ltd 2005/11/28 1 No. 20, Alley51 ,Lane 118,ShuangLian Sec.2,Mintzu Rd., PingJen City, TaoYuan Hsien, Taiwan, R.O.C TEL: (03)420-6428 FAX: (03) 420-6418 wgt RD Manager Supervisor RD en gineer Sales engineer David Johnson Jason Jerry X51 Antenna Test Report X51-WIR-AUW02-B X51 WLAN ANTENNA-R UWX51WIPI02B Notes Qty 111 Specification Description No. 31245 1 塑膠保護套 1 (背面MYLAR不導電) 鋁箔MYLAR Heat Shrink Tube (GREEN) 塑膠保護套 φ1.13(GRAY) PIFA (正面導電) 鋁箔MYLAR SPONGE 1 67 1 取消 W/L (BLACK) 出線 kaien Mar/15/'06 I-PEX 一、成品圖 X51 WL 3G PIFA MM-0158-00-AMM-0158-00-A SPTE t=0.4mm 3.外觀不得有油污、壓傷、刮傷1.未標示R=0.4mmNotes:2.表面不得有毛邊4.折彎處皆為90° 二、 零件圖 X51 WLAN+WWAN Antenna-R PIFA ANTENNA X51(WLAN+WWAN)PIFA R邊 CONNECTOR I-PEX Connector Date Item Description ?2.5*25mm WWAN SPONGE L11*W2.3*T5.7mm 塑膠保護套 L20.5*W20*T0.075mm 鋁箔MYLAR WWAN COAXIAL CABLE Wonderful A3132TS001 素材 ?1.13 *737mm Gray ?1*8mm(GREEN) WWAN 熱縮套管 取消 W/L (BLACK) 出線 kaien Mar/15/'06 BOM 表 三 、 Antenna Testing Conditions: 1. Testing set up 0 degree Clockwise LCD OPEN LCD CLOSE 600 cm HORN Standard Antenna R3767CG Network Analyzer Rotator Controller Radiation Pattern Testing - Anechoic Chamber 2. Mechanical dimensions Antenna X51 Cable φ 1.13 WWAN Right up 四、電氣特性（Antenna Electricity Characteristics） 1. Return Loss 精乘科技股份有限公司 Well Green Technology CO. , Ltd P/N ： UWX51WIPI02B Frequency Band ： 824~960MHz 1710-2170MHz Date ： 23 MAR.,2006 Return Loss Antenna Center freg. @MHz BW @MHz 1710MHz 1880MHz 1990MHz X51-R 1860 -7.42 -12.59 -6.53 Return Loss Antenna Center freg. @MHz BW @MHz 824MHz 896MHz X51-R 860 -8.48 -14.26 2. VSWR 精乘科技股份有限公司 Well Green Technology CO. , Ltd P/N ： UWX51WIPI02B Frequency Band ： 824~960MHz 1710-2170MHz Date ： 23 MAR.,2006 VSWR Antenna Center freg. @MHz BW @MHz 824MHz 896MHz X51-R 860 2.23 1.50 VSWR Antenna Center freg. @MHz BW @MHz 1710MHz 1880MHz 1990MHz X51-R 1860 2.48 1.60 2.78 3. Smith Chart 精乘科技股份有限公司 Well Green Technology CO. , Ltd P/N ： UWX51WIPI02B Frequency Band ： 824~960MHz 1710-2170MHz Date ： 23 MAR.,2006 Well Green Technology Co., Ltd No. 20, Alley51 ,Lane 118,ShuangLian Sec.2,Mintzu Rd., PingJen City, TaoYuan Hsien, Taiwan, R.O.C TEL: (03)420-6428 FAX: (03) 420-6418 wgt -40-30-20-10 0 H+V-PolarizedV-PolarizedH-Polarized 4. Radiation Pattern of XY Plane(Azimuth)-(Open) Center Frequency 850 MHz Vertical peak Gain (dBi) -3.80 Vertical Average Gain (dBi) -9.37 Vertical Min -24.06 Horizontal peak Gain (dBi) -1.70 Horizontal Average Gain (dBi) -8.63 Horizontal Min -29.53 Hor i +Vert peak Gain (dBi) -0.54 Hor i +Vert Av e r a g e Gain (dBi) -5.97 Hor i +Vert Min -16.87 0 90 180 270 Well Green Technology Co., Ltd No. 20, Alley51 ,Lane 118,ShuangLian Sec.2,Mintzu Rd., PingJen City, TaoYuan Hsien, Taiwan, R.O.C TEL: (03)420-6428 FAX: (03) 420-6418 wgt -40-30-20-10 0 H+V-PolarizedV-PolarizedH-Polarized 5. Radiation Pattern of XY Plane(Azimuth)-(Open) Center Frequency 900 MHz Vertical peak Gain (dBi) -4.42 Vertical Average Gain (dBi) -10.16 Vertical Min -20.58 Horizontal peak Gain (dBi) -2.45 Horizontal Av e r a g e Gain (dBi) -9.08 Horizontal Min -24.45 Hor i +Vert peak Gain (dBi) -1.83 Hor i +Vert Average Gain (dBi) -6.58 Hor i +Vert Min -17.38 0 90 180 270 Well Green Technology Co., Ltd No. 20, Alley51 ,Lane 118,ShuangLian Sec.2,Mintzu Rd., PingJen City, TaoYuan Hsien, Taiwan, R.O.C TEL: (03)420-6428 FAX: (03) 420-6418 wgt -40-30-20-10 0 H+V-PolarizedV-PolarizedH-Polarized 6. Radiation Pattern of XY Plane(Azimuth)-(Open) Center Frequency 1700 MHz Vertical peak Gain (dBi) -1.67 Vertical Average Gain (dBi) -6.59 Vertical Min -21.40 Horizontal peak Gain (dBi) 0.92 Horizontal Average Gain (dBi) -6.42 Horizontal Min -28.96 Hor i +Vert peak Gain (dBi) 1.09 Hor i +Vert Av e r a g e Gain (dBi) -3.49 Hor i +Vert Min -11.23 0 90 180 270 Well Green Technology Co., Ltd No. 20, Alley51 ,Lane 118,ShuangLian Sec.2,Mintzu Rd., PingJen City, TaoYuan Hsien, Taiwan, R.O.C TEL: (03)420-6428 FAX: (03) 420-6418 wgt -40-30-20-10 0 H+V-PolarizedV-PolarizedH-Polarized 7. Radiation Pattern of XY Plane(Azimuth)-(Open) Center Frequency 1800 MHz Vertical peak Gain (dBi) -0.45 Vertical Average Gain (dBi) -4.65 Vertical Min -15.99 Horizontal peak Gain (dBi) 0.96 Horizontal Average Gain (dBi) -3.18 Horizontal Min -28.68 Hor i +Vert peak Gain (dBi) 1.66 Hor i +Vert Av e r a g e Gain (dBi) -0.84 Hor i +Vert Min -6.76 0 90 180 270 Well Green Technology Co., Ltd No. 20, Alley51 ,Lane 118,ShuangLian Sec.2,Mintzu Rd., PingJen City, TaoYuan Hsien, Taiwan, R.O.C TEL: (03)420-6428 FAX: (03) 420-6418 wgt -40-30-20-10 0 H+V-PolarizedV-PolarizedH-Polarized 8. Radiation Pattern of XY Plane(Azimuth)-(Open) Center Frequency 1900 MHz Vertical peak Gain (dBi) -0.25 Vertical Average Gain (dBi) -5.18 Vertical Min -19.95 Horizontal peak Gain (dBi) 1.75 Horizontal Average Gain (dBi) -3.65 Horizontal Min -22.34 Hor i +Vert peak Gain (dBi) 2.31 Hor i +Vert Av e r a g e Gain (dBi) -1.34 Hor i +Vert Min -11.31 0 90 180 270 Well Green Technology Co., Ltd No. 20, Alley51 ,Lane 118,ShuangLian Sec.2,Mintzu Rd., PingJen City, TaoYuan Hsien, Taiwan, R.O.C TEL: (03)420-6428 FAX: (03) 420-6418 wgt -40-30-20-10 0 H+V-PolarizedV-PolarizedH-Polarized 9. Radiation Pattern of XY Plane(Azimuth)-(Open) Center Frequency 2170 MHz Vertical peak Gain (dBi) -4.91 Vertical Average Gain (dBi) -11.45 Vertical Min -27.18 Horizontal peak Gain (dBi) -6.27 Horizontal Average Gain (dBi) -10.30 Horizontal Min -21.57 Hor i +Vert peak Gain (dBi) -4.72 Hor i +Vert Av e r a g e Gain (dBi) -7.83 Hor i +Vert Min -15.05 0 90 180 270 五、 SPECIFICATIONS: ● Electrical Properties Frequency Range ： 824~960MHz Impedance ： 50Ohms nomimal VSWR ：≦ 2.0 Peak Gain : -5.0dBi ≦ peak gain ≦ 3dBi Standard Connector ： I-PEX Connector Frequency Range ： 1710~2170MHz Impedance ： 50Ohms nomimal VSWR ：≦ 2.0 Peak Gain : -5.0dBi ≦ peak gain ≦ 3dBi Standard Connector ： I-PEX Connector

Compliance Certification Services Inc. Report No.: 60313103-RP2 FCC ID: SAZ-GUBTCRQ2426 Date of Issue: April 8, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 52 Rev. 00 FCC 47 CFR PART 22 SUBPART H AND PART 24 SUBPART E TEST REPORT For NOTEBOOK PC Model: X51IAx (x=0~9 or a~z or blank) Trade Name: UNIWILL Issued to UNIWILL COMPUTER CORP. 5F, No. 9, Wu Chiuan Rd., Wu Cu Ind. Park, Ta i p e i , Ta i w a n , R . O . C . Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 60313103-RP2 FCC ID: SAZ-GUBTCRQ2426 Date of Issue: April 8, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 DESCRIPTION OF TEST MODES................................................................................................. 5 4. INSTRUMENT CALIBRATION................................................................................................. 6 4.1 MEASURING INSTRUMENT CALIBRATION........................................................................... 6 4.2 MEASUREMENT EQUIPMENT USED .............................................................................. 6 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES.............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................. 8 5.3 TABLE OF ACCREDITATIONS AND LISTINGS............................................................................ 9 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 10 6.1 SETUP CONFIGURATION OF EUT............................................................................................ 10 6.2 SUPPORT EQUIPMENT .................................................................................................... 10 7. FCC PART 22 & 24 REQUIREMENTS ................................................................................... 11 7.1 AVERAGE POWER.............................................................................................................. 11 7.2 ERP & EIRP MEASUREMENT ......................................................................................... 12 7.3 OCCUPIED BANDWIDTH MEASUREMENT ................................................................. 15 7.4 OUT OF BAND EMISSION AT ANTENNA TERMINALS ............................................. 19 7.5 FIELD STRENGTH OF SPURIOUS RADIATION MEASUREMENT ............................ 29 7.6 FREQUENCY STABILITY V.S. TEMPERATURE MEASUREMENT ........................... 43 7.7 FREQUENCY STABILITY V.S. VOLTAGE MEASUREMENT ..................................... 45 7.8 POWERLINE CONDUCTED EMISSIONS.................................................................................... 47 Compliance Certification Services Inc. Report No.: 60313103-RP2 FCC ID: SAZ-GUBTCRQ2426 Date of Issue: April 8, 2006 Page 4 Rev. 00 2. EUT DESCRIPTION Product NOTEBOOK PC Trade Name UNIWILL Model Number X51IAx (x=0~9 or a~z or blank) Model Discrepancy The suffix of “x” (x= 0~9 or blank) on model number is just for marketing purpose only. Power Supply Power Adapter: LI SHIN INTERNATIONAL ENTERPRISE CORP. Model: 0227A20120 I/P: AC 100-240V, 50-60Hz, 2.0A O/P: DC 20V, 6.0A Battery: Sony / X51-4S4800-G1S3 14.8Vdc, 4800mAh Frequency Range TX: 824 ~ 849 MHz / 1850 ~ 1910 MHz RX: 869 ~ 894 MHz / 1930 ~ 1989.8 MHz Transmit Power (ERP & EIRP Power) 850 MHz: 26.03dBm 1900 MHz: 27.03dBm Cellular Phone Protocol GPRS Type of Emission 235KGXW--- Antenna Gain 850 MHz: -0.54 dBi 1900 MHz: 2.31 dBi Antenna Type PIFA Antenna Remark: 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: SAZ-GUBTCRQ2426 filing to comply with Part 22 and Part 24 of the FCC 47 CFR Rules. Compliance Certification Services Inc. Report No.: 60313103-RP2 FCC ID: SAZ-GUBTCRQ2426 Date of Issue: April 8, 2006 Page 5 Rev. 00 3. TEST METHODOLOGY Both conducted and radiated testing were performed according to the procedures document on chapter 13 of ANSI C63.4 and FCC CFR 47, 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055 and 2.1057. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose of the measurements. 3.3 GENERAL TEST PROCEDURES Conducted Emiss…

Text truncated - open the document above for the full version.

APPENDIX RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT NOTEBOOK PC Frequency band (Operating) GPRS: 850MHz / 1900 MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 850 MHz: 26.03dBm (400.87mW) 1900 MHz: 27.03dBm(504.66mW) ANTENNA GAIN (MAX) 850 MHz: -0.54 dBi (Numeric gain: 0.883) 1900 MHz: 2.31 dBi (Numeric gain: 1.702) Evaluation applied MPE Evaluation SAR Evaluation N/A Remark: 1. The maximum output power is 26.03dBm (504.66mW) at 824.20MHz (with 0.883 numeric antenna gain.) 2. The maximum output power is 27.03dBm (504.66mW) at 1850.20MHz (with 1.702 numeric antenna gain.) 3. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 4. For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20 cm, even if the calculations indicate that the MPE distance would be lesser. TEST RESULTS No non-compliance noted. Calculation Given d GP E ×× = 30 & 3770 2 E S = Where E = Field Strength in Volts / meter P = Power in Watts G=Numeric antenna gain d=Distance in meters S=Power Density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: S GP d × ×× = 3770 30 Changing to units of mW an…

Text truncated - open the document above for the full version.
