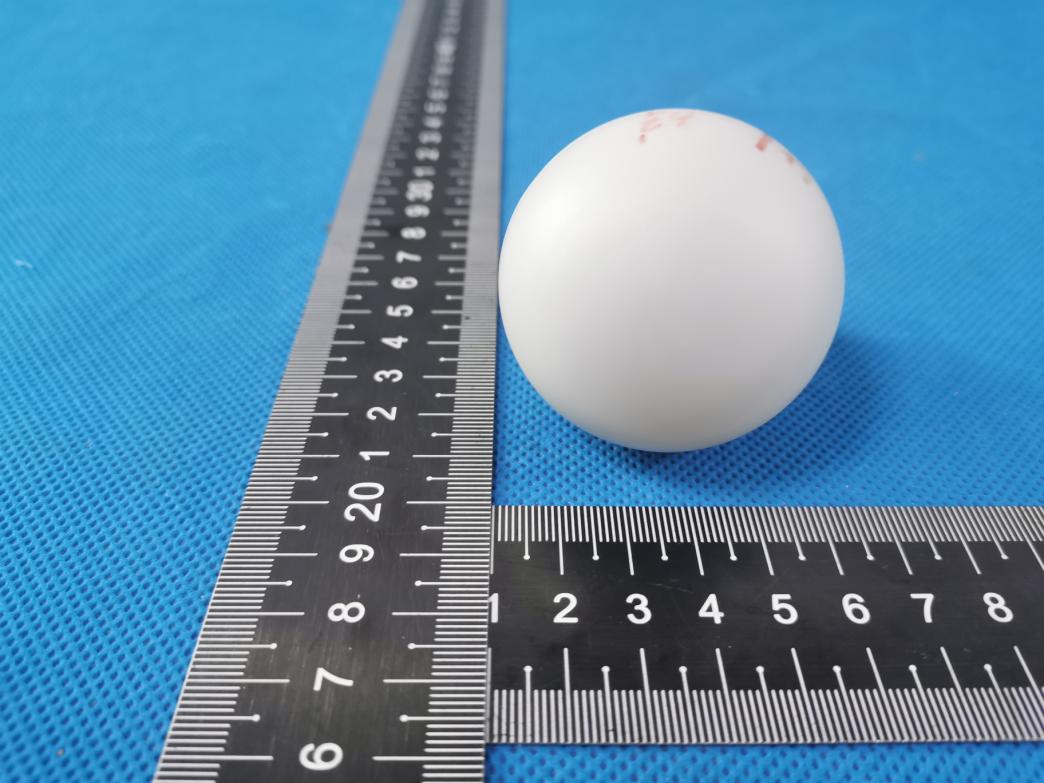

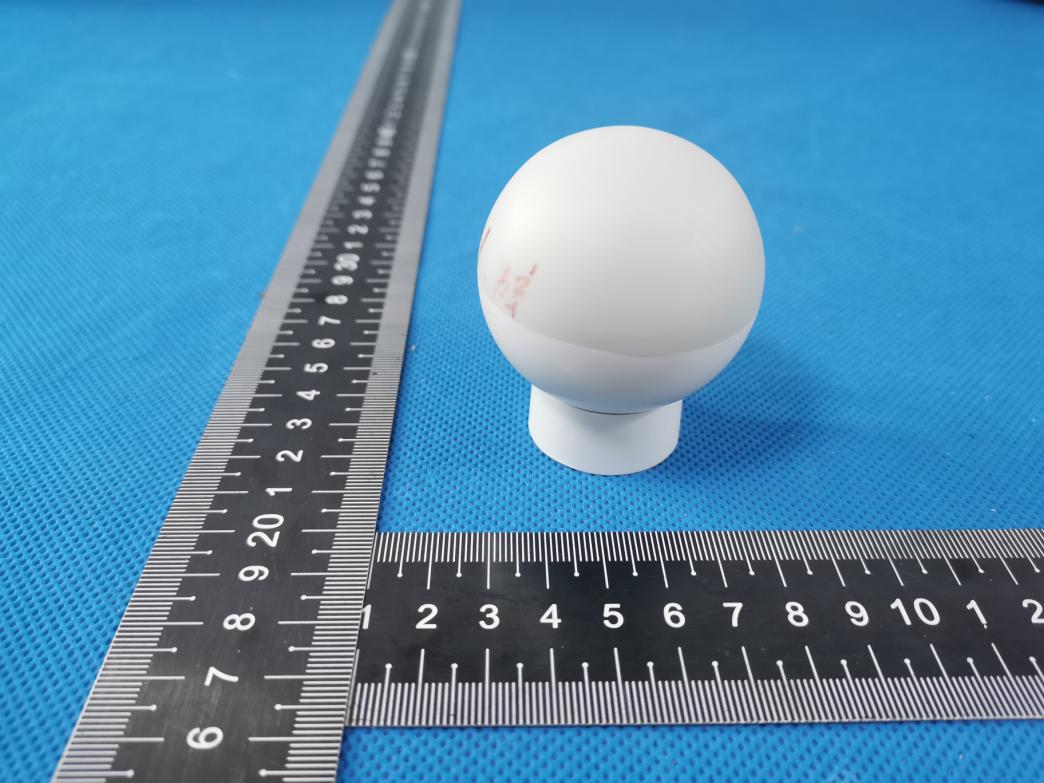

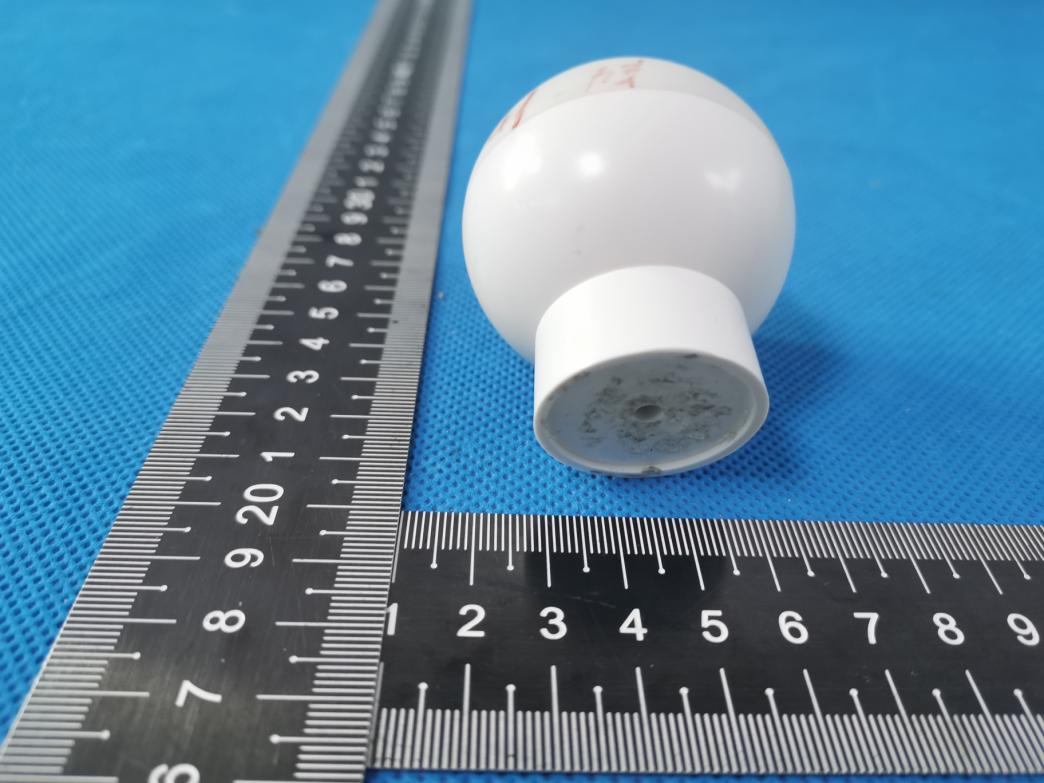

SBP-MS01Multi Sensor

10.15.2020 1 Multi Sensor(MS01) 10.15.2020 2 Contents Device Overview .......................................................................................................... 3 Features ................................................................................................................... 3 What’s Included........................................................................................................ 3 Requirements ........................................................................................................... 4 Installation ................................................................................................................... 4 Power on the sensor ................................................................................................ 4 Choosing a location for the sensor ........................................................................... 5 Mounting sensor ....................................................................................................... 5 Adding to Mobile App (COMING SOON) ..................................................................... 5 Configure Settings from Mobile App (COMING SOON) ............................................... 5 Configure settings manually ........................................................................................ 5 Testing ......................................................................................................................... 6 Manual Configuration ................................................................................................... 6 Linking to control a light ........................................................................................... 6 Linking to control a group of lights............................................................................ 6 Unlink Sensor from Controlling Another Device ....................................................... 7 Factory Reset ........................................................................................................... 8 Regulatory Statements ................................................................................................ 8 Certification .................................................................................................................. 8 10.15.2020 3 Device Overview Features  Automatically turn lights on when entering a room  Automatically turn lights off after a period of inactivity  Long detection range of 30 feetwith wide110 degrees field of view  Use indoor or outdoor  Able to be paired manually to Smart Lighting products for installations not requiring a smart bridge  Unlock more features when paired with a Smart LightingBridge  Magnetic base makes it easy to adjust sensor viewing area. Simply set on a desk or shelf or permanently mount to flat surfaces using either screw or tape. What’s Included  Sensor  Battery (CR123A) Device QR/ID Lithium Battery CR123A Set Button To open twist lens and back in opposing directions Lens Magnetic Mount Screw or Tape for securing mount to surface 10.15.2020 4  Magnetic mount o Adhesive tape o Mounting screw  Quick start guide Requirements  Smart Lighting products  Bridge for app-basedsetup, configuration, and access to other sensing capabilities Installation Power on the sensor 1. Open the case: with the lens side facing you, grasplens with one hand and the back cover with the otherand twistthe lens counter clockwise. It will turnand stop about 1/8”. Pull lens and back cover apart. 2. Remove the clear plastic battery tab ensuring the battery is properly seated in place  Interpreting power up behavior: Solid purple LED for 4 seconds followed by Quick green LED + beep Normal startup behavior with good battery. This sequence is followed by one of the following behaviors:  Solid Cyan (blueish green) LED for 1 minute Indicates device has not yet been paired. During this 1 minute, the sensor is awake and ready to be paired with a bridge via app (coming soon)  Solid Green LED for 4 seconds Indicates device has been paired  Solid Yellow LED with long beep Indicates low battery 10.15.2020 5 Choosinga location for the sensor  General placement considerations - TBD  Indoor - TBD  Outdoor - TBD Mounting sensor The sensor mount is magnetic which allows you to easily attach it and the sensor to a metal surface. Or it can simply be placed on any flat surface. Alternatively, you can permanently attach it by way of removing the backing on the adhesive tape and pressing it firmly on a flat surface. A screw is also provided if mounting using adhesive isn’t secure enough. Adding to Mobile App (COMING SOON) Configure Settings from Mobile App (COMING SOON) Configure settings manually Below is a table showing the steps to select from the various options. These and more are accessible via Smart Lighting app which is enabled by the Bridge. P&H = Press and Hold for 3 seconds until the unit beeps Set Button 1 P&H 2 P&H 3 P&H 4 P&H 5 P&H Section Linking Unlinking Countdown Day/Night Vacancy/Occupancy LED Color Green Red Blue Cyan Magenta Mode Link Unlink 30 Sec Day & Night Vacancy Set Button Tap=Next Tap=Next Tap=next / P&H=Save Tap=next / P&H=Save Tap=next / P&H=Save Mode Multi-Link Multi-Unlink 1 Min Night Only Occupancy Set Button Tap=Next Tap=Next Tap=Next / P&H=Save Tap=Next / P&H= Save Tap=Next / P&H=Save Mode Exit Exit 5 Min Set Night Level Exit Set Button - - Tap=Next / P&H=Save Tap=Next / P&H=Save - Mode - - Exit Exit - Configure sensor to control a single device 10.15.2020 6 Configure sensor to control groups of devices Perform any programming/setup near where you intend to permanently mount the sensor. This will ensure that expected location is or is not within range. Testing Tap the set button on the sensor to activate the linked devices. Tap again to de-activate. Manual Configuration Linking to control a light 1. Starting at the sensor, press and hold the set button for 3 seconds (it will b…
