SDBGFLGAS METER DATA TRANSMITTER

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Transmitter Certification Test Report FCC ID: SDBGFL FCC Rule Part: CFR 47 Part 24 Subpart D, Part 90 Subpart I, Part 101 Subpart C ACS Report Number: 06-0194-LD Applicant: Advanced Metering Data Systems, LLC Equipment Type: Water Meter Data Transmitter Trade Name: Sensus AMDS GFL Gas Meter Transmitter Model(s): GFL Users Manual 1 Product Description The FlexNet® wireless transmitter for gas AMR applications permits offsite meter reading by way of a fixed base radio network. In addition to solving meter reading problems such as lockouts, entering unsafe meter locations, "curbside" reading estimates, estimated billing, and errors associated with manual meter reading methods, a fixed network provides benefits such as daily reads and status alerts. A significant advantage of the module is its powerful one- Watt transmitter. The long range enabled by the strong signal and high receiver sensitivity, minimizes the number of base station receivers and provides optimal coverage at minimal deployment and ongoing costs. FlexNet transmitters are powered by a replaceable Lithium battery pack, with an expected service life of over 20 years. The transmitter is enclosed in a durable polycarbonate casing with a clear cover that enables reusing the original meter index. The module consists of a narrow band transmitter, magnetic sensors, and mechanical meter interface that includes a shaft with a magnet. A handheld terminal is used to initialize operation. The module monitors the meter and sends data to the base station receiver network at predefined and programmable intervals. Transmitter messages contain meter reading data, status and relevant parameters such as index pressure and the number of dials. Messages are routed to a database, where the data gets formatted for export to billing, marketing and customer service systems. Compatible Meters R175, R200, RT200, RT230, R275, RT275, R315, R250, R310, S110, S200, 175S, S120, T120, T110 (11-tooth gear) R415, RT100, RT360 (18-tooth gear) Sensus (Rockwell, Equimeter, Invensys) MR-8, MR-12 (16-tooth gear) American/Canadian Meter W75AL, AL175, AC175, AT175, ALC175, AT210, AL225, 5B, AL250, AR250, AC250, AT250, AM250, AL310, AL350, AT350, AL425, AC630 Actaris (Sprague, Schlumberger) 175, 175WC, 210, 240, 250, 250WC, METRIS 250, 400, 400A (All slant interface, 3 hole index cover) Specifications RF Output 30dBm (1 Watt) Power Supply Lithium Thionyl Chloride batteries with HLC Range Urban area (typical) – over 5 miles (8 km) Battery Life (Typical) Over 20 years for daily reads Over 10 years for hourly reads Modulation Proprietary narrow band Regulatory Compliance FCC CFR 47 Part 15, Part 24, Part 90, and Part 101 Rules Certified Intrinsic Safety Certification Measurement Canada Certification Data Rate Up to 8 Kbps Environmental -40C to +80C, up to 95% relative humidity Frequencies 896-960 MHz, 10,240 channels x 6.25 kHz steps Alerts Magnetic tamper Non-reads, High/Low alerts – via MDM software Memory Non-volatile Warranty 20 years for battery (with daily reads) and electronics 2 Automated Meter Reading (AMR) Meter Components Transmitter Cover Supported Meters FlexNet 100G-FL AC250, AL175, AL250, AL5B (=AL225), AL425 and any other American Meter model with a standard residential index. FlexNet 200G-FL S175, S240, S250, Schlumberger Metris MET250 and S400, with slant index interface. FlexNet 300G-FL AC250, AL175, AL250, AL5B (=AL225), AL425 and any other American Meter model with a standard residential index. FlexNet 700G-FL Transmitter (on the left) is shown with cover and mounting plate Sensus Sonix 12, 16, 25, volume correcting instruments and any other device with Form-A or ‘dry contact’ pulse output. 3 Transmitter Mounting Instructions FlexNet 100G-FL, 200G-FL and 300G-FL See the appendix for descriptions of the screw kits and tools required for mounting the AMR transmitters. Remove Index Cover 1. Use a small, flat screwdriver to punch out the snap seals covering the index cover screws. NOTE: If two (2) or more screws shear off during the cover removal (or were previously sheared off), the meter will need to be replaced by a qualified utility representative. Reinstall any index cover screws that were removed and cap with seals if possible. Enter the appropriate information in the Mint HHT 2. Remove the index cover screws. 3. Remove the index cover. Remove Index 1. Remove the screws securing the index to the meter. 2. Carefully, remove the index from the meter. 3. Remove any debris from the index. 4. Inspect the index for proper operation by turning the input shaft and verifying that the gears turn freely. 5. Inspect the index for any missing or broken hands. 6. Use a putty knife to scrape away any remaining gasket material. Mount Transmitter 1. Align the transmitter’s shaft with the gas meter’s male/female wriggler. 2. Place the AMR Transmitter on the gas meter. 3. Adjust the transmitter shaft’s position 4. Ensure the shafts are aligned by holding the transmitter in place and gently rotating the transmitter’s shaft with your other hand. 5. Loosely attach the transmitter to the meter using the transmitter mounting screws 6. Check shaft alignment. NOTE: If two (2) or more screws shear off during the cover installation, the meter will need to be replaced by a qualified utility representative. Reinstall any index cover screws that were removed and cap with seals if possible. Notify the utility of the condition of the meter in accordance with your company policy. 7. Tighten the transmitter mounting screws. Replace Index and Install New Index Cover 1. Loosely attach the index to the transmitter using the index screws. 2. Align the index’s male/female wriggler with the transmitter’s shaft, and adjust as needed. 3. Center the index in the transmitter, and ensure there is no binding between the shaft and the wriggler. 4. Secure the index screws. 5. Install the new index cover. 6. Align th…

Text truncated - open the document above for the full version.

Federal Communications Commission May 31, 2006 Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: AMDS LLC respectfully requests confidentiality of certain materials provided with the submission of the GFL under FCC ID: SDBGFL in accordance with FCC Regulations 0.459. The confidentiality request applies to the following: • Schematics • Parts Lists • Theory of Operations • System Block Diagrams • Tune-up Procedures The GFL has been developed at considerable effort and expense by AMDS LLC. These items are considered as Trade Secrets and therefore public access to the proprietary material could possibly result in duplication of equipment that could severely damage the company’s business advantage. I appreciate your assistance in this matter. Sincerely, Name: Robert J. Davis_____________ Signature:_______________________________ Title:__Principal RF Engineer ________ Date:__ 05/31/2006_________________________ ADVANCED METERING DATA SYSTEMS, LLC 19411 HELENBERG ROAD COVINGTON, LA 70433 504 342 4943 PHONE 504 342 4944 FAX

Advanced Compliance Solutions – 5015 B.U. Bowman Drive, Buford, GA 30518 Phone: (770) 831-8048 Fax: (770) 831-8598 July 07, 2006 Timco Engineering Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 FCC ID: SDBGFL IC: 2220A-GFL Dear Sir: The following application is submitted on behalf of our client, Sensus Metering Systems for evaluation of their model GLF Gas Meter Data Transmitter for Certification in accordance with Part 2 and 24, 90, and 101 of the FCC rules and RSS-119 and RSS-134 for Industry Canada. The device was tested to the requirements of the aforementioned sections of the rules and was found to be in compliance. Initially all documentation submitted indicated that Advanced Metering Data Systems, LLC was the applicant. However, during the submission process Advanced Metering Data Systems, LLC was acquired by Sensus Metering Systems. Any reference made to Advanced Metering Data Systems, LLC in the submission documentation should be considered as being Sensus Metering Systems. Sincerely, Kirby Munroe Manager, Wireless Certifications

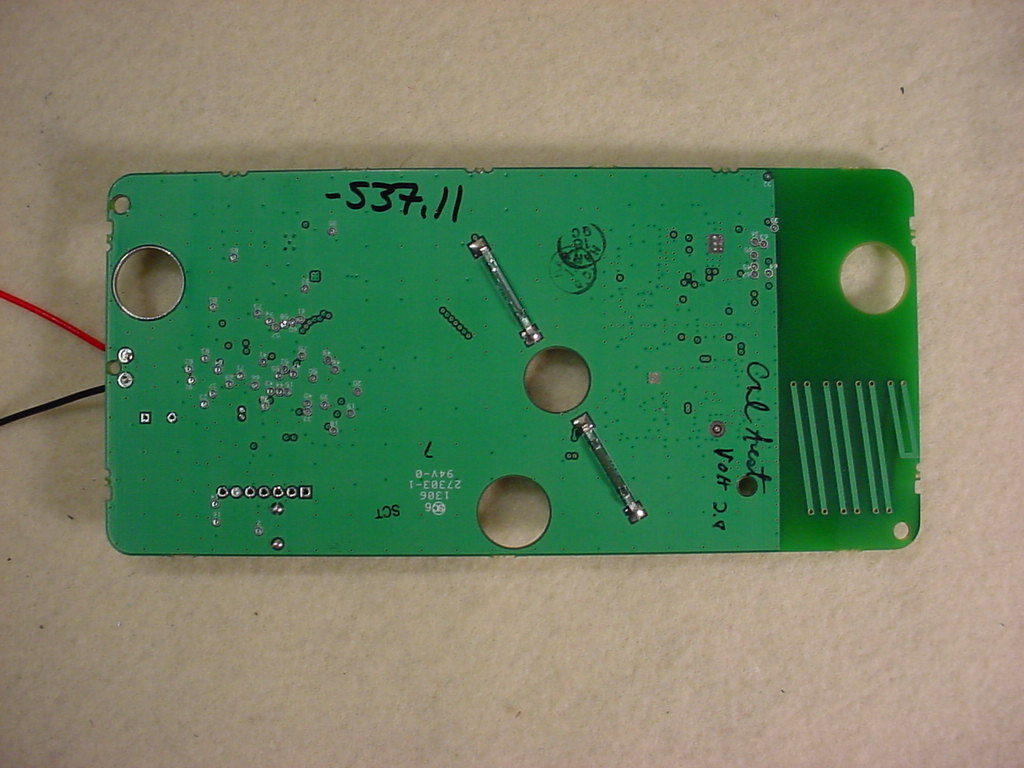

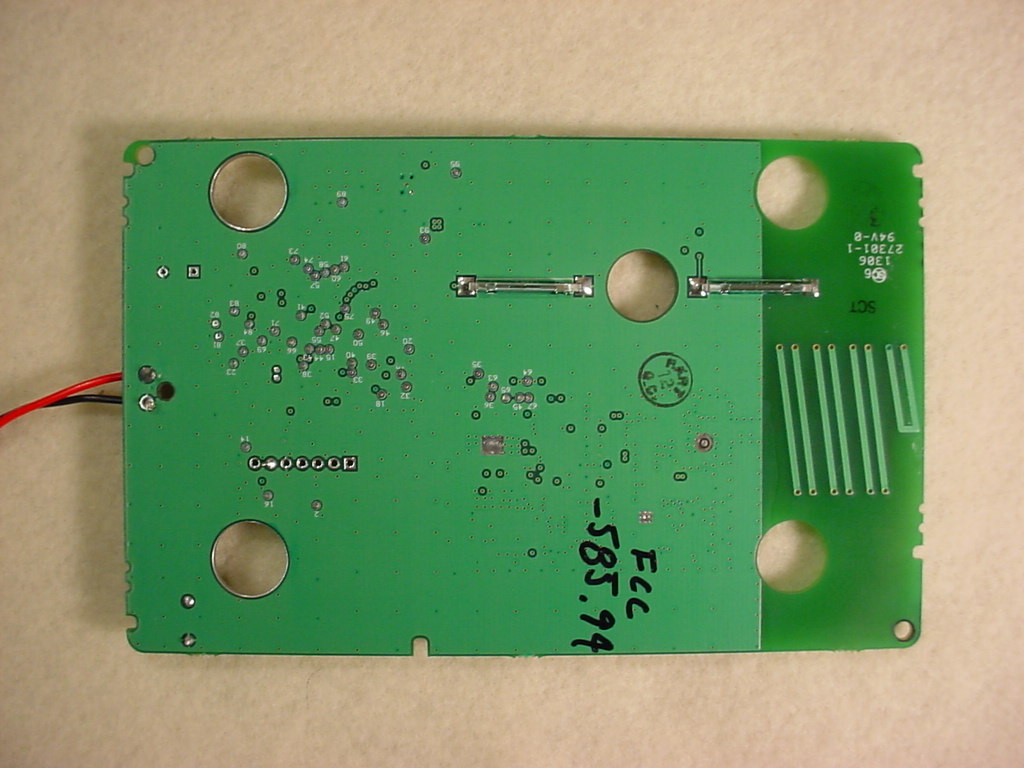

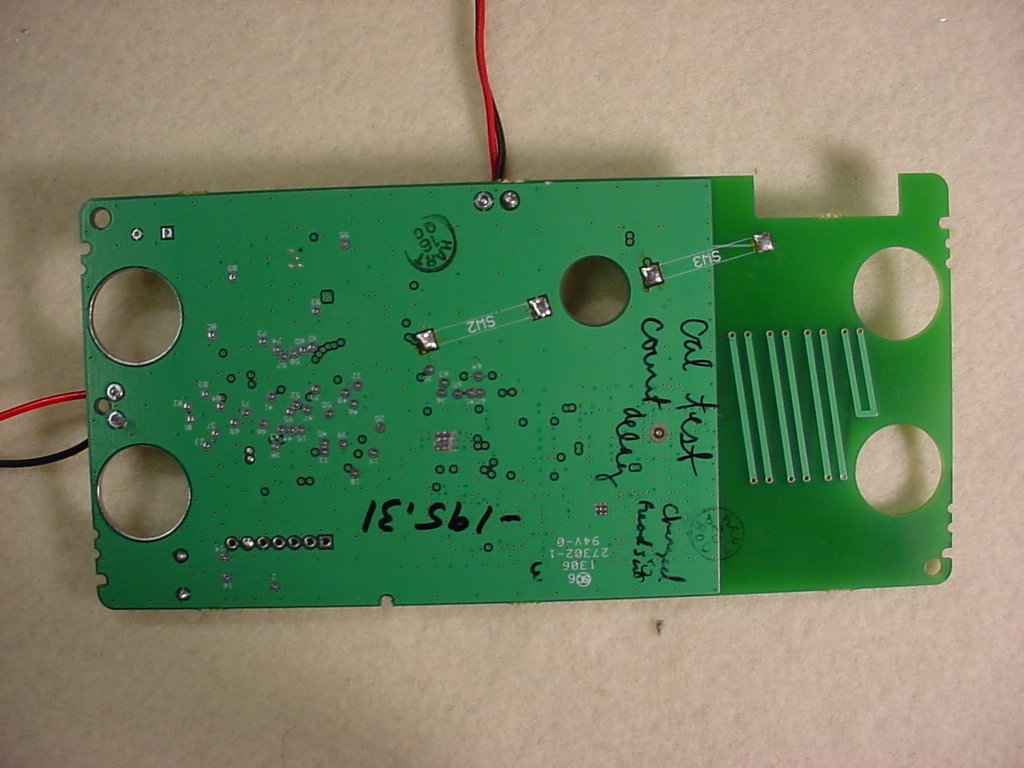

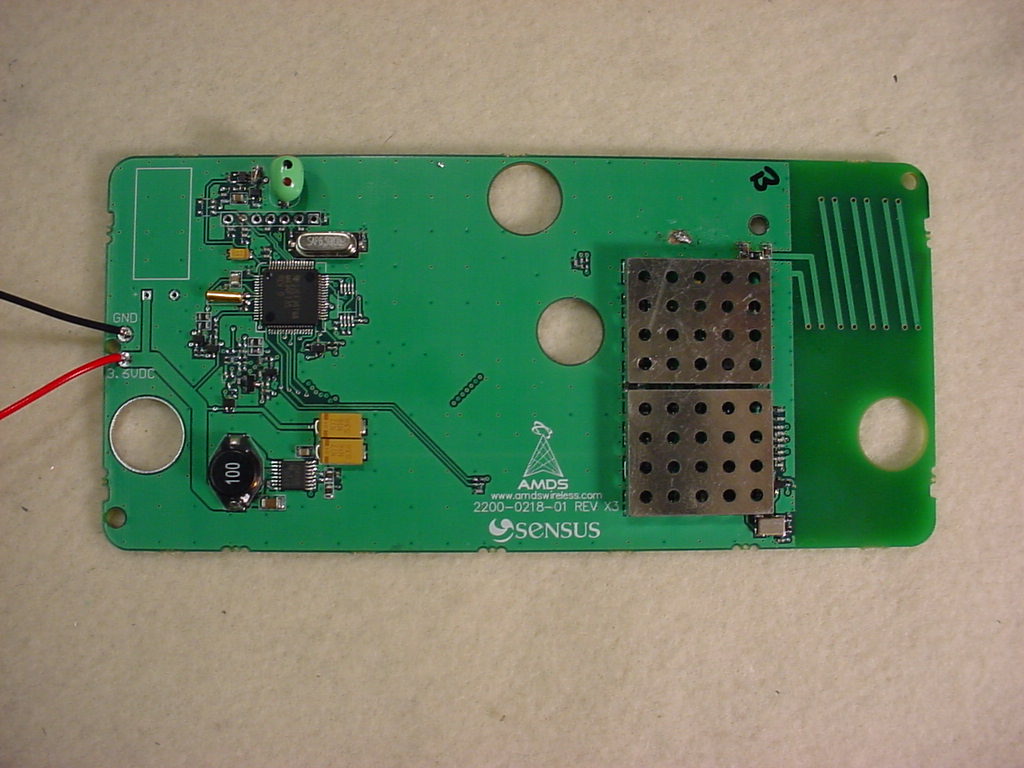

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Transmitter Certification Test Report FCC ID: SDBGFL FCC Rule Part: CFR 47 Part 24 Subpart D, Part 90 Subpart I, Part 101 Subpart C ACS Report Number: 06-0194-LD Applicant: Advanced Metering Data Systems, LLC Equipment Type: Water Meter Data Transmitter Trade Name: Sensus AMDS GFL Gas Meter Transmitter Model(s): GFL Internal Photographs Model: GFL Advanced Compliance Solutions FCC ID: SDBGFL 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: PCB 0216 Front Shields Model: GFL Advanced Compliance Solutions FCC ID: SDBGFL 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: PCB 0216 Front No Shields Model: GFL Advanced Compliance Solutions FCC ID: SDBGFL 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 3: PCB 0216 Back Model: GFL Advanced Compliance Solutions FCC ID: SDBGFL 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 4: PCB 0217 Front Shields Model: GFL Advanced Compliance Solutions FCC ID: SDBGFL 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 5: PCB 0217 Front No Shields Model: GFL Advanced Compliance Solutions FCC ID: SDBGFL 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 6: PCB 0217 Back Model: GFL Advanced Compliance Solutions FCC ID: SDBGFL 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 7: PCB 0218 Front Shields Model: GFL Advanced Compliance Solutions FCC ID: SDBGFL 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 8: PCB 0218 Front No Shields Model: GFL Advanced Compliance Solutions FCC ID: SDBGFL 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 9: PCB 0218 Back

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Transmitter Certification Test Report FCC ID: SDBGFL FCC Rule Part: CFR 47 Part 24 Subpart D, Part 90 Subpart I, Part 101 Subpart C ACS Report Number: 06-0194-LD Applicant: Advanced Metering Data Systems, LLC Equipment Type: Water Meter Data Transmitter Trade Name: Sensus AMDS GFL Gas Meter Transmitter Model(s): GFL Label Information Model: GFL Advanced Compliance Solutions FCC ID: SDBGFL 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 1.0 Label Information 1.1 General The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. 1.2 Final Installation Labeling Instructions for labeling of the final installation are given in Appendix B of the users manual. 1.3 Module Labeling Each PCB module is silkscreen labeled according to the following exhibits.

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Transmitter Certification Test Report FCC ID: SDBGFL FCC Rule Part: CFR 47 Part 24 Subpart D, Part 90 Subpart I, Part 101 Subpart C ACS Report Number: 06-0194-LD Applicant: Advanced Metering Data Systems, LLC Equipment Type: Water Meter Data Transmitter Trade Name: Sensus AMDS GFL Gas Meter Transmitter Model(s): GFL Internal Photographs Model: GFL Advanced Compliance Solutions FCC ID: SDBGFL 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: PCB 0216 Front Shields Model: GFL Advanced Compliance Solutions FCC ID: SDBGFL 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: PCB 0216 Front No Shields Model: GFL Advanced Compliance Solutions FCC ID: SDBGFL 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 3: PCB 0216 Back Model: GFL Advanced Compliance Solutions FCC ID: SDBGFL 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 4: PCB 0217 Front Shields Model: GFL Advanced Compliance Solutions FCC ID: SDBGFL 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 5: PCB 0217 Front No Shields Model: GFL Advanced Compliance Solutions FCC ID: SDBGFL 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 6: PCB 0217 Back Model: GFL Advanced Compliance Solutions FCC ID: SDBGFL 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 7: PCB 0218 Front Shields Model: GFL Advanced Compliance Solutions FCC ID: SDBGFL 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 8: PCB 0218 Front No Shields Model: GFL Advanced Compliance Solutions FCC ID: SDBGFL 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 9: PCB 0218 Back

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Transmitter Certification Test Report FCC ID: SDBGFL FCC Rule Part: CFR 47 Part 24 Subpart D, Part 90 Subpart I, Part 101 Subpart C ACS Report Number: 06-0194-LD Applicant: Advanced Metering Data Systems, LLC Equipment Type: Water Meter Data Transmitter Trade Name: Sensus AMDS GFL Gas Meter Transmitter Model(s): GFL RF Exposure Model: GFL Advanced Compliance Solutions FCC ID: SDBGFL 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 General Information: Applicant: ADVANCED METERING DATA SYSTEMS, LLC ACS Project: 06-0194 FCC ID: SDBGFL Device Category: Fixed Environment: Uncontrolled/General Population Technical Information: Antenna Type: PCB – Dual Helix Antenna Gain: 0dBi Max Transmitter Output Power: 30.43 dBm Max System EIRP: 30.43 dBm Operating Configuration: Fixed Mounted Meter Exposure Conditions: Greater than 20cm MPE Calculation The Power Density (mW/cm 2 ) is calculated as follows: S = 2 4R PG π Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Calculations were performed at low, middle, and high channels within the total band of operation. MPE Calculator for Mobile Equipment Limits for General Population/Uncontrolled Exposure 896.012530.110.601025.6501.000 200.204 928.92530.390.621093.9601.000 200.218 959.92530.210.641049.5401.000 200.209 Power Density (mW/cm^2) Distance (cm) Transmit Frequency (MHz) Radio Power (dBm) Power Density Limit (mW/Cm2) Radio Power (mW) Antenna Gain (dBi) Antenna Gain (mW eq.) Installation Guidelines The installation manual contains the following text advising how to install the equipment to maintain compliance with the FCC RF exposure requirements: “RF Exposure (Intentional Radiators Only) In accordance with FCC requirements of human exposure to radiofrequency fields, the radiating element shall be installed such that a minimum separation distance of 20cm.” Conclusion This device complies with the MPE requirements by providing adequate separation between the device, any radiating structure and the general population.

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Transmitter Certification Test Report FCC ID: SDBGFL FCC Rule Part: CFR 47 Part 24 Subpart D, Part 90 Subpart I, Part 101 Subpart C ACS Report Number: 06-0194-LD Applicant: Advanced Metering Data Systems, LLC Equipment Type: Water Meter Data Transmitter Trade Name: Sensus AMDS GFL Gas Meter Transmitter Model(s): GFL Test Begin Date: June 12, 2006 Test End Date: June 16, 2006 Report Issue Date: June 26, 2006 FOR THE SCOPE OF ACCREDITATION UNDER LAB Code 200612-0 This report is not be used to claim certification, approval, or endorsement by NVLAP, NIST or any government agency. Prepared by: Reviewed by: J. Kirby Munroe Manager Wireless Certifications ACS, Inc. R. Sam Wismer Engineering Manager ACS, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 43 pages ACS Report: 06-0194-LD Advanced Compliance Solutions Page 2 Table of Contents 1.0 General 3 1.1 Purpose 3 1.2 Product Description 3 1.3 Test Methodology 3 1.3.1 General 3 1.3.2 In-Band Testing Methodology 3 1.4 Emission Designators 4 2.0 Test Facilities 5 2.1 Location 5 2.2 Laboratory Accreditations/Recognitions/Certifications 5 2.3 Radiated Emissions Test Site Description 6 2.3.1 Semi-Anechoic Chamber Test Site 6 2.3.2 Open Area Tests Site (OATS) 7 2.4 Conducted Emissions Test Site Description 8 3.0 Applicable Standards and References 8 4.0 List of Test Equipment 9 5.0 Support Equipment 10 6.0 EUT Setup and Block Diagram 10 7.0 Summary of Tests 11 7.1 RF Power Output 11 7.1.1 Measurement Procedure 11 7.1.2 Measurement Results 11 7.2 Occupied Bandwidth (Emission Limits) 15 7.2.1 Measurement Procedure 15 7.2.2 Measurement Results 15 7.3 Spurious Emissions at Antenna Terminals 22 7.3.1 Measurement Procedure 22 7.3.2 Measurement Results 22 7.4 Field Strength of Spurious Emissions 28 7.4.1 Measurement Procedure 28 7.4.2 Measurement Results 28 7.5 Frequency Stability 35 7.5.1 Measurement Procedure 35 7.5.2 Measurement Results 35 7.6 Radiated Emissions (Unintentional Radiators) 43 7.6.1 Measurement Procedure 43 7.6.2 Measurement Results 43 7.7 Power Line Conducted Emissions 43 7.7.1 Measurement Procedure 43 8.0 Conclusion 43 Additional Exhibits Included In Filing Internal Photographs Tune-up Procedure Test Setup Photographs Product Labeling RF Exposure – MPE Calculations Installation/Users Guide System Block Diagram Theory of Operation Parts List Schematics Model: GFL FCC ID: SDBGFL ACS Report: 06-0194-LD Advanced Compliance Solutions Page 3 1.0 GENERAL 1.1 Purpose The purpose of this report is to demonstrate compliance with Part 2 Subpart J, Part 24 Subpart D, Part 90 Subpart I, and Part 101 Subpart C of the FCC’s Code of Federal Regulations. 1.2 Product Description The Sensus AMDS GFL Transmitter (GFL) is a printed circuit board that provides wireless communication capability to Sensus and AMDS gas meter products. The device monitors readings and diagnostic information collected from commercial and residential gas meters via industry standard switch closure or serial data interfaces. The GFL communicates via the AMDS fixed wireless telemetry network to provide meter readings and diagnostic data from the gas meters to the utility provider via a radio link. The device utilizes a printed circuit board antenna that is integral to the GFL circuit board. The GFL is battery operated. 1.3 Test Methodology 1.3.1 General The Sensus AMDS GFL Transmitter (GFL) is designed as module to be integrated into gas meter assemblies. Three printed circuit boards were provided and tested for the purpose of certification. Each printed circuit board was designed to be integrated into a different gas meter assembly and therefore the shape and size vary slightly. The RF portion of each PCB is “electrically identical” and therefore all variations will be covered under a single FCC ID. All three PCB modules were evaluated for radiated emissions and one module tested to the remaining requirements of CFR 47 Part 24D, 90, and 101. The three PCB variations tested and of which the test data is included in this report are identified by the following part numbers: 0216 0217 0218 1.3.2 In-Band Testing Methodology For testing in accordance with 47 CFR 2.1046-2.1057, OET/Lab recommends that the following be used to select test frequencies for licensed devices: Frequency range over which device operates Number of frequencies Location in the range of operation 1 MHz or less 1 Middle 1 to 10 MHz 2 1 near top and 1 near bottom 10 to 100 MHz 3 1 near top, 1 near middle and 1 near bottom Model: GFL FCC ID: SDBGFL ACS Report: 06-0194-LD Advanced Compliance Solutions Page 4 The AMDS GFL Transmitter (GFL) is designed to operate in multiple bands under the requirements of CFR 47 Parts 24, 90, and 101. The following is a list of the frequency bands of operation sorted based on the FCC rule parts in which the band is associated. CFR Title 47 Rule Part Frequency Band of Operation (MHz) 24D 901.0 - 902.0 24D 930.0 - 931.0 24D 940.0 - 941.0 90 896.0375 - 901.0 90 935.0 - 940.0 101 928.85 - 929.0 101 932.0 - 932.5 101 941.0 - 941.5 101 959.85 - 960.0 Based on the requirements set forth in accordance 47 CFR 2.1046-2.1057 as stated above, the methodology in selecting the places to test in the available bands of operation is outlined in the following table. CFR Title 47 Rule Part Frequency Band of Operation (MHz) Location in the Range of Operation 90 896.0375 - 901.0 24D 901.0 - 902.0 1 near top and 1 near bottom 101 928.85 - 929.0 Middle 24D 930.0 - 931.0 Middle 101 932.0 - 932.5 Middle 90 935.0 - 940.0 24D 940.0 - 941.0 101 941.0 - 941.5 1 near top and 1 near bottom 101 959.85 - 960.0 Middle The data provided in this report is sorted based on the rule part. 1.4 Emission Designators The Sensus AMDS GFL Transmi…

Text truncated - open the document above for the full version.

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Transmitter Certification Test Report FCC ID: SDBGFL FCC Rule Part: CFR 47 Part 24 Subpart D, Part 90 Subpart I, Part 101 Subpart C ACS Report Number: 06-0194-LD Applicant: Advanced Metering Data Systems, LLC Equipment Type: Water Meter Data Transmitter Trade Name: Sensus AMDS GFL Gas Meter Transmitter Model(s): GFL Test Setup Photographs Model: GFL Advanced Compliance Solutions FCC ID: SDBGFL 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: Radiated Emission - Intentional – PCB:0216 Front Model: GFL Advanced Compliance Solutions FCC ID: SDBGFL 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: Radiated Emission - Intentional – PCB:0216 Back Model: GFL Advanced Compliance Solutions FCC ID: SDBGFL 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 3: Radiated Emission - Intentional – PCB:0217 Front Model: GFL Advanced Compliance Solutions FCC ID: SDBGFL 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 4: Radiated Emission - Intentional – PCB:0217 Back Model: GFL Advanced Compliance Solutions FCC ID: SDBGFL 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 5: Radiated Emission - Intentional – PCB:0218 Front Model: GFL Advanced Compliance Solutions FCC ID: SDBGFL 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 6: Radiated Emission - Intentional – PCB:0218 Back Model: GFL Advanced Compliance Solutions FCC ID: SDBGFL 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 7: Radiated Emissions - Intentional - Substitution Model: GFL Advanced Compliance Solutions FCC ID: SDBGFL 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 8: Radiated Emission – Unintentional Front Model: GFL Advanced Compliance Solutions FCC ID: SDBGFL 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 9: Radiated Emission – Unintentional Back
