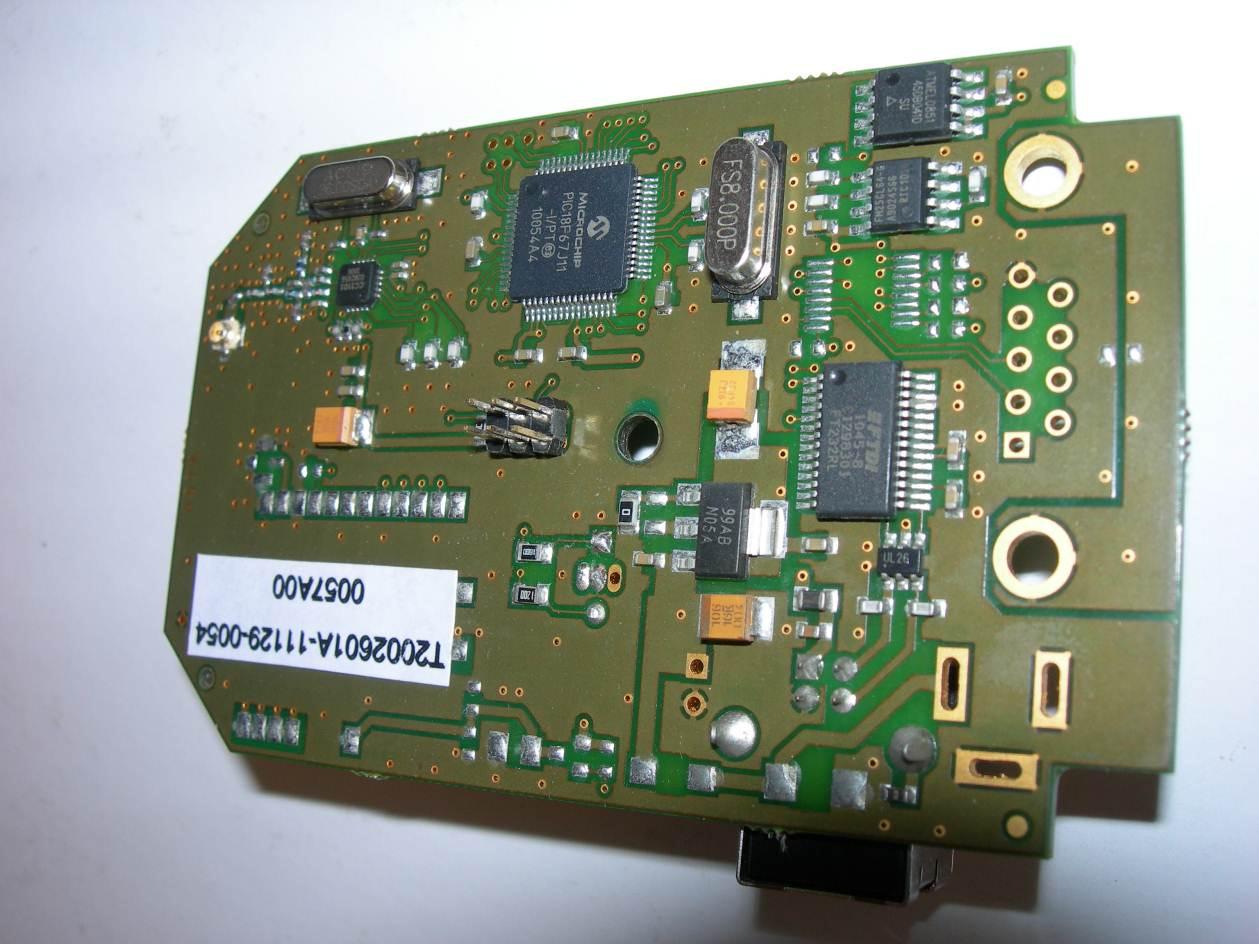

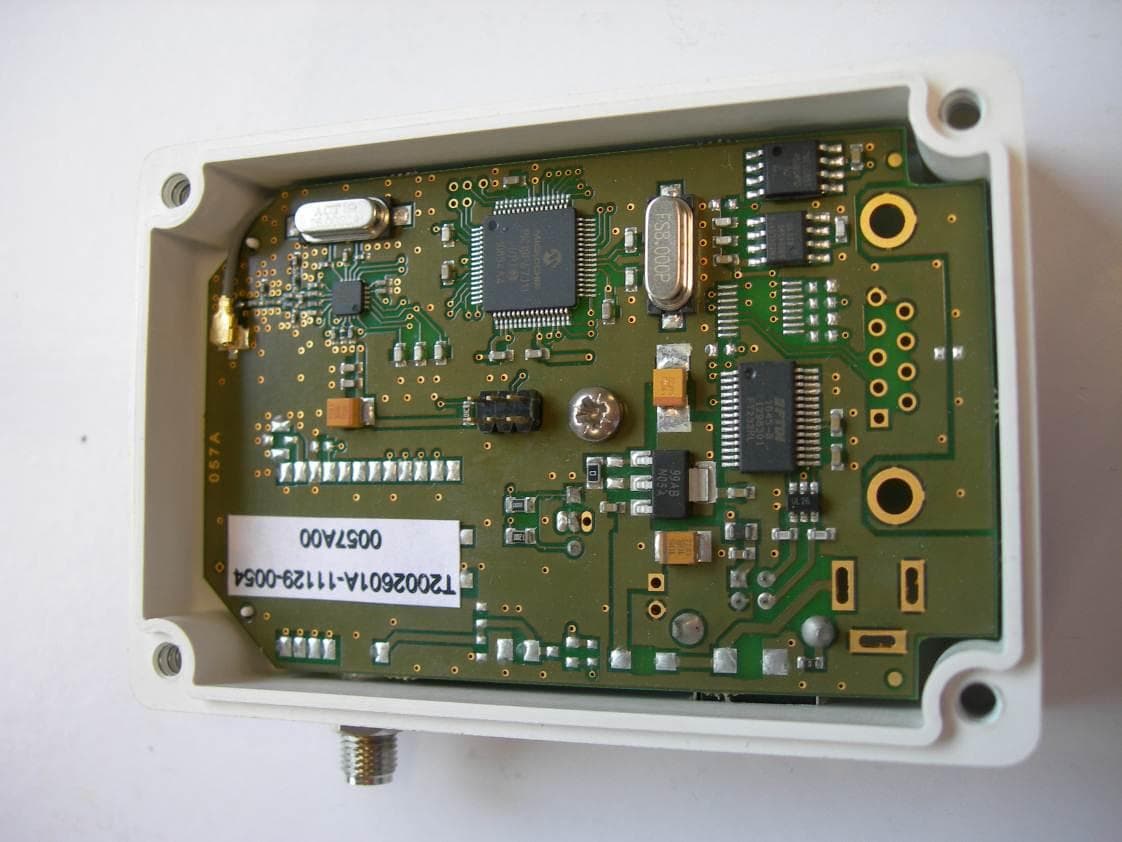

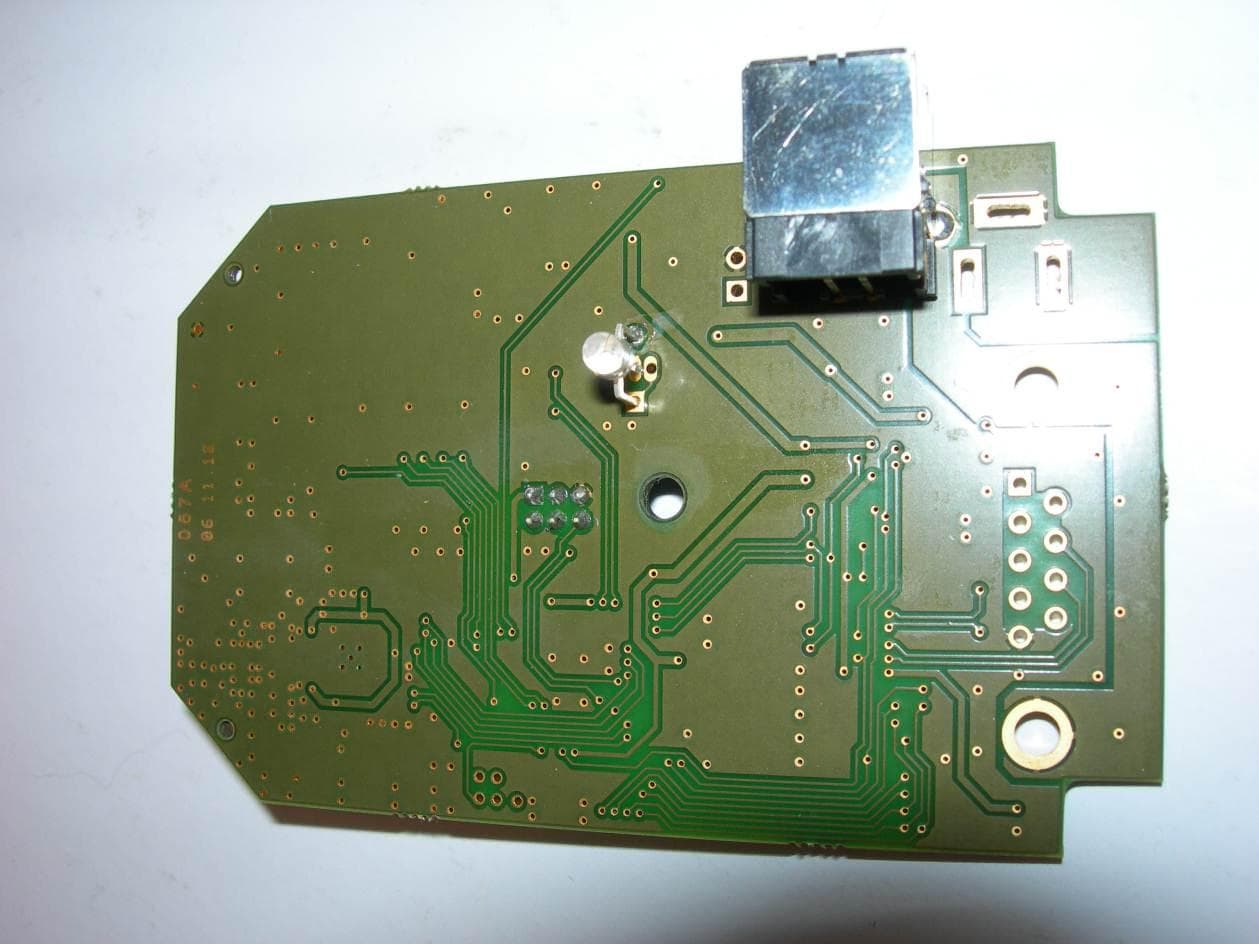

IJINUS T2002 internal photos FCC Id : SE6E001 IC : 10983A-E001

Product name:T2002 Manufacturer:IJINUS FCC Id:SE6E001 Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at the antenna terminal:12.00(dBm) Maximum peak output power at the antenna terminal:15.84893192(mW) Antenna gain(typical):2 (dBi) Maximum antenna gain:1.584893192(numeric) Prediction distance:20 (cm) Prediction frequency:915 (MHz) MPE limit for uncontrolled exposure at prediction frequency:0.61(mW/cm^2) Power density at prediction frequency:0.004997(mW/cm^2) 2 4R PG S p =

TEST REPORT N°119778-639209 Page 2/39 SUMMARY 1. TEST PROGRAM ............................................................................................................................... 3 2. EQUIPMENT DESCRIPTION .............................................................................................................. 4 3. OCCUPIED BANDWIDTH ................................................................................................................... 6 4. -6DB BANDWIDTH ............................................................................................................................. 8 5. MAXIMUM PEAK CONDUCTED POWER ........................................................................................ 10 6. POWER SPECTRAL DENSITY ........................................................................................................ 12 7. BAND EDGE ..................................................................................................................................... 14 8. CONDUCTED SPURIOUS EMISSIONS ........................................................................................... 16 9. AC POWER LINE CONDUCTED EMISSIONS ................................................................................. 18 10. TRANSMITTER RADIATED EMISSIONS ......................................................................................... 21 11. RECEIVER RADIATED EMISSIONS ................................................................................................ 23 12. TEST EQUIPMENT LIST .................................................................................................................. 25 13. UNCERTAINTIES CHART ................................................................................................................ 26 14. ANNEX (GRAPHS) .......................................................................................................................... 27 TEST REPORT N°119778-639209 Page 3/39 1. TEST PROGRAM • References Standards: - 47 CFR Part 15C - RSS-210 - RSS-Gen - RSS-102 - CISPR 16-4-2 - ANSI C63.4 Standard Section Test Description TEST RESULT - Comments RSS-Gen § 4.6.1 Occupied Bandwidth PASS CFR 47 § 15.247 (a) (2) RSS-210 § A8.2(a) -6dB Bandwidth PASS CFR 47 § 15.247 (b) RSS-210 § A8.4(4) Maximum Peak Output Power PASS CFR 47 § 15.247 (e) RSS-210 § A8.2 (b) Power Spectral Density PASS CFR 47 § 15.247 (d) RSS-210 § A8.5 Band Edge PASS CFR 47 § 15.247 (d) RSS-210 § A8.5 Conducted Spurious Emissions PASS CFR 47 § 15.207 RSS-Gen § 7.2.4 AC Power Line Conducted Emissions PASS CFR 47 § 15.209 (a) CFR 47 § 15.247 (d) RSS-210 § A8.5 Transmitter Radiated emissions PASS RSS-Gen § 4.10 Receiver Radiated emissions PASS PASS: EUT complies with standard’s requirement FAIL: EUT does not comply with standard’s requirement NA: Not Applicable NP: Test Not Performed TEST REPORT N°119778-639209 Page 4/39 2. EQUIPMENT DESCRIPTION 2.1. HARDWARE IDENTIFICATION • Equipment under test (EUT): Photograph of EUT • Auxiliary equipment (AE) used for testing: -Personal Computer Lenovo T400 • Input/output: - Usb • Equipment information: - External antenna connector: Yes - Frequency band allocated: 900MHz to 930MHz - Frequency band used: 915MHz - Modulation: GFSK - Number of channel: 1 - Antenna type: External - Spreading: No - Stand By mode: Yes (Receiver mode) - Maximum Antenna Gain: 2dBi - Type of power source: USB - Power supply: 5Vdc - Frequency plan: Channel Frequency (MHz) Fnom 915 TEST REPORT N°119778-639209 Page 5/39 2.2. RUNNING MODE The EUT is set in the following modes during tests: -Permanent emission with modulation -Communication -Permanent reception 2.3. EQUIPEMENT LABELLING 2.4. EQUIPMENT MODIFICATIONS No equipment modification has been necessary during testing. TEST REPORT N°119778-639209 Page 6/39 3. OCCUPIED BANDWIDTH 3.1. TEST CONDITIONS Test performed by : Stéphane PHOUDIAH Date of test : 2013/03/29 Ambient temperature : 23°C Relative humidity : 43% 3.2. TEST SETUP The Equipment Under Test is installed on a table and set in permanent emission with modulation. Measurement is performed with a spectrum analyzer on the EUT conducted access. The product has been tested according to the RSS- GEN § 4.6.1 reference method. Spectrum Analyzer Setting: Center frequency= Fnom Span= At least twice the emission spectrum Amplitude= Sufficient to observe the signal amplitude RBW= 1% of span VBW= 3*RBW Sweep= Auto Trace= Max Hold Detector= Peak Occupied Bandwidth 99% activated Photograph for Occupied Bandwidth TEST REPORT N°119778-639209 Page 7/39 3.3. RESULTS Temperature Tnom Voltage Vnom Frequency Fnom Occupied Bandwidth (kHz) 598,8 See graphics in annex Result: PASS Limit:



None TEST REPORT N°119778-639209 Page 8/39 4. -6DB BANDWIDTH 4.1. TEST CONDITIONS Test performed by : Stéphane PHOUDIAH Date of test : 2013/03/29 Ambient temperature : 23°C Relative humidity : 43% 4.2. TEST SETUP The Equipment Under Test is installed on a table and set in permanent emission with modulation. Measurement is performed with a spectrum analyzer on the EUT conducted access. The product has been tested according to the FCC KDB 558074 D01 DTS Meas Guidance v02 § 7.1. Spectrum Analyzer Setting: Center frequency= Fnom Span= At least twice the emission spectrum Amplitude= Sufficient to observe the signal amplitude RBW= 100kHz VBW= 300kHz Sweep= Auto Trace= Max Hold Detector= Peak Photograph for Bandwidth TEST REPORT N°119778-639209 Page 9/39 4.3. RESULTS Temperature Tnom Voltage Vnom Frequency Fnom -6dB Bandwidth (kHz) 538,9 See graphics in annex Result: PASS Limit:



The -6dB bandwidth must be greater than 500kHz TEST REPORT N°119778-639209 Page 10/39 5. MAXIMUM PEAK CONDUCTED POWER 5.1. TEST CONDITIONS Test performed by : Stéphane PHOUDIAH Date of test : 2013/03/29 Ambient temperature : 23°C Relative humidity : 43% 5.2. TEST SETUP The Equipment Under Test is installed on a table and set in permanent emission with modulation. Measurement is pe…

Text truncated - open the document above for the full version.

FCC ID: SE6E001 IC: 10983A-E001 TEST SET UP PHOTOS IJINUS T2002 Conducted emission measurements FCC ID: SE6E001 IC: 10983A-E001 Conducted emission measurements FCC ID: SE6E001 IC: 10983A-E001 Radiated emissions measurements FCC ID: SE6E001 IC: 10983A-E001 Radio test measurements
