SELTSM601Single Band CDMA Mobile Phone

CV342 User Manual Version 1.1 Prepared by: K.H.Kim Approved by: C.S.Hong Version: 1.1 Date: 12/Dec/05 -1- Revision History Version Date Pages Changes Signatures 1.0 24/Nov/05 First Version 1.1 12/Dec/05 Modify the character Chart -2- Contents HEALTY AND SAFETY INFORMATION.............................................................................................................6 E XPOSURE TO RADIO FREQUENCY (RF) SIGNALS..................................................................................................6 F OR BODY OPERATION...................................................................................................................................................7 DESCRIPTION FOR INDICATORS ON SCREEN AND KEY PAD...........................................................8 I DLE SCREEN.....................................................................................................................................................................8 K EY LAYOUT......................................................................................................................................................................9 GETTING STARTED..................................................................................................................................................10 T URNING ON/OFF THE PHONE.................................................................................................................................. 10 M AKING A CALL..............................................................................................................................................................10 A NSWERING A CALL.......................................................................................................................................................11 A DJUSTING VOLUME.....................................................................................................................................................11 V IEWING MISSED CALLS.............................................................................................................................................11 Q UICKLY SWITCHING TO THE MANNER MODE........................................................................................................12 E NTERING TEXT..............................................................................................................................................................12 USING THE MENUS.................................................................................................................................................17 A CCESSING MENU FUNCTIONS BY SCROLLING.......................................................................................................17 U SING SHORTCUTS TO ACCESS MENU FUNCTIONS................................................................................................17 L IST OF MENU FUNCTIONS..........................................................................................................................................17 DOWNLOADS..............................................................................................................................................................22 WAP.................................................................................................................................................................................23 A CCESSING THE WAP BROWSER...............................................................................................................................23 MY FOTO.......................................................................................................................................................................24 C OMPOSE.........................................................................................................................................................................24 N OTIFICATIONS.............................................................................................................................................................24 -3- I NBOX...............................................................................................................................................................................24 O UTBOX............................................................................................................................................................................24 D RAFT...............................................................................................................................................................................24 T EMPLATE........................................................................................................................................................................24 VOICE MAIL................................................................................................................................................................25 TONES & IMAGES.....................................................................................................................................................26 T ONES...............................................................................................................................................................................26 I MAGES.............................................................................................................................................................................26 MY SMS..........................................................................................................................................................................27 S END MESSAGE..............................................................................................................................................................27 I NBOX.....................................................................…

Text truncated - open the document above for the full version.

DUPLEX E R VC- TCXO S1M8837 SUPPLY POW E R T O AL L UNI T MSM51 0 5 LCD 12 8X1 6 0 TFF TN S1M8656A S1M8680X CX7710 5 FC1103 1.3Mpixel s CMOS CAMERA MCP 128Mb Flash/ 32Mb SRAM UART USB JTAG CHARGER IC M I C79110 MV3019SN K 19.68 MHz 19.68 MHz 19.68 MHz 19.68 MHz 3 2 . 768 KHz 48 MHz 27 MHz Block diagram of VTL601

December 8, 2005 Vitelcom Mobile Technology U.S.A.. 2480 Irvine Boulevard, #172 Tustin, California 92782 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: CV342_VTL601 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematic Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, NAME: Monika Hormaza TITLE: Engineering Project Manager

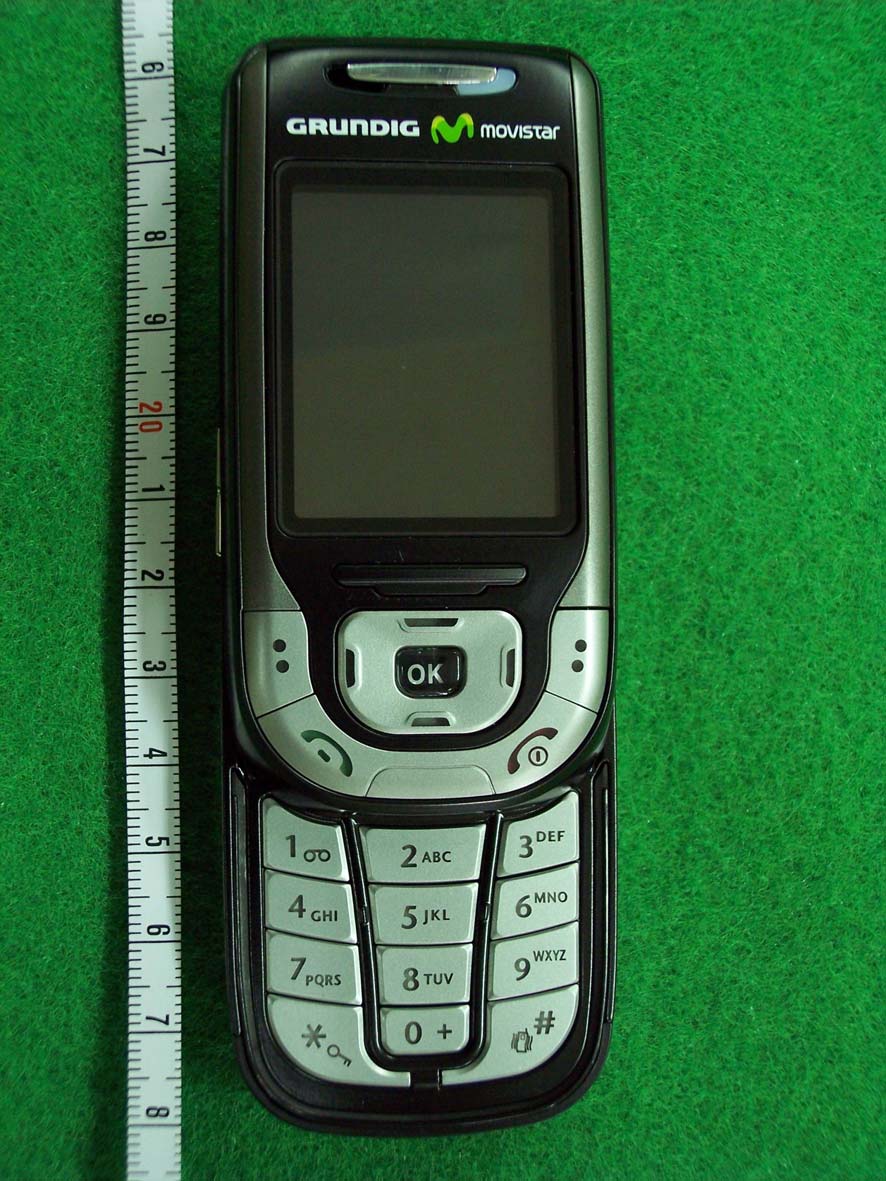

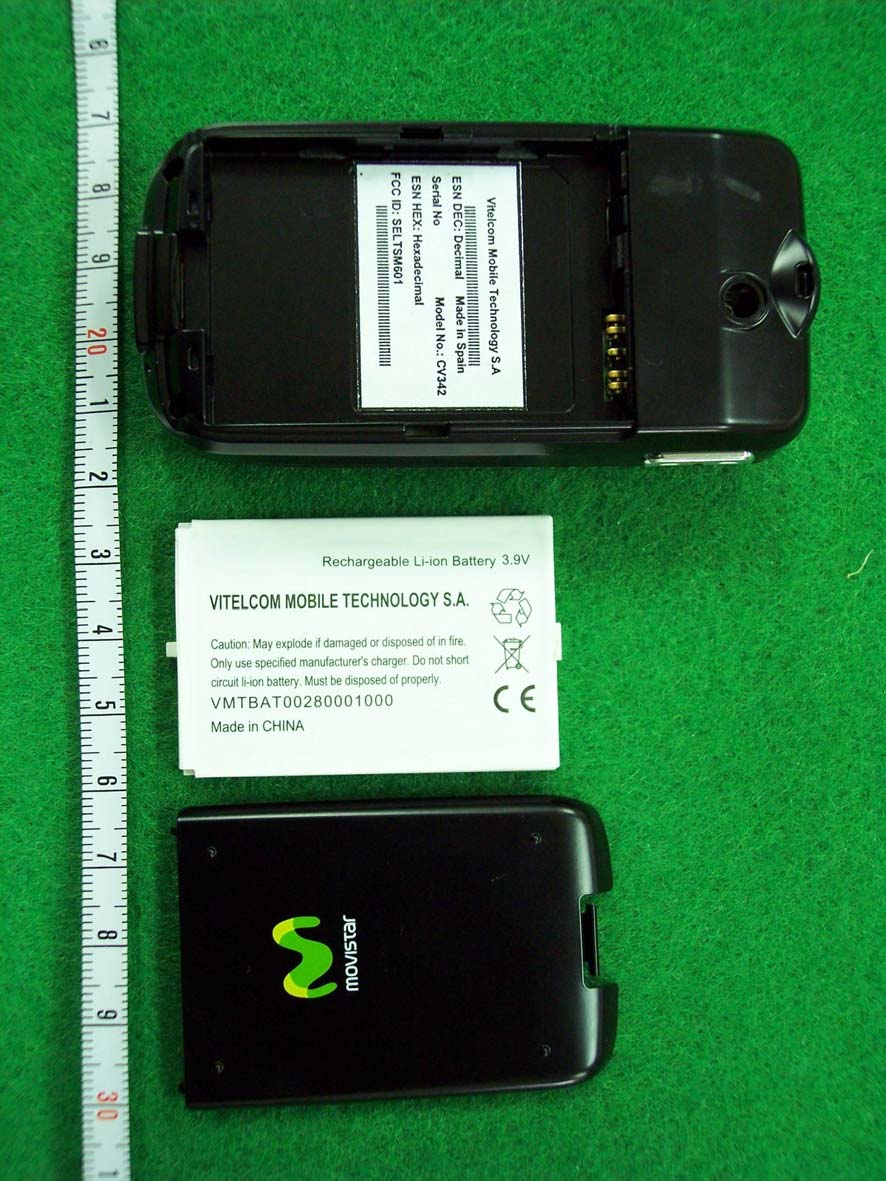

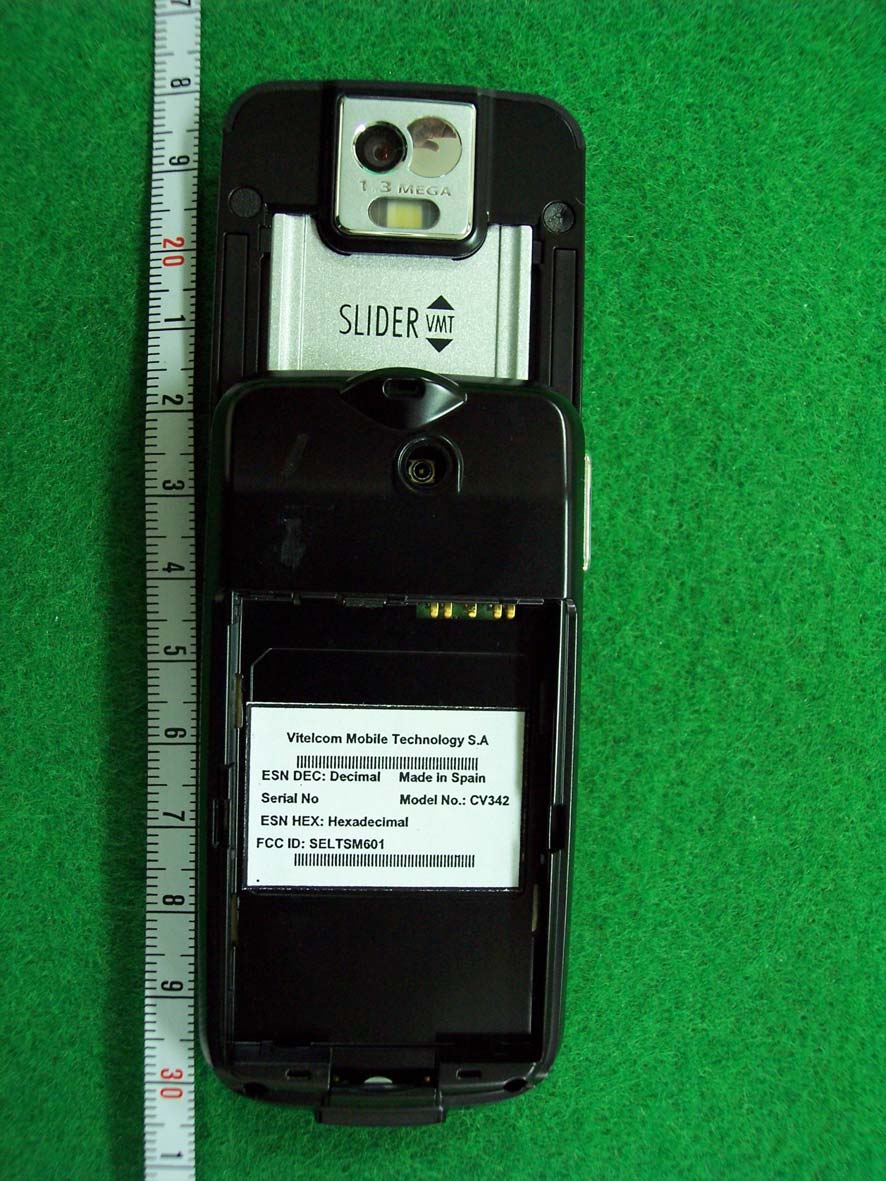

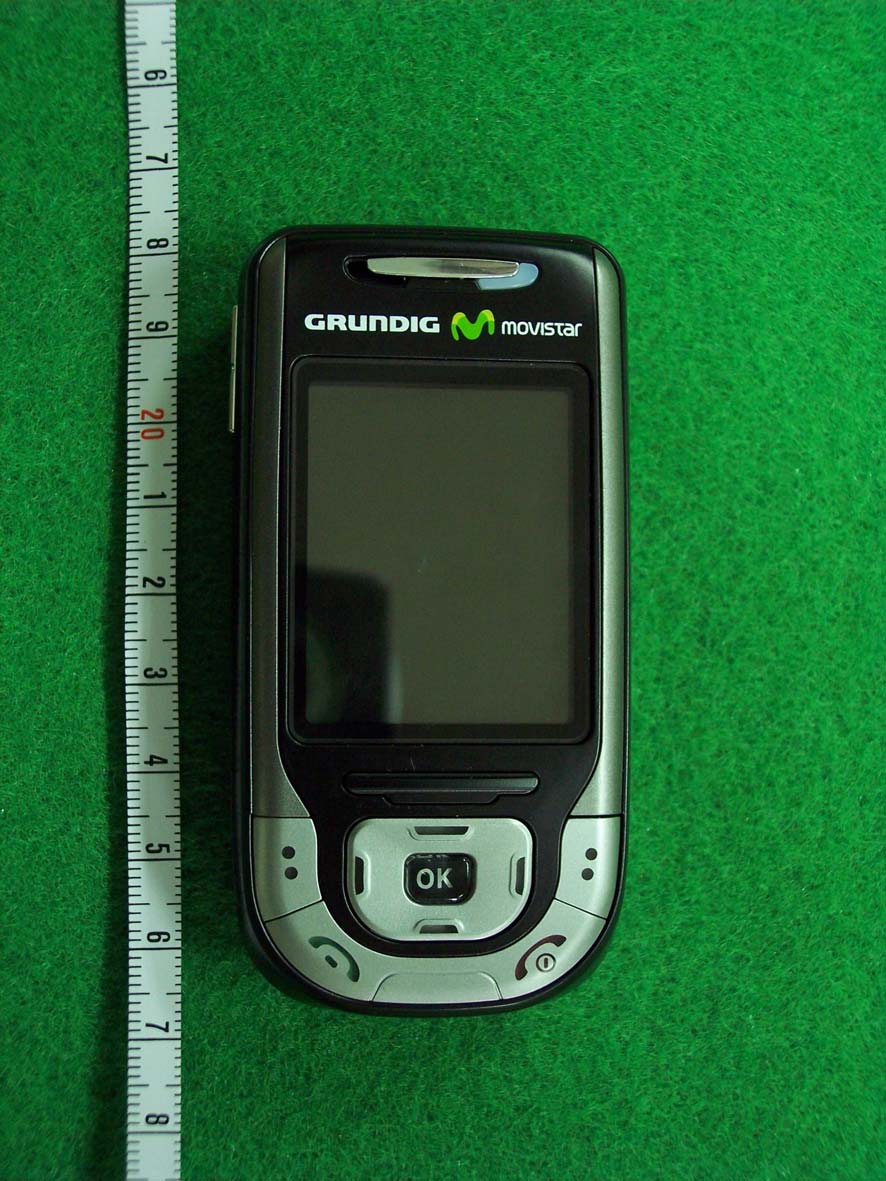

Test Report No.: NK2FR253 APPENDIX C – EUT PHOTOGRAPHS ● Front View of EUT Vitelcom Mobile Technology,U.S.A. Inc. FCC ID :SELTSM601 Test Report No.: NK2FR253 ● Rear View of EUT Vitelcom Mobile Technology,U.S.A. Inc. FCC ID :SELTSM601 Test Report No.: NK2FR253 ● Front View of EUT (Key-Pad) Vitelcom Mobile Technology,U.S.A. Inc. FCC ID :SELTSM601 Test Report No.: NK2FR253 ● Rear View of EUT (Camera) Vitelcom Mobile Technology,U.S.A. Inc. FCC ID :SELTSM601 Test Report No.: NK2FR253 ● Right Side View of EUT Vitelcom Mobile Technology,U.S.A. Inc. FCC ID :SELTSM601 Test Report No.: NK2FR253 ● Left Side View of EUT Vitelcom Mobile Technology,U.S.A. Inc. FCC ID :SELTSM601 Test Report No.: NK2FR253 ● Top View of EUT Vitelcom Mobile Technology,U.S.A. Inc. FCC ID :SELTSM601 Test Report No.: NK2FR253 ● Bottom View of EUT Vitelcom Mobile Technology,U.S.A. Inc. FCC ID :SELTSM601 Test Report No.: NK2FR253 ● Label View of EUT Vitelcom Mobile Technology,U.S.A. Inc. FCC ID :SELTSM601 Test Report No.: NK2FR253 ● Adaptor View of EUT Vitelcom Mobile Technology,U.S.A. Inc. FCC ID :SELTSM601

Test Report No.: NK2FR253 APPENDIX A - Labelling Requirement The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. Vitelcom Mobile Technology S.A |||||||||||||||||||||||||||||||||||||||||||||||||| ESN DEC: Decimal Made in Spain Serial No Model No.: CV342 ESN HEX: Hexadecimal FCC ID: SELTSM601 |||||||||||||||||||||||||||||||||||||||||||||||||| . Preferred Dimension (16 (L) x 32 (W) x 0.5 (H) mm ) Optional Dimension Less than (38 (L) x 32 (W) x 0.5 (H) mm ) Vitelcom Mobile Technology,U.S.A. Inc. FCC ID :SELTSM601

Test Report No.: NK2FR253 APPENDIX C – EUT PHOTOGRAPHS ● LCD Front View of Main Board Vitelcom Mobile Technology,U.S.A. Inc. FCC ID :SELTSM601 Test Report No.: NK2FR253 ● LCD Rear View of Main Board Vitelcom Mobile Technology,U.S.A. Inc. FCC ID :SELTSM601 Test Report No.: NK2FR253 ● Rear View of Main Board Vitelcom Mobile Technology,U.S.A. Inc. FCC ID :SELTSM601 Test Report No.: NK2FR253 ● Key-Pad View of Main Board Vitelcom Mobile Technology,U.S.A. Inc. FCC ID :SELTSM601

PANTOJA Hardware Specification Mobion Co., Ltd. Proprietary and Confidential - 1 - V V I I T T E E L L C C O O M M CV342/VTL601 HARDWARE MANUALS Rev 0.0, 11 th . Nov, 2005 PANTOJA Hardware Specification Mobion Co., Ltd. Proprietary and Confidential - 2 - V V I I T T E E L L C C O O M M Document History Revision Draft Date Authors Comments -- 0.0 05/11/11 Kenn. Lee/ HW Initial draft 0.1 - - - - PANTOJA Hardware Specification Mobion Co., Ltd. Proprietary and Confidential - 3 - V V I I T T E E L L C C O O M M TABLE OF CONTENTS 1. INTRODUCTION......................................................................................................................................................4 2. SPECIFICATION......................................................................................................................................................5 2.1 PRODUCT STRUCTURE..............................................................................................................................5 2.2 CV342/VTL601 SPECIFICATIONS.............................................................................................................5 2.3 BATTERY SPECIFICATIONS.........................................................................................................................6 2.4 AC ADAPTOR SPECIFICATIONS..................................................................................................................6 3. TECHNICAL DESCRIPTION..................................................................................................................................7 3.1 OVERVIEW...............................................................................................................................................7 3.2 RF PART DESCRIPTION........................................................................................................................... 11 3.2.1 Description of Frequency Synthesizer Circuit....................................................................................... 11 3.2.2 Description of Rx Part Circuit..................................................................................................................12 3.2.3 Description of Tx Part Circuit...................................................................................................................14 3.3 LOGIC PART DESCRIPTION......................................................................................................................15 3.3.1 Keypad/ LCD..............................................................................................................................................15 3.3.2 Voice Processing Part..............................................................................................................................15 3.3.3 Mobile Station Modem( MSM, U125).....................................................................................................15 3.3.4 Memory Part (U113).................................................................................................................................17 3.3.5 Power Supply Part....................................................................................................................................18 3.4 POWER UP SEQUENCE......................................................................................................................18 PANTOJA Hardware Specification Mobion Co., Ltd. Proprietary and Confidential - 4 - V V I I T T E E L L C C O O M M 1. Introduction This manual provides the technical information to support the service activities of CV342/VTL601 model, which operates on Single mode Digital CDMA Telephone. This manual is supplied in the electronic format for easy distribution and reference. PANTOJA Hardware Specification Mobion Co., Ltd. Proprietary and Confidential - 5 - V V I I T T E E L L C C O O M M 2. Specification This chapter provides the product configuration and product specifications of CV342/VTL601 model, which operates on Single mode Digital CDMA Telephone and accessories 2.1 Product Structure [Table 2.1] Standard Package ITEM TYPES 1 Main Handset CV342/VTL601 2 Lithium Ion Battery(720mAh) CV342/VTL601 3 AC Charger CV342/VTL601 Travel Adaptor (600mA) 4 Earphone-Mic headset CV342/VTL601 headset 5 Owner’s Operating Manual CV342/VTL601 Manuals 2.2 CV342/VTL601 Specifications ITEM 800MHz Band 1 Radio Frequency TX: 824 to 849MHz RX:869 to 894MHz 2 Number of Channels 832 3 Duplex Spacing 45MHz 4 Digital Mode 4.1 Channel Spacing 1.23MHz 4.2 Frequency Stability +/-300Hz 4.3 RF Output Power 24dBm 4.4 Receiver Sensitivity -104dBm 4.5 Modulation/Demodulation OQPSK/QPSK 5 Operating Temperature -20 to +60 degrees 6 Power Source Lithium Ion Battery 3.9V, 700 mAh 7 Dimensions 44(H) x 87(V) x 23.5(T) mm 8 Weight 91 g (Including Battery) Power management Talk Time(Up to) T.B.D min 9 Standby(Up to) 170h (SCI=2 /Power on registration off) Two-way Short Message Service(SMS) 10 Features Bell/ Vibration/ LED Alert PANTOJA Hardware Specification Mobion Co., Ltd. Proprietary and Confidential - 6 - V V I I T T E E L L C C O O M M Multilingual (Portuguese/English/Spanish) 11 Protocol CDMA 1X 2.3 Battery Specifications ITEM TYPES 1 Battery Type Lithium Ion Battery 2 Battery Voltage 3.7V 3 Battery Capacity 700mAh (Nominal) 4 Recharging Time With Charger 170 min MAX. at 720mAh Li-ion Battery 2.4 AC Adaptor Specifications ITEM TYPES 1 Input Voltage AC 100 ~ 240V (50 / 60Hz) 2 Output Voltage DC 5.5V 3 Output Current 600 mA PANTOJA Hardware Specification Mobion Co., Ltd. Proprietary and Confidential - 7 - V V I I T T E E L L C C O O M M 3. Technical Description 3.1 Overview This product consists with 3 parts, which are RF, logic, and UI interface. The block diagram is shown in Figure 4.1. This product employs the Super-Heterodyne method for wireless communication and the Tx and Rx frequencies are 824.7~848.31MHz and 869.04~893.9MHz respectively. RF signals received thr…

Text truncated - open the document above for the full version.

VTL601 P/P BOM 2005-12-05 Item Reference Qty Manufacturer VALUE PART NUMBER Description VITELCOM P/N 1 VRS8 VRS35-37 VRS39 5 ICT 15PF,100OHM ICVE21184E150R101 4 ARRAY CHIP VARISTOR,15PF 2 PL1 1 NAIS AXK7L70227J AXK7L70227J, 70 pin header 3 L2 L6 L102-103 4 SAMWHA BEAD CB1608GA221T BEAD,FERRITE,0.3(DC)OHM,200mA,1608 VMTIND00870000603 4 L3 L121 L123-124 4 SAMWHA BEAD CB1608GA601T BEAD,FERRITE,0.5OHM,200mA,1608 VMTIND00860000603 5 L113 1 SAMWHA BEAD CB1608PM121T BEAD,FERRITE,0.08OHM,1000mA,1608 VMTIND00850000603 6 C1-2 C13 C15 C27 C29 C35 C47-49 C51 C54C72-73 C75 C82 C88 C91 C116 C122 C154C171 C178 C182 C193 C240 C244 C296 C298C301 C308-309 C325 C327-329 C332-333 C337 39 TDK 100NF C1005Y5V1C104ZT CAPSM,CERAM,100NF,-20TO+80%,16V,Y5V,1005 VMTCPC0007A000402 7 C67 C66 2 TDK 680PF C1005X7R1H681KT CAPSM,CERAM,680PF,±10%,50V,X7R,1005 VMTCPC00250000402 8 C28 C44 2 TDK 3.3PF C1005C0G1H3R3CT CAPSM,CERAM,3.3PF,±0.25PF,50V,C0G,1005 VMTCPC01290000402 9 C76 C30 C32 C90 4 DNI DNI DNI DNI 10 C33 1 TDK 1UF C1005X5R1C105KT CAPSM,CERAM,1UF,10%,6.3V,X5R,1005 VMTCPC00760000402 11 C100 C185 2 TDK 0.5PF C1005C0G1H0R5CT CAPSM,CERAM,0.5PF,±0.25PF,50V,C0G,1005 VMTCPC00840000402 12 C111 C113 C118 C123 C125-127 C129 C153C162 C168 C170 C191 C196 C202 C14 C20C305-306 C58 C336 C341 22 TDK 100PF C1005C0G1H101JT CAPSM,CERAM,100PF,±5%,50V,C0G,1005 VMTCPC00470000402 13 C150-151 2 TDK 5PF C1005C0G1H5R0CT CAPSM,CERAM,5PF,±0.25PF,50V,C0G,1005 VMTCPC01530000402 14 C117 C156 C163 C165 C167 C37 C180 C104C130 C207 C213-214 C245 C23 C9 C340 16 TDK 1NF C1005X7R1H102KT CAPSM,CERAM,1NF,±10%,50V,X7R,1005 VMTCPC00110000402 15 C172-173 C34 C187-188 C190 C201 C43C25-26 C55 11 DNI 16 C189 C158 C210 C297 4 TDK 10PF C1005C0G1H100DT CAPSM,CERAM,10PF,±0.5PF,50V,C0G,1005 VMTCPC00180000402 17 C10 C38 2 TDK 4.7PF C1005C0G1H4R7CT CAPSM,CERAM,4.7PF,±0.25PF,50V,C0G,1005 VMTCPC00590000402 18 C199 1 TDK 5.6NF C1005X7R1H562KT CAPSM,CERAM,5.6NF,±10%,50V,X7R,1005 VMTCPC01160000402 19 C200 C121 2 TDK 24PF C1005C0G1H240JT CAPSM,CERAM,24PF,±5%,50V,C0G,1005 VMTCPC01360000402 20 C164 C174 C208 C128 C166 C120 C131C299 C140 C302 C304 C141 C21 C310-311 C24C36 C338 18 TDK 10NF C1005X7R1C103KT CAPSM,CERAM,10NF,±10%,16V,X7R,1005 VMTCPC00220000402 21 C239 1 TDK 47NF C1005X7R1A473KT CAPSM,CERAM,47NF,±10%,10V,X7R,1005 VMTCPC00540000402 22 C39 1 TDK 470PF C1005X7R1H471KT CAPSM,CERAM,470PF,±10%,50V,X7R,1005 VMTCPC00040000402 23 C145 1 TDK 27PF C1005C0G1H270JT CAPSM,CERAM,27PF,±5%,50V,C0G,1005 VMTCPC00460000402 24 C307 C176 2 TDK 4.7NF C1005X7R1E472KT CAPSM,CERAM,4.7NF,±10%,25V,X7R,1005 VMTCPC00810000402 25 C169 1 TDK 47PF C1005C0G1H470JT CAPSM,CERAM,47PF,±5%,50V,C0G,1005 VMTCPC00530000402 26 C209 C211 2 TDK 82PF C1005C0G1H820JT CAPSM,CERAM,82PF,±5%,50V,C0G,1005 VMTCPC00640000402 27 C312 1 TDK 220PF C1005X7R1H221KT CAPSM,CERAM,220PF,±10%,50V,X7R,1005 VMTCPC00260000402 28 C315-316 2 TDK 18PF C1005C0G1H180DT CAPSM,CERAM,18PF,±0.8PF,50V,C0G,1005 VMTCPC00120000402 29 C318-319 C321-322 4 TDK 22NF C1005X7R1C223KT CAPSM,CERAM,22NF,±10%,25V,X7R,1005 VMTCPC00860000402 30 C159-160 2 TDK 120PF C1005C0G1H121JT CAPSM,CERAM,120PF,±5%,50V,C0G,1005 VMTCPC00480000402 31 C197 1 TDK 3.3NF C1005X7R1H332KT CAPSM,CERAM,3.3NF,±10%,50V,X7R,1005 VMTCPC01270000402 32 C330-331 2 TDK 15NF C1005X7R1C153KT CAPSM,CERAM,15NF,±10%,16V,X7R,1005 VMTCPC01280000402 33 C146-147 2 TDK 6.8PF C1005C0G1H6R8CT CAPSM,CERAM,6.8PF,±0.25PF,50V,C0G,1005 VMTCPC01250000402 34 C65 1 TDK 220NF C1005Y5V1A224ZT CAPSM,CERAM,220NF,-20TO+80%,16V,Y5V,1005 VMTCPC00330000402 35 C181 1 TDK 330PF C1005C0G1H331JT CAPSM,CERAM,330PF,±5%,50V,C0G,1005 VMTCPC01220000402 36 C238 C41 2 TDK 820PF C1005C0G1H821JT CAPSM,CERAM,820PF,±5%,50V,C0G,1005 VMTCPC01380000402 37 C216 1 TDK 68PF C1005C0G1H680JT CAPSM,CERAM,68PF,±5%,50V,C0G,1005 VMTCPC00550000402 38 C149 1 TDK 2.7PF C1005C0G1H2R7CT CAPSM,CERAM,2.7PF,±0.25PF,50V,C0G,1005 VMTCPC00580000402 39 C6 C19 C83 C110 C152 C198 C241 C334 8 TDK 4.7UF(1608) C1608X5R1A475KT CAPSM,CERAM,4.7UF,±10%,6.3V,X5R,1608 VMTCPC00030000603 40 C71 C74 C77 C81 C17 C84 C61-63 C222 C228C64 C249 C68 14 TDK 1UF(1608) C1608X5R1A105KT CAPSM,CERAM,1UF,±10%,10V,X5R,1608 VMTCPC00020000603 41 C212 1 TDK 680NF(1608) C1608Y5V1A684ZT CAPSM,CERAM,680NF,-20TO+80%,10V,Y5V,1608 VMTCPC01320000603 42 C157 1 TDK 10NF(1608) C1608X7R1H103KT CAPSM,CERAM,10NF,±10%,50V,X7R,1608 VMTCPC01340000603 43 C148 1 TDK 3PF(1608) C1608C0G1H030CT CAPSM,CERAM,3PF,±0.25PF,50V,C0G,1608 VMTCPC01560000603 44 C7 C12 C52-53 C69-70 C78 C224 C230 C246 10 TDK 10UF(2012) C2012X5R0J106MT CAPSM,CERAM,10UF,±20%,6.3V,X5R,2012 VMTCPC00740000805 45 U15 1 SKYWORKS CX77105 PAM VMTICS01164X4LM10 46 U5 1 VISHAY DG3535DB DG3535DB ALALOG SWITCH,MICROFOOT VMTICS022800BGA10 47 U104 1 KDS 19.68MHz DSA321SA VC-TCXO,19.68MHz,3.2*2.5 VMTCRS00150322509 m t 48 X2 1 KDS 32.768KHZ DST410 X-TAL, 32.768KHZ,4.1*1.5 VMTCRS00160154107 49 Q3 1 KEC KRC422E KRC422E IC,DIGITAL TRANSISTORS(100KOHM),EMT3 VMTTR00027000ESM3 50 U106 1 FCI FC1103 REICEIVER MMIC for Cellular CDMA/AMPS VMTICS012900MLF24 51 F100 1 LG INNOTEK FSDS8388C1 SAW DUPLEXER, 824~894 MHz VMTFTS00350383815 52 U108 1 LG INNOTEK FSMS0085G2 Rx_IF_SAW FILTER VMTFTS00250731908 53 U111 1 MURATA SAFSE836MAL0T00B0S RF_TX_SAW FILTER VMTFTS00220252010 54 U107 1 MURATA SAFSE881MAM0T00B0S Rx_RF_SAW FILTER VMTFTS00210252010 55 U109 1 SAMSUNG S1M8656A RX-BBA VMTICS013500BCC48 56 D3 1 KEC KDR511T KDR511T High freq. switching diode, TSM VMTDD000460000TSM 57 D1 1 KEC KDS122 IC,SWITCHING DIODE,EMD3 VMTDD00029000USM3 58 D4 1 KEC KDS121E IC,SWITCHING DIODE,EMD3 VMTDD00031000ESM3 59 D2 1 KEC KDS160E KDS160E Switching Diode EMD2 Type VMTDD00047000ESC2 60 L1 1 MARUWA CNH20F104Z-TM CNH20F104Z-TM IC,EMIFILTER,0.02OHM,2A,2012 VMTIND00880000805 61 Q4 1 KEC EMH6 KRC824E IC,Two KRC404V, DIGITAL TRANSISOTRS(47KOHM),EMT6 VMTTR00028000TES6 62 Q2 Q12 2 KEC KTA2012E KTA2012E GENERAL AMP, PNP VMTTR00047000ESM3 63 Q1 1 KEC KTC4072E KTC4072E GENERAL AMP, NPN VMTTR00048000ESM3 64 D100-101 D118-119 4 KEC KDV350E KDV350E VARIABLE CAPACITANCE DIODE VMTDD000330000ESC 65 L…

Text truncated - open the document above for the full version.

Test Report No.: NK2FR253 APPENDIX H – TUNE UP PROCEDURE Vitelcom Mobile Technology,U.S.A. Inc. FCC ID :SELTSM601 Test Report No.: NK2FR253 Test Configuration of Equipment under Test The EUT has been tested under continuous transmitting mode. All tests are performed at Low channel , Middle channel, High channel. The field strength of spurious radiation emission for CDMA was measured at EUT stand-up position (H mode) and lie down position (E1 , E2 mode). During all testings, EUT is in link mode with Base Station emulator (8960 Series 10) at maximum power level. Frequency range has been investigated : Radiated emission has been measured from 30MHz to 12.75GHz. Vitelcom Mobile Technology,U.S.A. Inc. FCC ID :SELTSM601

SAR Report Reference No.: NK2FR253 SAR Evaluation Report FCC ID : SELTSM601 Project Reference No. : NK2FR253 Product Type : Single Band CDMA Mobile Phone Brand Name : Pantoja Model : CV342_VTL601 Tested According to : IEEE Standard C95.1 / OET Bulletin 65 Supplement C Tested Period : December. 12. 2005 to December. 16. 2005 Tested by Seob.Lee date : December. 19. 2005 Verified by Seonteag.Jin date : December. 19. 2005 This test results are only related to the item tested. This test report is only limited to the client company and the product. This report must not be used by the client to claim product endorsement by any agency of the U.S. Government. Lab Address : Nemko Korea Co., Ltd 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Gyunggi-Do, Korea Phone : 82-31-322-2333 Fax : 82-31-322-2332 Vitelcom Mobile Technology USA,Inc Page 1 of 59 FCC ID : SELTSM601 SAR Report Reference No.: NK2FR253 Contents of This Report 1. General Information 3 1.1 Applicant 3 1.2 Manufacturer 3 1.3 Description of Device 3 2. General Test Condition 4 2.1 Location 4 2.2 Operating Environment 4 2.3 Test Frequency 4 2.4 Support Equipment 4 3. Description of Test Equipment 5-9 4. SAR Measurement Procedure 9 5. Definition of Reference Points 11 5.1 Ear Reference Point 11 5.2 Handset Reference Points 12 6. Test Configuration Positions 13 6.1 Cheek/Touch Position 13 6.2 Ear/Tilt 15Position 14 6.3 Body-worn and Other Configurations 15 7. Measurement Uncertainty 16 8. System Verification 17 8.1 Tissue Verification 17 8.2 Test System Validation 18 8.3 Measurement Result of Test Data (Head Validation) 19 8.4 Measurement Result of Test Data (Muscle Validation) 20 9. SAR Measurement Results 21-22 9.1 SAR Measurement Result(Right Head Touch Position) 23-26 9.2 SAR Measurement Result (Right Head Tilt Position) 27-28 9.3 SAR Measurement Result (Left Head Touch Position) 29-32 9.4 SAR Measurement Result (Left Head Tilt Position) 33-34 9.5 SAR Measurement Result (Muscle–15mm Distance- Position) 35-38 9.6 SAR Measurement Result (Muscle–15mm Distance- with Headset) 39-40 10. SAR Test Equipment 41 11. References 42 Appendix A SAR Definition 43-44 Appendix B Probe Calibration 45-53 Appendix C Probe Interpolation 54 Appendix D Photographs of EUT 55-59 Vitelcom Mobile Technology USA,Inc Page 2 of 59 FCC ID : SELTSM601 SAR Report Reference No.: NK2FR253 1.General Information 1.1 Applicant Company Name: Vitelcom Mobile Technology,U.S.A. Inc. Company Address: 2480 Irvine Boulevard #172 Tustin, CA 92782 U.S.A Phone/Fax: Phone: 714-389-1169 Contact Name: Monika Hormaza 1.2 Manufacturer Company Name: Vitelcom Mobile Technology, SA. Company Address: Avenada Juan Lopez Penalver 37 Malaga, Spain,29590 Phone/Fax: Phone: 714-389-1169 Contact Name: Monika Hormaza 1.3 Description of Device Category: Single Band CDMA Mobile Phone Model Name: CV342_VTL601 Brand Name: Pantoja Serial Number: 0000001 Frequency of Operation Tx : 824MHz ~ 849MHz, Rx : 869MHz ~ 894MHz RF Output Power (Conducted) 24.0dBm Modulation/Demodulation OQPSK/QPSK Channel Spacing 1.23MHz Receiver Sensitivity -104dBm Operating Condition -20 to +60 Power Supply Li-ion Battery: 3.9V DC, 700mAh Phone Type Slide Type Antenna Type Internal Dimensions 44(H) X 87(V) X 23.5(T)mm Weight 91g(with Battery) Remarks: The equipment operates when the slide opens. Vitelcom Mobile Technology USA,Inc Page 3 of 59 FCC ID : SELTSM601 SAR Report Reference No.: NK2FR253 2. General Test Condition 2.1 Location Nemko Korea 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Gyunggi-Do Phone : 82-31-322-2333 , Fax : 82-31-322-2332 2.2 Operating Environment Parameters Recording during test Accepted deviation Ambient temperature 20 ~22 15 ~ 30 Relative humidity 30 ~60% 20 ~ 75% 2.3 Test Frequency CDMA (Head) CDMA ( Muscle) Test Channel Test Frequency (MHz)Test Channel Test Frequency (MHz) 1013 824.70 1013 824.70 363 835.89 363 835.89 777 848.31 777 848.31 2.4 Support Equipment Equipment Manufacturer Model Name Serial Number - - - - Vitelcom Mobile Technology USA,Inc Page 4 of 59 FCC ID : SELTSM601 SAR Report Reference No.: NK2FR253 3. Description of Test Equipment 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, H/P computer, nearfield probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the H/P computer with Windows XP system and SAR Measurement Software DASY4, LCD monitor, mouse and keyboard. The Stäubli Robot is connected to the cell controller to allow software manipulation of the robot. A Data Acquisition Electronic (DAE) circuit that performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. Is connected to the Electro-Optical Coupler (EOC). The EOC performs the conversion from the optical into digital electric signal of the DAE and transfers data to the measurement server. Vitelcom Mobile Technology USA,Inc Page 5 of 59 FCC ID : SELTSM601 SAR Report Reference No.: NK2FR253 System Electronics The DAE4 consists of a highly sensitive electrometer-grade preamplifier with autozeroing, a channel and gain-switching multiplexer, a fast 16-bit AD-converter and a command decoder and control logic unit. Transmission to the measurement server is accomplished through an optical downlink for data and status information and an optical uplink for commands and clo…

Text truncated - open the document above for the full version.

Test Report No.: NK2FR252 Vitelcom Mobile Technology,U.S.A. Inc. FCC ID :SELTSM601 Page 1 of 51 Nemko Korea CO., Ltd. 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Gyunggi-Do, KOREA TEL:+82 31 322 2333 FAX:+82 31 322 2332 FCC EVALUATION REPORT FOR CERTIFICATION Applicant : Vitelcom Mobile Technology,U.S.A. Inc. Dates of Issue : December, 27, 2005 2480 Irvine Boulevard #172 Test Report No. : NK2FR245 Tustin,CA 92782 U.S.A Test Site : Nemko Korea Co., Ltd. FCC ID Brand Name CONTACT PERSON Applied Standard: FCC 47 CFR Part 22H & Part 2 Test Procedure: ANSI C63.4 , TIA/EIA 603 Equipment Class: Public Mobile Services EUT Type: Single Band CDMA Mobile Phone The device bearing the brand name and FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2003. I attest to the accuracy of data and all measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By : S. Lee Reviewed By : H.H. Kim Engineer Manager & Chief Engineer SELTSM601 Pantoja Bellwave Co., Ltd. 2480 Irvine Boulevard #172 Tustine,CA 92782 U.S.A Mr. Monika Hormaza Telephone No. :714-389-1169 Test Report No.: NK2FR252 Vitelcom Mobile Technology,U.S.A. Inc. FCC ID :SELTSM601 Page 2 of 51 TABLE OF CONTENTS 1. SCOPE 2. INTRODUCTION (Site Description) 3. TEST CONDITIONS & EUT INFORMATION 4. MEASURING INSTRUMENT CALIBRATION 5. SUMMARY OF TEST RESULTS 6. TEST EQUIPMENT 7. DESCRIPTION OF TEST 7.1 Conducted Emissions 7.2 Radiated Emissions 7.3 Effective Radiated Power/Equivalent Isotropi…
