SGE-UBTBR1EBluetooth USB Dongle

USB Adapter Manual and Application note 3.0 Index INTRODUCTION 1 CHAPTER 1 Package 2 Features 2 Bluetooth profile support 2 Drivers support 3 CHAPTER 2 Setup for Windows 98SE/ME/2000/XP 4 CHAPTER 3 Application note for Windows 98SE/ME/2000/XP 11 Icons used for Bluetooth devices and services 11 Network sharing setting for Windows 13 File transfer setting for Windows 24 Dial-up networking setting for Windows 27 FAX setting 30 PIM Item Transfer setting 31 PIM Synchronization setting 33 Serial Port setting 35 ActiveSync setting 36 Audio Gateway setting for windows 39 Personal area network setting for Windows 41 CHAPTER 4 Advanced features 46 How to setup Hyper Terminal for Bluetooth transfer 46 How to HotSync with Palm Bluetooth SDIO and Tungsten T 52 How to dial-up from Palm Tungsten T to my PC’s modem to surf the internet 55 Sending FAX via mobile phone with WinFAXPro 56 TROUBLESHOOTING Troubleshooting 61 1 Introduction Bluetooth is an open specification for a cutting-edge technology that enables short-range wireless connections between desktop and laptop computers, personal digital assistants, cellular phones, printers, scanners, digital cameras and even home appliances — on a globally available band (2.4GHz) for worldwide compatibility. In a nutshell, Bluetooth unplugs your digital peripherals and makes cable clutter a thing of the past. Now you can connect your PDA or PC to Bluetooth™ enabled mobile phone with this Bluetooth™ adapter.ʳ You can access e-mail & Internet no matter where you are with just a little help from your Bluetooth™ mobile phone.ʳ Plus, when you are back in the office, you can hook yourself up to your office network as well as communicate with other Bluetooth™-enabled devices.ʳ i 2 Chapter1 Packageʳ zOne Bluetooth adapterʳ zOne driver and software diskʳ zThis user manualʳ Featuresʳ zBluetooth v1.2 compliant zUSB Bluetooth adapter support full speed USB v1.1 Interface. zWireless communication within a radius of 32 Feet (10 Meters) for Class 2 Bluetooth devices. zWireless communication within a radius of 328 Feet (100 Meters) for Class 1 Bluetooth devices. zConnect up to 7 different Bluetooth enabled devices zEncryption and authentication to ensure safe, secure communications zLow power consumption Bluetooth profile support Generic Access Profile (GAP)ʳ Serial Port Profile (SPP)ʳ Service Discovery Application Profile (SDAP)ʳ Generic Object Exchange Profile (GOEP) ʳ Object Push Profile (OPP)ʳ File Transfer Profile (FTP)ʳ Dial-up Network Profile (DUN)ʳ LAN Access Profile (LAP)ʳ 1 3 Fax Profile (FAX)ʳ Synchronization Profileʳ Headset Profileʳ Personal Area Network (PAN)ʳ Human Interface Device (HID) BIP Basic Image Profile (BBIP)ʳ Drivers supportʳ Windows 98SE, ME, 2000, XP 4 Chapter 2 Setup for Windows 98SE/ME/2000/XP Installing Bluetooth software for Windows (1) Place installation CD into PC and the setup menu should launch automatically.ʳ If the setup menu does not launch automatically, use Windows Explorer to navigate to the appropriate CD-ROM drive and run "bsetup". (2) Select “Install Drivers and Application Software”. 2 5 (3) Please select your device from the menu. 6 (4) Complete the following steps to install Bluetooth software: (a) Exit all applications.ʳ (b) InstallShield Wizard setup dialog box will automatically be displayed.ʳ (c) Follow the instructions on screen:ʳ (d) On the Welcome screen, click the “Next“ button. 7 (e) When the License Agreement screen is displayed, read the License Agreement, then click the radio button to the left of "I accept the terms in the license agreement" and click the “Next“ button. 8 (f) You can choose the destination folder in your system, if you do not want to change the destination folder please click “Next“. On the Destination Folder screen, click the Change button to browse to a new destination folder for the Bluetooth software. Otherwise, click the “Next“ button to accept the default folder. ʳ 9 (g) The system is ready to install the Bluetooth software. If you need to review or change any settings, click the " Back" button. Click the "Cancel" button to exit the Wizard. Otherwise, click the "Install"button. (h) For Windows 2000/XP users, system will popup a "Driver Signature Notice", please click the "OK"button. ʳ ʳ 10 (i) During the installation, system will try to detect your Bluetooth device, please plug in your Bluetooth device when the following message is displayed. Then click "OK" to continue, or you can click "Cancel" to continue the installation without the Bluetooth device.ʳ ʳ (j) When the installation is completed, please click the "Finish" button. ʳFor more information of Bluetooth software Configuration & User’s Guide, please refer to Chapter 3 of this application note. ʳ 11 Chapter 3 Application note for Windows 98SE/ME/2000/XP 3.1 Icons used for Bluetooth devices and services Bluetooth icons provide at-a-glance feedback about a device or service's status by changing appearance. The Bluetooth icon in the Windows system tray provides feedback about Bluetooth status. Basic Bluetooth Icon Device Icons for Windows 98SE, Me and 2K Service Icons for Windows 98SE, Me and 2K 3 12 Device Icons for Windows XP Service Icons for Windows XP 13 NOTE: Only available services are displayed in the menus 14 3.2. Network sharing setting for Windows The Network Access service permits a Bluetooth enabled PC (client) to access the Internet via another Bluetooth enabled PC (Server) that already has an Ethernet connection. Windows network sharing setting PC to PC (Windows 2000 or Windows XP) 1.To enable Internet Connection Sharing on the server PC. 2.Click on Start menu ШʳNetwork Connections and find your Local Area Connection (LAN) that is connected to the Internet. 3.Right click the active LAN connection to open the"Properties" dialog box. 15 4.Click on "Advanced" tab and select the "Internet Connection Sharing" checkbox to enable Internet sharing. 16 5.Click on "Settings..." button and select the services you wish to pr…

Text truncated - open the document above for the full version.

35 3.8. Serial port setting The Bluetooth Serial Port service allows two Bluetooth devices to establish a wireless connection through virtual communications ports and then use that connection as if it were a hardwired serial cable between the devices. To establish a Bluetooth serial port connection: Connections are initiated from the client: 1. On the client, in the Folders pane of "My Bluetooth Places", select "Entire Bluetooth Neighborhood". 2. In the right pane of "Entire Bluetooth Neighborhood", right-click anywhere except on a device name and select "Refresh" from the pop-up menu. 3. In the Folders pane of "My Bluetooth Places", right-click the server you want to establish a connection with and select "Discover Available Services" from the popup menu to update the available services list. The available services will be displayed in the right pane of "My Bluetooth Places". 4. In the right pane of "My Bluetooth Places", double-click "Bluetooth Serial Port". A dialog box appears that contains the communications port number assigned to this connection by the client. The application that will use this connection must be configured to send data to this port. Depending on the security configuration, the dialog box that provides communications port information may not appear until after Authentication and Authorization have been accomplished. The application on the server must be configured to use the correct communications port. To determine the communications port being used by the service: * On the server, in the Folders pane of "My Bluetooth Places", right-click "My Device" and select "Properties" from the pop-up menu * In the "Bluetooth Configuration Panel", select the "Local Services" tab. * Double-click the "Bluetooth Serial Port" service to display its "Service Properties" dialog box. The "Service Properties" dialog box shows the communications port the connection is using. To close a Bluetooth serial port connection Connections are normally closed from the client: * On the client, in the Folders pane of "My Bluetooth Places", select (highlight) the device that is providing the "Bluetooth Serial Port" service. * In the right pane of "My Bluetooth Places", right-click "Bluetooth Serial Port" and then select"Disconnect Bluetooth Serial Port" from the pop-up menu. Though not recommended, connections can also be closed from the server: * On the server, in the Folders pane of "My Bluetooth Places", select (highlight) "My Device". * In the right pane of "My Bluetooth Places", right-click "Bluetooth Serial Port" and then select Stop to close the service. The service must be re-started before it will be available to remote devices (right-click Bluetooth Serial Port and select Start from the pop-up menu). 36 3.9. ActiveSync setting ActiveSync setting for Windows 1. Right-click on Bluetooth Configuration icon from the toolbar in the desktop window. SelectSetupand then openConfiguration window. 2. Select Local Service tab from the Bluetooth Configuration window. In the Service Properties window, please learn by heart the current COM port this computer uses, for example: COM 6, in order to identify this value with the configuration of Microsoft ActiveSync later. 37 3. In the Microsoft ActiveSync window, select Connection Settings... from drop-down list of File menu. 4. Choose the same COM port. (in this case, it is COM 6 that Bluetooth Serial port uses shown in the Step 2.) 38 5. Please refer to the PDA ActiveSync Setting to complete the Bluetooth ActiveSync Configuration Process 39 3.10. Audio Gateway setting for windows The Audio Gateway Application allows a remote Bluetooth device to use this computer's microphone and speakers as the remote device's audio input and output devices. ʽRemember please switch your Audio device to "Bluetooth Audio" from control panel. Open a connection to the Audio Gateway service that is provided by another Bluetooth device using one of these techniques: xWindows system tray, Bluetooth icon xFrom Bluetooth Explorer xUsing the Bluetooth Setup Wizard 40 From Bluetooth Explorer to connection your headset device. Key in headset pair key or PIN code. (Refer to the Headset's user's manual for reference) Close an audio gateway connection: If the connection was established via the Bluetooth icon in the Windows system tray; click the Bluetooth icon, select Quick Connect, Audio Gateway and then select the device that is providing the service (active connections have a checkmark in front of them). Or No matter how the connection was created, In My Bluetooth Places, right-click the service name and select Disconnect.ConfigureTheBluetooth Configuration Panel > Client Applications > Audio Gateway > General tab provides options to configure: xThe application name-- to change it, highlight the existing name and enter the new name. xEnable or disable secure connection. To enable secure connection, place a checkmark in the box. 41 3.11. Personal area network setting for windows The Personal Area Networking (PAN) chapter will show you how two or more Bluetooth enabled devices can form an ad-hoc network and how the same mechanism can be used to access a remote network through a network access point. 42 How to setup an Ad-hoc Network 1. On the client, in the Folders pane of "My Bluetooth Places", select "Entire Bluetooth Neighborhood". 2. In the right pane of "Entire Bluetooth Neighborhood", right-click anywhere except on a device name and select Refresh from the pop-up menu. 3. In the right pane of "My Bluetooth Places", right-click the server that will provide the Networking Access Service and select Discover Available Services from the pop-up menu to update the available services list. The available services will be displayed in the right pane of "My Bluetooth Places". Double click Network Access to establish a PAN network. 43 If the system pops up a "Bluetooth PIN Code Request" window please key in the same passkey or PIN code between the two devices. Once connected, you can…

Text truncated - open the document above for the full version.

Cadmus Micro Inc. 1840 Carlos Ave., Ontario, CA 91761 Confidentiality Request FCC ID : SGE-UBTBR1E Product : Bluetooth USB Dongle Model : UBTBR1E Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours,

Cadmus Micro Inc. 1840 Carlos Ave., Ontario, CA 91761 *********************************************************************************** Authorization Agency Letter Product : Bluetooth USB Dongle Model : UBTBR1E To Whom It May Concern: Please be advised that Cadmus Micro Inc. authorizes Compliance Certification Services Inc. to act on our behalf on the produce certificate applications submitted,(For example:FCC certificate,IC certificate,CE application,& notification) until otherwise notified, for all relation certificated institute. Thank you for your attention to this matter. Sincerely, Signature:

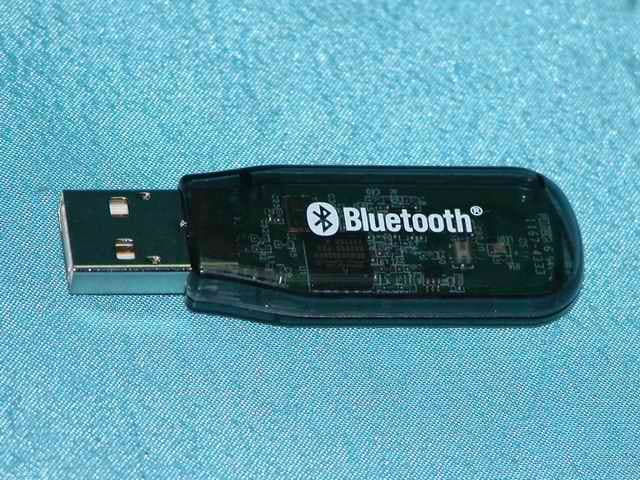

Compliance Certification Services Inc. Report No.：50408303 Page 1 of 3 External Photo Compliance Certification Services Inc. Report No.：50408303 Page 2 of 3

Company : Cadmus Micro Inc. Model : UBTBR1E Product : Bluetooth USB Dongle Bluetooth USB Dongle Model No: UBTBR1E FCC ID：SGE-UBTBR1E This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N： Made in Taiwan Label Here

Compliance Certification Services Inc. Report No.：50408303 Page 3 of 3 Internal Photo

Compliance Certification Services Inc. FCC ID : SGE-UBTBR1E Report No.：50408303-RP1 Page 1 of 49 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Bluetooth USB Dongle Model: UBTBR1E Brand Name: Cadmus Issued for Cadmus Micro Inc. 1840 Carlos Ave., Ontario, CA 91761 Issued by Compliance Certification Services Inc. Hsinchu Lab. Rm. 258, Bldg. 17, NO.195, Sec.4 Chung HsingRd., ChuTung Chen, Hsinchu, Taiwan 310, R.O.C TEL: (03) 591-8012 FAX: (03) 582-5720 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc. FCC ID : SGE-UBTBR1E Report No.：50408303-RP1 Page 2 of 49 Test Report Certification Applicant ： Cadmus Micro Inc. Address ： 1840 Carlos Ave., Ontario, CA 91761 Equipment Under Test ： Bluetooth USB Dongle Brand Name ： Cadmus Model ： UBTBR1E Tested Date ： April 08 ~ 12, 2005 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C (2004) No non-compliance noted WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. Compliance Certification Services Inc. FCC ID : SGE-UBTBR1E Report No.：50408303-RP1 Page 3 of 49 TABLE OF CONTENTS TITLE PAGE NO. 1. EUT DESCRIPTION.................................................................................................................. 4 1.1 Description of EUT & Power ............................................................................................... 4 2. TEST METHODOLOGY............................................................................................................5 3. FACILITIES AND ACCREDITATION .................................................................................... 5 4. CALIBRATION AND UNCERTAINTY .................................................................................... 6 4.1 MEASURING INSTRUMENT CALIBRATION ..................................................................... 6 4.2 MEASUREMENT UNCERTAINTY....................................................................................... 6 5. SETUP OF EQUIPMENT UNDER TEST................................................................................ 7 6. APPLICABLE LIMITS AND TEST RESULTS ....................................................................... 8 6.1 20dB BANDWIDTH FOR HOPPING................................................................................... 8-10 6.2 MAXIMUM PEAK OUTPUT POWER ................................................................................. 11-13 6.3 HOPPING CHANNEL SEPARATION.................................................................................. 14-15 6.4 NUMBER OF HOPPING FREQUENCY USED .................................................................. 16-17 6.5 DWELL TIME ON EACH CHANNEL .................................................................................. 18-21 6.6 POWER SPECTRAL DENSITY MEASUREMENT............................................................... 22-24 6.7 CONDUCTED SPURIOUS EMISSION................................................................................ 25-28 6.8. RADIATED EMISSIONS...................................................................................................... 29 6.8.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS ................................................ 29-32 6.8.2 WORST-CASE RADIATED EMISSION BELOW 1 GHz ................................................ 33 6.8.3 TRANSMITTER RADIATED EMISSION ABOVE 1 GHz............................................... 34-39 6.8.4 BAND EDGE MEASUREMENT ..................................................................................... 40-41 6.9 POWERLINE CONDUCTED EMISSIONS .......................................................................... 42-45 7. SETUP PHOTOS ........................................................................................................................ 46-48 8. ANTENNA REQUIREMENT .................................................................................................... 49 8.1 STANDARD APPLICABLE................................................................................................... 49 8.2 ANTENNA CONNECTED CONSTRUCTION ...................................................................... 49 Compliance Certification Services Inc. FCC ID : SGE-UBTBR1E Report No.：50408303-RP1 Page 4 of 49 1. EUT DESCRIPTION 1.1 Description of EUT & Power Product Name Bluetooth USB Dongle Model Number UBTBR1E Frequency Range 2402MHz to 2480MHz f = 2402 + nMHz, n = 0, .....78 Channel Spacing 1MHz Channel Number 79 Air Data Rate 723kbps Type of Modulation Frequency Hopping Spread Spectrum Frequency Selection by software / firmware Transmitter Classification portable device Antenna Type Inverter F type Antenna (layout on PCB), Antenna Gain: -1dBi Power Source 5VDC (From USB interface of Notebook) Multiple List : Company Address Model Name Cadmus Mirco Inc. 1840 Carlos Ave., Ontario, CA 91761 UBTBR1E, UBTBR1E-C, UBTBR1E-X, UBTBR1E-N Billionton systems Inc. No. 21, Sui-Lih Rd.,Hsin-Chu, 300, Taiwan UBTBR1E-B Ziga 1840 Carlos Ave., Ontario, CA 91761 UBTBTR1E-Z CARECA S.p.a. (HAMLET) Via Borsellino 14, 42010 Arceto di Scandiano (RE), Italy HBTUS100 2L INTERNATIONAL BV (CONCEPTRONIC) DATABANKWEG 7-3821 AL AMERSFOORT, PO BOX 150-3800 AD AMERSFOORT,NE UBTBR1E-N-2L2 ASBISC ENTERPRISES LIMITED (Canyon) 63 KOLONAKIOU STREET, CY-4013 LIMASSOL, CYPRUS 4013 CYPRUS UBTBR1E-N-CYT BANDBRIDGE EUROPE N.V. (Bandridge) BANDBRIDGE INT'L ASIA R602,6F EMPRES 17-19,CHATHAM RD SOUTH KOWLOON HK UBTBR1E-N-BB DATAMATI…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID : SGE-UBTBR1E Report No.：50408303-RP1 Page 46 of 49 7. SETUP PHOTOS RADIATED RF MEASUREMENT SETUP Compliance Certification Services Inc. FCC ID : SGE-UBTBR1E Report No.：50408303-RP1 Page 47 of 49 Compliance Certification Services Inc. FCC ID : SGE-UBTBR1E Report No.：50408303-RP1 Page 48 of 49 POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP
