SHD-A6YWFSModel 02

table of contents 1. what’s in the box 2. introducing the model 02 3. powering up and down 4. removing and attaching the battery 5. using the thumb keyboard and track stick 6. using the TouchScrollers, digital pen, and other screen features 7. connecting to a network 8. connecting the docking station and peripherals 9. installing software and copying files 10. using the model 02 security features 11. model 02 accessories 12. product support 3 4 6 8 10 12 14 16 18 20 22 24 what’s in the box Begin by comparing the list below to what’s in the box. You should find: OQO model 02 computer with standard battery pre-installed screen protector universal power supply and AC power cord VGA/Ethernet adapter spare track stick cap Microsoft ® Start Here guide OQO start guide with Windows ® XP reinstallation CD If you ordered Windows XP Tablet PC Edition 2005 with your model 02, you will also find a digital pen and carrying case in the box. If you ordered your model 02 with integrated Wireless Wide Area Network (WWAN) technology, your box will also include an instruction card for service activation. • • • • • • • Any accessories you ordered will be packed separately. If anything is missing, contact us by phone at 1-877-676-6688 or email [email protected]. Please register your OQO model 02 by visiting http://www.oqo.com/support. 3 introduction Welcome to the OQO model 02 computer. The model 02 is a full-featured Windows XP computer that gives you the total productivity you need to fulfill your personal and professional requirements. mobility The model 02 is the world’s smallest Windows Vista™ Capable computer. Its mobile form factor allows you to take it anywhere and its ergonomic design facilitates usability on the go. Because the model 02 uses the Windows XP operating system, you have uncompromised access to software applications and seamless connectivity – anytime, anywhere – via WiFi, Ethernet, Bluetooth ® , or Wireless Wide Area Network (WWAN) technology. flexibility While you’re on the go, the model 02 is your standalone, handheld computer with its own integrated keyboard, track stick, and capacitive TouchScrollers. The rugged, magnesium alloy chassis with shock mounted hard drive and active drop detect technology helps protect your data in the event your model 02 is dropped. At the office, the model 02 functions as your desktop computer connected to an external monitor, keyboard, and mouse. Also available is an array of accessories and a docking station that provides additional usage modes. power The model 02 was designed to deliver the total computing performance necessary to achieve personal and professional productivity, anytime and anywhere. The model 02 – with its robust processing power, Windows XP operating system, application compatibility, memory and storage capacity, and unparalleled connectivity options – is everything you need to meet your total productivity requirements. 4 5 powering up and down Your model 02 ships with a screen protector and battery attached. To turn on your model 02, press the power button located on the left side of the computer. When idle, conserve battery power by putting your computer in Standby or Hibernate mode. To charge the battery, connect the power supply to the model 02 as shown at right, and then plug into an outlet. The battery will charge whenever the computer is connected to an outlet. standby mode Standby mode reduces the power consumption of your computer by cutting power to non-critical hardware components. The system maintains power to your computer’s random access memory (RAM), which allows the system to quickly restore your active applications and files. To put your computer into Standby mode, press the power button. hibernate mode Hibernate mode saves your current system state to the hard disk drive and then powers down your computer. When you power up again, your open files and applications are re - stored just as you left them. Hibernate mode draws no power and is best for conserving battery life and changing batteries. To put your computer into Hibernate mode, select ‘Shut Down’ from the Start menu and choose the ‘Hibernate’ option or press the ‘H’ key on your keyboard. conserving battery power Additional ways to conserve battery power include: Turn off wireless radios when not in use. Turn off the keyboard backlight. Lower the internal display brightness. Adjust power settings in the Power Options control panel. • • • • 6 docking connector power button power supply 7 power removing and attaching the battery On the model 02, a fully charged battery typically provides 2 to 3 hours of operating time depending on usage. Double capacity batteries that provide up to 6 hours of charge are also available at http://www.oqo.com/store. charging the battery A battery fuel gauge is located on the right side of the battery. When pressed and released, the fuel gauge will illuminate to indicate remaining battery power. While the battery is charging, the fuel gauge lights flash in sequence. A standalone battery detached from the model 02 can be charged using a battery charging adapter (optional accessory) with your power supply. removing the battery Before replacing the battery, the computer should be plugged into an outlet, shut down, or placed in Hibernate mode. Removal of the battery while in Standby mode may result in loss of user and system data. To remove the battery, press the battery release button located next to the power button and lift the battery away from the computer. attaching the battery To attach the battery, rest the battery hooks in the slots alongside the back edge of the computer before lowering the battery onto the computer. Press the battery against the computer until the latch clicks. 8 battery battery release battery fuel gauge insert both battery hooks to attach battery 9 using the thumb keyboard and track stick When using your model 02 as a handheld computer, use the thumb keyboard and track stick for input and navigation. using t…

Text truncated - open the document above for the full version.

OQO Model 02 – Figures SHD-A6YWFS Top Bottom Left Front, Display Closed Front, Display Open, Keyboard Exposed Front View, Display Closed, Keyboard Exposed Front View, Display Closed, Covering Keyboard Inside Display Cover Removed Bluetooth Embedded Module location Bluetooth Module Embedded in Display Front Display Cover Right Hand Side Bluetooth Antenna Bluetooth Embedded ModuleFolding AxisDisplay Bluetooth Embedded Module Top-side Bluetooth Modul e (Upper RHS of Display) Bottom-side Bluetooth Module Bluetooth Antenna Internal Photo Indicating WWAN and WLAN Transceivers WWAN module(PKRNVWEV620)802.11a/b/g Embedded ModuleBlue wire to RHS WLAN AntennaRight Hand Side (RHS) Antenna Black wire to RHS WWAN Embedded Antenna & Whip Antenna White wire to LHS WWAN Antenna Left Hand Side (LHS) Antenna Red wire to LHS WLAN Antenna WWAN Whip Antenna 802.11a/b/g Embedded Module OQO Model 02 –Whip Antenna 110 mm Whip antenna – WWAN. 88 mm 147 mm Embedded antennason LHS side of unit. Embedded antennason RHS side of unit. OQO Model 02 - Embedded Antennas Left-hand side (LHS) 11 mm 31 mm Area inside cover for embedded antennas. black antenna cover (LHS) removed to expose embedded antennae WLAN antenna WWAN antennae OQO Model 02 - Embedded Antennas Right-hand side (RHS) 11 mm 31 mm Area inside cover for embedded antennas. black antenna cover (RHS) removed to expose embedded antennae WLAN antenna WWAN antenna OQO Model 02 Accessories – Stronghold Case OQO Model 02 Accessories – Belt Clip OQO Model 02 Accessories – Docking Station OQO Model 02 Accessories – Charger OQO Model 02 Accessories – Extended Battery And Stronghold for Extended Battery

OQO Model 02 – Figures SHD-A6YWFS Top Bottom Left Front, Display Closed Front, Display Open, Keyboard Exposed 802.11a/b/g Embedded Module Bluetooth Embedded Module Front View, Display Closed, Keyboard Exposed Front View, Display Closed, Covering Keyboard Inside Rear Cover Internal Photo Indicating WWAN and WLAN Transceivers WWAN module (PKRNVWEV620) 802.11a/b/g Embedded Module OQO Model 02 - Embedded Antennas Left-hand side 11 mm 31 mm Area inside cover for embedded antennas. Embedded antennas – seen without external black antenna covers. OQO Model 02 - Embedded Antennas Right-hand side 11 mm 31 mm Area inside cover for embedded antennas. Embedded antennas – seen without external black antenna covers. OQO Model 02 –Whip and Embedded Antennas 110 mm Whip antenna – WWAN. 88 mm 147 mm Embedded antennas on side of unit. Embedded antennas on side of unit.

FCC ID: SHD-A6YWFS IC: 6026A-A6YWFS

David Waitt From: Juan Martinez [[email protected]] Sent: Thursday, November 02, 2006 11:31 AM To: [email protected] Cc: David Bare; Mark Briggs; [email protected]; [email protected] Subject: Fwd: Response to Inquiry to FCC (Tracking Number 509537) Importance: High 11/11/2006 David, Here is the reply from the FCC regarding OQO's FCC ID Label being under the battery as being acceptable as long as the label is visible at time of purchase. Thanks, Juan M. Delivered-To: [email protected] Date: Thu, 2 Nov 2006 10:41:00 -0500 (EST) From: Generic Office of Engineering Technology <[email protected]> Subject: Response to Inquiry to FCC (Tracking Number 509537) To: [email protected] Inquiry: A letter signed by a manufacture would like to receive an interpreation regarding Section 2.925. This is in regards to labeling of an handheld computer with unlicense radio products. The product itself is 3.5H x 5.5W. Please let us know of your decision as the manufacture needs a reply as soon as possible. --- Reply from Customer on 11/02/2006 --- Yes the manufacture will sell the device without the battery installed. Being this the case I am assuming FCC will be ok with the unit having the label under the battery as long as the battery its not installed at time of purchase. Is my assumtion correct? Thanks. Response: At this time, these are granted on a case by case basis. For this device, the label proposal is acceptable. Do not reply to this message. Please select the Reply to an Inquiry Response link f! rom the OET In quiry System to add any additional information pertaining to this inquiry. Sr. EMC Engineer Elliott Laboratories 11/11/2006

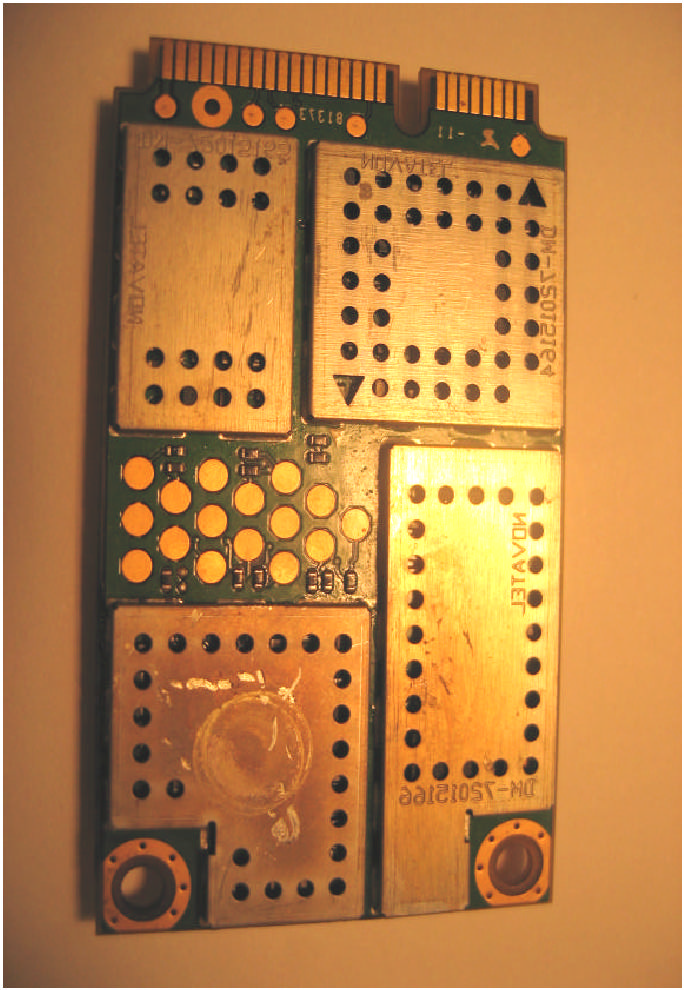

Top Side With Shields – Mini Express Card Bottom Side With Shield Mini Express Card Top Side Without Shields Mini Express Card Bottom Side Without Shields Mini Express Card

NOVATEL FCC ID: PKRNVWEV620 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: EV620 NOVATEL FCC ID: PKRNVWEV620 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: EV620 NOVATEL FCC ID: PKRNVWEV620 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: EV620 NOVATEL FCC ID: PKRNVWEV620 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: EV620 NOVATEL FCC ID: PKRNVWEV620 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: EV620 NOVATEL FCC ID: PKRNVWEV620 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: EV620 NOVATEL FCC ID: PKRNVWEV620 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: EV620 NOVATEL FCC ID: PKRNVWEV620 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: EV620 NOVATEL FCC ID: PKRNVWEV620 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: EV620 NOVATEL FCC ID: PKRNVWEV620 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: EV620 NOVATEL FCC ID: PKRNVWEV620 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: EV620 NOVATEL FCC ID: PKRNVWEV620 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: EV620 NOVATEL FCC ID: PKRNVWEV620 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: EV620 NOVATEL FCC ID: PKRNVWEV620 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: EV620 NOVATEL FCC ID: PKRNVWEV620 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Modem Card Model: EV620

© 2006 RF Exposure Lab, LLC This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. 2867 Progress Place, Suite 4D • Escondido, CA 92029 • U.S.A. TEL (760) 737-3131 • FAX (760) 737-9131 http://www.rfexposurelab.com CERTIFICATE OF COMPLIANCE SAR EVALUATION OQO Dates of Test: Aug. 30 – Sept. 6, 2006 583 Shotwell Street Test Report Number: SAR.20060801 San Francisco, CA 94110 Revision A This wireless mobile and/or portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1999 and had been tested in accordance with the measurement procedures specified in IEEE 1528-2003, OET Bulletin 65 Supp. C, RSS-102 and Safety Code 6 (See test report). I attest to the accuracy of the data. All measurements were performed by myself or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RF Exposure Lab, LLC certifies that no party to this application has been denied FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Jay M. Moulton Vice President Certificate # 2387.01 FCC ID: SHD-A5YWFS IC Certificate: 6026A-A5YWFS Model(s): 02 Computer Test Sample: Pre-Production Unit same as Production Serial No.: Eng 028 Equipment Type: Wireless Computer Classification: Portable Transmitter Next to Body TX Frequency Range: 2412 – 2462 MHz, 5180 – 5320 MHz, 5470 – 5725 MHz, 5745 – 5825 MHz Frequency Tolerance: ± 25 ppm Maximum RF Output: 2450 MHz - 18 dBm, 5.2-5.3 GHz – 14.6 dBm, 5.6 GHz – 18 dBm, 5.8 GHz – 11.0 Conducted Signal Modulation: DSSS, OFDM Antenna Type (Length): Internal(OQO P/N FPC-0065) Battery: Std. (OQO P/N FAS-FAS-0081), Ext. (OQO P/N FAS-FAS-0082) Battery Pack Application Type: Certification FCC Rule Parts: Part 15E Industry Canada: RSS-102 FCC ID: SHD-A5YWFS © 2006 RF Exposure Lab, LLC Page 2 of 314 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Table of Contents 1. Introduction ...........................................................................................................................3 SAR Definition [5]......................................................................................................................3 2. SAR Measurement Setup .....................................................................................................4 Robotic System .........................................................................................................................4 System Hardware .....................................................................................................................4 System Description ...................................................................................................................4 E-Field Probe ALS-E-020 ......................................................................................................... 5 3. Robot Specifications .............................................................................................................7 4. Probe and Dipole Calibration ................................................................................................8 5. Phantom & Simulating Tissue Specifications........................................................................9 SAM Phantom ...........................................................................................................................9 Brain & Muscle Simulating Mixture Characterization ................................................................9 Device Holder ...........................................................................................................................9 6. Definition of Reference Points.............................................................................................10 Ear Reference Point................................................................................................................10 Device Reference Points ........................................................................................................10 7. Test Configuration Positions ...............................................................................................11 Positioning for Cheek/Touch [5] ..............................................................................................11 Positioning for Ear / 15 ̊ Tilt [5]................................................................................................12 Body Worn Configurations ......................................................................................................13 8. ANSI/IEEE C95.1 – 1999 RF Exposure Limits [2]...............................................................14 Uncontrolled Environment.......................................................................................................14 Controlled Environment .......................................................................................................... 14 9. Measurement Uncertainty ...................................................................................................15 10. System Validation ........................................................................................................... 16 Tissue Verification...................................................................................................................16 Test System Verification ......................................................................................................... 17 11. SAR Test Data Summary ................................................................................................18 Procedures Used To Establish Test Signal......................................................................…

Text truncated - open the document above for the full version.

FCC ID: SHD-A5YWFS © 2006 RF Exposure Lab, LLC Page 71 of 314 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Measurement Data Crest Factor : 1 Scan Type : Complete Tissue Temp. : 20.00 °C Ambient Temp. : 23.00 °C Set-up Date : 30-Aug-2006 Set-up Time : 9:08:41 AM Area Scan : 5x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Other Data DUT Position : Touch Separation : 0 Channel : Mid - 6 1 gram SAR value : 0.355 W/kg 10 gram SAR value : 0.201 W/kg Area Scan Peak SAR : 0.409 W/kg Zoom Scan Peak SAR : 0.660 W/kg FCC ID: SHD-A5YWFS © 2006 RF Exposure Lab, LLC Page 72 of 314 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. SAR Test Report By Operator : Jay Measurement Date : 30-Aug-2006 Starting Time : 30-Aug-2006 10:40:36 AM End Time : 30-Aug-2006 10:54:14 AM Scanning Time : 818 secs Product Data Device Name : OQO Serial No. : Eng 028 Type : Other Model : 02 : computer Frequency : 2450.00 MHz Max. Transmit Pwr : 0.063 W Drift Time : 0 min(s) Length : 144 mm Width : 85 mm Depth : 30 mm Antenna Type : Internal Orientation : Touch Power Drift-Start : 0.180 W/kg Power Drift-Finish: 0.182 W/kg Power Drift (%) : 1.385 Phantom Data Name : APREL-Uni Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Serial No. : System Default Location : Center Description : Uni-Phantom Tissue Data Type : BODY Serial No. : 2450 Frequency : 2450.00 MHz Last Calib. Date : 24-Aug-2006 Temperature : 20.00 °C Ambient Temp. : 23.00 °C Humidity : 53.00 RH% Epsilon : 51.33 F/m Sigma : 1.96 S/m Density : 1000.00 kg/cu. m Probe Data Name : RFEL 217 Model : E020 Type : E-Field Triangle Serial No. : 217 Last Calib. Date : 30-May-2006 Frequency : 2450.00 MHz Duty Cycle Factor: 1 Conversion Factor: 3.61 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm FCC ID: SHD-A5YWFS © 2006 RF Exposure Lab, LLC Page 73 of 314 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Measurement Data Crest Factor : 1 Scan Type : Complete Tissue Temp. : 20.00 °C Ambient Temp. : 23.00 °C Set-up Date : 30-Aug-2006 Set-up Time : 9:08:41 AM Area Scan : 5x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Other Data DUT Position : Touch Separation : 0 Channel : Mid - 6 1 gram SAR value : 0.172 W/kg 10 gram SAR value : 0.119 W/kg Area Scan Peak SAR : 0.180 W/kg Zoom Scan Peak SAR : 0.260 W/kg FCC ID: SHD-A5YWFS © 2006 RF Exposure Lab, LLC Page 74 of 314 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. SAR Test Report By Operator : Jay Measurement Date : 02-Sep-2006 Starting Time : 02-Sep-2006 04:44:43 PM End Time : 02-Sep-2006 04:57:46 PM Scanning Time : 783 secs Product Data Device Name : OQO Serial No. : Eng 028 Type : Other Model : 02 : computer Frequency : 2450.00 MHz Max. Transmit Pwr : 0.063 W Drift Time : 0 min(s) Length : 144 mm Width : 85 mm Depth : 30 mm Antenna Type : Internal Orientation : Touch Power Drift-Start : 0.334 W/kg Power Drift-Finish: 0.328 W/kg Power Drift (%) : -1.808 Phantom Data Name : APREL-Uni Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Serial No. : System Default Location : Center Description : Uni-Phantom Tissue Data Type : BODY Serial No. : 2450 Frequency : 2450.00 MHz Last Calib. Date : 02-Sep-2006 Temperature : 20.00 °C Ambient Temp. : 23.00 °C Humidity : 53.00 RH% Epsilon : 51.75 F/m Sigma : 1.97 S/m Density : 1000.00 kg/cu. m Probe Data Name : RFEL 217 Model : E020 Type : E-Field Triangle Serial No. : 217 Last Calib. Date : 30-May-2006 Frequency : 2450.00 MHz Duty Cycle Factor: 1 Conversion Factor: 3.61 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm FCC ID: SHD-A5YWFS © 2006 RF Exposure Lab, LLC Page 75 of 314 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Measurement Data Crest Factor : 1 Scan Type : Complete Tissue Temp. : 20.00 °C Ambient Temp. : 23.00 °C Set-up Date : 02-Sep-2006 Set-up Time : 3:16:30 PM Area Scan : 5x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Other Data DUT Position : Touch Separation : 0 Channel : Mid - 6 1 gram SAR value : 0.339 W/kg 10 gram SAR value : 0.172 W/kg Area Scan Peak SAR : 0.453 W/kg Zoom Scan Peak SAR : 0.710 W/kg FCC ID: SHD-A5YWFS © 2006 RF Exposure Lab, LLC Page 76 of 314 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. SAR Test Report By Operator : Jay Measurement Date : 30-Aug-2006 Starting Time : 30-Aug-2006 02:37:26 PM End Time : 30-Aug-2006 02:50:01 PM Scanning Time : 755 secs Product Data Device Name : OQO Serial No. : Eng 028 Type : Other Model : 02 : computer Frequency : 2450.00 MHz Max. Transmit Pwr : 0.063 W Drift Time : 0 min(s) Length : 144 mm Width : 85 mm Depth : 30 mm Antenna Type : Internal Orientation : Touch Power Drift-Start : 0.528 W/kg Power Drift-Finish: 0.528 W/kg Power Drift (%) : 0.074 Phantom Data Name : APREL-Uni Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Serial No. : System Default Location : Center Description : Uni-Phantom Tissue Data Type : BODY Serial No. : 2450 Frequency : 2450.00 MHz Last Calib. Date : 24-Aug-2006 Temperature : 20.00 °C Ambient Temp. : 23.00 °C Humidity : 53.00 RH% Epsilon : 51.33 F/m Sigma : 1.96 S/m Density : 1000.00 kg/cu. m Probe Data Name : RFEL 217 Model : E020 Type : E-Field Triangle Serial No. : 217 Last Calib. Date : 30-May-2006 Frequency : 2450.00 MHz Duty Cycle Factor: 1 Conversion Factor: 3.61 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm FCC ID: SHD-A5YWFS © 2006 RF Exposure Lab, LLC Page 77 of 314 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Measurement Data Crest Fact…

Text truncated - open the document above for the full version.

FCC ID: SHD-A5YWFS © 2006 RF Exposure Lab, LLC Page 111 of 314 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Measurement Data Crest Factor : 1 Scan Type : Complete Tissue Temp. : 20.00 °C Ambient Temp. : 23.00 °C Set-up Date : 31-Aug-2006 Set-up Time : 8:07:10 AM Area Scan : 5x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Other Data DUT Position : Touch Separation : 0 Channel : Mid - 6 1 gram SAR value : 0.321 W/kg 10 gram SAR value : 0.178 W/kg Area Scan Peak SAR : 0.358 W/kg Zoom Scan Peak SAR : 0.630 W/kg FCC ID: SHD-A5YWFS © 2006 RF Exposure Lab, LLC Page 112 of 314 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. SAR Test Report By Operator : Jay Measurement Date : 02-Sep-2006 Starting Time : 02-Sep-2006 03:15:40 PM End Time : 02-Sep-2006 03:28:45 PM Scanning Time : 785 secs Product Data Device Name : OQO Serial No. : Eng 028 Type : Other Model : 02 : computer Frequency : 2450.00 MHz Max. Transmit Pwr : 0.063 W Drift Time : 0 min(s) Length : 144 mm Width : 85 mm Depth : 30 mm Antenna Type : Internal Orientation : Touch Power Drift-Start : 0.332 W/kg Power Drift-Finish: 0.318 W/kg Power Drift (%) : -4.217 Phantom Data Name : APREL-Uni Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Serial No. : System Default Location : Center Description : Uni-Phantom Tissue Data Type : BODY Serial No. : 2450 Frequency : 2450.00 MHz Last Calib. Date : 02-Sep-2006 Temperature : 20.00 °C Ambient Temp. : 23.00 °C Humidity : 53.00 RH% Epsilon : 51.75 F/m Sigma : 1.97 S/m Density : 1000.00 kg/cu. m Probe Data Name : RFEL 217 Model : E020 Type : E-Field Triangle Serial No. : 217 Last Calib. Date : 30-May-2006 Frequency : 2450.00 MHz Duty Cycle Factor: 1 Conversion Factor: 3.61 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm FCC ID: SHD-A5YWFS © 2006 RF Exposure Lab, LLC Page 113 of 314 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Measurement Data Crest Factor : 1 Scan Type : Complete Tissue Temp. : 20.00 °C Ambient Temp. : 23.00 °C Set-up Date : 02-Sep-2006 Set-up Time : 3:16:30 PM Area Scan : 5x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Other Data DUT Position : Touch Separation : 0 Channel : Mid - 6 1 gram SAR value : 0.358 W/kg 10 gram SAR value : 0.213 W/kg Area Scan Peak SAR : 0.400 W/kg Zoom Scan Peak SAR : 0.610 W/kg FCC ID: SHD-A5YWFS © 2006 RF Exposure Lab, LLC Page 114 of 314 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. SAR Test Report By Operator : Jay Measurement Date : 31-Aug-2006 Starting Time : 31-Aug-2006 01:18:44 PM End Time : 31-Aug-2006 01:32:04 PM Scanning Time : 800 secs Product Data Device Name : OQO Serial No. : Eng 028 Type : Other Model : 02 : computer Frequency : 2450.00 MHz Max. Transmit Pwr : 0.063 W Drift Time : 0 min(s) Length : 144 mm Width : 85 mm Depth : 30 mm Antenna Type : Internal Orientation : Touch Power Drift-Start : 0.391 W/kg Power Drift-Finish: 0.404 W/kg Power Drift (%) : 3.325 Phantom Data Name : APREL-Uni Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Serial No. : System Default Location : Center Description : Uni-Phantom Tissue Data Type : BODY Serial No. : 2450 Frequency : 2450.00 MHz Last Calib. Date : 31-Aug-2006 Temperature : 20.00 °C Ambient Temp. : 23.00 °C Humidity : 53.00 RH% Epsilon : 51.96 F/m Sigma : 1.95 S/m Density : 1000.00 kg/cu. m Probe Data Name : RFEL 217 Model : E020 Type : E-Field Triangle Serial No. : 217 Last Calib. Date : 30-May-2006 Frequency : 2450.00 MHz Duty Cycle Factor: 1 Conversion Factor: 3.61 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm FCC ID: SHD-A5YWFS © 2006 RF Exposure Lab, LLC Page 115 of 314 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Measurement Data Crest Factor : 1 Scan Type : Complete Tissue Temp. : 20.00 °C Ambient Temp. : 23.00 °C Set-up Date : 31-Aug-2006 Set-up Time : 8:07:10 AM Area Scan : 5x5x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Other Data DUT Position : Touch Separation : 0 Channel : Mid - 6 1 gram SAR value : 0.438 W/kg 10 gram SAR value : 0.241 W/kg Area Scan Peak SAR : 0.510 W/kg Zoom Scan Peak SAR : 0.860 W/kg FCC ID: SHD-A5YWFS © 2006 RF Exposure Lab, LLC Page 116 of 314 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. SAR Test Report By Operator : Jay Measurement Date : 31-Aug-2006 Starting Time : 31-Aug-2006 02:55:19 PM End Time : 31-Aug-2006 03:08:37 PM Scanning Time : 798 secs Product Data Device Name : OQO Serial No. : Eng 028 Type : Other Model : 02 : computer Frequency : 2450.00 MHz Max. Transmit Pwr : 0.063 W Drift Time : 0 min(s) Length : 144 mm Width : 85 mm Depth : 30 mm Antenna Type : Internal Orientation : Touch Power Drift-Start : 0.288 W/kg Power Drift-Finish: 0.277 W/kg Power Drift (%) : -3.819 Phantom Data Name : APREL-Uni Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Serial No. : System Default Location : Center Description : Uni-Phantom Tissue Data Type : BODY Serial No. : 2450 Frequency : 2450.00 MHz Last Calib. Date : 31-Aug-2006 Temperature : 20.00 °C Ambient Temp. : 23.00 °C Humidity : 53.00 RH% Epsilon : 51.96 F/m Sigma : 1.95 S/m Density : 1000.00 kg/cu. m Probe Data Name : RFEL 217 Model : E020 Type : E-Field Triangle Serial No. : 217 Last Calib. Date : 30-May-2006 Frequency : 2450.00 MHz Duty Cycle Factor: 1 Conversion Factor: 3.61 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm FCC ID: SHD-A5YWFS © 2006 RF Exposure Lab, LLC Page 117 of 314 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Measurement Data Cr…

Text truncated - open the document above for the full version.

FCC ID: SHD-A5YWFS © 2006 RF Exposure Lab, LLC Page 146 of 314 This report sh…
