User Guide OPENRUN PRO S810 Turn off the headphones Turn on the headphones Press and hold the Power/Volume+ Button for 2 seconds until the LED Indicator flashes blue. Press and hold the Power/Volume+ Button for 2 seconds until the LED Indicator flashes red. Volume- Button Power/Volume+ Button ON/OFF 1. Start with OpenRun Pro turned off. 2. Press and hold the Volume+ Button for 5 seconds or until the LED Indicator flashes red and blue. Pairing 3. Open your device's Bluetooth settings and select " OpenRun Pro by Shokz." Audrey will say "connected." Settings BLUETOOTH OpenRun Pro by Shokz Pairing Click once Click once Answer call End call Click once Double-click while music is playing Triple-click while music is playing Play/pause music Next song Previous song Multifunction Button Multifunction Button Download the Shokz app Manage multipoint pairing, upgrade firmware, change EQ modes, and more! Download the Shokz App to easily control headphone settings. *Only for limited regions, go to userguide.shokz.net/openrunpro for more information Please refer to the following for more details https://www.userguide.shokz.net/openrunpro Storage and Maintenance  Store the headphones in cool and dry place. The working temperature should be 0~45°C(32~113°F). Working in a cold/hot environment or a highly humid area or an extremely low air pressure may reduce the battery life.  Keep the product away from heat sources, direct sunlight, combustible gas or other liquids.  Keep the charging port dry before connecting to charger will reduce the risk.  The headphones are water resistant, but are NOT waterproof. Please DO NOT submerse the headphones in water.  Clean the headphones with a soft dry cloth.  Do not charge right after exercising, in case there's sweat inside the charging port, which could lead to circuit burning while charging.  After storage for a long period, please charge the headphones before using again. Note Design and specification are subject to change without notice. For the most up-to-date product information, please visit www.shokz.com. Manufacturer Declarations Warranty AfterShokz LLC gives a warranty of 24 months on this product. For the current warranty conditions, please visit our website at www.shokz.com or contact your Shokz partner. Before putting the product into operation, please observe the respective country specific regulations. Hearing Loss Listening with headphones at high volume may affect your hearing and the audio will be distorted. FCC Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that is deemed to comply without testing of specific absorption rate (SAR). Resposible party (contact for FCC matters only): AfterShokz LLC. 3200 Gracie Kiltz Lane, Suite 400 Austin, TX 78758 USA www.shokz.com Industry Canada This device complies with Industry Canada licence-exempt RSS standard(s): Operation is subject to the following Two conditions: (1)this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. CE Declaration of Conformity Shokz Holding Limited hereby declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and all other applicable EU Directive requirements. The complete declaration of conformity can be found at: https://shokz.com/pages/policies. Shokz’s EU representative is Aftershokz BV, Schipholweg 103, 2316XC Leiden, Netherlands. Frequency Range Output Power 2402-2480MHz 10dBm(EIRP) UK Declaration of Conformity Shokz Holding Limited hereby declares that this product is in compliance with the essential requirements and all other applicable United Kingdom’s regulations. The complete declaration of conformity can be found at: https://shokz.com/pages/policies. Shokz’s authorised representative in the UK is Pinpoint Consumer Electronics…

Text truncated - open the document above for the full version.

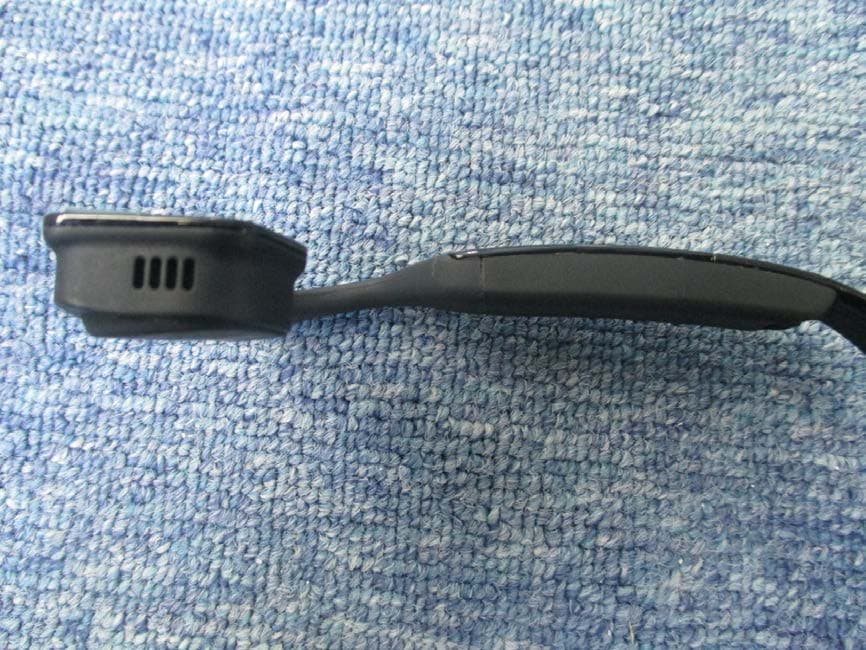

Type Designation:S810 Figure 1: External view 1 Figure 2: External view2 Type Designation:S810 Figure 3: Externalview3 Figure 4: Internalview

Type Designation:S810 Figure 5: PCBview1 Figure 6: PCBview2 Type Designation:S810 Figure 7: Batteryview1 Figure 8: Battery view2

1 Safety Human Exposure 1.1 Radio Frequency Exposure Compliance 1.1.1 Electromagnetic Fields RESULT: Pass Test Specification Test standard : CFR47 FCC Part 2: Section 2.1093 CFR47 FCC Part 1: Section 1.1310 FCC KDB Publication 447498 v06, section 7 RSS-102 Issue 5 March 2015, section 2.5.1  FCC requirements a) EUT RF Exposure Evaluation operations, Worst Case mode Test Mode Measured average conducted Power Threshold power @5mm Verdict dBm mW dBm mW BDR 1.0 1.3 10 10 Compliant BLE 0.42 1.1 10 10 Compliant  IC requirements: The EUT shall comply with the requirement of RSS-102 section 2.5.1. a) EUT RF Exposure Evaluation standalone operations, Worst Case mode Test Mode Measured average conducted Power Measured e.i.r.p Threshold power @5mm (mW) Verdict dBm mW dBm mW BDR 1.0 1.3 5.97 3.95 4.0 Compliant BLE 0.42 1.1 5.39 3.46 4.0 Compliant The highest antenna gain is 4.97dBi.

Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: CN21000Z 001 Auftrags-Nr.: Order no.: 168309409 Seite 1 von 25 Page 1 of 25 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2021-03-12 Auftraggeber: Client: AfterShokz LLC 3200 Gracie Kiltz Lane, Suite 400,Austin, TX 78758 United States Prüfgegenstand: Test item: Bluetooth headset (OpenRun Pro) Bezeichnung / Typ-Nr.: Identification / Type no.: S810 (Trademark: SHOKZ) Auftrags-Inhalt: Order content: Test Report Prüfgrundlage: Test specification: CFR47 FCC Part 15: Subpart C Section 15.247 RSS-247 Issue 2 February 2017 RSS-Gen Issue 5 March 2019 Wareneingangsdatum: Date of sample receipt: 2021-03-17 Please refer to Photo Document Prüfmuster-Nr.: Test sample no: A003014153-003~004 A003017522-003~004 Prüfzeitraum: Testing period: 2021-03-20 – 2021-06-23 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von: tested by: X Signed by: Bell Hu genehmigt von: authorized by: X Signed by: Lin Lin Datum: Date: 2021-06-23 Ausstellungsdatum: Issue date: 2021-06-23 Stellung / Position: Project Manager Stellung / Position: Reviewer Sonstiges / Other: FCC ID: SHKASCEHB9 IC: 10978A-ASCEHB9 HVIN: S810 Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TÜV Rheinland (Shenzhen) Co., Ltd. 1601 R&D Room, 1602-1604, 17-18F, Building 7 Site C, Vanke Cloud City Phase I, Xingke First Street, Xili Street, Xili Community, Nanshan District, Shenzhen 518052, P.R. China Mail: [email protected] · Web: www.tuv.com Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No. CN21000Z 001 Seite 2 von 26 Page 2 of 26 Test Summary 5.1.1 ANTENNA REQUIREMENT RESULT: Pass 5.1.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER RESULT: Pass 5.1.3 CONDUCTED POWER SPECTRAL DENSITY RESULT: Pass 5.1.4 6DB BANDWIDTH RESULT: Pass 5.1.5 99% BANDWIDTH RESULT: Pass 5.1.6 20DB BANDWIDTH RESULT: Pass 5.1.7 CARRIER FREQUENCY SEPARATION RESULT: Pass 5.1.8 NUMBER OF HOPPING FREQUENCY RESULT: Pass 5.1.9 TIME OF OCCUPANCY RESULT: Pass 5.1.10 CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100 KHZ BANDWIDTH RESULT: Pass 5.1.11 RADIATED SPURIOUS EMISSION RESULT: Pass Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No. CN21000Z 001 Seite 3 von 26 Page 3 of 26 Contents 1 GENERAL REMARKS ........................................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS ............................................................................................................ 4 2 TEST SITES ........................................................................................................................................ 5 2.1 TEST FACILITIES ................................................................................................................................. 5 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS................................................................................. 5 2.3 TRACEABILITY .................................................................................................................................... 6 2.4 CALIBRATION ..................................................................................................................................... 6 2.5 MEASUREMENT UNCERTAINTY............................................................................................................. 6 2.6 LOCATION OF ORIGINAL DATA ............................................................................................................. 6 2.7 STATUS OF FACILITY USED FOR TESTING ............................................................................................. 7 3 GENERAL PRODUCT INFORMATION ...................................................................................................... 8 3.1 PRODUCT FUNCTION AND INTENDED USE ............................................................................................. 8 3.2 RATINGS AND SYSTEM DETAILS .......................................................................................................... 8 3.3 INDEPENDENT OPERATION MODES ....................................................................................................10 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS .......................................................................10 3.5 SUBMITTED DOCUMENTS...................................................................................................................10 4 TEST SET-UP AND OPERATION MODES ..............................................................................................11 4.1 PRINCIPLE OF CONFIGURATION SELECTION .......................................................................................11 4.2 TEST OPERATION AND TEST SOFTWARE ............................................................................................11 4.…

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report - Products Appendix B CN21000Z 001 Page 1 of 57 Appendix B: Test Results of BR & EDR APPENDIX B: TEST RESULTS OF BR & EDR ..................................................................................................................... 1 APPENDIX B.1: TEST RESULTS OF 99% BANDWIDTH ................................................................................................................... 2 BR mode (GFSK) ............................................................................................................................................................ 2 EDR mode (8DPSK) ....................................................................................................................................................... 5 APPENDIX B.2: TEST RESULTS OF 20DB BANDWIDTH .................................................................................................................. 8 BR mode (GFSK) ............................................................................................................................................................ 8 EDR mode (8DPSK) ..................................................................................................................................................... 11 APPENDIX B.3: TEST RESULTS OF CARRIER FREQUENCY SEPARATION ........................................................................................... 14 BR mode (GFSK) .......................................................................................................................................................... 14 EDR mode (8DPSK) ..................................................................................................................................................... 17 APPENDIX B.4: TEST RESULTS OF NUMBER OF HOPPING FREQUENCY .......................................................................................... 20 BR mode (GFSK) .......................................................................................................................................................... 20 EDR mode (8DPSK) ..................................................................................................................................................... 21 APPENDIX B.5: TEST RESULTS OF TIME OF OCCUPANCY ............................................................................................................. 22 BR mode (GFSK) .......................................................................................................................................................... 22 EDR mode (8DPSK) ..................................................................................................................................................... 25 APPENDIX B.6: TEST RESULTS OF CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100 KHZ BANDWIDTH ....................................... 28 BR mode (GFSK) .......................................................................................................................................................... 28 Low Channel................................................................................................................................................................ 28 Middle Channel ........................................................................................................................................................... 29 High Channel ............................................................................................................................................................... 30 Band Edge, Low Channel............................................................................................................................................. 31 Band Edge, High Channel ............................................................................................................................................ 31 Band Edge, Hopping Mode, Low Channel ................................................................................................................... 32 Band Edge, Hopping Mode, High Channle .................................................................................................................. 32 EDR mode (8DPSK) ..................................................................................................................................................... 33 Low Channel................................................................................................................................................................ 33 Middle Channel ........................................................................................................................................................... 34 High Channel ............................................................................................................................................................... 35 Band Edge, Low Channel............................................................................................................................................. 36 Band Edge, High Channel ............................................................................................................................................ 36 Band Edge, Hopping Mode, Low Channel ................................................................................................................... 37 Band Edge, Hopping Mode, High Channle .................................................................................................................. 37 APPENDIX B.7: TEST RESULTS OF RADIATED SPURIOUS EMISSIONS ............................................................................................. 38 30MHz - 1GHz ............................................................................................................................................................. 38 1GHz - 18GHz .....................................................…

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report - Products Appendix B CN21000Z 001 Page 29 of 57 Middle Channel Prüfbericht - Produkte Test Report - Products Appendix B CN21000Z 001 Page 30 of 57 High Channel Prüfbericht - Produkte Test Report - Products Appendix B CN21000Z 001 Page 31 of 57 Band Edge, Low Channel Band Edge, High Channel Prüfbericht - Produkte Test Report - Products Appendix B CN21000Z 001 Page 32 of 57 Band Edge, Hopping Mode, Low Channel Band Edge, Hopping Mode, High Channle Prüfbericht - Produkte Test Report - Products Appendix B CN21000Z 001 Page 33 of 57 EDR mode (8DPSK) Low Channel Prüfbericht - Produkte Test Report - Products Appendix B CN21000Z 001 Page 34 of 57 Middle Channel Prüfbericht - Produkte Test Report - Products Appendix B CN21000Z 001 Page 35 of 57 High Channel Prüfbericht - Produkte Test Report - Products Appendix B CN21000Z 001 Page 36 of 57 Band Edge, Low Channel Band Edge, High Channel Prüfbericht - Produkte Test Report - Products Appendix B CN21000Z 001 Page 37 of 57 Band Edge, Hopping Mode, Low Channel Band Edge, Hopping Mode, High Channle Prüfbericht - Produkte Test Report - Products Appendix B CN21000Z 001 Page 38 of 57 Note: Testing was carried out within frequency range 9kHz to the tenth harmonics. The measurement results below 30MHz and 18GHz - 26.5GHz were greater than 20dB below the limit, so only the radiated spurious emissions from 30MHz to 18GHz were reported. Appendix B.7: Test Results of Radiated Spurious Emissions Note: This testing was carried out on different modulations, but only the worst case (GFSK) was presented in this report. 30MHz - 1GHz EUT Information EUT Name: OpenRun Pro Model: S810 Test Mode: BDR_DH5_Low channel Test Voltage:: DC 5V from adaptor Remark: Temp 23 Humi:55% Test Standard: FCC 15.247 Tested By: Kei Zhang Reviewed By: Terry Yin Level in dB 礦 /m Critical_Freqs Frequency (MHz) MaxPeak (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 44.744000 16.74 40.00 23.26 100.0 H 0.0 -19.2 60.555000 18.04 40.00 21.96 100.0 H 179.0 -19.4 117.882000 13.61 43.50 29.89 100.0 H 357.0 -20.6 367.172000 24.20 46.00 21.80 100.0 H 71.0 -14.8 844.848500 29.51 46.00 16.49 100.0 H 102.0 -6.0 Final_Result Frequency (MHz) QuasiPeak (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) --- --- --- --- --- --- --- Prüfbericht - Produkte Test Report - Products Appendix B CN21000Z 001 Page 39 of 57 EUT Information EUT Name: OpenRun Pro Model: S810 Test Mode: BDR_DH5_Low channel Test Voltage:: DC 5V from adaptor Remark: Temp 23 Humi:55% Test Standard: FCC 15.247 Tested By: Kei Zhang Reviewed By: Terry Yin Level in dB 礦 /m Critical_Freqs Frequency (MHz) MaxPeak (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 31.212500 28.94 40.00 11.06 100.0 V 13.0 -23.1 49.982000 26.28 40.00 13.72 100.0 V 225.0 -18.6 60.555000 25.58 40.00 14.42 100.0 V 183.0 -19.4 319.981500 17.89 46.00 28.11 100.0 V 132.0 -16.1 385.699000 19.34 46.00 26.66 100.0 V 115.0 -14.4 749.352000 31.89 46.00 14.11 100.0 V 123.0 -7.6 Final_Result Frequency (MHz) QuasiPeak (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) --- --- --- --- --- --- --- Prüfbericht - Produkte Test Report - Products Appendix B CN21000Z 001 Page 40 of 57 EUT Information EUT Name: OpenRun Pro Model: S810 Test Mode: BDR_DH5_High channel Test Voltage:: DC 5V from adaptor Remark: Temp 23 Humi:55% Test Standard: FCC 15.247 Tested By: Kei Zhang Reviewed By: Terry Yin Level in dB 礦 /m Critical_Freqs Frequency (MHz) MaxPeak (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 32.716000 14.77 40.00 25.23 100.0 H 31.0 -22.8 60.991500 17.44 40.00 22.56 100.0 H 67.0 -19.5 115.457000 12.04 43.50 31.46 100.0 H 22.0 -20.1 243.885000 14.51 46.00 31.49 100.0 H 197.0 -17.9 381.819000 25.30 46.00 20.70 100.0 H 86.0 -14.5 Final_Result Frequency (MHz) QuasiPeak (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) --- --- --- --- --- --- --- Prüfbericht - Produkte Test Report - Products Appendix B CN21000Z 001 Page 41 of 57 EUT Information EUT Name: OpenRun Pro Model: S810 Test Mode: BDR_DH5_High channel Test Voltage:: DC 5V from adaptor Remark: Temp 23 Humi:55% Test Standard: FCC 15.247 Tested By: Kei Zhang Reviewed By: Terry Yin Level in dB 礦 /m Critical_Freqs Frequency (MHz) MaxPeak (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 31.212500 28.52 40.00 11.48 100.0 V 80.0 -23.1 60.555000 25.29 40.00 14.71 100.0 V 204.0 -19.4 244.127500 14.17 46.00 31.83 100.0 V 117.0 -17.9 844.897000 27.42 46.00 18.58 100.0 V 339.0 -6.0 Final_Result Frequency (MHz) QuasiPeak (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) --- --- --- --- --- --- --- Prüfbericht - Produkte Test Report - Products Appendix B CN21000Z 001 Page 42 of 57 1GHz - 18GHz Note: The highest waveform in the figure is Bluetooth Fundamental. EUT Information EUT Name: OpenRun Pro Model: S810 Test Mode: BDR_DH5_Low channel Test Voltage:: DC 5V from adaptor Remark: Temp 23 Humi:55% Test Standard: FCC 15.247 Tested By: Kei Zhang Reviewed By: Terry Yin Level in dB 礦 /m Critical_Freqs Frequency (MHz) MaxPeak (dBμV/m) Average (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 1200.940000 50.71 --- 74.00 23.29 100.0 H 80.0 1.1 1801.550000 49.14 --- 74.00 24.86 100.0 H 128.0 4.7 4803.500000 66.80 --- 74.00 7.20 100.0 H 210.0 11.8 4803.500000 35.99 54.00 18.01 100.0 H 210.0 11.8 Final_Result Frequency (MHz) MaxPeak (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) --- --- --- --- --- --- --- Prüfbericht - Produkte Test Report - Products Appendix B CN21000Z 001 Page 43 of 57 EUT Information EUT Name: OpenRun Pro Model: S810 Test Mode: BDR_DH5_Low channel Test Voltage:: DC 5V from adaptor Remark: Temp 23 Humi:55% Test Standard: FCC 15.247 Tested By: Kei Zhang Reviewed By: Terry Yin Level in dB 礦 /m Critical_Freqs Frequenc…

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report - Products Appendix C CN21000Z 001 Page 1 of 33 Appendix C: Test Results of Bluetooth LE APPENDIX C: TEST RESULTS OF BLUETOOTH LE ............................................................................................................. 1 APPENDIX C.1: TEST RESULTS OF CONDUCTED POWER SPECTRAL DENSITY ..................................................................................... 2 APPENDIX C.2: TEST RESULTS OF 6DB BANDWIDTH .................................................................................................................... 4 APPENDIX C.3: TEST RESULTS OF 99% BANDWIDTH ................................................................................................................... 7 APPENDIX C.4: TEST RESULTS OF CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100 KHZ BANDWIDTH ....................................... 10 APPENDIX C.5: TEST RESULTS OF RADIATED SPURIOUS EMISSIONS.............................................................................................. 14 30 MHz to 1GHz .......................................................................................................................................................... 14 1GHz-18GHz ................................................................................................................................................................ 18 APPENDIX C.6: TEST RESULTS OF RADIATED EMISSIONS IN RESTRICTED BANDS ............................................................................. 30 Prüfbericht - Produkte Test Report - Products Appendix C CN21000Z 001 Page 2 of 33 Appendix C.1: Test Results of Conducted Power Spectral Density Prüfbericht - Produkte Test Report - Products Appendix C CN21000Z 001 Page 3 of 33 Prüfbericht - Produkte Test Report - Products Appendix C CN21000Z 001 Page 4 of 33 Appendix C.2: Test Results of 6dB Bandwidth Prüfbericht - Produkte Test Report - Products Appendix C CN21000Z 001 Page 5 of 33 Prüfbericht - Produkte Test Report - Products Appendix C CN21000Z 001 Page 6 of 33 Prüfbericht - Produkte Test Report - Products Appendix C CN21000Z 001 Page 7 of 33 Appendix C.3: Test Results of 99% Bandwidth Prüfbericht - Produkte Test Report - Products Appendix C CN21000Z 001 Page 8 of 33 Prüfbericht - Produkte Test Report - Products Appendix C CN21000Z 001 Page 9 of 33 Prüfbericht - Produkte Test Report - Products Appendix C CN21000Z 001 Page 10 of 33 Appendix C.4: Test Results of Conducted Spurious Emissions Measured in 100 kHz Bandwidth Low Channel: Prüfbericht - Produkte Test Report - Products Appendix C CN21000Z 001 Page 11 of 33 Middle Channel: Prüfbericht - Produkte Test Report - Products Appendix C CN21000Z 001 Page 12 of 33 High Channel: Prüfbericht - Produkte Test Report - Products Appendix C CN21000Z 001 Page 13 of 33 Band Edge, Low Channel: Band Edge, High Channel: Prüfbericht - Produkte Test Report - Products Appendix C CN21000Z 001 Page 14 of 33 Appendix C.5: Test Results of Radiated Spurious Emissions Note: 1) This testing was carried out on different modulations, but only the worst case was presented in this report. 2) Testing was carried out within frequency range 9kHz to the tenth harmonics. The measurement results below 30MHz and 18GHz - 26.5GHz were greater than 20dB below the limit, so only the radiated spurious emissions from 30MHz to 18GHz were reported. 30 MHz to 1GHz EUT Information EUT Name: OpenRun Pro Model: S810 Test Mode: BLE_Low channel Test Voltage:: DC 5V from adaptor Remark: Temp 23 Humi:55% Test Standard: FCC 15.247 Tested By: Kei Zhang Reviewed By: Terry Yin Level in dB 礦 /m Critical_Freqs Frequency (MHz) MaxPeak (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 32.085500 16.00 40.00 24.00 100.0 H 41.0 -23.0 60.846000 17.41 40.00 22.59 100.0 H 314.0 -19.5 118.755000 12.77 43.50 30.73 100.0 H 304.0 -20.8 191.990000 15.08 43.50 28.42 100.0 H 22.0 -19.7 380.800500 24.09 46.00 21.91 100.0 H 93.0 -14.5 844.800000 27.68 46.00 18.32 100.0 H 13.0 -6.0 Final_Result Frequency (MHz) QuasiPeak (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) --- --- --- --- --- --- --- Prüfbericht - Produkte Test Report - Products Appendix C CN21000Z 001 Page 15 of 33 EUT Information EUT Name: OpenRun Pro Model: S810 Test Mode: BLE_Low channel Test Voltage:: DC 5V from adaptor Remark: Temp 23 Humi:55% Test Standard: FCC 15.247 Tested By: Kei Zhang Reviewed By: Terry Yin Level in dB 礦 /m Critical_Freqs Frequency (MHz) MaxPeak (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 35.189500 26.86 40.00 13.14 100.0 V 209.0 -22.1 60.555000 25.15 40.00 14.85 100.0 V 287.0 -19.4 115.457000 12.54 43.50 30.96 100.0 V 0.0 -20.1 243.885000 14.58 46.00 31.42 100.0 V 359.0 -17.9 729.030500 27.00 46.00 19.00 100.0 V 228.0 -7.9 845.285000 28…
