SHKAW0879AW0879 Adaptor

3.724 mW 对讲机语音蓝牙模块是为了满足使用对讲机进行专业无线通信人士的需要， 基于蓝牙，无线电与数字音频处理技术，量身订制的一款对讲机语音蓝牙模块。 简单方便的操作 支持 NFC 配对，配对时间短，使用方法和市面上的蓝牙语音设备相同或相似。 外观大方、大气美观的造型，符合专业人士的身份定位。 关于 采用高品质环保 PU、含高强度 kevlar 的线材制造。所有产品都经过严格的生产过程 监控与严格的可靠性测试。 品质保证 安装无线音频适配器 1. 打开手持终端附件接口盖 2. 将无线适配器接头对准并插入手持终端附件接口 3. 沿顺时针方向拧紧插头上的螺钉 用前准备 在使用无线耳机与无线适配器前，需要先进行配对。本产品支持通过 NFC 配对。 1. 无线适配器处于开机状态 2. 无线耳机处于配对状态 3. 将无线耳机 NFC 标识区域靠近无线适配器的 NFC 检测区域 配对与连接 1.当无线耳机处于佩戴状态时，声音交互通过耳机来传播 2.当无线耳机没有处于佩戴状态时，声音交互通过通讯终端来传播 佩戴 我司承诺，本产品在正常使用、操作与维护条件下， 出现材料或制造工艺方面的缺陷，两年内免费保修，详细信息请与当地的经销商联系。 服务 请不要将此电子配件产品与你的日常生活垃圾一同报废处理。在一些国家和地区，建 立有专门分类收集处理废弃电子产品的部门。详细信息请咨询当地相关部门。 产品的报废处理 佩戴无线耳机后，按住无线耳机上的【PTT/多功能】键使手持终端进入发射模式 发射 基本操作 开机 无线耳机在使用过程中与手持终端的距离不应超过 10 米，开车时使用无线耳机请遵 守所在国家或地区的规定，请勿在雷暴天气下使用本系列产品，雷暴可能导致本系 列产品工作不正常，长时间接触高音量声音可能会损伤听力，请尽量将音量调整到 合适大小，本手册中的图片仅供参考，请以实物为准。 注意事项 Before Use Radio voice Bluetooth ® module is based on Bluetooth ® , radio and digital audio processing technology to meet the wireless communication demand of professional use two-way radios. Easy and Simple Operation Device features One-Touch pairing (NFC), a short pairing time, and similar operating method to most Bluetooth ® headsets in the market. Appearance Elegantly designed and built for the communication professionals. Great Quality Made with comfortable polyurethane Kevlar reinforced cable, all products were design under a stringent quality audit and strict reliability test. About Ensure that the distance between the wireless headset and the radio is within 10 meters while in use. Only use the wireless headset while driving if traffic conditions permit safe use. Comply with local laws and regulations on the use of wireless headsets while driving. Do not use the adaptor in a thunderstorm. Avoid using the headsets at high volume for too long.Images included in this manual are for reference only. Instruction Wireless Adaptor LED Indicator LED indicatorWireless adaptor status Solid blue for 1 secondsPower on Flashes red Powered ON but not connected with wireless headset Flashes blue Connected with wireless headsets and the headsets were worn Twin flahsing blue Connected with wireless headset and headset was not worn. 无线适配器 LED 指示灯 指示灯状态无线适配器产品状态 蓝灯常亮 1s 正在开机 红灯单闪开机且未与无线耳机建立蓝牙连接 蓝灯单闪与无线耳机建立蓝牙连接且无线耳机处于佩戴状态 蓝灯双闪与无线耳机建立蓝牙连接且无线耳机处于未佩戴状态 无线适配器规格参数 Wireless Adaptor Specifications Dimensions81 x 11 x 58mm Ingress ProtectionIP55 Maximum RF output power Working temperature0~ +45 尺寸81 x 11 x 58mm 防尘防水等级IP55 产品名称操作方法 无线适配器手持终端开机，本产品自动开机 无线耳机长按开关键 3 秒，红灯亮1秒 关机 产品名称操作方法 无线适配器手持终端关机，本产品自动关机 无线耳机长按开关键 3s，红灯亮1秒 最大输出功率4dBm 工作温度0°C~ +45°C 1. Open the accessory connector cover of the radio. 2. Align the adaptor plug with the accessory connector. 3. Rotate the screw on the adaptor clockwise to securely fasten the adaptor. When product powers on LED indicator light flashes between red and blueYou can know the working state of the product by the LED indicator light, Please refer to "LED indicator light" for details. Installing the Wireless Adaptor 1. Wireless headset and dongle should be paired before use. This product supports NFC pairing. 2. Make sure the dongle is powered on. 3. Ensure the wireless headset is ON or in pairing mode. 4. Place the NFC identification area of the wireless headset near the NFC detection area of the wireless adapter. Pairing and connection · When wireless headsets is in wearing state, voice interaction goes with the headsets · When wireless headsets is out of wearing state,voice interaction goes with the communication terminal. Wearing After wearing the headset, push the “ PTT/multifunction button ” to switch the communication device into Emission mode. Emission Our company promises that in normal use, operation and maintenance conditions, we will give two years of warranty for free. Please contact the local dealer for more help. Services Please do not discard the electronic headset parts in the same receptacle as your daily garbage. Reference your country or region’s guidelines on appropriate measures for collecting discarded electronic products. Please consult local authorities for more details. Product scrap treatment 3200 Gracie Kiltz Lane4th floorAustin, TX 78758 www.aftershokz-communications.com FactoryShenzhen Voxtech Co.,Ltd. Address4/F East, Building 4,Minqi Technology Park, Pingshan, Xili, Nanshan District, Shenzhen, Guangdong,China Contact us Product name Operations Operation Instructions Power on Wireless headset The dongle powers on when communication terminal powers on Press power button and hold for 3 seconds, Solid red for 1 second Press power button and hold for 3 seconds, Solid red for 1 second Product name Operations Power off Dongle Wireless headset The dongle powers off when communication terminal powers off 无线耳机 产品介绍 无线适配器 3200 Gracie Kiltz Lane4th floorAustin, TX 78758 www.aftershokz-communications.com 生产厂商：深圳市韶音科技有限公司 地址：深圳市宝安区石岩街道浪心社区石新社区山城工业区 26 栋厂房一层至四层 电话：400-6830-858 如何联系我们 · Wireless headsets Product Introduction ONE-PIECE ADAPTOR 一体式 AW0879 Adaptor AW0879 Adaptor (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with Part 15 of the FCC rules.Operation is Subject to the following two conditions: (1) this device may not cause harmful interference, and Changes or modifications not expresslyapproved by the part responsible for the compliance could void the user's authority to operate the equipment.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 6.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (obsolete) 4.0 5.0 Sep-16-2014 Updated company name & logo (current) 5.0 6.0 Jun-27-2018 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 6.0 AfterShokz LLC 2020/7/17 To: BVCPS, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____ AfterShokz LLC_____ hereby authorize Bureau Veritas Consumer Product Services, Inc. to act as a Certification Body for certifying for the following project(s): FCC ID: SHKAW0879 Product Description: AW0879 Adaptor Model: AW0879 Sincerely, Client’s signature Client’s name / title : Zoe Chow / Manager Contact information / address : 3200 Gracie Kiltz Lane, 4th Floor, Austin, TX 78758

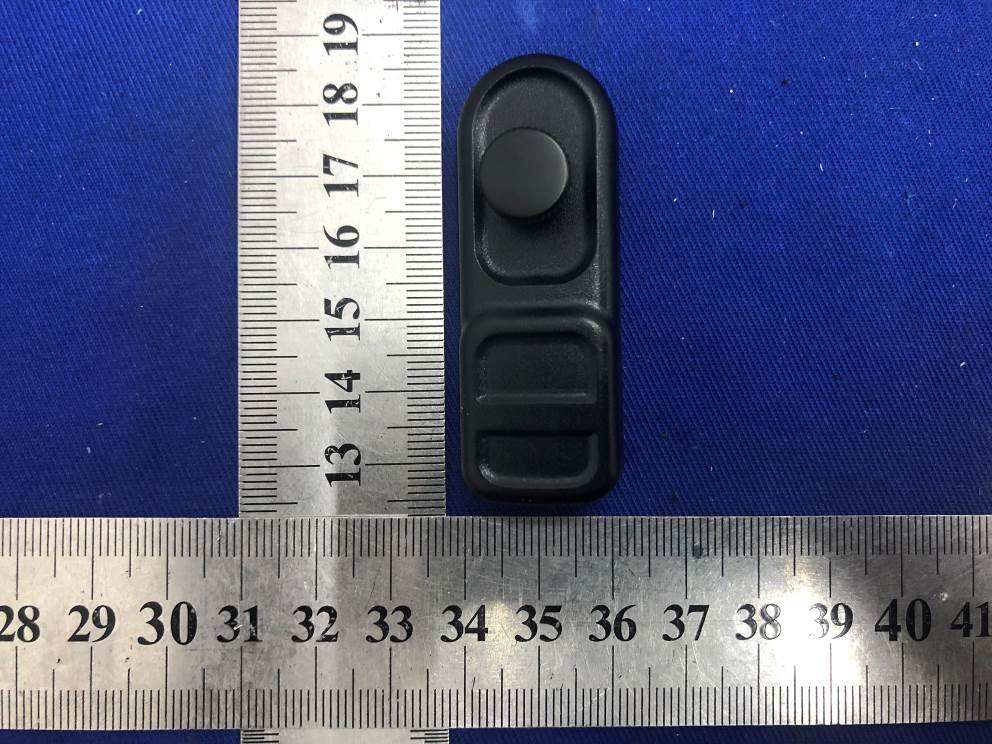

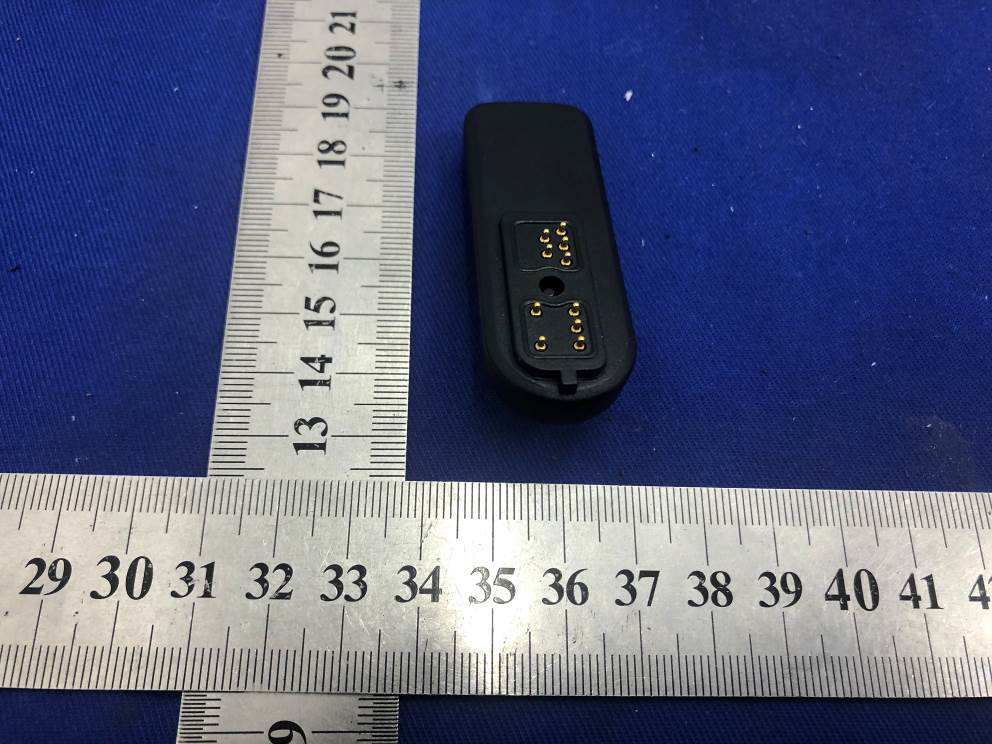

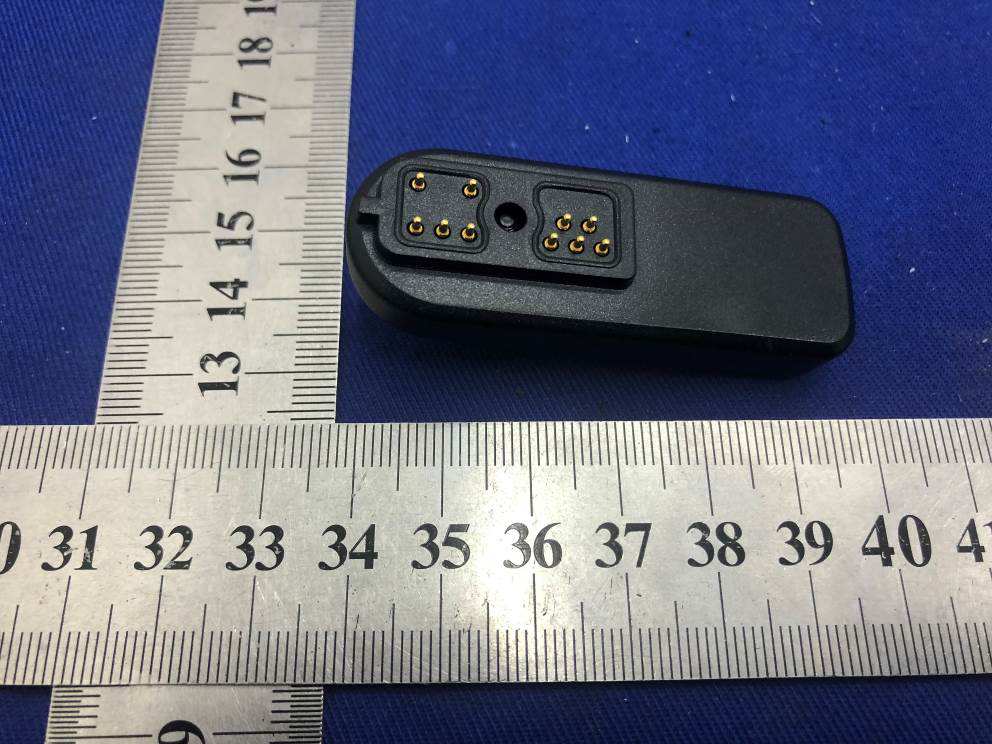

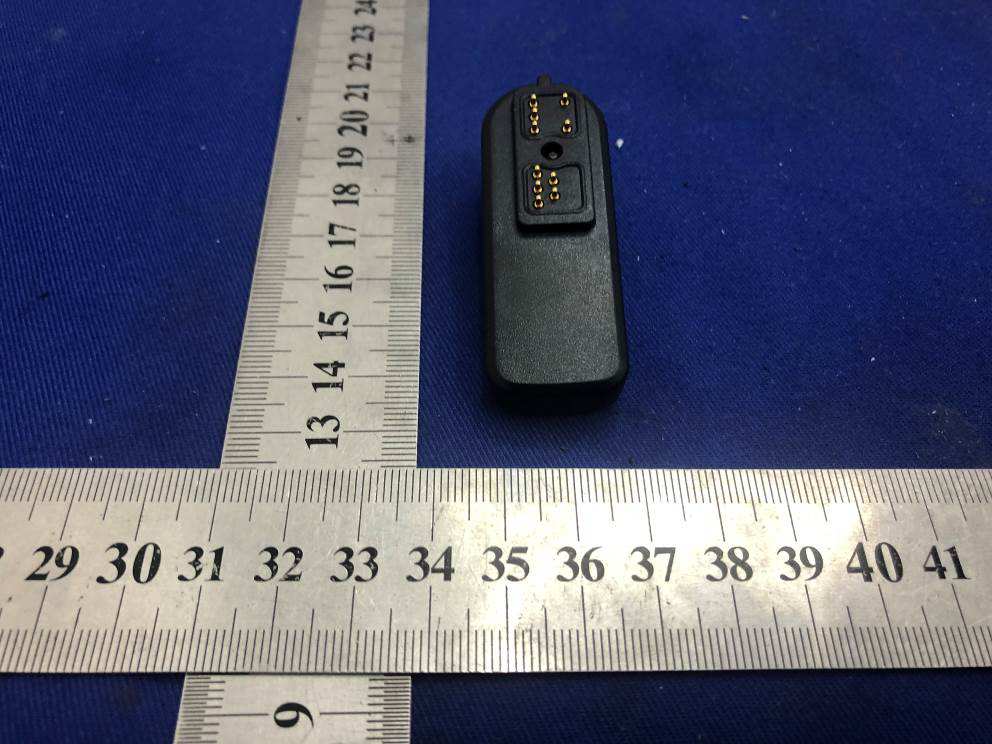

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 3 Report Version 1 Reference No.: 200417N002 PHOTOGRAPHS OF THE EUT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 3 Report Version 1 Reference No.: 200417N002 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 3 Report Version 1 Reference No.: 200417N002

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 3 Report Version 1 Reference No.: 200417N002 PHOTOGRAPHS OF THE EUT NFC ANT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 3 Report Version 1 Reference No.: 200417N002 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 3 Report Version 1 Reference No.: 200417N002 BT ANT

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 6 Report Version 1 Test Report No.: FM200417N002 RF EXPOSURE REPORT Applicant AfterShokz LLC Address 3200 Gracie Kiltz Lane, 4th Floor, Austin, TX 78758 Manufacturer or Supplier Shenzhen Voxtech Co., Ltd. Address Floors 1-4, Factory Building 26, Shancheng Industrial Park, Shiyan Street, Bao'an District, Shenzhen, Guangdong, China Product AW0879 Adaptor Brand Name AfterShokz Model AW0879 Additional Model & Model Difference N/A Date of tests Apr. 17, 2020 ~ Jun. 10, 2020 FCC Part 2 (Section 2.1093) KDB 447498 D01 IEEE C95.1 CONCLUSION: The submitted sample was found to COMPLY with the test requirement Tested by Lucas Chen Project Engineer / EMC Department Approved by Glyn He Assistant Manager / EMC Department Date: Jul. 14, 2020 This report is governed by, and incorporates by reference, CPS Conditions of Service as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our-business/cps/about-us/terms-conditions/and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute you unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 6 Report Version 1 Test Report No.: FM200417N002 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................ 3 1. CERTIFICATION .............................................................................................. 4 2. RF EXPOSURE DEFINE ................................................................................. 5 3. CLASSIFICATION ........................................................................................... 5 4. SAR TEST EXCLUSION THRESHOLDS ........................................................ 6 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 6 Report Version 1 Test Report No.: FM200417N002 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED FM200417N002 Original release Jul. 14, 2020 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 4 of 6 Report Version 1 Test Report No.: FM200417N002 1. CERTIFICATION FCC ID: SHKAW0879 PRODUCT: AW0879 Adaptor BRAND NAME: AfterShokz MODEL NO.: AW0879 ADDITIONAL NO.: N/A APPLICANT: AfterShokz LLC STANDARDS: FCC Part 2 (Section 2.1093) KDB 447498 D01 IEEE C95.1 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 5 of 6 Report Version 1 Test Report No.: FM200417N002 2. RF EXPOSURE DEFINE The corresponding SAR Exclusion Threshold condition, listed below: 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,16 where   f(GHz) is the RF channel transmit frequency in GHz   Power and distance are rounded to the nearest mW and mm before calculation   The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. 2) At 100 MHz to 6 GHz and for test separation distances > 50 mm, the SAR test exclusion threshold is determined according to the following: a) [Threshold at 50 mm in step 1) + (test separation distance - 50 mm)·( f(MHz)/150)] mW, at 100MHz to 1500 MHz b) [Threshold at 50 mm in step 1) + (test separation distance - 50 mm)·10] mW at > 1500 MHz and ≤ 6 GHz 3) At frequencies below 100 MHz, the following may be considered for SAR test exclusion. a) The threshold at the corresponding test separation distance at 100 MHz in step…

Text truncated - open the document above for the full version.

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 51 Report Version 1 Test Report No.: RF200417N002-1 TEST REPORT Applicant AfterShokz LLC Address 3200 Gracie Kiltz Lane, 4th Floor, Austin, TX 78758 Manufacturer or Supplier Shenzhen Voxtech Co., Ltd. Address Floors 1-4, Factory Building 26, Shancheng Industrial Park, Shiyan Street, Bao'an District, Shenzhen, Guangdong, China Product AW0879 Adaptor Brand Name AfterShokz Model AW0879 Additional Model & Model Difference N/A Date of tests Apr. 17, 2020 ~ Jun. 10, 2020 the tests have been carried out according to the requirements of the following standards: FCC Part 15, Subpart C, Section 15.247 CONCLUSION: The submitted sample was found to COMPLY with the test requirement Tested by Lucas Chen Project Engineer / EMC Department Approved by Glyn He Assistant Manager / EMC Department Date: Jul. 14, 2020 This report is governed by, and incorporates by reference, CPS Conditions of Service as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our-business/cps/about-us/terms-conditions/and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute you unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 51 Report Version 1 Test Report No.: RF200417N002-1 TABLE OF CONTENTS RELEASE CONTROL RECORD ..................................................................................................... 4 1 SUMMARY OF TEST RESULTS ............................................................................................. 5 2 MEASUREMENT UNCERTAINTY .......................................................................................... 5 3 GENERAL INFORMATION ..................................................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT .................................................................................... 6 3.2 DESCRIPTION OF TEST MODES ...................................................................................... 7 3.2.1. CONFIGURATION OF SYSTEM UNDER TEST ........................................................ 8 3.2.2. TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................. 8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ................................................... 10 3.4 DESCRIPTION OF SUPPORT UNITS .............................................................................. 10 4 TEST TYPES AND RESULTS ............................................................................................... 10 4.1. RADIATED EMISSION AND BANDEDGE MEASUREMENT ........................................ 11 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ................. 11 4.1.2 TEST INSTRUMENTS .............................................................................................. 12 4.1.3 TEST PROCEDURES .............................................................................................. 13 4.1.4 DEVIATION FROM TEST STANDARD .................................................................... 14 4.1.5 TEST SETUP ............................................................................................................ 14 4.1.6 EUT OPERATING CONDITIONS ............................................................................. 15 4.1.7 TEST RESULTS........................................................................................................ 16 4.2 NUMBER OF HOPPING FREQUENCY USED ................................................................. 24 4.2.1 LIMIT OF HOPPING FREQUENCY USED .............................................................. 24 4.2.2 TEST SETUP ............................................................................................................ 24 4.2.3 TEST INSTRUMENTS .............................................................................................. 24 4.2.4 TEST PROCEDURES .............................................................................................. 25 4.2.5 DEVIATION FROM TEST STANDARD .................................................................... 25 4.2.6 TEST RESULTS........................................................................................................ 25 4.3 DWELL TIME ON EACH CHANNEL ................................................................................. 28 4.3.1 LIMIT OF DWELL TIME USED ................…

Text truncated - open the document above for the full version.

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 3 Report Version 1 Reference No.: 200417N002 SET-UP FOR RADIATED EMISSION TEST Frequency Range< Below 30MHz > Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 3 Report Version 1 Reference No.: 200417N002 Frequency Range< 30MHz~1GHz > Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 96, Guantai Road (Houjie Section), Houjie Town, Dongguan City, Guangdong Province. 523942. People’s Republic of China. Tel.: +86 769 8998 2098 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 3 Report Version 1 Reference No.: 200417N002 Frequency Range< Above 1GHz >
