SHKCL101ALoop100

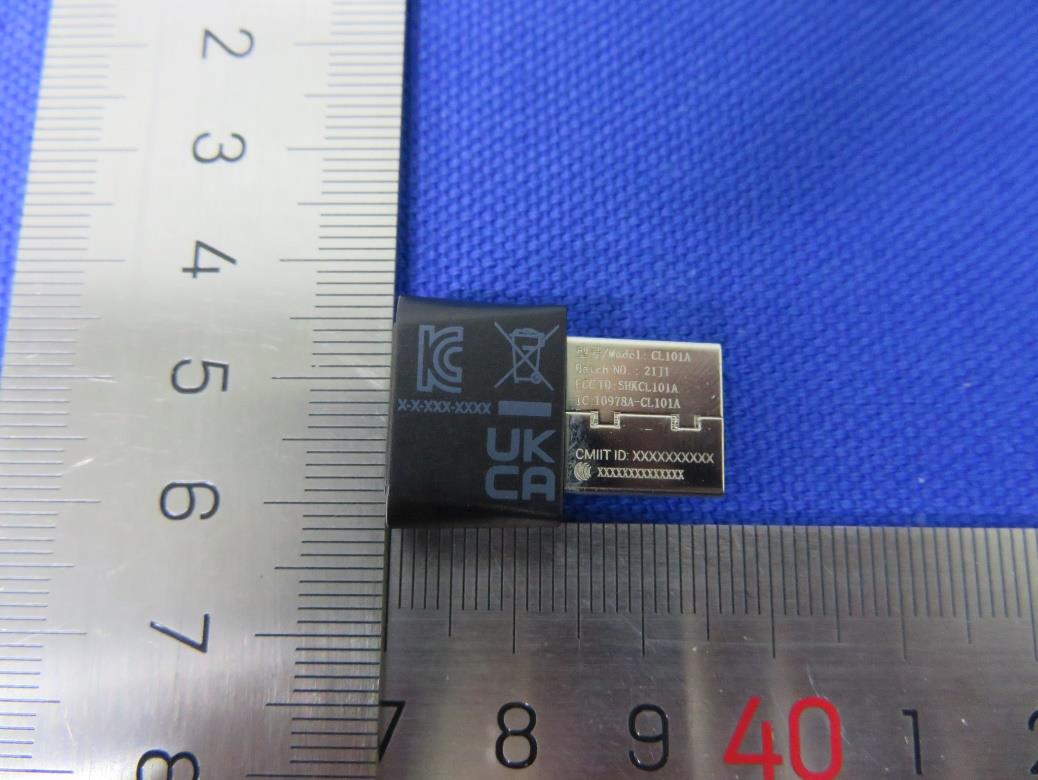

QUICK START AfterShokz Loop100 USB-A Bluetooth® Adapter Model: CL101A *Compatible products: OpenComm, OpenComm UC Pairing 1. Start with OpenComm turned off. Press and hold the Volume+ button until the LED Indicator flashes red and blue. 2. Plug the USB adapter into a USB port on your PC. The LED will flash blue rapidly. 3. Connection is established when Audrey says "Connected" or beeps. The LED on the USB adapter is solid blue. 4. To play music or take calls on the headset, please check, and ensure the “AfterShokz Loop100” is the default input and output devices in your operating system’s audio settings. Multifunction Button (Designer will put the chart into graphic presentation) Multifunction Button LED Function Action LED Pair to a headset Press and hold for 2 seconds Flashes blue rapidly Reconnect to the last connected headset Click once Flashes blue every second Reset the adapter Press and hold for 2 seconds, then double-click Flashes blue then turns solid blue for 5 seconds, then flashes blue rapidly LEGAL AfterShokz Loop 100 USB-A Wireless Adapter Model CL101A ENGLISH Note Design and specification are subject to change without notice. For the most up-to-date product information, please visit www.aftershokz.com. Safety Instructions · Store the product in a cool, dry place. The working and storage temperature should be 0°C-55°C (45°F-131°F). · Never allow children to play with the product – small parts may be a choking hazard. · Keep the produce away from heat sources, direct sunlight, combustible gas, or other liquids. · Do not disassemble the product. · Unplug, discontinue use, and contact Shokz if the product overheats or has a damaged outer casing or plug. FCC FCC Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that is deemed to comply without testing of specific absorption rate (SAR). Resposible party (contact for FCC matters only): AfterShokz LLC. 3200 Gracie Kiltz Lane, Suite 400 Austin, TX 78758 USA www.aftershokz.com Industry Canada This device complies with Industry Canada licence- exempt RSS standard(s): Operation is subject to the following Two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. WEEE Declaration of Conformity This WEEE logo means that this product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product. Input: 5V1000mA Frequency: 2400-2483.5MHzMaximum Power: 5dbm CE Declaration of Conformity Shokz Holding Limited hereby declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and all other applicable EU Directive requirements. The complete declaration of conformity can be found at: https://us.aftershokz.com/pages/policies. AfterShokz’s EU representative is AfterShokz Euro B.V., Schipholweg 103, 2316XC Leiden, Netherlands. Manufacturer Warranty: Shokz Holding Limited gives a warranty of 24 months on this product. For the current warranty conditions, please visit our website at www.aftershokz.com or contact your AfterShokz partner. Before putting the product into operation, please observe the respective country specific regulations. UK Declaration of Conformity Shokz Holding Limited hereby declares that this product is in compliance with the essential requirements and all other applicable United Kingdom’s regulations. The complete declaration of conformity can be found at: https://us.aftershokz.com/pages/policies. AfterShokz’s authorised representative in the UK is Pinpoint Consumer Electr…

Text truncated - open the document above for the full version.

QF094234 Page 1 of 1 Revision 0 Authority to Act as Agent Date: 12 November 2021 TUV Rheinland Group 762 Park Avenue Youngsville, NC 27596 To Whom It May Concern: I appoint TUV Rheinland (Shenzhen) Co., Ltd. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC and Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with AfterShokz LLC / 3200 Gracie Kiltz Lane, Suite 400, Austin, TX 78758, United States. For TCB applications, We certify that we are not subject t denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 12 months By : Zoe Chow (Signature) (Print Name) Title : Certification Engineer Telephone : 315 218 0308 On behalf of : AfterShokz LLC (Company Name)

Safety Human Exposure 1.1 Radio Frequency Exposure Compliance 1.1.1 Electromagnetic Fields RESULT: Pass Test Specification Test item : Loop100 Identification / Type No. : CL101A FCC ID : SHKCL101A IC : 10978A-CL101A HVIN : CL101A Test standard : CFR47 FCC Part 2: Section 2.1093 CFR47 FCC Part 1: Section 1.1310 FCC KDB Publication 447498 v06 RSS-102 Issue 5 February 2021 Measurement Record: The minimum distance for the EUT is less than 5mm. For FCC: BR&EDR: Since maximum peak output power of the transmitter is 4.13 dBm ≈ 2.59 mW < 3*d f = 9.52 mW. BLE: Since maximum peak output power of the transmitter is 1.31 dBm≈ 1.4 mW < 3*d f = 9.52 mW. Hence the EUT is excluded from SAR evaluation according to FCC KDB Publication 447498 D01 General RF Exposure Guidance v06. For IC: BR&EDR: The maximum e.i.r.p. of the transmitter is 4.13 dBm (2.59 mW), which is far below the SAR exclusion threshold level 4 mW ≈ 6.02 dBm. BLE: The maximum e.i.r.p. of the transmitter is 1.31 dBm (1.4 mW), which is far below the SAR exclusion threshold level 4 mW ≈ 6.02 dBm. Hence the EUT is exempted from routine evaluation limits (SAR Evaluation) according to clause 2.5.1 of RSS-102 Issue 5.

Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: CN21ITGY 001 Auftrags-Nr.: Order no.: 168333585 Seite 1 von 23 Page 1 of 23 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2021-09-01 Auftraggeber: Client: AfterShokz LLC 3200 Gracie Kiltz Lane, Suite 400, Austin, TX 78758, United States. Prüfgegenstand: Test item: Loop100 Bezeichnung / Typ-Nr.: Identification / Type no.: CL101A (Trademark: AFTERSHOKZ, SHOKZ) Auftrags-Inhalt: Order content: Test Report Prüfgrundlage: Test specification: CFR47 FCC Part 15: Subpart C Section 15.247 RSS-247 Issue 2 February 2017 RSS-Gen Issue 5 March 2019 Wareneingangsdatum: Date of sample receipt: 2021-10-12 Please refer to Photo Document Prüfmuster-Nr.: Test sample no: A003119946-001,006,007 A003150518-007~014 Prüfzeitraum: Testing period: 2021-10-13 - 2021-11-05 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von: tested by: genehmigt von: authorized by: Datum: Date: 2021-11-16 Ausstellungsdatum: Issue date: 2021-11-16 Stellung / Position: Section Manager Stellung / Position: Reviewer Sonstiges / Other: FCC ID: SHKCL101A IC: 10978A-CL101A HVIN: CL101A Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TÜV Rheinland (Shenzhen) Co., Ltd. 1601 R&D Room, 1602-1604, 17-18F, Building 7 Site C, Vanke Cloud City Phase I, Xingke First Street, Xili Street, Xili Community, Nanshan District, Shenzhen 518052, P.R. China Mail: [email protected] · Web: www.tuv.com jjj Chris Chen Lin Lin Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No.: CN21ITGY 001 Seite 2 von 23 Page 2 of 23 Test Summary 5.1.1 ANTENNA REQUIREMENT RESULT: Pass 5.1.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER RESULT: Pass 5.1.3 99% BANDWIDTH RESULT: Pass 5.1.4 20DB BANDWIDTH RESULT: Pass 5.1.5 CARRIER FREQUENCY SEPARATION RESULT: Pass 5.1.6 NUMBER OF HOPPING FREQUENCY RESULT: Pass 5.1.7 TIME OF OCCUPANCY RESULT: Pass 5.1.8 CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100 KHZ BANDWIDTH RESULT: Pass 5.1.9 RADIATED SPURIOUS EMISSION RESULT: Pass 5.1.10 CONDUCTED EMISSION RESULT: Pass Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No.: CN21ITGY 001 Seite 3 von 23 Page 3 of 23 Contents 1 GENERAL REMARKS ........................................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS ............................................................................................................ 4 2 TEST SITES ........................................................................................................................................ 4 2.1 TEST FACILITIES ................................................................................................................................. 4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS................................................................................. 5 2.3 TRACEABILITY .................................................................................................................................... 6 2.4 CALIBRATION ..................................................................................................................................... 6 2.5 MEASUREMENT UNCERTAINTY............................................................................................................. 6 2.6 LOCATION OF ORIGINAL DATA ............................................................................................................. 6 2.7 STATUS OF FACILITY USED FOR TESTING ............................................................................................. 6 3 GENERAL PRODUCT INFORMATION ...................................................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE ............................................................................................. 7 3.2 RATINGS AND SYSTEM DETAILS .......................................................................................................... 7 3.3 INDEPENDENT OPERATION MODES ...................................................................................................... 9 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ......................................................................... 9 3.5 SUBMITTED DOCUMENTS..................................................................................................................... 9 4 TEST SET-UP AND OPERATION MODES ..............................................................................................10 4.1 PRINCIPLE OF CONFIGURATION SELECTION .......................................................................................10 4.2 TEST OPERATION AND TEST SOFTWARE ............................................................................................10 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ................…

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report - Products Appendix B CN21ITGY 001 Page 1 of 48 Appendix B: Test Results of Bluetooth BR/EDR mode APPENDIX B: TEST RESULTS OF BLUETOOTH BR/EDR MODE ......................................................................................... 1 APPENDIX B.1: TEST RESULTS OF 99% BANDWIDTH ................................................................................................................... 2 APPENDIX B.2: TEST RESULTS OF 20DB BANDWIDTH .................................................................................................................. 5 APPENDIX B.3: TEST RESULTS OF CARRIER FREQUENCY SEPARATION ............................................................................................. 8 APPENDIX B.4: TEST RESULTS OF NUMBER OF HOPPING FREQUENCY ............................................................................................ 9 APPENDIX B.5: TEST RESULTS OF TIME OF OCCUPANCY ............................................................................................................. 10 APPENDIX B.6: TEST RESULTS OF CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100 KHZ BANDWIDTH ....................................... 16 Conducted Spurious Emission ..................................................................................................................................... 16 Band Edge ................................................................................................................................................................... 23 APPENDIX B.7: TEST RESULTS OF RADIATED SPURIOUS EMISSIONS ............................................................................................. 27 30MHz - 1GHz ............................................................................................................................................................. 27 1GHz - 18GHz .............................................................................................................................................................. 31 APPENDIX B.8: TEST RESULTS OF RADIATED EMISSIONS IN RESTRICTED BANDS ............................................................................. 43 APPENDIX B.9: TEST RESULTS OF CONDUCTED EMISSION .......................................................................................................... 47 Prüfbericht - Produkte Test Report - Products Appendix B CN21ITGY 001 Page 2 of 48 Appendix B.1: Test Results of 99% Bandwidth TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.87510 2401.573 2402.449 --- PASS 2441 0.87961 2440.571 2441.451 --- PASS 2480 0.87355 2479.572 2480.445 --- PASS 3DH5 Ant1 2402 1.2045 2401.400 2402.605 --- PASS 2441 1.1719 2440.422 2441.594 --- PASS 2480 1.1733 2479.418 2480.591 --- PASS DH5_Ant1_2402 DH5_Ant1_2441 Prüfbericht - Produkte Test Report - Products Appendix B CN21ITGY 001 Page 3 of 48 DH5_Ant1_2480 3DH5_Ant1_2402 Prüfbericht - Produkte Test Report - Products Appendix B CN21ITGY 001 Page 4 of 48 3DH5_Ant1_2441 3DH5_Ant1_2480 Prüfbericht - Produkte Test Report - Products Appendix B CN21ITGY 001 Page 5 of 48 Appendix B.2: Test Results of 20dB Bandwidth TestMode Antenna Channel 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.936 2401.559 2402.495 --- PASS 2441 0.891 2440.556 2441.447 --- PASS 2480 0.942 2479.550 2480.492 --- PASS 3DH5 Ant1 2402 1.272 2401.361 2402.633 --- PASS 2441 1.260 2440.367 2441.627 --- PASS 2480 1.299 2479.361 2480.660 --- PASS DH5_Ant1_2402 DH5_Ant1_2441 Prüfbericht - Produkte Test Report - Products Appendix B CN21ITGY 001 Page 6 of 48 DH5_Ant1_2480 3DH5_Ant1_2402 Prüfbericht - Produkte Test Report - Products Appendix B CN21ITGY 001 Page 7 of 48 3DH5_Ant1_2441 3DH5_Ant1_2480 Prüfbericht - Produkte Test Report - Products Appendix B CN21ITGY 001 Page 8 of 48 Appendix B.3: Test Results of Carrier Frequency Separation TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict DH5 Ant1 Hop 0.970 ≥0.942 PASS 3DH5 Ant1 Hop 1.096 ≥0.866 PASS DH5_Ant1_Hop 3DH5_Ant1_Hop Prüfbericht - Produkte Test Report - Products Appendix B CN21ITGY 001 Page 9 of 48 Appendix B.4: Test Results of Number of Hopping Frequency TestMode Antenna Channel Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS DH5_Ant1_Hop 3DH5_Ant1_Hop Prüfbericht - Produkte Test Report - Products Appendix B CN21ITGY 001 Page 10 of 48 Appendix B.5: Test Results of Time of Occupancy TestMode Antenna Channel BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.40 330 0.131 ≤0.4 PASS DH3 Ant1 Hop 1.65 170 0.281 ≤0.4 PASS DH5 Ant1 Hop 2.90 110 0.319 ≤0.4 PASS 3DH1 Ant1 Hop 0.41 330 0.136 ≤0.4 PASS 3DH3 Ant1 Hop 1.66 170 0.283 ≤0.4 PASS 3DH5 Ant1 Hop 2.91 110 0.32 ≤0.4 PASS DH1_Ant1_Hop Prüfbericht - Produkte Test Report - Products Appendix B CN21ITGY 001 Page 11 of 48 DH3_Ant1_Hop Prüfbericht - Produkte Test Report - Products Appendix B CN21ITGY 001 Page 12 of 48 DH5_Ant1_Hop Prüfbericht - Produkte Test Report - Products Appendix B CN21ITGY 001 Page 13 of 48 3DH1_Ant1_Hop Prüfbericht - Produkte Test Report - Products Appendix B CN21ITGY 001 Page 14 of 48 3DH3_Ant1_Hop Prüfbericht - Produkte Test Report - Products Appendix B CN21ITGY 001 Page 15 of 48 3DH5_Ant1_Hop Prüfbericht - Produkte Test Report - Products Appendix B CN21ITGY 001 Page 16 of 48 Appendix B.6: Test Results of Conducted Spurious Emissions Measured in 100 kHz Bandwidth Conducted Spurious Emission TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference 4.12 4.12 --- PASS 30~1000 4.12 -63.53 ≤-15.88 PASS 1000~26500 4.12 -53.86 ≤-15.88 PASS 2441 Reference 2.87 2.87 --- PASS 30~1000 2.87 -63.72 ≤-17.13 PASS 1000~26500 2.87 -53.93 ≤-17.13 PASS 2480 Reference 2.20 2.20 --- PASS 30~1000 2.20 -63.04 ≤-17.8 PASS 1000~26500 2.20 -51.55 ≤-17.8 PASS 3DH5 Ant1 2402 Reference 1.52 1.52 --- PASS 30~1000 1.52 -63.23 ≤-18.48 PASS 1000~26500 1.52 -53.35 ≤-18.48 PASS 2441 Ref…

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report - Products Appendix B CN21ITGY 001 Page 25 of 48 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480 Prüfbericht - Produkte Test Report - Products Appendix B CN21ITGY 001 Page 26 of 48 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 Prüfbericht - Produkte Test Report - Products Appendix B CN21ITGY 001 Page 27 of 48 Note: Testing was carried out within frequency range 9kHz to the tenth harmonics. The measurement results below 30MHz and 18GHz - 26.5GHz were greater than 20dB below the limit, so only the radiated spurious emissions from 30MHz to 18GHz were reported. Appendix B.7: Test Results of Radiated Spurious Emissions Note: This testing was carried out on different modulations, but only the worst case was presented in this report. 30MHz - 1GHz EUT Information EUT Name: Loop100 Model: CL101A Test Mode: BR_DH5_Low channel Test Voltage:: DC 5V by USB port(PC input AC 120V/60Hz) Remark: Temp 22 Humi:52% Test Standard: FCC 15.247 Tested By: Kei Zhang Reviewed By: Terry Yin Level in dBμV/m Critical_Freqs Frequency (MHz) MaxPeak (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 63.998500 24.58 40.00 15.42 100.0 H 0.0 -19.8 156.148500 27.99 43.50 15.51 100.0 H 240.0 -22.0 224.048500 32.24 46.00 13.76 100.0 H 222.0 -18.3 412.859000 36.69 46.00 9.31 100.0 H 0.0 -13.5 Prüfbericht - Produkte Test Report - Products Appendix B CN21ITGY 001 Page 28 of 48 EUT Information EUT Name: Loop100 Model: CL101A Test Mode: BR_DH5_Low channel Test Voltage:: DC 5V by USB port(PC input AC 120V/60Hz) Remark: Temp 22 Humi:52% Test Standard: FCC 15.247 Tested By: Kei Zhang Reviewed By: Terry Yin Level in dBμV/m Critical_Freqs Frequency (MHz) MaxPeak (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 46.829500 31.25 40.00 8.75 100.0 V 160.0 -18.5 75.978000 31.46 40.00 8.54 100.0 V 87.0 -23.4 120.113000 21.04 43.50 22.46 100.0 V 42.0 -20.8 377.745000 28.27 46.00 17.73 100.0 V 347.0 -14.3 937.532000 37.82 46.00 8.18 100.0 V 311.0 -4.6 Prüfbericht - Produkte Test Report - Products Appendix B CN21ITGY 001 Page 29 of 48 EUT Information EUT Name: Loop100 Model: CL101A Test Mode: BR_DH5_High channel Test Voltage:: DC 5V by USB port(PC input AC 120V/60Hz) Remark: Temp 22 Humi:52% Test Standard: FCC 15.247 Tested By: Kei Zhang Reviewed By: Terry Yin Level in dBμV/m Critical_Freqs Frequency (MHz) MaxPeak (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 73.407500 27.33 40.00 12.67 100.0 H 341.0 -22.9 95.814500 28.59 43.50 14.91 100.0 H 75.0 -19.6 224.048500 33.58 46.00 12.42 100.0 H 256.0 -18.3 308.341500 34.26 46.00 11.74 100.0 H 272.0 -16.0 876.131000 35.01 46.00 10.99 100.0 H 143.0 -5.2 Prüfbericht - Produkte Test Report - Products Appendix B CN21ITGY 001 Page 30 of 48 EUT Information EUT Name: Loop100 Model: CL101A Test Mode: BR_DH5_High channel Test Voltage:: DC 5V by USB port(PC input AC 120V/60Hz) Remark: Temp 22 Humi:52% Test Standard: FCC 15.247 Tested By: Kei Zhang Reviewed By: Terry Yin Level in dBμV/m Critical_Freqs Frequency (MHz) MaxPeak (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 46.926500 31.66 40.00 8.34 100.0 V 301.0 -18.5 63.998500 25.41 40.00 14.59 100.0 V 266.0 -19.8 234.621500 37.55 46.00 8.45 100.0 V 1.0 -17.9 491.768500 30.58 46.00 15.42 100.0 V 329.0 -11.9 Prüfbericht - Produkte Test Report - Products Appendix B CN21ITGY 001 Page 31 of 48 1GHz - 18GHz Note: The highest waveform in the figure is Bluetooth Fundamental. EUT Information EUT Name: Loop100 Model: CL101A Test Mode: BR_DH5_Low channel Test Voltage:: DC 5V by USB port(PC input AC 120V/60Hz) Remark: Temp 23 Humi:45% Test Standard: FCC 15.247 Tested By: Kei Zhang Reviewed By: Terry Yin Level in dBμV/m Critical_Freqs Frequency (MHz) MaxPeak (dBμV/m) Average (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 4803.500000 67.84 --- 74.00 6.16 100.0 H 167.0 11.8 Final_Result Frequency (MHz) Average (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 4803.500000 37.04 54.00 16.96 100.0 H 167.0 11.8 Prüfbericht - Produkte Test Report - Products Appendix B CN21ITGY 001 Page 32 of 48 EUT Information EUT Name: Loop100 Model: CL101A Test Mode: BR_DH5_Low channel Test Voltage:: DC 5V by USB port(PC input AC 120V/60Hz) Remark: Temp 23 Humi:45% Test Standard: FCC 15.247 Tested By: Kei Zhang Reviewed By: Terry Yin Level in dBμV/m Critical_Freqs Frequency (MHz) MaxPeak (dBμV/m) Average (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 4804.500000 61.16 --- 74.00 12.84 100.0 V 348.0 11.8 Final_Result Frequency (MHz) Average (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 4804.500000 30.36 54.00 23.64 100.0 V 348.0 11.8 Prüfbericht - Produkte Test Report - Products Appendix B CN21ITGY 001 Page 33 of 48 EUT Information EUT Name: Loop100 Model: CL101A Test Mode: BR_DH5_Low channel Test Voltage:: DC 5V by USB port(PC input AC 120V/60Hz) Remark: Temp 22 Humi:52% Test Standard: FCC 15.247 Tested By: Kei Zhang Reviewed By: Terry Yin Level in dBμV/m Critical_Freqs Frequency (MHz) MaxPeak (dBμV/m) Average (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 7205.950000 53.38 --- 74.00 20.62 100.0 H 52.0 8.8 9608.233333 46.05 --- 74.00 27.95 100.0 H 202.0 10.4 Prüfbericht - Produkte Test Report - Products Appendix B CN21ITGY 001 Page 34 of 48 EUT Information EUT Name: Loop100 Model: CL101A Test Mode: BR_DH5_Low channel Test Voltage:: DC 5V by USB port(PC input AC 120V/60Hz) Remark: Temp 22 Humi:52% Test Standard: FCC 15.247 Tested By: Kei Zhang Reviewed By: Terry Yin Level in dBμV/m Critical_Freqs Frequency (MHz) MaxPeak (dBμV/m) Average (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 7205.950000 48.46 --- 74.00 25.54 100.0 V 261.0 8.8 9607.250000 46.28 --- 74.00 27.72 100.0 V 285.0 10.4 Prüfbericht - Produkte Test Report - Products Appendix B CN21ITGY 001 Page 35 o…

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report - Products Appendix A CN21ITGY 001 Page 1 of 3 Appendix A: Photographs of the Test Set-Up APPENDIX A: PHOTOGRAPHS OF THE TEST SET-UP.................................................................................................................. 1 PHOTOGRAPH 1: SET-UP PHOTO FOR RADIATED SPURIOUS EMISSION, 30MHZ - 1GHZ ......................................................................... 2 PHOTOGRAPH 2: SET-UP PHOTO FOR RADIATED SPURIOUS EMISSION, 1GHZ - 18GHZ .......................................................................... 2 PHOTOGRAPH 3: SET-UP PHOTO FOR CONDUCTED EMISSION .............................................................................................................. 3 Prüfbericht - Produkte Test Report - Products Appendix A CN21ITGY 001 Page 2 of 3 Photograph 1: Set-up photo for Radiated Spurious Emission, 30MHz - 1GHz Photograph 2: Set-up photo for Radiated Spurious Emission, 1GHz - 18GHz Prüfbericht - Produkte Test Report - Products Appendix A CN21ITGY 001 Page 3 of 3 Photograph 3: Set-up photo for Conducted Emission
