SJ20608136Car equipment unit

Clarion Co., Ltd. Confidential INSTRUCTION MANUAL OF UGZZ8-X01 1. BLUETOOTH MODULE SPECIFICATION 1-1. PRODUCT NAME UGZZ8-X01 1-2. MANUFACTURER ALPS ELECTRIC 1-3. FEATURES Bluetooth™ Specification V2.0+EDR support Complete type of Bluetooth module, built-in various profile Built-in Link controller, Link Manager Protocol Output Power class2 compliant Type with a chip antenna Full custom package with pwb can be fit to only navigation products made by Clarion Built-in Flash memory(16Mbit), system clock 26MHz(OSC) B to B connector interface 1-4. SPECIFICATION 1-4-1. MECHANICAL SPECIFICATION 1-4-1-1. EXTERNAL DIMENSIONS Refer to the following page. Bluetooth Module ALPS ELECTRIC On-Board Lug Terminal ETO OG-R ＲＦ COAXIAL CONNECTOR HIROSE ELECTRIC U. FL-R-SMT-1[15] FPC Connector HIROSE ELECTRIC FH12-30S-0.5SH[55] FPC Connector terminal No. Tact Switch ALPS ELECTRIC SKRPABE010 ROHM SML- 311DTT86J2 INSTRUCTION MANUAL OF UGZZ8-X01 - 1 / 9 - Clarion Co., Ltd. Confidential 1-4-1-2. MASS 10.17 [g] (Typ.) 1-4-2. ELECTRIC SPECIFICATION 1-4-2-1. POWER-SUPPLY-VOLTAGE DC +3.1 to +3.6 [V] 1-4-2-2. TEMPERATURE RANGE -40 to +85 [degree C] 1-4-3. RF SPECIFICATION 1-4-3-1. NORMAL TRANSMIT POWER(AVERAGED POWER) -6 to +4 [dBm] 1-4-3-2. REFERENCE SENSITIVITY LEVEL(BER=0.001%) MAX. -70 [dBm] 1-5. LABEL INFORMATION 1-5-1. LABEL LAYOUT Model Number Clarion Parts Lot Number 001WWDA1609 Label IC: 419C-0608136 Model: UGZZ8-X01 INSTRUCTION MANUAL OF UGZZ8-X01 - 2 / 9 - Clarion Co., Ltd. Confidential 1-5-2. CONTENTS OF LABEL 1-6. CONNECTOR PIN ASSIGNMENT 21GND-Ground 20GND-Ground 19UART_RXIUART_RX 18UART_TXOUART_TX 23GND-Ground 22GND-Ground 17UART_CTSIUART_CTS GND-Ground 16UART_RTSOUART_RTS NO.PIN NAMENO. 2GND- 1GND- 4PIO[2] (PTE5)O 3PIO[0] (PTB1)O 6NC- 5PIO[1] (PTE0)O 8NC- 7NC- 10PCM_CLKO 9GND- 12PCM_INI 11PCM_SYNCO 24ILL-I 13PCM_OUTO 14CLK11/12MI 15 26DVD_EJECTO 25ILL+I 28NC- 27RST#I 30VCCI 29VCCI DESCRIPTION Ground Ground AV Master Clock Select(44.1kHz=Low, 48kHz=High) PCM_Mute PCM_Reset(Active Low), DAC PwrDown(PwrDown Enable=Low) NC NC NC Ground Audio Clock Audio Clock AV/HF Input Audio Clock LED Signal LED Signal AV Master clock Input Power Supply 3.3V DISC Eject Signal Reset (Active Low ) NC Power Supply 3.3V FPC Connector terminal NO. 30 1 Model Number Rev. Number Clarion Parts Lot Number TELEC Mark & ID Company Name FCC ID & IC ID A 001WWDA1609 060-8136-01 SJ20608136 IC:419C-0608136 Model: UGZZ8-X01 INSTRUCTION MANUAL OF UGZZ8-X01 - 3 / 9 - Clarion Co., Ltd. Confidential 1-7. BLOCK DIAGRAM 2. PROCEDURE TO BUILD IN 2-1. PROCEDURE FOR EXTERNAL ANTENNA (1) Install External antenna to Upper cover (U-COVER AS) Upper cover External antenna INSTRUCTION MANUAL OF UGZZ8-X01 - 4 / 9 - Clarion Co., Ltd. Confidential (2) Install U-COVER AS to Navigation unit 1)Be careful so that a cable is not tucking 2)Tighten up a screw in order of one to two ( In addition, it is random order ) Screw U-COVER AS INSTRUCTION MANUAL OF UGZZ8-X01 - 5 / 9 - Clarion Co., Ltd. Confidential 2-2. PROCEDURE FOR UGZZ8-X01 (1) Install UGZZ8-X01 to Navigation unit 1)Install UGZZ8-X01 with a screw ※Take out an external antenna from a notch part 2)Install FSWA with a screw 3)Connected FSWA in order of 40pin-FFC cable, 80pin-FFC cable ※firmly-lock the FFC connector BtoB connection UGZZ8-X01 FSWA PCB Navigation unit FPC cable connection Screw External antenna A notch INSTRUCTION MANUAL OF UGZZ8-X01 - 6 / 9 - Clarion Co., Ltd. Confidential (2)Connect External antenna to UGZZ8-X01 , FPC cable connection between UGZZ8-X01 and FSWA PCB 1)Connect the dot mark side to FSWA PCB ※firmly-lock the ＦＦＣ connector 2)connect a cable as follows. After placement , fix it in TAPE-DV1. Navigation unit External A dot mark Point of contact side 30pin FFC cable Arrange a cable between BT module IC and FPC connector TAPE-DV1 More than 4 More than 4.5 External antenna A cable do not be arranged on a white print part INSTRUCTION MANUAL OF UGZZ8-X01 - 7 / 9 - Clarion Co., Ltd. Confidential (3) Install F-SHIELD-CASE-AS to Navigation unit (4) Install INNER-ESCUTCHEON-AS to Navigation unit (5) Install REAR-COVER-AS to Navigation unit (6) FPC cable connection between Navigation unit and 8400US-MONITOR-AS (7) Install 8400US-MONITOR-AS to Navigation unit (8) Pasting up of BT-COVER in Navigation unit 1)Pasting up of B-COVER in Navigation unit ※Pasting up standard Lengthwise direction:An end face of A cross direction:Right and left are equal (9) Pasting up of Rating-label in Navigation unit (10) Pasting up of Connector-sheet in Navigation unit BT-COVER Pasting up standard BT-COVER does not overlap the throttle portion. UGZZ8-X01 Installation position INSTRUCTION MANUAL OF UGZZ8-X01 - 8 / 9 - Clarion Co., Ltd. Confidential 3. NOITCE Avis 3-1. General information -Please note that this users manual should not be provided to end-users. 3-2. FCC Regulatory Information -This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation. -The following sentence has to be displayed on the outside of the device in which the module is installed: "Contains Transmitter Module FCC ID: SJ20608136", or "Contains FCC ID: SJ20608136" -Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. -This equipment complies with FCC RF radiation exposure limits set for an controlled enviornment. -The antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 3-3. Canada Regulatory Information -This device complies with Industry Canada licence-exempt RSS standards. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation. -Ce…

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: Clarion Co., Ltd. Address: 7-2 Shintoshin, Chuo-Ku City: Saitama-Shi, Saitama-Ken, 330-0081 Country: JAPAN Declare that: Name Representative of agent: Jiro Ogiwara (1) Agent Company name: Taiyo Yuden Co., Ltd. EMC Center Address: 5607-2 Nakamuroda-machi City: Takasaki-shi, Gunma, 370-3347 Country JAPAN is authorized to apply for Certification of the following product(s): Product description: Car equipment unit Type designation: UGZZ8-X01 Trademark: Clarion on our behalf. Date: Jul-5-2011 City: Saitama-Shi, Saitama-Ken Name: Noriyuki Komatsu (2) Function: Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

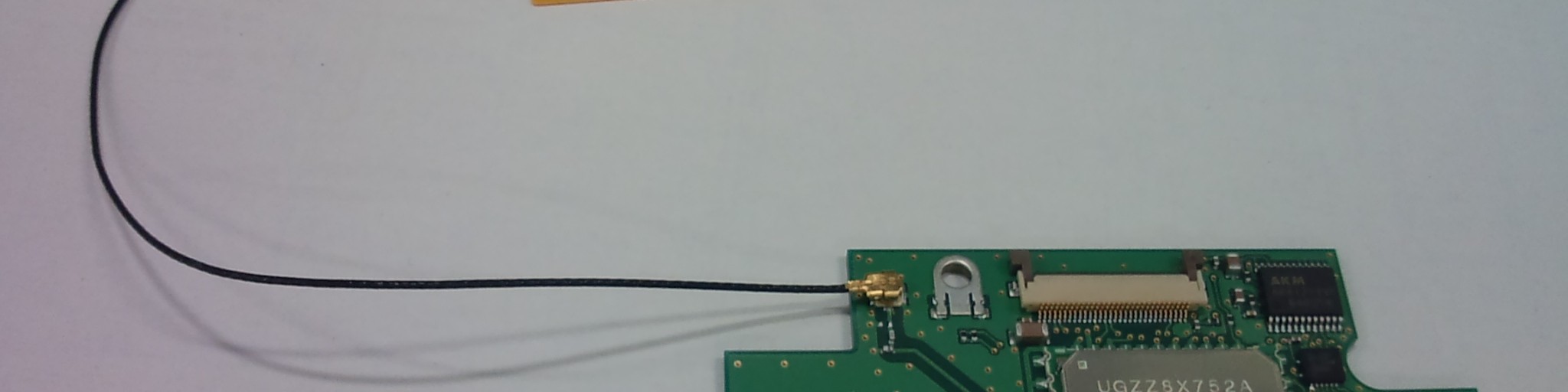

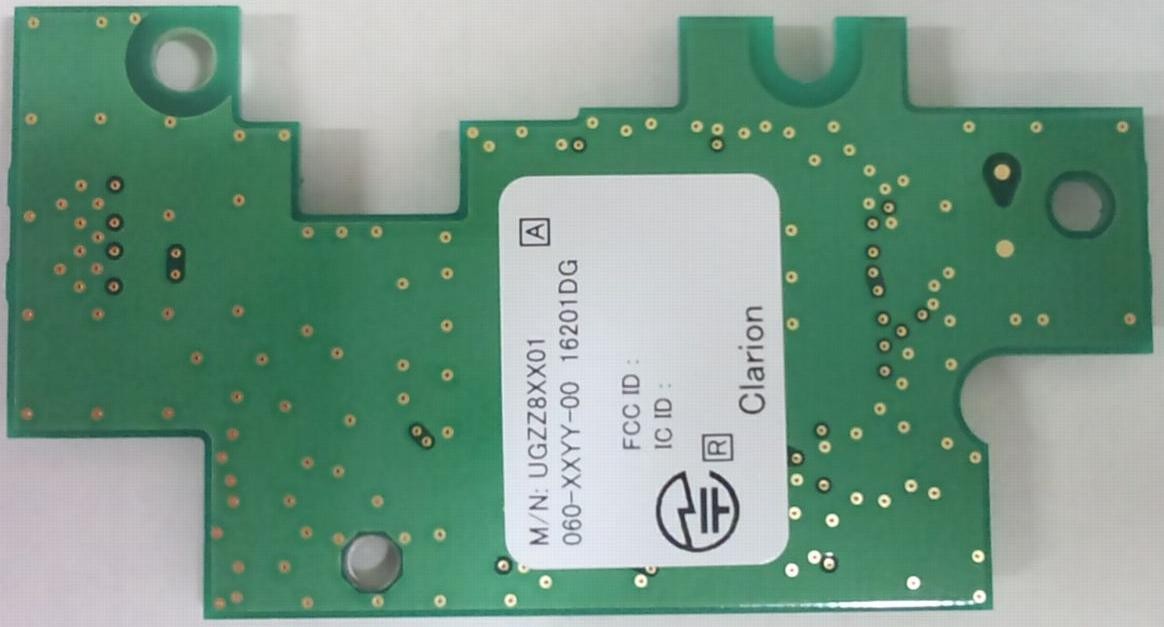

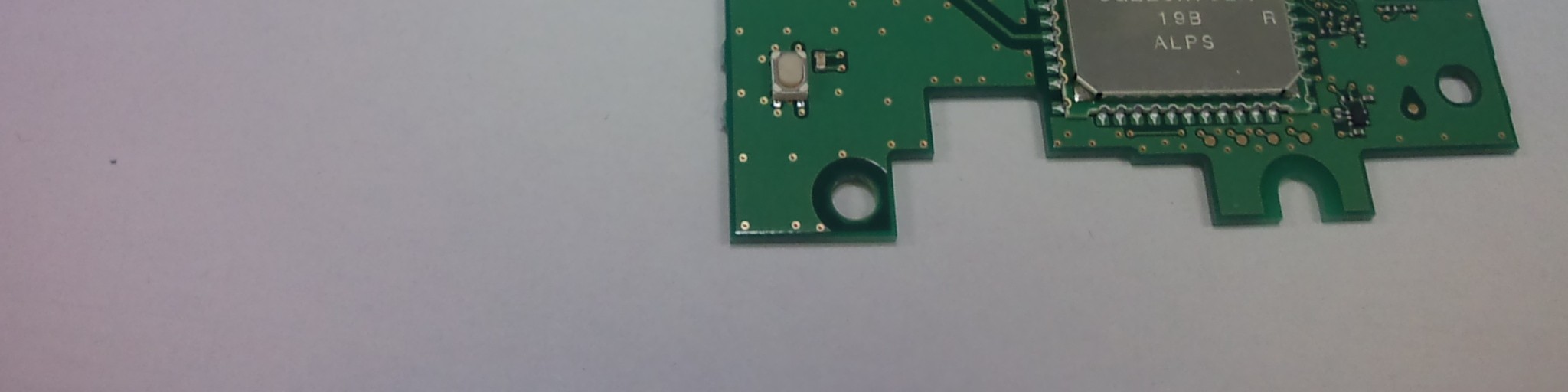

Clarion Co., Ltd. Confidential UGZZ8-X01 External Photo 1.Photo 1-1. TOP VIEW 1-2. BOTTOM VIEW UGZZ8-X01 External Photo - 1 / 2 - Clarion Co., Ltd. Confidential 1-3. MODULE WITH EXTERNAL ANTENNA UGZZ8-X01 External Photo - 2 / 2 -

Clarion Co., Ltd. Confidential UGZZ8-X01 Label Information 1. Label layout 2. Contents of Label Model Number Rev. Number Clarion Parts Lot Number TELEC Mark & ID Company Name FCC ID & IC ID A 001WWDA1609 060-8136-01 SJ20608136 IC:419C-0608136 Model Number Clarion Parts Lot Number 001WWDA1609 Label IC: 419C-0608136 Model: UGZZ8-X01 Model: UGZZ8-X01 UGZZ8-X01 Label Information - 1 / 1 -

Clarion Co., Ltd. Confidential UGZZ8-X01 Internal Photo 1.Internal photo Removed shield case Close-up of inside shield case UGZZ8-X01 Internal Photo - 1 / 1 -

RF Exposure Evaluation No.: 11020FCE Page: 2 / 2 5607-2, Nakamuroda-machi, Takasaki-shi, Gunma, 370-3347, Japan Radiofrequency Radiation Exposure Evaluation 15.247(i): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See § 1.1307(b)(1) of this chapter. 1.1307(b)(1): The appropriate exposure limits in § 1.1310 and 2.1093 of this chapter are generally applicable to all facilities, operations and transmitters regulated by the Commission. 1.1310: The criteria listed in table 1 shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in § 1.1307(b). Limit = 1.0 [mW/cm 2 ] at 2.5GHz MPE Calculation: A * B C ** D Limit [mW/cm 2 ] Specified Antenna Gain * Max. RF Output Power at Antenna Terminal [mW] Distance [cm] ** Power Density. [mW/cm 2 ] 1.622 2.213 20 0.000714 1.0 *: Numeric value of antenna gain (2.10dBi). **: The shortest distance between transmitter’s radiating structure and the body of the user or nearby person. This device should be used in separation distance of at least 20 centimeters maintained between transmitter’s radiating structure and the body of the user or nearby persons. Refer to K30306 user manual. Calculation: D = (A * B) / (4 * π * C^2) (1) For a truly worst-case prediction of power density at or near a surface, such as at groundlevel or on a rooftop, 100% reflection of incoming radiation can be assumed, resulting in a potential doubling of predicted field strength and a four-fold increase in power density. In that case Equations (1) can be modified to: D = (2^2)*(A * B) / (4 * π * C^2) (worst-case) Power Density = 0.002856mW/cm 2 MPE Limit = 1.0mW/cm 2 > Power Density in worst-case This means that according to OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01), the equipment fulfills the requirements on power density for general population/uncontrolled exposure and therefore fulfills the requirements of 47 CFR Part 15.247(i).

Test Report Report No.: 11020FC Page: 2 / 49 Table of Contents Revised Record .....................................................................................................................................................................4 1 Notice..............................................................................................................................................................................5 1.1 General Information .............................................................................................................................................5 1.2 Test Report ...........................................................................................................................................................5 1.3 Test Condition ......................................................................................................................................................5 2 Applicant Information ..................................................................................................................................................6 2.1 Customer Information...........................................................................................................................................6 2.2 Product Description ..............................................................................................................................................6 2.3 Summary of Test and Inspection Result ...............................................................................................................7 3 System Test Configuration ...........................................................................................................................................8 3.1 Justification ..........................................................................................................................................................8 3.2 Operating Modes ..................................................................................................................................................9 3.3 Configuration of Tested System .........................................................................................................................10 3.4 Test Instruments .................................................................................................................................................11 4 Antenna Requirement.................................................................................................................................................12 5 AC Powerline Conducted Emission ...........................................................................................................................13 6 20dB Bandwidth ..........................................................................................................................................................14 6.1 Test Setup ...........................................................................................................................................................14 6.2 Test Results ........................................................................................................................................................14 7 Carrier Frequency Separation ...................................................................................................................................15 7.1 Test Setup ...........................................................................................................................................................15 7.2 Test Results ........................................................................................................................................................15 8 Number of Hopping Frequency .................................................................................................................................17 8.1 Test Setup ...........................................................................................................................................................17 8.2 Test Results ........................................................................................................................................................17 9 Dwell Time ...................................................................................................................................................................18 9.1 Test Setup ...........................................................................................................................................................18 9.2 Test Results ........................................................................................................................................................18 10 Maximum Peak Output Power ..................................................................................................................................21 10.1 Test Setup ...........................................................................................................................................................21 10.2 Test Results ........................................................................................................................................................21 11 Band Edge Compliance...............................................................................................................................................23 11.1 Test Setup ...........................................................................................................................................................23 11.2 Test Results ........................................................................................................................................................23 12 Spurious RF Conducted Emission .................................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos (11020FC) Page: 1 / 4 TEST SETUP PHOTOS Applicant : Clarion Co., Ltd. Model No. : UGZZ8-X01 FCC ID : SJ20608136 Test Setup Photos (11020FC) Page: 2 / 4 Photos of Tested EUT Test Setup Photos (11020FC) Page: 3 / 4 Photos of Test Setup Photos of Radiated Measurement Test Setup Photos (11020FC) Page: 4 / 4
