SJ2QY7200Bluetooth module

Clarion Co., Ltd. CONFIDENTIAL (BTU-3586)INSTRUCTION MANUAL TABLE of CONTENTS 1. OUTLINE of BTU-3586 1-1. USAGE 1-2. FEATURE 2. BLOCK DIAGRAM 2-1. BTU-3586(FRONT PCB) 2-2. BLUETOOTH MODULE(UGZZ8-732) 3. BLUETOOTH MODULE SPECIFICATION 3-1. PRODUCT NAME 3-2. MANUFACTURE 3-3. FEATURES 3-4. SPECIFICATION 3-4-1. MECHANICAL SPECIFICATION 3-4-1-1. EXTERNAL DIMENSION 3-4-1-2. MASS 3-4-2. ELECTRICAL SPECIFICATION 3-4-2-1. POWER SUPPLY VOLTAGE 3-4-2-2. OPERATING RANGE 3-4-3. RF SPECIFICATION 3-4-3-1. MODULATION METHOD 3-4-3-2. NORMAL TRANSMIT POWER ( AVERAGED POWER ) 3-4-3-3. REFERENCE SENSITIVITY LEVEL ( BER = 0.001% ) 3-4-3-4. DATA RATE 3-4-3-5. ENCODING METHOD 3-4-3-6. OPERATING FREQUENCY RANGE 3-4-3-7. TRANSMIT POWER LEVEL 3-4-3-8. ANTENNA TYPE 3-4-3-9. BLUETOOTH MODULE & EXTERNAL ANTENNA POSITION 3-4-4. EXTERNAL ANTENNA SPECIFICATION 3-4-4-1. PRODUCT NAME 3-4-4-2. MANUFACTURE 3-4-4-3. FEATURES 3-4-4-4. PEAK GAIN 3-4-4-5. AVERAGE GAIN 3-4-4-6. EXTERNAL DIMENSION 3-4-5. PIN ASSIGNMENT 4. BTU-3586(FRONT PCB) SPECIFICATION 4-1. EXTERNAL DIMENSION 4-2. MAJOR PARTS LAYOUT 4-3. CONNECTOR PIN ASSIGNMENT 4-3-1. BtoB CONNECTOR(9828S-30Y900) / P200 4-3-2. DEBUG CONNECTOR(SM14B-SRSS-TB) / P100 4-4. LABEL INFORMATION 4-4-1. LABEL LAYOUT 4-4-2. CONTENTS OF LABEL 4-5. GND INFORMATION 5. NOTICE (BTU-3586)INSTRUCTION MANUAL - 1 / 9 - Clarion Co., Ltd. CONFIDENTIAL 1. OUTLINE of BTU-3586 1-1. USAGE FRONT PCB with BLUETOOTH MODULE (FRONT PCB is installed to a navigation unit) 1-2. FEATURE MOUNTED BLUETOOTH MODULE(UGZZ8-732) SD CARD SENSOR DISC EJECT 2. BLOCK DIAGRAM 2-1. BTU-3586(FRONT PCB) BtoB CN P200EJECT SW SW200 SD CARD SENSOR x2 Q201&D201(SD CARD1) Q202&D202(SD CARD2) IC100IMPEDANCE MATCHING CIRCUIT BLUETOOTH MODULER138, L103, C127 REGULATORRF CONNECTOR(RECEPTACLE) IC104RCJ100 DC5VDC3.3V L UART I/F RESET OP-AMP IC101 MIC_INMIC_IN_P MIC_IN_N OP-AMP IC103 Lch_OUTSPKR_A_P SPKR_A_N OP-AMP IC102 Rch_OUTSPKR_B_P SPKR_B_N 5->3.3V BLUETOOTH EXTERNAL ANTENNA BT Frequency range : 2402 -2480 MHz (BTU-3586)INSTRUCTION MANUAL - 2 / 9 - Clarion Co., Ltd. CONFIDENTIAL 2-2. BLUETOOTH MODULE(UGZZ8-732) 3. BLUETOOTH MODULE SPECIFICATION 3-1. PRODUCT NAME UGZZ8-732 3-2. MANUFACTURE ALPS ELECTRIC 3-3. FEATURES Bluetooth™ Specification V2.0+EDR support Complete type of Bluetooth module, built in various profile (Contains CSR BC5-Multimedia, which has complete radio, 16bit RISC processor, RAM and DSP.) Output power class 2 compliant 3-4. SPECIFICATION 3-4-1. MECHANICAL SPECIFICATION 3-4-1-1. EXTERNAL DIMENSION 3-4-1-2. MASS TYP.1.82 [g] BT Frequency range : 2402 -2480 MHz (BTU-3586)INSTRUCTION MANUAL - 3 / 9 - Clarion Co., Ltd. CONFIDENTIAL 3-4-2. ELECTRICAL SPECIFICATION 3-4-2-1. POWER SUPPLY VOLTAGE DC +3.1 to 3.6 [V] 3-4-2-2. OPERATING RANGE -40 to +85 [degree C] 3-4-3. RF SPECIFICATION 3-4-3-1. MODULATION METHOD GFSK Bbt =0.5 π/4-DQPSK 8DPSK 3-4-3-2. NORMAL TRANSMIT POWER ( AVERAGED POWER ) -6 to +4 [dBm] @BDR(BASIC DATA RATE) -4 to +1 [dBm] @EDR(ENHANCED DATA RATE) 3-4-3-3. REFERENCE SENSITIVITY LEVEL ( BER = 0.001% ) MAX. -70 [dBm] @BDR MAX. -70 [dBm] @EDR 3-4-3-4. DATA RATE BDR : 1 [Mbps] EDR : 2 [Mbps] @ π/4-DQPSK EDR : 3 [Mbps] @ 8DPSK 3-4-3-5. ENCODING METHOD FHSS ( Frequency Hopping Spread Spectrum ) 3-4-3-6. OPERATING FREQUENCY RANGE 2402 - 2480 [MHz] (79CH) 3-4-3-7. TRANSMIT POWER LEVEL POWER CLASS B (max 2.5[mW]) 3-4-3-8. ANTENNA TYPE EXTERNAL ANTENNA(CONNECT MHF RECEPTACLE@I-PEX) 3-4-3-9. BLUETOOTH MODULE & EXTERNAL ANTENNA POSITION EXTERNAL ANTENNA BT COVER TAPE MHF RECEPTACLE (RF CONNECTOR) UGZZ8-732 (BLUETOOTH MOUNTED FRONT PCB (BTU-3586)INSTRUCTION MANUAL - 4 / 9 - Clarion Co., Ltd. CONFIDENTIAL 3-4-4. EXTERNAL ANTENNA SPECIFICATION 3-4-4-1. PRODUCT NAME CROW-002 3-4-4-2. MANUFACTURE FUJIKURA 3-4-4-3. FEATURES INVERTED F TYPE FILM TYPE(t=0.12[mm]) ANTENNA FULL CUSTOM PRODUCT of CLARION 3-4-4-4. PEAK GAIN XY PLANE : 0.5 [dBi] ZX PLANE : -0.6 [dBi] 3-4-4-5. AVERAGE GAIN -5.56 [dBi] 3-4-4-6. EXTERNAL DIMENSION 3-4-5. PIN ASSIGNMENT PROGRAMMABLE I/O NO.PIN NAMEI/ODESCRIPTION OPEN PROGRAMMABLE I/O PROGRAMMABLE I/O PROGRAMMABLE I/O SPI CLK SPI INPUT SPI OUTPUT SPI CHIP SELECT I^2S OUTPUT OPEN I^2S WORD SELECT RESET(LOW ACTIVE) UART TX UART RX I^2S INPUT I^2S SERIAL CLK USB DATA OPEN UART RTS UART CTS MIC IN MIC IN GND USB DATA SPEAKER OUT SPEAKER OUT MIC IN MIC IN GND OPEN SPEAKER OUT SPEAKER OUT GND RF I/O GND PROGRAMMABLE I/O DESCRIPTION OPEN IO POWER SUPPLY MAIN POWER SUPPLY 40PIO[1]I/O NO.PIN NAMEI/O 38PIO[6]I/O 39PIO[2]I/O 36NC- 37PIO[7]I/O 34SPI_MOSIO 35SPI_CS#O 32SPI_CLKO 33SPI_MISOI 30WS/PCM_SYNCO 31RST#I 28SD_OUT/PCM_OUTO 29NC- 26SD_IN/PCM_INI 27SCK_PCM_CLKO 24UART_TXO 25UART_RXI 22UART_RTSO 23UART_CTSI 20USB_DN- 21 19USB_DP- I 14MIC_B_P NC- 18GND- 16MIC_A_PI 17MIC_A_N I 15MIC_B_NI 12SPKR_A_PO 13SPKR_A_NO 10SPKR_B_PO 11SPKR_B_NO 8GND- 9NC- 6GND- 7PIO[0]I/O 4GND- 5RF I/OI/O 2VCC_IOI 3VCCI 1NC- #1 #9 #10#20 #21 #29 #30#40 (BTU-3586)INSTRUCTION MANUAL - 5 / 9 - Clarion Co., Ltd. CONFIDENTIAL 4. BTU-3586(FRONT PCB) SPECIFICATION 4-1. EXTERNAL DIMENSION (FRONT PWB SIZE : 165 * 80.5 * 1.2 [mm]) 4-2. MAJOR PARTS LAYOUT 165.5 IC101 / IC102 / IC103 OP-AMP NJM14558V NJRC P100 DEBUG CONNECTOR SM14B-SRSS-TB JST *Only a trial product implements it. D201 / D202 DIODE CL-200IR-X-TS CITIZEN ELECTRONICS IC104 REGULATOR S-1155B33-U5T1G SII J100 RF CONNECTOR 20279-001E-02 I-PEX 8.45 (2.95) 2.5 80.5 1.2 Unit : mm IC100 BLUETOOTH MODULE UGZZ8-732 ALPS ELECTRIC Q201 / Q202 PHOTO-TR CPT-184S-C-X-TS CITIZEN ELECTRONICS SW200 SW SKRPABE010 ALPS ELECTRIC P200 BtoB CONNECTOR 9828S-30Y900 IRISO REF. DESCRIPTION MODEL NAME MANUFACTURE PURPLE CHARACTER ->> SIDE-A MOUNTED PARTS RED CHARACTER ->> SIDE-B MOUNTED PARTS 12.15 (BTU-3586)INSTRUCTION MANUAL - 6 / 9 - Clarion Co., Ltd. CONFIDENTIAL 4-3. CONNECTOR PIN ASSIGNMENT 4-3-1. BtoB CONNECTOR(9828S-30Y900) / P200 4-3-2. DEBUG CONNECTOR(SM14B-SRSS-TB) / P100 4-4. LABEL INFORMATION 4-4-1. LABEL LAYOUT (FRONT PCB SIDE-B : BLUETOOTH MODULE MOUNTED SIDE) 4-4-2. CONTENTS OF LABEL LABEL SIZE :…

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: Clarion Co., Ltd. Address: 7-2 Shintoshin, Chuo-Ku City: Saitama-Shi, Saitama-Ken, 330-0081 Country: Japan Declare that: Name Representative of agent: Jiro Ogiwara (1) Agent Company name: Taiyo Yuden Co., Ltd. EMC Center Address: 5607-2 Nakamuroda-machi City: Takasaki-shi, Gunma, 370-3347 Country JAPAN is authorized to apply for Certification of the following product(s): Product description: Bluetooth module Type designation: BTU-3586 Trademark: Clarion on our behalf. Date: 17-May-2010 City: Saitama-Shi Name: Noriyuki Komatsu (2) Function: Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 12-Mar-09 RF_501, Issue 4 Page 1 of 1 Company Name: Clarion Co., Ltd. Address: 7-2 Shintoshin Chuo-Ku City: Saitama-Shi, Saitama-Ken, 330-0081 Country: Japan To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: SJ2QY7200 Reference number: 10008 Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Tune-up Procedure Internal Photos User’s Manual Test Set-up Photos External Photos Justification: These documentations include highly confidential information. Planned Release Date STC: 3-October-2010 (notes 2, 3, 4, 5) Date: 17 May 2010 Name and signature of applicant: Noriyuki Komatsu, Manager Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

RF_734_00, Issue 1 Modular Approval Request FCC (per DA 00-1407) FCC ID: SJ2QY7200 Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. This module has RF shielding with metal case. Refer to external photo. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Using IC (IC100); model No.UGZZ8-732 has a buffered circuit. 3. The modular transmitter must have its own power supply regulation. This Module has its own regulator (IC104); model No.GRM21BB31A106KE18 L. Refer to the Block diagram. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. Yes, this module uses the external antenna with a unique antenna coupler. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Yes, this testing is performed by stand-alone configuration. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. The label of this module with its own FCC ID is put on PCB. Exterior label instruction to installer of this module is provided in user manual. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. Instruction for operational requirements is provided in user manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. This module complies with RF exposure requirements and instruction for users is provided in the user manual. Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). Name and surname of applicant (or authorized representative): Jiro Ogiwara Date: May-28-2010 Signature:

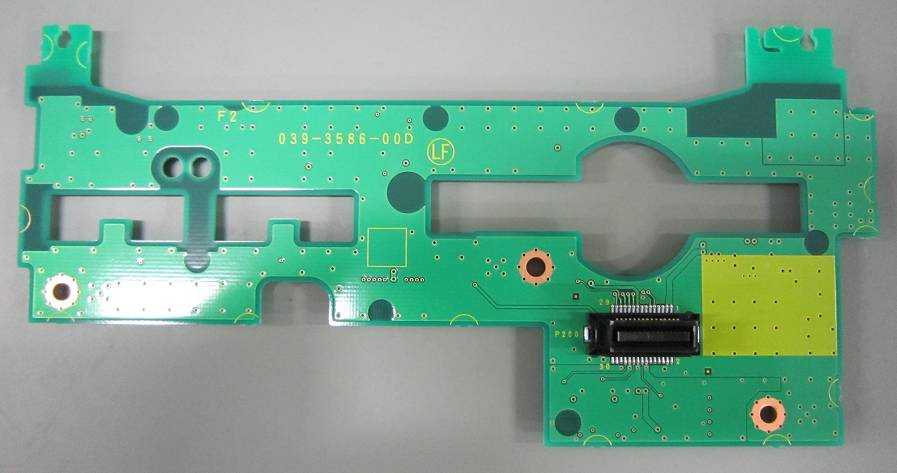

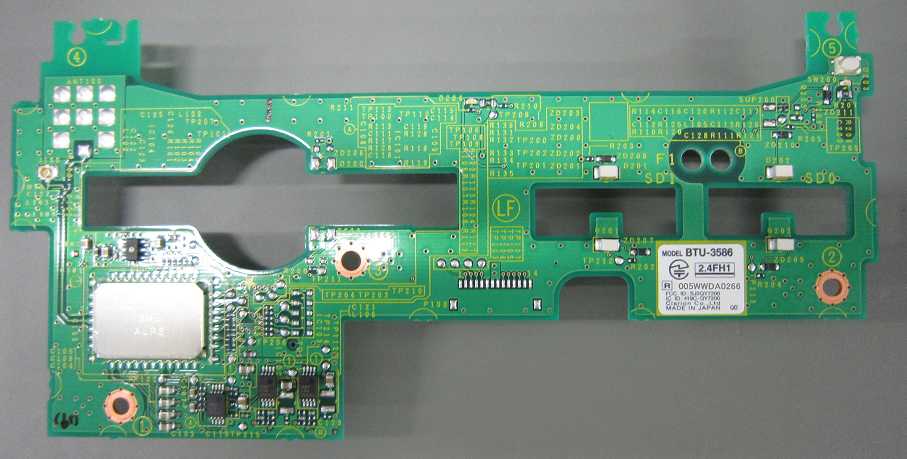

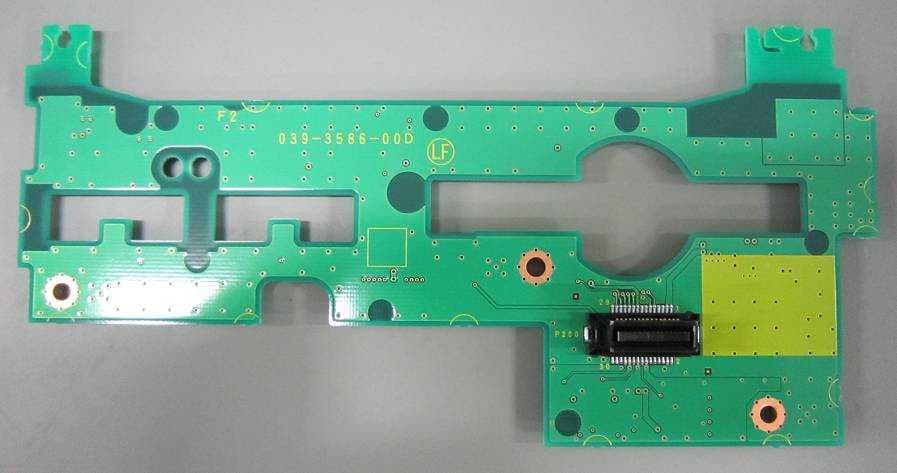

Clarion Co., Ltd. CONFIDENTIAL (BTU-3586)EXTERNAL PHOTOS 1. A-SIDE 2. B-SIDE 3. LABEL INFORMATION LABEL SIZE : 16 * 13 [mm] LABEL PASTING POSITION BEFORE LABEL PASTING AFTER LABEL PASTING (BTU-3586)EXTERNAL PHOTOS - 1 / 1 -

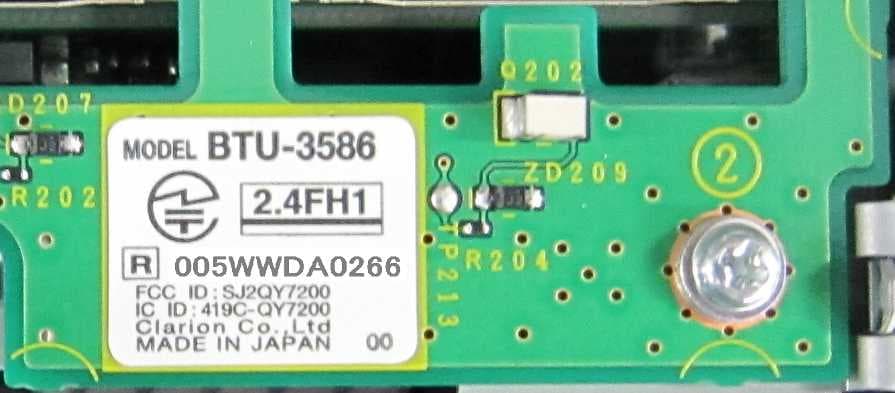

Clarion Co., Ltd. CONFIDENTIAL (BTU-3586)LABEL INFORMATION 1. LABEL LAYOUT (FRONT PCB SIDE-B : BLUETOOTH MODULE MOUNTED SIDE) 2. CONTENTS OF LABEL LABEL SIZE : 16 * 13 [mm] MODEL NAME 16 13 TELEC MARK, FH MARK TELEC ID FCC ID IC ID COMPANY NAME COUNTRY OF ORIGIN (BTU-3586)LABEL INFORMATION - 1 / 1 -

Clarion Co., Ltd. CONFIDENTIAL (BTU-3586)INTERNAL PHOTOS 1. INTERNAL PHOTOS 2. MAJOR PARTS LAYOUT IC1:BLUETOOTH IC (BC5-MM EXT)@CSR IC2:FLASH MEMORY@SST X100:X- TAL (26MHz) @EPSON ↑IC201:REGULATOR IC @TOKO (BTU-3586)INTERNAL PHOTOS - 1 / 1 -

RF Exposure Evaluation No.: 10008FCE Page: 2 / 2 5607-2, Nakamuroda-machi, Takasaki-shi, Gunma, 370-3347, Japan e.i.r.p. Calculation from Peak Power 15.247(i): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. (Limit [W] =60 / f [MHz], 24mW at 2.5GHz) EIRP Calculation: A B C Total e.i.r.p. Specified Antenna Gain [dBi] Max. RF Output Power at Antenna Terminal [dBm] [dBm] [mW] Limit [mW] 60 / f [MHz] 1.60 3.85 5.45 3.51 25 Calculation: C [dBm] = A [dBi] + B [dBm] e.i.r.p. = 5.45dBm = 3.51mW
