SJC-M2030SmartMesh M2030 2.4GHz Mote

Analog Devices LLC

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Dec 15, 2006
Application Purpose: Original Equipment
Date of Application: Dec 15, 2006
Equipment Note: SmartMesh M2030 2.4GHz Mote
Frequency Range: 2405.00000000 - 2475.00000000
Company: Analog Devices LLC
Country: Ireland

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

M2135-1/M2030-1 MOTE DATASHEETDUST NETWORKS™ CONFIDENTIAL Product Description The SmartMesh-XT™ M2135-1 and M2030-1 combine an industry-standard 802.15.4 radio with Time Synchronized Mesh Protocol (TSMP) to enable low-power wireless sensors and actuators with highly reliable wireless mesh networking. The M2135-1 and M2030-1 are tailored for use in battery- and line-powered wireless devices for applications that demand proven performance, scalability, and reliability. The M2135-1 and M2030-1 use the IEEE standard 802.15.4 radio, which operates in the global license-free 2.4 GHz band. The M2030-1 offers a range of up to 200 meters outdoors, while keeping power consumption as low as 50 μA. Ideal for longer range applications, the M2135-1 has a highly efficient power amplifier which allows communications to reach more than 400 meters outdoors, while advanced power management techniques keep power consumption down to as low as 55 μA in a typical network deployment. The combination of extremely high reliability and low power consumption enables applications that require very low installation cost and low-maintenance, long-term deployments. The standard serial interface of the M2135-1 and M2030-1 gives it flexibility to be used in a wide variety of different applications, from industrial process control to security, to lighting. When integrated into a product, the M2135-1 or M2030-1 acts like a network interface card (NIC)—it takes a data packet and makes sure that it successfully traverses the network. By isolating the wireless mesh networking protocols from the user, the M2135-1 and M2030-1 simplify the development process and reduce development risk. Key Features Reliable Networking •Uses Time Synchronized Mesh Protocol (TSMP) for high reliability (>99.9% typical network reliability) •Channel hopping over DSSS for interference rejection •Mesh networking for built-in redundancy •Every M2135-1/M2030-1 acts as both an endpoint and a router, increasing network reliability: “mesh-to-the-edge” •Automatic self-organizing mesh is built in Predictable Integration •Standard HDLC serial interface with bidirectional flow control •Industrial temperature range –40 to +85 °C •Supports socket or solder assembly •Rugged design for class I div I environments •FCC and IC modular certification (pending) •Certifiable for use in most countries worldwide (North America, Europe, and most Asian countries) Low Power Consumption •Ultra low-power components for long battery life •Network-wide coordination for efficient power usage •Down to 55 μA typical power consumption (M2135-1) Down to 50 μA typical power consumption (M2030-1) 802.15.4 Standard Radio •Global 2.4 GHz license-free band: suitable for use in North America, Europe, and most of Asia •31.6 mW (+15 dBm) EIRP RF output power (M2135-1) 0.6 mW (–2 dBM) EIRP RF output power (M2130-1) •–90 dBm receiver sensitivity •Outdoor range > 400 m typical (M2135-1) Outdoor range 200 m typical (M2030-1) •Direct-sequence spread spectrum (DSSS) for additional interference rejection M2135-1, M2030-1 2.4 GHz Wireless Serial Motes PRELMINARY 2DUST NETWORKS™M2135-1/M2030-1 MOTE DATASHEET Contents 1.0Absolute Maximum Ratings .................................................................................... 3 2.0Normal Operating Conditions ................................................................................. 3 3.0Electrical Specifications.......................................................................................... 4 3.1 Application Circuit.............................................................................................5 4.0Radio ...................................................................................................................... 5 4.1 Detailed Radio Specifications...............................................................................5 4.2 Antenna Specifications.......................................................................................6 5.0Pinout..................................................................................................................... 7 6.0Mote Boot Up.......................................................................................................... 8 6.1 Power-on Sequence...........................................................................................8 6.2 Inrush Current..................................................................................................8 6.3 Serial Interface Boot Up.....................................................................................9 7.0Interfaces............................................................................................................... 9 7.1 Timestamps......................................................................................................9 7.2 Status.............................................................................................................9 7.3 Serial Interface...............................................................................................10 7.3.1 Serial Handshake Protocol ...................................................................... 10 7.3.1.1 Serial Port................................................................................ 10 7.3.1.2 Serial Interface Boot Up............................................................. 11 7.3.1.3 Serial Interface Timing Requirements .......................................... 11 7.3.2 Mote Command Data Types .................................................................... 13 7.3.3 Mote Commands ................................................................................... 13 7.3.3.1 Command 0x80 Serial Payload Sent to Mote Serial ........................ 14 7.3.3.2 Command 0x81 Unacknowledged Serial Payload Received from Mote Serial .......................................................... 14 7.3.3.3 Command 0x82 Acknowledged Serial Payload Received from Mote Serial ......................…

Text truncated - open the document above for the full version.

Cover Letter(s)

30695 Huntwood Ave. Hayward, California 94544 www.dustnetworks.com Modular Approval Letter Date: November 30, 2006 The Device, FCC ID: SJC-M2030, is seeking FCC authorization as a modular transmitter. The EUT meets the requirement for modular approval as detailed in FCC Public Notice DA 00-1407. Compliance to each of the requirements is described below: 1. The modular transmitter must have its own RF shielding. => The M2030 has an RF shield on all radio components. 2. The modular transmitter must have buffered modulation/data inputs => All data inputs are buffered. No direct access to the radio is available. 3. The modular transmitter must have its own power supply regulator => The M2030 regulates incoming power. Only 3 volt DC power is required. 4. The modular transmitter must comply with the antenna requirement of section 15.203 and 15.204(c) => The M2030 has an MMCX connector as the only antenna connecter. 5. The modular transmitter must be tested in a stand-alone configuration => Power will be supplied via a test fixture with the device fully exposed. The control for the device is available via a 9-pin serial connector on the test fixture. 6. The modular transmitter must be labeled with its own FCC ID number => The M2030 will have a label on the exposed RF shield. 7. The modular transmitter must comply with any specific rule or operating requirements and the manufacturer must provide adequate instruction along with the module to explain any such requirements => Operation is explained via the datasheet. 8. The modular transmitter must comply with any applicable RF exposure requirements => The M2030 device complies with all applicable RF exposure requirements, including those in DA 00-1407. Sincerely Gordon Charles [email protected]

External Photos

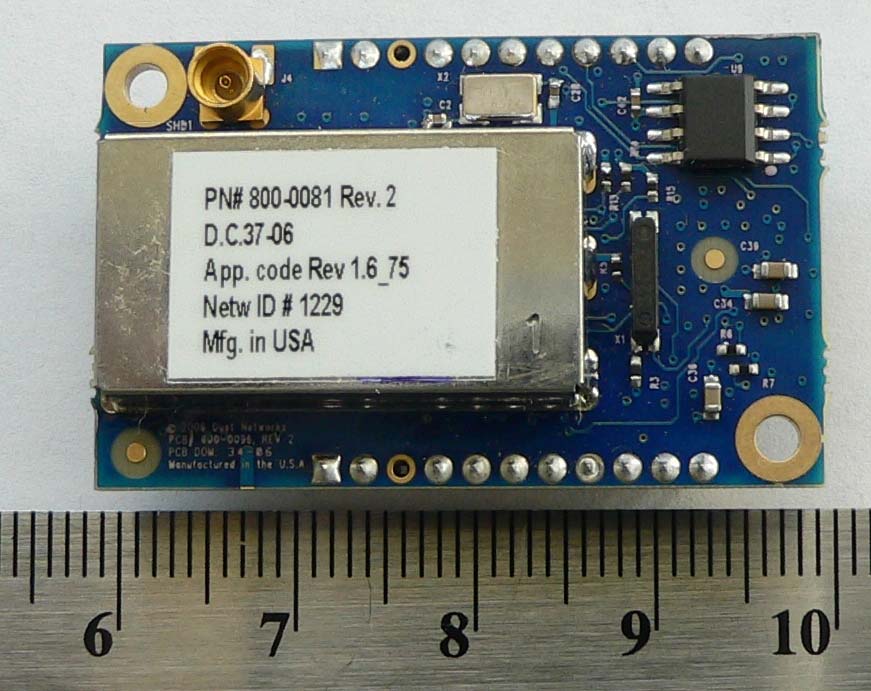

Dust Networks, Inc. FCC ID: SJC-M2030 Report # R0611201-247 Page 50 of 56 FCC Part 15.247 Test Report EXHIBIT C - EUT PHOTOGRAPHS EUT & Adaptor Board – Front View EUT & Adaptor Board – Back View Dust Networks, Inc. FCC ID: SJC-M2030 Report # R0611201-247 Page 51 of 56 FCC Part 15.247 Test Report EUT with Shield on – Component Side View EUT with Shield off – Component Side View Dust Networks, Inc. FCC ID: SJC-M2030 Report # R0611201-247 Page 52 of 56 FCC Part 15.247 Test Report EUT – Solder Side View Adaptor Board – Component Side View Dust Networks, Inc. FCC ID: SJC-M2030 Report # R0611201-247 Page 53 of 56 FCC Part 15.247 Test Report Adaptor Board – Solder Side View Antenna View

ID Label/Location Info

Dust Networks, Inc. FCC ID: SJC-M2030 Report # R0611201-247 Page 48 of 56 FCC Part 15.247 Test Report EXHIBIT A - FCC ID LABEL INFORMATION FCC ID Label The FCC labels should contain FCC statement in FCC 15.19 paragraph (3). A sample of the statement is presented hereinafter as reference. Also, as per FCC §15.19 a(4) Where a device is constructed in two or more sections connected by wires and marketed together, the statement specified above is required to be affixed only to the main control unit. If the EUT is integrated within another device then a label affixed to the host shall also state, “Contains FCC ID: SJC-M2030” Proposed Label Location on EUT Back View of EUT / Proposed FCC ID Location As per FCC §15.19 (b)(4), the label shall not be a stick-on, paper label. The label on these products shall be permanently affixed to the product and shall be readily visible to the purchaser at the time of purchase, as described in Section 2.925(d) of this chapter. "Permanently affixed" means that the label is etched, engraved, stamped, silk-screened, indelibly printed, or otherwise permanently marked on a permanently attached part of the equipment or on a nameplate of metal, plastic, or other material fastened to the equipment by welding, riveting, or a permanent adhesive. The label must be designed to last the expected lifetime of the equipment in the environment in which the equipment may be operated and must not be readily detachable. FCC ID: SJC-M2030 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2.1875" 1.0"

Internal Photos

RF Exposure Info

Dust Networks, Inc. FCC ID: SJC-M2030 Report # R0611201-247 Page 10 of 56 FCC Part 15.247 Test Report § 15.247 (e) (i) and § 2.1091 - RF EXPOSURE According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density MPE Prediction Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Base: Maximum peak output power at antenna input terminal (dBm): 0.50 Maximum peak output power at antenna input terminal (mW): 1.122 Predication distance(cm): 20 Predication frequency(MHz): 2404.23 Antenna Gain (typical)(dBi): 6 Maximum Antenna Gain(numeric): 3.98 Power density at predication frequency at 20 cm (mW/cm 2 ): 0.000888 MPE limit for uncontrolled exposure at predication frequency(mW/cm 2 ): 1.0 Test Result The predicted power density level at 20 cm is 0.000888 mW/cm 2 . This is below the uncontrolled exposure limit of 1.0 mW/cm 2 at 2404.23 MHz. The EUT is used at least 20cm away from user’s body. It is determined as mobile equipment.

Test Report

Note: This test report is for the customer shown above and their specific product only. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government (rev.1) FCC PART 15.247 MEASUREMENT AND TEST REPORT For Dust Networks, Inc. 30695 Huntwood Ave. Hayward, CA 94544 FCC ID: SJC-M2030 This Report Concerns: Original Report Equipment Type: 2.4GHz Mote Frequency Hopping System Module Test Engineer: James Ma Report Number: R0611201-247 Report Date: 2006-11-27 Reviewed By: VP of Engineering: Hans Mellberg Prepared By: (12) Bay Area Compliance Laboratories Corp. (BACL) 1274 Anvilwood Avenue Sunnyvale, CA 94089 Tel: (408) 732-9162 Fax: (408) 732 9164 Dust Networks, Inc. FCC ID: SJC-M2030 Report # R0611201-247 Page 2 of 56 FCC Part 15.247 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................5 EUT PHOTO.................................................................................................................................................................5 MECHANICAL DESCRIPTION.........................................................................................................................................5 OBJECTIVE...................................................................................................................................................................5 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................6 TEST METHODOLOGY..................................................................................................................................................6 MEASUREMENT UNCERTAINTY....................................................................................................................................6 TEST FACILITY.............................................................................................................................................................6 SYSTEM TEST CONFIGURATION ..........................................................................................................................7 JUSTIFICATION.............................................................................................................................................................7 SPECIAL ACCESSORIES.................................................................................................................................................7 SCHEMATICS / BLOCK DIAGRAM..................................................................................................................................7 EQUIPMENT MODIFICATIONS.......................................................................................................................................7 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................7 EXTERNAL I/O CABLING LIST AND DETAILS................................................................................................................7 POWER SUPPLY INFORMATION.....................................................................................................................................7 CONFIGURATION OF TEST SYSTEM..............................................................................................................................8 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................8 SUMMARY OF TEST RESULTS FOR FCC PART 15.247 .....................................................................................9 § 15.247 (E) (I) AND § 2.1091 - RF EXPOSURE ......................................................................................................10 ANTENNA REQUIREMENT ....................................................................................................................................11 APPLICABLE STANDARD............................................................................................................................................11 TEST RESULT.............................................................................................................................................................11 §15.207 – CONDUCTED EMISSIONS .....................................................................................................................12 APPLICABLE STANDARD............................................................................................................................................12 §15.205 §15.209 & §15.247 - RADIATED EMISSIONS ..........................................................................................13 APPLICABLE STANDARD: FCC §15.205 RESTRICTED BANDS OF OPERATION.............................................................13 APPLICABLE STANDARD: FCC §15.209 RADIATED EMISSION LIMITS, GENERAL REQUIREMENTS...............................13 TEST SETUP................................................................................................................................................................14 SPECTRUM ANALYZER SETUP....................................................................................................................................14 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................14 TEST SETUP BLOCK DIAGRAM.....................................…

Text truncated - open the document above for the full version.

Test Report

M2030 Duty Cycle Description Dust radios operate on a TDMA time schedule that uses 31.25 ms timeslots. A transmit timeslot consists of 5 stages: 1. Initialization: radio is prepared for transmit (transmitter is off) 2. Ramp: transmitter is ramped to peak power 3. Transmit: 128 bytes of data maximum + 5 bytes preamble/SFD 4. Turnaround: radio is set to receive 5. Receive: radio waits in receive for ACK, then turns off Total transmit time for a 128 byte packet plus all overhead (SFD / Preamble / Ramp) is 4.34ms, shown in the figure below: CLRWR A IFB 10 MHz SGL AQT 10 msRef 5 dBmAtt 40 dB Center 2.405 GHz1 ms/ 1 AP PRN -45 -40 -35 -30 -25 -20 -15 -10 -5 0 5 1 Marker 1 [T1 ] -39.23 dB m 1.500000 ms 2 Delta 2 [T1 ] -0.31 dB 4.340000 ms Date: 28.NOV.2006 11:30:46 Maximum duty cycle is therefore: 4.34 ms on / (31.25 ms off) = 13.9 %
