SJC-M2140Smart Mesh Wireless Mote

Analog Devices LLC
Smart Mesh Wireless Mote - FCC ID SJC-M2140 - Analog Devices LLC
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Dec 20, 2007
Application Purpose
Original Equipment
Date of Application
Dec 13, 2007
Equipment Note
Smart Mesh Wireless Mote
Frequency Range
2405.00000000 - 2480.00000000
Company
Analog Devices LLC
Country
Ireland

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

โ†—
โ†—

External Photos

โ†—

ID Label/Location Info

โ†—
โ†—

Internal Photos

โ†—
โ†—
โ†—

RF Exposure Info

โ†—

Test Report

โ†—

Test Setup Photos

โ†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

Non-Conformities FCC ID: SJC-M2140 (CKC CS Ref # E07-000124-FCC-01) Non-Conformities FCC ID: SJC-M2140 (CKC CS Ref # E07-000124-FCC-01) The items listed below represent requests for information following review of this application for certification under United States (FCC) regulations. Further question may arise pending review of responses to these items. 1 The RF exposure report appears to be incomplete. Please provide a final copy of this report with all items included. Response: An updated MPE report has been uploaded. 2 Please explain the purpose of the M2510 duty cycle measurements provided in the operational descriptions. Response: The M2150 duty cycle documentation covers the 2nd of two identical configurations of the same hardware. The only difference between the two devices from an RF perspective is the duty cycle percentage of the transmitter. 3 Please provide an updated users manual incorporating 15.21. Response: An updated users manual has been uploaded. 4 The grantee code information does not match that listed on the provided form 731. If contact information has changed, it is the applicant's responsibility to contact the FCC to make the necessary changes. Please visit https://fjallfoss.fcc.gov/eas/ModifyGrantee.do -- No response necessary to this item. Response: This has been corrected. 5 This application appears to be for modular approval, however there is no supporting letter requesting such treatment. The FCC has temporarily postponed the use of 15.212, please use reference to the DA00-1407 when writing the request. Response: A letter requesting modular approval has been uploaded. 6 In accordance with DA00-1407, does the equipment have its own buffered input and outputs. Does the equipment have its own power supply regulation? Response: This issue has been addressed in the letter requesting modular approval.

External Photos

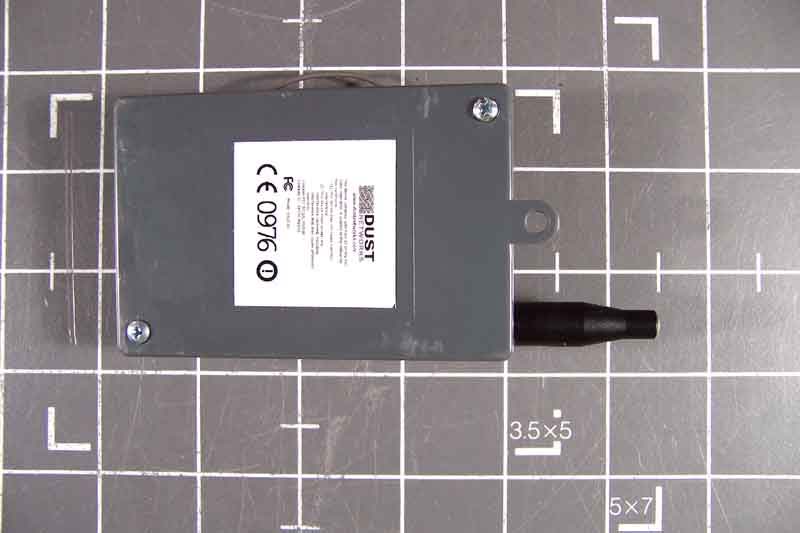

Overall Front Overall Back Overall Top Overall Bottom Overall Left Overall Right

ID Label/Location Info

Document Number: 895-0029 Page 1 of 3 Dust Networks Proprietary A printed copy of this document is an uncontrolled copy. Hayward, California LABEL DRAWING LABEL, ID, 2.4GHZ, XD, GATEWAY Document Number: 895-0029 Revision: 2 Effective Date: Effective on ECO Release Date (See Arena) Revision history Revision ECO Notes Date 1 ECO-000404 INITIAL RELEASE 11-14-2007 2 ECO-000412 Added Lot ID number to label 11-30-2007 The complete revision and approval history of this document may be found in the Arena vault under the document number Document Number: 895-0029 Page 2 of 3 Dust Networks Proprietary A printed copy of this document is an uncontrolled copy. 895-0029 LABEL, ID, 2.4GHZ MOTE AND GATEWAY Line # 1: Model Number Line # 2: Dust Part Number and Revision Number (taken from Arena.) THE PART NUMBER FOR THE ASSEMBLY IS ACQUIRED FROM THE ARENA PLM SYSTEM. Line # 3: Lot ID # Line # 4: Date code. Week-Year (WW-YY) Line # 5: โ€œMfg. in USAโ€ Line # 6: โ€œFCC ID SJC-MXXXXโ€ See Table below. Overall dimension: 5/8โ€ length x 1/2โ€ width. Size margin: 1/16โ€ Label material: white, laminated Mylar 3M model 7871 Mylar substrate Label material: Mylar substrate 3M 7871 2 mil Heavy Coat; with 1 mil clear glossy laminate. Adhesive: 0.0018โ€ permanent acrylic adhesive Font: Arial Font size: 5pt Label ink: black, indelible resin ink Printer: Brother P-Touch Pro-XL Sample Document Number: 895-0029 Page 3 of 3 Dust Networks Proprietary A printed copy of this document is an uncontrolled copy. LABEL REQUIREMENT PM2140-1GW PM2140-2GW PM2040GW Model Number M2140 M2140 M2040 Dust Part Number and Revision (see Arena for Rev) 800-0137revX 800-0137revX 800-0138revX Lot ID # LLLLLL-NNA LLLLLL-NNA LLLLLL-NNA Date Code (Date of Network Test (mm=month yy=year) D.C. mm-yy D.C. mm-yy D.C. mm-yy Country of Manufacture MFG in USA MFG in USA MFG in USA FCC Mark FCC ID:SJC-M2140 FCC ID:SJC-M2140 FCC ID:SJC-M2040 PRODUCT MODEL NUMBER

ID Label/Location Info

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Contains FCC ID:SJC-M2140 Contains IC: 5853A-M2140 www.dustnetworks.com Model: EV2140

Internal Photos

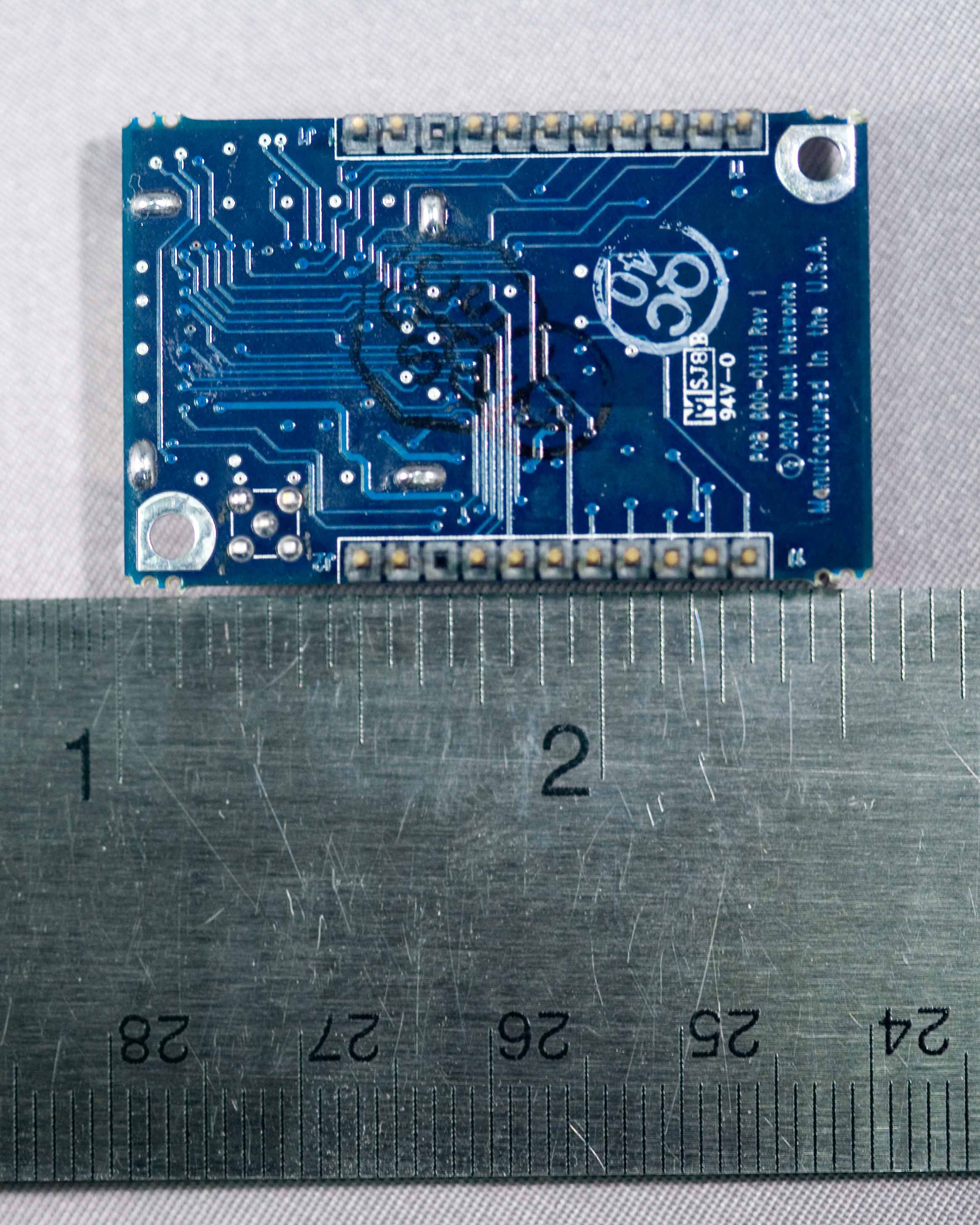

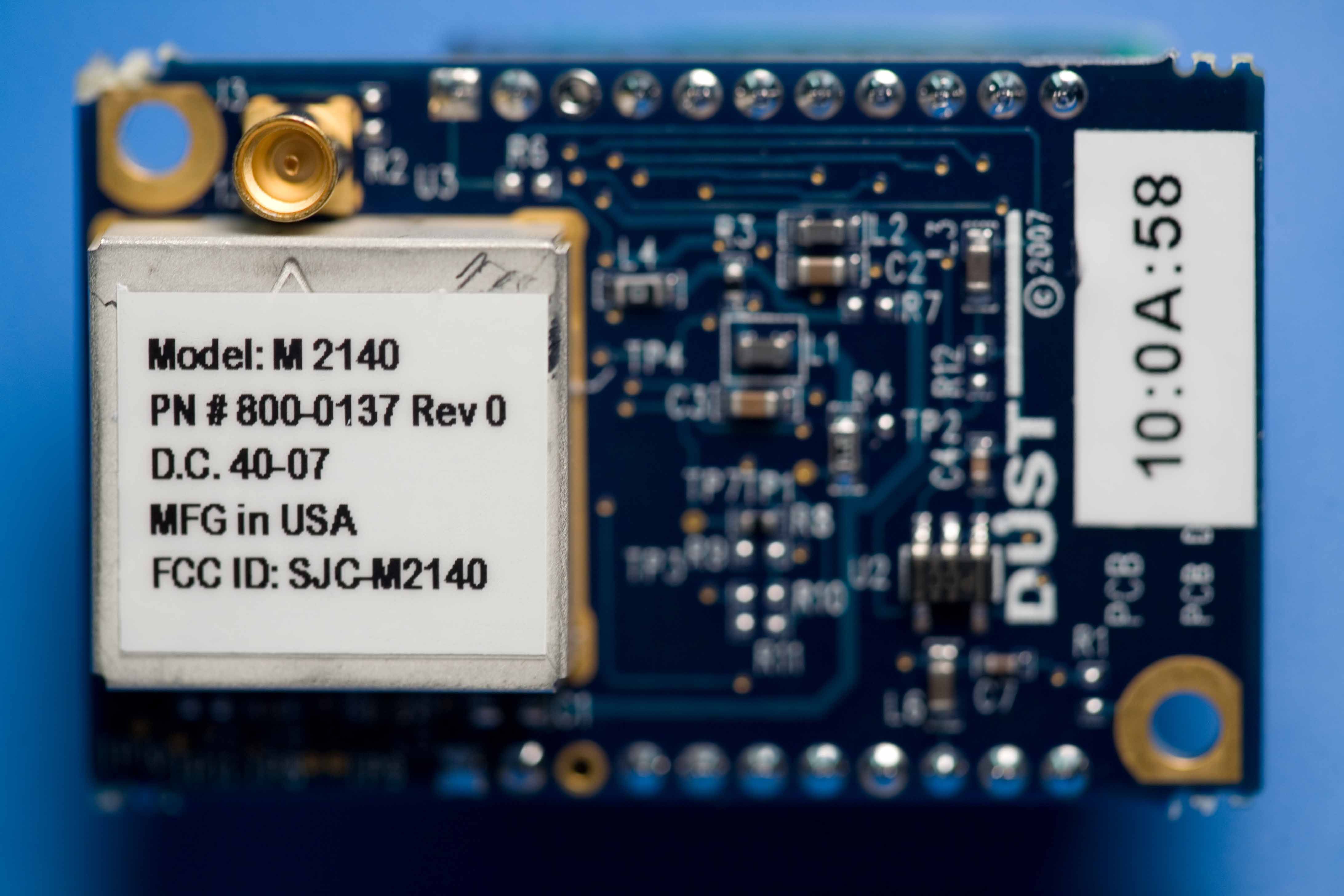

Main PCB Front Main PCB Back Transmitter PCB Front Transmitter PCB Back

RF Exposure Info

4056 Sierra Pines Dr. * Mariposa, CA 95338 * PH (209) 966-5240 * Fax (209) 742-6133 WORLDWIDE EMC โ€“ COMMERCIAL * INDUSTRIAL * MEDICAL * MILITARY * AVIONICS BREA, CA * FREMONT, CA * MARIPOSA, CA *REDMOND, WA Date of Report: 10/26/07 Maximum Permissible Exposure Statement Calculations prepared for: Dust Networks WO87117 Calculations prepared by: Mike Wilkinson CKC Laboratories, Inc. 4056 Sierra Pines Dr. Mariposa, CA 95338 FCC ID Number:: SJC-M2140 Model Number: M2140 Fundamental Operating Frequency: 2405 to 2480 Maximum Rated Output Power: 10mW Measured Output Power: 9.77mW Maximum Antenna Gain: 2 dBi Power Output and Operating Frequency Information used for these calculations were from: CKC Laboratories, Test Report # FC07-085 Device and Antenna Operating Configuration: Transmitting continuously. Power measured conducted at the antenna port Max antenna gain is 2 dBi Test Procedure: This equipment is evaluated in accordance with the guidelines set forth in OET Guide 65. Other Considerations: None. 4056 Sierra Pines Dr. * Mariposa, CA 95338 * PH (209) 966-5240 * Fax (209) 742-6133 WORLDWIDE EMC โ€“ COMMERCIAL * INDUSTRIAL * MEDICAL * MILITARY * AVIONICS BREA, CA * FREMONT, CA * MARIPOSA, CA *REDMOND, WA MPE Calculations: MPE Limit in accordance with 1.1310: Occupational / Controlled Exposure X General Population / Uncontrolled Exposure MPE Limit = 1.0 (mW/cm 2 ) Note: Limit is calculated based on the lowest frequency used in the operating frequency range. 2 2 4 )/( d EIRP cmmWDensityPower ฯ€ = Given: EIRP in mW and d in cm EIRP (mW) Distance (cm) Power Density (mW/cm 2 ) Result 9.77 20 0.00194 Pass Statement of Compliance: This device demonstrates compliance under the operating conditions specified in this document. Under normal operating conditions, the antenna is designed to be installed in accordance with the manufacturerโ€™s instructions in such a manor to maintain the minimum separation distance. The MPE calculations shown above demonstrate compliance to the provisions of 1.1310 in accordance with the guidelines of OET 65. As can be seen from the MPE results, this device passes the limits specified in 1.1310 at a distance of 20cm and at a output power of 9.77mW under normal operating conditions.
