SJLKP7315REMOTE KEYPAD

KP-7 AlarmForce 2007.3.23 1 R R E E M M O O T T E E K K E E Y Y P P A A D D ( ( K K P P - - 7 7 ) ) z z Identifying the parts: 1. Tx LED 2. ACTIVE LED 3. 10 Numeric keys 4. “ + ” button – to send Emergency code 5. “ ○ S ” button – to send Status code 6. “ ” button – press after PIN Code to Part Arm the system 7. “ ” button –press after PIN Code to Arm the system 8. “ ” button – press after PIN to Disarm the system 9. “ ♪” button – to send Chime code 10. Tamper Switch z z L L E E D D I I n n d d i i c c a a t t o o r r : : z z A A C C T T I I V V E E L L E E D D ( ( G G r r e e e e n n ) ) : : z z When idle, both LED’s are off. After any key press, the Green LED goes on for 5 seconds indicating that KP-7 is active. z z However if the Green LED flashes during operation instead of being on steadily, this is an indication of a low battery. z z The LED turns off after successful completion of a valid keystroke sequence, or when the pause in between key stokes is longer than 5 seconds. < < N N O O T T E E > > " " When the Green LED turns off before a valid keystroke sequence is completed, the previous entered keys are ignored. z z T T x x L L E E D D ( ( R R e e d d ) ) : : z z On for 2 seconds when transmitting. z z In tampered condition, the Red LED will flash whenever KP-7 is used. z z P P o o w w e e r r : : z z KP-7 uses 3 “AAA” alkaline batteries as its power source. Its typical battery life is 5 years in a normal domestic environment. z z When KP-7 enters low battery status, a low battery signal will be sent out by KP-7 only after 20 regular signal transmissions have been consecutively sent in low battery mode. z z S S u u p p e e r r v v i i s s i i o o n n : : z z Upon inserting the batteries for the 1 st time, the KP-7 will promptly send out a supervisory signal. z z Thereafter, it continues to transmit supervisory signal periodically at intervals of 30 to 50 minutes. z z Use of the keypad will re-start the time count 30 to 50 minutes for next supervisory signal. z z P P o o w w e e r r S S a a v v i i n n g g F F e e a a t t u u r r e e : : z z When idle, KP-7 is in “standby” mode and uses no power. It will activate and “wake-up” for 5 seconds where any key is pressed. KP-7 AlarmForce 2007.3.23 2 z z After 5 seconds of key inactivity, the power goes off and it returns to Stand-by mode. z z Upon completion of a command input, the power goes off and KP-7 returns to Stand-by mode. z z T T a a m m p p e e r r P P r r o o t t e e c c t t i i o o n n : : z z KP-7 is protected against any attempt to open the lid or to detach KP-7 from its mounting surface. z z In tampered condition, KP-7 will emit a beep every 30 seconds as warning to the user . z z In tampered condition, the Red LED will flash whenever KP-7 is used. z z M M o o u u n n t t i i n n g g K K P P - - 7 7 : : z z Break through the two or four knockouts where the plastic is thinner z z Using the holes of the base as a template, drill holes in the surface z z Insert the wall plugs if fixing into plaster or brick z z Screw the base to the wall z z Ensure that the tamper switch spring protruding through the back is fully depressed by the mounting surface. z z Fix the lid with the screw and clips to the base z z P P r r o o g g r r a a m m m m i i n n g g K K P P - - 7 7 : : 1. Remove the cover by loosening the fixing screw 2. Insert three “AAA” batteries 3. The Red LED indicator will flash briefly while components initialize and supervision code will be sent out. z z F F u u n n c c t t i i o o n n s s O O v v e e r r v v i i e e w w : : This device complies with Part 15 of the FCC Rules and RSS-210 of Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Caution : To assure continued compliance, any changes or modifications not expressly approved by the party responsible for Dual Key Alarm Features: „ Arm ¾ PIN code + “ARM” „ Panic Alarm ¾ “1” + “3” simultaneously „ Part Arm ¾ PIN code + “HOME” „ Fire Alarm ¾ “4” + “6” simultaneously „ Disarm ¾ PIN code + “OFF” „ Emergency Alarm ¾ “7” + “9” simultaneously „ Chime ¾ “♪” „ Emergency ¾ “+” „ Status ¾ “○ S ” KP-7 AlarmForce 2007.3.23 3 compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices).

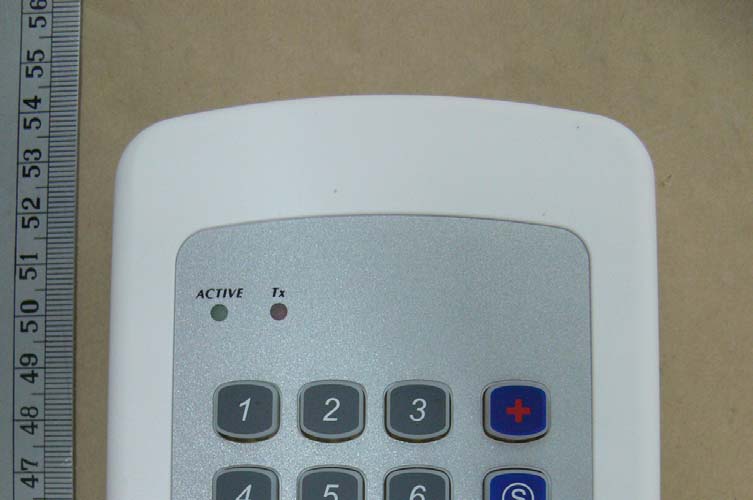

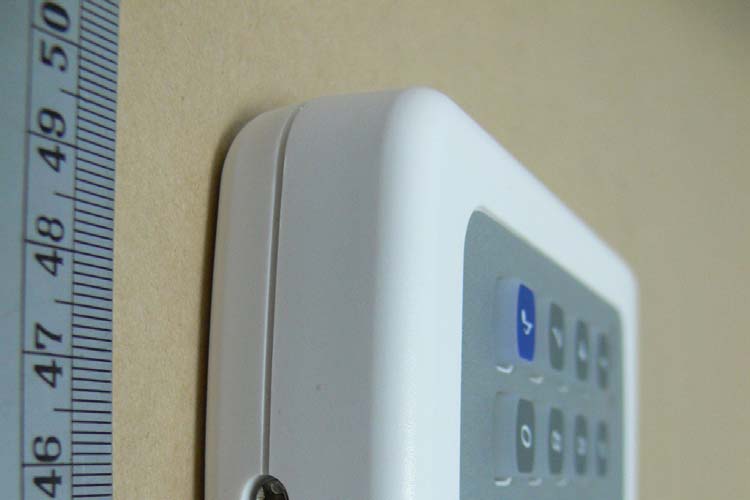

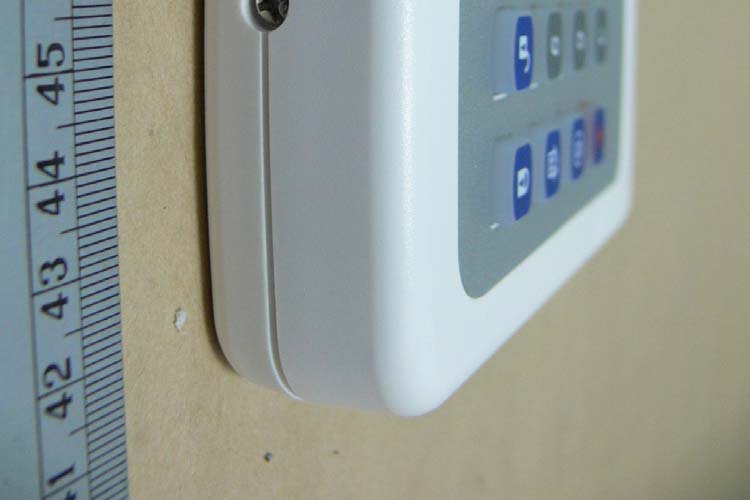

Registration number: W6M20703-7957-C-1 FCC ID: SJLKP7315 ETS Dr. Genz Taiwan PS Co., Ltd. Pictures External Photos Registration number: W6M20703-7957-C-1 FCC ID: SJLKP7315 ETS Dr. Genz Taiwan PS Co., Ltd. Registration number: W6M20703-7957-C-1 FCC ID: SJLKP7315 ETS Dr. Genz Taiwan PS Co., Ltd.

貼於產品本體之FCC標籤圖解 20mm Model: KP-7 FCC ID. : SJLKP7315 THIS DEVICE COMPLIES WITH PART 15 OF THE FCCRULES. OPERATIONS IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: ( 1 ) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE ( 2 ) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFEERENCE THAT MAY UNDESIRED OPERATION . MADE IN TAIWAN 18mm

Registration number: W6M20703-7957-C-1 FCC ID: SJLKP7315 ETS Dr. Genz Taiwan PS Co., Ltd. Internal Photos Registration number: W6M20703-7957-C-1 FCC ID: SJLKP7315 ETS Dr. Genz Taiwan PS Co., Ltd. Registration number: W6M20703-7957-C-1 FCC ID: SJLKP7315 ETS Dr. Genz Taiwan PS Co., Ltd.

of Applicant: AlarmForce Industries Inc. Address: 675 Garyray Dr. North York ON M9L 1R2 Canada Tested and Prepared by ETS DR. GENZ TAIWAN PS CO., LTD FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679 A2LA Cert.No.: 2300.01 PTCRB Accredited Type Certification Test House FCC ID:SJLKP7315 Report No.: W6M20703-7957-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC TEST REPORT for REMOTE KEYPAD Model No.: KP-7 Registration number: W6M20703-7957-C-1 FCC ID: SJLKP7315 ETS Dr. Genz Taiwan PS Co., Ltd. Page 1 of 23 TABLE OF CONTENTS 1 GENERAL INFORMATION 2 1.1 NOTES 2 1.2 TESTING LABORATORY 3 1.2.1 Location 3 1.2.2 Details of accreditation status 3 1.3 D ETAILS OF APPROVAL HOLDER 3 1.4 A PPLICATION DETAILS 3 1.5 T EST ITEM 4 1.6 TEST STANDARDS 5 2 TECHNICAL TEST 5 2.1 SUMMARY OF TEST RESULTS 5 2.2 TEST ENVIRONMENT 5 2.3 TEST MODE 5 2.4 T EST EQUIPMENT UTILIZED 6 2.5 GENERAL TEST PROCEDURE 8 3 TEST RESULTS (ENCLOSURE) 9 3.1 T RANSMISSION REQUIREMENTS 10 3.1.1 Limit of Transmission Time 10 3.1.2 Active Time 10 3.2 O UTPUT POWER (FIELD STRENGTH) 11 3.3 OUT OF BAND RADIATED EMISSIONS 12 3.4 T RANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS 13 3.5 S PURIOUS EMISSION RADIATED, TRANSMITTER 14 3.6 CHANNEL BANDWIDTH 19 3.7 ANTENNA REQUIREMENT 20 3.8 DUTY CYCLE 21 3.9 C ONDUCTED MEASUREMENT AT (AC) POWER LINE 22 APPENDIX 23 Registration number: W6M20703-7957-C-1 FCC ID: SJLKP7315 ETS Dr. Genz Taiwan PS Co., Ltd. Page 2 of 23 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS DR. GENZ TAIWAN PS CO., LTD Tester: May 22, 2007 Jay Chaing Date ETS-Lab. Name Signature Technical responsibility for area of testing: May 22, 2007 Steven Chuang Date ETS Name Signature Registration number: W6M20703-7957-C-1 FCC ID: SJLKP7315 ETS Dr. Genz Taiwan PS Co., Ltd. Page 3 of 23 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Shuang Sing Village, LiShuei Rd., Wanli Township, Taipei County 207, Taiwan (R.O.C.) Company ETS DR. GENZ TAIWAN PS CO., LTD. 6F, NO. 58, LANE 188, RUEY-KUANG RD. NEIHU, TAIPEI 114, TAIWAN R.O.C. Tel : 886-2-66068877 Fax : 886-2-66068879 1.2.2 Details of accreditation status Accredited testing laboratory A2LA-registration number: 2300.01 FCC filed test laboratory Reg. No. 930600 Industry Canada filed test laboratory Reg. No. IC 5679 PTCRB Accredited Type Certification Test House Town: ./. Country: ./. Telephone: ./. Fax: ./. 1.3 Details of approval holder Name : AlarmForce Industries Inc. Street : 675 Garyray Dr. North York ON M9L 1R2 Town : ./. Country : Canada Telephone : 1-416-445-1547 Fax : 1-416-445-9381 Registration number: W6M20703-7957-C-1 FCC ID: SJLKP7315 ETS Dr. Genz Taiwan PS Co., Ltd. Page 4 of 23 1.4 Application details Date of receipt of application : March 30, 2007 Date of receipt of test item : March 30, 2007 Date of test : from April 2, 2007 to May 22, 2007 1.5 Test item Description of test item : REMOTE KEYPAD Type identification : KP-7 Brand name : AlarmForce Multi listing model number : ./. Transmitting frequency : 315 MHz Operation mode : simplex Voltage supply : 4.5VDC (If the device is using battery, please check if the device is tested under fresh battery condition.) Highest clock frequency : 315 MHz Antenna type : PCB antenna Photos : see Annex Manufacturer (if applicable) Name : ./. Street : ./. Town : ./. Country : ./. Additional information : ./. Registration number: W6M20703-7957-C-1 FCC ID: SJLKP7315 ETS Dr. Genz Taiwan PS Co., Ltd. Page 5 of 23 1.6 Test standards Technical standard : FCC RULES PART 15 SUBPART B / § 15.231 (a) : August, 2006 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 3 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 23 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details of power supply : 4.5 VDC 2.3 Test Mode This EUT is the portable device. So the EUT was tested on three different axes. Please see assessment test results as section 3 of this test report. Registration number: W6M20703-7957-C-1 FCC ID: SJLKP7315 ETS Dr. Genz Taiwan PS Co., Ltd. Page 6 of 23 2.4 Test equipment utilized No. Test equipment Type Serial No. Manufacturer Cal. Date Next Cal. Date ETSTW-CE 001 EMI TEST RECEIVER ESHS10 842121/013 R&S 2006/10/16 2007/10/15 ETSTW-CE 002 PREREULATOR MODE DC POWER SUPPLY None None Function Test ETSTW-CE 003 AC POWER SOURCE APS-9102 D161137 GW Function Test ETSTW-CE 004 ZWEILEITER-V- NETZNACHBILDUNG TWO- LINE V-NETWORK ESH3-Z5 840731/011 R&S 2006/10/16 2007/10/15 ETSTW-CE 005 Line-Impedance Stabilisation Network NNBM 8126D 137 Schwarzbeck 2006/10/16 2007/10/15 ETSTW-CE 006 IMPULSBEGRENZER PULSE LIMITER ESH3-Z2 100226 R&S In House Certificate ETSTW-CE 008 ABSORBING CLAMP MDS 21 3469 Schwarzbeck 2005/10/24 2007/10/23 ETSTW-CE 009 TEMP.&HUMI…
