SJLSD7315Smoke Detector

20070303 S S m m o o k k e e D D e e t t e e c c t t o o r r ( ( S S D D - - 7 7 ) ) LED z When the battery voltage is low, the LED will flash every 30 sec. z While the smoke Detector is transmitting the signal, the LED will also flash. z While the batteries are inserted and the Smoke Detector is in warming period, the LED will flash for 5~20 min. Test Button The Test Button is pressed in the following situations: 9 Learning-in the Smoke Detector 9 To test the radio communication range. 9 To test if the Smoke Detector is functioning normally. 9 To silence the alarm Battery compartment Mounting Hole Mounting Bracket Hook z z B B a a t t t t e e r r y y z 4 “AAA” Alkaline batteries are used with life expectancy at over 3 years. z In addition, the Smoke Detector can detect if the battery is low. If the battery voltage is low, LED will flash accompanied with a Low-volume beep once every 30 sec and inform the Control Panel regularly. Low Battery warning typically starts 1 month before complete exhaustion. z z I I n n s s t t a a l l l l a a t t i i o o n n P P r r o o c c e e d d u u r r e e s s Step 1. Insert the 4 “AAA” batteries into the battery compartment taking care that the connection respects correct polarity showing on the battery holder. Step 2. While the 4 batteries are inserted; the SD-7 will sound 2 short beeps and LED start flashing Step 3. After 3 minutes, one short beep sounds indicating that it is starting to take the threshold reference value. The process will be repeated every 100 sec and notified by a short beep respectively. The completion of sampling process will be notified by a musical tune and the LED will be turned off, the SD-7 is now ready for installation. Proceed to step 4. However, after 20 minutes, if the SD-7 gives out continuous beeps instead, it indicates that the SD-7 is rejecting this sampling process and its battery should be removed to silence the beeps. Then, start from step 1 to try again after a pause at 30 seconds. Step 4. Press the Test Button on the Smoke Detector, the LED will be on for 2 Sec. and the buzzer will sound a 2-tone beep to indicate the Smoke Detector is functioning normally and a radio signal is successfully transmitted. Step 5. Using the bracket as a template, drill two holes in the exact location, the device is to be mounted and insert the dowels. Step 6. Screw the bracket on with the two hooks facing down by using the screws and screwing them into the dowels. Step 7. Locate the single line mark on the detector and line it up with one of the hook of the bracket. After both hooks fits in the two mounting holes on the detector, rotate the detector counter-clockwise to lock it in onto the bracket. The installation is now completed. z z T T e e s s t t i i n n g g t t h h e e S S m m o o k k e e D D e e t t e e c c t t o o r r By pressing the Test button on the Smoke Detector, you can test if the Smoke Detector is functioning normally. z If the Smoke Detector functions normally, the LED will be on for 2 Sec. then it will sound a 2-tone beep. z If the buzzer sounds 3 times of 2-tone beep, that means the “Optical Chamber” on the Smoke Detector is either dirty or out-of-order. 1 2 5 6 3 4 1 5 3 4 2 6 20070303 z If the LED doesn’t light and no beep is sounded, it means the Smoke Detector is out-of-order. z z S S u u p p e e r r v v i i s s o o r r y y S S i i g g n n a a l l z After installation, the Smoke Detector will automatically transmit Supervisory Signals periodically to the Control Panel at intervals of 30 min. to 50 min. randomly. z If the Control Panel has not received the signal from the Smoke Detector for a preset period of time, the Control Panel will indicate it on its display to show that particular Smoke Detector is experiencing an out-of-signal problem. z z D D e e t t e e c c t t i i n n g g t t h h e e S S m m o o k k e e z Once the concentration of the smoke exceeds the set threshold value, the Smoke Detector lights up its LED to indicate it’s sending the Smoke Alarm signal to the Control Panel. After the transmission is completed, SD-7 then activates its buzzer with LED flashing rapidly for 10 seconds for local warning. z After this 10-second local warning period, SD-7 proceeds to perform a follow-up smoke check. If the smoke concentration is found to be alarming still, SD-7 will repeat another 10 seconds of local warning with buzzer and rapid flashing LED. z SD-7 will repeatedly perform follow-up checks until the smoke concentration is lower than the set value, then the alarm will be stopped automatically, or the alarm can be stopped manually by using the “Alarm Silence” function. z Once a Smoke Alarm Signal has been transmitted, SD-7 will continue to send alarm signals at every 2 minutes when the smoke concentration continues to be higher than allowed. This 2-minute cycle will be repeated until the smoke concentration is lower than the set value, then the alarm will be stopped automatically, or the alarm can be stopped manually by using the “Alarm Silence” function. z z A A l l a a r r m m S S i i l l e e n n c c e e z Once the alarm is sounding, pressing the Test button will put the Smoke Detector into Alarm Silence mode for 10 min. and the alarm will be stopped. z During this 10-min. Alarm Silence period, the LED will flash once per second. z After this 10-min. period is over, the Smoke Detector will sound a 2-tone beep and then returns to normal operation mode. If the Smoke concentration is still over the set threshold value, the Smoke Detector will sound the warning alarm again. z z T T a a k k i i n n g g N N e e w w R R e e f f e e r r e e n n c c e e V V a a l l u u e e As the operation condition of the smoke detector may vary after being installed for some time, you may wish to take a new reference value to ensure the best use of the smoke detector. To do this, z Press 10 seconds on the TEST button and hold until the LED start to flash. The SD-7 will sounded 2 short beeps then follow the process describing in …

Text truncated - open the document above for the full version.

AlarmForceIndustriesInc. 675GaryrayDr.NorthYorkONM9LlR2Canada FederalCommunicationsCommission FCCID:SJLSD7315 DearSir: Thisistorequestconfid~tialityoninformationsubmittedfOf'aboveapplioation.Wc: wouldliketorequestconfiden.tialityonsomeexhibitswesubmittedforaboveoriginal applicationfortbereasonoftradesecret.Iftboseexh.ibitsareavailableforpublic inspection,anypersonwhooncegetstheinfonnationcontainedinthoseexhibitswiU beabletodesignandto~ethesameproductsveryeasily_Thisisa veryserious problemandhugelossforui'-becausewedidinvestsomuChonit.PleasebenOtmade theExhibitTypeslisted1?c11wroutinelyavailableforpublic;inspection. ConfidentialityRequestregardingapplicationforcertificationofFCCID:SJLSD7:ns .PursuanttoSections0.457and0.4'9oftheCommission'sRules,weherebyrequest confidential.treatmentofinfunnationaccompanyingthisapplicationasoutlined ~low: Bloekdia~m,Kbematies,operationaldeseription ./,/)/' By:.-j(C}j,:'~~By:MouradM'Hiri (Signature),'(printed) Tme:ManagerofTechnicalServices Applicant:AlarmForceIndustriesInc. Address 675GaryrayDr.NorthYorkONM9LlR2Canada .I ; i 1-416-445-154.7Fax:1-416-445-9381 + i Tel Date MarchOs.2007 Tnnrm ICRQC""QT"TV"Rn:r''1.:",nwI,O/'1.:TIr.n -

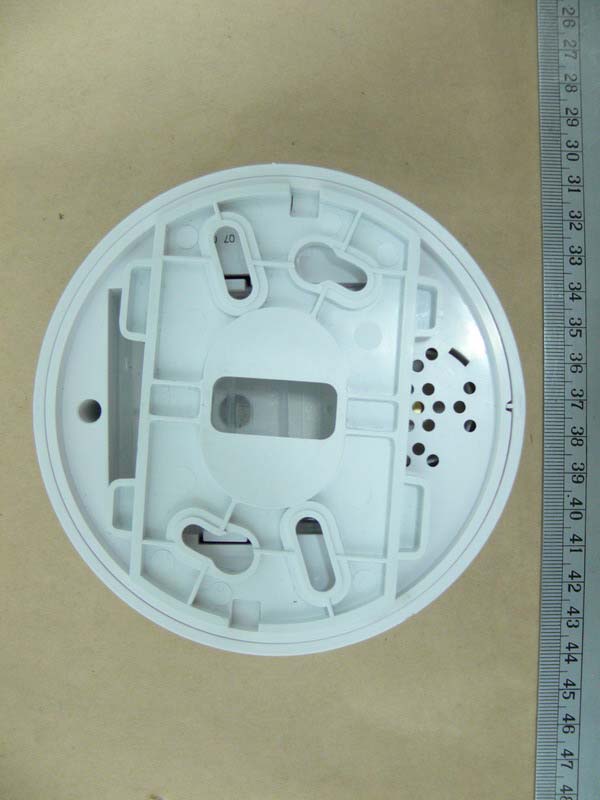

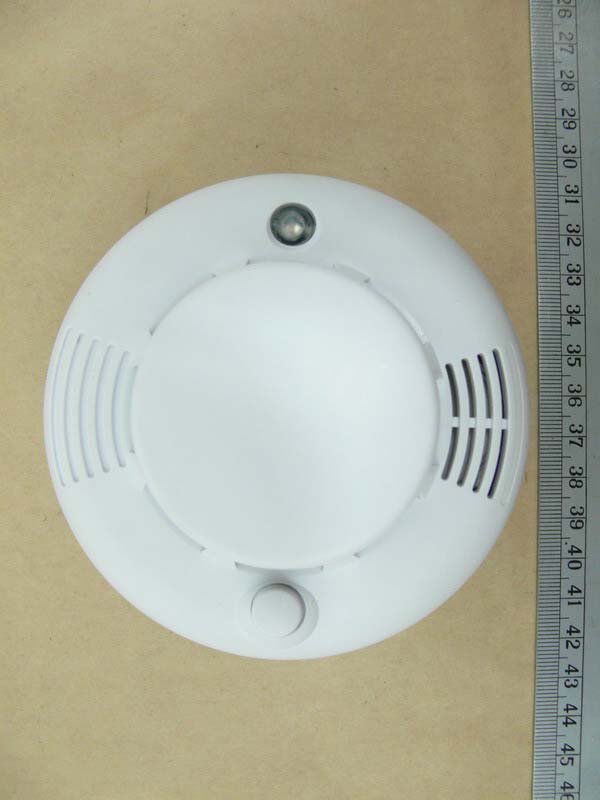

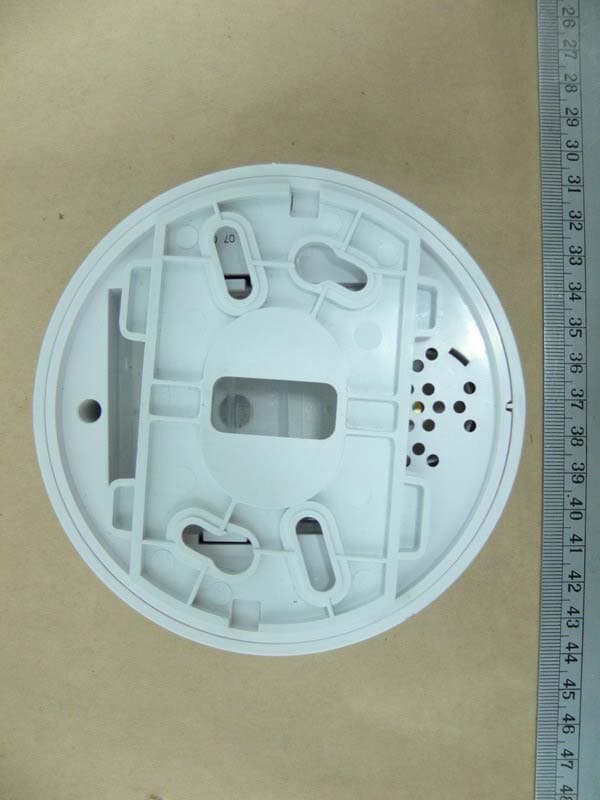

Registration number: W6M20703-7879-C-1 FCC ID: SJLSD7315 Appendix F Pictures External Photos Registration number: W6M20703-7879-C-1 FCC ID: SJLSD7315 Registration number: W6M20703-7879-C-1 FCC ID: SJLSD7315

貼於產品本體之FCC標籤圖解 20mm Model: SD-7 FCC ID. : SJLSD7315 THIS DEVICE COMPLIES WITH PART 15 OF THE FCCRULES. OPERATIONS IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: ( 1 ) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE ( 2 ) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFEERENCE THAT MAY UNDESIRED OPERATION . MADE IN TAIWAN 18mm

Registration number: W6M20703-7879-C-1 FCC ID: SJLSD7315 Internal Photos Registration number: W6M20703-7879-C-1 FCC ID: SJLSD7315 Registration number: W6M20703-7879-C-1 FCC ID: SJLSD7315 Registration number: W6M20703-7879-C-1 FCC ID: SJLSD7315 Registration number: W6M20703-7879-C-1 FCC ID: SJLSD7315 Registration number: W6M20703-7879-C-1 FCC ID: SJLSD7315 Registration number: W6M20703-7879-C-1 FCC ID: SJLSD7315

ETS Dr.Genz Taiwan PS Co., Ltd. FCC Registration No.: 930600 Industry Canada Field test laboratory Reg. No. IC 5679 A2LA Cert.No.: 2300.01 PTCRB Accredited Type Certification Test House TEST - REPORT FCC RULES PART 15 / SUBPART C FCC ID: SJLSD7315 Test report no.: W6M20703-7879-C-1 FCC ETS DR. GENZ TAIWAN PS CO., LTD 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU, TAIPEI 114, TAIWAN, R.O.C. PHONE 886-2-66068877 FAX 886-2-66068879 Registration number: W6M20703-7879-C-1 FCC ID: SJLSD7315 ETS Dr. Genz Taiwan PS Co., Ltd. Page 1 of 20 TABLE OF CONTENTS 1 GENERAL INFORMATION 2 1.1 NOTES 2 1.2 TESTING LABORATORY 3 1.2.1 Location 3 1.2.2 Details of accreditation status 3 1.3 D ETAILS OF APPROVAL HOLDER 3 1.4 A PPLICATION DETAILS 4 1.5 T EST ITEM 4 1.6 TEST STANDARDS 5 2 TECHNICAL TEST 5 2.1 SUMMARY OF TEST RESULTS 5 2.2 TEST ENVIRONMENT 5 2.3 TEST EQUIPMENT UTILIZED 6 2.4 GENERAL TEST PROCEDURE 8 3 TEST RESULTS (ENCLOSURE) 9 3.1 TRANSMISSION REQUIREMENTS 10 3.1.1 Limit of Transmission Time 10 3.1.2 Active Time 10 3.2 O UTPUT POWER (FIELD STRENGTH) 11 3.3 OUT OF BAND RADIATED EMISSIONS 12 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS 13 3.5 SPURIOUS EMISSION RADIATED, TRANSMITTER 14 3.6 CHANNEL BANDWIDTH 16 3.7 ANTENNA REQUIREMENT 17 3.8 DUTY CYCLE 18 3.9 CONDUCTED MEASUREMENT AT (AC) POWER LINE 19 A PPENDIX 20 Registration number: W6M20703-7879-C-1 FCC ID: SJLSD7315 ETS Dr. Genz Taiwan PS Co., Ltd. Page 2 of 20 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS DR. GENZ TAIWAN PS CO., LTD Tester: March 08, 2007 Jay Chaing Date ETS-Lab. Name Signature Technical responsibility for area of testing: March 08, 2007 Steven Chuang Date ETS Name Signature Registration number: W6M20703-7879-C-1 FCC ID: SJLSD7315 ETS Dr. Genz Taiwan PS Co., Ltd. Page 3 of 20 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Shuang Sing Village, LiShuei Rd., Wanli Township, Taipei County 207, Taiwan (R.O.C.) Company ETS DR. GENZ TAIWAN PS CO., LTD. 6F, NO. 58, LANE 188, RUEY-KUANG RD. NEIHU, TAIPEI 114, TAIWAN R.O.C. Tel : 886-2-66068877 Fax : 886-2-66068879 1.2.2 Details of accreditation status Accredited testing laboratory A2LA-registration number: 2300.01 FCC filed test laboratory Reg. No. 930600 Industry Canada filed test laboratory Reg. No. IC 5679 PTCRB Accredited Type Certification Test House Town: ./. Country: ./. Telephone: ./. Fax: ./. 1.3 Details of approval holder Name : AlarmForce Industries Inc. Street : 675 Garyray Dr. North York ON M9L 1R2 Town : ./. Country : Canada Telephone : 1-416-445-1547 Fax : 1-416-445-9381 Registration number: W6M20703-7879-C-1 FCC ID: SJLSD7315 ETS Dr. Genz Taiwan PS Co., Ltd. Page 4 of 20 1.4 Application details Date of receipt of application : March 05, 2007 Date of receipt of test item : March 05, 2007 Date of test : from March 06, 2007 to March 08, 2007 1.5 Test item Description of test item : Smoke Detector Type identification : SD-7 Brand name : AlarmForce Serial number : Test sample without serial number Transmitting frequency : 315 MHz Operation mode : simplex Voltage supply : 6VDC (1.5VDC×4 batteries) (If the device is using battery, please check if the device is tested under fresh battery condition.) Highest clock frequency : 315 MHz Antenna type : PCB antenna Photos : see Annex Manufacturer (if applicable) Name : ./. Street : ./. Town : ./. Country : ./. Additional information : ./. Registration number: W6M20703-7879-C-1 FCC ID: SJLSD7315 ETS Dr. Genz Taiwan PS Co., Ltd. Page 5 of 20 1.6 Test standards Technical standard : FCC RULES PART 15 SUBPART B / § 15.231 (a) : August, 2006 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 3 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 23 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details of power supply : 6VDC (1.5VDC×4 batteries) Registration number: W6M20703-7879-C-1 FCC ID: SJLSD7315 ETS Dr. Genz Taiwan PS Co., Ltd. Page 6 of 20 2.3 Test equipment utilized No. Test equipment Type Serial No. Manufacturer Cal. Date Next Cal. Date ETSTW-CE 001 EMI TEST RECEIVER ESHS10 842121/013 R&S 2006/10/16 2007/10/15 ETSTW-CE 002 PREREULATOR MODE DC POWER SUPPLY None None Function Test ETSTW-CE 003 AC POWER SOURCE APS-9102 D161137 GW Function Test ETSTW-CE 004 ZWEILEITER-V- NETZNACHBILDUNG TWO- LINE V-NETWORK ESH3-Z5 840731/011 R&S 2006/10/16 2007/10/15 ETSTW-CE 005 Line-Impedance Stabilisation Network NNBM 8126D 137 Schwarzbeck 2006/10/16 2007/10/15 ETSTW-CE 006 IMPULS-BEGRENZER PULSE LIMITER ESH3-Z2 100226 R&S In House Certificate ETSTW-CE 008 ABSORBING CLAMP MDS 21 3469 ABSORPTIONS- MESSWANDLER- ZANGE 2005/10/24 2007/10/23 ETSTW-CE 009 TEMP.&HUMIDITY CHAMBER GTH-225-40-1P-UMAA0305-009 GIANT FORCE 2006/8/17 2007/8/16 ETSTW-CE 013 CISPR 22 TWO BALANCED TELECOM PAIRS IMPEDANCE STABILIZATION NETWORK FCC-TLISN-T4-0220242 FCC 2005/12/8 2007/12/7 ETSTW-CE 0…
