SJLRC7N315Remote Controller

20070303 Remote Controller (RC-7N) The Remote Controller is used to remotely arm or disarm the system, activate the panic alarm, and put the system in the "HOME" mode. z z I I d d e e n n t t i i f f y y i i n n g g t t h h e e p p a a r r t t s s BUTTON Pressing this button will put the system into the Armed mode. BUTTON Pressing this button for 3 seconds will trigger the panic alarm regardless of whether the system is Armed, Disarmed or Home. BUTTON Pressing this button will put the system into the Home mode. BUTTON Pressing this button will put the system into the Disarmed mode. If the alarm is sounding, pressing this button will stop the alarm. TX INDICATOR BATTERY COMPARTMENT z z T T X X I I n n d d i i c c a a t t o o r r When any of these four buttons is pressed, TX LED will on. Please hold the button until the TX LED is off to indicate the Remote Controller has successfully sent out a signal to the Main Unit. < < N N O O T T E E > > ) On pressing of Panic button, the TX LED will first flash for three seconds then stay on to indicate a successful transmission. z z B B a a t t t t e e r r y y The Remote Controller uses one “CR2032” 3V 230 mAh Lithium battery as its power source. Battery life is over 2 years in a normal domestic environment. z z G G e e t t t t i i n n g g S S t t a a r r t t e e d d z Remove the battery cover by using a coin to turn counter-clockwise. z Insert the battery as shown in diagram, with unmarked side (negative) of the battery facing down. z Replace the battery cover – secure the cover by using a coin to turn clockwise. This device complies with Part 15 of the FCC Rules and RSS-210 of Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Caution : To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices) 1 2 3 4 5 6

FCC ID：SJLRC7N315 Date code 20mm 6mm

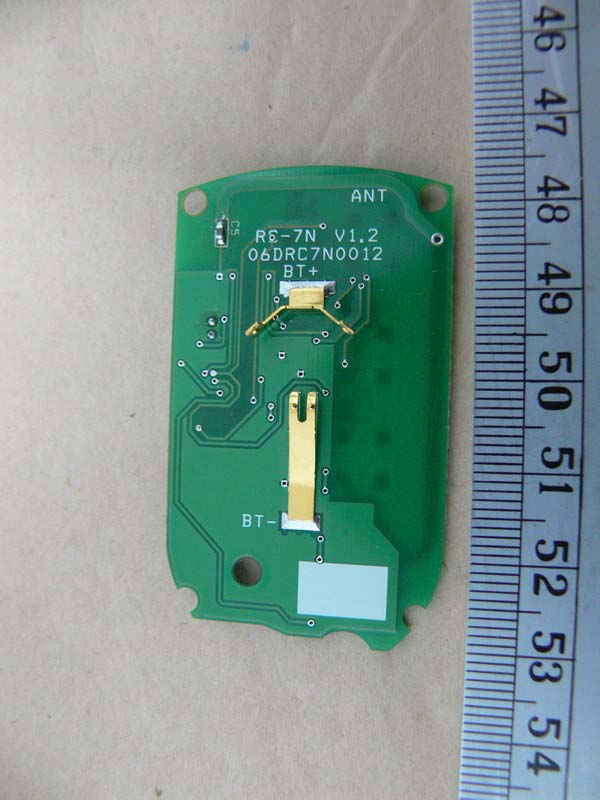

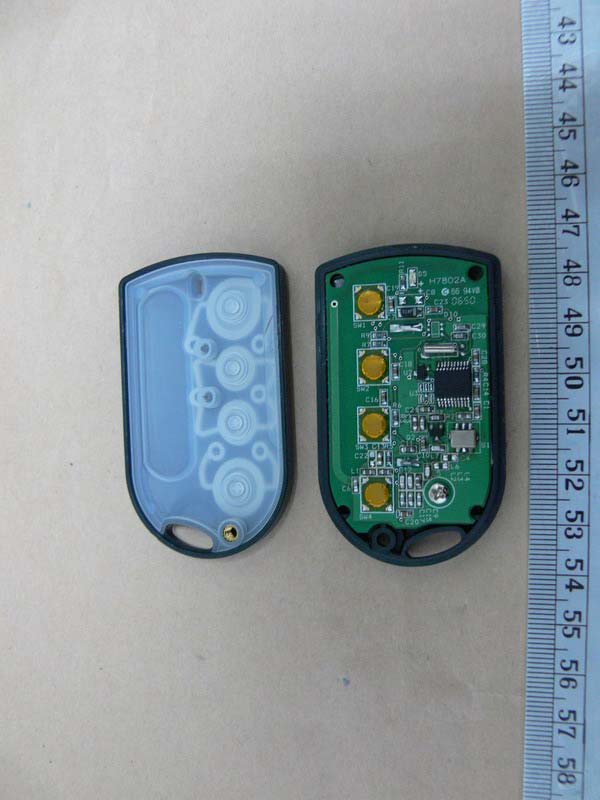

Registration number: W6M20703-7896-C-1 FCC ID: SJLRC7N315 Internal Photos ETS Dr. Genz Taiwan PS Co., Ltd. Registration number: W6M20703-7896-C-1 FCC ID: SJLRC7N315 ETS Dr. Genz Taiwan PS Co., Ltd. Registration number: W6M20703-7896-C-1 FCC ID: SJLRC7N315 ETS Dr. Genz Taiwan PS Co., Ltd.

ETS Dr.Genz Taiwan PS Co., Ltd. FCC Registration No.: 930600 Industry Canada Field test laboratory Reg. No. IC 5679 A2LA Cert.No.: 2300.01 PTCRB Accredited Type Certification Test House TEST - REPORT FCC RULES PART 15 / SUBPART C FCC ID: SJLRC7N315 Test report no.: W6M20703-7896-C-1 FCC ETS DR. GENZ TAIWAN PS CO., LTD 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU, TAIPEI 114, TAIWAN, R.O.C. PHONE 886-2-66068877 FAX 886-2-66068879 Registration number: W6M20703-7896-C-1 FCC ID: SJLRC7N315 ETS Dr. Genz Taiwan PS Co., Ltd. Page 1 of 20 TABLE OF CONTENTS 1 GENERAL INFORMATION 2 1.1 NOTES 2 1.2 TESTING LABORATORY 3 1.2.1 Location 3 1.2.2 Details of accreditation status 3 1.3 D ETAILS OF APPROVAL HOLDER 3 1.5 T EST ITEM 4 1.6 TEST STANDARDS 5 2 T ECHNICAL TEST 5 2.1 SUMMARY OF TEST RESULTS 5 2.2 TEST ENVIRONMENT 5 2.3 TEST MODE 5 2.4 TEST EQUIPMENT UTILIZED 6 2.5 GENERAL TEST PROCEDURE 8 3 TEST RESULTS (ENCLOSURE) 9 3.1 TRANSMISSION REQUIREMENTS 10 3.1.1 Limit of Transmission Time 10 3.1.2 Active Time 10 3.2 O UTPUT POWER (FIELD STRENGTH) 11 3.3 O UT OF BAND RADIATED EMISSIONS 12 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS 13 3.5 S PURIOUS EMISSION RADIATED, TRANSMITTER 14 3.6 C HANNEL BANDWIDTH 16 3.7 ANTENNA REQUIREMENT 17 3.8 DUTY CYCLE 18 3.9 CONDUCTED MEASUREMENT AT (AC) POWER LINE 19 A PPENDIX 20 Registration number: W6M20703-7896-C-1 FCC ID: SJLRC7N315 ETS Dr. Genz Taiwan PS Co., Ltd. Page 2 of 20 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS DR. GENZ TAIWAN PS CO., LTD Tester: March 14, 2007 Jay Chaing Date ETS-Lab. Name Signature Technical responsibility for area of testing: March 14, 2007 Steven Chuang Date ETS Name Signature Registration number: W6M20703-7896-C-1 FCC ID: SJLRC7N315 ETS Dr. Genz Taiwan PS Co., Ltd. Page 3 of 20 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Shuang Sing Village, LiShuei Rd., Wanli Township, Taipei County 207, Taiwan (R.O.C.) Company ETS DR. GENZ TAIWAN PS CO., LTD. 6F, NO. 58, LANE 188, RUEY-KUANG RD. NEIHU, TAIPEI 114, TAIWAN R.O.C. Tel : 886-2-66068877 Fax : 886-2-66068879 1.2.2 Details of accreditation status Accredited testing laboratory A2LA-registration number: 2300.01 FCC filed test laboratory Reg. No. 930600 Industry Canada filed test laboratory Reg. No. IC 5679 PTCRB Accredited Type Certification Test House Town: ./. Country: ./. Telephone: ./. Fax: ./. 1.3 Details of approval holder Name : AlarmForce Industries Inc. Street : 675 Garyray Dr. North York ON M9L 1R2 Town : ./. Country : Canada Telephone : 1-416-445-1547 Fax : 1-416-445-9381 Registration number: W6M20703-7896-C-1 FCC ID: SJLRC7N315 ETS Dr. Genz Taiwan PS Co., Ltd. Page 4 of 20 1.4 Application details Date of receipt of application : March 09, 2007 Date of receipt of test item : March 09, 2007 Date of test : from March 12, 2007 to March 14, 2007 1.5 Test item Description of test item : Remote Controller Type identification : RC-7N Brand name : AlarmForce Serial number : Test sample without serial number Transmitting frequency : 315 MHz Operation mode : simplex Voltage supply : 3VDC (If the device is using battery, please check if the device is tested under fresh battery condition.) Highest clock frequency : 315 MHz Antenna type : PCB antenna Photos : see Annex Manufacturer (if applicable) Name : ./. Street : ./. Town : ./. Country : ./. Additional information : ./. Registration number: W6M20703-7896-C-1 FCC ID: SJLRC7N315 ETS Dr. Genz Taiwan PS Co., Ltd. Page 5 of 20 1.6 Test standards Technical standard : FCC RULES PART 15 SUBPART B / § 15.231 (a) : August, 2006 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 3 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 23 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details of power supply : 3VDC 2.3 Test Mode This EUT is the portable device. So the EUT was tested on three different axes. Please see assessment test results as section 3 of this test report. Registration number: W6M20703-7896-C-1 FCC ID: SJLRC7N315 ETS Dr. Genz Taiwan PS Co., Ltd. Page 6 of 20 2.4 Test equipment utilized No. Test equipment Type Serial No. Manufacturer Cal. Date Next Cal. Date ETSTW-CE 001 EMI TEST RECEIVER ESHS10 842121/013 R&S 2006/10/16 2007/10/15 ETSTW-CE 002 PREREULATOR MODE DC POWER SUPPLY None None Function Test ETSTW-CE 003 AC POWER SOURCE APS-9102 D161137 GW Function Test ETSTW-CE 004 ZWEILEITER-V- NETZNACHBILDUNG TWO- LINE V-NETWORK ESH3-Z5 840731/011 R&S 2006/10/16 2007/10/15 ETSTW-CE 005 Line-Impedance Stabilisation Network NNBM 8126D 137 Schwarzbeck 2006/10/16 2007/10/15 ETSTW-CE 006 IMPULS-BEGRENZER PULSE LIMITER ESH3-Z2 100226 R&S In House Certificate ETSTW-CE 008 ABSORBING CLAMP MDS 21 3469 ABSORPTIONS- MESSWANDLER- ZANGE 2005/10/24 2007/10/23 ETSTW-CE 009 TEMP.&HUMIDITY CHAMBER GTH-225-40-1P-UMAA0305-009 GIANT FORCE 2006/8/17 2007/8/16 ETSTW-CE 01…
