SK9G5R1G5R1 Module

Itron, Inc.
G5R1 Module - FCC ID SK9G5R1 - Itron, Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Sep 03, 2020
Application Purpose
Original Equipment
Date of Application
Sep 02, 2020
Equipment Note
G5R1 Module
Frequency Range
2422.00000000 - 2452.00000000
Company
Itron, Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

G5R1 Communications Module G 5 R 1 M o d u l e f o r t h e I t r o n E l e c t r i c i t y M e t e r Technical Reference Guide Effective Date: June, 2020 G5R1 Communications Module Revision History The following table describes the changes to this document for each revision of the CAT1 module: Revision Date Description of Change A June, 2020 Initial Release G5R1 Communications Module Labeling The following requirements will be applied to any products that use these modules: The GEN5 RIVA meter or host label will include the following text for the G5R1 module: • Contains: • FCC ID: SK9G5R1, IC: 864G-G5R1, Model: G5R1 The user’s manual for any product that contains this modules will contain the following text. If the device is large enough, then this will also be placed on the label. “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” Regulatory Compliance The user’s manual for any product that contains this module will contain the following text: Module Compliance FCC This module has been tested and found to comply with the following requirements for Modular Approval. • Part 15.247 - Operation within the bands 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. • RSS-247 — Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence-Exempt Local Area Network (LE-LAN) Devices G5R1 Communications Module FCC Part 15, Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. ISED RSS-Gen Notice “This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.” “Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) l’appareil ne doit pas produire de brouillage; 2) l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.” ISED Canada ICES-003 Compliance “CAN ICES-3 (B)/NMB-3(B)” Additional testing, Part 15 Subpart B disclaimer The Itron G5R1 modular transmitter is only FCC authorized for the specific rule parts (i.e., FCC transmitter rules) listed on the grant, and that the host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification. If the grantee markets their product as being Part 15 Subpart B compliant (when it also contains unintentional-radiator digital circuity), then the grantee shall provide a notice stating that the final host product still requires Part 15 Subpart B compliance testing with the modular transmitter installed. Changes or modifications to this device not expressly approved by Itron, Inc. could void the user’s authority to operate the equipment. G5R1 Communications Module RF Exposure (FCC/ISED) The user’s manual for any product that contains this module will contain the following text: “This equipment complies with radiation exposure limits set forth as a mobile classification for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.” In order to comply with FCC / ISED RF Exposure requirements, this device must be installed to provide at least 20 cm separation from the human body at all times. “Afin de se conformer aux exigences d'exposition RF FCC / ISED, cet appareil doit être installé pour fournir au moins 20 cm de séparation du corps humain en tout temps.“ (The G5R1 module has been evaluated for RF exposure compliance) Miscellaneous The user’s manual for any product that contains this module will contain the following text: Professional Installation This module is intended for professional installation by the integrator. The OEM integrator is still responsible for the FCC/ISED compliance requirement of the end product, which integrates this module. Limited Modular Procedures The Itron G5R1 is approved as a module, and Itron as the module manufacturer is responsible for approving the host environment that the limited module is used with. The host for the Itron G5R1 module is the Itron electricity meter. Itron has full control over the manufacture of the module as well as the electricity meter. As a module the fully operational G5R1 has been tested and has shown compliance within the host. Antennas There are no external antenna types approved for use with the Itron G5R1 module installed in the Itron meter. Below are the a…

Text truncated - open the document above for the full version.

Cover Letter(s)

Federal Communications Commission Date: August 10, 2020 Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: Itron, Inc. respectfully requests confidentiality of certain materials provided with the submission of the G5R1 under FCC ID: SK9G5R1 in accordance with 47 CFR 0.457(d) and 47 CFR 0.459. The confidentiality request applies to the following exhibits: 72160720 – Schematics.pdf 72160720 – System Block Diagram.pdf 72160720 – Theory of Operation.pdf The G5R1 has been developed at considerable effort and expense by Itron, Inc. These items are considered as Trade Secrets and therefore public access to the proprietary material could possibly result in duplication of equipment that could severely damage the company’s business advantage. I appreciate your assistance in this matter. Sincerely, Lee Littlejohn Regulatory Engineer

Cover Letter(s)

Federal Communications Commission Date: August 10, 2020, P.O. Box 429 Columbia, MD 21045 RE: Application for Modular Approval Certification for the G5R1 communications module Dear Sir or Madam: The following information addresses the requirements to support a modular approval as required by FCC Part 15.212, Modular Transmitters. 1. The transmitter section is shielded. Testing has been performed to assure compliance. 2. The G5R1 does not have external modulation or data inputs. The RF section is driven by an on- board MCU which controls RF data lines and does not allow excessive modulation. 3. The modular transmitter has its own power regulation. 4. The frequency hopping and the Wi-Fi transmitter antennas are permanently imbedded into the module circuit board. 5. The G5R1 module was tested in a standalone configuration. 6. The G5R1 register module will be labeled as required. The host equipment will also have the required labeling. 7. Operating requirements are included in the host technical manual. 8. MPE measurements are provided to demonstrate RF compliance. There is a cautionary statement that is included in the technical manual stipulating the 20 cm separation distance. Sincerely, Name: Lee Littlejohn Signature: Title: Regulatory Engineer Date: August 10, 2020

External Photos

G5R1 Module Photos Front Rear

ID Label/Location Info

G5R1 Module Labels Labels ID Label Interference Statement

Internal Photos

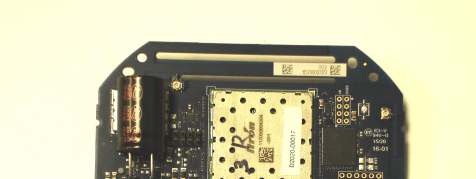

G5R1 Module Photos Front Rear Rear, shields removed

RF Exposure Info

5945 Cabot Pkwy, Suite 100, Alpharetta, GA 30005 RF Exposure Test Report FCC ID: SK9G5R1 IC: 864G-G5R1 FCC Rule Part: 1.1310 ISED Canada Radio Standards Specification: RSS-102 Report Number: AT72160720-4C0 Manufacturer: Itron, Inc. Model: G5R1 Test Begin Date: July 14, 2020 Test End Date: July 14, 2020 Report Issue Date: August 27, 2020 FOR THE SCOPE OF ACCREDITATION UNDER Certificate Number: 2955.09 This report must not be used by the client to claim product certification, approval, or endorsement by A2LA, NIST, or any agency of the Federal Government. Prepared By:Reviewed by: Ryan McGannKirby Munroe Team LeaderTechnical Manager, US Wireless TÜV SÜD America Inc.TÜV SÜD America Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of TÜV SÜD America Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 12 pages 5945 Cabot Pkwy, Suite 100, Alpharetta, GA 30005 TABLE OF CONTENTS 1GENERAL .................................................................................................................................. 3 1.1PURPOSE ....................................................................................................................................... 3 1.2MANUFACTURER INFORMATION ................................................................................................... 3 1.3PRODUCT DESCRIPTION ................................................................................................................ 3 1.4TEST METHODOLOGY AND CONSIDERATIONS ............................................................................... 4 2TEST FACILITIES ................................................................................................................... 5 2.1LOCATION ..................................................................................................................................... 5 2.2LABORATORY ACCREDITATIONS/RECOGNITIONS/CERTIFICATIONS .............................................. 5 2.3RADIATED EMISSIONS TEST SITE DESCRIPTION ............................................................................ 6 2.3.1Semi-Anechoic Chamber Test Site – Chamber A .................................................................... 6 2.3.2Semi-Anechoic Chamber Test Site – Chamber B .................................................................... 7 3APPLICABLE STANDARD REFERENCES ......................................................................... 8 4LIST OF TEST EQUIPMENT ................................................................................................. 8 5SUPPORT EQUIPMENT.......................................................................................................... 9 6EQUIPMENT UNDER TEST SETUP BLOCK DIAGRAM ................................................. 9 7SUMMARY OF TESTS............................................................................................................10 7.1MAXIMUM PERMISSIBLE EXPOSURE –FCC:SECTION 1.1310;ISEDCANADA:RSS-102SECTION 4...................................................................................................................................................10 7.1.1Measurement Procedure ........................................................................................................10 7.1.2Measurement Results .............................................................................................................10 7.1.3Summation of MPE Ratios – Simultaneous Transmissions ...................................................11 8ESTIMATION OF MEASUREMENT UNCERTAINTY .....................................................12 9CONCLUSION ..........................................................................................................................12 Model(s): G5R1FCC ID: SK9G5R1IC: 864G-G5R1 Report: AT72160720-4C0Page 3 1 GENERAL 1.1 Purpose The purpose of this report is to demonstrate compliance with Part 1 Subpart I of the FCC’s Code of Federal Regulations and Innovation, Science, and Economic Development Canada’s Radio Standards Specification RSS-102 Certification for Maximum Permissible Exposure. 1.2 Manufacturer Information Itron, Inc. 313 N Hwy 11 West Union, SC 29696 1.3 Product Description The Itron G5R1 is an electricity metering module which includes a 902.4 MHz to 927.6 MHz transmitter as well as 2.4GHz WLAN. The module operates on AC as well as DC voltage which is supplied by a host device. This test report documents the compliance of the maximum permissible exposure for uncontrolled exposure of a fixed device. Technical Information (WiFi): Detail Description Frequency Range (MHz) 2412 – 2462 Number of Channels 11 (20MHz Channels) 7 (40MHz Channels) Channel Spacing 5 MHz Modulation Format 802.11b: DSSS (DBPSK / DQPSK / CCK) 802.11g/n (HT 20/40): OFDM (BPSK / QPSK / 16QAM / 64QAM) Data Rates 802.11b: 1 – 11 Mbps 802.11g: 6 – 54 Mbps 802.11n (HT 20): 6.5 – 72 Mbps 802.11n (HT 40): 13.5 – 150 Mbps Operating Voltage 24Vdc Antenna Type / Gain PCB Embedded Antenna / 2.9dBi Model(s): G5R1FCC ID: SK9G5R1IC: 864G-G5R1 Report: AT72160720-4C0Page 4 Technical Information (Sub-1GHz): Detail Description Frequency Range FSK 100, GFSK 150/200: 902.3 – 926.9 MHz FSK 150, GFSK 300, OFDM: 902.4 – 927.6 Number of Channels FSK 100, GFSK 150/200: 83 OQPSK, FSK 150, GFSK 300, OFDM: 62 Channel Spacing FSK 100, GFSK 150/200: 300kHz FSK 150, GFSK 300, OFDM: 400kHz Modulation Format FSK, GFSK, OFDM Data Rates FSK: 100, 150kbps GFSK: 150, 200, 300kbps OFDM: 600, 1200, 2400kbps Operating Voltage 24Vdc Antenna Type(s) / Gain(s) PCB Embedded Antenna / 3.6dBi Model Number: G5R1 Test Sample Serial Number(s): Not labeled Test Sample Condition: The test samples were provided in good working order with no visible defects. 1.4 Test Methodology and Considerations The data presented in this report represents the worst case where applicable. The…

Text truncated - open the document above for the full version.

Test Report

5945 Cabot Pkwy, Suite 100, Alpharetta, GA 30005 Certification Test Report FCC ID: SK9G5R1 IC: 864G-G5R1 FCC Rule Part: 15.247 ISED Canada Radio Standards Specification: RSS-247 Report Number: AT72160720-1C1 Manufacturer: Itron, Inc. Model: G5R1 Test Begin Date: May 27, 2020 Test End Date: August 25, 2020 Report Issue Date: September 3, 2020 FOR THE SCOPE OF ACCREDITATION UNDER Certificate Number: 2955.09 This report must not be used by the client to claim product certification, approval, or endorsement by A2LA, NIST, or any agency of the Federal Government. Prepared By:Reviewedby: Jeremy PickensRyan McGann Senior Wireless EngineerTeam Leader TÜV SÜD America Inc.TÜV SÜD America Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of TÜV SÜD America Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 31 pages 5945 Cabot Pkwy, Suite 100, Alpharetta, GA 30005 TABLE OF CONTENTS 1GENERAL .............................................................................................................................................. 3 1.1PURPOSE ................................................................................................................................................... 3 1.2APPLICANT INFORMATION ......................................................................................................................... 3 1.3PRODUCT DESCRIPTION ............................................................................................................................. 3 1.4TEST METHODOLOGY AND CONSIDERATIONS ............................................................................................. 4 2TEST FACILITIES................................................................................................................................ 5 2.1LOCATION ................................................................................................................................................. 5 2.2LABORATORY ACCREDITATIONS/RECOGNITIONS/CERTIFICATIONS ............................................................. 5 2.3RADIATED EMISSIONS TEST SITE DESCRIPTION .......................................................................................... 6 2.3.1Semi-Anechoic Chamber Test Site ............................................................................................................ 6 2.4CONDUCTED EMISSIONS TEST SITE DESCRIPTION ....................................................................................... 7 2.4.1Conducted Emissions Test Site ................................................................................................................. 7 3APPLICABLE STANDARD REFERENCES...................................................................................... 8 4LIST OF TEST EQUIPMENT.............................................................................................................. 8 5SUPPORT EQUIPMENT ...................................................................................................................... 9 6EQUIPMENT UNDER TEST SETUP BLOCK DIAGRAM ............................................................. 9 7SUMMARY OF TESTS ....................................................................................................................... 10 7.1ANTENNA REQUIREMENT –FCC15.203 .................................................................................................. 10 7.2POWER LINE CONDUCTED EMISSIONS –FCC15.207,ISEDCANADA:RSS-GEN 8.8 ................................ 10 7.2.1Measurement Procedure ........................................................................................................................ 10 7.2.2Measurement Results.............................................................................................................................. 10 7.36DB/99%BANDWIDTH –FCC15.247(A)(2),ISEDCANADA:RSS-2475.2(1) ....................................... 12 7.3.1Measurement Procedure ........................................................................................................................ 12 7.3.2Measurement Results.............................................................................................................................. 12 7.4FUNDAMENTAL EMISSION OUTPUT POWER –FCC15.247(B)(3),ISEDCANADA:RSS-2475.4(4) ........... 15 7.4.1Measurement Procedure ........................................................................................................................ 15 7.4.2Measurement Results.............................................................................................................................. 15 7.5EMISSION LEVELS .................................................................................................................................... 16 7.5.1Emissions into Non-restricted Frequency Bands – FCC 15.247(d); ISED Canada: RSS-247 5.5 ......... 16 7.5.1.1Measurement Procedure ...................................................................................................................................... 16 7.5.1.2Measurement Results .......................................................................................................................................... 16 7.5.2Emissions into Restricted Frequency Bands – FCC: 15.205, 15.209; ISED Canada: RSS-Gen 8.9 / 8.10 20 7.5.2.1Measurement Procedure ...................................................................................................................................... 20 7.5.2.2Measurement Results .......................................................................................................................................... 20 7.5.2.3Sample Calculation: ............................................................................................................................................ 22 7.6MAXIMUM …

Text truncated - open the document above for the full version.

Test Report

5945 Cabot Pkwy, Suite 100, Alpharetta, GA 30005 Certification Test Report FCC ID: SK9G5R1 IC: 864G-G5R1 FCC Rule Part: 15.247 ISED Canada Radio Standards Specification: RSS-247 Report Number: AT72160720-3C0 Manufacturer: Itron, Inc. Model: G5R1 Test Begin Date: May 26, 2020 Test End Date: August 25, 2020 Report Issue Date: August 27, 2020 FOR THE SCOPE OF ACCREDITATION UNDER Certificate Number: 2955.09 This report must not be used by the client to claim product certification, approval, or endorsement by A2LA, NIST, or any agency of the Federal Government. Prepared By:Reviewed by: Ryan McGannKirby Munroe Senior Wireless EngineerSenior Engineer TÜV SÜD America Inc.TÜV SÜD America Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of TÜV SÜD America Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 25 pages 5945 Cabot Pkwy, Suite 100, Alpharetta, GA 30005 TABLE OF CONTENTS 1GENERAL .................................................................................................................................. 3 1.1PURPOSE ....................................................................................................................................... 3 1.2PRODUCT DESCRIPTION ................................................................................................................ 3 1.3TEST METHODOLOGY AND CONSIDERATIONS ............................................................................... 4 2TEST FACILITIES ................................................................................................................... 5 2.1LOCATION ..................................................................................................................................... 5 2.2LABORATORY ACCREDITATIONS/RECOGNITIONS/CERTIFICATIONS .............................................. 5 2.3RADIATED EMISSIONS TEST SITE DESCRIPTION ............................................................................ 6 2.3.1Semi-Anechoic Chamber Test Site – Chamber A ..................................................................... 6 2.3.2Semi-Anechoic Chamber Test Site – Chamber B ..................................................................... 7 2.4CONDUCTED EMISSIONS TEST SITE DESCRIPTION ......................................................................... 8 2.4.1Conducted Emissions Test Site ................................................................................................. 8 3APPLICABLE STANDARD REFERENCES ......................................................................... 9 4LIST OF TEST EQUIPMENT ................................................................................................10 5SUPPORT EQUIPMENT.........................................................................................................11 6EQUIPMENT UNDER TEST SETUP BLOCK DIAGRAM ................................................11 7SUMMARY OF TESTS............................................................................................................12 7.1ANTENNA REQUIREMENT –FCC15.203 ......................................................................................12 7.2POWER LINE CONDUCTED EMISSIONS –FCC15.207,ISEDCANADA:RSS-GEN 8.8 ..................12 7.2.1Measurement Procedure .........................................................................................................12 7.2.2Measurement Results ..............................................................................................................12 7.36DB/99%BANDWIDTH –FCC:SECTION 15.247(A)(2);ISEDCANADA:RSS-2475.2(A) ..........14 7.3.1Measurement Procedure .........................................................................................................14 7.3.2Measurement Results ..............................................................................................................14 7.4FUNDAMENTAL EMISSION OUTPUT POWER –FCC:SECTION 15.247(B)(3);ISEDCANADA:RSS- 2475.4(D) ....................................................................................................................................16 7.4.1Measurement Procedure .........................................................................................................16 7.4.2Measurement Results ..............................................................................................................16 7.5EMISSION LEVELS ........................................................................................................................17 7.5.1Emissions into Non-restricted Frequency Bands – FCC 15.247(d); ISED Canada: RSS-247 5.5 ............................................................................................................................................17 7.5.2Emissions into Restricted Frequency Bands – FCC: 15.205, 15.209; ISED Canada: RSS-Gen 8.9 / 8.10..................................................................................................................................19 7.6MAXIMUM POWER SPECTRAL DENSITY –FCC:SECTION 15.247(E)ISEDCANADA:RSS-247 5.3(B) ...........................................................................................................................................20 7.6.1Measurement Procedure .........................................................................................................20 7.6.2Measurement Results ..............................................................................................................20 8ESTIMATION OF MEASUREMENT UNCERTAINTY .....................................................21 9CONCLUSION ..........................................................................................................................21 APPENDIX A: PLOTS ...............................................................................................................................22…

Text truncated - open the document above for the full version.

Test Setup Photos

5945 Cabot Parkway Suite 100 Alpharetta, GA 30005 USA Certification Exhibit FCC ID: SK9G5R1 IC: 864G-G5R1 FCC Rule Part: 15.247 ISED Canada Radio Standards Specification: RSS-247 Project Number: 72160720 Manufacturer: Itron, Inc. Model: G5R1 Test Setup Photos Model(s): G5R1FCC ID:SK9G5R1IC: 864G-G5R1 Project: 72160720Page 2 Figure 1: Test Setup –Antenna Port Conducted Measurements (WLAN) Figure 2: Test Setup –Antenna Port Conducted Measurements (900MHz) Model(s): G5R1FCC ID:SK9G5R1IC: 864G-G5R1 Project: 72160720Page 3 Figure 3: Test Setup – Radiated Emissions <30MHz Figure 4: Test Setup – Radiated Emissions <30MHz Model(s): G5R1FCC ID:SK9G5R1IC: 864G-G5R1 Project: 72160720Page 4 Figure 5: Test Setup – Radiated Emissions <1GHz Figure 6: Test Setup – Radiated Emissions <1GHz Model(s): G5R1FCC ID:SK9G5R1IC: 864G-G5R1 Project: 72160720Page 5 Figure 7: Test Setup – Radiated Emissions >1GHz Figure 8: Test Setup – Radiated Emissions >1GHz Model(s): G5R1FCC ID:SK9G5R1IC: 864G-G5R1 Project: 72160720Page 6 Figure 9: Test Setup – Radiated Emissions >18GHz Figure 10: Test Setup – AC Conducted Emissions Model(s): G5R1FCC ID:SK9G5R1IC: 864G-G5R1 Project: 72160720Page 7 Figure 11: Test Setup – AC Conducted Emissions Figure 12: Test Setup – Maximum Permissible Exposure Model(s): G5R1FCC ID:SK9G5R1IC: 864G-G5R1 Project: 72160720Page 8

Contact Information

Applicant

Christopher O'Steen(Compliance Engineer)
Christopher.O'[email protected]864-718-6702Fax: 864-718-6871

Test Firm

TUV SUD America, Inc.William Elliott
[email protected]813-284-2736

Technical Specifications

#Rule PartsFrequency RangePower Output
315C2.42 GHz - 2.45 GHz14.00 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Modular Approval. Power listed is peak conducted for 2412-2462 MHz and average conducted for 2422-2452 MHz and 900 MHz. This grant is valid only when the device is installed by the grantee or contractors employed by the grantee who are instructed to ensure that the end-user has no manual instructions to remove or install the device. The transmitter must be installed to provide a separation distance of at least 20cm from all persons. Installers and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance.
