SK9ITR24001ITR24001 Module

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: SK9ITR24001 IC: 864G-ITR24001 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 11-0105.W06.11.A Manufacturer: Itron Electricity Metering, Inc. Model: ITR24001 Manual User Information Manual Itron Module Model ITR24001 Labeling The following requirements will be applied to any products that use this module: The end product label will include the following text:  Contains:  FCC ID: SK9ITR24001  IC: 864G-ITR24001, Module ITR24001 The user’s manual for any product that contains this module will contain the following text. If the device is large enough, then this will also be placed on the label. “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” Regulatory Compliance The user’s manual for any product that contains this module will contain the following text: FCC Part 15, Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. Industry Canada This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Cet appareillage numérique de la classe B répond à la norme Canadienne sur le matériel brouilleur. L'opération est sujette aux deux conditions suivantes: (1) ce dispositif ne peut pas causer d'interférence nocive, et (2) ce dispositif doit accepter n'importe quelle interférence reçue, y compris les interférences pouvant entraîner un fonctionnement indésirable. “To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.” “This device has been designed to operate with the antennas listed below, and having a maximum gain of 3.9 dB. Antennas not included in this list or having a gain greater than 3.9 dB are strictly prohibited for use with this device. The required antenna impedance is 50 ohms.” Listed Antennas* Manufacturer: WP Wireless Model Number: WPANT30005-SA Gain: 2.5 to 3.9 dB Connector: Reverse polarity SMA male *Antennas of equal or lesser gain and same type may be substituted. RF Exposure The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Miscellaneous The user’s manual for any product that contains this module will contain the following text: Professional Installation This module is intended for professional installation by the integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. Modification and Repairs To ensure FCC compliance and system performance, this device, antenna and/or coaxial assembly shall not be changed or modified without the express written approval of Itron. Any unauthorized modification will void the user’s authority to operate the equipment. WARNING! This device contains no user serviceable parts. Attempts to repair this device by unauthorized personnel may subject the person to shock hazard if removal of protective covers is attempted. Unauthorized repair will void the warranty and/or maintenance contract with your company. General Description The Itron ITR24001 module is a CPU unit which acts as a Cell master within an electricity grid system. Located in the ITR24001 module is a WiFi transmitter that operates in the 2400 MHz to 2484.5 MHz band. The ITR24001 can be installed in a larger weatherproof box and control the functions of a GPRS or CDMA modem and a 900 MHz LAN radio. The module operates on direct current voltage which is supplied by a host device.

May 9, 2011 Dear Sir or Madam: The Itron ITR24001 module is an off the shelf CPU unit which acts as a Cell master within an electricity grid system. Located in the ITR24001 module is a WiFi transmitter that operates in the 2400 MHz to 2484.5 MHz band. One section of this device also contains Bluetooth circuitry and, since this is an off the shelf device, some of the documentation that has been provided such as the block diagram and schematics does mention the existence of the Bluetooth circuitry. The use of this device in the Itron application does not utilize the Bluetooth function and the Bluetooth circuitry will not be activated. Sincerely, Signature: Name: Lee Littlejohn Title: Regulatory Engineer

Date: March 31, 2011 Itron OEMs: This note serves as an additional agreement between Itron and its OEMs stating that the OEMs will use the Itron ITR24001 module (Figure 1) in accordance with the FCC rules on limited modular approval devices. The unit will be professionally installed and all hosts will be tested for compliance with the ITR24001 module installed. In addition, any host which contains this module will display the FCC and IC IDs of the ITR24001 module and will be externally visible when installed. Confidentiality of the internal photos is being requested because this is a n on-consumer device which is not accessible by the general public, professionally installed, and is only serviceable by the Itron, or designated technicians. Please feel free to contact me with any questions. Sincerely, Lee Littlejohn Regulatory Engineer Itron, Inc. 313 North Highway 11 West Union, South Carolina 29696 [email protected] Figure 1: Itron Module ITR24001, FCC ID: SK9ITR24001

March 31, 2011 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: I hereby appoint Sam Wismer at Advanced Compliance Solutions, Inc. to act as our agent in the preparation of an application for equipment authorization of FCC ID: SK9ITR24001 to the FCC Rules and Regulations. I certify that all exhibits contained within this filing properly describe the device or system for which authorization is sought. I further certify that appropriate arrangements have been made to assure that production units of this equipment bearing the name and FCC IDENTIFIER listed in this application will continue to comply with the Commission's requirements. I further certify by signature below that no party (per 47 CFR 1.2002(b)) to the application is subject to a denial of Federal benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Sincerely, Signature: Name: Lee Littlejohn Title: Regulatory Engineer

Federal Communications Commission Date: June 15, 2011 Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: Itron, Inc. respectfully requests confidentiality of certain materials provided with the submission of the ITR24001 under FCC ID: SK9ITR24001 in accordance with 47 CFR 0.459. Pursuant to 47 CFR 0.457(d) of the FCC Rules, information that is considered trade secret and not routinely available to the public may also be withheld from public inspection if a request for non-disclosure is submitted pursuant to 47 CFR 0.459. This confidentiality request applies to the schematics, block diagrams, theory of operation, and internal photos contained in the following exhibits: 11-0105 – Schematics.pdf 11-0105 – System Block Diagram.pdf 11-0105 – Theory of Operation.pdf 11-0105 – Internal Photos.pdf The ITR24001 has been developed at considerable effort and expense by Itron, Inc. These items are considered as trade secrets and therefore public access to the proprietary material could possible result in duplication of equipment that could severely damage the company's business advantage. Confidentiality of the Internal Photos is being requested because this is a non-consumer device which is not accessible by the general public and is only serviceable by the applicant or designated technicians. I appreciate your assistance in this matter. Sincerely, Name: Lee Littlejohn Signature: Title: Regulatory Engineer Date: June 15, 2011

5015 B. U. Bowman Dr. Buford, GA 30518 April 20, 2011 ACS TCB 5015 B.U. Bowman Drive Buford, GA 30518 Re: FCC ID: SK9ITR24001 To Whom It May Concern: The following application is submitted on behalf of our client, Itron Electricity Metering, Inc., for evaluation of their model ITR24001 for single limited modular approval certification under FCC Part 15.247. The ITR24001 is a stand-alone 802.11b/g/n module consisting of a single shielded enclosure which is designed to be integrated into specific host devices. The ITR24001 was tested in full to the requirements of the aforementioned rules and was found to be in compliance. The ITR24001 can be collocated and transmit simultaneously with Itron Electricity Metering, Inc. FCC ID:SK9ITR9002 and either Sierra Wireless CDMA modem FCC ID: N7N–MC5728 or Sierra Wireless GSM / GPRS modem FCC ID: N7NMC8790 in the Itron Electricity Metering, Inc. Prism Cell Relay host device. Radiated inter-modulation testing was performed for all combinations of simultaneous transmission and found to be in compliance. MPE calculations showing compliance for all simultaneous transmit combinations is also provided. Sincerely, Sam Wismer Vice President, Technology Advanced Compliance Solutions, Inc.

Federal Communications Commission Date: March 31, 2011 P.O. Box 429 Columbia, MD 21045 RE: Application for Limited Modular Approval Certification for the ITR24001 CPU/communication module Dear Sir or Madam: The following information addresses the requirements to support a limited modular approval as required by FCC Part 15.212, Modular Transmitters. 1. The frequency hopping spread spectrum transmitter section of this module has not been shielded. 2. The ITR24001 does not have external modulation or data inputs. The RF section is driven by an on board MCU which controls RF data lines and does not allow excessive modulation. 3. The ITR24001 modular transmitter has its own power regulation. 4. The ITR24001 transmitter will use antennas that are separate from the module and connect to the module via a coax cable using a common connector from the module to a common connector at the antenna. 5. The ITR24001 module was tested as a standalone module. This module will always be professionally installed and integrated internal to a host. 6. The ITR24001 communication module will be labeled as required. The host containing this module will also display the proper labeling. 7. A user manual is being provided to all integrators of the ITR24001 module. 8. MPE measurements are provided to demonstrate RF compliance. There is a cautionary statement that is included in the technical manual stipulating the 20 cm separation distance. All hosts to the ITR24001 module will be tested with the ITR24001 module for compliance. Sincerely, Name: Lee Littlejohn Signature: Title: Regulatory Engineer Date: March 31, 2011

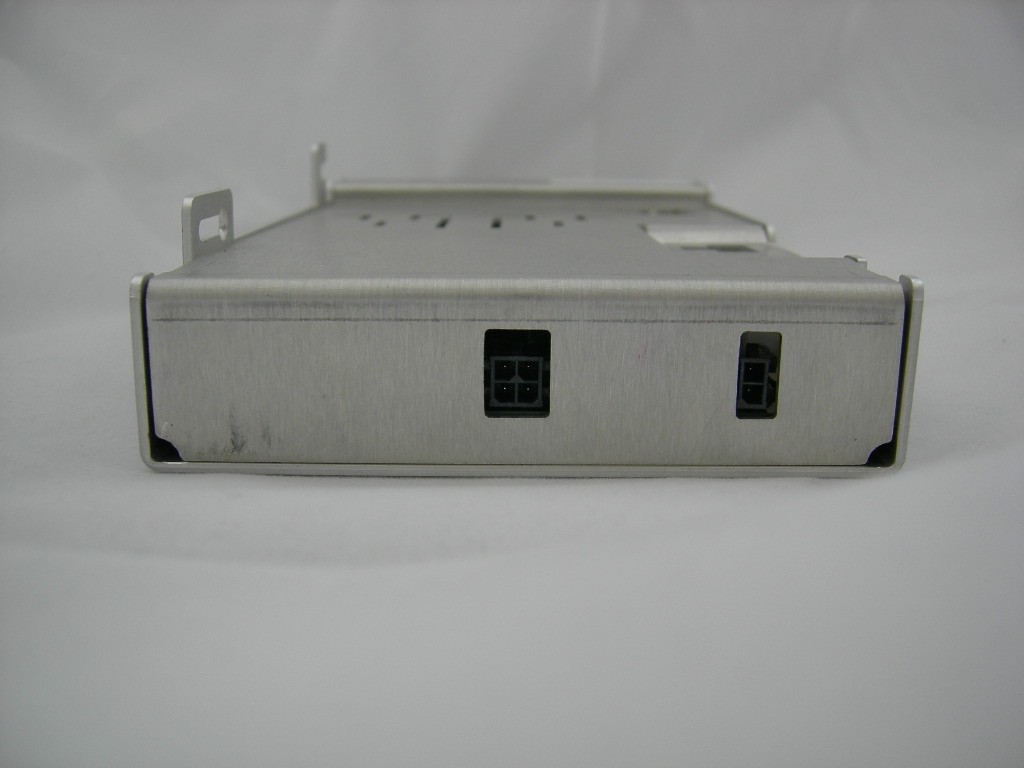

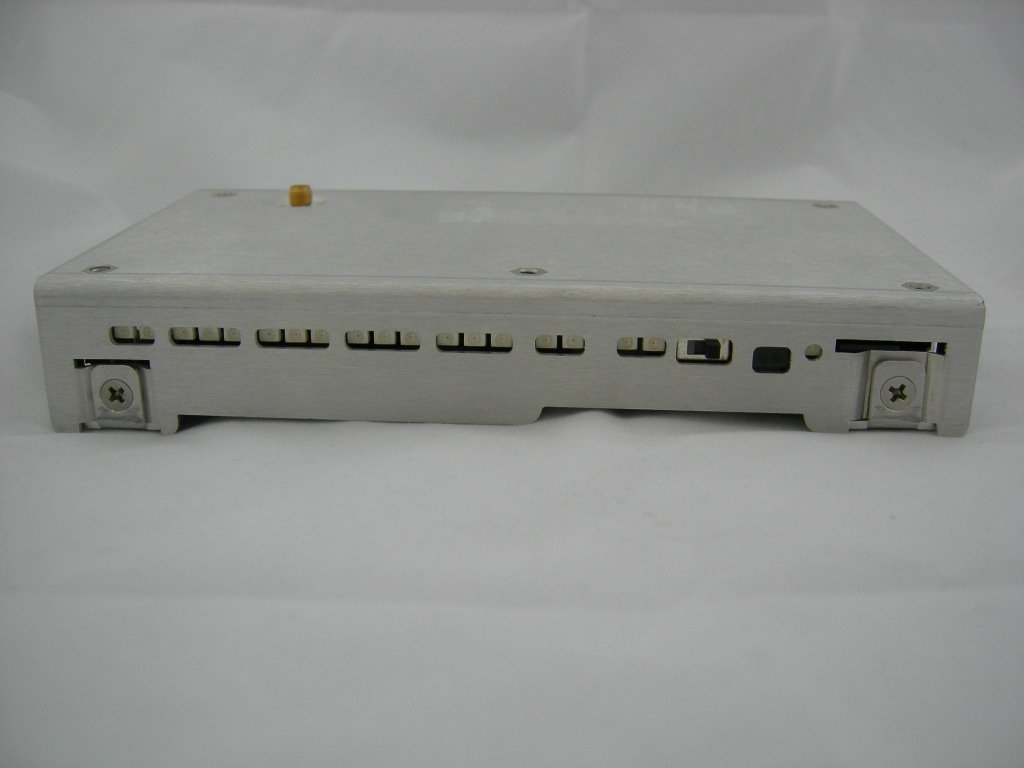

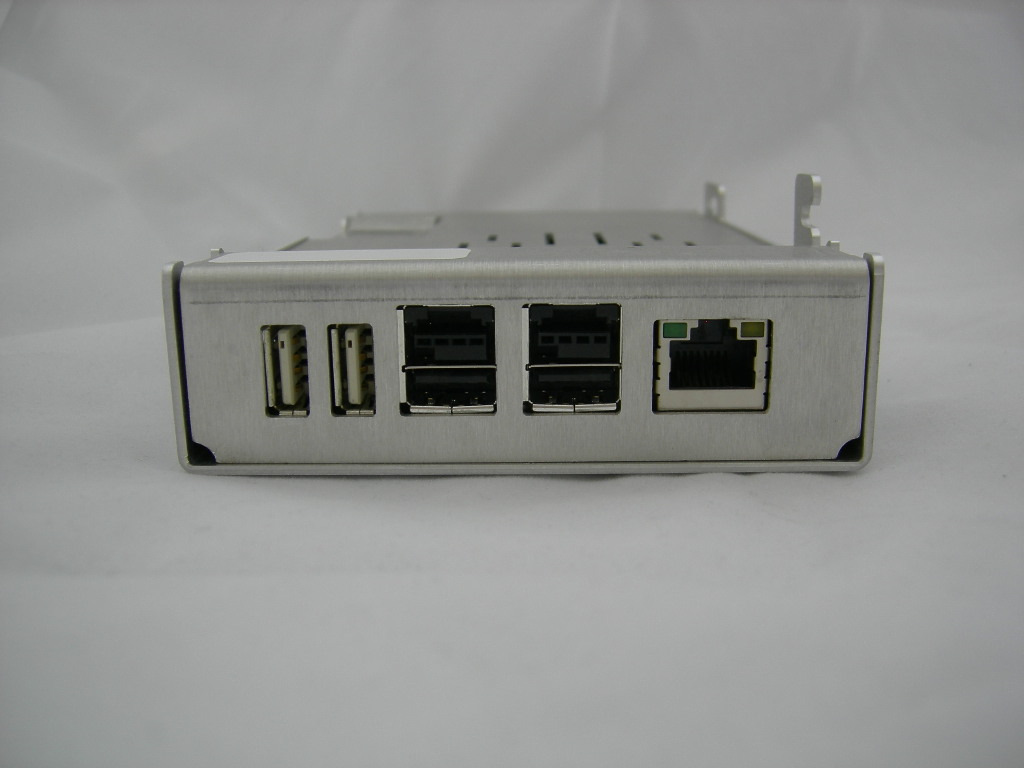

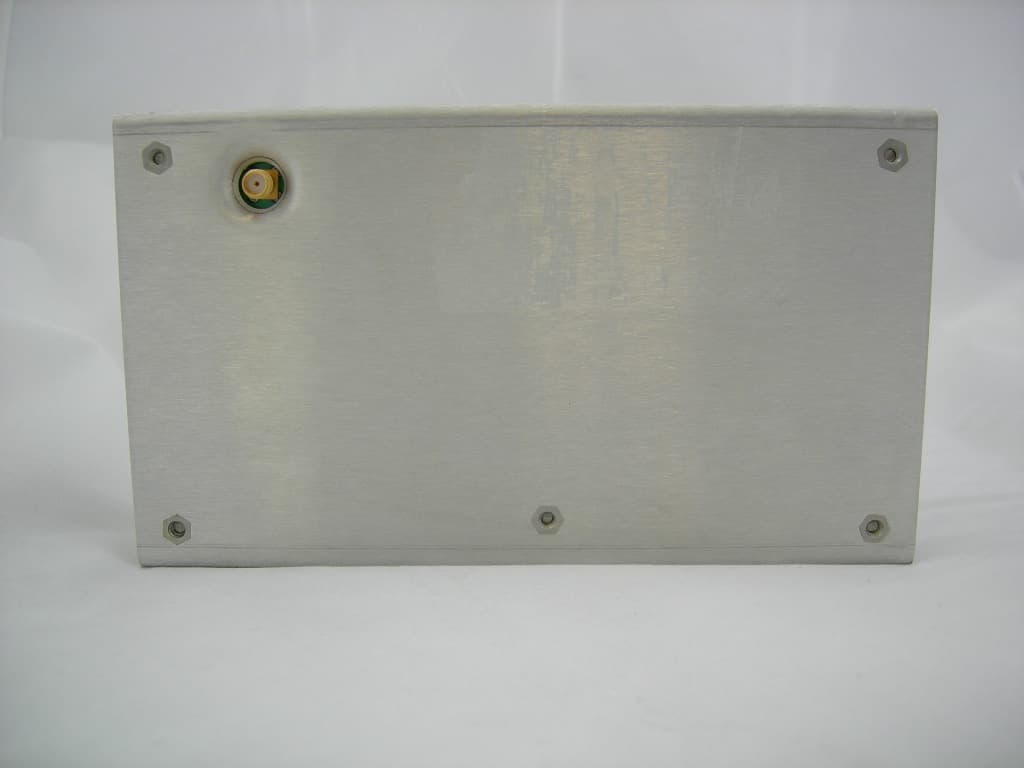

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: SK9ITR24001 IC: 864G-ITR24001 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 11-0105.W06.11.A Manufacturer: Itron Electricity Metering, Inc. Model: ITR24001 External Photos Model(s): ITR24001 FCC ID: SK9ITR24001 IC: 864G-ITR24001 ACS Report: 11-0105.W06.11.A Advanced Compliance Solutions Page 2 Figure 1: Front Figure 2: Back Model(s): ITR24001 FCC ID: SK9ITR24001 IC: 864G-ITR24001 ACS Report: 11-0105.W06.11.A Advanced Compliance Solutions Page 3 Figure 3: Side Figure 4: Side Model(s): ITR24001 FCC ID: SK9ITR24001 IC: 864G-ITR24001 ACS Report: 11-0105.W06.11.A Advanced Compliance Solutions Page 4 Figure 5: Side Figure 6: Side

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: SK9ITR24001 IC: 864G-ITR24001 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 11-0105.W06.11.A Manufacturer: Itron Electricity Metering, Inc. Model: ITR24001 Label Information Model(s): ITR24001 FCC ID: SK9ITR24001 IC: 864G-ITR24001 ACS Report: 11-0105.W06.11.A Advanced Compliance Solutions Page 2 Figure 1: Label Location Model(s): ITR24001 FCC ID: SK9ITR24001 IC: 864G-ITR24001 ACS Report: 11-0105.W06.11.A Advanced Compliance Solutions Page 3 Figure 2: Sample Label

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: SK9ITR24001 IC: 864G-ITR24001 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 11-0105.W06.11.A Manufacturer: Itron Electricity Metering, Inc. Model: ITR24001 RF Exposure Model: ITR24001 FCC ID: SK9ITR24001 IC: 864G-ITR24001 ACS Report: 11-0105.W06.11.A Advanced Compliance Solutions Page 2 General Information: Applicant: Itron Electricity Metering, Inc. ACS Project: 11-0105 Device Category: Mobile Environment: General Population/Uncontrolled Exposure Technical Information: Antenna Type: WP Wireless P/N: WPANT30005-SA, 2.4 GHz Omni Directional Whip Maximum Antenna Gain: 3.9dBi Maximum Transmitter Conducted Power: 22.40dBm, 173.8mW Maximum System EIRP: 26.30dBm, 426.6mW MPE Calculation – Standalone Configuration The Power Density (mW/cm 2 ) is calculated as follows: S = 2 4R PG  Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Table 1.1: MPE Calculation – Standalone Configuration MPE Calculator for Mobile Equipment Limits for General Population/Uncontrolled Exposure* 243722.41.00173.783.92.455 200.085 Power Density (mW/cm^2) Distance (cm) Transmit Frequency (MHz) Radio Power (dBm) Power Density Limit (mW/Cm2) Radio Power (mW) Antenna Gain (dBi) Antenna Gain (mW eq.) Model(s): ITR24001 FCC ID: SK9ITR24001 IC: 864G-ITR24001 ACS Report: 11-0105.W06.11.A Advanced Compliance Solutions Page 3 MPE Calculation – Collocated Configuration (Itron Prism Cell Relay) The Power Density (mW/cm 2 ) is calculated as follows: S = 2 4R PG  Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Technical Information: Table 1.2: Technical Information – Collocated Configuration (Itron Prism Cell Relay) 900 MHz LAN FCC ID: SK9ITR9002 IC:864G-ITR9002 802.11b/g/n (EUT) FCC ID: SK9ITR24001 IC:864G-ITR24001 GSM / GPRS Modem FCC ID: N7NMC8790 IC:2417C-MC8790 CDMA Modem FCC ID: N7N-MC5728 IC:2417C-MC5728 Antenna Type WP Wireless P/N: WPANT30003-CB Omni Directional Body- mount Antenna WP Wireless P/N: WPANT30005-SA 2.4 GHz Omni Directional Whip WP Wireless P/N: WPANT30002-SB Omni Directional Body- mount WP Wireless P/N: WPANT30002-SB Omni Directional Body- mount Antenna Gain 1.8 dBi 3.9 dBi 850 Band: 2.3 dBi 1900 Band: 3.8 dBi 850 Band: 2.3 dBi 1900 Band: 3.8 dBi Conducted Power 27.98dBm 173.8dBm 850 Band: 31.8dBm 1900 Band: 28.7dBm 850 Band: 25.07dBm 1900 Band: 24.90dBm Maximum PK EIRP 950.6 mW 426.6 mW GSM 850: 2.57 W 1900 Band: 1.78 W 850 Band: 0.546 W 1900 Band: 0.741 W Maximum PK ERP 579.4 mW 260.0 mW GSM 850: 1.57 W 1900 Band: 1.08 W 850 Band: 0.333 W 1900 Band: 0.452 W Note: Power provided for CDMA Modem FCC ID: N7N-MC5728 / IC: 2417C-MC5728 is average power as provided in certification filing for determining MPE compliance. Source Based Time Averaging GSM / GPRS Modem - FCC ID: N7NMC8790 / IC:2417C-MC8790 The GSM / GPRS Modem FCC ID: N7NMC8790 / IC: 2417C-MC8790 is a Class 12 modem with a 50% source-based time-averaged duty cycle. The measured power level was reduced by a factor 3dB to account for the duty cycle. The duty cycle correction factor is determined using the formula: 10log (0.50) = 3dB. Corrected Level 850 = 31.8 – 3.0 = 28.8dBm Corrected Level 1900 = 28.7 – 3.0 = 25.7dBm Model(s): ITR24001 FCC ID: SK9ITR24001 IC: 864G-ITR24001 ACS Report: 11-0105.W06.11.A Advanced Compliance Solutions Page 4 Table 1.3: MPE Calculation – Collocated Configuration (Itron Prism Cell Relay) MPE Calculator for Mobile Equipment Limits for General Population/Uncontrolled Exposure* 914.7527.980.61628.061.81.514 200.189 243722.41.00173.783.92.455 200.085 824 (GPRS)28.80.55758.582.31.698 200.256 1850 (GPRS)25.71.00371.543.82.399 200.177 824 (CDMA)25.070.55321.372.31.698 200.109 1850 (CDMA)24.91.00309.033.82.399 200.147 Power Density (mW/cm^2) Distance (cm) Transmit Frequency (MHz) Radio Power (dBm) Power Density Limit (mW/Cm2) Radio Power (mW) Antenna Gain (dBi) Antenna Gain (mW eq.) Summation of Power Densities – Simultaneous Transmissions This device contains multiple transmitters which can operate simultaneously and therefore the maximum RF exposure is determined by the summation of power densities. The limit utilized is the lower limit specified for all simultaneous transmitters. The limit used to show compliance to the 20cm separation distance is 0.55mW/cm^2. The maximum power density as calculated by a summation of power densities for each simultaneous transmission combination as follows: GSM / GPRS Modem Operating in the 800MHz Cellular Band: 900MHz LAN: 0.189 (mW/cm^2) 802.11b/g/n: 0.085 (mW/cm^2) GSM 850: 0.256 (mW/cm^2) TOTAL: 0.530 (mW/cm^2) GSM / GPRS Modem Operating in the 1900MHz PCS Band: 900MHz LAN: 0.189 (mW/cm^2) 802.11b/g/n: 0.085 (mW/cm^2) GSM 1900: 0.177 (mW/cm^2) TOTAL: 0.451 (mW/cm^2) CDMA Modem Operating in the 800MHz Cellular Band: 900MHz LAN: 0.189 (mW/cm^2) 802.11b/g/n: 0.085 (mW/cm^2) CDMA 850: 0.109 (mW/cm^2) TOTAL: 0.383 (mW/cm^2) CDMA Modem Operating in the 1900MHz PCS Band: 900MHz LAN: 0.189 (mW/cm^2) 802.11b/g/n: 0.085 (mW/cm^2) CDMA 1900: 0.147 (mW/cm^2) TOTAL: 0.421 (mW/cm^2) Installation Guidelines The installation manual should contain text similar to the following advising how to install the equipment to maintain compliance with the FCC RF exposure requirements: RF Exposure In accordance with FCC requirements of human exposure to radio frequency fields, the radiating element shall be installed such that a minimum separation distance of 20 centimeters wi…

Text truncated - open the document above for the full version.

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Test Report FCC ID: SK9ITR24001 IC: 864G-ITR24001 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 11-0105.W06.11.A Manufacturer: Itron Electricity Metering, Inc. Model: ITR24001 Test Begin Date: March 30, 2011 Test End Date: April 4, 2011 Report Issue Date: April 18, 2011 FOR THE SCOPE OF ACCREDITATION UNDER LAB Code 200612-0 This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Reviewed by: Kirby Munroe Director, Wireless Certifications ACS, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 27 pages 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 TABLE OF CONTENTS 1 GENERAL ............................................................................................................................................ 3 1.1 PURPOSE .......................................................................................................................................... 3 1.2 PRODUCT DESCRIPTION ................................................................................................................... 3 1.3 TEST METHODOLOGY AND CONSIDERATIONS ................................................................................. 3 2 TEST FACILITIES .............................................................................................................................. 4 2.1 LOCATION ....................................................................................................................................... 4 2.2 LABORATORY ACCREDITATIONS/RECOGNITIONS/CERTIFICATIONS ................................................ 4 2.3 RADIATED EMISSIONS TEST SITE DESCRIPTION .............................................................................. 5 2.3.1 Semi-Anechoic Chamber Test Site .......................................................................................... 5 2.3.2 Open Area Tests Site (OATS) ................................................................................................. 6 2.4 CONDUCTED EMISSIONS TEST SITE DESCRIPTION ........................................................................... 7 3 APPLICABLE STANDARD REFERENCES .................................................................................... 7 4 LIST OF TEST EQUIPMENT ............................................................................................................ 8 5 SUPPORT EQUIPMENT .................................................................................................................... 9 6 EQUIPMENT UNDER TEST SETUP BLOCK DIAGRAM ........................................................... 9 7 SUMMARY OF TESTS ..................................................................................................................... 10 7.1 ANTENNA REQUIREMENT – FCC: SECTION 15.203 ....................................................................... 10 7.2 POWER LINE CONDUCTED EMISSIONS – FCC: SECTION 15.207 IC: RSS-GEN 7.2.4 ...................... 10 7.2.1 Measurement Procedure ....................................................................................................... 10 7.2.2 Measurement Results ............................................................................................................ 10 7.3 6DB / 99% BANDWIDTH – FCC: SECTION 15.247(A)(2) IC: RSS-210 A8.2(A), RSS-GEN 4.6.1 ... 11 7.3.1 Measurement Procedure ....................................................................................................... 11 7.3.2 Measurement Results ............................................................................................................ 11 7.4 PEAK OUTPUT POWER REQUIREMENT - FCC SECTION 15.247(B)(3) IC: RSS-210 A8.4(4) .......... 16 7.4.1 Measurement Procedure ....................................................................................................... 16 7.4.2 Measurement Results ............................................................................................................ 16 7.5 BAND-EDGE COMPLIANCE AND SPURIOUS EMISSIONS-FCC 15.247D IC:RSS-210 2.2, A8.5 ....... 17 7.5.1 Band-Edge Compliance of RF Conducted Emissions ........................................................... 17 7.5.1.1 Measurement Procedure ................................................................................................................... 17 7.5.1.2 Measurement Results ....................................................................................................................... 17 7.5.2 RF Conducted Spurious Emissions ....................................................................................... 19 7.5.2.1 Measurement Procedure ................................................................................................................... 19 7.5.2.2 Measurement Results ....................................................................................................................... 19 7.5.3 Radiated Spurious Emissions (Restricted Bands) - FCC Sec. 15.205 IC: RSS-210 2.2........ 24 7.5.3.1 Measurement Procedure ................................................................................................................... 24 7.5.3.2 Measurement Results ....................................................................................................................... 24 7.5.3.3 Sample Calculation: ......................................................................................................................... 24 7.6 PEAK POWER SPECTRAL DENSITY- FCC SECTION 15.247(E) IC: RSS-210 A8.2(B) ...................... …

Text truncated - open the document above for the full version.

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: SK9ITR24001 IC: 864G-ITR24001 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 11-0105.W06.11.A Manufacturer: Itron Electricity Metering, Inc. Model: ITR24001 Test Setup Photos Model(s): ITR24001 FCC ID: SK9ITR24001 IC: 864G-ITR24001 ACS Report: 11-0105.W06.11.A Advanced Compliance Solutions Page 2 Figure 1: Radiated Emissions Model(s): ITR24001 FCC ID: SK9ITR24001 IC: 864G-ITR24001 ACS Report: 11-0105.W06.11.A Advanced Compliance Solutions Page 3 Figure 2: Radiated Emissions Model(s): ITR24001 FCC ID: SK9ITR24001 IC: 864G-ITR24001 ACS Report: 11-0105.W06.11.A Advanced Compliance Solutions Page 4 Figure 3: Conducted Emissions Model(s): ITR24001 FCC ID: SK9ITR24001 IC: 864G-ITR24001 ACS Report: 11-0105.W06.11.A Advanced Compliance Solutions Page 5 Figure 4: Conducted Emissions Model(s): ITR24001 FCC ID: SK9ITR24001 IC: 864G-ITR24001 ACS Report: 11-0105.W06.11.A Advanced Compliance Solutions Page 6 Figure 5: Radiated Inter-modulation Products (Itron Prism Cell Relay Host) Model(s): ITR24001 FCC ID: SK9ITR24001 IC: 864G-ITR24001 ACS Report: 11-0105.W06.11.A Advanced Compliance Solutions Page 7 Figure 6: Radiated Inter-modulation Products (Itron Prism Cell Relay Host)
