SKJ-M0BLUETOOTH SPEAKER

FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Shenzhen Heui Xint Technology Co., Ltd Model: M0 REPORT NO.: STR13098283I FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Shenzhen Heui Xint Technology Co., Ltd Model: M0 REPORT NO.: STR13098283I FCC PART 15.247 EUT View 3 EUT View 4 Shenzhen Heui Xint Technology Co., Ltd Model: M0 REPORT NO.: STR13098283I FCC PART 15.247 EUT View 5 EUT View 6 Shenzhen Heui Xint Technology Co., Ltd Model: M0 REPORT NO.: STR13098283I FCC PART 15.247 EUT View 7

Shenzhen Heui Xint Technology Co., Ltd Model: M0 REPORT NO.: STR13098283I FCC PART 15.247 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: SKJ- M0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Shenzhen Heui Xint Technology Co., Ltd Model: M0 REPORT NO.: STR13098283I FCC PART 15.247 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: SKJ- M0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

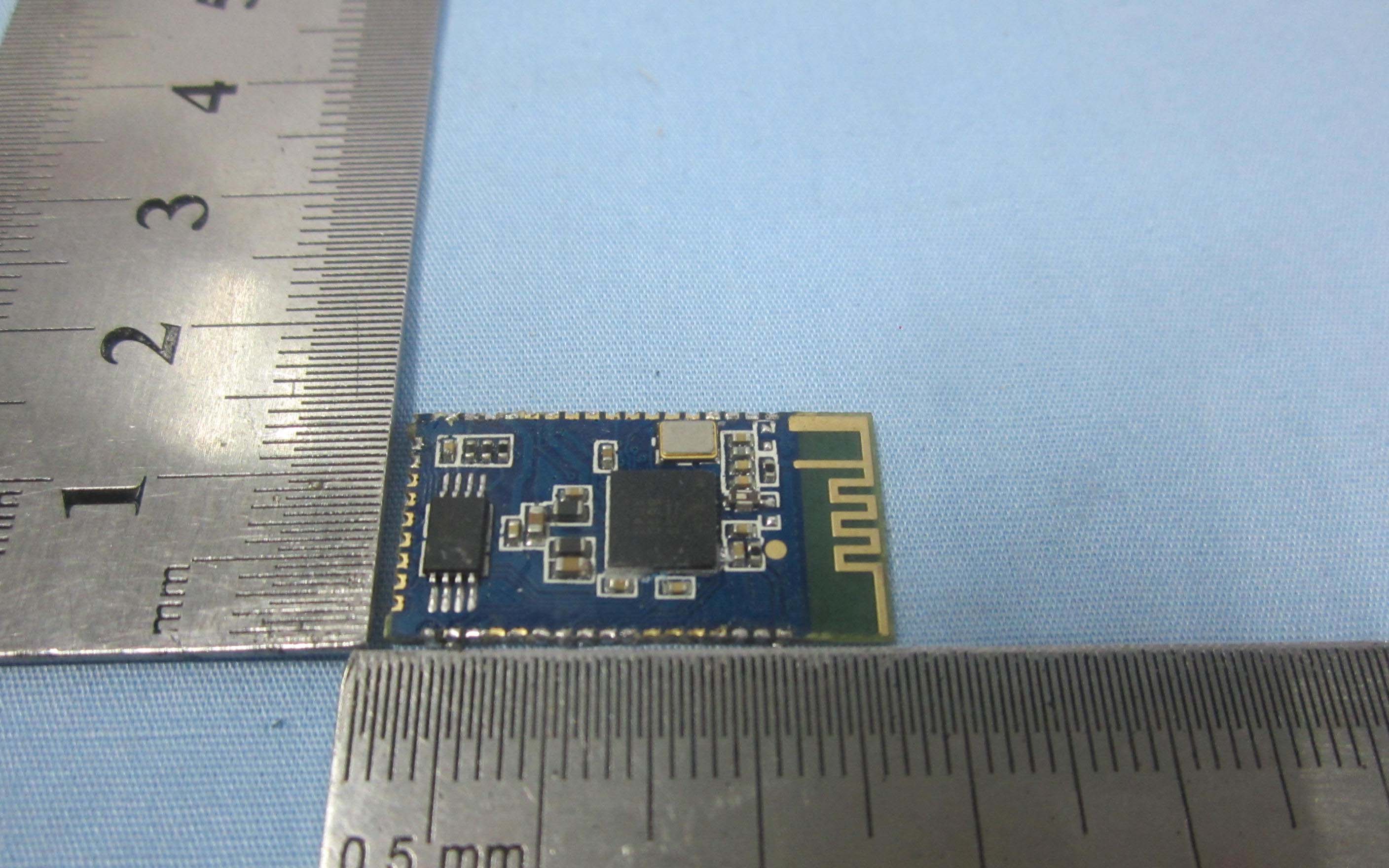

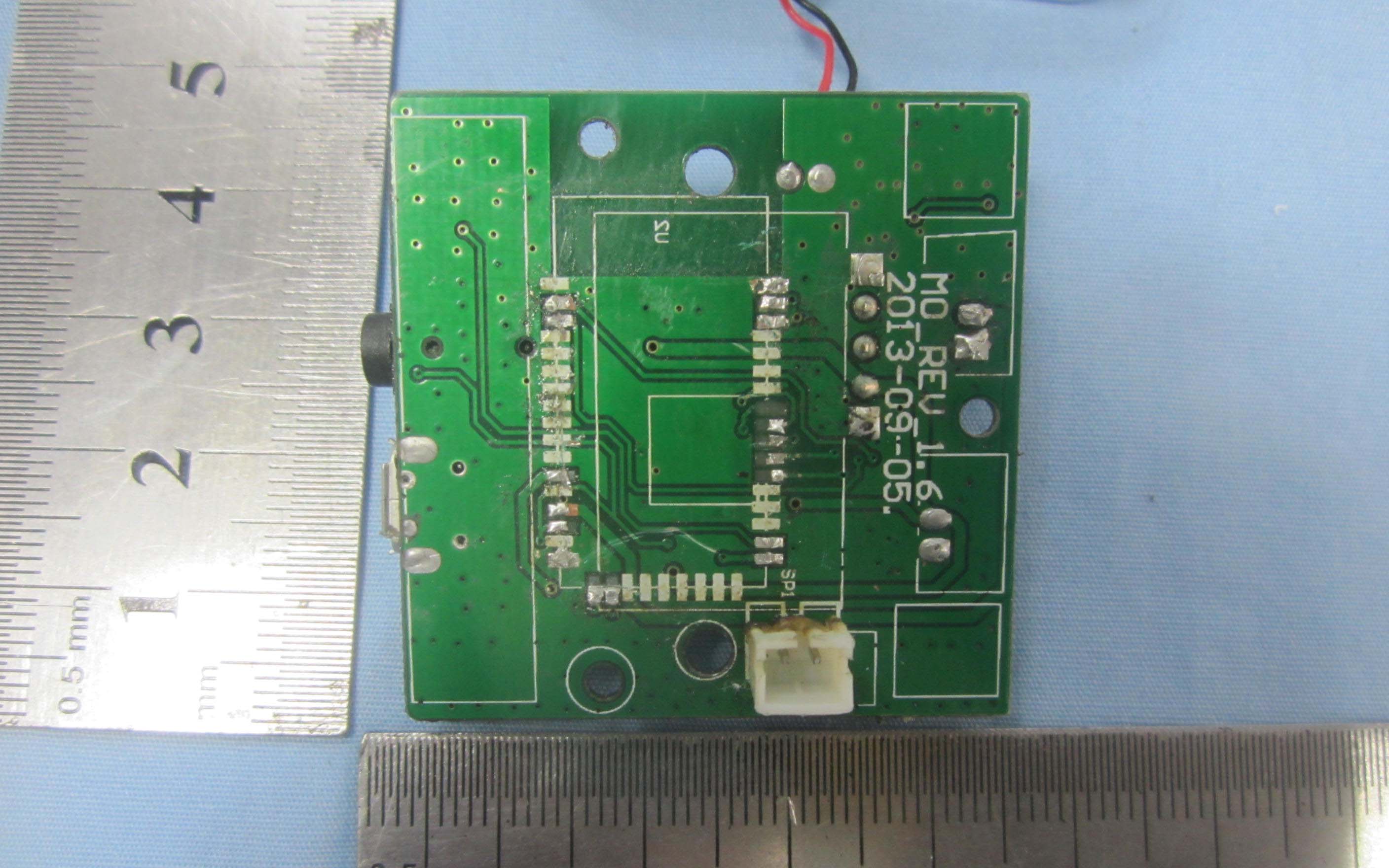

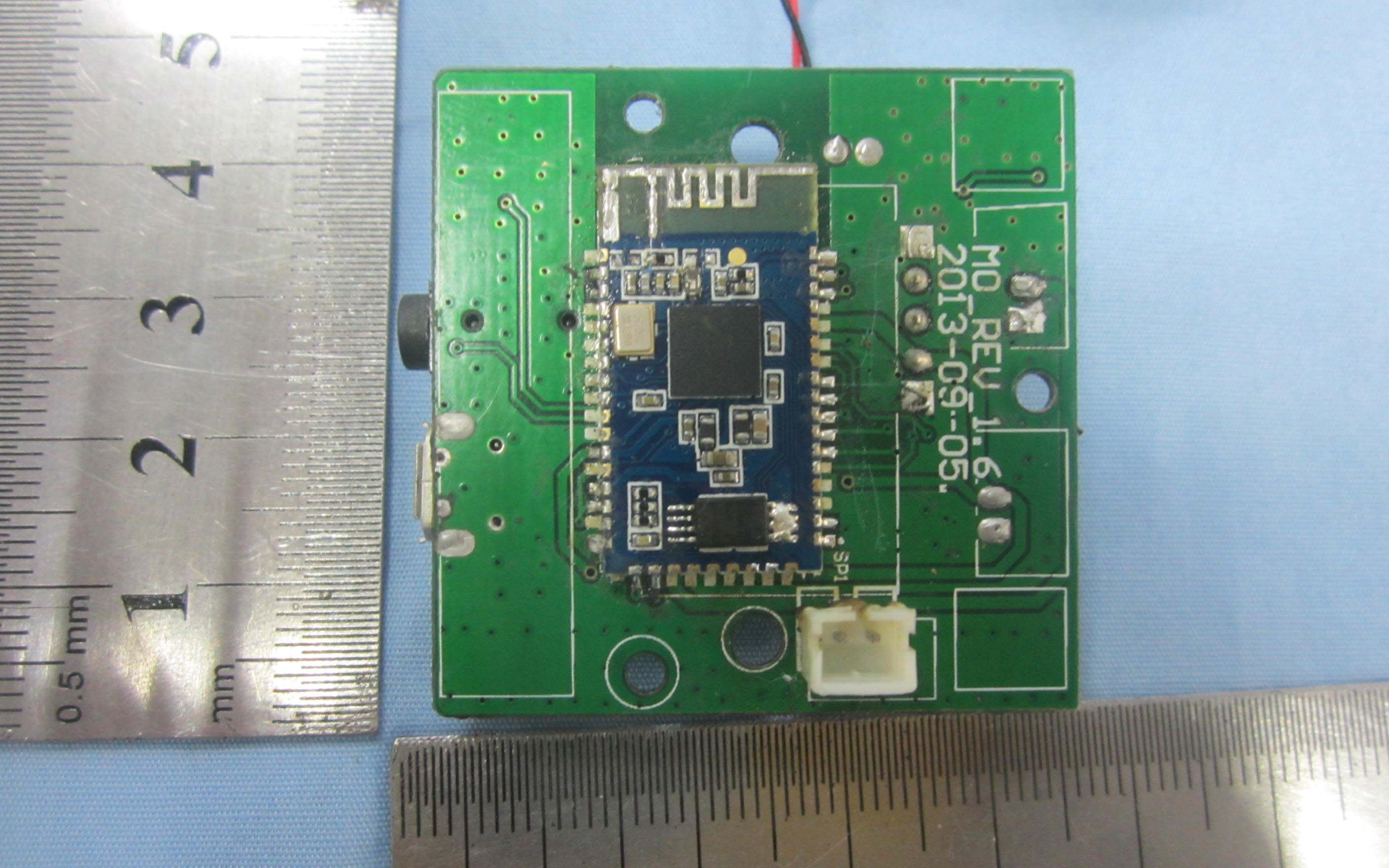

Shenzhen Heui Xint Technology Co., Ltd Model: M0 REPORT NO.: STR13098283I FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 BT Ant. 2402~2480MHz Shenzhen Heui Xint Technology Co., Ltd Model: M0 REPORT NO.: STR13098283I FCC PART 15.247 Solder Board-Component View 2 Solder Board-Component View 3 Shenzhen Heui Xint Technology Co., Ltd Model: M0 REPORT NO.: STR13098283I FCC PART 15.247 Solder Board-Component View 4 Solder Board-Component View 5

RF Exposure Requirements Product Description: bluetooth speaker Model No.: M0 FCC ID: SKJ-M0 According to the KDB-447498 D01 V05, the following RF exposure evaluation shall to demonstrate RF exposure compliance. Bluetooth Tx frequency range: 2402~2480MHz Device category: Portable device (Distance: 5mm) Maximum Conducted Output Power: -1.83 dBm(0.6566 mW ) Maximum Antenna Gain: 0 dBi Maximum EIRP Output Power: -1.83 dBm(0.6566 mW ) Limit: 10mW Maximum EIRP output power is 0.6566 mW < 10 mW So the transmitter complies with the RF exposure requirements and the SAR is not required.

Shenzhen Heui Xint Technology Co., Ltd Model: M0 REPORT NO.: STR13098283I PAGE 1 OF 70 FCC PART 15.247 FCC Part 15C Measurement and Test Report For Shenzhen Heui Xint Technology Co., Ltd E Building,Huafeng Industry,Hangcheng Road,Xixiang town,Baoan district,Shenzhen,China FCC ID: SKJ- M0 FCC Rule(s): FCC Part 15C Product Description: bluetooth speaker Tested Model: M0 Report No.: STR13098283I Tested Date: 2013-09-22 to 2013-10-23 Issued Date: 2013-10-23 Tested By: Daniel Liu / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd Shenzhen Heui Xint Technology Co., Ltd Model: M0 REPORT NO.: STR13098283I PAGE 2 OF 70 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 4 1.2 TEST STANDARDS ................................................................................................................................................... 5 1.3 TEST METHODOLOGY ............................................................................................................................................. 5 1.4 TEST FACILITY ....................................................................................................................................................... 5 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 6 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 7 3. RF EXPOSURE ......................................................................................................................................................... 8 3.1 STANDARD APPLICABLE ......................................................................................................................................... 8 3.2 TEST RESULT.......................................................................................................................................................... 8 4. ANTENNA REQUIREMENT .................................................................................................................................. 9 4.1 STANDARD APPLICABLE ......................................................................................................................................... 9 4.2 EVALUATION INFORMATION .................................................................................................................................. 9 5. FREQUENCY HOPPING SYSTEM REQUIREMENTS ................................................................................... 10 5.1 STANDARD APPLICABLE ....................................................................................................................................... 10 5.2 FREQUENCY HOPPING SYSTEM............................................................................................................................. 10 5.3 EUT PSEUDORANDOM FREQUENCY HOPPING SEQUENCE .................................................................................... 11 6. POWER SPECTRAL DENSITY ........................................................................................................................... 12 6.1 STANDARD APPLICABLE ....................................................................................................................................... 12 6.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 12 6.3 TEST PROCEDURE ................................................................................................................................................. 12 6.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 12 6.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 13 7. QUANTITY OF HOPPING CHANNELS AND CHANNEL SEPARATION ................................................... 16 7.1 STANDARD APPLICABLE ....................................................................................................................................... 16 7.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 16 7.3 TEST PROCEDURE ................................................................................................................................................. 16 7.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 16 7.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 17 8. DWELL TIME OF HOPPING CHANNEL .......................................................................................................... 21 8.1 STANDARD APPLICABLE ....................................................................................................................................... 21 8.2 TEST EQUIPMENT LIST AND DETAILS ......................…

Text truncated - open the document above for the full version.

Shenzhen Heui Xint Technology Co., Ltd Model: M0 REPORT NO.: STR13098283I FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup (30MHz to 1GHz) Shenzhen Heui Xint Technology Co., Ltd Model: M0 REPORT NO.: STR13098283I FCC PART 15.247 Radiation Emission Test Setup (Below 30MHz) Radiation Emission Test Setup (30MHz to 1GHz) Shenzhen Heui Xint Technology Co., Ltd Model: M0 REPORT NO.: STR13098283I FCC PART 15.247 Radiation Emission Test Setup (Above 1GHz)
