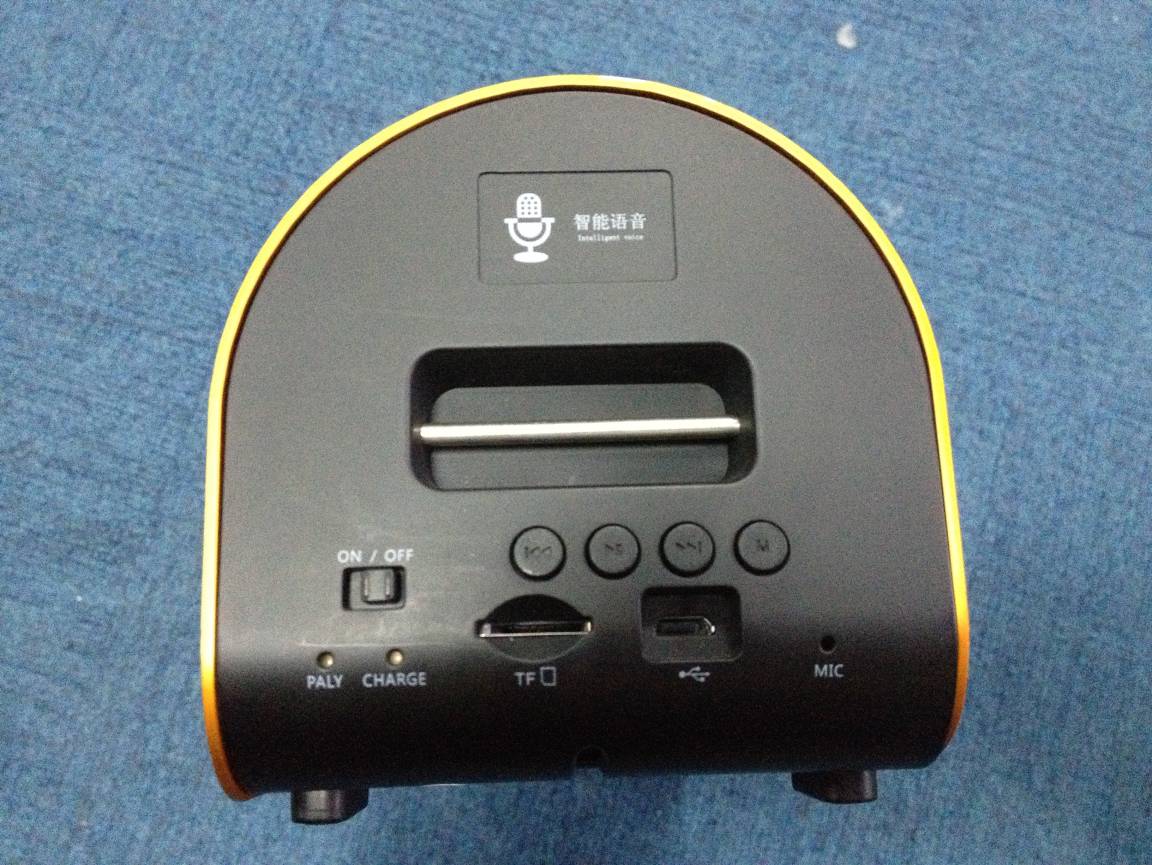

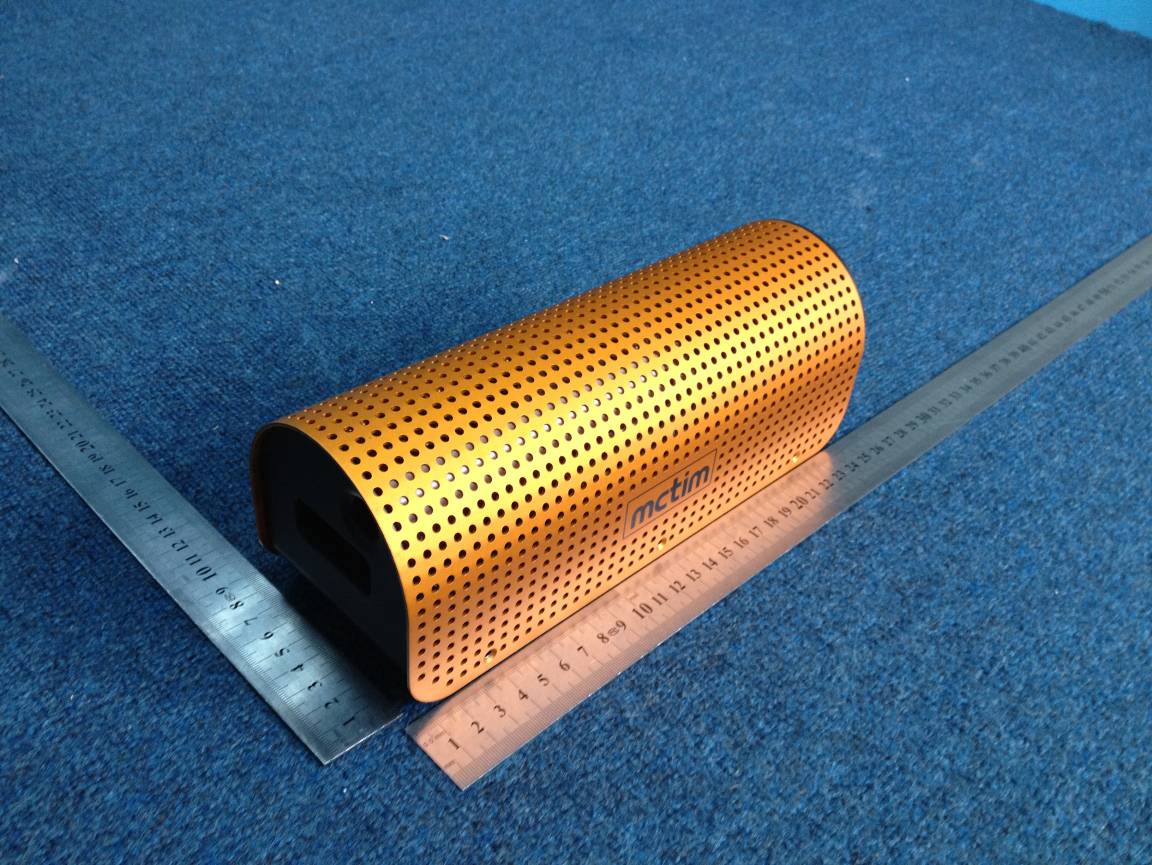

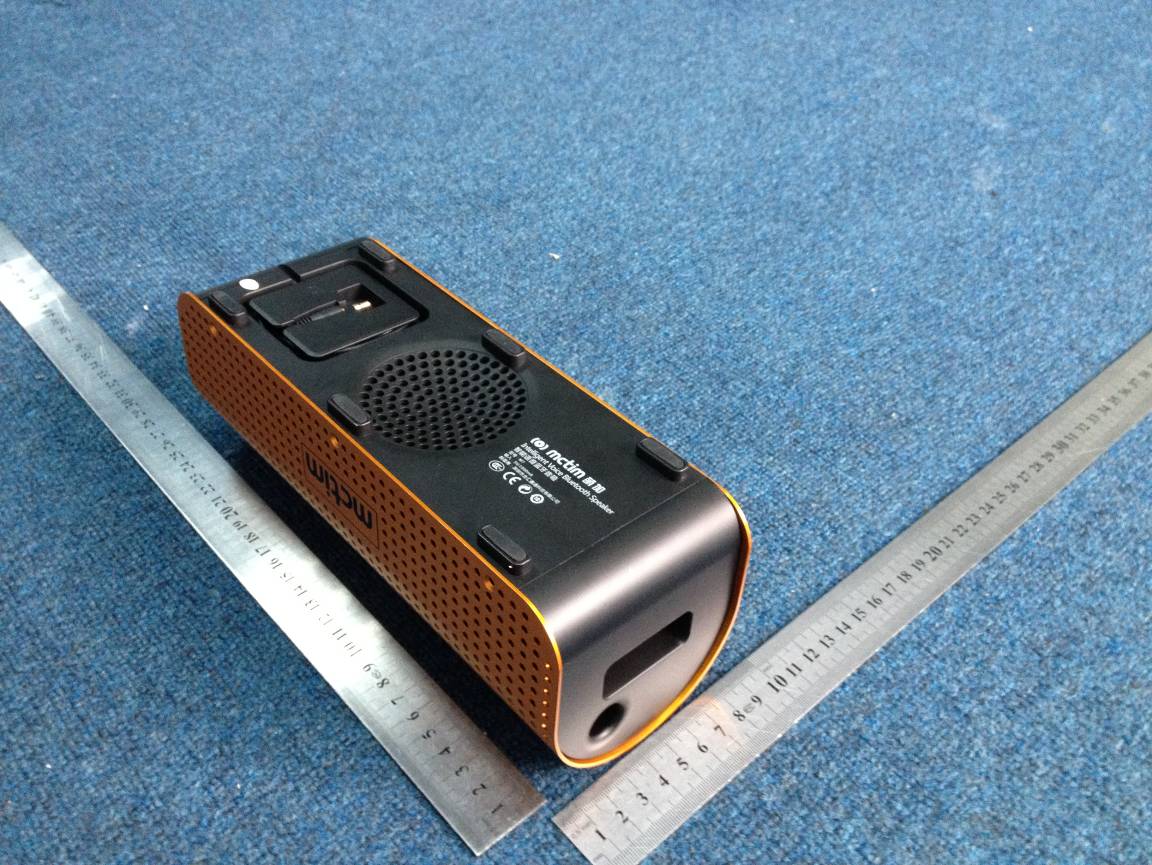

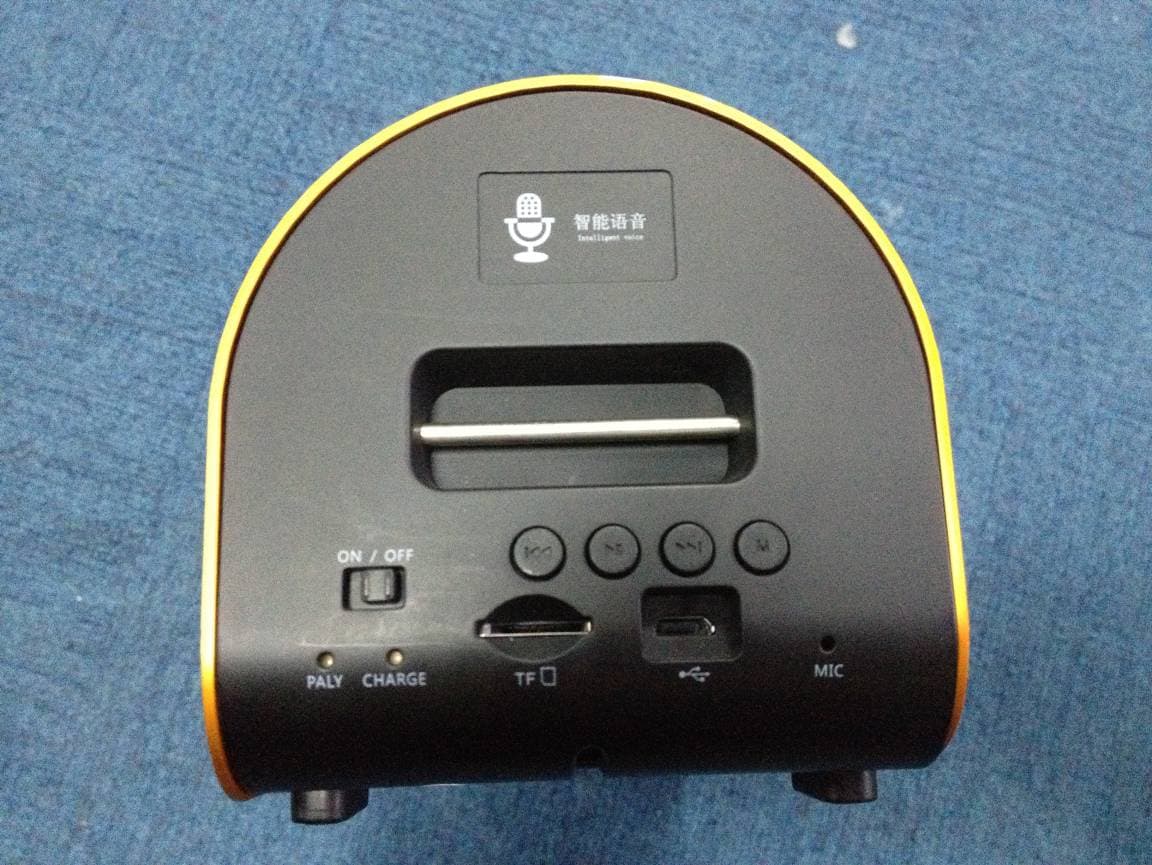

SKJ-M7001MULTIFUNCTIONAL BLUETOOTH SPEAKER

前言：preface 尊敬的用户： 非常感谢您选用NBA品牌智能语音蓝牙音响，请您在使用前，详细阅读本说明书， 正确操作，更好的发挥产品优越的性能。NBA品牌智能语音蓝牙音响外观设计时尚、音质纯 美、功能强大，采用了行业领先的电声技术，使您在居家使用、户外旅行、户外运动中能够 随时随地的享受到卓越的音乐效果。为您的手机、笔记本电脑、数码音乐播放器等广泛的视 听产品提供完美超值的音质。 下面就让NBA品牌智能语音蓝牙音响带您走进不一样的音乐世界！ Dear Users, Thanks for choosing NBA intelligent voice bluetooth speakers, before use please read this manual for correct operating and in order to bring the best quality of our product for you. NBA multifunction speakers has fashion design, pure sound, strong function and adopt the best electronic technical to let you enjoy the best sound effect anywhere. Also it is the best partner for your mobile phone, laptop and digital player to play the perfect music. Below please find the different feeling from our NBA brand Bluetooth product! 温馨提示：notice 1.第一次使用本产品若开不了机，可能电池电量不足，请先充满电后再开机； 2.为了延长电池使用寿命，使用完请记得关机，充电时请用随机配备的专用设备； 3.首次使用请先对电池充电不小于4小时，以后使用大约2~3小时饱和； 4.长时间不使用本机请先对电池充电； 5.请勿将本机置于潮湿或有雨水处； 6.请勿将本机置于暴晒处和大于45度高温附近，更不能置于火中，以免电池发生事故； 7.非专业人士请勿自行拆卸本机； 8.本播放器输入电压过高会损坏播放器，电压太低播放器将不能正常工作，注意请不要接错 “+/‐”极； 1. if you can’t open the product in the first time using it’s perhaps not enough power for the battery pls try to charge the battery then open again 2. pls close the machine when the battery charging， it’s good for the life of battery, also pls use the dedicated equipment for battery charging in the package attached. 3. pls charge at least 4hours in the first time using, next time could be 2‐3 hours. 4. long time no using product pls remember to charge the battery firstly 5. pls don’t put the product on wet and raining side. 6. pls don’t put product under hot sunshine, near the temperature 45’c and nor can fire, in case the damage happened. 7. pls don’t tear open the machine if you are not professional for this machine 8. input voltage of player if too high will be damaged the product, too low will not work, pls use “+/‐” correctly 外形及功能按键：appearance and function key 3.5mm音频输入插头: 3.5mm audio input jack 1. on/off 2. indicator 3. charge and Bluetooth indicator 4. last song/volume decrease 5. play/pause 6. next song/volume increase 7. mode 8. TF card slot 9. micro USB 10. MIC 11. hang belt set up location 使用方法：introduction 短按：上一曲，FM状态中为上一个电台，长按：音量减小 Short press: last song, last channel in FM mode, long press: decrease volume 播放/暂停，FM状态中为自动搜索电台 Play/pause, research channel automatically when FM mode 短按：下一曲，FM状态中为下一个电台，长按：音量增加 Short press: next song, next channel in FM mode, long press: increase volume 模式键，在PALY、AUX、FM、BLUETOOTH模式中切换 mode key, exchange mode: PALY、 AUX、FM、BLUETOOTH Indicator status introduction: 工作状态：working status 绿灯闪烁：blinking green Play模式：play mode 红灯闪烁：blinking red Line in 模式： line in mode 蓝灯闪烁：blinking blue 蓝牙模式：bluetooth mode 红灯：red indicator FM 模式：FM mode 正在充电：charging 绿灯：green indicator 充电完成： finish charging 有TF卡时，默认开机自动切换至PLAY播放状态 Insert TF card, open default and to be play status automatically 无TF卡时，默认开机自动切换至蓝牙对码模式 No TF card, open default and to be Bluetooth status 开机状态下，插入TF卡会自动切换到PLAY播放状态 “open” status, insert card will be played status automatically 1、[蓝牙功能]：按 键切换至蓝牙模式，HHXT‐201会自动打开蓝牙对码功能，请打开你 的数码设备，进行蓝牙搜索，可搜索到HHXT‐N201进行配对，并输入PIN码（0000），即可 完成配对。 Bluetooth: press exchange to bluetooh mode, pls open your mobile phone to search bluetooth, you will find HHXT‐N201 to match, insert PIN(0000), then match is ok. 2、[蓝牙免提功能]：在蓝牙模式，且已经与你的手机配对成功的状态下，有来电时，按一 下 便可以进行免提接听电话状态。再次按下可以挂断电话。 Bluetooth handfree: in Bluetooth mode,and has been already match with your phone, have a coming call, you just press then you could pick up your phone by speaker. Press again call is finished. 3、[智能语音提示]：切换为不同的状态，NZ‐201都会自动播放语音提示，带给你不一样的 使用体验。 Intelligent voice notice: exchange to different status, NZ‐201 will play voice notice to speak how to use the speaker 4、[TF卡播放]：支持TF卡，可自动播放TF卡中的MP3、WMA格式的音频文件 TF card play: support TF card, play MP3,WMA file 5、[AUX音源输入]：自带3.5mm 音频线，轻松连接电脑、MP3/MP4、IPOD/iphone 等视听 产品的各类音源。 AUX LINE IN: attached 3.5mm audio cable, connect with PC, MP3/MP4、IPOD/iphone easily 6、FM调频收音机（76‐108MHZ）FM radio （76‐108MHZ） 7、[USB充电]：通过MICRO USB 连上电脑USB接口或者USB电源适配器进行充电； USB charge: micro USB cable connect PC USB jack other USB adaptor for charging, and the micro USB interface does not support data transmission with computer. 8、[内置大容量锂电池]： 2000MA大容量锂电，全新设计，无需外接电源即可播放； Build‐In Li‐battery: build in 2000mAh LI‐battery, no need outlet power 使用参数：technical data 特点 advantage 耳机输出earphone LINE 输入 line in 信号标准输入强度signal input standard: 充电电压charge voltage 充电电流charge current 充电时间charge time 移动电源电池容量 Battery volume 电池正常使用时间 Normal use time 工作温度 Work temperature 储存温度 双解码MP3,WMA格式芯片 double decode MP3,WMA data IC 3.5MM立体声插头stereo jack 3.5MM立体声插头 stereo jack 550mV ±15mV 5V (USB连接),智能充电管理 5V(USB connection),intelligent charge management 从2000MA/7.4V(不够电状态)往下递减,充满时为零 from 2000MA(not enough power status)down decreasing, enough show zero 3小时 3hours 2000MA（3.7V） 2000MA（3.7V） 最大音量4小时 Max. volume 4hours ‐5°C至50°C ‐5°Cto50°C ‐25°C至70°C Store temperature 防磁高效全频/低频喇叭 Magnetic resistance/bass speaker 最大输出功率max.power 总谐波失真Distortion 频率响应Frequency response 信噪比S/N 动态范围Dynamic range 蓝牙范围distance 支持操作系统system ‐25°Cto70°C 4Ω 3W X 2 / 3Ω 10W X 1 6.6 W 0.01% 20Hzto 20KHz ＞75dB 80dB ＞10M WINDOWS 2000 or above to 或以上至WIN7 使用电源：power use 本机内置高容量锂离子电池，通过MICRO USB 外接USB电源进行充电。 Build‐in high volume lithium battery, charge power just from micro USB to connect with USB power 系统组成：content 1.背带 hang be 2. USB数据线 USB cable 3.说明书/保修卡 manual/warranty card NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in acc…

Text truncated - open the document above for the full version.

Shenzhen Heui Xint Technology Co., Ltd Date: 30 March, 2013 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Shenzhen Heui Xint Technology Co., Ltd FCC ID: SKJ-M7001 FCC Part 15C Certification Confidentiality Request Gentlemen: Pursuant of Sections 0.457 & 0.459 of the Commission’s Rules, Shenzhen Heui Xint Technology Co., Ltd requests that the following documents regarding this submission for FCC ID: SKJ-M7001 be kept confidential: Exhibit Type File Name Block Diagram CONF APPENDIX SKJ-M7001_Block Diagram.pdf Schematics CONF APPENDIX SKJ-M7001_Schematics.pdf Operational Description CONF APPENDIX SKJ-M7001_operation description.pdf Part list CONF APPENDIX SKJ-M7001_BOM.pdf Those documents contain detailed system and equipment description and related information about the product which Shenzhen Heui Xint Technology Co., Ltd considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, Shenzhen Heui Xint Technology Co., Ltd considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Su’er Chen Sales manager

Shenzhen Heui Xint Technology Co., Ltd Date: 06 April, 2013 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: We Shenzhen Heui Xint Technology Co., Ltd declare that Multifunctional Bluetooth Speaker's (FCC ID: SKJ-M7001) Mircro USB port was only used as charger and not used as data transmission. Thank you for your attention to this matter. Yours Sincerely, Su’er Chen Sales manager

Internal Photos

Internal Photos

Report No.: SET2013-00915 CCIC-SET/T（00） Page 3 of 75 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................... 4 1.1. EUT Description ....................................................................................................................... 4 1.2. Test Standards and Results ........................................................................................................ 5 1.3. Facilities and Accreditations ..................................................................................................... 6 2. 47 CFR PART 15C REQUIREMENTS .................................................................................... 7 2.1. Antenna requirement ................................................................................................................. 7 2.2. Number of Hopping Frequency ................................................................................................ 7 2.3. Peak Output Power.................................................................................................................. 12 2.4. 20dB Bandwidth ..................................................................................................................... 14 2.5. Carried Frequency Separation ................................................................................................. 21 2.6. Time of Occupancy (Dwell time) ........................................................................................... 24 2.7. Conducted Spurious Emissions ............................................................................................... 31 2.8. Band Edge ............................................................................................................................... 38 2.9. Conducted Emission ............................................................................................................... 55 2.10. Radiated Emission................................................................................................................... 59 2.11. RF exposure evaluation ........................................................................................................... 74 Change History Issue Date Reason for change 1.0 March 30, 2013 First edition 2.0 April 7, 2013 Add the Conducted Emission test data Report No.: SET2013-00915 CCIC-SET/T（00） Page 4 of 75 1. General Information 1.1. EUT Description EUT Type ............................. : Multifunctional Bluetooth Speaker Serial No. .............................. : (n.a, marked #1 by test site) Hardware Version ................. : M7 Software Version .................. : Applicant .............................. : Manufacturer ........................ : CSR V2.0+edr Shenzhen Heui Xint Technology Co., Ltd 2/ F, E Building,Huafeng Industry, Hangcheng Road, Xixiang town, Baoan district, Shenzhen, China Shenzhen Heui Xint Technology Co., Ltd 2/ F, E Building,Huafeng Industry, Hangcheng Road, Xixiang town, Baoan district, Shenzhen, China Frequency Range .................. : The frequency range used is 2402MHz - 2480MHz (79 channels, at intervals of 1MHz); The frequency block is 2400MHz to 2483.5MHz. Modulation Type .................. : Bluetooth: FHSS (GFSK(1Mbps), ∏/4-DQPSK(EDR 2Mbps), 8-DPSK(EDR 3Mbps)) Antenna Type ........................ : PCB Antenna Antenna Gain ........................ : 1.2dBi Note 1: The EUT is a Multifunctional Bluetooth Speaker, it contains Bluetooth Module operating at 2.4GHz ISM band; the frequencies allocated for the Bluetooth Module is F(MHz)=2402+1*n (0<=n<=78). The lowest, middle, highest channel numbers of the Bluetooth Module used and tested in this report are separately 0 (2402MHz), 39 (2441MHz) and 78 (2480MHz). Note 2: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Note 3: a. When power on, the EUT will scan the whole frequency until a Connection command from the other BT devices. b. When receiving the signal from the other BT devices, The EUT transmit aresponse signal. c. The other devices receive the response signal and recognize it, then send a connection command to establish the connection. d. After the connection establish successfully, the data transmission is beginning. At the same time, the both devices will shift frequencies in synchronization per a same pseudo randomly ordered list of hopping frequencies, the hopping rate is1600 times per second. This device conforms to the criteria in FCC Public Notice DA 00-705. e. The bandwidth of the receiver, which is set to a fixed width by the software. Note 4: Bluetooth signal has 9 packages DH1, DH3, DH5, 3DH1, 3DH3, 3DH5, 5DH1, 5DH3, 5DH5, DH5 package is largest, we are testing DH5 in the document. Note5: The antenna of EUT is designed with permanent attachment and no consideration of replacement, it is printed on the circuit board with a maximum gain of 1.2dBi, and it is used to radiate the RF emissions Report No.: SET2013-00915 CCIC-SET/T（00） Page 5 of 75 1.2. Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 15 Subpart C (Bluetooth, 2.4GHz ISM band radiators) for the EUT FCC ID Certification: No. Identity Document Title 1 47 CFR Part 15 (10-1-09 Edition) Radio Frequency Devices Test detailed items/section required by FCC rules and results are as below: No. Section in CFR 47Description Result 1 15.203 Antenna Requirement PA S S 2 15.247(a) Number of Hopping Frequency PASS 3 15.247(b) Peak Output Power PASS 4 15.247(a) 20dB Bandwidth PASS 5 15.247(a) Carrier Frequency Separation PASS 6 15.247(a) Time of Occupancy (Dwell time) PASS 7 15.247(d) Conducted Spurious Emission PASS 8 15.247(d) Band Edge PASS 9 15.207 Conducted Emission PASS 10 15.209 15.247(c) Radiated Emission PASS Note 1: The tests were performed according to the method of measurements prescribed in DA-00-705. Not…
