SLE-AWK1160Industrial Wi-Fi 6 wireless access points / Industrial Wi-Fi 6 wireless clients

P/N: 1802011610010 *1802011610010* AWK-1161C/AWK-1161A Series Quick Installation Guide Moxa AirWorks Version 1.0, January 2024 Technical Support Contact Information www.moxa.com/support  2024 Moxa Inc. All rights reserved. - 2 - Overview The AWK-1161C and AWK-1161A Series are industrial-grade Wi-Fi clients and APs with IEEE 802.11ax technology. These Series feature dual-band Wi-Fi data transmissions up to 574 Mbps (2.4 GHz mode) or 1,201 Mbps (5 GHz mode), meeting the speed and flexibility requirements for industrial applications. In addition, the built-in dual band pass filter and the wide temperature design ensure reliability and uninterrupted operation in harsh environments. Meanwhile, backwards compatibility with 802.11a/b/g/n/ac makes the AWK-1161C/AWK- 1161A Series the ideal solution for constructing a versatile wireless data transmission system. Hardware Setup This section covers the hardware setup for the AWK-1161C/AWK- 1161A. Package Checklist Moxa’s AWK-1161C/AWK-1161A is shipped with the following items. If any of these items is missing or damaged, please contact your customer service representative for assistance. • 1 x AWK-1161C wireless client or AWK-1161A wireless AP • 2 x 2.4/5 GHz antennas: ANT-WDB-ARM-0202 • DIN-rail kit (pre-installed) • Quick installation guide (printed) • Warranty card Optional Mounting Accessories (Sold Separately) • Wall-mount kit including 4 screws (M2.5x4) - 3 - Panel Layout of the AWK-1161C/AWK-1161A 1. Reset button 2. Antenna connector 1 3. Antenna connector 2 4. System LEDs: PWR, WLAN, SYSTEM 5. USB host (type A for ABC-02) 6. Console port (RS-232, RJ45) 7. LAN port (10/100/1000BaseT(X), RJ45) 8. Terminal blocks for PWR (V+, V-, Functional Ground) 9. Model name 10. Screw holes for wall-mounting kit 11. DIN-rail mounting kit - 4 - Mounting Dimensions AWK-1161C/A Standard Models - 5 - AWK-1161C/A Wide Temperature (-T) Models DIN-rail Mounting When shipped, the metal DIN-rail mounting kit is fixed to the back panel of the AWK-1161C/AWK-1161A. Mount the AWK-1161C/AWK- 1161A on to a corrosion-free mounting rail that adheres to the EN 60715 standard. STEP 1: Insert the upper lip of the DIN-rail kit into the mounting rail. STEP 2: Press the AWK-1161C/AWK-1161A towards the mounting rail until it snaps into place. - 6 - To remove the AWK-1161C/AWK-1161A from the DIN rail, do the following: STEP 1: Pull down the latch on the DIN-rail kit with a screwdriver. STEP 2 & 3: Slightly pull the AWK-1161C/AWK- 1161A forward and lift it up to remove it from the mounting rail. Wall Mounting (Optional) For some applications, it may be more convenient to mount the AWK- 1161C/AWK-1161A to a wall, as illustrated below. STEP 1: Remove the aluminum DIN-rail attachment plate from the AWK- 1161C/AWK-1161A, and then attach the wall-mounting plates with M2.5x4 screws, as shown in the adjacent diagrams. STEP 2: Mounting the AWK-1161C/AWK-1161A to a wall requires 2 screws. Use the AWK-1161C/AWK-1161A device, with wall-mounting plates attached, as a guide to mark the correct locations of the 2 screws on the wall. The heads of the screws should be less than 6.0 mm in diameter, the shafts should be less than 3.5 mm in diameter, and the screw length should be at least 15 mm, as shown in the figure on the right. - 7 - Do not drive the screws in all the way—leave a space of about 2 mm to allow room for sliding the wall-mounting panel between the wall and the screws. NOTE Test the screw head and shank size by inserting the screws into one of the keyhole shaped apertures of the wall-mounting plates before they are fixed to the wall. STEP 3: Once the screws are fixed into the wall, insert the screw heads through the large opening of the keyhole-shaped apertures, and then slide the AWK-1161C/AWK-1161A downwards, as indicated to the right. Tighten the screws for added stability. WARNING • This equipment is intended to be used in a Restricted Access Location, such as an enclosed machine cabinet or chassis where only authorized service personnel or users can gain access. Such personnel must be instructed about the fact that the metal chassis of the equipment can be extremely hot and may cause burns. • Service personnel or users have to pay special attention and take special precautions before handling this equipment. • Only authorized, well-trained professionals should be allowed to access the restricted access location. Access should be controlled by the authority responsible for the location with lock and key or a security identity system. • External metal parts are hot!! Pay special attention or use special protection before handling the equipment. Wiring Requirements WARNING Safety First! Be sure to disconnect the power cord before installing and/or wiring your AWK-1161C/AWK-1161A. Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes that dictate the maximum current allowed for each wire size. If the current goes above the maximum ratings, the wiring could overheat, causing serious damage to your equipment. - 8 - Read and Follow These Guidelines: • Use separate paths to route wiring for power and devices. If power wiring and device wiring paths must cross, make sure the wires are perpendicular at the crossing point. NOTE Do not run signal or communications wiring and power wiring in the same wire conduit. To avoid interference, wires with different signal characteristics should be routed separately. • You can use the type of signal transmitted through a wire to determine which wires should be kept separate. The rule of thumb is that wiring that shares similar electrical characteristics can be bundled together. • Keep input wiring and output wiring separated. • For future reference, you should label the wiring used for all of your devices. NOTE The product is intended to be supplied by a UL Listed Power Unit marked "L.P.S." (or "Limited Power Source") and is rated 9-30 VDC, 1.57-0.47 A min, Tma min. 75°C . If you need further assistan…

Text truncated - open the document above for the full version.

P/N: 1802011650010 *1802011650010* AWK-1165C/AWK-1165A Series Quick Installation Guide Moxa AirWorks Version 1.0, January 2024 Technical Support Contact Information www.moxa.com/support  2024 Moxa Inc. All rights reserved. - 2 - Overview The AWK-1165C and AWK-1165A Series are industrial-grade Wi-Fi clients and APs with IEEE 802.11ax technology. These Series feature dual-band Wi-Fi data transmissions up to 574 Mbps (2.4 GHz mode) or 1,201 Mbps (5 GHz mode), meeting the speed and flexibility requirements for industrial applications. In addition, the built-in dual band pass filter and the wide temperature design ensure reliability and uninterrupted operation in harsh environments. Meanwhile, backwards compatibility with 802.11a/b/g/n/ac makes the AWK-1165C/AWK- 1165A Series the ideal solution for constructing a versatile wireless data transmission system. Hardware Setup This section covers the hardware setup for the AWK-1165C/AWK- 1165A. Package Checklist Moxa’s AWK-1165C/AWK-1165A is shipped with the following items. If any of these items is missing or damaged, please contact your customer service representative for assistance. • 1 x AWK-1165C wireless client or AWK-1165A wireless AP • 2 x 2.4/5 GHz antennas: ANT-WDB-ARM-0202 • DIN-rail kit (pre-installed) • Quick installation guide (printed) • Warranty card Optional Mounting Accessories (Sold Separately) • Wall-mount kit including 4 screws (M2.5x4) - 3 - Panel Layout of the AWK-1165C/AWK-1165A 1. Reset button 2. Antenna connector 1 3. Antenna connector 2 4. System LEDs: PWR, WLAN, SYSTEM 5. USB host (type A for ABC-02) 6. Console port (RS-232, RJ45) 7. LAN port (10/100/1000BaseT(X), RJ45) 8. Terminal blocks for PWR (V+, V-, Functional Ground) 9. Model name 10. Screw holes for wall-mounting kit 11. DIN-rail mounting kit - 4 - Mounting Dimensions AWK-1165C/A Standard Models - 5 - AWK-1165C/A Wide Temperature (-T) Models DIN-rail Mounting When shipped, the metal DIN-rail mounting kit is fixed to the back panel of the AWK-1165C/AWK-1165A. Mount the AWK-1165C/AWK- 1165A on to a corrosion-free mounting rail that adheres to the EN 60715 standard. STEP 1: Insert the upper lip of the DIN-rail kit into the mounting rail. STEP 2: Press the AWK-1165C/AWK-1165A towards the mounting rail until it snaps into place. - 6 - To remove the AWK-1165C/AWK-1165A from the DIN rail, do the following: STEP 1: Pull down the latch on the DIN-rail kit with a screwdriver. STEP 2 & 3: Slightly pull the AWK-1165C/AWK- 1165A forward and lift it up to remove it from the mounting rail. Wall Mounting (Optional) For some applications, it may be more convenient to mount the AWK- 1165C/AWK-1165A to a wall, as illustrated below. STEP 1: Remove the aluminum DIN-rail attachment plate from the AWK- 1165C/AWK-1165A, and then attach the wall-mounting plates with M2.5x4 screws, as shown in the adjacent diagrams. STEP 2: Mounting the AWK-1165C/AWK-1165A to a wall requires 2 screws. Use the AWK-1165C/AWK-1165A device, with wall-mounting plates attached, as a guide to mark the correct locations of the 2 screws on the wall. The heads of the screws should be less than 6.0 mm in diameter, the shafts should be less than 3.5 mm in diameter, and the screw length should be at least 15 mm, as shown in the figure on the right. - 7 - Do not drive the screws in all the way—leave a space of about 2 mm to allow room for sliding the wall-mounting panel between the wall and the screws. NOTE Test the screw head and shank size by inserting the screws into one of the keyhole shaped apertures of the wall-mounting plates before they are fixed to the wall. STEP 3: Once the screws are fixed into the wall, insert the screw heads through the large opening of the keyhole-shaped apertures, and then slide the AWK-1165C/AWK-1165A downwards, as indicated to the right. Tighten the screws for added stability. WARNING • This equipment is intended to be used in a Restricted Access Location, such as an enclosed machine cabinet or chassis where only authorized service personnel or users can gain access. Such personnel must be instructed about the fact that the metal chassis of the equipment can be extremely hot and may cause burns. • Service personnel or users have to pay special attention and take special precautions before handling this equipment. • Only authorized, well-trained professionals should be allowed to access the restricted access location. Access should be controlled by the authority responsible for the location with lock and key or a security identity system. • External metal parts are hot!! Pay special attention or use special protection before handling the equipment. Wiring Requirements WARNING Safety First! Be sure to disconnect the power cord before installing and/or wiring your AWK-1165C/AWK-1165A. Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes that dictate the maximum current allowed for each wire size. If the current goes above the maximum ratings, the wiring could overheat, causing serious damage to your equipment. - 8 - Read and Follow These Guidelines: • Use separate paths to route wiring for power and devices. If power wiring and device wiring paths must cross, make sure the wires are perpendicular at the crossing point. NOTE Do not run signal or communications wiring and power wiring in the same wire conduit. To avoid interference, wires with different signal characteristics should be routed separately. • You can use the type of signal transmitted through a wire to determine which wires should be kept separate. The rule of thumb is that wiring that shares similar electrical characteristics can be bundled together. • Keep input wiring and output wiring separated. • For future reference, you should label the wiring used for all of your devices. NOTE The product is intended to be supplied by a UL Listed Power Unit marked "L.P.S." (or "Limited Power Source") and is rated 9-30 VDC, 1.57-0.47 A min, Tma min. 75°C . If you need further assistan…

Text truncated - open the document above for the full version.

Feder al Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: March 18, 2024 FCC ID: SLE-A WK1160 RE: Attestation Statements Part 2.911(d)(5)(i) Filing Moxa Inc. ( “the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. RE: A ttestation Statements Part 2.911(d)(5)(ii) Filing Moxa Inc. ( “the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List ( as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, Applicant : Moxa Inc. Address : No. 1111, Heping Rd., Bade Dist., Taoyuan City 334004 Taiwan Signature : _________________________________ Name and Job Title. : James Wu, Vice President E- mail : [email protected] Te l . : 886-2-8919-1230

1 U.S. Agent Designation for Service of Process Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Ref: Attestation Statements Part 2.911(d)(7) Date: March 18, 2024 FCC ID: SLE-AWK1160 Grantee FRN: 0011650785 (The agent for service of process does no other business with the FCC and does not have an FRN.) Moxa Inc. (“the applicant”) certifies that, as of the date of the filing of the application, Moxa Americas Inc. is our designated U.S. agent for service of process for the above referenced Grantee Code. Moxa Inc. accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges their responsibility to inform the FCC whenever the designated agent information changes. Moxa Americas accepts the designation by the applicant as the U.S. agent to accept service of process includes, but is not limited to, delivery of any correspondence, notices, orders, decisions, and requirements of administrative, legal, or judicial process related to Commission proceedings. Designated U.S. Agent Information: Sincerely, Moxa Inc. James Wu/ Vice President [email protected] No. 1111, Heping Rd., Bade Dist., Taoyuan City 334, Taiwan Tel: +886-2-89191230 Moxa Americas Inc. Chad Chesney/President [email protected] Moxa Corporate Plaza 601 Valencia Ave, Suite 100 Brea, CA 92823, U.S.A. Tel: +1-714-528-6777

Confidentiality Request Letter Date: March 18, 2024 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 FCC ID: SLE-AWK1160 Permanent Confidentiality Request Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. 1.Block Diagram 2.Schematic Diagram 3.Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Applicant : Moxa Inc. Address : No. 1111, Heping Rd., Bade Dist., Taoyuan City 334004 Taiwan Signature : _________________________________ Name and Job Title. : James Wu, Vice President E- mail : [email protected] Te l . : 886-2-8919-1230

Letter of Authorization Date: March 18, 2024 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: SLE-AWK1160 Product Name: Industrial Wi-Fi 6 wireless access points / Industrial Wi-Fi 6 wireless clients To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization to the FCC Rules and Regulations. Sporton International Inc. Address : No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Name : Leo Huang Job Title : VP e- mail : [email protected] We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862. This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Moxa Inc. Address : No. 1111, Heping Rd., Bade Dist., Taoyuan City 334004 Taiwan Signature : _________________________________ Name and Job Title. : James Wu, Vice President E- mail : [email protected] Te l . : 886-2-8919-1230

Date: March 18, 2024 Federal Communications Commission Authorization and Evaluation Division Subject: Product Model Deviation FCC ID: SLE-AWK1160 To whom it may concern: We, Moxa Inc. hereby declares that the product versions described below are electronically and mechanically/structurally identical. The only difference is the following: Model name Model difference client / AP 10/100/1000 BaseT(X) port band operating temperature AWK-1161C-US client 1 US -25 to 60°C AWK-1161C-US-T client 1 US -40 to 75°C AWK-1161C-UN client 1 UN -25 to 60°C AWK-1161C-UN-T client 1 UN -40 to 75°C AWK-1161A-US AP 1 US -25 to 60°C AWK-1161A-US-T AP 1 US -40 to 75°C AWK-1161A-UN AP 1 UN -25 to 60°C AWK-1161A-UN-T AP 1 UN -40 to 75°C AWK-1165C-US client 5 US -25 to 60°C AWK-1165C-US-T client 5 US -40 to 75°C AWK-1165C-UN client 5 UN -25 to 60°C AWK-1165C-UN-T client 5 UN -40 to 75°C AWK-1165A-US AP 5 US -25 to 60°C AWK-1165A-US-T AP 5 US -40 to 75°C AWK-1165A-UN AP 5 UN -25 to 60°C AWK-1165A-UN-T AP 5 UN -40 to 75°C Description of model differences -Client, AP mode and band: All these features are defined by software, to fulfil different condition of use. -LAN Ports: For different condition of use, product supports 1 LAN port or 5 LAN ports, it depends on product equipped with I/O board or not. -Operating temperature: Model name with -T character, product equipped with heatsink on surface to ensure better cooling capacity. S incerely, Applicant : Moxa Inc. Address : No. 1111, Heping Rd., Bade Dist., Taoyuan City 334004 Taiwan Signature : _________________________________ Name and Job Title. : James Wu, Vice President E- mail : [email protected] Te l . : 886-2-8919-1230

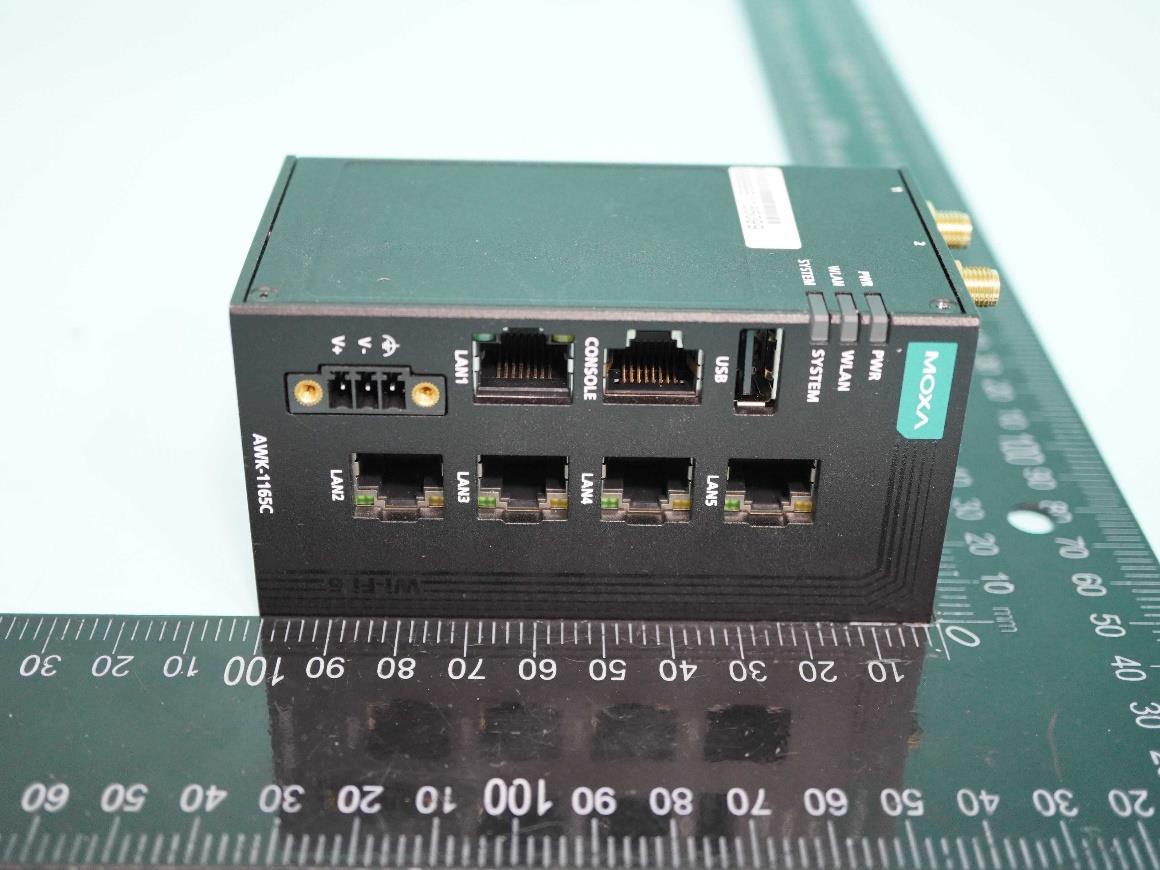

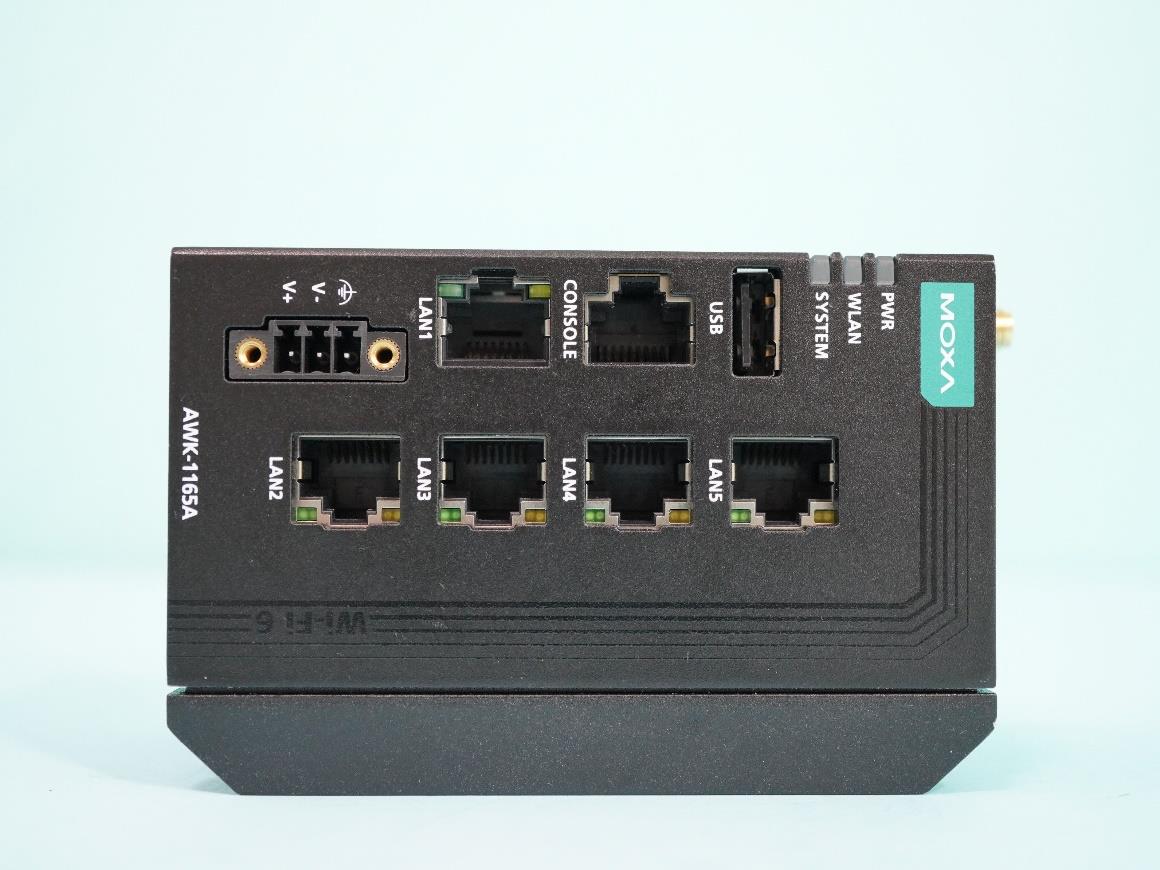

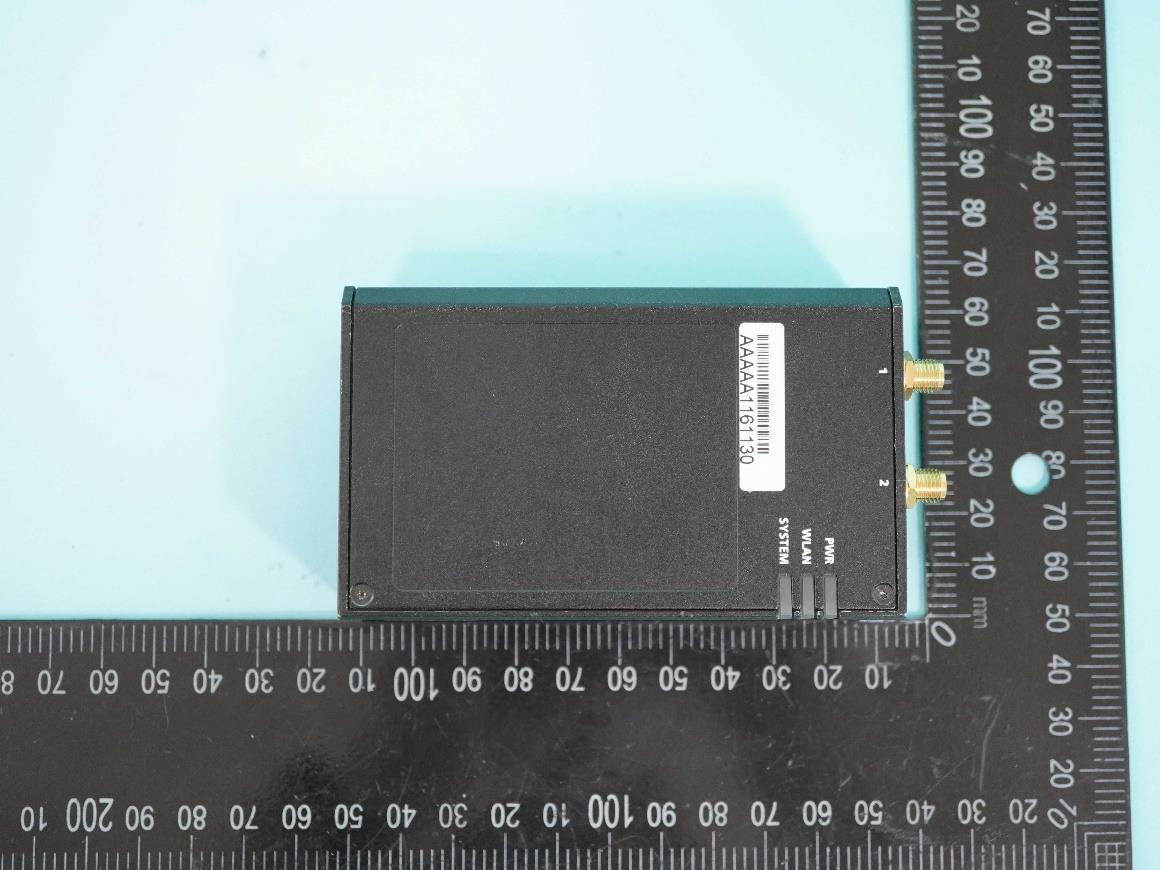

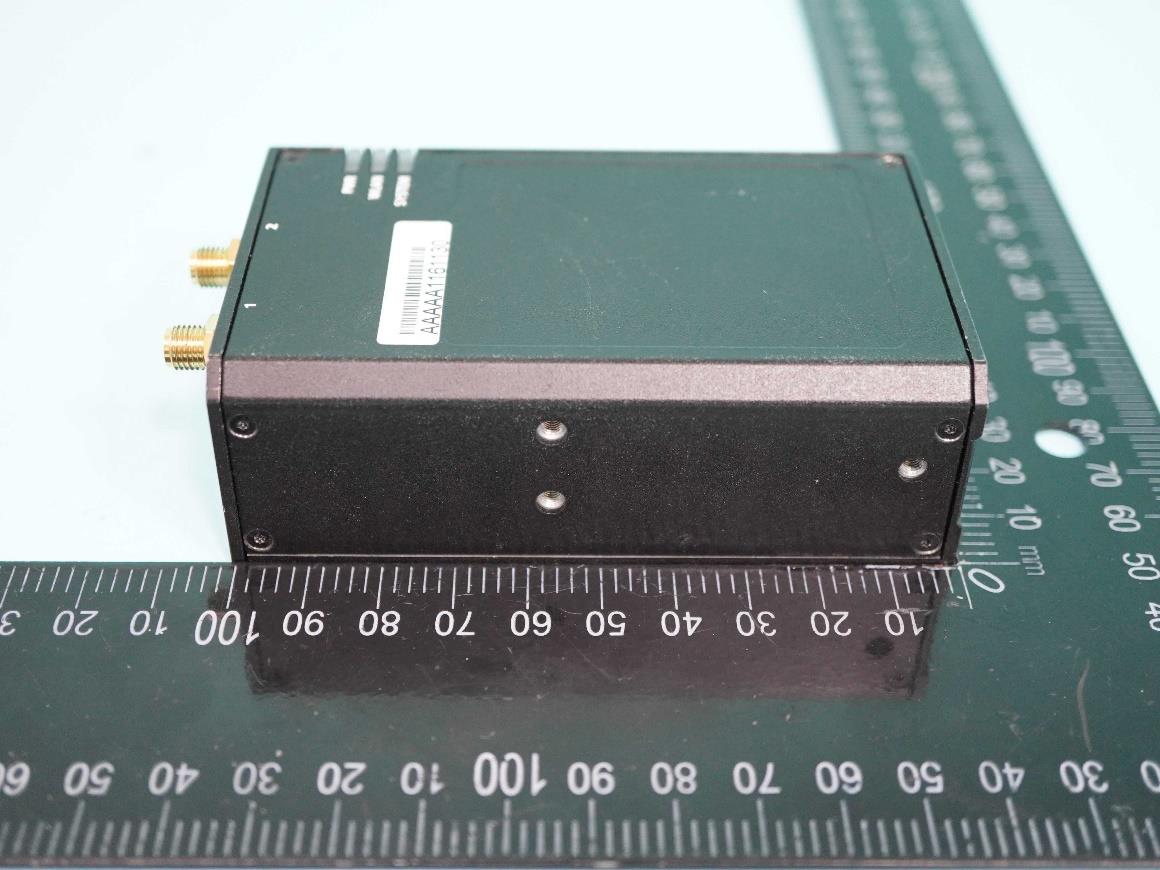

PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 1 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 Brand Name: MOXA Model Name: AWK-1161C-US, AWK-1161C-UN, AWK-1161A-US, AWK-1161A-UN PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 2 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 3 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 4 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 5 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 Brand Name: MOXA Model Name: AWK-1161C-US-T, AWK-1161C-UN-T, AWK-1161A-US-T, AWK-1161A-UN-T PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 6 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 7 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 8 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 23 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 Brand Name: MOXA Model Name: AWK-1165C-US, AWK-1165C-UN, AWK-1165A-US, AWK-1165A-UN PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 24 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 25 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 26 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 27 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 Brand Name: MOXA Model Name: AWK-1165C-US-T, AWK-1165C-UN-T, AWK-1165A-US-T, AWK-1165A-UN-T PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 28 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 29 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 30 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01

Label drawing AWK-1161 Series AWK-1165 Series

PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 9 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 Brand Name: MOXA Model Name: AWK-1165C-US-T, AWK-1165C-UN-T, AWK-1165A-US-T, AWK-1165A-UN-T, AWK-1161C-US-T, AWK-1161C-UN-T, AWK-1161A-US-T, AWK-1161A-UN-T PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 10 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 11 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 12 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 13 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 14 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 15 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 16 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 17 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 18 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 19 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 20 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 21 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 22 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 31 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 Brand Name: MOXA Model Name: AWK-1165C-US, AWK-1165C-UN, AWK-1165A-US, AWK-1165A-UN, AWK-1165C-US-T, AWK-1165C-UN-T, AWK-1165A-US-T, AWK-1165A-UN-T PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 32 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 33 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 34 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 35 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 36 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 37 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 38 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 39 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 40 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 41 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01

PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 42 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 43 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 44 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 45 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 46 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 47 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 Antenna 1 MOXA/ ANT-WDB-ARM-02 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 48 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 Antenna 2 MOXA/ ANT-WDB-ARM-0202 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 49 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 Antenna 3 MOXA/ ANT-WSB-AHRM-05-1.5m PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 50 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 Antenna 4 MOXA/ MAT-WDB-CA-RM-2-0205 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 51 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 PHOTOGRAPHS OF EUT EP3N2221 Sporton International Inc. Page No. : 52 of 52 Report Template No.: SE Ver 1.0_EP Issued Date : 22/Mar/2024 Report Version : 01 ─────THE END───── Antenna 5 MOXA/ WDB-DA-RM-2-0203-1m

FA3N2221 Equipment : Industrial Wi-Fi 6 wireless access points / Industrial Wi-Fi 6 wireless clients Model No. : AWK-1161C-UN, AWK-1165C-UN, AWK-1161C-UN-T, AWK-1165C-UN-T, AWK-1161C-US, AWK-1165C-US, AWK-1161C-US-T, AWK-1165C-US-T, AWK-1161A-UN, AWK-1165A-UN, AWK-1161A-UN-T, AWK-1165A-UN-T, AWK-1161A-US, AWK-1165A-US, AWK-1161A-US-T, AWK-1165A-US-T Applicant : Moxa Inc. No. 1111, Heping Rd., Bade Dist., Taoyuan City 334004, Taiwan The equipment was Passed the test performed according to 47 CFR FCC Part 2 Subpart J, section 2.1091 The test was carried out on Jan. 11, 2024 at SPORTON INTERNATIONAL INC. Hsinhua Laboratory. SPORTON INTERNATIONAL INC. Hsinhua Laboratory No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411, Taiwan (R.O.C.) Radio Exposure Evaluation Report Report No. : FA3N2221 TEL : 886-3-327-3456 Page Number : 1 of 13 FAX : 886-3-327-0973 Issued Date : Feb. 21, 2024 Report Template No.: HE1-A1 Ver5.0 Report Version : 01 FCC ID: SLE-AWK1160 Radio Exposure Evaluation Report FCC ID : SLE-AWK1160 Equipment : Industrial Wi-Fi 6 wireless access points / Industrial Wi-Fi 6 wireless clients Brand Name : MOXA Model Name : AWK-1161C-UN, AWK-1165C-UN, AWK-1161C-UN-T, AWK-1165C-UN-T, AWK-1161C-US, AWK-1165C-US, AWK-1161C-US-T, AWK-1165C-US-T, AWK-1161A-UN, AWK-1165A-UN, AWK-1161A-UN-T, AWK-1165A-UN-T, AWK-1161A-US, AWK-1165A-US, AWK-1161A-US-T, AWK-1165A-US-T EUT Rated Voltage Range : DC 9V ~ 30V Applicant : Moxa Inc. No. 1111, Heping Rd., Bade Dist., Taoyuan City 334004, Taiwan Manufacturer : Moxa Inc. No. 1111, Heping Rd., Bade Dist., Taoyuan City 334004, Taiwan Standard : 47 CFR FCC Part 2 Subpart J, section 2.1091 The product was received on Nov. 23, 2023, and testing was started from Dec. 19, 2023 and completed on Jan. 11, 2024. We, SPORTON INTERNATIONAL INC. Hsinhua Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in 47 CFR FCC Part 2 Subpart J, section 2.1091 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested …
