SLE-WAPN008MOXA IEEE 802.11 a/b/g/n

Moxa 802.11a/b/g/n PCI Module WAPN008 User’s Manual www.moxa.com First Edition, July 2015  2015 Moxa Inc. All rights reserved. Reproduction without permission is prohibited. WAPN008 User’s Manual The hardware and software described in this manual is furnished under a license agreement and may be used only in accordance with the terms of that agreement. Copyright Notice Copyright  2015 Moxa Inc. All rights reserved. Reproduction without permission is prohibited. Trademarks MOXA is a registered trademark of Moxa Inc. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer Information in this document is subject to change without notice and does not represent a commitment on the part of Moxa. Moxa provides this document “as is,” without warranty of any kind, either expressed or implied, including, but not limited to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this manual, or to the products and/or the programs described in this manual, at any time. Information provided in this manual is intended to be accurate and reliable. However, Moxa assumes no responsibility for its use, or for any infringements on the rights of third parties that may result from its use. This product might include unintentional technical or typographical errors. Changes are periodically made to the information herein to correct such errors, and these changes are incorporated into new editions of the publication. Technical Support Contact Information www.moxa.com/support Moxa Americas: Toll-free: 1-888-669-2872 Tel: +1-714-528-6777 Fax: +1-714-528-6778 Moxa China (Shanghai office) : Toll-free: 800-820-5036 Tel: +86-21-5258-9955 Fax: +86-10-6872-3958 Moxa Europe : Tel: +49-89-3 70 03 99-0 Fax: +49-89-3 70 03 99-99 Moxa Asia-Pacific : Tel: +886-2-8919-1230 Fax: +886-2-8919-1231 Table of Contents Chapter 1 Introduction Overview Specification Chapter 2 Getting Started Module Layout Block Diagram Hardware Installation Software Installation WAPN008 User’s Manual Introduction 1 1 Chapter 1 Introduction The following topics are covered in this chapter:
Overview
Specifications WAPN008 User’s Manual Introduction Overview WAPN008 PCI module is designed to provide wireless communication for Moxa industrial wireless products. It communicates via the standard 802.11a/b/g/n protocols on standard 2.4GHz/5GHz and 5GHz DFS channels. The WAPN008 uses the AR9344 SoC Wireless chipset from Atheros. Specification Features WAPN008 Chipset Atheros AR9344 Baseband Processor (BBP) - DSSS with DBPSK, DQPSK, CCK - OFDM with BPSK, QPSK, 16QAM, 64QAM - 802.11b: CCK @ 11/5.5 Mbps, DQPSK @ 2 Mbps, DBPSK @ 11 Mbps - 802.11a/g: 64QAM @ 54/48 Mbps, 16QAM @ 36/24 Mbps, QPSK @ 18/12 Mbps, BPSK @ 9/6 Mbps - 802.11n: 64QAM @ 300 Mbps to BPSK @ 6.5 Mbps (multiple rates supported) security engine - 64-bit and 128-bit WEP encryption, WPA /WPA2-Personal and Enterprise (IEEE 802.1X/RADIUS, TKIP and AES) Connectors Defined BTB connector is using 2x40 pins header, and Support PCI Express standard. Power requirement 3.3V +/-10% Dimension 60mm x 60mm x 1.2mm Operating Temperature -40 to +80 °C Storage Temperature: -40 to +150°C Operates in 2.4 and 5 GHz frequency bands. US: 2.412 to 2.462 GHz (11 channels) 5.180 to 5.240 (4 channels) 5.260 to 5.320 (4 channels) 5.500 to 5.700 GHz (11 channels) 5.745 to 5.825 GHz (5 channels) EU: 2.412 to 2.472 GHz (13 channels) 5.180 to 5.240 (4 channels) 5.260 to 5.320 (4 channels) 5.500 to 5.700 GHz (11 channels) JP: 2.412 to 2.484 GHz (14 channels) 5.180 to 5.240 (4 channels) 5.260 to 5.320 (4 channels) 5.500 to 5.700 GHz (11 channels) TX Transmit Power: 802.11b: Typ. 26±1.5 dBm @ 1 Mbps, Typ. 26±1.5 dBm @ 2 Mbps, Typ. 26±1.5 dBm @ 5.5 Mbps, Typ. 25±1.5 dBm @ 11 Mbps 802.11g: Typ. 24±1.5 dBm @ 6 to 24 Mbps, Typ. 22±1.5 dBm @ 36 Mbps, WAPN008 User’s Manual Introduction Typ. 20±1.5 dBm @ 48 Mbps, Typ. 18±1.5 dBm @ 54 Mbps 802.11n (2.4 GHz): Typ. 23±1.5 dBm @ MCS0/8 20 MHz, Typ. 17±1.5 dBm @ MCS7/15 20 MHz Typ. 23±1.5 dBm @ MCS0/8 40 MHz, Typ. 17±1.5 dBm @ MCS7/15 40 MHz 802.11a: Typ. 23±1.5 dBm @ 6 to 24 Mbps, Typ. 21±1.5 dBm @ 36 Mbps, Typ. 20±1.5 dBm @ 48 Mbps,Typ. 18±1.5 dBm @ 54 Mbps 802.11n (5 GHz): Typ. 23±1.5 dBm @ MCS0/8 20 MHz, Typ. 18±1.5 dBm @ MCS7/15 20 MHz Typ. 23±1.5 dBm @ MCS0/8 40 MHz, Typ. 18±1.5 dBm @ MCS7/15 40 MHz RX Receive Sensitivity: 802.11b: -93 dBm @ 1 Mbps, -93 dBm @ 2 Mbps, -93 dBm @ 5.5 Mbps, -88 dBm @ 11 Mbps 802.11g: -88 dBm @ 6 Mbps, -88 dBm @ 9 Mbps, -85 dBm @ 12 Mbps, -85 dBm @ 18 Mbps, -85 dBm @ 24 Mbps, -82 dBm @ 36 Mbps, -78 dBm @ 48 Mbps, -74 dBm @ 54 Mbps 802.11n (2.4 GHz): -70 dBm @ MCS7 20 MHz, -69 dBm @ MCS15 20 MHz -67 dBm @ MCS7 40MHz, -67 dBm @ MCS15 40 MHz 802.11a: -90 dBm @ 6 Mbps, -88 dBm @ 9 Mbps, -85 dBm @ 12 Mbps, -85 dBm @ 18 Mbps, -81 dBm @ 24 Mbps, -78 dBm @ 36 Mbps, -78 dBm @ 48 Mbps, -72 dBm @ 54 Mbps 802.11n (5 GHz): -69 dBm @ MCS7 20MHz, -71 dBm @ MCS15 20 MHz -66 dBm @ MCS7 40MHz, -68 dBm @ MCS15 40 MHz 2 2 Chapter 2 Getting Started This chapter covers the module layout, and block diagram, hardware installation of the WAPN008. Software installation is covered in the next chapter. The following topics are covered:
Module Layout
Block Diagram
Hardware Installation
Software Installation WAPN008 User’s Manual Getting Started Module Layout Top and Bottom Block Diagram Below is a block diagram of the WAPN008. WAPN008 User’s Manual Getting Started Connector Locations WAPN008 User’s Manual Getting Started PCI Bus Connector PIN Assignments Function Connect to Pin Pin Function Connect to 3.3v 3.3v 1 2 GND GND 3.3v 3.3v 3 4 GND GND 3.3v 3.3v 5 6 ERXD3 PHY RGMII 3.3v 3.3v 7 8 ERXD2 PHY RGMII 3.3v 3.3v 9 10 ERXD1 PHY RGMII 3.3v 3.3v 11 12 ERXD0 PHY RGMII 3.3v 3.3v 13 14 GND GND GPIO 16 I2C_SCLK 15 16 GND GND GPIO 17 I2C_DATA 17 18 ETX_CLK ETX_CLK GND GND 19 20 GND GND GPIO 21 POWER 2 21 22 GND GND GPIO 1 JP1 Debug 23 24 ETX_EN ETX_EN GND GND 25 26 GND GND GPIO 4 S17_INT 27 28 GN…

Text truncated - open the document above for the full version.

MOXA Inc. FCC ID.: SLE-WAPN008 FL.4, NO. 135. LANE 235, BAOQIAO RD. XINDIAN DIST.,NEW TAIPEI CITY, TAIWAN Tel : 886-2-8919-1230 Federal Communications Commission Aug. 21, 2015 Authorization and Evaluation Division ATTESTATION FCC ID: SLE-WAPN008 Product: MOXA IEEE 802.11 a/b/g/n We don’t provide any controls or software to allow operation outside the USA frequency band when we sell a product bearing the FCC ID: SLE-WAPN008 anywhere in the world. Sincerely, ---------------------------------------------------- Owen Chang / Assistant Manager MOXA Inc.

MOXA Inc. FL.4, NO. 135. LANE 235, BAOQIAO RD. XINDIAN DIST.,NEW TAIPEI CITY, TAIWAN TEL No: 886-2-8919-1230 FAX No: 886-2-8919-1231 About WiFi Channels 12 & 13 Declaration Letter To whom it may concern: We have declared below featured for FCC equipment authorization, Device FCC ID: SLE‐WAPN008 Our devices don't operating on Channels 12 and 13, when a master transmits on these channels. This information is programmed into the EEPROM and is not accessible and cannot be changed by the end user. Signature ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ Owen Chang / Assistant Manager MOXA Inc. Tel: 886‐2‐8919‐1230 Fax: 886‐2‐8919‐1231 Email: [email protected]

MOXA Inc. FCC ID.: SLE-WAPN008 FL.4, NO. 135. LANE 235, BAOQIAO RD. XINDIAN DIST.,NEW TAIPEI CITY, TAIWAN Tel : 886-2-8919-1230 MOXA Inc. FL.4, NO. 135. LANE 235, BAOQIAO RD. XINDIAN DIST.,NEW TAIPEI CITY, TAIWAN Tel : 886-2-8919-1230 Fax: 886-2-8919-1231 Federal Communications Commission Aug. 21, 2015 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics: (WAPN008) Schem Block Diagram: (WAPN008) BlkDia Operational Description: (WAPN008) OPDes The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ---------------------------------------------------- Owen Chang / Assistant Manager MOXA Inc.

MOXA Inc. FL.4, NO. 135. LANE 235, BAOQIAO RD. XINDIAN DIST.,NEW TAIPEI CITY, TAIWAN TEL No: 886-2-8919-1230 FAX No: 886-2-8919-1231 Attestation for FCC Declaration of Conformity FCC ID: SLE-WAPN008 Data: Aug. 21, 2015 Please be notified that we, the undersigned, MOXA Inc., declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is 1560344R-RFUSP01V00. Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,Taipei City 114,Taiwan,R.O.C. which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, ------------------------------------------------------------------------ Owen Chang / Assistant Manager MOXA Inc. Tel: 886-2-8919-1230 Fax: 886-2-8919-1231 Email: [email protected]

MOXA Inc. FL.4, NO. 135. LANE 235, BAOQIAO RD. XINDIAN DIST.,NEW TAIPEI CITY, TAIWAN TEL No: 886-2-8919-1230 FAX No: 886-2-8919-1231 DTS‐UNII Device Declaration Letter To whom it may concern: We have declared below featured for FCC equipment authorization, Device FCC ID: SLE‐WAPN008 (1) DFS Device -- Master , Client with Radar detection capability , Client without radar detection capability , N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode or WIFI Direct capability Access point capability 2412-2462 Yes , No Yes , No Yes , No Yes , No 2412-2452 Yes , No Yes , No Yes , No Yes , No 5180-5240 Yes , No Yes , No Yes , No Yes , No 5260-5320 Yes , No Yes , No Yes , No Yes , No 5470-5725 Yes , No Yes , No Yes , No Yes , No 5745-5825 Yes , No Yes , No Yes , No Yes , No 5190-5230 Yes , No Yes , No Yes , No Yes , No 5270-5310 Yes , No Yes , No Yes , No Yes , No 5510-5670 Yes , No Yes , No Yes , No Yes , No 5755-5795 Yes , No Yes , No Yes , No Yes , No This information when programmed into the EEPROM will not be accessible and can not be changed by the end user. If you have any questions please do not hesitate to contact us. Signature ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ Owen Chang / Assistant Manager MOXA Inc. Tel: 886‐2‐8919‐1230 Fax: 886‐2‐8919‐1231 Email: [email protected]

RF_734_00, Issue 1 Modular Approval Request FCC (per FCC Part 15 Section 15.212) FCC ID: SLE-WAPN008 Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. The modular transmitter not has its own RF shielding. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The EUT has buffered data inputs, The part number is AR9344 3. The modular transmitter must have its own power supply regulation. The EUT has power supply regulation, The part number is AR9344 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The modular transmitter complies with the antenna requirements of Section 15.203 and 15.204(c). 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. This is a limited module, installed on the host to be tested. (Host Manufacturer: MOXA, Model No: AWK-4131A.) 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Please refer to the user manual instructions. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The modular transmitter complies with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The modular transmitter complies with any applicable RF exposure requirements. Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). Name and surname of applicant (or authorized representative): Owen Chang Date: Aug. 21, 2015 Signature: ___________________________

RF_160, Issue 03 Declaration of Authorization We Name: MOXA Inc. Address: FL.4, NO. 135. LANE 235, BAOQIAO RD. XINDIAN DIST.,NEW TAIPEI CITY, TAIWAN City: NEW TAIPEI CITY Country: TAIWAN Declare that: Name Representative of agent: Vincent Lin (1) Agent Company name: QuieTek Corp. Address: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. City: New Taipei City Country Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product description: MOXA IEEE 802.11 a/b/g/n PCI-e FCC ID: SLE-WAPN008 Trademark: MOXA on our behalf. Date: Aug. 13, 2015 City: NEW TAIPEI CITY Name: Owen Chang (2) Function: Assistant Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

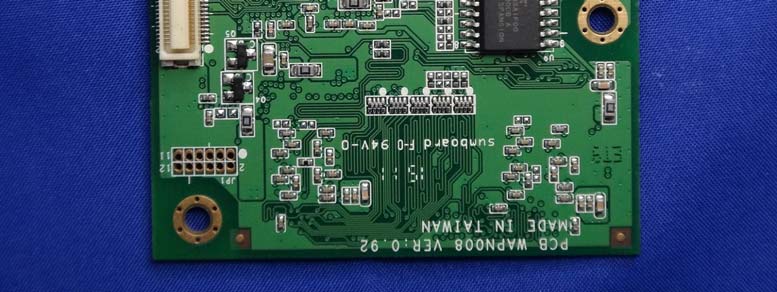

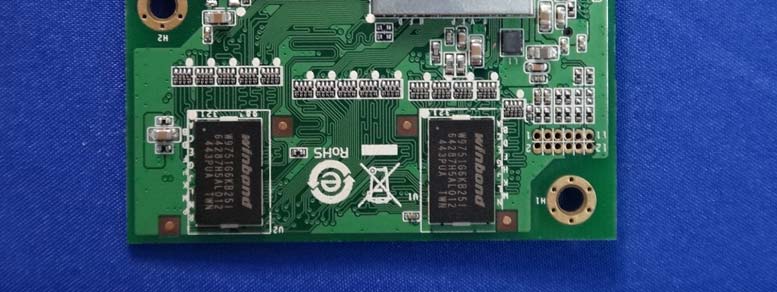

Report No.: 1560344R-RFUSP26V00 Page : 1 of 11 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 1560344R-RFUSP26V00 Page : 2 of 11 (3) EUT Photo (4) EUT Photo Report No.: 1560344R-RFUSP26V00 Page : 3 of 11 (5) EUT Photo (6) EUT Photo RF Chip

MOXA Inc. FCC ID.: SLE-WAPN008 FL.4, NO. 135. LANE 235, BAOQIAO RD. XINDIAN DIST.,NEW TAIPEI CITY, TAIWAN Tel : 886-2-8919-1230 The FCC ID will be placed on the equipment as shown in the photograph below.

MOXA Inc. FCC ID.: SLE-WAPN008 FL.4, NO. 135. LANE 235, BAOQIAO RD. XINDIAN DIST.,NEW TAIPEI CITY, TAIWANTel : 886-2-8919-1230 The FCC ID will be placed on the equipment as shown in the photograph below.

Report No.: 1560344R-RFUSP26V00 Page : 4 of 11 (7) EUT Photo (ANT-WDB-ANM-0502) (8) EUT Photo (ANT-WDB-ANM-0502) Report No.: 1560344R-RFUSP26V00 Page : 5 of 11 (9) EUT Photo (ANT-WDB-ANM-0502) (10) EUT Photo (ANT-WDB-ANM-0502) Report No.: 1560344R-RFUSP26V00 Page : 6 of 11 (11) EUT Photo (ANT-WDB-ANM-0502) (12) EUT Photo Report No.: 1560344R-RFUSP26V00 Page : 7 of 11 (13) EUT Photo (14) EUT Photo Report No.: 1560344R-RFUSP26V00 Page : 8 of 11 (15) EUT Photo (ANT-WDB-O-2 BK) (16) EUT Photo (ANT-WDB-O-2 BK) Report No.: 1560344R-RFUSP26V00 Page : 9 of 11 (17) EUT Photo (ANT-WDB-O-2 BK) (18) EUT Photo (ANT-WDB-O-2 BK) Report No.: 1560344R-RFUSP26V00 Page : 10 of 11 (19) EUT Photo (20) EUT Photo Report No.: 1560344R-RFUSP26V00 Page : 11 of 11 (21) EUT Photo (22) EUT Photo

Report No.: 1560344R-RFUSP48V00 Page: 1 of 3 RF Exposure Evaluation declaration Product Name MOXA IEEE 802.11 a/b/g/n Model No. WAPN008 FCC ID SLE-WAPN008 Applicant MOXA Inc. Address FL.4, NO. 135. LANE 235, BAOQIAO RD. XINDIAN DIST.,NEW TAIPEI CITY, TAIWAN Date of Receipt June 11, 2015 Date of Declaration Aug. 13, 2015 Report No. 1560344R-RFUSP48V00 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No.: 1560344R-RFUSP48V00 Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No.: 1560344R-RFUSP48V00 Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product : MOXA IEEE 802.11 a/b/g/n Test Item : RF Exposure Evaluation Test Site : No.3 OATS RF Exposure_2.4GHz Operation Frequency 2412~2462, 2422~2452MHz Maximum Conducted output power 29.07dBm Antenna gain 4.62dBi Output Power Into Antenna & RF Exposure Evaluation Distance: Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 807.2350 0.465297 Power density is lower than the limit (1 mW/cm2). RF Exposure_5GHz Operation Frequency 5180~5240, 5260~5320, 5500~5700, 5745~5825MHz 5190~5230, 5270~5310, 5510~5670, 5755~5795MHz Maximum Conducted output power 23.74dBm Antenna gain 2.34dBi Output Power Into Antenna & RF Exposure Evaluation Distance: Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 236.5920 0.080673 Power density is lower than the limit (1 mW/cm2).

Report No.: 1560344R-RFUSP26V00 Page: 1 of 96 FCC Test Report Product Name MOXA IEEE 802.11 a/b/g/n Model No WAPN008 FCC ID. SLE-WAPN008 Applicant MOXA Inc. Address FL.4, NO. 135. LANE 235, BAOQIAO RD. XINDIAN DIST.,NEW TAIPEI CITY, TAIWAN Date of Receipt June 11, 2015 Issue Date Aug. 05, 2015 Report No. 1560344R-RFUSP26V00 Report Version V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No.: 1560344R-RFUSP26V00 Page: 2 of 96 Test Report Issue Date: Aug. 05, 2015 Report No.: 1560344R-RFUSP26V00 Product Name MOXA IEEE 802.11 a/b/g/n Applicant MOXA Inc. Address FL.4, NO. 135. LANE 235, BAOQIAO RD. XINDIAN DIST.,NEW TA I P E I C I T Y, TA I WA N Manufacturer MOXA Inc. Model No. WAPN008 EUT Rated Voltage DC 3.3V EUT Test Voltage AC 120V/60Hz Trade Name MOXA Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2013 ANSI C63.4: 2014, ANSI C63.10: 2013 KDB 558074 D01 DTS Meas Guidance v03r03 Test Result Complied Documented By: ( Senior Adm. Specialist / Genie Chang ) Tested By : ( Engineer / Benjamin Pan ) Approved By : ( Director / Vincent Lin ) Report No.: 1560344R-RFUSP26V00 Page: 3 of 96 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Maximum Conducted Power....................................................................................................14 3.1. Test Equipment............................................................................................................................14 3.2. Test Setup ....................................................................................................................................14 3.3. Limits ..........................................................................................................................................14 3.4. Test Procedure .............................................................................................................................14 3.5. Uncertainty ..................................................................................................................................14 3.6. Test Result of Maximum Conducted Power................................................................................15 4. Radiated Emission .....................................................................................................................19 4.1. Test Equipment............................................................................................................................19 4.2. Test Setup ....................................................................................................................................20 4.3. Limits ..........................................................................................................................................21 4.4. Test Procedure .............................................................................................................................22 4.5. Uncertainty ..................................................................................................................................22 4.6. Test Result of Radiated Emission................................................................................................23 5. RF Antenna conducted test .......................................................................................................39 5.1. Test Equipment............................................................................................................................39 5.2. Test Setup ....................................................................................................................................39 5.…
