SLE-AWK4262AWireless AP/bridge/client

P/N: 1802042620010 *1802042620010* AWK-4262A Series Quick Installation Guide Moxa AirWorks Version 1.0, September 2024 Technical Support Contact Information www.moxa.com/support  2024 Moxa Inc. All rights reserved. - 2 - Overview The AWK-4262A Series is a Wireless AP/bridge/client with IEEE 802.11ax technology. This Series features concurrent dual-band Wi-Fi data transmissions up to 574 Mbps (2.4 GHz mode) and 1,201 Mbps (5 GHz mode) simultaneously, meeting the speed and flexibility requirements for industrial applications. In addition, the built-in dual band pass filter and the wide-temperature design ensure reliability and continuous operation in harsh environments. The dual redundant DC power inputs enhance availability while support for PoE power provides more flexibility and simplifies field-site deployments. Meanwhile, backwards compatibility with 802.11a/b/g/n/ac/ax makes the AWK-4262A the ideal solution for constructing a versatile wireless data transmission system. Hardware Setup This section covers the hardware setup for the AWK-4262A. Package Checklist Moxa’s AWK-4262A is shipped with the following items. If any of these items is missing or damaged, please contact your customer service representative for assistance. •1 x AW K-4262A wireless AP/client •2 x 2.4/5 GHz antennas: ANT-WDB-ANM-0306 •Wall-mount kit •1 x Field-installable power plug •Quick installation guide (printed) •Warranty card Optional Mounting Accessories (Sold Separately) •DIN-rail kit including 8 screws (M3x6) - 3 - Panel Layout of the AWK-4262A 1. Antenna connector 2 (N-type) 2. Antenna connector 1 (N-type) 3. System LEDs: PWR, LAN2, LAN1, 2.4GHz, 5 GHz, SYS 4. Grounding screw (M6) 5. Power connector (5 pin M12 A-coded male) 6. Digital IO connector (8 pin M12 A-coded female) 7. USB Type A-coded connector 8. Console port (5-pin M12 B-coded female) 9. LAN2 10/100/1000BaseT(X) RJ45 port (8-pin M12 X- coded female) 10. LAN1 10/100/1000/2500BaseT( X) RJ45 port (8-pin M12 X-coded female) 11. Reset button 12. Waterproof vent - 4 - Mounting Dimensions Wall Mounting For some applications, it may be more convenient to mount the AWK- 4262A to a wall, as illustrated below. STEP 1: Align the wall-mounting plates to the wall-mounting screw holes on the rear panel, then attach the wall- mounting plates with the M5 x 7.5 mm screws, as shown in the adjacent diagrams. STEP 2: Mounting the AWK-4262A to a wall requires 4 screws. Use the AWK-4262A device with the wall-mounting plates attached as a guide to mark the correct location of the 4 screws on the wall. The heads of the screws should be less than 6.0 mm in diameter, the shafts should be less than 3.5 mm in diameter, and the screw length should be at least 15 mm, as shown in the figure on the right. - 5 - Do not drive the screws in all the way—leave a space of about 2 mm to allow room for sliding the wall-mounting panel between the wall and the screws. NOTE Test the screw head and shank size by inserting the screws into one of the keyhole shaped apertures of the wall-mounting plates before they are fixed to the wall. STEP 3: Once the screws are fixed into the wall, insert the four screw heads through the large opening of the keyhole-shaped apertures, and then slide the AWK-4262A downwards, as indicated on the right. Tighten the four screws for added stability. DIN-rail Mounting (Optional) The DIN-rail mounting kit, which can be bought separately, allows the AWK-4262A to be installed onto a DIN rail for additional flexibility. Mount the AWK-4262A onto a corrosion-free mounting rail that adheres to the EN 60715 standard. STEP 1: Attach the DIN-rail mounting plates to the AWK-4262A. - 6 - STEP 2: Insert the upper lip of the DIN-rail kit into the mounting rail. STEP 3: Press the AWK-4262A towards the mounting rail until it snaps into place. To remove the AWK-4262A from the DIN rail, do the following: STEP 1: Pull down the latch on the DIN-rail kit with a screwdriver. STEP 2 & 3: Slightly pull the AWK-4262A forward and lift it up to remove it from the mounting rail. PK-DC2DOF Pole Mounting (Optional) It may be more convenient to mount the AWK-4262A on a pole for some applications, as illustrated below. STEP 1: Attach the pole-mounting kit to the AWK-4262A using M5 x 15.7 mm screws. - 7 - STEP 2: Install the AWK-4262A with the mount assembled on a pole and fasten the screws M8 screws on the bracket of the pole-mounting kit to secure the device to the pole. PK-DC2DOF-02 Pole Mounting (Optional) It may be more convenient to mount the AWK-4262A on a pole for some applications, as illustrated below. The edges of the iron rings on the pole-mounting kit are sharp. We recommend wearing protective gloves during the installation process. STEP 1: Attach the pole-mounting kit to the AWK-4262A using M4 x 8 mm screws. STEP 2: Use a flathead screwdriver to loosen the hex head screws on the mount to release the rings. STEP 3: Install the AWK-4262A with the mount assembled on a pole, then use a flathead screwdriver to fasten the screws on the rings of the pole- mounting kit to secure the device to the pole. - 8 - WARNING • This equipment is intended to be used in a Restricted Access Location, such as a dedicated computer room where only authorized service personnel or users can gain access. Such personnel must be instructed about the fact that the metal chassis of the equipment is extremely hot and may cause burns. • Service personnel or users have to pay special attention and take special precautions before handling this equipment. • Only authorized, well-trained professionals should be allowed to access the restricted access location. Access should be controlled by the authority responsible for the location with lock and key or a security identity system. • External metal parts are hot!! Pay special attention or use special protection before handling the equipment. Wiring Requirements WARNING Safety First! Be sure to disconnect the power cord before installing and/or wiring your AWK-4262A. Ca…

Text truncated - open the document above for the full version.

Covered list Attestation Statement Date: August 30, 2024 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: SLE-AWK4262A Moxa Inc. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, ------------------------------------------------------------ Steve Wang / Vice President Moxa Inc. Covered list Attestation Statement Date: August 30, 2024 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: SLE-AWK4262A Moxa Inc. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, ------------------------------------------------------------ Steve Wang / Vice President Moxa Inc.

U.S. Agent Authorized Letter Date: September 2, 2024 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Attestation Statements Part 2.911(d)(7) Filing FCC ID: SLE-AWK4262A Grantee FRN: 0011650785 (The agent for service of process does no other business with the FCC and does not have an FRN.) To Whom It May Concern: Moxa Inc. certifies that, as of the date of the filing of the application, Moxa Americas Inc. is our designated U.S. agent for service of process for the above referenced FCC Grantee. Moxa Inc. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Moxa Americas Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC Grantee. Sincerely, _______________________________ _______________________________ Applicant: U.S. Agent: Company: Moxa Inc. Address: No.1111, Heping Rd., Bade Dist., Taoyuan City 334004,Taiwan Contact Name: Steve Wang Company: Moxa Americas Inc. Address: 601 Valencia Ave, Suite 100, Brea, CA 92823, U.S.A. Contact Name: Chad Chesney Title: Vice President Title: President Tel.: 886-2-8919-1230 Tel.: +1-714-528-6777 Email: [email protected] Email: [email protected] (Signature) (Signature)

Declaration of Authorization We Name: Moxa Inc. Address: No. 1111, Heping Rd., Bade Dist. City: Taoyuan City 334004 Country: Taiwan Declare that: Name Representative of agent: Stanley Wu (1) Agent Company name: DEKRA Testing and Certification Co., Ltd. Address: No. 26, Huaya 1 st Rd., Guishan Dist. City: Taoyuan City 333411 Country Taiwan is authorized to apply for FCC Certification of the following product(s): Product description: Wireless AP/bridge/client Type designation: AWK-4262A-US-T, AWK-4262A-UN-T FCC ID: SLE-AWK4262A Trademark: MOXA Validity/expiry date: Aug. 27, 2025 on our behalf. Date: August 30, 2024 City: Taoyuan City Name: Steve Wang (2) Function: Vice President Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Declaration of Model Names Date: August 30, 2024 Product description: Wireless AP/bridge/client Type designation: AWK-4262A-US-T, AWK-4262A-UN-T FCC ID: SLE-AWK4262A To Whom It May Concern: We, Moxa Inc. hereby declares that the product versions described below are electronically and mechanically/structurally identical. The only difference is the following: Model name Model difference 10/100/1000 /2500 BaseT(X) port 10/100/1000 BaseT(X) port Connector Band Operating Temperature AWK-4262A-US-T 1 1 M12 US -40 to 75°C AWK-4262A-UN-T 1 1 M12 UN -40 to 75°C NOTE: AWK-4262A-US-T is chosen as the main test model. In addition to the above information, these devices are identical in RF hardware and software design. Sincerely, ------------------------------------------------------------ Steve Wang / Vice President Moxa Inc.

PROFESSIONAL INSTALLATION ATTESTATION Date: August 30, 2024 Product description: Wireless AP/bridge/client Type designation: AWK-4262A-US-T, AWK-4262A-UN-T FCC ID: SLE-AWK4262A We, hereby declare that requirements of KDB 353028 D01 Antennas Part 15 Transmitters v01 have been met and shown on the following questions. Further we declare that the info listed below are correct and represent the product in consideration under this filing. Professional installation must be justified. Description: This device is Wireless Outdoor Router and must need special trained professional in configuring and installing the product, more details please refer to user manual exhibit. Professional installation does not permit use of any antenna with the transmitter; the permitted types of antenna specified as below. Description: Below listed of Antennas has been compliance FCC Rule Part 15 requirement, more details please refer to test reports. No . Manufacturer Part No. Antenna Type Connector Type Max Gain 1 MOXA ANT-WDB-ANM-0306 Dipole N-type 3.80dBi For 2.4GHz 6.30dBi For 5 GHz 2 MOXA ANT-WDB-ANM-0502 Dipole N-type 4.62dBi For 2.4GHz 1.41dBi For 5GHz 3 MOXA MAT-WDB-CA-RM-2-0205 Dipole SMA 2.50dBi For 2.4GHz 5.70dBi For 5 GHz 4 MOXA MAT-WDB-DA-RM-2-0203-1m Dipole SMA 2.45dBi For 2.4GHz 2.72dBi For 5 GHz 5 MOXA MAT-WDB-PA-NF-2-0708 Panel N-type 7.63dBi For 2.4GHz 8.77dBi for 5GHz 6 MOXA ANT-WDB-PNF-1011 Panel N-type 11.00dBi For 2.4GHz 12.04dBi For 5GHz 7 MOXA ANT-WDB-ONM-0707 Dipole N-type 7.10dBi For 2.4GHz 7.60dBi For 5GHz 8 MOXA ANT-WDB-ONF-0709 Dipole N-type 7.40dBi For 2.4GHz 8.87dBi For 5GHz 9 MOXA ANT-WSB-PNF-12-02 Panel N-type 12.34dBi For 2.4GHz 10 MOXA ANT-WSB5-PNF-16 Panel N-type 16.94dBi For 5GHz The applicant should address the following items when justifying professional installation. To qualify for professional installation, please explain why the hardware is not readily available to average consumer. Description: Due to this product and will not be sold directly to the general public through retail store, therefore the hardware is not readily available to average consumer. Marketing — Applicant must ensure device cannot be sold via retail to the general public or by mail order. Description: This product and will not be sold directly to the general public through retail store. It will be sold to authorized dealers or installers only. Applicant must show that device intended use is not for consumers and general public. Description: Device is for industrial/commercial use. Explain what is unique, sophisticated, complex, or specialized about the equipment that REQUIRES it to be installed by a professional installer? Description: The device supports wall mounting which requires to be installed by professional installer. 4. Other professional installation requirements Installation must be controlled. Description: The product will be distributed through controlled distribution channel which has special trained professional to install this product. Installed by licensed professionals. Description: Device sold to dealer who hires installers and need special trained professional in configuring and installing the product. Installation requires special training. Description: The product need special programming, access to keypad, field strength measurements made, so must need special trained professional in configuring and installing the product. If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! Sincerely, ------------------------------------------------------------ Steve Wang / Vice President Moxa Inc.

Date: August 30, 2024 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA FCC ID: SLE-AWK4262A Long-Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Tune-up procedure Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Short-Term Confidentiality (STC) Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Internal Photos User’s Manual External Photos Test Set-up Photos Justification: Due to market confidential, we ask for the short-term confidentiality. Planned Release Date STC: - If no date is given, 180 days from grant date will be used. Sincerely, ------------------------------------------------------------ Steve Wang / Vice President Moxa Inc.

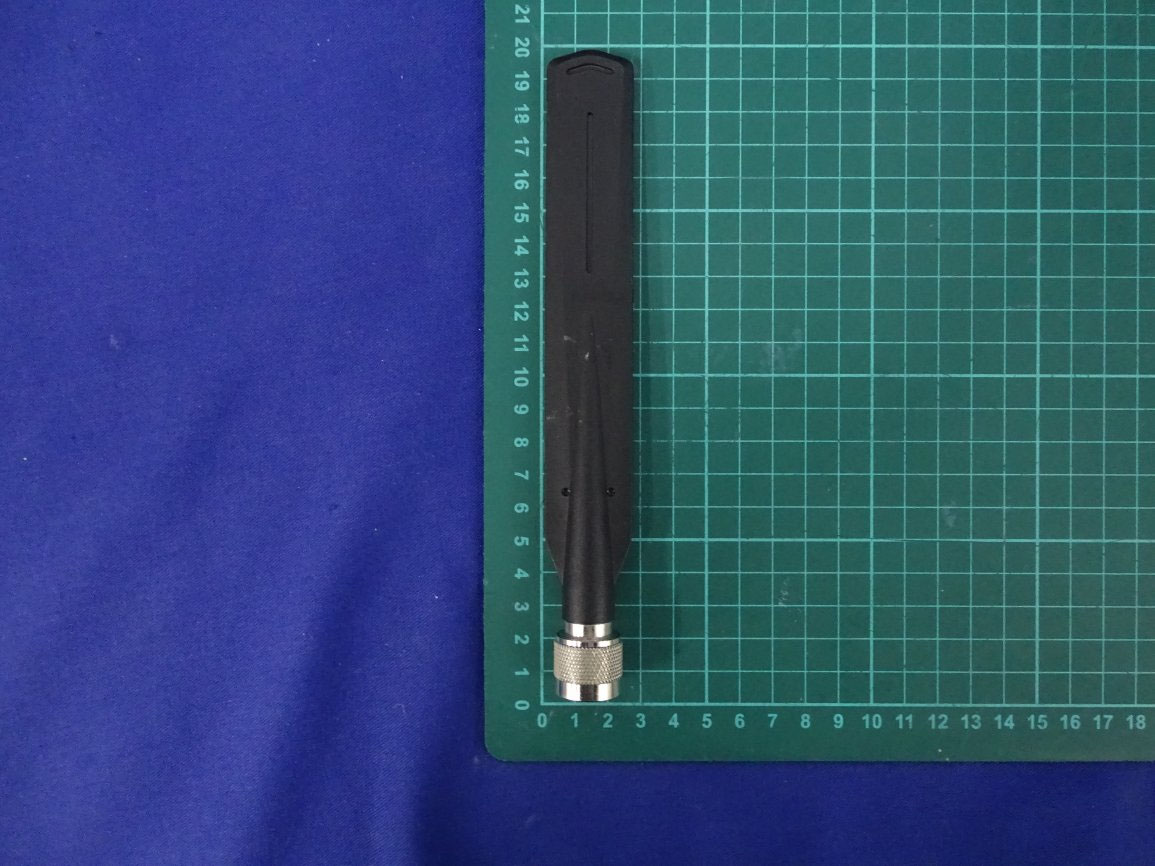

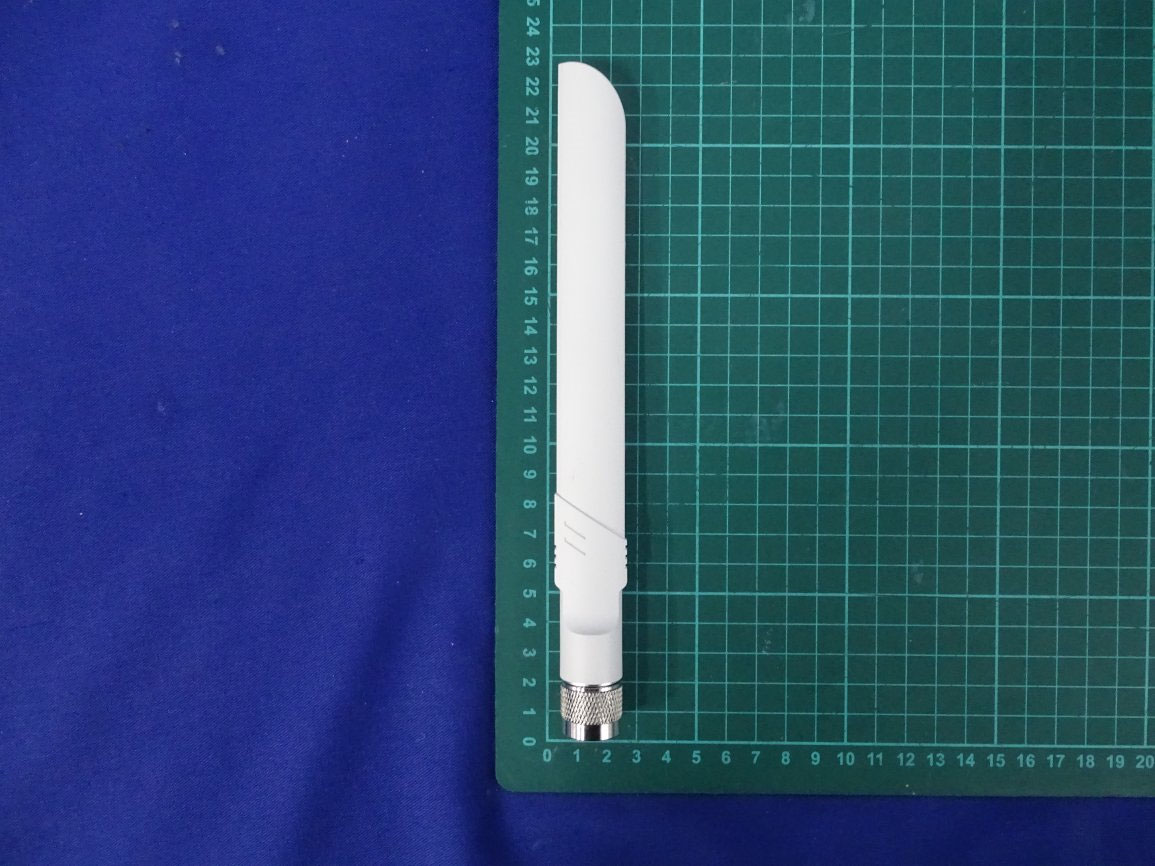

Report No.: 2470409R-Product Photos Page: 1 of 35 (1) EUT Photo (2) EUT Photo Report No.: 2470409R-Product Photos Page: 2 of 35 (3) EUT Photo (4) EUT Photo Report No.: 2470409R-Product Photos Page: 3 of 35 (5) EUT Photo (6) EUT Photo Report No.: 2470409R-Product Photos Page: 4 of 35 (7) EUT Photo_ Antenna: MOXA / ANT-WDB-ANM-0306 (8) EUT Photo_ Antenna: MOXA / ANT-WDB-ANM-0306 Report No.: 2470409R-Product Photos Page: 5 of 35 (9) EUT Photo_ Antenna: MOXA / ANT-WDB-ANM-0306 (10) EUT Photo_ Antenna: MOXA / ANT-WDB-ANM-0502 Report No.: 2470409R-Product Photos Page: 6 of 35 (11) EUT Photo_ Antenna: MOXA / ANT-WDB-ANM-0502 (12) EUT Photo_ Antenna: MOXA / ANT-WDB-ANM-0502 Report No.: 2470409R-Product Photos Page: 7 of 35 (13) EUT Photo_ Antenna: MOXA / MAT-WDB-CA-RM-2-0205 (14) EUT Photo_ Antenna: MOXA / MAT-WDB-CA-RM-2-0205 Report No.: 2470409R-Product Photos Page: 8 of 35 (15) EUT Photo_ Antenna: MOXA / MAT-WDB-CA-RM-2-0205 (16) EUT Photo_ Antenna: MOXA / MAT-WDB-DA-RM-2-0203-1m Report No.: 2470409R-Product Photos Page: 9 of 35 (17) EUT Photo_ Antenna: MOXA / MAT-WDB-DA-RM-2-0203-1m (18) EUT Photo_ Antenna: MOXA / MAT-WDB-DA-RM-2-0203-1m Report No.: 2470409R-Product Photos Page: 10 of 35 (19) EUT Photo_ Antenna: MOXA / MAT-WDB-PA-NF-2-0708 (20) EUT Photo_ Antenna: MOXA / MAT-WDB-PA-NF-2-0708 Report No.: 2470409R-Product Photos Page: 11 of 35 (21) EUT Photo_ Antenna: MOXA / MAT-WDB-PA-NF-2-0708 (22) EUT Photo_ Antenna: MOXA / ANT-WDB-PNF-1011 Report No.: 2470409R-Product Photos Page: 12 of 35 (23) EUT Photo_ Antenna: MOXA / ANT-WDB-PNF-1011 (24) EUT Photo_ Antenna: MOXA / ANT-WDB-PNF-1011 Report No.: 2470409R-Product Photos Page: 13 of 35 (25) EUT Photo_ Antenna: MOXA / ANT-WDB-ONM-0707 (26) EUT Photo_ Antenna: MOXA / ANT-WDB-ONM-0707 Report No.: 2470409R-Product Photos Page: 14 of 35 (27) EUT Photo_ Antenna: MOXA / ANT-WDB-ONM-0707 (28) EUT Photo_ Antenna: MOXA / ANT-WDB-ONF-0709 Report No.: 2470409R-Product Photos Page: 15 of 35 (29) EUT Photo_ Antenna: MOXA / ANT-WDB-ONF-0709 (30) EUT Photo_ Antenna: MOXA / ANT-WDB-ONF-0709

Report No.: 2470409R-Product Photos Page: 16 of 35 (31) EUT Photo_ Antenna: MOXA / ANT-WSB5-PNF-16 (32) EUT Photo_ Antenna: MOXA / ANT-WSB5-PNF-16 Report No.: 2470409R-Product Photos Page: 17 of 35 (33) EUT Photo_ Antenna: MOXA / ANT-WSB5-PNF-16 (34) EUT Photo_ Antenna: MOXA / ANT-WSB-PNF-12-02 Report No.: 2470409R-Product Photos Page: 18 of 35 (35) EUT Photo_ Antenna: MOXA / ANT-WSB-PNF-12-02 (36) EUT Photo_ Antenna: MOXA / ANT-WSB-PNF-12-02

Moxa Inc. No. 1111, Heping Rd., Bade Dist., Taoyuan City 334004, Taiwan Tel: +02-8919-1230 FCC ID. : SLE-AWK4262A FCC ID Label

Moxa Inc. No. 1111, Heping Rd., Bade Dist., Taoyuan City 334004, Taiwan Tel: +02-8919-1230 FCC ID. : SLE-AWK4262A The FCC ID and will be placed on the equipment as shown in the photograph below.

Report No.: 2470409R-Product Photos Page: 19 of 35 (37) EUT Photo (38) EUT Photo Report No.: 2470409R-Product Photos Page: 20 of 35 (39) EUT Photo (40) EUT Photo Report No.: 2470409R-Product Photos Page: 21 of 35 (41) EUT Photo (42) EUT Photo Report No.: 2470409R-Product Photos Page: 22 of 35 (43) EUT Photo (44) EUT Photo Report No.: 2470409R-Product Photos Page: 23 of 35 (45) EUT Photo (46) EUT Photo Report No.: 2470409R-Product Photos Page: 24 of 35 (47) EUT Photo (48) EUT Photo Report No.: 2470409R-Product Photos Page: 25 of 35 (49) EUT Photo (50) EUT Photo RF chip Report No.: 2470409R-Product Photos Page: 26 of 35 (51) EUT Photo (52) EUT Photo Report No.: 2470409R-Product Photos Page: 27 of 35 (53) EUT Photo (54) EUT Photo

Report No.: 2470409R-Product Photos Page: 28 of 35 (55) EUT Photo (56) EUT Photo Report No.: 2470409R-Product Photos Page: 29 of 35 (57) EUT Photo (58) EUT Photo Report No.: 2470409R-Product Photos Page: 30 of 35 (59) EUT Photo (60) EUT Photo Report No.: 2470409R-Product Photos Page: 31 of 35 (61) EUT Photo (62) EUT Photo Report No.: 2470409R-Product Photos Page: 32 of 35 (63) EUT Photo (64) EUT Photo Report No.: 2470409R-Product Photos Page: 33 of 35 (65) EUT Photo (66) EUT Photo Report No.: 2470409R-Product Photos Page: 34 of 35 (67) EUT Photo (68) EUT Photo Report No.: 2470409R-Product Photos Page: 35 of 35 (69) EUT Photo (70) EUT Photo

Report No.: 2470409R-RFUSV17S-A Page : 1 of 9 Test Report No: 2470409R-RFUSV17S-A RF EXPOSURE EVALUATION DECLARATION Product Name Wireless AP/bridge/client Brand Name MOXA Model No. AWK-4262A-US-T / AWK-4262A-UN-T FCC ID SLE-AWK4262A Applicant ́s Name / Address Moxa Inc. No. 1111, Heping Rd., Bade Dist., Taoyuan City 334004, Ta i w a n Manufacturer’s Name Moxa Inc. Test Method Requested, Standard FCC CFR Title 47 Part 2.1091 Radiofrequency radiation exposure evaluation: mobile devices. Verdict Summary IN COMPLIANCE Documented By Jinn Chen Tested by Alan Chen Approved by Tim Sung Date of Receipt 2024/07/11 Date of Issue 2024/10/01 Report Version V1.0 Report No.: 2470409R-RFUSV17S-A Page : 2 of 9 INDEX page Competences and Guarantees ................................................................................................................................ 3 General Conditions .................................................................................................................................................. 3 Revision History ....................................................................................................................................................... 4 1. General Information ............................................................................................................................... 5 1.1. EUT Description .................................................................................................................................... 5 1.2. Testing Location Information ................................................................................................................. 5 2. RF Exposure Evaluation ........................................................................................................................ 6 2.1. Test Limit ............................................................................................................................................... 6 2.2. Test Result of RF Exposure Evaluation ................................................................................................. 8 Report No.: 2470409R-RFUSV17S-A Page : 3 of 9 Competences and Guarantees DEKRA is a testing laboratory competent to carry out the tests described in this report. In order to assure the traceability to other national and international laboratories, DEKRA has a calibration and maintenance program for its measurement equipment. DEKRA guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated in the report and it is based on the knowledge and technical facilities available at DEKRA at the time of performance of the test. DEKRA is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Test Report apply only to the particular item under test established in this document. IMPORTANT: No parts of this report may be reproduced or quoted out of context, in any form or by any means, except in full, without the previous written permission of DEKRA. General Conditions 1. The test results relate only to the samples tested. 2. The test results shown in the test report are traceable to the national/international standard through the calibration report of the equipment and evaluated measurement uncertainty herein. 3. This report must not be used to claim product endorsement by TAF or any agency of the government. 4. The test report shall not be reproduced without the written approval of DEKRA Testing and Certification Co., Ltd. 5. Measurement uncertainties evaluated for each testing system and associated connections are given here to provide the system information for reference. Compliance determinations do not take into account measurement uncertainties for each testing system, but are based on the results of the compliance measurement. Report No.: 2470409R-RFUSV17S-A Page : 4 of 9 Revision History Version Description Issued Date V1.0 Initial issue of report 2024/10/01 Report No.: 2470409R-RFUSV17S-A Page : 5 of 9 1. General Information 1.1. EUT Description Product Name Wireless AP/bridge/client Brand Name MOXA Model No. AWK-4262A-US-T / AWK-4262A-UN-T Note: For more detailed information please refer to report No.: 2470409R-RFUSV01S-A and 2470409R-RFUSV03S-A. 1.2. Testing Location Information USA FCC Designation Number: TW0033 Canada CAB Identifier Number: TW3023 / Company Number: 26930 Site Description Accredited by TAF Accredited Number: 3023 Test Laboratory DEKRA Testing and Certification Co., Ltd. Linkou Laboratory Address No. 5-22, Ruishukeng Linkou District, New Taipei City, 24451, Taiwan, R.O.C. Performed Location No. 26, Huaya 1st Rd., Guishan Dist.,Taoyuan City 333411, Taiwan, R.O.C. Phone Number +886-3-275-7255 Fax Number +886-3-327-8031 Report No.: 2470409R-RFUSV17S-A Page : 6 of 9 2. RF Exposure Evaluation 2.1. Test Limit (A) Test Limit for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 *(100) <6 3.0-30 1842/f 4.89/f *(900/f 2 ) <6 30-300 61.4 0.163 1.0 <6 300-1500 - - f/300 <6 1500-100,000 - - 5 <6 (B) Test Limit for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 *(100) <30 1.34-30 824/f 2.19/f *(180/f 2 ) <30 30-300 27.5 0.073 0.2 <30 300-1500 - - f/1500 <30 1500-100,000 - - 1.0 <30 Note: f = frequency in MHz; *Plane-wave equivalent power density Report No.: 2470409R-RFUSV17S-A Page : 7 of 9 Power Density (S) is calculated by the following formula: S=(P*G) /4πR 2 where: S = power density (in appropriate units, e.g. mW/ cm 2 ) P …

Text truncated - open the document above for the full version.

Specification 1. Electrical Properties : 1.1 Frequency Range.................. 1.2 Impedance ........................ 1.3 VSWR .............................. 1.4 Return Loss........................ 1.5 Radiation ........................... 1.6 Gain(peak).........................3.5±0.5dBi @ 2.4GHz ~ 2.5GHz 6. 0±1.0dBi@ 4.9GHz ~ 5.825GHz 1.7 Polarization........................Linear; Vertical 1.8 Admitted Power..................1W 1.9 Cable.............................. RG-178 Coaxial Cable 1.10 Connector........................ N-type Plug Standard 2 .4GHz ~ 2.5GHz ;4.9GHz~5.825GHz 50Ω Nominal 2.1 :1Max. -9 dB Max. RF Antenna Assembly Omni-directional 1 4.2 2D patterns 4.2.1 Ant 1 X-Z Plane Y-Z Plane Y Z X Z X-Y Plane Y X 2 4.3 co port & cross port 4.3.1 2400MHz XZ-Phi XZ-Theta 3 XY-Phi XY-Theta 4 4.3.2 2450MHz XZ-Phi XZ-Theta 5 XY-Phi XY-Theta 6 4.3.3 2500MHz XZ-Phi XZ-Theta 7 XY-Phi XY-Theta 8 4.3.4 4900MHz XZ-Phi XZ-Theta 9 XY-Phi XY-Theta 10 4.3.5 5150MHz XZ-Phi XZ-Theta 11 XY-Phi XY-Theta 12 4.3.6 5350MHz XZ-Phi XZ-Theta 13 XY-Phi XY-Theta 14 4.3.7 5550MHz XZ-Phi XZ-Theta 15 XY-Phi XY-Theta 16 4.3.8 5750MHz XZ-Phi XZ-Theta 17 XY-Phi XY-Theta 18 4.3.9 5825MHz XZ-Phi XZ-Theta 19 Page 28 of 29 XY-Phi XY-Theta 20

Electrical Specification: Frequency 2.4~2.5/5.0~5.8GHz Part Number Polarization Vertical V.S.W.R ≦2.0 Impedance 50Ω Gain 2.4-5dBi/5.8-2dBi Power handling 2W Front to back ratio NO HPBW/horizontal 360° HPBW/vertical 65° Rated Wind Operating temperature -40°C~+80°C Humidity 100% Storage Temp and Humidity -40°C~+80°C IP rating IP67 1 Vertical Frequency(MHz) 2400MHz Maximum Gain(dB) 3.57dB 42.19deg Minimum Gain(dB) -16.34dB-17.14deg Average Gain(dB) -1.46dB 2 Horizontal Frequency(MHz) 2400MHz Maximum Gain(dB) 3.57dB -68.57deg Minimum Gain(dB) 0.76dB 129.38deg Average Gain(dB) 2.09dB 3 Vertical Frequency(MHz) 2450MHz Maximum Gain(dB) 3.75dB 25.31deg Minimum Gain(dB) -19.65dB-165.71deg Average Gain(dB) -1.56dB 4 Horizontal Frequency(MHz) 2450MHz Maximum Gain(dB) 3.75dB -68.57deg Minimum Gain(dB) 1.05dB 261.56deg Average Gain(dB) 2.18dB 5 Vertical Frequency(MHz) 2500MHz Maximum Gain(dB) 3.74dB 25.31deg Minimum Gain(dB) -16.98dB-165.71deg Average Gain(dB) -1.41dB 6 Horizontal Frequency(MHz) 2500MHz Maximum Gain(dB) 3.74dB -71.43deg Minimum Gain(dB) 1.08dB 104.06deg Average Gain(dB) 2.23dB 7 Vertical Frequency(MHz) 2400MHz Maximum Gain(dB) 4.62dB 50.62deg Minimum Gain(dB) -10.70dB-31.43deg Average Gain(dB) -1.53dB 8 Horizontal Frequency(MHz) 2400MHz Maximum Gain(dB) 4.62dB -77.14deg Minimum Gain(dB) 0.60dB 112.50deg Average Gain(dB) 2.76dB 9 Vertical Frequency(MHz) 2450MHz Maximum Gain(dB) 4.27dB 160.31deg Minimum Gain(dB) -16.07dB20.0deg Average Gain(dB) -2.12dB 10 Horizontal Frequency(MHz) 2450MHz Maximum Gain(dB) 4.27dB -74.29deg Minimum Gain(dB) -0.16dB340.31deg Average Gain(dB) 2.49dB 11 Vertical Frequency(MHz) 2500MHz Maximum Gain(dB) 4.31dB 160.31deg Minimum Gain(dB) -19.87dB20.0deg Average Gain(dB) -2.40dB 12 Horizontal Frequency(MHz) 2500MHz Maximum Gain(dB) 4.31dB -77.14deg Minimum Gain(dB) -0.33dB340.31deg Average Gain(dB) 2.44dB 13 Vertical Frequency(MHz) 5800MHz Maximum Gain(dB) 1.41dB 85.31deg Minimum Gain(dB) -17.45dB224.65deg Average Gain(dB) NA 14 Horizontal Frequency(MHz) 5800MHz Maximum Gain(dB) -1.95dB90deg Minimum Gain(dB) -12.82dB228.46deg Average Gain(dB) NA 15

1. Specification & Dimension 1 2.3 3D Pattern 2 2.3 3D Pattern 3 4

1. Specification & Dimension 1 2.3 3D Pattern 2 2.3 3D Pattern 3 4

2.3 3D Pattern 2 2.3 3D Pattern 3 4

2.3 3D Pattern 2 3

2.3 3D Pattern 2 3

Specification 1. Electrical Properties : 1.1 Frequency Range.................. 1.2 Impedance ........................ 1.3 VSWR .............................. 1.4 Return Loss........................ 1.5 Radiation ........................... 1.6 Gain(peak).........................2±0.5dBi @ 2.4GHz ~ 2.5GHz 5 ±1.0dBi @ 4.9GHz ~ 5.9GHz 1.7 Polarization........................Linearl 1.8 Cable.................................RG-178 Coaxial Cable 1.9 Connector...........................SMA Plug Reverse 2 .4~ 2.5GHz ;4.9~5.9 GHz 50Ω Nominal 1.92 :1Max. -10 dB Max. RF Antenna Assembly Omni-directional 1 4.2 2D patterns 4.2.1 Ant 1 X-Z Plane Y-Z Plane Y Z X Z 2 X-Y Plane Y X 3 4.3 co port & cross port-Ant1 4.3.1 2400MHz XZ-Phi XZ-Theta 4 XY-Phi XY-Theta 5 4.3.2 2450MHz XZ-Phi XZ-Theta 6 XY-Phi XY-Theta 7 4.3.3 2500MHz XZ-Phi XZ-Theta 8 XY-Phi XY-Theta 9 4.3.4 4900MHz XZ-Phi XZ-Theta 10 XY-Phi XY-Theta 11 …
