SLE-W1MiiNePort W1 series Embedded Serial Device Server

MiiNePort W1 Series User’s Manual First Edition, March 2012 www.moxa.com/product © 2012 Moxa Inc. All rights reserved. MiiNePort W1 Series User’s Manual The software described in this manual is furnished under a license agreement and may be used only in accordance with the terms of that agreement. Copyright Notice © 2012 Moxa Inc. All rights reserved. Trademarks The MOXA logo is a registered trademark of Moxa Inc. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer Information in this document is subject to change without notice and does not represent a commitment on the part of Moxa. Moxa provides this document as is, without warranty of any kind, either expressed or implied, including, but not limited to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this manual, or to the products and/or the programs described in this manual, at any time. Information provided in this manual is intended to be accurate and reliable. However, Moxa assumes no responsibility for its use, or for any infringements on the rights of third parties that may result from its use. This product might include unintentional technical or typographical errors. Changes are periodically made to the information herein to correct such errors, and these changes are incorporated into new editions of the publication. Technical Support Contact Information www.moxa.com/support Moxa Americas Toll-free: 1-888-669-2872 Tel: +1-714-528-6777 Fax: +1-714-528-6778 Moxa China (Shanghai office) Toll-free: 800-820-5036 Tel: +86-21-5258-9955 Fax: +86-21-5258-5505 Moxa Europe Tel: +49-89-3 70 03 99-0 Fax: +49-89-3 70 03 99-99 Moxa Asia -Pacific Tel: +886-2-8919-1230 Fax: +886-2-8919-1231 Table of Contents 1. Introduction ...................................................................................................................................... 1-1 Overview ........................................................................................................................................... 1-2 Product Features ................................................................................................................................ 1-2 Product Specifications ......................................................................................................................... 1-2 2. Chapter Title ..................................................................................................................................... 2-1 Dimensions ........................................................................................................................................ 2-2 MiiNePort W1 Pin Assignments ............................................................................................................. 2-3 Wiring Requirements ........................................................................................................................... 2-4 Black Diagram .................................................................................................................................... 2-4 Hardware Installation .......................................................................................................................... 2-5 Software Installation ........................................................................................................................... 2-5 3. Compliance Notice ............................................................................................................................. 3-1 Federal Communications Commission Statement .................................................................................... 3-2 Labeling Requirements ........................................................................................................................ 3-2 End Product Labeling ........................................................................................................................... 3-2 Information for OEM and Integrators ..................................................................................................... 3-3 Antenna List ....................................................................................................................................... 3-3 1 1. Introduction The MiiNePort W1 series provides serial to 802.11 b/g embedded wireless solution with compact size, and ultra low power consumption features. Numerous operation modes are designed to fulfill the requirements of embedded module application. Complete driver support reduces software redesign effort and accelerate time to market. The following topics are covered in this chapter:  Overview  Product Features  Product Specifications MiiNePort W1 Series Introduction 21- Overview The MiiNePort W1 series is a very compact module that installs in a serial device to connect it to a wireless LAN. With such a small size, around half the size of a credit card., it can be installed into almost any kind of serial device. The MiiNePort W1 series also comes with a built-in TCP/IP stack for fast integration with your serial devices. This means that your engineers can spend less time with the TCP/IP and wireless details, and more time on developing major features, shortening your product’s time to market. The reliable TCP/IP communication firmware can be configured easily using a Windows utility, a web browser, or Telnet console. An integration kit and a complete development kit are both available for evaluation and development use. The development kit contains a development board, documents, sample code, cables, and accessories. Product Features The MiiNePort W1 series has the following features: • 802.11 b/g compatible • AES, WEP 64/128-bit, WPA, WPA2, PSK, 802.11i security support • 1 Serial port, up to 921.6k bps • 1 Ethernet port, 10/100Mbps • SSL/SSH support for configuration • Fast roaming to enhance connection reliability Product Specifications Form Facto…

Text truncated - open the document above for the full version.

Moxa Inc. FCC ID.: SLE-W1 Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. .Tel : +886-2-8919-1230 Federal Communications Commission Feb. 10, 2012 Authorization and Evaluation Division ATTESTATION FCC ID: SLE-W1 Product: MiiNePort W1 series Embedded Serial Device Server Model: MiiNePort W1 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ---------------------------------------------------- Hung-Cheng Chao / Manager Moxa Inc.

RF_160, Issue 03 Declaration of Authorization We Name: Moxa Inc. Address: Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. City: Taipei  Country: Taiwan, R.O.C.  Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: MiiNePort W1 series Embedded Serial Device Server Type designation: MiiNePort W1 Trademark: MOXA on our behalf. Date:  2012/02/10  City:  Taipei  .. Name:  Hung-Cheng Chao  . (2) Function:  Manager  Signature:  .  Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Moxa Inc. FCC ID.: SLE-W1 Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Tel : +886-2-8919-1230 Moxa Inc. Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Tel : +886-2-8919-1230 Fax: +886-2-8919-1231 Federal Communications Commission Feb. 10, 2012 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics: (MiiNePort W1) Schem Block Diagram: (MiiNePort W1) BlkDia Operational Description: (MiiNePort W1) OPDes The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ---------------------------------------------------- Hung-Cheng Chao / Manager Moxa Inc.

RF_734_00, Issue 1 Modular Approval Request FCC(per FCC Part 15 Section 15.212) FCC ID: SLE-W1 Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. The modular transmitter have its own RF shielding. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The EUT has buffered data inputs, The part number is IS25C08-2CLI. 3. The modular transmitter must have its own power supply regulation. The EUT has power supply regulation, The part number is RP102Z181D-TR-F. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. The modular transmitter complies with the antenna requirements of Section 15.203 and 15.204(c). 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. The modular transmitter is tested in a stand-alone configuration. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. The modular transmitter is labelled with its own FCC ID number 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The modular transmitter complies with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The modular transmitter complies with any applicable RF exposure requirements. Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). 1DPHDQGVXUQDPHRIDSSOLFDQW RUDXWKRUL]HGUHSUHVHQWDWLYH +XQJ&KHQJ&KDR   'DWH 6LJQDWXUHBBBBBBBBBBBBBBBBBBBBBBBBBBB

Report No.: 121211R-RFUSP28V01 Page : 1 of 7 ٛٛ Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

Moxa Inc. FCC ID.: SLE-W1 Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. .Tel : +886-2-8919-1230 The FCC ID will be placed on the equipment as shown in the photograph below.

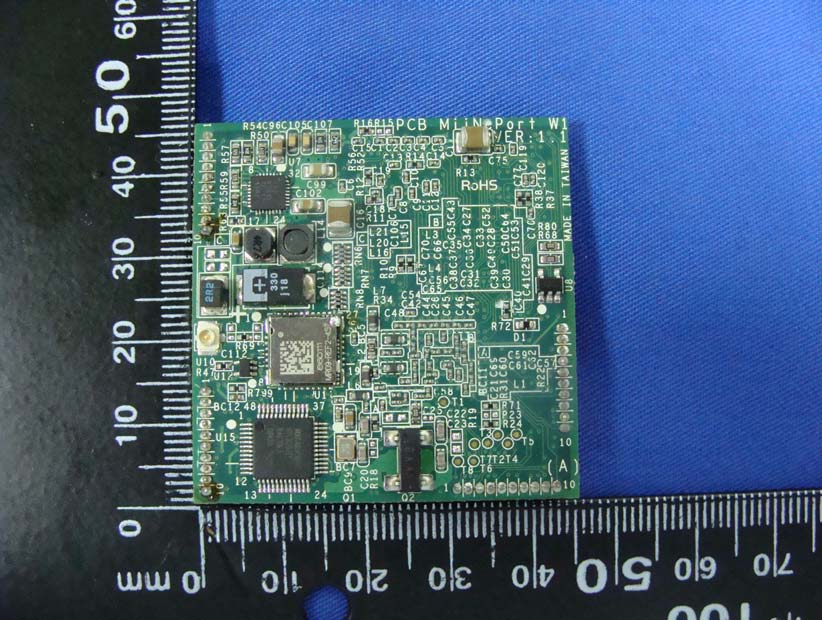

Report No.: 121211R-RFUSP28V01 Page : 1 of 6 ٛٛ Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 121211R-RFUSP28V01 Page : 2 of 6 ٛٛ (3) EUT Photo (4) EUT Photo Report No.: 121211R-RFUSP28V01 Page : 3 of 6 ٛٛ (5) EUT Photo (6) EUT Photo Manufacturer: WANSHIH Part No: ANT-WDB-O-2 BK Manufacturer: WANSHIH Part No: ANT-WDB-O-2 BK Report No.: 121211R-RFUSP28V01 Page : 4 of 6 ٛٛ (7) EUT Photo (8) EUT Photo Manufacturer: WANSHIH Part No: ANT-WDB-O-2 BK Manufacturer: WANSHIH Part No: ANT-WDB-O-2 BK Report No.: 121211R-RFUSP28V01 Page : 5 of 6 ٛٛ (9) EUT Photo (10) EUT Photo Manufacturer: KINSUN Part No: ANT-WDB-ARM-02 Manufacturer: KINSUN Part No: ANT-WDB-ARM-02 Report No.: 121211R-RFUSP28V01 Page : 6 of 6 ٛٛ (11) EUT Photo (12) EUT Photo Manufacturer: KINSUN Part No: ANT-WDB-ARM-02 Manufacturer: KINSUN Part No: ANT-WDB-ARM-02

Report No. 121211R-RFUSP42V01 Page: 1 of 3 ٛٛ RF Exposure Evaluation declaration Product Name : MiiNePort W1 series Embedded Serial Device Server Model No. : MiiNePort W1 FCC ID : SLE-W1 Applicant : Moxa Inc. Address : Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Date of Receipt : Jan. 09, 2012 Date of Declaration: Feb. 06, 2012 Report No. : 121211R-RFUSP42V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 121211R-RFUSP42V01 Page: 2 of 3 ٛٛ 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 121211R-RFUSP42V01 Page: 3 of 3 ٛٛ 1.3. Test Result of RF Exposure Evaluation Product : MiiNePort W1 series Embedded Serial Device Server Test Item : RF Exposure Evaluation Test Site : No.3 OATS (802.11b) Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 46.5586 0.014680 06 2437.00 34.5144 0.010883 11 2462.00 36.1410 0.011395 Power density in column 4 is much lower than the limit (1 mW/mc2). (802.11g) Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 177.4189 0.055941 06 2437.00 163.3052 0.051491 11 2462.00 167.8804 0.052933 Power density in column 4 is much lower than the limit (1 mW/mc2).

Report No. 121211R-RFUSP28V01 Page : 1 of 71 Test Report Product Name MiiNePort W1 series Embedded Serial Device Server Model No MiiNePort W1 FCC ID. SLE-W1 Applicant Moxa Inc. Address Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Date of Receipt Jan. 09, 2012 Issue Date Feb. 06, 2012 Report No. 121211R-RFUSP28V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 121211R-RFUSP28V01 Page : 2 of 71 Test Report Certification Issue Date: Feb. 06, 2012 Report No.: 121211R-RFUSP28V01 Product Name MiiNePort W1 series Embedded Serial Device Server Applicant Moxa Inc. Address Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Manufacturer Moxa Inc. Model No. MiiNePort W1 FCC ID. SLE-W1 EUT Rated Voltage DC 3.3V EUT Test Voltage AC 120V/60Hz Trade Name MOXA Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2010 ANSI C63.4: 2003 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Adm. Specialist / Joanne Lin ) Tested By : ( Engineer / Vincent Chu ) Approved By : ( Manager / Vincent Lin ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 121211R-RFUSP28V01 Page : 3 of 71 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................9 1.6. Test Facility .................................................................................................................................10 2. Conducted Emission.................................................................................................................. 11 2.1. Test Equipment............................................................................................................................11 2.2. Test Setup ....................................................................................................................................11 2.3. Limits ..........................................................................................................................................12 2.4. Test Procedure .............................................................................................................................12 2.5. Uncertainty ..................................................................................................................................12 2.6. Test Result of Conducted Emission.............................................................................................13 3. Peak Power Output ...................................................................................................................15 3.1. Test Equipment............................................................................................................................15 3.2. Test Setup ....................................................................................................................................15 3.3. Limits ..........................................................................................................................................15 3.4. Test Procedure .............................................................................................................................15 3.5. Uncertainty ..................................................................................................................................15 3.6. Test Result of Peak Power Output...............................................................................................16 4. Radiated Emission .....................................................................................................................18 4.1. Test Equipment............................................................................................................................18 4.2. Test Setup ....................................................................................................................................19 4.3. Limits ..........................................................................................................................................20 4.4. Test Procedure .............................................................................................................................21 4.5. Uncertainty ..................................................................................................................................21 4.6. Test Result of Radiated Emission................................................................................................22 5. RF antenna conducted test........................................................................................................30 5.1. Test Equipment.........................................................................................................…

Text truncated - open the document above for the full version.

Report No.: 121211R-RFUSP28V01 Page : 1 of 3 ٛٛ Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 121211R-RFUSP28V01 Page : 2 of 3 ٛٛ Front View of Radiated Test Back View of Radiated Test Report No.: 121211R-RFUSP28V01 Page : 3 of 3 ٛٛ Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
