SLE-W2X50ANport Device Server

NPort W2150A/W2250A Series User’s Manual First Edition, April 2012 www.moxa.com/product © 2012 Moxa Inc. All rights reserved. NPort W2150A/W2250A Series User’s Manual The software described in this manual is furnished under a license agreement and may be used only in accordance with the terms of that agreement. Copyright Notice © 2012 Moxa Inc. All rights reserved. Trademarks The MOXA logo is a registered trademark of Moxa Inc. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer Information in this document is subject to change without notice and does not represent a commitment on the part of Moxa. Moxa provides this document as is, without warranty of any kind, either expressed or implied, including, but not limited to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this manual, or to the products and/or the programs described in this manual, at any time. Information provided in this manual is intended to be accurate and reliable. However, Moxa assumes no responsibility for its use, or for any infringements on the rights of third parties that may result from its use. This product might include unintentional technical or typographical errors. Changes are periodically made to the information herein to correct such errors, and these changes are incorporated into new editions of the publication. Technical Support Contact Information www.moxa.com/support Moxa Americas Toll-free: 1-888-669-2872 Tel: +1-714-528-6777 Fax: +1-714-528-6778 Moxa China (Shanghai office) Toll-free: 800-820-5036 Tel: +86-21-5258-9955 Fax: +86-21-5258-5505 Moxa Europe Tel: +49-89-3 70 03 99-0 Fax: +49-89-3 70 03 99-99 Moxa Asia-Pacific Tel: +886-2-8919-1230 Fax: +886-2-8919-1231 Table of Contents 1. Introduction ...................................................................................................................................... 1-1 Overview ........................................................................................................................................... 1-2 Package Checklist ............................................................................................................................... 1-2 Product Features ................................................................................................................................ 1-2 Product Specifications ......................................................................................................................... 1-3 Serial Port Pin Assignments .................................................................................................................. 1-4 2. Getting Started.................................................................................................................................. 2-1 Overview ........................................................................................................................................... 2-2 Panel Layout ...................................................................................................................................... 2-2 LED Indicators .................................................................................................................................... 2-3 Top Panel LED Indicators .............................................................................................................. 2-3 End Panel LED Indicators .............................................................................................................. 2-3 Pull High/Low Resistors for RS-422/485 ................................................................................................. 2-4 Placement Options .............................................................................................................................. 2-5 Connecting the Hardware..................................................................................................................... 2-5 Connecting to the Network ........................................................................................................... 2-6 Connecting the Power .................................................................................................................. 2-6 Connecting to a Serial Device ....................................................................................................... 2-6 3. Initial IP Configuration ..................................................................................................................... 3-1 Overview ........................................................................................................................................... 3-2 Factory Default IP Settings .................................................................................................................. 3-2 Using ARP to Assign IP Address ............................................................................................................ 3-2 Using the Telnet Console to Assign IP Address ........................................................................................ 3-3 Using the Serial Console to Assign IP Address ........................................................................................ 3-6 4. Introduction to Operation Modes ...................................................................................................... 4-1 Overview ........................................................................................................................................... 4-2 RealCOM Mode ................................................................................................................................... 4-2 RFC2217 Mode ................................................................................................................................... 4-3 TCP Server Mode ..................................................................................…

Text truncated - open the document above for the full version.

NPort W2150A/W2250A Series Web Console: System Monitoring 9-6 System Log The System Log page is located under System Status in the System Monitoring folder. This is where you can view the log of NPort system events. Click [Clear log] to clear the log contents. Click [Refresh] to refresh the log contents. WLAN Status The WLAN Status page is located under System Status in the System Monitoring folder. This is where you can view the current WLAN settings and status. NPort W2150A/W2250A Series Web Console: System Monitoring 9-7 WLAN Site Survey The WLAN Site Survey page is located under System Status in the System Monitoring folder. This is where you can view live data on wireless signal strength and characteristics. It is useful tool to help you complete a wireless site survey without installing additional software. The goal of a WLAN site survey is to determine the number and placement of access points to provide enough coverage to the facility. For most implementations, "enough coverage" means that the data rate at all locations does not fall below a certain threshold. For most wireless sites, it is necessary to perform a WLAN site survey before access point installation in order to determine the behavior of radio waves at the site. Typical WLAN Site Survey Procedure 1. Download/install site survey software. 2. Run software on laptop. 3. Measure AP signal strength using software on laptop. Weakness • Signal strength is read from the laptop NIC rather than from NPort NPort W2150A/W2250A Series Web Console: System Monitoring 9-8 WLAN Site Survey with NPort W2150/W2250A Series Procedure 1. Open web browser 2. Measure AP signal from NPort web console. Advantages • Signal strength is read from NPort • Additional software not required Please note that Java must be enabled in your web browser for the WLAN Site Survey page to display properly. 10 10. Web Console: Restart The following topics are covered in this chapter:  Overview  Restart  Restart System  Restart Ports NPort W2150A/W2250A Series Web Console: Restart 10-2 Overview This chapter explains how to use save your configuration changes and restart the NPort using the NPort web console. Configuration changes will not be effective until they are saved and the NPort is rebooted. Restart Restart System The Restart System page is located in the Restart folder. Click [Restart] to restart the NPort, and the new settings will take effect upon restart. NPort W2150A/W2250A Series Web Console: Restart 10-3 Restart Ports The Restart Ports page is located in the Restart folder. Select the desired serial and click [Select All] to select all serial ports. Click [Submit] to restart the selected serial ports. 11 11. Installing and Configuring the Software The following topics are covered in this chapter:  Overview  NPort Windows Driver Manager  Installing NPort Windows Driver Manager  Adding Mapped Serial Ports  Configuring Mapped Serial Ports  NPort Search Utility  Installing NPort Search Utility  Finding NPort Device Servers on Network  Modifying NPort IP Addresses  Upgrading NPort Firmware  Linux Real TTY Drivers  Basic Steps  Installing Linux Real TTY Driver Files  Mapping TTY Ports  Removing Mapped TTY Ports  Removing Linux Driver Files  UNIX Fixed TTY Drivers  Installing the UNIX Driver  Configuring the UNIX Driver NPort W2150A/W2250A Series Installing and Configuring the Software 11-2 Overview This chapter describes how to install and use NPort Windows Driver Manager, NPort Search Utility, and NPort Linux and UNIX drivers. These items are located on the Document & Software CD that is provided with the NPort W2150A/W2250A Series. NPort Windows Driver Manager is a utility that installs and manages NPort COM drivers for COM mapping. NPort Search Utility is a utility for the management of NPort device servers over the network. You may also use NPort Search Utility to upgrade the firmware. NPort Windows Driver Manager NPort Windows Driver Manager installs remote NPort serial ports as new COM ports on your Windows PC. When the drivers are installed and configured, devices that are attached to serial ports on the NPort will be treated as if they were attached to your PC’s own COM ports. The NPort serial port must be configured for RealCOM mode when being mapped to a COM port. Installing NPort Windows Driver Manager 1. The main installation window will open when you insert the Document & Software CD. Click [INSTALL COM Driver] to proceed. Once the installation program starts running, click [Yes] to proceed. 2. The installation wizard will open. Click [Next] to proceed. NPort W2150A/W2250A Series Installing and Configuring the Software 11-3 3. Select a destination directory and click [Next] to proceed. 4. Select a folder for the program shortcuts and click [Next] to proceed. NPort W2150A/W2250A Series Installing and Configuring the Software 11-4 5. Verify the installation parameters and click Install to proceed. 6. If you see a warning that the software has not passed Windows Logo testing, click [Continue Anyway] to proceed. NPort W2150A/W2250A Series Installing and Configuring the Software 11-5 7. The wizard will begin installing the files. When the files have been installed, click [Finish] to complete the installation. Adding Mapped Serial Ports NPort Windows Driver Manager adds a COM port to your PC that is mapped to an NPort serial port. The destination NPort serial port must be set to RealCOM mode. 1. In NPort Windows Driver Manager, click [Add] on the main toolbar. NPort W2150A/W2250A Series Installing and Configuring the Software 11-6 2. Click [Rescan] to search the network for NPort device servers. In the list of NPort device servers that are found, select the unit(s) that you will use for COM mapping and click [OK]. Alternatively, you can select Input Manually and manually enter the NPort IP Address, 1st Data Port, 1st Command Port, and Total Ports for the desired NPort unit. Click [OK] to proceed. NPort W2150A/W2250A Series …

Text truncated - open the document above for the full version.

RF_160, Issue 03 Declaration of Authorization We Name: Moxa Inc. Address: Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. City: Taipei  Country: Taiwan, R.O.C.  Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Nport Device Server Type designation: NPort W2250A, NPort W2150A, NPort W2250A-T, NPort W2150A-T Trademark: MOXA on our behalf. Date:  2012/04/27  City:  Taipei  .. Name:  Hung-Cheng Chao  . (2) Function:  Manager  Signature:  .  Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Moxa Inc. FCC ID.: SLE-W2X50A Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. .Tel : +886-2-8919-1230 Federal Communications Commission Apr. 27, 2012 Authorization and Evaluation Division ATTESTATION FCC ID: SLE-W2X50A Product: Nport Device Server Model: NPort W2250A, NPort W2150A, NPort W2250A-T, NPort W2150A-T We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ---------------------------------------------------- Hung-Cheng Chao / Manager Moxa Inc.

Gentlemen: Please be advised that the Model NPort W2250A, NPort W2150A, NPort W2250A‐T, NPort W2150A‐T, Nport Device Server is manufactured for the global market but when marketed in North America under FCCID: SLE‐W2X50A the EEPROM will be programmed at the factory to only operate and actively scan on these specific channels: Channels 1‐11, 2412‐2462MHz 802.11b mode Channels 1‐11, 2412‐2462MHz 802.11g mode The following channels will be programmed at the factory to passively scan and will only listen and cannot send a probe request to initiate communication on these specific channels. Ad‐hoc mode is always disabled on these passive channels. Channels 36‐48, 5180‐5240MHz 802.11a mode Channels 52‐64, 5260‐5320MHz 802.11a mode Channels 100‐140, 5500‐5700MHz 802.11a mode Channels 149‐165, 5745‐5805 802.11a mode This information when programmed into the EEPROM will not be accessible and can not be changed by the end user. If you have any questions please do not hesitate to contact us. Sincerely, Hung‐Cheng Chao / Manager Moxa Inc. TEL No: +886‐2‐8919‐1230 FAX No.: +886‐2‐8919‐1231 Email: [email protected]

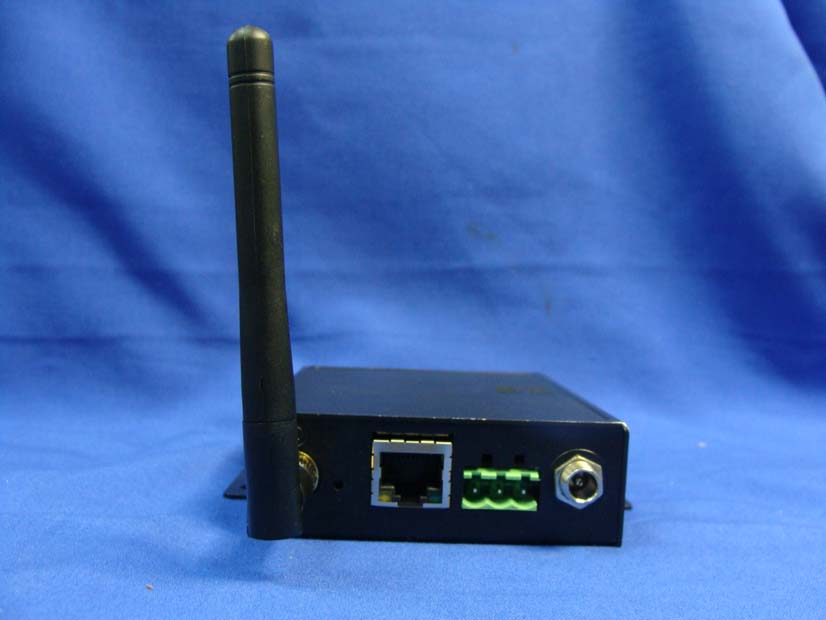

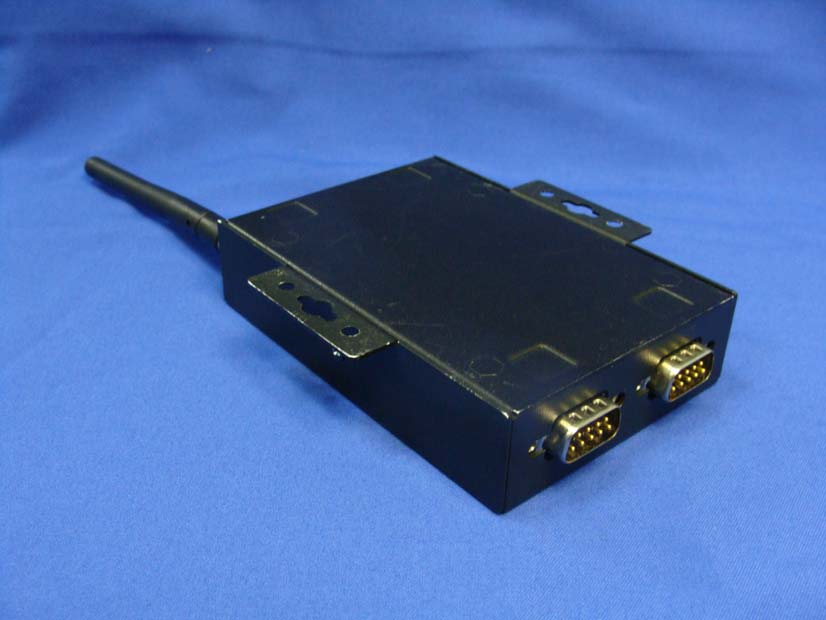

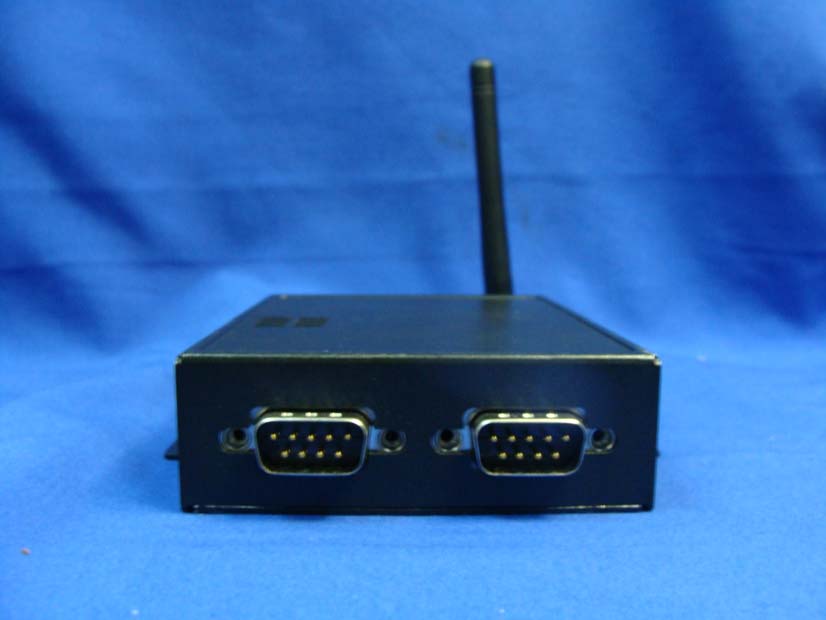

Report No.: 124312R-RFUSP45V01 Page : 1 of 11 ٛٛ Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 124312R-RFUSP45V01 Page : 2 of 11 ٛٛ (3) EUT Photo (4) EUT Photo

Moxa Inc. FCC ID.: SLE-W2X50A Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. .Tel : +886-2-8919-1230 The FCC ID will be placed on the equipment as shown in the photograph below.

Moxa Inc. FCC ID.: SLE-W2X50A Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. .Tel : +886-2-8919-1230 FCC ID Label

Report No.: 124312R-RFUSP45V01 Page : 3 of 11 ٛٛ (5) EUT Photo (6) EUT Photo Report No.: 124312R-RFUSP45V01 Page : 4 of 11 ٛٛ (7) EUT Photo (8) EUT Photo Report No.: 124312R-RFUSP45V01 Page : 5 of 11 ٛٛ (9) EUT Photo (10) EUT Photo Report No.: 124312R-RFUSP45V01 Page : 6 of 11 ٛٛ (11) EUT Photo (12) EUT Photo Report No.: 124312R-RFUSP45V01 Page : 7 of 11 ٛٛ (13) EUT Photo (14) EUT Photo Report No.: 124312R-RFUSP45V01 Page : 8 of 11 ٛٛ (15) EUT Photo (16) EUT Photo Report No.: 124312R-RFUSP45V01 Page : 9 of 11 ٛٛ (17) EUT Photo (18) EUT Photo Report No.: 124312R-RFUSP45V01 Page : 10 of 11 ٛٛ (19) EUT Photo (20) EUT Photo Report No.: 124312R-RFUSP45V01 Page : 11 of 11 ٛٛ (21) EUT Photo (22) EUT Photo

Report No. 124312R-RFUSP42V01 Page: 1 of 4 ٛٛ RF Exposure Evaluation declaration Product Name : Nport Device Server Model No. : NPort W2250A, NPort W2150A, NPort W2250A-T, NPort W2150A-T FCC ID : SLE-W2X50A Applicant : Moxa Inc. Address : Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Date of Receipt : Apr. 13, 2012 Date of Declaration: Apr. 24, 2012 Report No. : 124312R-RFUSP42V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 124312R-RFUSP42V01 Page: 2 of 4 ٛٛ 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 124312R-RFUSP42V01 Page: 3 of 4 ٛٛ 1.3. Test Result of RF Exposure Evaluation Product : Nport Device Server Test Item : RF Exposure Evaluation Test Site : No.3 OATS (802.11b) Output Power Into Antenna & RF Exposure Evaluation Distance (1.21dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 53.5797 0.014084 06 2437.00 55.7186 0.014646 11 2462.00 49.5450 0.013024 Power density in column 4 is much lower than the limit (1 mW/cm2). (802.11g) Output Power Into Antenna & RF Exposure Evaluation Distance (1.21dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 91.6220 0.024084 06 2437.00 158.1248 0.041565 11 2462.00 84.1395 0.022117 Power density in column 4 is much lower than the limit (1 mW/cm2). (802.11a) Output Power Into Antenna & RF Exposure Evaluation Distance (1.73dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 36 5180.00 28.4446 0.008428 44 5220.00 29.2415 0.008664 48 5240.00 31.4775 0.009327 52 5260.00 31.2608 0.009263 60 5300.00 26.6073 0.007884 64 5320.00 27.2270 0.008067 100 5500.00 21.7771 0.006453 120 5600.00 20.5116 0.006078 140 5700.00 19.8153 0.005871 Power density in column 4 is much lower than the limit (1 mW/cm2). Report No. 124312R-RFUSP42V01 Page: 4 of 4 ٛٛ (802.11a) Output Power Into Antenna & RF Exposure Evaluation Distance (1.73dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 149 5745.00 94.4061 0.027972 157 5785.00 92.2571 0.027336 165 5805.00 86.4968 0.025629 Power density in column 4 is much lower than the limit (1 mW/cm2).

Report No. 124312R-RFUSP45V01 Page: 1 of 96 Test Report Product Name Nport Device Server Model No NPort W2250A, NPort W2150A, NPort W2250A-T, NPort W2150A-T FCC ID SLE-W2X50A Applicant Moxa Inc. Address Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Date of Receipt Apr. 13, 2012 Issued Date Apr. 24, 2012 Report No. 124312R-RFUSP45V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 124312R-RFUSP45V01 Page: 2 of 96 Test Report Certification Issued Date: Apr. 24, 2012 Report No.: 124312R-RFUSP45V01 The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name Nport Device Server Applicant Moxa Inc. Address Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Manufacturer Moxa Inc. Model No. NPort W2250A, NPort W2150A, NPort W2250A-T, NPort W2150A-T FCC ID. SLE-W2X50A EUT Rated Voltage AC 110~230V, DC 24V EUT Test Voltage AC 120V/60Hz Trade Name MOXA Applicable Standard FCC CFR Title 47 Part 15 Subpart E: 2010 ANSI C63.4: 2003, FCC KDB-789033 Test Result Complied Documented By : ( Adm. Specialist / Joanne Lin ) Tested By : (Engineer / Henk Huang ) Approved By : ( Manager / Vincent Lin ) Report No. 124312R-RFUSP45V01 Page: 3 of 96 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Datails....................................................................................................................8 1.4. Configuration of tested System .....................................................................................................9 1.5. EUT Exercise Software .................................................................................................................9 1.6. Test Facility .................................................................................................................................10 2. Conducted Emission.................................................................................................................. 11 2.1. Test Equipment............................................................................................................................11 2.2. Test Setup ....................................................................................................................................11 2.3. Limits ..........................................................................................................................................12 2.4. Test Procedure .............................................................................................................................12 2.5. Uncertainty ..................................................................................................................................12 2.6. Test Result of Conducted Emission.............................................................................................13 3. Peak Transmit Power ................................................................................................................25 3.1. Test Equipment............................................................................................................................25 3.2. Test Setup ....................................................................................................................................25 3.3. Limits ..........................................................................................................................................26 3.4. Test Procedur ...............................................................................................................................26 3.5. Uncertainty ..................................................................................................................................26 3.6. Test Result of Peak Transmit Power............................................................................................27 4. Peak Power Spectral Density....................................................................................................37 4.1. Test Equipment............................................................................................................................37 4.2. Test Setup ....................................................................................................................................37 4.3. Limits ..........................................................................................................................................37 4.4. Test Procedure .............................................................................................................................38 4.5. Uncertainty ..................................................................................................................................38 4.6. Test Result of Peak Power Spectral Density ...............................................................................39 5. Peak Excursion ..........................................................................................................................44 5.1. Test Equipment...................................................................................................…

Text truncated - open the document above for the full version.

Report No. 124312R-RFUSP45V01 Page: 82 of 96 Peak Detector of conducted Band Edge Delta Average Detector of conducted Band Edge Delta Report No. 124312R-RFUSP45V01 Page: 83 of 96 Product : Nport Device Server Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 1: Transmitter (802.11a-6Mbps)-Channel 48 Report No. 124312R-RFUSP45V01 Page: 84 of 96 Product : Nport Device Server Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 1: Transmitter (802.11a-6Mbps)-Channel 52 Report No. 124312R-RFUSP45V01 Page: 85 of 96 Product : Nport Device Server Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 1: Transmitter (802.11a-6Mbps) -Channel 64 Fundamental Filed Strength Antenna Pole Frequency [MHz] Reading Level [dB(uV)] Correction Factor [dB/m] Emission Level [dB(uV/m)] Detector Horizontal 5320 35.635 56.39 92.024 Peak Horizontal 5320 35.635 46.25 81.884 Average Vertical 5320 35.635 68.15 103.784 Peak Vertical 5320 35.635 57.84 93.474 Average Note: 1:Spectrum Analyzer setting: Peak detector: RBW=1MHz, VBW=1MHz Average detector: RBW=1MHz, VBW=30Hz Band Edge Test Data Test Frequency Fundamental Band Edge Requiqment Antenna Pole (MHz) (dBuV/m) Δ (dB) Field Strength (dBuV/m) Limit (dBuV/m) Detector Horizontal 5353 92.024 46.332 45.692 74.000 Peak Horizontal 5350 81.884 52.233 29.651 54.000 Average Vertical 5353 103.784 46.332 57.452 74.000 Peak Vertical 5350 93.474 52.233 41.241 54.000 Average Note: The Band Edge Field Strength was calculated using the Fundamental and Conducted Band Edge measurements per the Marker-Delta Method with the following formula: Band Edge field Strength = F - Δ F = Fundamental field Strength (Peak or Average) Δ = Conducted Band Edge Delta (Peak or Average) Report No. 124312R-RFUSP45V01 Page: 86 of 96 Peak Detector of conducted Band Edge Delta Average Detector of conducted Band Edge Delta Report No. 124312R-RFUSP45V01 Page: 87 of 96 Product : Nport Device Server Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 1: Transmitter (802.11a-6Mbps) -Channel 100 Fundamental Filed Strength Antenna Pole Frequency [MHz] Reading Level [dB(uV)] Correction Factor [dB/m] Emission Level [dB(uV/m)] Detector Horizontal 5500 36.684 57.25 93.934 Peak Horizontal 5500 36.684 47.07 83.754 Average Vertical 5500 38.145 65.64 103.785 Peak Vertical 5500 38.145 55.41 93.555 Average Note: 1:Spectrum Analyzer setting: Peak detector: RBW=1MHz, VBW=1MHz Average detector: RBW=1MHz, VBW=30Hz Band Edge Test Data Test Frequency Fundamental Band Edge Requiqment Antenna Pole (MHz) (dBuV/m) Δ (dB) Field Strength (dBuV/m) Limit (dBuV/m) Detector Horizontal 5457.7 93.934 50.457 43.477 74.000 Peak Horizontal 5460 83.754 54.964 28.79 54.000 Average Vertical 5457.7 103.785 50.457 53.328 74.000 Peak Vertical 5460 93.555 54.964 38.591 54.000 Average Note: The Band Edge Field Strength was calculated using the Fundamental and Conducted Band Edge measurements per the Marker-Delta Method with the following formula: Band Edge field Strength = F - Δ F = Fundamental field Strength (Peak or Average) Δ = Conducted Band Edge Delta (Peak or Average) Report No. 124312R-RFUSP45V01 Page: 88 of 96 Peak Detector of conducted Band Edge Delta Average Detector of conducted Band Edge Delta Report No. 124312R-RFUSP45V01 Page: 89 of 96 Product : Nport Device Server Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 1: Transmitter (802.11a-6Mbps) -Channel 100 RF Radiated Measurement: Frequency (MHz) Correct Factor (dB) Reading Level (dBm) Measure Level (dBm/m) Margin (dB) Limit (dBm/m) Result Horizontal 5470.000 18.334 -69.660 -51.326 -24.326 -27.000 Pass Frequency (MHz) Correct Factor (dB) Reading Level (dBm) Measure Level (dBm/m) Margin (dB) Limit (dBm/m) Result Vertical 5470.000 19.335 -67.970 -48.635 -21.635 -27.000 Pass Report No. 124312R-RFUSP45V01 Page: 90 of 96 Product : Nport Device Server Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 1: Transmitter (802.11a-6Mbps) -Channel 140 RF Radiated Measurement: Frequency (MHz) Correct Factor (dB) Reading Level (dBm) Measure Level (dBm/m) Margin (dB) Limit (dBm/m) Result Horizontal 5725.000 18.649 -69.150 -50.501 -23.501 -27.000 Pass Frequency (MHz) Correct Factor (dB) Reading Level (dBm) Measure Level (dBm/m) Margin (dB) Limit (dBm/m) Result Vertical 5725.000 19.372 -66.720 -47.348 -20.348 -27.000 Pass Report No. 124312R-RFUSP45V01 Page: 91 of 96 8. Frequency Stability 8.1. T…
