SLE-WAPA003-1MOXA IEEE802.11 a/b/g mini PCI module

Moxa IEEE 802.11a/b/g MiniPCI Module WAPA003 User’s Manual www.moxa.com First Edition, June 2009 © 2009 Moxa Inc. All rights reserved. Reproduction without permission is prohibited. WAPA003 User’s Manual The hardware and software described in this manual is furnished under a license agreement and may be used only in accordance with the terms of that agreement. Copyright Notice Copyright © 2009 Moxa Inc. All rights reserved. Reproduction without permission is prohibited. Trademarks MOXA is a registered trademark of Moxa Inc. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer Information in this document is subject to change without notice and does not represent a commitment on the part of Moxa. Moxa provides this document “as is,” without warranty of any kind, either expressed or implied, including, but not limited to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this manual, or to the products and/or the programs described in this manual, at any time. Information provided in this manual is intended to be accurate and reliable. However, Moxa assumes no responsibility for its use, or for any infringements on the rights of third parties that may result from its use. This product might include unintentional technical or typographical errors. Changes are periodically made to the information herein to correct such errors, and these changes are incorporated into new editions of the publication. Technical Support Contact Information www.moxa.com/support Moxa Americas: Toll-free: 1-888-669-2872 Tel: +1-714-528-6777 Fax: +1-714-528-6778 Moxa China (Shanghai office): Toll-free: 800-820-5036 Tel: +86-21-5258-9955 Fax: +86-10-6872-3958 Moxa Europe : Tel: +49-89-3 70 03 99-0 Fax: +49-89-3 70 03 99-99 Moxa Asia-Pacific: Tel: +886-2-8919-1230 Fax: +886-2-8919-1231 Table of Contents Chapter 1 Introduction Overview Features Specification Chapter 2 Getting Started Module Layout Block Diagram Hardware Installation Software Installation WAPA003 User’s Manual Introduction 1 1 Chapter 1 Introduction The following topics are covered in this chapter: ‰ Overview ‰ Features ‰ Specifications WAPA003 User’s Manual Introduction Overview WAPA003 Mini-PCI Module is designed to provide wireless communication for all wireless device based systems. It communicates via the standard 802.11a/b/g protocols. The WAPA003 uses the AR5414 wireless chipset from Atheros. This module is connected to the PCI bus through a Mini-PCI connector and special circuitry to allow for compatibility with either 3.3V or 5V PCI signaling. . Features y All-CMOS single chip for IEEE 802.11a/b/g compatible WLANs y No external VCOs or SAW filters needed y Baseband in-phase (I) and quadrature (Q) signals, converts them to the desired frequency, and drives the RF signal off-chip y Integrated low-noise amplifier (LNA) y External PA and/or LNA can be used for special applications y Advanced wideband receiver with best path sequencer for better range and multipath resistance than conventional equalizer-based designs y Extended tuning range (2.300-2.500 & 4.900-5.850 GHz) for worldwide use y High speed UART with DMA supports data rates up to 1 Mbps WAPA003 User’s Manual Introduction Specification Features WAPA003 Chipset Atheros AR5414 Receive Sensitivity 802.11b :-84dBm(typically) 802.11a/g : -80dBm(typically) Baseband Processor (BBP) ̇ 802.11b support rate: 1M, 2M, 5.5M, 11M bps ̇ 802.11a/g support rate : 6M, 9M, 12M,18M,24M, 36M, 48M, 54M bps ̇ Modulation scheme: BPSK, QPSK, 16 QAM, 64 QAM, DBPSK,DQPSK, and CCK ̇ 802.11e-compatible bursting ̇ Support for draft IEEE h, i and j standards ̇ Atheros Extended Range feature supported (Turbo Mode), Atheros Super A/G mode with up to 108 Mbps security engine WEP64,WEP128, WEP256, AES-CCM, TKIP ,WPS Bus Interface Mini PCI standard bus complaint Connectors Defined BTB connector is using 2x40 pins header, and Support Mini-PCI standard. Power requirement 1.8V +/-5% 3.3V +/-10% Dimension 53mm ×32mm Weight 15g Operating Temperature -40 to +80 °C Storage Temperature: -40 to +150°C 2 2 Chapter 2 Getting Started This chapter covers the module layout, and block diagram, hardware installation of the WAPA003. Software installation is covered in the next chapter. The following topics are covered: ‰ Module Layout ‰ Block Diagram ‰ Hardware Installation ‰ Software Installation WAPA003 User’s Manual Getting Started Module Layout Block Diagram Below is a block diagram of the WAPA003. Primary board components are in bold, while external connections are italicized. WAPA003 User’s Manual Getting Started Connector Locations WAPA003 User’s Manual Getting Started MiniPCI Bus Connector PIN Assignments AD30 3.3V_CON PCI_INT_L PCI_GNT_L AD31 PCI_CBE2_L AD1 PCI_CBE3_L AD3 PCI_PME_L PCI_CBE1_L AD5 PCI_RST_L AD7 AD0 AD8 MPC I _12 MPC I _11 AD4 AD10 AD2 RF_DISABLE AD6 PCI_CLK PCI_REQ_L AD9 AD12 PCI_CBE0_L AD14 AD13 AD11 PCI_PERR_L PCI_DEVSEL_L AD15 PCI_SERR_L AD17 R9 R0603 187 GPIO_5 AD19 3.3V AD21 PCI_TRDY _L PCI_STOP_L PCI_IRDY_LAD23 AD16 PCI_CLKRUN_L PCI_FRAME_L R8 R0603 187 3.3V AD18 J1 DEFINE BOARD EDGE 3.3V-3 6 INTA# 34 GND-7 72 3.3VAUX 18 CLK 30 RST# 28 GND-5 60 3.3V-4 8 REQ# 36 GNT# 38 3.3V-6 12 GND-11 22 AD31 63 PME# 68 AD29 59 GND-13 26 AD30 61 AD27 55 3.3V-5 10 AD25 51 AD28 57 AD26 53 CBE3# 75 AD24 49 AD23 47 IDSEL 66 GND-4 58 GND-15 44 AD21 43 AD22 45 AD19 39 AD20 41 GND-3 56 PAR 46 AD17 35 AD18 37 CBE2# 73 AD16 33 IRDY# 48 GND-12 24 3.3V 2 FRAME# 52 CLKRUN# 32 TRDY# 50 SERR# 62 STOP# 54 GND-8 74 3.3V-7 14 PERR# 40 DEVSEL# 64 CBE1# 71 GND-14 42 AD14 29 AD15 31 AD13 27 AD12 25 AD11 23 AD10 21 GND-9 76 AD9 19 AD8 17 CBE0# 69 AD7 15 3.3V-8 16 3.3V-2 4 AD6 13 AD5 11 AD4 9 AD2 5 AD3 7 AD0 1 AD1 3 GND-6 70 LED1-GRNN 78 GND-1 67 GND 65 3.3VAUX-1 20 LED1-GRNP 77 LED2-Y ELP 79 LED2-Y ELN 80 PCI_PAR AD25 3.3V_AUX AD27 AD22 AD20 AD29 AD24 MPCI_14 PCI_IDSEL_L AD28 AD26 R26 R0402 R WAPA003 User’s Manual Getting Started Hardware Installation The…

Text truncated - open the document above for the full version.

Moxa Inc. Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. TEL No: +886-2-8919-1230 FAX No.: +886-2-8919-1231 Attestation for FCC Declaration of Conformity FCC ID: SLE-WAPA003-1 Data: Jun. 05, 2012 Please be notified that we, the undersigned, Moxa Inc., declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is 124286R-RFUSP37V02. Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,Taipei City 114,Taiwan,R.O.C. which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, Hung-Cheng Chao / Manager Moxa Inc. TEL No: +886-2-8919-1230 FAX No.: +886-2-8919-1231 Email: [email protected]

Moxa Inc. Company Address : Fl.4, No. 135, Lane 235, Pao‐Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Date : 2012/06/15 DTS‐UNII Device Declaration Letter To whom it may concern : We have declared below featured for FCC equipment authorization, Device FCC ID : SLE‐WAPA003‐1 (1) DFS Device -- Master , Client with Radar detection capability , Client without radar detection capability , N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode or WIFI Direct capability Access point capability 2412-2462 Yes , No Yes , No Yes , No Yes , No 5745-5825 Yes , No Yes , No Yes , No Yes , No 5180-5240 Yes , No Yes , No Yes , No Yes , No 5260-5320 Yes , No Yes , No Yes , No Yes , No 5500-5700 Yes , No Yes , No Yes , No Yes , No 4960-4980 Yes , No Yes , No Yes , No Yes , No (3) Country code selection ability - Yes , No If yes, pls explain how it was implemented : (pls also help to provide detail of options for each country selection) (4) Meet 15.202 requirement - Yes , No , pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply , No Apply , (If apply , pls help to provide explanation on it was implement , and how software was controlled) Name / Title : Hung‐Cheng Chao / Manager Signature ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ Tel : 886-2-8919-1230 Fax: 886-2-8919-1231

RF_160, Issue 02 Declaration of Authorization We Name: Moxa Inc. Address: Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. City: Taipei  .  Country: Taiwan, R.O.C.  Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan Is authorized to apply for Certification of the following product(s): Product description: MOXA IEEE802.11 a/b/g mini PCI module Type designation: WAPA003 Trademark: MOXA on our behalf. Date: 2012/06/06 City: Taipei Name: Hung-Cheng Chao (2) Function: Senior Director Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Moxa Inc. FCC ID.: SLE-WAPA003-1 Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Tel : 886-2-8919-1230 Moxa Inc. Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Tel : 886-2-8919-1230 Fax: 886-2-8919-1231 Federal Communications Commission June 05, 2012 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics: (WAPA003) Schem Block Diagram : (WAPA003) BlkDia Operational Description: (WAPA003) OPDes The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Hung-Cheng Chao / Manager Moxa Inc.

MOXA Inc. SCS-F26 Modular Approval Letter Page 1 of 4 Rev 7.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Modular Approval Declaration Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (Obsolete) 1.0 1.0 Dec-04-2006 Added IC Modular Letter (Obsolete) 1.0 2.0 Feb 16 2009 Add LMA and MA option (Obsolete) 2.0 3.0 April 14 2010 Revised per RSS Gen issue 3.0 (Obsolete) 3.0 4.0 Jan 12 2011 Removed Foot(2) (obsolete) 4.0 5.0 July 19 2011 Adding New note per KDB996369 D01 V01R03 (obsolete) 5.0 6.0 August 29 2011 Updated company template & Added text box (current) 6.0 7.0 Jan-31-2012 MOXA Inc. SCS-F26 Modular Approval Letter Page 2 of 4 Rev 7.0 (Date) 06/05/2012 (Product name) FCC ID : SLE-WAPA003-1 , is seeking FCC Authorization as a Single Modular transmitter / Single Limited Modular Approval (Please check one). The EUT meets the requirements for Single Modular approval / Single Limited Modular Approval (please check one) as detailed in FCC public Notice DA00-1407. Compliance to each of the requirements is described below : Questions are: * Please provide a detailed explanation if the answer is “No.” 1. “The modular transmitter must have its own RF shielding.” Yes / No 2. “The modular transmitter must have buffered modulation/data inputs.” Yes / No 3. “The modular transmitter must have its own power supply regulation.” Yes / No 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c).” Yes / No 5. “The modular transmitter must be tested in a stand-alone configuration.” Yes / No 6. “The modular transmitter must be labeled with its own FCC ID number.” Yes / No 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instruction along with the module to explain any such requirements.” Yes / No 8. “The modular transmitter must comply with any applicable RF exposure requirements.” Yes / No Note: (1) LMA may be granted when one or more of the requirements in the table above cannot be demonstrated. LMA will also be issued in those instances where applicants can demonstrate that they will retain control over the final installation of the device, such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the module must state that the module is only approved for use when installed in devices produced by a specific manufacturer. When LMA is sought, the application for equipment certification must specifically state how control of the end product into which the module will be installed, and will be maintained, such that full compliance of the end product is always ensured. (2) Please provide Clear and specific instructions describing the conditions, limitations and procedures for third-parties to use and/or integrate the module into a host device. (3) For non-Software Defined Radio transmitter modules where software is used to ensure compliance of the device, technical description of how such control is implemented to ensure prevention of third party modification must be provided (see KDB 594280). Note 1: Compliance of a module in its final configuration is the responsibility of the applicant. A host device will not be considered certified if the instructions regarding antenna configuration provided in the original description, of one or more separately certified modules it contains, were not followed. Example: A separately certified low-power transceiver module using Bluetooth technology which is housed in a desktop computer, laptop or peripheral does not require the overall system to be recertified, if the desktop computer, laptop or peripheral, as a stand-alone unit, complies with all applicable technical standards. Client’s signature Client’s name / title: Hung-Cheng Chao / Manager Contact information / address: Moxa Inc. / Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C.

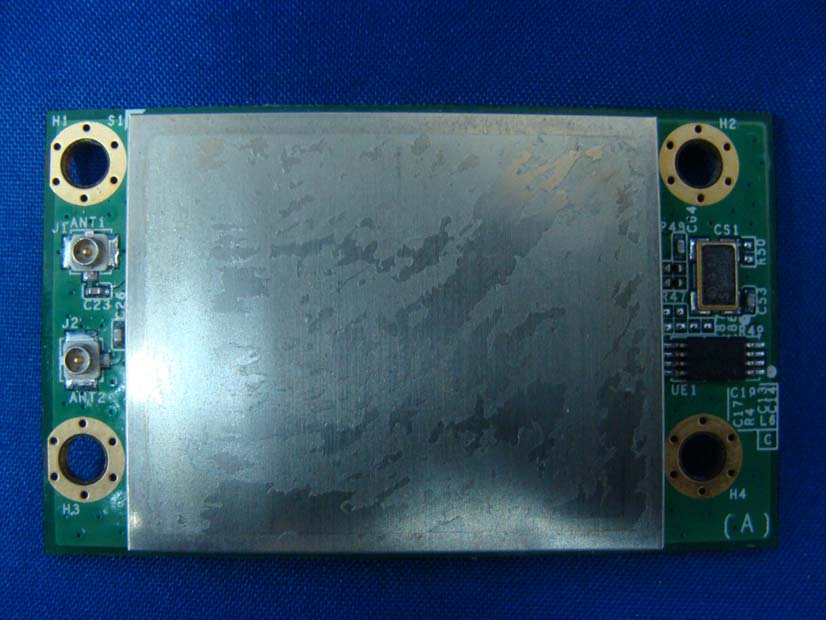

Report No.: 124286R-RFUSP36V01 Page : 1 of 11 ٛٛ Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

Moxa Inc. FCC ID.: SLE-WAPA003-1 Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Tel : 886-2-8919-1230 The FCC ID Label will be placed on the equipment as shown in the photograph below.

Moxa Inc. FCC ID.: SLE-WAPA003-1 Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Tel : 886-2-8919-1230 FCC ID Label

Report No.: 124286R-RFUSP45V01 Page : 1 of 10 ٛٛ Attachment 2 : EUT Detailed Photographs (3) EUT Photo (4) EUT Photo Report No.: 124286R-RFUSP45V01 Page : 2 of 10 ٛٛ (5) EUT Photo (6) EUT Photo Report No.: 124286R-RFUSP45V01 Page : 3 of 10 ٛٛ (7) EUT Photo (8) EUT Photo Report No.: 124286R-RFUSP45V01 Page : 4 of 10 ٛٛ (9) EUT Photo (10) EUT Photo Report No.: 124286R-RFUSP45V01 Page : 5 of 10 ٛٛ (11) EUT Photo (12) EUT Photo Report No.: 124286R-RFUSP45V01 Page : 6 of 10 ٛٛ (13) EUT Photo (14) EUT Photo Report No.: 124286R-RFUSP45V01 Page : 7 of 10 ٛٛ (15) EUT Photo (16) EUT Photo Report No.: 124286R-RFUSP45V01 Page : 8 of 10 ٛٛ (17) EUT Photo (18) EUT Photo Report No.: 124286R-RFUSP45V01 Page : 9 of 10 ٛٛ (19) EUT Photo (20) EUT Photo Report No.: 124286R-RFUSP45V01 Page : 10 of 10 ٛٛ (21) EUT Photo

Report No. 124312R-RFUSP42V01 Page: 1 of 4 ٛٛ RF Exposure Evaluation declaration Product Name : MOXA IEEE802.11a/b/g mini PCI module Model No. : WAPA003 FCC ID : SLE-WAPA003-1 Applicant : Moxa Inc. Address : Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Date of Receipt : Apr. 12, 2012 Date of Declaration: Jun. 05, 2012 Report No. : 124286R-RFUSP42V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 124312R-RFUSP42V01 Page: 2 of 4 ٛٛ 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 124312R-RFUSP42V01 Page: 3 of 4 ٛٛ 1.3. Test Result of RF Exposure Evaluation Product : MOXA IEEE802.11a/b/g mini PCI module Test Item : RF Exposure Evaluation Test Site : No.3 OATS (802.11b) Output Power Into Antenna & RF Exposure Evaluation Distance (4.62dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 67.1429 0.038702 06 2437.00 55.3350 0.031896 11 2462.00 33.2660 0.019175 Power density in column 4 is much lower than the limit (1 mW/cm2). (802.11g) Output Power Into Antenna & RF Exposure Evaluation Distance (4.62dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 123.3105 0.071077 06 2437.00 164.0590 0.094565 11 2462.00 119.1242 0.068664 Power density in column 4 is much lower than the limit (1 mW/cm2). (802.11a) Output Power Into Antenna & RF Exposure Evaluation Distance (2.34dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 149 5745 87.7001 0.029904 157 5785 74.9894 0.025570 165 5825 66.6807 0.022737 Power density in column 4 is much lower than the limit (1 mW/cm2). (Turbo Mode_2.4G) Output Power Into Antenna & RF Exposure Evaluation Distance (4.62dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 06 2437 121.6186 0.070102 Power density in column 4 is much lower than the limit (1 mW/cm2). Report No. 124312R-RFUSP42V01 Page: 4 of 4 ٛٛ (Turbo Mode_5G) Output Power Into Antenna & RF Exposure Evaluation Distance (2.34dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 152 5760 81.8465 0.027908 160 5800 70.9578 0.024195 Power density in column 4 is much lower than the limit (1 mW/cm2). (802.11a) Output Power Into Antenna & RF Exposure Evaluation Distance (2.34dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 36 5180.00 9.8175 0.003348 44 5220.00 9.0157 0.003074 48 5240.00 9.2897 0.003168 52 5260.00 86.2979 0.029426 60 5300.00 86.8960 0.029630 64 5320.00 35.8922 0.012239 100 5500.00 23.8781 0.008142 120 5600.00 17.6604 0.006022 140 5700.00 17.8238 0.006078 Power density in column 4 is much lower than the limit (1 mW/cm2). (Turbo Mode_5G) Output Power Into Antenna & RF Exposure Evaluation Distance (2.34dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 42 5210 10.2565 0.003497 58 5290 79.0679 0.026961 Power density in column 4 is much lower than the limit (1 mW/cm2). (4.9GHz) Output Power Into Antenna & RF Exposure Evaluation Distance (2.34dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 4960 7.0307 0.002397 2 4980 8.1846 0.002791 Power density in column 4 is much lower than the limit (1 mW/cm2).

Report No. 124286R-RFUSP42V01 Page : 1 of 113 ٛٛ Test Report Product Name MOXA IEEE802.11 a/b/g mini PCI module Model No WAPA003 FCC ID. SLE-WAPA003-1 Applicant Moxa Inc. Address Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Date of Receipt Apr. 12, 2012 Issue Date Jun. 05, 2012 Report No. 124286R-RFUSP42V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 124286R-RFUSP42V01 Page : 2 of 113 ٛٛ Test Report Certification Issue Date: Jun. 05, 2012 Report No.: 124286R-RFUSP42V01 Product Name MOXA IEEE802.11 a/b/g mini PCI module Applicant Moxa Inc. Address Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Manufacturer Moxa Inc. Model No. WAPA003 EUT Rated Voltage DC 3.3V(Power by PCI-E) EUT Test Voltage DC 3.3V(Power by PCI-E) Trade Name MOXA Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2010 ANSI C63.4: 2003 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Adm. Specialist / Joanne Lin ) Tested By : ( Engineer / Jack Hsu ) Approved By : ( Manager / Vincent Lin) Report No. 124286R-RFUSP42V01 Page : 3 of 113 ٛٛ TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................6 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................20 3.1. Test Equipment............................................................................................................................20 3.2. Test Setup ....................................................................................................................................20 3.3. Limits ..........................................................................................................................................20 3.4. Test Procedure .............................................................................................................................20 3.5. Uncertainty ..................................................................................................................................20 3.6. Test Result of Peak Power Output...............................................................................................21 4. Radiated Emission .....................................................................................................................26 4.1. Test Equipment............................................................................................................................26 4.2. Test Setup ....................................................................................................................................27 4.3. Limits ..........................................................................................................................................28 4.4. Test Procedure .............................................................................................................................29 4.5. Uncertainty ..................................................................................................................................29 4.6. Test Result of Radiated Emission................................................................................................30 5. RF antenna conducted test........................................................................................................48 5.1. Test Equipment............................................................................................................................48 5.2. Test Setup .....................…

Text truncated - open the document above for the full version.

Report No. 124286R-RFUSP42V01 Page: 77 of 113 ٛٛ Product : MOXA IEEE802.11 a/b/g mini PCI module Test Item : Band Edge Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) Fundamental Filed Strength Antenna Pole Frequency [MHz] Correction Factor [dB/m] Reading Level [dBuV] Emission Level [dBuV/m] Detector Horizontal 2462 32.019 54.39 86.409 Peak Horizontal 2462 32.019 50.44 82.459 Average Vertical 2462 31.29 70.92 102.21 Peak Vertical 2462 31.29 66.78 98.07 Average Note: 1: Spectrum Analyzer setting: Peak detector: RBW=1MHz, VBW=1MHz Average detector: RBW=1MHz, VBW=10Hz Band Edge Test Data Antenna Pole Test Frequency (MHz) Fundamental (dBuV/m) Δ (dB) Band Edge Field Strength (dBuV/m) Limit (dBuV/m) Detector Horizontal 2487.8 86.409 50.08 36.329 74.000 Peak Horizontal 2487.7 82.459 55.25 27.209 54.000 Average Vertical 2487.8 102.21 50.08 52.13 74.000 Peak Vertical 2487.7 98.07 55.25 42.82 54.000 Average Note: The Band Edge Field Strength was calculated using the Fundamental and Conducted Band Edge measurements per the Marker-Delta Method with the following formula: Band Edge field Strength = F - Δ F = Fundamental field Strength (Peak or Average) Δ = Conducted Band Edge Delta (Peak or Average) Report No. 124286R-RFUSP42V01 Page: 78 of 113 ٛٛ Peak Detector of conducted Band Edge Delta Average Detector of conducted Band Edge Delta Report No. 124286R-RFUSP42V01 Page: 79 of 113 ٛٛ Product : MOXA IEEE802.11 a/b/g mini PCI module Test Item : Band Edge Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) Fundamental Filed Strength Antenna Pole Frequency [MHz] Correction Factor [dB/m] Reading Level [dBuV] Emission Level [dBuV/m] Detector Horizontal 2412 31.639 60.48 92.118 Peak Horizontal 2412 31.639 49.06 80.698 Average Vertical 2412 30.95 75.17 106.119 Peak Vertical 2412 30.95 63.25 94.199 Average Note: 1: Spectrum Analyzer setting: Peak detector: RBW=1MHz, VBW=1MHz Average detector: RBW=1MHz, VBW=10Hz Band Edge Test Data Antenna Pole Test Frequency (MHz) Fundamental (dBuV/m) Δ (dB) Band Edge Field Strength (dBuV/m) Limit (dBuV/m) Detector Horizontal 2390 92.118 33.185 58.933 74.000 Peak Horizontal 2390 80.698 42.297 38.401 54.000 Average Vertical 2390 106.119 33.185 72.934 74.000 Peak Vertical 2390 94.199 42.297 51.902 54.000 Average Note: The Band Edge Field Strength was calculated using the Fundamental and Conducted Band Edge measurements per the Marker-Delta Method with the following formula: Band Edge field Strength = F - Δ F = Fundamental field Strength (Peak or Average…
