SLE-WAPA004MOXA IEEE802.11 a/b/g

Moxa IEEE 802.11a/b/g PCI Module WAPA004 User’s Manual www.moxa.com First Edition, January 2013 © 2013 Moxa Inc. All rights reserved. Reproduction without permission is prohibited. WAPA004 User’s Manual The hardware and software described in this manual is furnished under a license agreement and may be used only in accordance with the terms of that agreement. Copyright Notice Copyright © 2009 Moxa Inc. All rights reserved. Reproduction without permission is prohibited. Trademarks MOXA is a registered trademark of Moxa Inc. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer Information in this document is subject to change without notice and does not represent a commitment on the part of Moxa. Moxa provides this document “as is,” without warranty of any kind, either expressed or implied, including, but not limited to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this manual, or to the products and/or the programs described in this manual, at any time. Information provided in this manual is intended to be accurate and reliable. However, Moxa assumes no responsibility for its use, or for any infringements on the rights of third parties that may result from its use. This product might include unintentional technical or typographical errors. Changes are periodically made to the information herein to correct such errors, and these changes are incorporated into new editions of the publication. Technical Support Contact Information www.moxa.com/support Moxa Americas: Toll-free: 1-888-669-2872 Tel: +1-714-528-6777 Fax: +1-714-528-6778 Moxa China (Shanghai office): Toll-free: 800-820-5036 Tel: +86-21-5258-9955 Fax: +86-10-6872-3958 Moxa Europe : Tel: +49-89-3 70 03 99-0 Fax: +49-89-3 70 03 99-99 Moxa Asia-Pacific: Tel: +886-2-8919-1230 Fax: +886-2-8919-1231 Table of Contents Chapter 1 Introduction Overview Features Specification Chapter 2 Getting Started Module Layout Block Diagram Hardware Installation Software Installation WAPA004 User’s Manual Introduction 1 1 Chapter 1 Introduction The following topics are covered in this chapter: ‰ Overview ‰ Features ‰ Specifications WAPA004 User’s Manual Introduction Overview WAPA004 PCI Module is designed to provide wireless communication for all wireless device based systems. It communicates via the standard 802.11a/b/g protocols. The WAPA004 uses the AR5414 wireless chipset from Atheros. This module is connected to the PCI bus through a PCI connector and special circuitry to allow for compatibility with either 3.3V or 5V PCI signaling. . Features z Dynamic frequency selection (DFS) in required 5-GHz bands z All-CMOS MIMO solution interoperable with IEEE 802.11a/b/g WLANs z No external VCOs or SAW filters needed z 2.4/5 GHz WLAN MAC/BB processing z BPSK, QPSK, 16 QAM, 64 QAM, DBPSK,DQPSK, and CCK modulation schemes z 802.11e-compatible bursting z Wireless multimedia enhancements quality of service support (QoS) z 802.11e-compatible bursting z WEP, TKIP, and AES hardware encryption z Host interface PCI 2.3 and PC Card 7.1 compatible z IEEE 1149.1 standard test access port and boundary scan architecture supported z Case temperature 85°C WAPA004 User’s Manual Introduction Specification Features WAPA004 Chipset Atheros AR5414 Baseband Processor (BBP) - BPSK, QPSK, 16 QAM, 64 QAM, DBPSK, DQPSK, and CCK modulation schemes - Data rates of 6–54 Mbps for 802.11a, 1–54 Mbps for 802.11g, 1–11 Mbps for 802.11b, Atheros Super security engine WEP64,WEP128, WEP256, AES-CCM, TKIP ,WPS Bus Interface PCI 2.3 complaint Connectors Defined BTB connector is using 2x40 pins header, and Support PCI Express standard. Power requirement 1.2V +/-5% 1.8V +/-5% 3.3V +/-10% Dimension 50mm x 49mm x 1.2mm Weight 15g Operating Temperature -40 to +80 °C Storage Temperature: -40 to +150°C Operates in 2.4 and 5 GHz frequency bands. 2.4 GHz (2412~2462MHz (FCC), 2412~2472MHz (CE)) 5 GHz U-NII 5.15–5.35 GHz, 5.725–5.825 GHz ISM 5.725–5.850 GHz DSRC 5.850–5.925 GHz Europe 5.15–5.35 GHz, 5.47–5.725 GHz Japan 4.90–5.00 GHz, 5.03–5.091 GHz, 5.15–5.25 GHz 2 2 Chapter 2 Getting Started This chapter covers the module layout, and block diagram, hardware installation of the WAPA004. Software installation is covered in the next chapter. The following topics are covered: ‰ Module Layout ‰ Block Diagram ‰ Hardware Installation ‰ Software Installation WAPA004 User’s Manual Getting Started Module Layout WAPA004 User’s Manual Getting Started Connector Locations WAPA004 User’s Manual Getting Started PCI Bus Connector PIN Assignments WAPA004 User’s Manual Getting Started Hardware Installation The WAPA004 can be installed into all Moxa wireless system board series. Step for Installation 1. Attach the WLAN antenna to connector J1. 2. If using 2nd WLAN antenna, attach it to connector J2. 3. Install the WAPA004 PCI card on the system board. Apply pressure to both bus connectors and gently press the board onto the stack. The board should slide into the matching bus connectors. Do not attempt to force the board, as this can lead to bent/broken pins. 4. Screw on the WAPA004 PCI card. 5. If any power boards are to be stacked above the WAPA004, install them. 6. Screw on the all the necessary chassis. Software Installation After physically installing the WAPA004, your operating system must be configured to recognize the new system board. Step for Installation 1. Apply power to the system board. 2. Connect system board and PC with Ethernet cable. 3. Open a browser and type: 192.168.127.253 to open the system login webpage. 4. Login the webpage with default password: root in order to verify that all of the hardware is install properly. WAPA004 User’s Manual Getting Started Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection agains…

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: MOXA Inc. Address: 4TH FL 135 LANE 235 PAO CHIAO RD SHING TIEN DISTRICT NEW TAIPEI CITY City: Taipei }}}}}}}}}}}}}}}} . }}}}}}}} Country: Taiwan, R.O.C. }}}}}}}}}}}}}}}}}}}}} Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan Is authorized to apply for Certification of the following product(s): Product description: MOXA IEEE802.11 a/b/g mini PCI module Type designation: WAPA004 Trademark: MOXA on our behalf. Date: 2013/01/29 City: Taipei Name: Hung-Cheng Chao (2) Function: Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

MOXA Inc. FCC ID.: SLE-WAPA004 4TH FL 135 LANE 235 PAO CHIAO RD SHING TIEN DISTRICT NEW TAIPEI CITYTel : 886-2-8919-1230 MOXA Inc. 4TH FL 135 LANE 235 PAO CHIAO RD SHING TIEN DISTRICT NEW TAIPEI CITY Tel : 886-2-8919-1230 Fax: 886-2-8919-1231 Federal Communications Commission Jan. 29, 2013 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics: (WAPA004) Schem Block Diagram : (WAPA004) BlkDia Operational Description: (WAPA004) OPDes The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Hung-Cheng Chao / Manager MOXA Inc.

MOXA Inc. 4TH FL 135 LANE 235 PAO CHIAO RD SHING TIEN DISTRICT NEW TAIPEI CITY TEL No: +886-2-8919-1230 FAX No.: +886-2-8919-1231 Attestation for FCC Declaration of Conformity FCC ID: SLE-WAPA004 Data: Jan. 29, 2013 Please be notified that we, the undersigned, MOXA Inc., declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is 12B363R-RFUSP37V02. Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,Taipei City 114,Taiwan,R.O.C. which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, Hung-Cheng Chao / Manager MOXA Inc. TEL No: +886-2-8919-1230 FAX No.: +886-2-8919-1231 Email: [email protected]

MOXA Inc. FCC ID.: SLE-WAPA004 4TH FL 135 LANE 235 PAO CHIAO RD SHING TIEN DISTRICT NEW TAIPEI CITY Tel : 886-2-8919-1230 Federal Communications Commission Jan. 29, 2013 Authorization and Evaluation Division ATTESTATION FCC ID: SLE-WAPA004 Product: MOXA IEEE802.11 a/b/g mini PCI module ! Model: WAPA004 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, Hung-Cheng Chao / Manager MOXA Inc.

RF_734_00, Issue 1 Modular Approval Request FCC(per FCC 15.212) FCC ID: _SLE-WAPA004____ Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. Please review external photos 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The EUT has buffered data inputs, The part number is M24C32 (U9) 3. The modular transmitter must have its own power supply regulation.The EUT has power supply regulation, The part number is CXT2907A (Q1) 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. Please review external photos or test report 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Please review test setup photos 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Please refer to the user manual instructions 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). 1DPHDQGVXUQDPHRIDSSOLFDQW RUDXWKRUL]HGUHSUHVHQWDWLYH Hung-Cheng Chao  'DWH-DQBBB 6LJQDWXUHBBBBBBBBBBBBBBBBBBBBBBBBBBB

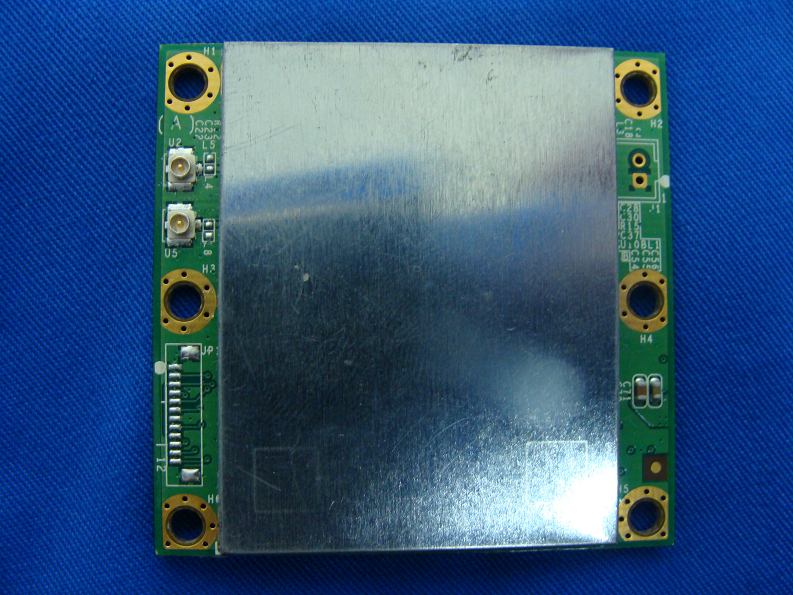

Report No.: 12B363R-RFUSP42V01 Page : 1 of 10 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

MOXA Inc. FCC ID.: SLE-WAPA004 4TH FL 135 LANE 235 PAO CHIAO RD SHING TIEN DISTRICT NEW TAIPEI CITY Tel : 886-2-8919-1230 The FCC ID Label will be placed on the equipment as shown in the photograph below.

MOXA Inc. FCC ID.: SLE-WAPA004 4TH FL 135 LANE 235 PAO CHIAO RD SHING TIEN DISTRICT NEW TAIPEI CITY Tel : 886-2-8919-1230 FCC ID Label

Report No.: 12B363R-RFUSP42V01 Page : 2 of 10 (3) EUT Photo (4) EUT Photo Report No.: 12B363R-RFUSP42V01 Page : 3 of 10 (5) EUT Photo (6) EUT Photo (Antenna / ANT-WDB-O-2 BK) Report No.: 12B363R-RFUSP42V01 Page : 4 of 10 (7) EUT Photo (Antenna / ANT-WDB-O-2 BK) (8) EUT Photo (Antenna / ANT-WDB-O-2 BK) Report No.: 12B363R-RFUSP42V01 Page : 5 of 10 (9) EUT Photo (Antenna / ANT-WDB-O-2 BK) (10) EUT Photo (Antenna / ANT-WDB-O-2 BK) Report No.: 12B363R-RFUSP42V01 Page : 6 of 10 (11) EUT Photo (Antenna / ANT-WDB-O-2 BK) (12) EUT Photo (Antenna / ANT-WDB-O-2 BK) Report No.: 12B363R-RFUSP42V01 Page : 7 of 10 (13) EUT Photo (Antenna / ANT-WDB-ANM-0502 ) (14) EUT Photo (Antenna / ANT-WDB-ANM-0502 ) Report No.: 12B363R-RFUSP42V01 Page : 8 of 10 (15) EUT Photo (Antenna / ANT-WDB-ANM-0502 ) (16) EUT Photo (Antenna / ANT-WDB-ANM-0502 ) Report No.: 12B363R-RFUSP42V01 Page : 9 of 10 (17) EUT Photo (Antenna / ANT-WDB-ANM-0502 ) (18) EUT Photo (Antenna / ANT-WDB-ANM-0502 ) Report No.: 12B363R-RFUSP42V01 Page : 10 of 10 (19) EUT Photo (Antenna / ANT-WDB-ANM-0502 )

Report No. 12B363R-RFUSP42V01 Page: 1 of 4 RF Exposure Evaluation declaration Product Name MOXA IEEE802.11 a/b/g mini PCI module Model No. WAPA004 FCC ID SLE-WAPA004 Applicant MOXA Inc. Address 4TH FL 135 LANE 235 PAO CHIAO RD SHING TIEN DISTRICT NEW TAIPEI CITY Date of Receipt Apr. 12, 2012 Date of Declaration Jan. 03, 2013 Report No. 12B363R-RFUSP42V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 12B363R-RFUSP42V01 Page: 2 of 4 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 12B363R-RFUSP42V01 Page: 3 of 4 1.3. Test Result of RF Exposure Evaluation Product : MOXA IEEE802.11 a/b/g mini PCI module Test Item : RF Exposure Evaluation Test Site : No.3 OATS (802.11b) Output Power Into Antenna & RF Exposure Evaluation Distance (4.62dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 65.7658 0.037908 06 2437.00 60.2560 0.034732 11 2462.00 62.8058 0.036202 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). (802.11g) Output Power Into Antenna & RF Exposure Evaluation Distance (4.62dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 201.8366 0.116340 06 2437.00 190.5461 0.109832 11 2462.00 193.6422 0.111617 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). (802.11a) Output Power Into Antenna & RF Exposure Evaluation Distance (2.34dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 149 5745 87.7001 0.029904 157 5785 74.9894 0.025570 165 5825 66.6807 0.022737 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). Report No. 12B363R-RFUSP42V01 Page: 4 of 4 (802.11a) Output Power Into Antenna & RF Exposure Evaluation Distance (2.34dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 36 5180.00 13.6458 0.004653 44 5220.00 13.5519 0.004621 48 5240.00 13.2130 0.004505 52 5260.00 12.3595 0.004214 60 5300.00 11.5878 0.003951 64 5320.00 11.0917 0.003782 100 5500.00 21.1349 0.007207 120 5600.00 20.5116 0.006994 140 5700.00 20.5116 0.006994 Power density in column 4 is much lower than the limit (1 mW/cm 2 ). (5.8GHz) Output Power Into Antenna & RF Exposure Evaluation Distance (2.34dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 172 5860.00 13.6458 0.004653 176 5880.00 13.5519 0.004621 180 5900.00 13.2130 0.004505 Power density in column 4 is much lower than the limit (1 mW/cm 2 ).

Report No. 12B363R-RFUSP42V01 Page : 1 of 89 Test Report Product Name MOXA IEEE802.11 a/b/g mini PCI module Model No WAPA004 FCC ID. SLE-WAPA004 Applicant MOXA Inc. Address 4TH FL 135 LANE 235 PAO CHIAO RD SHING TIEN DISTRICT NEW TAIPEI CITY Date of Receipt Nov. 22, 2012 Issue Date Jan. 21, 2013 Report No. 12B363R-RFUSP42V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 12B363R-RFUSP42V01 Page : 2 of 89 Test Report Certification Issue Date: Jan. 21, 2013 Report No.: 12B363R-RFUSP42V01 Product Name MOXA IEEE802.11 a/b/g mini PCI module Applicant MOXA Inc. Address 4TH FL 135 LANE 235 PAO CHIAO RD SHING TIEN DISTRICT NEW TAIPEI CITY Manufacturer MOXA Inc. Model No. WAPA004 EUT Rated Voltage DC 3.3V (Power by PCI-E) EUT Test Voltage AC 120V/60Hz Trade Name MOXA Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2012 ANSI C63.4: 2003, ANSI C63.10: 2009 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Rita Huang ) Tested By : ( Engineer / Alan Chen ) Approved By : ( Manager / Vincent Lin ) Report No. 12B363R-RFUSP42V01 Page : 3 of 89 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................6 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................16 3.1. Test Equipment............................................................................................................................16 3.2. Test Setup ....................................................................................................................................16 3.3. Limits ..........................................................................................................................................16 3.4. Test Procedure .............................................................................................................................16 3.5. Uncertainty ..................................................................................................................................16 3.6. Test Result of Peak Power Output...............................................................................................17 4. Radiated Emission .....................................................................................................................20 4.1. Test Equipment............................................................................................................................20 4.2. Test Setup ....................................................................................................................................21 4.3. Limits ..........................................................................................................................................22 4.4. Test Procedure .............................................................................................................................23 4.5. Uncertainty ..................................................................................................................................23 4.6. Test Result of Radiated Emission................................................................................................24 5. RF antenna conducted test........................................................................................................36 5.1. Test Equipment............................................................................................................................36 5.2. Test Setup .......................................…

Text truncated - open the document above for the full version.

Report No. 12B363R-RFUSP42V01 Page: 67 of 89 7. Occupied Bandwidth 7.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2012 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2012 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2012 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 7.2. Test Setup 7.3. Limits The minimum bandwidth shall be at least 500 kHz. 7.4. Test Procedure The EUT was setup according to ANSI C63.10: 2009; tested according to DTS test procedure of ANSI C63.10: 2009 for compliance to FCC 47CFR 15.247 requirements. Set RBW = 1-5% of the emission bandwidth, VBW≥3*RBW 7.5. Uncertainty ± 150Hz SMA EUT Spectrum Analyzer RF Cable Report No. 12B363R-RFUSP42V01 Page: 68 of 89 7.6. Test Result of Occupied Bandwidth Product : MOXA IEEE802.11 a/b/g mini PCI module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412.00 12250 >500 Pass Figure Channel 1: Report No. 12B363R-RFUSP42V01 Page: 69 of 89 Product : MOXA IEEE802.11 a/b/g mini PCI module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437.00 12250 >500 Pass Figure Channel 6: Report No. 12B363R-RFUSP42V01 Page: 70 of 89 Product : MOXA IEEE802.11 a/b/g mini PCI module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462.00 12300 >500 Pass Figure Channel 11: Report No. 12B363R-RFUSP42V01 Page: 71 of 89 Product : MOXA IEEE802.11 a/b/g mini PCI module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412.00 16550 >500 Pass Figure Channel 1: Report No. 12B363R-RFUSP42V01 Page: 72 of 89 Product : MOXA IEEE802.11 a/b/g mini PCI module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437.00 16500 >500 Pass Figure Channel 6: Report No. 12B363R-RFUSP42V01 Page: 73 of 89 Product : MOXA IEEE802.11 a/b/g mini PCI module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462.00 16550 >500 Pass Figure Channel 11: Report No. 12B363R-RFUSP42V01 Page: 74 of 89 Product : MOXA IEEE802.11 a/b/g mini PCI module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11a 6Mbps) (5745MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 149 5745.00 16550 >500 Pass Figure Channel 149: Report No. 12B363R-RFUSP42V01 Page: 75 of 89 Product : MOXA IEEE802.11 a/b/g mini PCI module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11a 6Mbps) (5785MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 157 5785.00 16450 >500 Pass Figure Channel 157: Report No. 12B363R-RFUSP42V01 Page: 76 of 89 Product : MOXA IEEE802.11 a/b/g mini PCI module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11a 6Mbps) (5825MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 165 5825.00 16450 >500 Pass Figure Channel 165: Report No. 12B363R-RFUSP42V01 Page: 77 of 89 8. Power Density 8.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2012 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2012 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2012 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 8.2. Test Setup 8.3. Limits The transmitted power density averaged over any 1 second interval shall not be greater +8dBm in any 3kHz bandwidth. 8.4. Test Procedure The EUT was setup according to ANSI C63.10: 2009; tested according to DTS test procedure of ANSI C63.10: 2009 for compliance to FCC 47CFR 15.247 requirements. Set RBW= 100 kHz, VBW≥300KHz, SPAN to 5-30 % greater than the EBW, Scale the observed power level to an equivalent value in 3 kHz by adjusting (reducing) the measured power by a bandwidth correction factor (BWCF) where BWCF = 10log (3 kHz/100 kHz = -15.…

Text truncated - open the document above for the full version.
