SLE-WAPN001Moxa IEEE 802.11a/b/g/n MiniPCI Module

Moxa IEEE 802.11a/b/g/n MiniPCI Module WAPN001 User’s Manual www.moxa.com First Edition, July 2010 © 2009 Moxa Inc. All rights reserved. Reproduction without permission is prohibited. WAPN001 User’s Manual The hardware and software described in this manual is furnished under a license agreement and may be used only in accordance with the terms of that agreement. Copyright Notice Copyright © 2009 Moxa Inc. All rights reserved. Reproduction without permission is prohibited. Trademarks MOXA is a registered trademark of Moxa Inc. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer Information in this document is subject to change without notice and does not represent a commitment on the part of Moxa. Moxa provides this document “as is,” without warranty of any kind, either expressed or implied, including, but not limited to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this manual, or to the products and/or the programs described in this manual, at any time. Information provided in this manual is intended to be accurate and reliable. However, Moxa assumes no responsibility for its use, or for any infringements on the rights of third parties that may result from its use. This product might include unintentional technical or typographical errors. Changes are periodically made to the information herein to correct such errors, and these changes are incorporated into new editions of the publication. Technical Support Contact Information www.moxa.com/support Moxa Americas: Toll-free: 1-888-669-2872 Tel: +1-714-528-6777 Fax: +1-714-528-6778 Moxa China (Shanghai office): Toll-free: 800-820-5036 Tel: +86-21-5258-9955 Fax: +86-10-6872-3958 Moxa Europe : Tel: +49-89-3 70 03 99-0 Fax: +49-89-3 70 03 99-99 Moxa Asia-Pacific: Tel: +886-2-8919-1230 Fax: +886-2-8919-1231 Table of Contents Chapter 1 Introduction Overview Features Specification Chapter 2 Getting Started Module Layout Block Diagram Hardware Installation Software Installation WAPN001 User’s Manual Introduction 1 1 Chapter 1 Introduction The following topics are covered in this chapter: ‰ Overview ‰ ‰ Features ‰ Specifications WAPN001 User’s Manual Introduction Overview WAPN001Mini-PCI Module is designed to provide wireless communication for all wireless device based systems. It communicates via the standard 802.11a/b/g/n protocols. The WAPN001 uses the AR9220 wireless chipset from Atheros. This module is connected to the PCI bus through a Mini-PCI connector and special circuitry to allow for compatibility with either 3.3V or 5V PCI signaling. . Features z Dynamic frequency selection (DFS) in required 5-GHz bands z All-CMOS MIMO solution interoperable with IEEE 802.11a/b/g/n WLANs z 2x2 MIMO technology improves effective throughput and range over existing 802.11a/b/g products z Supports spatial multiplexing, cyclic-delay diversity (CDD), and maximal ratio combining (MRC) z 2.4/5 GHz WLAN MAC/BB processing z BPSK, QPSK, 16 QAM, 64 QAM, DBPSK,DQPSK, and CCK modulation schemes z Data rates of up to 144.4 Mbps for 20 MHz channels and 300 Mbps for 40 MHz channels z Wireless multimedia enhancements quality of service support (QoS) z 802.11e-compatible bursting z WEP, TKIP, and AES hardware encryption z 337-pin, 12 mm x 12 mm BGA package z Case temperature 85°C WAPN001 User’s Manual Introduction Specification Features WAPN001 Chipset Atheros AR9220 Baseband Processor (BBP) ̇ DSS with DBPSK, DQPSK, CCK ̇ OFDM with BPSK, QPSK, 16QAM, 64QAM ̇ 802.11b: CCK@11/5.5 Mbps, DQPSK@2 Mbps, DBPSK@11 Mbps ̇ 802.11a/g: 64QAM@54/48 Mbps, 16QAM@36/24 Mbps, QPSK@18/12 Mbps BPSK@9/6 Mbps ̇ 802.11n: 64QAM@300 to [email protected] Mbps (multiple rates supported) security engine WEP64,WEP128, WEP256, AES-CCM, TKIP ,WPS Bus Interface Mini PCI standard bus complaint Connectors Defined BTB connector is using 2x40 pins header, and Support Mini-PCI standard. Power requirement 1.2V +/-5% 1.8V +/-5% 3.3V +/-10% Dimension 50mm x 49mm x 1.2mm Weight 15g Operating Temperature -40 to +80 °C Storage Temperature: -40 to +150°C 2 2 Chapter 2 Getting Started This chapter covers the module layout, and block diagram, hardware installation of the WAPN001. Software installation is covered in the next chapter. The following topics are covered: ‰ Module Layout ‰ Block Diagram ‰ Hardware Installation ‰ Software Installation WAPN001 User’s Manual Getting Started Module Layout WAPN001 User’s Manual Getting Started Block Diagram Below is a block diagram of the WAPN001. Primary board components are in bold, while external connections are italicized. WAPN001 User’s Manual Getting Started Connector Locations WAPN001 User’s Manual Getting Started MiniPCI Bus Connector PIN Assignments AD30 3.3V_CON PCI_INT_L PCI_GNT_L AD31 PCI_CBE2_L AD1 PCI_CBE3_L AD3 PCI_PME_L PCI_CBE1_L AD5 PCI_RST_L AD7 AD0 AD8 MPC I _12 MPC I _11 AD4 AD10 AD2 RF_DISABLE AD6 PCI_CLK PCI_REQ_L AD9 AD12 PCI_CBE0_L AD14 AD13 AD11 PCI_PERR_L PCI_DEVSEL_L AD15 PCI_SERR_L AD17 R9 R0603 187 GPIO_5 AD19 3.3V AD21 PCI_TRDY _L PCI_STOP_L PCI_IRDY_LAD23 AD16 PCI_CLKRUN_L PCI_FRAME_L R8 R0603 187 3.3V AD18 J1 DEFINE BOARD EDGE 3.3V-3 6 INTA# 34 GND-7 72 3.3VAUX 18 CLK 30 RST# 28 GND-5 60 3.3V-4 8 REQ# 36 GNT# 38 3.3V-6 12 GND-11 22 AD31 63 PME# 68 AD29 59 GND-13 26 AD30 61 AD27 55 3.3V-5 10 AD25 51 AD28 57 AD26 53 CBE3# 75 AD24 49 AD23 47 IDSEL 66 GND-4 58 GND-15 44 AD21 43 AD22 45 AD19 39 AD20 41 GND-3 56 PAR 46 AD17 35 AD18 37 CBE2# 73 AD16 33 IRDY# 48 GND-12 24 3.3V 2 FRAME# 52 CLKRUN# 32 TRDY# 50 SERR# 62 STOP# 54 GND-8 74 3.3V-7 14 PERR# 40 DEVSEL# 64 CBE1# 71 GND-14 42 AD14 29 AD15 31 AD13 27 AD12 25 AD11 23 AD10 21 GND-9 76 AD9 19 AD8 17 CBE0# 69 AD7 15 3.3V-8 16 3.3V-2 4 AD6 13 AD5 11 AD4 9 AD2 5 AD3 7 AD0 1 AD1 3 GND-6 70 LED1-GRNN 78 GND-1 67 GND 65 3.3VAUX-1 20 LED1-GRNP 77 LED2-Y ELP 79 LED2-Y ELN 80 PCI_PAR AD25 3.3V_AUX AD27 AD22 AD20 AD29 AD24 MPCI_14 PCI_IDSEL_L AD28 AD26 R26 R0402 R WAPN001 User’s Manual Getting Started Hardware Installat…

Text truncated - open the document above for the full version.

Moxa Inc. FCC ID.: SLE-WAPN001 Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Tel : +886-2-89191230 Federal Communications Commission July 20 , 2010 Authorization and Evaluation Division ATTESTATION FCC ID: SLE-WAPN001 Product: Moxa IEEE 802.11a/b/g/n MiniPCI Module Model: WAPN001 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, -------------------------------------------------------- Hung-Cheng Chao / Senior Manager Moxa Inc.

Moxa Inc. FCC ID.: SLE-WAPN001 Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Tel : +886-2-89191230 Moxa Inc. Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Tel : +886-2-89191230 Fax: +886-2-89191231 Gentlemen: Regarding to the FCC 15.212, Moxa Inc..would like to request modular approval for the submission FCC ID: SLE-WAPN001. Moxa Inc.. confirms that the product complies with numbered requirements identified below: 1. The modular transmitter have its own RF shielding. 2. The modular transmitter have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over- modulation. 3. The modular transmitter have its own power supply regulation. 4. The modular transmitter complies with the antenna requirements of Section 15.203 and 15.204(c). 5. The modular transmitter is tested in a stand-alone configuration. 6. The modular transmitter is labeled with its own FCC ID number 7. The modular transmitter complies with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. 8. The modular transmitter complies with any applicable RF exposure requirements. Sincerely, ------------------------------------------------------- Hung-Cheng Chao / Senior Manager Moxa Inc.

Moxa Inc. FCC ID.: SLE-WAPN001 Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Tel : +886-2-89191230 Moxa Inc. Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Tel : +886-2-89191230 Fax: +886-2-89191231 Federal Communications Commission July 20 , 2010 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics: (WAPN001) Schem Block Diagram : (WAPN001) BlkDia The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application.

RF_160, Issue 02 Moxa Inc. Declaration of Authorization We Name: Moxa Inc. Address: Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. City: Taipei ............................................................... . Country: Taiwan ..................................................................... . Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Moxa IEEE 802.11a/b/g/n MiniPCI Module Type designation: WAPN001 Trademark: MOXA on our behalf. Date: ...... 2010/07/20 ...... .. City: ...... Taipei ............... .. Name: ...... Hung-Cheng Chao ...... .. (2) Function: Senior Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

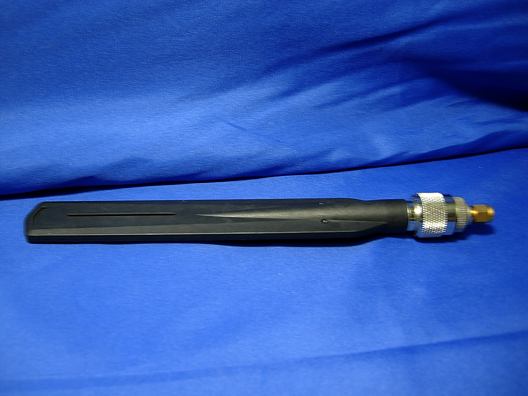

Report No.: 107007R-RFUSP42V01 Page : 1 of 3 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

Moxa Inc. FCC ID.: SLE-WAPN001 Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Tel : +886-2-89191230 FCC ID Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below.

Report No.: 107007R-RFUSP42V01 Page : 2 of 3 (3) EUT Photo (4) EUT Photo Report No.: 107007R-RFUSP42V01 Page : 3 of 3 (5) EUT Photo (6) EUT Photo

Report No. 107007R-RFUSP46V01 Page: 7 of 188 1.2. Operational Description The EUT is a Moxa IEEE 802.11a/b/g/n MiniPCI Module with a built-in 2.4GHz and 5GHz WLAN card. This device provided four kinds of transmitting speed 1, 2, 5.5 and 11Mbps and the device of RF carrier is DBPSK, DQPSK and CCK (IEEE 802.11b). The device provided of eight kinds of transmitting speed 6, 9, 12, 18, 24, 36, 48 and 54Mbps the device of RF carrier is BPSK, QPSK, 16QAM and 64QAM (IEEE 802.11a/g). The device provided of eight kinds of transmitting speed 14.4,28.8,43.4,57.8,86.6,115.6,130 and 144.4Mbps in 802.11n(20M-BW) mode and 30,60,90,120,180,240,270 and 300 Mbps(40M-BW) the device of RF carrier is BPSK, QPSK, 16QAM and 64QAM (IEEE 802.11n), the IEEE 802.11n is Multiple In, Multiple Out” (MIMO) technology. The device adapts direct sequence spread spectrum modulation. The antenna provides diversity function to improve the receiving function and the antennas to support 2(Transmit) × 2(Receive) MIMO technology. This Moxa IEEE 802.11a/b/g/n MiniPCI Module, compliant with IEEE 802.11b and IEEE 802.11a/g/n, is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz/5GHz Direst Sequence Spread Spectrum (DSSS) radio transmission, the Moxa IEEE 802.11a/b/g/n MiniPCI Module Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b and IEEE 802.11a/g/n network. The Device no radar detection and no ad-hoc operation in the DFS band, another information please refer to users manual

Report No. 107007R-RFUSP46V01 Page: 1 of 5 RF Exposure Evaluation declaration Product Name Moxa IEEE 802.11a/b/g/n MiniPCI Module Model No. WAPN001 FCC ID SLE-WAPN001 Applicant Moxa Inc. Address Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Date of Receipt June 28, 2010 Date of DeclarationAug. 04, 2010 Report No. 107007R-RFUSP46V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 107007R-RFUSP46V01 Page: 2 of 5 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 107007R-RFUSP46V01 Page: 3 of 5 1.3. Test Result of RF Exposure Evaluation Product : Moxa IEEE 802.11a/b/g/n MiniPCI Module Test Item : RF Exposure Evaluation Test Site : No.3 OATS Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2 dBi in logarithm scale. 802.11a Output Power Into Antenna & RF Exposure Evaluation Distance ( 2 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 36 5180 45.0817 0.014214 44 5220 47.2063 0.014884 48 5240 49.2040 0.015514 802.11a Output Power Into Antenna & RF Exposure Evaluation Distance ( 2 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 52 5260 50.1187 0.015803 60 5300 53.7032 0.016933 64 5320 49.4311 0.015586 802.11a Output Power Into Antenna & RF Exposure Evaluation Distance ( 2 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 100 5500 49.6592 0.015658 120 5600 49.7737 0.015694 140 5700 10.0693 0.003175 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement. Report No. 107007R-RFUSP46V01 Page: 4 of 5 802.11n-20BW Output Power Into Antenna & RF Exposure Evaluation Distance ( 2 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 36 5180 20.5589 0.006482 44 5220 20.8930 0.006588 48 5240 20.2302 0.006379 802.11n-20BW Output Power Into Antenna & RF Exposure Evaluation Distance ( 2 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 52 5260 20.0447 0.006320 60 5300 20.3704 0.006423 64 5320 21.1836 0.006679 802.11n-20BW Output Power Into Antenna & RF Exposure Evaluation Distance ( 2 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 100 5500 20.5116 0.006467 120 5600 20.4174 0.006438 140 5700 20.0447 0.006320 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement. Report No. 107007R-RFUSP46V01 Page: 5 of 5 802.11n-40BW Output Power Into Antenna & RF Exposure Evaluation Distance ( 2 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 38 5190 20.3236 0.006408 46 5230 20.1372 0.006349 802.11n-40BW Output Power Into Antenna & RF Exposure Evaluation Distance (2 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 54 5270 20.4174 0.006438 62 5310 19.7242 0.006219 802.11n-40BW Output Power Into Antenna & RF Exposure Evaluation Distance (2 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 102 5510 21.3796 0.006741 118 5590 22.3872 0.007059 134 5670 21.0863 0.006649 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement.

Report No. 107007R-RFUSP46V01-A Page: 1 of 29 Dynamic Frequency Selection (DFS) Test Report Product Name Moxa IEEE 802.11a/b/g/n MiniPCI Module Model No WAPN001 FCC ID SLE-WAPN001 Applicant Moxa Inc. Address Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Date of Receipt June 28, 2010 Issued Date July 15, 2010 Report No. 107007R-RFUSP46V01-A Report Version V1.0 Report No. 107007R-RFUSP46V01-A Page: 2 of 29 DFS Test Report Issued Date: July 15, 2010 Report No.: 107007R-RFUSP46V01-A The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name Moxa IEEE 802.11a/b/g/n MiniPCI Module Applicant Moxa Inc. Address Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Manufacturer Moxa Inc. Model No. WAPN001 FCC ID. SLE-WAPN001 EUT Rated Voltage DC 3.3V/2A EUT Test Voltage AC 120V/60Hz Trade Name MOXA Applicable Standard FCC CFR Title 47 Part 15 Subpart E 15.407 (h): 2009 FCC 06-96 Test Result Complied Documented By : ( Senior Adm. Specialist / Rita Huang ) Tested By : ( Vice Supervisor / Tom Hsieh ) Approved By : ( Manager / Vincent Lin ) Report No. 107007R-RFUSP46V01-A Page: 3 of 29 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION........................................................................................................... 4 1.1. Standard Requirement....................................................................................................................................................................4 1.2. EUT Description ............................................................................................................................................................................5 1.3. UNII Device Description ...............................................................................................................................................................7 1.4. Test Equipment ..............................................................................................................................................................................8 1.5. Test Setup ......................................................................................................................................................................................8 1.6. DFS Detection Thresholds.............................................................................................................................................................9 1.7. Radar Test Waveforms .................................................................................................................................................................10 1.8. Radar Waveform Calibration .......................................................................................................................................................13 1.9. Radar Waveform Calibration Result ............................................................................................................................................14 1.10. Master Data Traffic Plot Result ...................................................................................................................................................16 2. IN-SERVICE MONITORING FOR CHANNEL MOVE TIME AND CHANNEL CLOSING TRANSMISSION TIME AND NON-OCCUPANCY PERIOD ............................................................... 17 2.1. Test Procedure .............................................................................................................................................................................17 2.2. Test Requirement .........................................................................................................................................................................17 2.3. Uncertainty ..................................................................................................................................................................................17 2.4. Test Result of Channel Move Time and Channel Closing Transmission Time and Non-Occupancy Period ...............................18 3. DFS TEST SETUP PHOTO ........................................................................................................ 28 Attachment 1: EUT Test Photographs Report No. 107007R-RFUSP46V01-A Page: 4 of 29 1. GENERAL INFORMATION 1.1. Standard Requirement FCC Part 15.407: U-NII devices operating in the 5.25-5.35 GHz band and the 5.47-5.725 GHz band shall employ a TPC mechanism. The U-NII device is required to have the capability to operate at least 6 dB below the mean EIRP value of 30dBm. A TPC mechanism is not required for systems with an E.I.R.P. of less than 500mW. U-NII devices operating in the 5.25-5.35 GHz and 5.47-5.725 GHz bands shall employ a DFS radar detection mechanism to detect the presence of radar systems and to avoid co-channel operation with radar systems. Report No. 107007R-RFUSP46V01-A Page: 5 of 29 1.2. EUT Description Product Name Moxa IEEE 802.11a/b/g/n MiniPCI Module Trade Name MOXA FCC ID. SLE-WAPN001 Model No. WAPN001 DFS Frequency Range 5260-5320MHz, 5500-5700MHz Number of Channels 802.11a/n-20MHz: 19; 802.11n-40MHz: 9 Data Rate 802.11a: 6-54Mbps 802.11n: 6.5-300Mbps Channel Control Auto Type of Modulation 802.11a/n:OFDM BPSK, QPSK, 16QAM, 64QAM Channel Bandwidth 20/40MHz DFS Function □ Master ■ Slave TPC Function ■ <500mW not required □ ≧ 500mW employ a TPC Communication Mode ■ IP Based Systems □ Frame Based System □ Other System Antenna type Dipo…

Text truncated - open the document above for the full version.

Report No. 107007R-RFUSP46V01 Page: 1 of 188 Test Report Product Name Moxa IEEE 802.11a/b/g/n MiniPCI Module Model No WAPN001 FCC ID SLE-WAPN001 Applicant Moxa Inc. Address Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Date of Receipt June 28, 2010 Issued Date Aug. 04, 2010 Report No. 107007R-RFUSP46V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 107007R-RFUSP46V01 Page: 2 of 188 Test Report Certification Issued Date: Aug. 04, 2010 Report No.: 107007R-RFUSP46V01 The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name Moxa IEEE 802.11a/b/g/n MiniPCI Module Applicant Moxa Inc. Address Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Manufacturer Moxa Inc. Model No. WAPN001 FCC ID. SLE-WAPN001 EUT Rated Voltage DC 3.3V/2A EUT Test Voltage AC 120V/60Hz Trade Name MOXA Applicable Standard FCC CFR Title 47 Part 15 Subpart E: 2009 ANSI C63.4: 2003 Test Result Complied Documented By : ( Senior Adm. Specialist / Rita Huang ) Tested By : ( Engineer / Joe Guo ) Approved By : ( Manager / Vincent Lin ) Report No. 107007R-RFUSP46V01 Page: 3 of 188 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Datails....................................................................................................................8 1.4. Configuration of tested System .....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................9 1.6. Test Facility .................................................................................................................................10 2. Conducted Emission.................................................................................................................. 11 2.1. Test Equipment............................................................................................................................11 2.2. Test Setup ....................................................................................................................................11 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................12 2.5. Uncertainty ..................................................................................................................................12 2.6. Test Result of Conducted Emission.............................................................................................13 3. Peak Transmit Power ................................................................................................................19 3.1. Test Equipment............................................................................................................................19 3.2. Test Setup ....................................................................................................................................19 3.3. Limits ..........................................................................................................................................20 3.4. Test Procedur ...............................................................................................................................20 3.5. Uncertainty ..................................................................................................................................20 3.6. Test Result of Peak Transmit Power............................................................................................21 4. Peak Power Spectral Density....................................................................................................49 4.1. Test Equipment............................................................................................................................49 4.2. Test Setup ....................................................................................................................................49 4.3. Limits ..........................................................................................................................................49 4.4. Test Procedure .............................................................................................................................50 4.5. Uncertainty ..................................................................................................................................50 4.6. Test Result of Peak Power Spectral Density ...............................................................................51 5. Peak Excursion ..........................................................................................................................65 5.1. Test Equipment............................................................................................................................65 5.2. Test Setup ...................................…

Text truncated - open the document above for the full version.

Report No. 107007R-RFUSP46V01 Page: 49 of 188 4. Peak Power Spectral Density 4.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2010 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2010 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2010 X 8-WAY Power Divider JFW 50PD-647 / 526770 0916 Apr., 2010 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 3. The power combiner is used for measure 11n mode. 4.2. Test Setup 4.3. Limits (4) For the band 5.15-5.25 GHz, the peak power spectral density shall not exceed 4 dBm in any 1-MHz band. If transmitting antenna of directional gain greater than 6 dBi are used, th…

Text truncated - open the document above for the full version.
