SLE-WAPN005MOXA IEEE 802.11 a/b/g/n Wireless

Moxa IEEE 802.11a/b/g/n Wireless Module WAPN005 User’s Manual First Edition, April 2014 www.moxa.com/product © 2014 Moxa Inc. All rights reserved. Moxa IEEE 802.11a/b/g/n Wireless Module WAPN005 User’s Manual The software described in this manual is furnished under a license agreement and may be used only in accordance with the terms of that agreement. Copyright Notice © 2014 Moxa Inc. All rights reserved. Trademarks The MOXA logo is a registered trademark of Moxa Inc. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer Information in this document is subject to change without notice and does not represent a commitment on the part of Moxa. Moxa provides this document as is, without warranty of any kind, either expressed or implied, including, but not limited to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this manual, or to the products and/or the programs described in this manual, at any time. Information provided in this manual is intended to be accurate and reliable. However, Moxa assumes no responsibility for its use, or for any infringements on the rights of third parties that may result from its use. This product might include unintentional technical or typographical errors. Changes are periodically made to the information herein to correct such errors, and these changes are incorporated into new editions of the publication. Technical Support Contact Information www.moxa.com/support Moxa Americas Toll-free: 1-888-669-2872 Tel: +1-714-528-6777 Fax: +1-714-528-6778 Moxa Europe Tel: +49-89-3 70 03 99-0 Fax: +49-89-3 70 03 99-99 Moxa India Tel: +91-80-4172-9088 Fax: +91-80-4132-1045 Moxa China (Shanghai office) Toll-free: 800-820-5036 Tel: +86-21-5258-9955 Fax: +86-21-5258-5505 Moxa Asia-Pacific Tel: +886-2-8919-1230 Fax: +886-2-8919-1231 Table of Contents 1. Introduction...................................................................................................................................... 1-1 Overview ........................................................................................................................................... 1-2 Features ............................................................................................................................................ 1-2 Specifications ..................................................................................................................................... 1-2 2. Getting Started................................................................................................................................. 2-1 Module Layout.................................................................................................................................... 2-2 Hardware Block Diagram ..................................................................................................................... 2-3 Connector Location ............................................................................................................................. 2-3 Board-to-board Bus Connector PIN Assignments..................................................................................... 2-4 Hardware Installation .......................................................................................................................... 2-5 Software Installation ........................................................................................................................... 2-5 A. Regulatory Statement Approval ........................................................................................................ A-1 1 1. Introduction This chapter briefly introduces the overview, features and the specifications of the WAPN005 wireless module. The following topics are covered in this chapter:  Overview  Features  Specifications WAPN005 User's Manual Introduction Overview Moxa WAPN005 module is designed to provide wireless communication for all wireless device based systems. It communicates via the standard 802.11a/b/g/n protocols, and uses the AR9344 wireless chipset from Atheros. Features  Dynamic frequency selection (DFS) in required 5-GHz bands  All-CMOS MIMO solution interoperable with IEEE 802.11a/b/g/n WLANs  No external VCOs or SAW filters needed  2.4/5 GHz WLAN MAC/BB processing  BPSK, QPSK, 16 QAM, 64 QAM, DBPSK,DQPSK, and CCK modulation schemes  802.11e-compatible bursting  Wireless multimedia enhancements quality of service supported (QoS)  802.11e-compatible bursting  WEP, TKIP, and AES hardware encryption  IEEE 1149.1 standard test access port and boundary scan architecture supported  Case temperature 85°C Specifications 1-2 Features WAPN005 Specifications Chipset Atheros AR9344 Baseband Processor (BBP) ·DSSS with DBPSK, DQPSK, CCK ·OFDM with BPSK, QPSK, 16QAM, 64QAM ·802.11b: CCK @ 11/5.5 Mbps, DQPSK @ 2 Mbps,DBPSK @ 11 Mbps ·802.11a/g: 64QAM @ 54/48 Mbps, 16QAM @ 36/24 Mbps, QPSK @ 18/12 Mbps, BPSK @ 9/6 Mbps ·802.11n: 64QAM @ 300 Mbps to BPSK @ 6.5 Mbps (multiple rates supported) Security Engine WEP64,WEP128, WEP256, AES-CCM, TKIP ,WPS Bus Interface Moxa proprietary interface Connector Board-to-board 2 x 40 pins header Power Requirement 3.3V +/-10% Dimensions 60 x 60 x 12 mm (2.36 x 2.36 x 0.47 in) Weight 15 g Operating Temperature -40 to 75°C Storage Temperature: -40 to 85°C Operates in 2.4 and 5 GHz frequency bands. US: 2.412 to 2.462 GHz (11 channels) 5.180 to 5.320 GHz (8 channels) 5.500 to 5.700 GHz (8 channels - excludes 5.600 to 5.640 GHz) 5.745 to 5.825 GHz (5 channels) EU: 2.412 to 2.472 GHz (13 channels) 5.180 to 5.320 GHz (8 channels) 5.500 to 5.700 GHz (11 channels) JP: 2.412 to 2.484 GHz (14 channels, DSSS) 5.180 to 5.320 GHz (8 channels) 5.500 to 5.700 GHz (11 channels) WAPN005 User's Manual Introduction 1-3 2 2. Getting Started This chapter describes the hardware introduction, installation, and software installation. The following topics are covered in th…

Text truncated - open the document above for the full version.

Moxa Inc. FCC ID.: SLE-WAPN005 4F,No.135, Lane 235, BAOQIAO Rd. XINDIAN DIST.,NEW TAIPEI CITY, Taiwan Tel : 886-2-8919-1230 Federal Communications Commission Apr. 21, 2014 Authorization and Evaluation Division ATTESTATION FCC ID: SLE-WAPN005 Product: MOXA IEEE 802.11a/b/g/n Wireless Model: WAPN005 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ------------------------------------------------------ Lea-Ming Tseng / Manager Moxa Inc.

Moxa Inc. 4F,No.135, Lane 235, BAOQIAO Rd. XINDIAN DIST.,NEW TAIPEI CITY, Taiwan TEL No: 886-2-8919-1230 FAX No.: 886-2-8919-1231 About WiFi Channels 12 & 13 Declaration Letter To whom it may concern: We have declared below featured for FCC equipment authorization, Device FCC ID : SLE‐WAPN005 We client devices don't operating on Channels 12 and 13, when a master transmits on these channels. This information when programmed into the EEPROM will not be accessible and can not be changed by the end user. Signature ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ Lea‐Ming Tseng / Manager Moxa Inc. Tel: 886‐2‐8919‐1230 Fax: 886‐2‐8919‐1231 Email: [email protected]

RF_734_00, Issue 1 Modular Approval Request FCC (per FCC Part 15 Section 15.212) FCC ID: SLE-WAPN005 Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. The modular transmitter has its own RF shielding. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The EUT has buffered data inputs, The part number is AR9344 3. The modular transmitter must have its own power supply regulation. The EUT has power supply regulation, The part number is AR9344 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. The modular transmitter complies with the antenna requirements of Section 15.203 and 15.204(c). 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. The modular transmitter is tested in a stand-alone configuration. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Please refer to the user manual instructions. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The modular transmitter complies with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The modular transmitter complies with any applicable RF exposure requirements. Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). Name and surname of applicant (or authorized representative): Lea-Ming Tseng Date: Apr. 21, 2014 Signature:

Moxa Inc. FCC ID.: SLE-WAPN005 4F,No.135, Lane 235, BAOQIAO Rd. XINDIAN DIST.,NEW TAIPEI CITY, Taiwan Tel : 886-2-8919-1230 Moxa Inc. 4F,No.135, Lane 235, BAOQIAO Rd. XINDIAN DIST.,NEW TAIPEI CITY, Taiwan Tel : 886-2-8919-1230 Fax: 886-2-8919-1231 Federal Communications Commission Apr. 21, 2014 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics: (WAPN005) Schem Block Diagram: (WAPN005) BlkDia Operational Description : (WAPN005) OPDes The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, -------------------------------------------- Lea-Ming Tseng / Manager Moxa Inc.

Moxa Inc. 4F,No.135, Lane 235, BAOQIAO Rd. XINDIAN DIST.,NEW TAIPEI CITY, Taiwan TEL No: 886-2-8919-1230 FAX No: 886-2-8919-1231 Attestation for FCC Declaration of Conformity FCC ID: SLE-WAPN005 Data: Apr. 21, 2014 Please be notified that we, the undersigned, Moxa Inc., declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is 1440443R-RFUSP07V00. Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,Taipei City 114,Taiwan,R.O.C. which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, -------------------------------------------------------- Lea-Ming Tseng / Manager Moxa Inc. Tel: 886-2-8919-1230 Fax: 886-2-8919-1231 Email: [email protected]

Moxa Inc. Date: Apr. 21, 2014 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: SLE-WAPN005 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Moxa Inc. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Common exhibits for which confidentiality is requested are: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Lea-Ming Tseng (signed by FCC listed Grantee contact) Telephone Number: 886-2-8919-1230 Email: [email protected]

RF_160, Issue 03 Declaration of Authorization We Name: Moxa Inc. Address: 4F,No.135, Lane 235, BAOQIAO Rd. XINDIAN DIST.,NEW TAIPEI CITY, Taiwan City: NEW TAIPEI CITY Country: Taiwan Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: MOXA IEEE 802.11a/b/g/n Wireless FCC ID: SLE-WAPN005 Trademark: MOXA on our behalf. Date: Apr. 21, 2014 City: NEW TAIPEI CITY Name: Lea-Ming Tseng (2) Function: Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

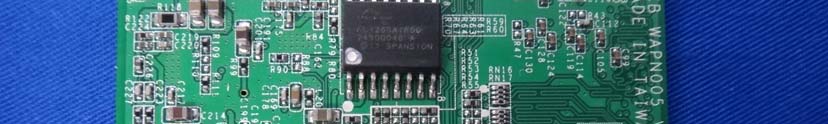

Report No.: 1440443R-RFUSP10V00 Page : 1 of 8 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

Moxa Inc. FCC ID.: SLE-WAPN005 4F,No.135, Lane 235, BAOQIAO Rd. XINDIAN DIST.,NEW TAIPEI CITY, Taiwan Tel : 886-2-8919-1230 FCC ID Label

Moxa Inc. FCC ID.: SLE-WAPN005 4F,No.135, Lane 235, BAOQIAO Rd. XINDIAN DIST.,NEW TAIPEI CITY, Taiwan Tel : 886-2-8919-1230 The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 1440443R-RFUSP10V00 Page : 2 of 8 (3) EUT Photo (4) EUT Photo Report No.: 1440443R-RFUSP10V00 Page : 3 of 8 (5) EUT Photo (6) EUT Photo Report No.: 1440443R-RFUSP10V00 Page : 4 of 8 (7) EUT Photo (8) EUT Photo Report No.: 1440443R-RFUSP10V00 Page : 5 of 8 (9) EUT Photo (KINSUN / ANT-WDB-O-2 BK) (10) EUT Photo (KINSUN / ANT-WDB-O-2 BK) Report No.: 1440443R-RFUSP10V00 Page : 6 of 8 (11) EUT Photo (12) EUT Photo Report No.: 1440443R-RFUSP10V00 Page : 7 of 8 (13) EUT Photo (KINSUN / ANT-WDB-ANM-0502) (14) EUT Photo (KINSUN / ANT-WDB-ANM-0502) Report No.: 1440443R-RFUSP10V00 Page : 8 of 8 (15) EUT Photo (16) EUT Photo

Report No. 1440443R-RFUSP09V00 Page: 1 of 3 RF Exposure Evaluation declaration Product Name MOXA IEEE 802.11a/b/g/n Wireless Model No. WAPN005 FCC ID SLE-WAPN005 Applicant Moxa Inc. Address 4F,No.135, Lane 235, BAOQIAO Rd. XINDIAN DIST.,NEW TAIPEI CITY, Taiwan Date of Receipt Apr. 18, 2014 Date of Declaration Apr. 21, 2014 Report No. 1440443R-RFUSP09V00 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No. 1440443R-RFUSP09V00 Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 1440443R-RFUSP09V00 Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product : MOXA IEEE 802.11a/b/g/n Wireless Test Item : RF Exposure Evaluation Test Site : No.3 OATS Operation Frequency 2412~2462, 2422~2452MHz 5180~5320, 5500~5700, 5745~5850MHz, 5190~5310, 5510~5670, 5755~5795MHz Maximum Conducted output power 25.71dBm Antenna gain 4.62dBi Output Power Into Antenna & RF Exposure Evaluation Distance: Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 372.3917 0.214650 Power density is lower than the limit (1 mW/cm2).

Report No.: 1440443R-RFUSP10V00 Page: 1 of 148 FCC Test Report Product Name MOXA IEEE 802.11a/b/g/n Wireless Model No WAPN005 FCC ID. SLE-WAPN005 Applicant Moxa Inc. Address 4F,No.135, Lane 235, BAOQIAO Rd. XINDIAN DIST.,NEW TAIPEI CITY, Taiwan Date of Receipt Apr. 18, 2014 Issue Date Apr. 21, 2014 Report No. 1440443R-RFUSP10V00 Report Version V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No.: 1440443R-RFUSP10V00 Page: 2 of 148 Test Report Issue Date: Apr. 21, 2014 Report No.: 1440443R-RFUSP10V00 Product Name MOXA IEEE 802.11a/b/g/n Wireless Applicant Moxa Inc. Address 4F,No.135, Lane 235, BAOQIAO Rd. XINDIAN DIST.,NEW TAIPEI CITY, Taiwan Manufacturer Moxa Inc. Model No. WAPN005 EUT Rated Voltage DC 3.3V EUT Test Voltage AC 120V/60Hz Trade Name MOXA Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2012 ANSI C63.10: 2009, KDB 558074 Test Result Complied Documented By: ( Senior Adm. Specialist / Joanne Lin ) Tested By : ( Engineer / Alan Chen ) Approved By : ( Director / Vincent Lin ) Report No.: 1440443R-RFUSP10V00 Page: 3 of 148 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Maximum Conducted Power....................................................................................................16 3.1. Test Equipment............................................................................................................................16 3.2. Test Setup ....................................................................................................................................16 3.3. Limits ..........................................................................................................................................16 3.4. Test Procedure .............................................................................................................................16 3.5. Uncertainty ..................................................................................................................................16 3.6. Test Result of Maximum Conducted Power................................................................................17 4. Radiated Emission .....................................................................................................................24 4.1. Test Equipment............................................................................................................................24 4.2. Test Setup ....................................................................................................................................25 4.3. Limits ..........................................................................................................................................26 4.4. Test Procedure .............................................................................................................................27 4.5. Uncertainty ..................................................................................................................................27 4.6. Test Result of Radiated Emission................................................................................................28 5. RF Antenna conducted test .......................................................................................................55 5.1. Test Equipment............................................................................................................................55 5.2. Test Setup ....................................................................................................................................55 5.3. Limits .......................................…

Text truncated - open the document above for the full version.

Report No.: 1440443R-RFUSP10V00 Page: 116 of 148 Product : MOXA IEEE 802.11a/b/g/n Wireless Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit - 802.11n-20BW_14.4Mbps(2.4G Band) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462.00 17700 >500 Pass Figure Channel 11: (Chain A) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462.00 17700 >500 Pass Figure Channel 11: (Chain B) Report No.: 1440443R-RFUSP10V00 Page: 117 of 148 Product : MOXA IEEE 802.11a/b/g/n Wireless Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 5: Transmit - 802.11n-40BW_30Mbps(2.4G Band) (2422MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2422.00 36600 >500 Pass Figure Channel 1: (Chain A) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2422.00 36300 >500 Pass Figure Channel 1: (Chain B) Report No.: 1440443R-RFUSP10V00 Page: 118 of 148 Product : MOXA IEEE 802.11a/b/g/n Wireless Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 5: Transmit - 802.11n-40BW_30Mbps(2.4G Band) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 4 2437.00 36600 >500 Pass Figure Channel 4: (Chain A) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 4 2437.00 36600 >500 Pass Figure Channel 4: (Chain B) Report No.: 1440443R-RFUSP10V00 Page: 119 of 148 Product : MOXA IEEE 802.11a/b/g/n Wireless Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 5: Transmit - 802.11n-40BW_30Mbps(2.4G Band) (2452MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 7 2452.00 36600 >500 Pass Figure Channel 7: (Chain A) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 7 2452.00 36600 >500 Pass Figure Channel 7: (Chain B) Report No.: 1440443R-RFUSP10V00 Page: 120 of 148 Product : MOXA IEEE 802.11a/b/g/n Wireless Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 6: Transmit - 802.11n-20BW_14.4Mbps(5G Band) (5745MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 149 5745.00 17600 >500 Pass Figure Channel 149: (Chain A) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 149 5745.00 17050 >500 Pass Figure Channel 149: (Chain B) Report No.: 1440443R-RFUSP10V00 Page: 121 of 148 Product : MOXA IEEE 802.11a/b/g/n Wireless Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 6: Transmit - 802.11n-20BW_14.4Mbps(5G Band) (5785MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 157 5785.00 17250 >500 Pass Figure Channel 157: (Chain A) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 157 5785.00 17250 >500 Pass Figure Channel 157: (Chain B) Report No.: 1440443R-RFUSP10V00 Page: 122 of 148 Product : MOXA IEEE 802.11a/b/g/n Wireless Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 6: Transmit - 802.11n-20BW_14.4Mbps(5G Band) (5825MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 165 5825.00 17250 >500 Pass Figure Channel 165: (Chain A) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 165 5825.00 16650 >500 Pass Figure Channel 165: (Chain B) Report No.: 1440443R-RFUSP10V00 Page: 123 of 148 Product : MOXA IEEE 802.11a/b/g/n Wireless Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 7: Transmit - 802.11n-40BW_30Mbps(5G Band) (5755MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 151 5755.00 35900 >500 Pass Figure Channel 151: (Chain A) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 151 5755.00 35700 >500 Pass Figure Channel 151: (Chain B) Report No.: 1440443R-RFUSP10V00 Page: 124 of 148 Product : MOXA IEEE 802.11a/b/g/n Wireless Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 7: Transmit - 802.11n-40BW_30Mbps(5G Band) (5795MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 159 5795.00 35700 >500 Pass Figure Channel 159: (Chain A) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 159 5795.00 35700 >500 Pass Figure Channel 159: (Chain B) Report No.: 1440443R-RFUSP10V00 Page: 125 of 148 8. Power Density 8.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun., 2013 Spectrum Analyzer Agilent E4407B / US39440758 Jun., 2013 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2013 Note: 1…
