SLEW341RISC-BASED READY-TO-RUN WIRELESS EMBEDDED COMPUTER

ThinkCore W311/321/341 Hardware User’s Manual First Edition, December 2006 www.moxa.com/product Moxa Systems Co., Ltd. Tel: +886-2-8919-1711 Fax: +886-2-8919-1722 Web: www.moxa.com MOXA Technical Support Worldwide: [email protected] The Americas [email protected] ThinkCore W311/321/341 Hardware User’s Manual The software described in this manual is furnished under a license agreement and may be used only in accordance with the terms of that agreement. Copyright Notice Copyright © 2006 Moxa Systems Co., Ltd. All rights reserved. Reproduction without permission is prohibited. Trademarks MOXA is a registered trademark of The MOXA Group. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer Information in this document is subject to change without notice and does not represent a commitment on the part of MOXA. MOXA provides this document “as is,” without warranty of any kind, either expressed or implied, including, but not limited to, its particular purpose. MOXA reserves the right to make improvements and/or changes to this manual, or to the products and/or the programs described in this manual, at any time. Information provided in this manual is intended to be accurate and reliable. However, MOXA assumes no responsibility for its use, or for any infringements on the rights of third parties that may result from its use. This product might include unintentional technical or typographical errors. Changes are periodically made to the information herein to correct such errors, and these changes are incorporated into new editions of the publication. Table of Contents Chapter 1 Introduction ..................................................................................................1-1 Overview..................................................................................................................................1-2 Package Checklist ....................................................................................................................1-2 Product Features ......................................................................................................................1-3 Product Hardware Specifications.............................................................................................1-3 Hardware Block Diagram ........................................................................................................1-6 ThinkCore W311 ..........................................................................................................1-6 ThinkCore W321 ..........................................................................................................1-6 ThinkCore W341 ..........................................................................................................1-7 Chapter 2 Hardware Introduction .................................................................................2-1 Appearance ..............................................................................................................................2-2 ThinkCore W311 ..........................................................................................................2-2 ThinkCore W321 ..........................................................................................................2-2 ThinkCore W341 ..........................................................................................................2-3 Dimensions ..............................................................................................................................2-4 ThinkCore W311 ..........................................................................................................2-4 ThinkCore W321 ..........................................................................................................2-5 ThinkCore W341 ..........................................................................................................2-6 LED Indicators.........................................................................................................................2-7 Reset Button.............................................................................................................................2-7 Real Time Clock ......................................................................................................................2-8 Chapter 3 Hardware Connection Description .............................................................3-1 Wiring Requirements ............................................................................................................... 3-2 Connecting the Power...................................................................................................3-2 Grounding the Unit .......................................................................................................3-2 Connecting Data Transmission Cables ....................................................................................3-3 Connecting to the Network ...........................................................................................3-3 Connecting to the WLAN .............................................................................................3-3 Connecting to a Serial Device ......................................................................................3-4 Serial Console Port .......................................................................................................3-4 SD Slot (W321 and W341 only) ..............................................................................................3-4 USB (W341 only) ....................................................................................................................3-5 Relay Output (W341 only).......................................................................................................3-5 Appendix A FCC Warning Statement .............................................................................A-1 …

Text truncated - open the document above for the full version.

CONFIDENTIAL 55 44 33 22 11 D D C C B B A A Sizeof PCB Part No. 品名規格 Department Auther VersionSheet DateDesign Name Schematic Function Name Moxa Systems Co., Ltd. Block Diagram 1.1 W341 Custom 217 Tuesday, April 17, 2007 1199003410100 W341-LX System Abel Sizeof PCB Part No. 品名規格 Department Auther VersionSheet DateDesign Name Schematic Function Name Moxa Systems Co., Ltd. Block Diagram 1.1 W341 Custom 217 Tuesday, April 17, 2007 1199003410100 W341-LX System Abel Sizeof PCB Part No. 品名規格 Department Auther VersionSheet DateDesign Name Schematic Function Name Moxa Systems Co., Ltd. Block Diagram 1.1 W341 Custom 217 Tuesday, April 17, 2007 1199003410100 W341-LX System Abel External RTC L4978 Debug Port +3.3V@2A AMS 1117 +1.8V@900mA +3.3V +3.3V IO +3.3V +5V +5V +5V +5V WLANST1ST2ST3ST4ST5 W341 Ver:1.0 USB P0 USB P1 USB P2 UART 2 UART 3 UART 4 UART 5 L4978 +5V@2A +3.3V SD Connector USB Host SW_Button(H/W Reset) MOXA CPU O.S Linux/Win CE Vcore 1.8V ARM 9 LED Indicator SD/MMC Interface USB HUB Line Driver [ SN65C3243 ] x 1[ SN75HVD07D ] x 2 DB-9 Port 1 Line Driver [ SN65C3243 ] x 1[ SN75HVD07D ] x 2 DB-9 Port 2 Port 1 Port 2 Line Driver [ SN65C3243 ] x 1[ SN75HVD07D ] x 2 DB-9 Port 3 RS-232RS-422RS-485 Line Driver [ SN65C3243 ] x 1[ SN75HVD07D ] x 2 DB-9 Port 4 Port 3 Port 4 RS-232RS-422RS-485 RS-232RS-422RS-485 Reset IC RXD0RXD1RXD2RXD3TXD0TXD1TXD2 TXD3 UART 0 SW_LED +5V/+3.3V RTL8201CP10 / 100 PHYRealTek RJ-45 TXFR MII # 0 TPS3823 Extension Bus SDRAM 64/128M Flash 16/32M EEPROM I2C USB Interface DC Input12V~48V Bridge +3.3V Buzzer USB Wireless LAN +5V LT3724+3.9V For GPRS Module Digital Out GPIO 22 Relay XTAL 32.768KHz XTAL 32.768KHzXTAL 12MHzOSC 14.7456MHzXTAL 30MHz XTAL 25MHz XTAL 24MHz XTAL 40MHz

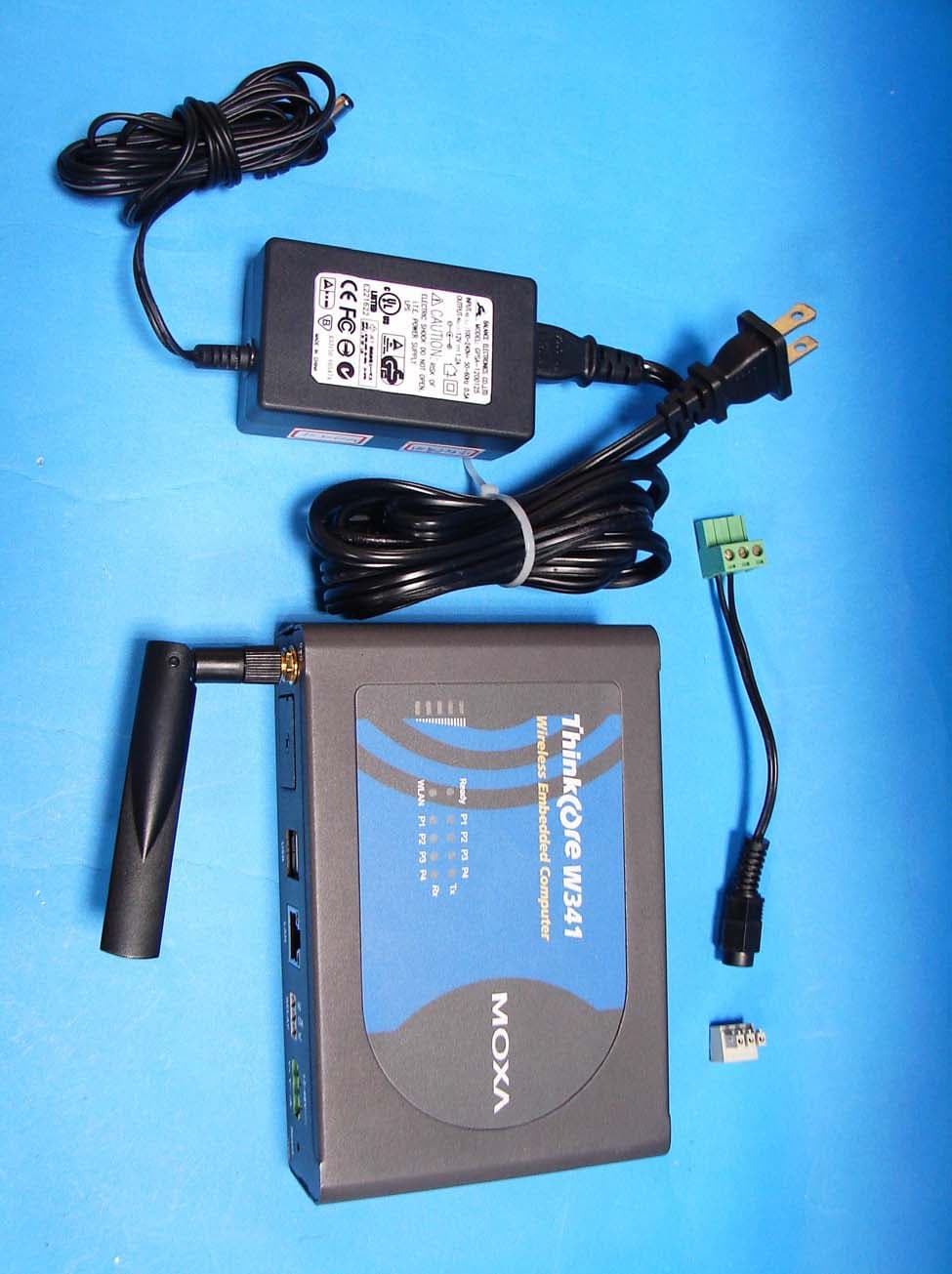

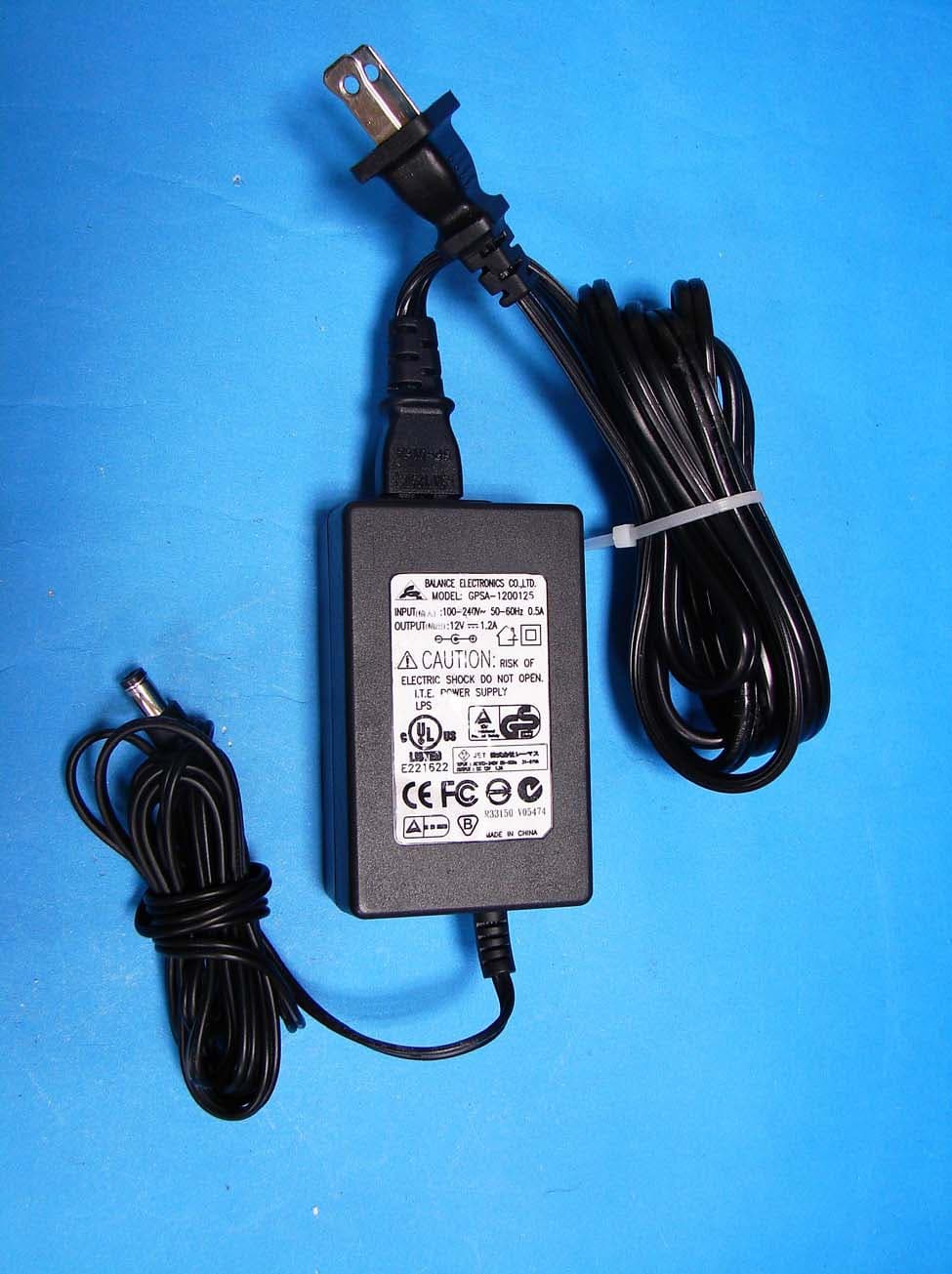

External Photos of EUT －－－－－－－－－－－－－－－－－－－－－－ 1/16 Applicant: Moxa Technologies Co., Ltd. FCC ID: SLEW341 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of EUT －－－－－－－－－－－－－－－－－－－－－－ 2/16 Applicant: Moxa Technologies Co., Ltd. FCC ID: SLEW341 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of EUT －－－－－－－－－－－－－－－－－－－－－－ 3/16 Applicant: Moxa Technologies Co., Ltd. FCC ID: SLEW341 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of EUT －－－－－－－－－－－－－－－－－－－－－－ 4/16 Applicant: Moxa Technologies Co., Ltd. FCC ID: SLEW341 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of EUT －－－－－－－－－－－－－－－－－－－－－－ 5/16 Applicant: Moxa Technologies Co., Ltd. FCC ID: SLEW341 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Power Adapter of EUT ---------------------------------------------------------------- 6/16 Applicant: Moxa Technologies Co., Ltd. FCC ID: SLEW341 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

LABEL Sample and Location information ------------------------------------------------- 1/1 Applicant: Moxa Technologies Co., Ltd. FCC ID: SLEW341 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 LABEL Position: LABEL Size: 70 x 50 mm FCC ID: SLEW341 Brand Name Model Name: ThinkCore W341, ThinkCore W341-LX This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, includin g interference that may cause undesired operation

Internal Photos of EUT －－－－－－－－－－－－－－－－－－－－－ 7/16 Applicant: Moxa Technologies Co., Ltd. FCC ID: SLEW341 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT －－－－－－－－－－－－－－－－－－－－－ 8/16 Applicant: Moxa Technologies Co., Ltd. FCC ID: SLEW341 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT －－－－－－－－－－－－－－－－－－－－－ 9/16 Applicant: Moxa Technologies Co., Ltd. FCC ID: SLEW341 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT －－－－－－－－－－－－－－－－－－－－－ 10/16 Applicant: Moxa Technologies Co., Ltd. FCC ID: SLEW341 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT －－－－－－－－－－－－－－－－－－－－－ 11/16 Applicant: Moxa Technologies Co., Ltd. FCC ID: SLEW341 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT －－－－－－－－－－－－－－－－－－－－－ 12/16 Applicant: Moxa Technologies Co., Ltd. FCC ID: SLEW341 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT －－－－－－－－－－－－－－－－－－－－－ 13/16 Applicant: Moxa Technologies Co., Ltd. FCC ID: SLEW341 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT －－－－－－－－－－－－－－－－－－－－－ 14/16 Applicant: Moxa Technologies Co., Ltd. FCC ID: SLEW341 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT －－－－－－－－－－－－－－－－－－－－－ 15/16 Applicant: Moxa Technologies Co., Ltd. FCC ID: SLEW341 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of EUT －－－－－－－－－－－－－－－－－－－－－ 16/16 Applicant: Moxa Technologies Co., Ltd. FCC ID: SLEW341 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

Measurement of Maximum Permissible Exposure ---------------------------------------- 1/3 Applicant: Moxa Technologies Co., Ltd. FCC ID: SLEW341, FCC Part 15.247 DTS Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Measurement of Maximum Permissible Exposure 1. Foreword In adopt with the Human Exposure IEEE C95.1, and according to the FCC 1.1310. The Maximum Permissible Exposure (MPE) is obligated to measure in order to prove the safety of radiation harmfulness to the human body. The Gain of the antenna used is measured in an Anechoic chamber. The maximum total power to the antenna is to be recorded. By adopting the Friis Transmission Formula and the power gain of the antenna, we can find the distance right away from the product, where the limit of the MPE is. 2. Description of EUT FCC ID : SLEW341 Product name : RISC-based Ready-to-Run Wireless Embedded Computer Model : ThinkCore W341, ThinkCore W341-LX Classification : Mobile Device (i) Under normal use condition, the antenna is at least 20cm away from the user; (ii) Warning statement for keeping 20cm separation distance and the prohibition of operating next to the person has been printed in the user’s manual Frequency Range : 2.412 GHz ~ 2.462GHz Supported Channel : 11 Channels Modulation Skill : DBPSK, DQPSK, CCK, OFDM Power Type : Powered by the switching adapter, Manufacture: BALANCE ELECTRONICS CO., LTD. Model: GPSA-1200125 I/P: 100 ~ 240VAC ~ 50/60Hz 0.5A O/P: 12VDC 1.2A. Primary: 182cm length, non-shielded, without ferrite core Secondary: 186cm length, non-shielded, without ferrite core Measurement of Maximum Permissible Exposure ---------------------------------------- 2/3 Applicant: Moxa Technologies Co., Ltd. FCC ID: SLEW341, FCC Part 15.247 DTS Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 3. Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Filed Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Time |E| 2 , |H| 2 or S (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 100 6 3.0-30 1842/f 4.89/f 900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 100 30 1.34-30 824/f 2.19/f 180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 [The EUT is tested in transmit and receive modes and in the first, middle and the last channel separately. The following shows only our observation have the greatest emissions.] According to OET BULLETIN 56 Fourth Edition/August 1999, Equation for Predicting RF Fields: Friis Transmission Formula: 2 22 /0239.0 )20(4 585.175.68 4 cmmW R PG S= × == ππ Estimated safe separation: cm PG R09.3 4 585.175.68 4 = × == ππ Remarks: "The safe estimated separation that the user must maintain from the antenna is at least 4.73cm" Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) The Numeric gain G of antenna with a gain specified in dB is determined by: G = Log -1 ( dB antenna gain / 10 ) G = Log -1 (2.00 / 10) = 1.585 Measurement of Maximum Permissible Exposure ---------------------------------------- 3/3 Applicant: Moxa Technologies Co., Ltd. FCC ID: SLEW341, FCC Part 15.247 DTS Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Appendix Antenna Specification 核准：洪誠 審核：洪誠 撰寫：明松 發 行 章 相 關 單 位 會 簽 品保 家齊 料件承認書 文件編號： 版本：1.0 品號：1602020019400 製造商： 寰波 品名： Dual-Band Omni-Directional Antenna 規格： 適用產品： 2.4/ 5.0/ 5.2/ 5.6/ 5.8GHz F 1.系列承認清單 F 2.Moxa內部測試報告 9 3.廠商承認書 F 4.UL認證報告 F 5 CSA認證報告 F 6.TUV認證報告 附件： 9 7.RoHS認證報告/RepNo. CE/2004/A1528 CE/2006/10629 KA/2005/40650 CE/2006/63956 CE/2004/C1498 CE/2006/63959 CE/2005/83039 CE/2004/53035 CE/2006/41802 CE/2006/47581 KE/2005/41696 CE/2004/B4117A CE/2005/92596A CE/2005/92597A CE/2006/14801A KE/2006/20995 F 8. SONY認證報告/RepNo. /自我 料件承認書 文件編號：PD.01 版本：1.4 頁次：2/3 品號 版本 修訂內容 修訂原因 日期 修訂者 1602020019400 1.0 新料件承認 09-12-06 明松 料件承認書 文件編號：PD.01 版本：1.4 頁次：3/3 料件檢驗標準 品號 1602020019400 品名 Dual-Band Omni-Directional Antenna 規格 2.4/ 5.0/ 5.2/ 5.6/ 5.8GHz 料件承認作業確認 1. 電氣功能之驗証 D 已完成 F未執行，原因： 2. 實體組裝之測試 D 已完成 F未執行，原因： 3. 執行生產可行性評估 F 已完成 D未執行，原因： 4. 檢查供應商所附文件是否完整 D 已完成 F未執行，原因： 5. 檢驗綠色料件標準 D 符合RoHS F符合SONY F非綠色料件 尺寸(含公差)部份 F說明如下(單位標示公制) D如附之尺寸圖 Mechanism size Check/Compare (單位 : mm) 項 次 檢驗項目 檢驗方法 規格 公差圖面位置實測1實測2 實測3實測4 1 2 3 4 5 6 7 8 9 顏色部份 顏色： 可參考：Dsample F附件之色板 外觀印刷規格說明 圖案之大小、顏色、位置－ F如下說明 D參考所附文件 文字之大小、顏色、位置、字型－ F如下說明 D參考所附文件 原物料封裝及包裝說明 IC封裝方式： 料件包裝方式：25支裝一包,20包裝一紙箱 特殊檢驗要求 IC版本： IC外觀標示圖與標註檢驗項目： 其它注意事項 檢 驗 項 目 操作溫度 : -10~55°C Dual-Band Omni-Directional Antenna for 2.4 / 5.0 / 5.2 / 5.6 / 5.8 GHz SAA05-220420 Electrical Specification Frequency range 2400 MHz - 2500 MHz 4900 MHz - 5875 MHz Peak Gain 2 dBi 2 dBi VSWR 2.0 : 1 Max.2.0 : 1 Max. HPBW / horizontal 360 360 Power handling2 W (cw) 2 W (cw) Impedance50 Ohms50 Ohms Connector RPSMA Plug Environmental & Mechanical Characteristics Temperature - 10 C to +55 o C Humidity 95% @ 55 o C Radome color Black Weight 9 g Dimensions 79 x 35.3 x 10 mm Version2 http:// www.smartant.comTEL: +886 (0)3 583-6000 FAX: +886 (0)3 583-7000E-mail: [email protected] All rights reserved by SmartAnt Telecom Co., Ltd. P1 H-plane Co-polarization Pattern V-plane Co-polarization Pattem o Average Gain 1 dBi 1 dBi -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -25 -20 -15 -10 -5 0 5 2.4 GHz 2.45 GHz 2.5 GHz -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -25 -20 -15 -10 -5 0 5 4.9 GHz 5.1 GHz 5.3 GHz 5.5 GHz 5.7 GHz 5.9 GHz -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -25 -20 -15 -10 -5 0 5 2.4 GHz 2.45 GHz 2.5 GHz -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -25 -20 -15 -10 …

Text truncated - open the document above for the full version.

Test Report ---------------------------------------------------------------------------------- 1/49 Report No.: M4715060806, FCC Part 15.247 DTS Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 MEASUREMENT REPORT of RISC-based Ready-to-Run Wireless Embedded Computer Applicant : Moxa Technologies Co., Ltd. EUT : RISC-based Ready-to-Run Wireless Embedded Computer Model : ThinkCore W341, ThinkCore W341-LX FCC ID : SLEW341 Tested by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 No. 255, Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Test Report ---------------------------------------------------------------------------------- 2/49 Report No.: M4715060806, FCC Part 15.247 DTS Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 CERTIFICATION We here by verify that: The test data, data evaluation, test procedures and equipment configurations shown in this report were made mainly in accordance with the procedures given in ANSI C63.4 (2003) as a reference. All test were conducted by Training Research Co., Ltd., 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with the technical requirements set forth in the FCC Rules Part 15 Subpart C Section 15.247. Applicant : Moxa Technologies Co., Ltd. Applicant address : Fl. 4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. FCC ID : SLEW341 Report No. : M4715060806 Test Date : April 10, 2007 Prepared by: Approved by: Jack Tsai Frank Tsai Conditions of issue : (1) This test report shall not be reproduced except in full, without written approval of TRC. And the test result contained within this report only relate to the sample submitted for testing. (2) This report must not be used by the client to claim product endorsement by NVLAP or any agency of U.S. Government. (3) This test report, measurements made by TRC are traceable to the NIST only Conducted and Radiated Method. Test Report ---------------------------------------------------------------------------------- 3/49 Report No.: M4715060806, FCC Part 15.247 DTS Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Tables of Contents I. GENERAL ................................................................................................................... 5 1.1 Introduction ........................................................................................................... 5 1.2 Description of EUT ................................................................................................ 5 1.3 Test method ........................................................................................................... 6 1.4 Description of Support Equipment ........................................................................ 7 1.5 Configuration of System Under Test ..................................................................... 8 1.6 Verify the Frequency and Channel ....................................................................... 11 1.7 Test Procedure ...................................................................................................... 12 1.8 Location of the Test Site ....................................................................................... 12 1.9 General Test Condition ......................................................................................... 12 II. Section 15.203 : Antenna Requirement ..................................................................... 13 III. Section 15.207 : Power Line Conducted Emissions for AC Powered Units ......... 14 3.1 Test Condition & Setup ........................................................................................ 14 3.2 List of Test Instruments ........................................................................................ 15 3.3 Test Result of Conducted Emissions .................................................................... 16 IEEE 802.11b mode ........................................................................................................... 16 IEEE 802.11g mode ........................................................................................................... 18 IV. Section 15.247(a) : Technical Description of the EUT.............................................. 20 V. Section 15.247(a)(2) : Bandwidth for Direct Sequence System ............................. 21 5.1 Test Condition & Setup ........................................................................................ 21 5.2 Test Instruments Configuration ............................................................................ 21 5.3 List of Test Instruments ........................................................................................ 21 5.4 Test Result of Bandwidth ..................................................................................... 21 Channel 01 802.11 b/g mode.............................................................................................. 22 Channel 06 802.11 b/g mode.............................................................................................. 23 Channel 11 802.11 b/g mode.............................................................................................. 24 Test Report ---------------------------------------------------------------------------------- 4/49 Report No.: M4715060806, FCC Part 15.247 DTS Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 VI. Section 15.247(b) : Power Output ............................................................................ 25 6.1 Test Condition & Setup ........................................................................................ 25 6.2 List of Test Instruments ........................................................................................ 25 6.3 Test Result ....................…

Text truncated - open the document above for the full version.

Test Setup Photos ------------------------------------------------------------------------ 1/2 Applicant: Moxa Technologies Co., Ltd. FCC ID: SLEW341 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Conducted Test Setup Placement Front View of the Test Configuration Side View of the Test Configuration Test Setup Photos ------------------------------------------------------------------------ 2/2 Applicant: Moxa Technologies Co., Ltd. FCC ID: SLEW341 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement Front View of the Test Configuration Rear View of the Test Configuration
