SLEWE2100TWireless to Serial Module

WE-2100T Series User’s Manual Preliminary Edition, June 2007 www.moxa.com/product Moxa Technologies Co., Ltd. Tel: +886-2-8919-1230 Fax: +886-2-8919-1231 Web: www.moxa.com MOXA Technical Support Worldwide: [email protected] The Americas [email protected] WE-2100T Series User’s Manual The software described in this manual is furnished under a license agreement and may be used only in accordance with the terms of that agreement. Copyright Notice Copyright © 2007 Moxa Technologies Co., Ltd. All rights reserved. Reproduction without permission is prohibited. Trademarks MOXA is a registered trademark of The Moxa Group. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer Information in this document is subject to change without notice and does not represent a commitment on the part of Moxa. Moxa provides this document “as is,” without warranty of any kind, either expressed or implied, including, but not limited to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this manual, or to the products and/or the programs described in this manual, at any time. Information provided in this manual is intended to be accurate and reliable. However, Moxa assumes no responsibility for its use, or for any infringements on the rights of third parties that may result from its use. This product might include unintentional technical or typographical errors. Changes are periodically made to the information herein to correct such errors, and these changes are incorporated into new editions of the publication. Table of Contents Overview .................................................................................................................................1-2 Package Checklist....................................................................................................................1-2 Product Features ......................................................................................................................1-2 Product Specifications .............................................................................................................1-3 Specification and dimension....................................................................................................2-2 Pin Assignments ......................................................................................................................2-4 WE-2100T LED Indicators .....................................................................................................2-5 Wiring Requirements............................................................................................................... 3-2 Attaching WE-2100T to the Evaluation Board........................................................................3-2 Circuit Pad for External Connection .......................................................................................3-3 Connecting the Power.............................................................................................................. 3-4 Connecting to the Network......................................................................................................3-4 Connecting to a Serial Device .................................................................................................3-4 DI/O Settings ...........................................................................................................................3-4 Digital Output LED Circuit Design..............................................................................3-5 Overview .................................................................................................................................4-2 TCP Server Mode ....................................................................................................................4-2 TCP Client Mode.....................................................................................................................4-3 UDP Mode...............................................................................................................................4-3 Real COM Mode ..................................................................................................................... 4-4 Initializing WE-2100T’s IP Address........................................................................................5-2 Factory Default IP Address...................................................................................................... 5-2 WE-2100T Series Administration Suite ..................................................................................5-2 ARP .........................................................................................................................................5-2 Telnet Console .........................................................................................................................5-3 Serial Console (19200, n, 8, 1) ................................................................................................5-6 Opening Your Browser ............................................................................................................ 6-2 Basic Settings ..........................................................................................................................6-3 Network Settings .....................................................................................................................6-5 Serial Settings..........................................................................................................................6-7 Operating Settings ...................................................................................................................6-9 TCP Server Mode.........................................................................................................6-9 Real COM Mode ...........................................................................…

Text truncated - open the document above for the full version.

Moxa Technologies Co., Ltd FCC ID.: SLEWE2100T Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C..Tel : 886-2-8919-1230#315 Federal Communications Commission June. 14, 2007 Authorization and Evaluation Division ATTESTATION FCC ID: SLEWE2100T Product: Wireless to Serial Device Server Model: WE-2100T We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ............................................................ CHAO HUNG-CHENG / Engineer Moxa Technologies Co., Ltd

Moxa Technologies Co., Ltd FCC ID.: SLEWE2100T Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C..Tel : 886-2-8919-1230#315 Federal Communications Commission June. 14, 2007 Authorization and Evaluation Division ATTESTATION FCC ID: SLEWE2100T Product: Wireless to Serial Module Model: WE-2100T We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ............................................................ CHAO HUNG-CHENG / Engineer Moxa Technologies Co., Ltd

Moxa Technologies Co., Ltd FCC ID.: SLEWE2100T Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Tel : 886-2-8919-1230#315 Moxa Technologies Co., Ltd Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Tel : 886-2-8919-1230#315 Fax: 886-2-8919-1231 Federal Communications Commission June. 14, 2007 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics, Block Diagram The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ......................................................... CHAO HUNG-CHENG / Engineer Moxa Technologies Co., Ltd

Moxa Technologies Co., Ltd FCC ID.: SLEWE2100T Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C.Tel : 886-2-8919-1230#315 Moxa Technologies Co., Ltd Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Tel : 886-2-8919-1230#315 Fax: 886-2-8919-1231 Gentlemen: Regarding to the Pubic Notice DA 00-1407 pertaining to PART 15 UNLICENSED MODULAR TRANSMITTER APPROVAL, Moxa Technologies Co., Ltd.would like to request modular approval for the submission FCC ID: SLEWE2100T. Moxa Technologies Co., Ltd. confirms that the product complies with numbered requirements identified below: 1. The modular transmitter have its own RF shielding. 2. The modular transmitter have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over- modulation. 3. The modular transmitter have its own power supply regulation. 4. The modular transmitter complies with the antenna requirements of Section 15.203 and 15.204(c). 5. The modular transmitter is tested in a stand-alone configuration. 6. The modular transmitter is labeled with its own FCC ID number 7. The modular transmitter complies with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. 8. The modular transmitter complies with any applicable RF exposure requirements. Sincerely, ------------------------------------------ CHAO HUNG-CHENG / Engineer Moxa Technologies Co., Ltd

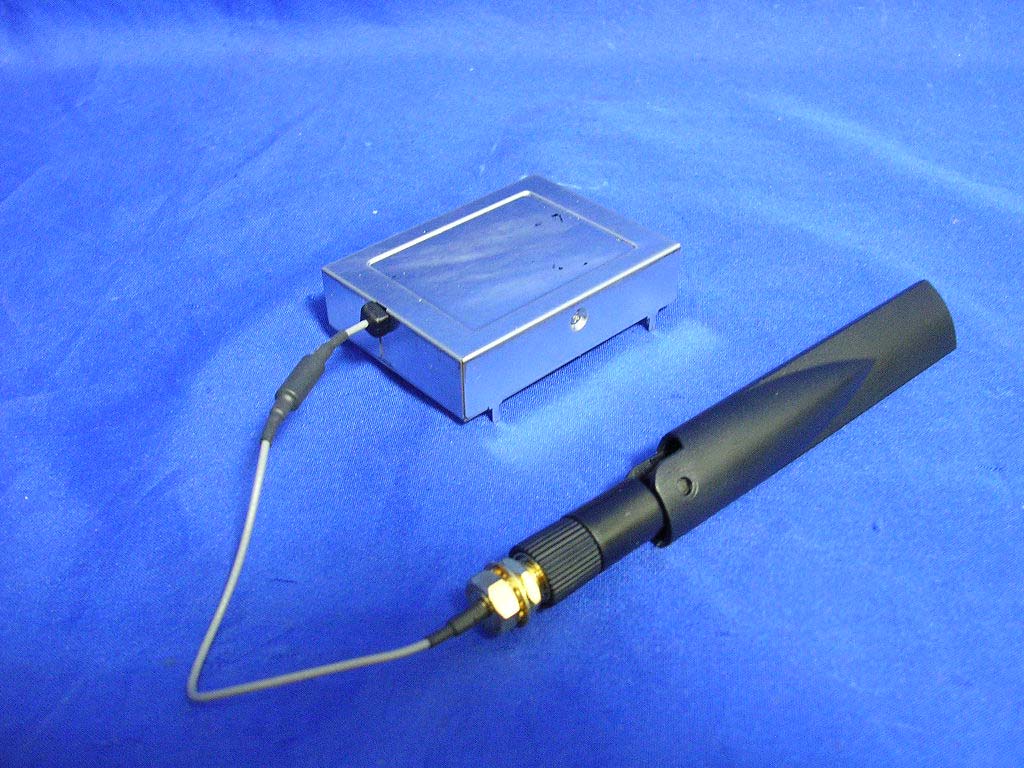

Report No.: 075L129-RFUSP05V01 Page : 1 of 11 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

Moxa Technologies Co., Ltd FCC ID.: SLEWE2100T Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C..Tel : 886-2-8919-1230#315 FCC ID Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below.

Report No.: 075L129-RFUSP05V01 Page : 2 of 11 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 075L129-RFUSP05V01 Page : 3 of 11 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 075L129-RFUSP05V01 Page : 4 of 11 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 075L129-RFUSP05V01 Page : 5 of 11 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 075L129-RFUSP05V01 Page : 6 of 11 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 075L129-RFUSP05V01 Page : 7 of 11 Version:1.0 (13) EUT Photo (14) EUT Photo Report No.: 075L129-RFUSP05V01 Page : 8 of 11 Version:1.0 (15) EUT Photo (16) EUT Photo Report No.: 075L129-RFUSP05V01 Page : 9 of 11 Version:1.0 (17) EUT Photo (18) EUT Photo Report No.: 075L129-RFUSP05V01 Page : 10 of 11 Version:1.0 (19) EUT Photo (20) EUT Photo Report No.: 075L129-RFUSP05V01 Page : 11 of 11 Version:1.0 (21) EUT Photo (22) EUT Photo

Report No. 075L129-RFUSP09V01 Page: 6 of 61 Version:1.0 1.2. Operational Description EUT is a Wireless to Serial Module with a built-in 2.4GHz and 5GHz transceiver. There are 11 channels in 2412 – 2462MHz, 4 channels in 5180 – 5240MHz and 4 channels in 5745-5805MHz. The channels are separated by 5MHz. This device supports the data rates of 1, 2, 5.5, 11Mbps in 802.11b mode and 6, 9, 12, 18, 24, 36, 48, 54Mbps in 802.11g mode. The signals are modulated by DSSS in 802.11b mode and OFDM in 802.11g mode. The antennas are Connector and use diversity to improve the receiving sensitivity. This Wireless to Serial Module, complied with IEEE 802.11b and IEEE 802.11g, is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without network wires. Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b+g and IEEE 802.11a network.

Report No. 075L129-RFUSP05V01 Page: 1 of 4 Version: 1.0 RF Exposure Evaluation declaration Product Name : Wireless to Serial Module Model No. : WE-2100T FCC ID SLEWE2100T Applicant : Moxa Technologies Co., Ltd Address : Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Date of Receipt : March 21, 2007 Date of Declaration : June 13, 2007 Report No. : 075L129-RFUSP05V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 075L129-RFUSP05V01 Page: 2 of 4 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure The EUT can be only operated within 2.4G band or 5GHz band. Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18and 78 RH. Report No. 075L129-RFUSP05V01 Page: 3 of 4 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : Wireless to Serial Module Test Item : RF Exposure Evaluation Test Site : CTR1 Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.0dBi in logarithm scale. 802.11b (2412~2462) Output Power Into Antenna & RF Exposure Evaluation Distance (2.0dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 60.9537 0.0192 6 2437.00 54.7016 0.0172 11 2462.00 51.9996 0.0164 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement. 802.11g (2412~2462) Output Power Into Antenna & RF Exposure Evaluation Distance (2.0dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 47.2063 0.0149 6 2437.00 43.3511 0.0137 11 2462.00 38.1944 0.0120 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement. Report No. 075L129-RFUSP05V01 Page: 4 of 4 Version: 1.0 802.11a (5150~5250) Output Power Into Antenna & RF Exposure Evaluation Distance (2.0dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 5180.00 30.3389 0.0096 3 5220.00 27.7971 0.0088 4 5240.00 29.9226 0.0094 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement. 802.11a (5725~5825) Output Power Into Antenna & RF Exposure Evaluation Distance (2.0dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 5 5745.00 30.3389 0.0096 7 5785.00 27.7971 0.0088 8 5805.00 27.6694 0.0230 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement.

Report No. 075L129-RFUSP05V01 Page: 1 of 4 Version: 1.0 RF Exposure Evaluation declaration Product Name : Wireless to Serial Module Model No. : WE-2100T FCC ID SLEWE2100T Applicant : Moxa Technologies Co., Ltd Address : Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Date of Receipt : March 21, 2007 Date of Declaration : June 13, 2007 Report No. : 075L129-RFUSP05V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 075L129-RFUSP05V01 Page: 2 of 4 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure The EUT can be only operated within 2.4G band or 5GHz band. Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18and 78 RH. Report No. 075L129-RFUSP05V01 Page: 3 of 4 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : Wireless to Serial Module Test Item : RF Exposure Evaluation Test Site : CTR1 Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.0dBi in logarithm scale. 802.11b (2412~2462) Output Power Into Antenna & RF Exposure Evaluation Distance (2.0dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 60.9537 0.0192 6 2437.00 54.7016 0.0172 11 2462.00 51.9996 0.0164 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement. 802.11g (2412~2462) Output Power Into Antenna & RF Exposure Evaluation Distance (2.0dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 47.2063 0.0149 6 2437.00 43.3511 0.0137 11 2462.00 38.1944 0.0120 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement. Report No. 075L129-RFUSP05V01 Page: 4 of 4 Version: 1.0 802.11a (5150~5250) Output Power Into Antenna & RF Exposure Evaluation Distance (2.0dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 5180.00 30.3389 0.0096 3 5220.00 27.7971 0.0088 4 5240.00 29.9226 0.0094 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement. 802.11a (5725~5825) Output Power Into Antenna & RF Exposure Evaluation Distance (2.0dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 5 5745.00 30.3389 0.0096 7 5785.00 27.7971 0.0088 8 5805.00 27.6694 0.0230 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement.

Report No. 075L129-RFUSP09V01 Page: 1 of 61 Version:1.0 Test Report Product Name : Wireless to Serial Device Server Model No : WE-2100T FCC ID : SLEWE2100T Applicant : Moxa Technologies Co., Ltd Address : Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Date of Receipt : May 21, 2007 Issued Date : June 13, 2007 Report No. : 075L129-RFUSP09V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 075L129-RFUSP09V01 Page: 2 of 61 Version:1.0 Test Report Certification Issued Date: June 13, 2007 Rport No.: 075L129-RFUSP09V01 The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name :Wireless to Serial Device Server Applicant :Moxa Technologies Co., Ltd Address :Fl.4, No. 135, Lane 235, Pao-Chiao Rd., Shing Tien City, Taipei, Taiwan, R.O.C. Manufacturer :Moxa Technologies Co., Ltd Model No. :WE-2100T FCC ID. :SLEWE2100T Rated Voltage :AC 120V/60Hz Working Voltage : DC 3.3V Trade Name :Moxa Applicable Standard :FCC CFR Title 47 Part 15 Subpart E: 2005 ANSI C63.4: 2003 Test Result :Complied Documented By : (Engineering Adm. Specialist / Genie Chang ) Tested By : ( Senior Engineer /Tim Sung ) Approved By : ( President / Gene Chang ) 0914 Report No. 075L129-RFUSP09V01 Page: 3 of 61 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................6 1.3. Tested System Datails....................................................................................................................7 1.4. Configuration of tested System .....................................................................................................7 1.5. EUT Exercise Software .................................................................................................................7 1.6. Test Facility ...................................................................................................................................8 2. Conducted Emission....................................................................................................................9 2.1. Test Equipment..............................................................................................................................9 2.2. Test Setup ......................................................................................................................................9 2.3. Limits ............................................................................................................................................9 2.4. Test Procedure .............................................................................................................................10 2.5. Uncertainty ..................................................................................................................................10 2.6. Test Result of Conducted Emission.............................................................................................11 3. Peak Transmit Power ................................................................................................................15 3.1. Test Equipment............................................................................................................................15 3.2. Test Setup ....................................................................................................................................15 3.3. Limits ..........................................................................................................................................15 3.4. Uncertainty ..................................................................................................................................15 3.5. Test Result of Peak Transmit Power............................................................................................16 4. Peak Power Spectral Density....................................................................................................28 4.1. Test Equipment............................................................................................................................28 4.2. Test Setup ....................................................................................................................................28 4.3. Limits ..........................................................................................................................................28 4.4. Uncertainty ..................................................................................................................................28 4.5. Test Result of Peak Power Spectral Density ...............................................................................29 5. Peak Excursion ..........................................................................................................................33 5.1. Test Equipment............................................................................................................................33 5.2. Test Setup ....................................................................................................................................33 5.3. Limits .............................................................................................…

Text truncated - open the document above for the full version.

Report No.: 075L129-RFUSP05V01 Page : 1 of 4 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 075L129-RFUSP05V01 Page : 2 of 4 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 075L129-RFUSP05V01 Page : 3 of 4 Version:1.0 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn) Report No.: 075L129-RFUSP05V01 Page : 4 of 4 Version:1.0 Front View of Radiated Test (Horn) Front View of Radiated Test (Horn)
