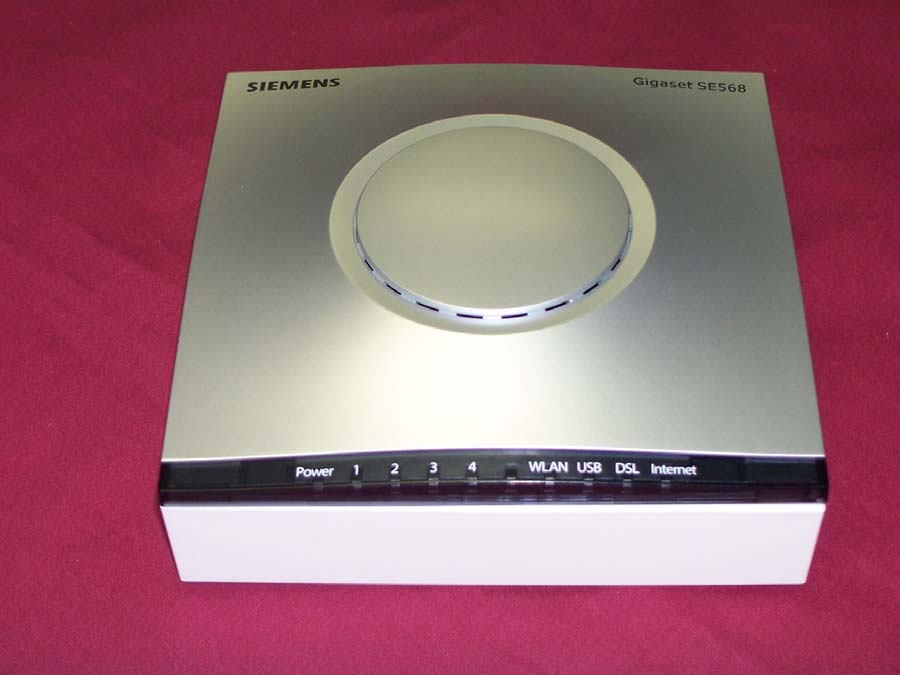

SN8H650Broadband Wireless Gateway

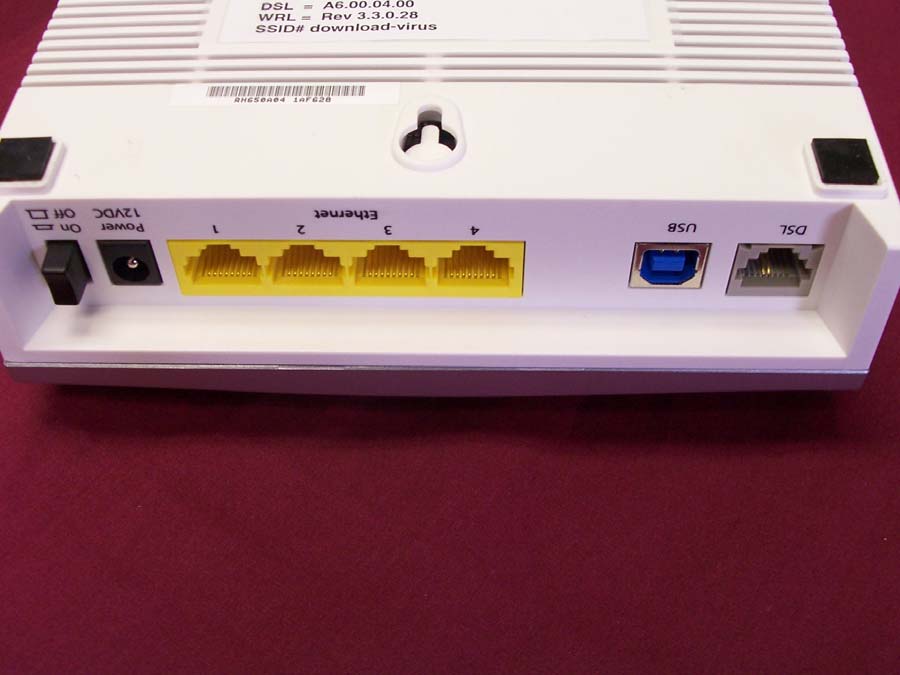

Safety and Certifications 007-9062-001 1 Important Information about the Gigaset SE 567, Gigaset SE 568: Installation and Safe Usage Instructions: 1. Place the Gigaset ADSL gateway in an upright horizontal orientation on a flat surface. 2. Connect the manufacturer supplied AC to DC power adapter. The Gigaset SE567/568 series gateways require the use of a 12 VDC, 1 A power adapter. Only use a manufacturer supplied and approved power adapter. 3. Connect the Ethernet cable (provided) to the RJ45 port on the Gigaset ADSL Gateway labeled "Ethernet". Then connect the other end of the Ethernet Cable then to the Ethernet port of a computer. Repeat as necessary for the available Ethernet ports. 4. If a USB port is available, connect the “B” end of the provided USB cable to the port on the Gigaset ADSL Gateway labeled "USB". Then connect the “A” end of the USB Cable to the USB host port of a computer. 5. Connect the provided DSL Cable to the port on the Gigaset ADSL Gateway labeled "DSL". Connect the other end of the DSL Cable to a standard Phone Jack. Always use a DSL cable with a minimum wire gauge of 26AWG (0.4 mm dia., or 0.129 mm ²) 6. If using a USB port, use the Gigaset CD to configure the computer’s USB connection. When using this device, basic sa fety precautions should always be followed to reduce the risk of fire, electric shock, and inju ry to persons including the following: 1. Do not use this product near water and avoid contact with moisture. For example, do not use near a bathtub, wash bowl, kitchen sink , laundry tub, in a wet basement, or near a swimming pool. Care should be taken so that liquids are not spilled on this equipment. 2. Never insert objects into the vents of this equipment as this can result in the risk of electrical shock or fire. 3. This equipment should only be operated from the type of power supply indicated on the marking label. 4. Do not overload wall outlets or extension cords. Doing so can result in the risk of fire or electrical shock. 5. Avoid blocking any vent openings or exhaus t exits on this equipment. Do not place equipment in a built-in installation such as a cabinet that may impede the flow of air through the ventilation openings. 6. The equipment should be situated away from heat sources such as radiators, heat registers, stoves, or other heat producing appliances and equipment. 7. Care should be taken to ensure that the power cord is routed, so it is not likely to be walked on or pinched by items placed upon or next to it. 8. Unplug this equipment before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning only. 9. This equipment is not user serviceable and is to be serviced by qualified personnel only. Do not disassemble this equipment. If servic e is required, disconnect all power and phones lines from the equipment and co nsult qualified service personnel. Save these Instructions! Federal Communications Commission (FCC) Statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Safety and Certifications 007-9062-001 2 Modifications: You are cautioned that changes or modifica tions not expressly approved by the party responsible for compliance could void your authority to operate the equipment. FCC Responsible Party: Siemens Subscriber Networks, Inc. 4849 Alpha Road Dallas, TX 75244 Phone: 972-852-1000 Radio Frequency Interference Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmf ul interference in a residential installation. This equipment generates, uses and can radiate radi o frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, ther e is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circui t different from that to which the receiver is connected. 4. Consult the dealer or an experi enced radio/TV technician for help. FCC Terminal Equipment Statements This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom side of this equipm ent is a label that contains, among other information, a product identifier in the format US:AAAEQ##TXXXX. If requested, this number must be provided to the Telephone Company . A copy of the Suppliers Declaration of Conformity to the FCC Part 68 and ACTA requirements can be found at: http://www.part68.org. This equipment has a Universal Service Order Code (USOC) of RJ11C, a Facility Interface Code (FIC) of 02LS2, and a Service Order Code (SOC) of 7.0Y. The Telephone Company may request this information when ordering service for this equipment. A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the Telephone Company w ill notify the customer as …

Text truncated - open the document above for the full version.

Gigaset ® SE567/SE568 Series Residential Gateway User’s Guide SE567/SE568 Residential Gateway User’s Guide © Copyright 2006, Siemens Subscriber Network. All rights reserved. Printed in the U.S.A. Product names mentioned herein may be trademarks and/or registered trademarks of their respective companies. Siemens Subscriber Networks shall not be liable for technical or editorial errors or omissions in this document; nor for incidental or consequential damages resulting from the furnishing, performance, or use of this material. Siemens Subscriber Networks – End User Software License and Limited Warranty INSTALLATION OF THE HARDWARE AND SOFTWARE PROVIDED BY SIEMENS SUBSCRIBER NETWORKS (SIEMENS) CONSTITUTES ACCEPTANCE BY YOU OF THE TERMS OF THE FOLLOWING SOFTWARE LICENSE AND LIMITED WARRANTY. IF YOU DO NOT ACCEPT THESE TERMS, PLEASE RETURN THE HARDWARE AND SOFTWARE IN ITS ORIGINAL PACKAGING TO THE STORE OR OTHER VENDOR FROM WHICH YOU PURCHASED IT FOR A FULL REFUND OF THE PURCHASE PRICE. The following describes your license to use the software (the “Software”) that has been provided with your SIEMENS DSL customer premises equipment (“Hardware”) and the limited warranty that SIEMENS provides on its Software and Hardware. Software License The Software is protected by copyright laws and international copyright treaties. The Software is licensed and not sold to you. Accordingly, while you own the media (CD ROM or floppy disk) on which the Software is recorded, SIEMENS retains ownership of the Software itself. 1. Grant of License. You may install and use one (and only one) copy of the Software on the computer on which the Hardware is being installed. If the Hardware is being installed on a network, you may install the Software on the network server or other server-side device on which the Hardware is being installed and onto the client-side devices connected to the network as necessary. 2. Restrictions. The license granted is a limited license. You may NOT: sublicense, assign, or distribute copies of the Software to others; decompile, reverse engineer, disassemble or otherwise reduce the Software or any part thereof to a human perceivable form; modify, adapt, translate or create derivative works based upon the Software or any part thereof; or rent, lease, loan or otherwise operate for profit the Software. 3. Transfer. You may transfer the Software only where you are also transferring the Hardware. In such cases, you must remove all copies of the Software from any devices onto which you have installed it, and must ensure that the party to whom you transfer the Hardware receives this License Agreement and Limited Warranty. 4. Upgrades Covered. This license covers the Software originally provided to you with the Hardware, and any additional software that you may receive from SIEMENS, whether delivered via tangible media (CD ROM or floppy disk), down loaded from SIEMENS or delivered through customer support. Any such additional software shall be considered “Software” for all purposes under this License. 5. Export Law Assurance. You acknowledge that the Software may be subject to export control laws and regulations of the U.S.A. You confirm that you will not export or re-export the Software to any countries that are subject to export restrictions. 6. No Other Rights Granted. Other than the limited license expressly granted herein, no license, whether express or implied, by estoppel or otherwise, is granted to any copyright, patent, trademark, trade secret, or other proprietary rights of SIEMENS. 7. Termination. Without limiting SIEMENS’s other rights, SIEMENS may terminate this license if you fail to comply with any of these provisions. Upon termination, you must destroy the Software and all copies thereof. Limited Warranty The following limited warranties provided by SIEMENS extend to the original end user of the Hardware/licensee of the Software and are not assignable or transferable to any subsequent purchaser/licensee. 1. Hardware. SIEMENS warrants that the Hardware will be free from defects in materials and workmanship and will perform substantially in compliance with the user documentation relating to the Hardware for a period of one year from the date the original end user received the Hardware. 2. Software. SIEMENS warrants that the Software will perform substantially in compliance with the end user documentation provided with the Hardware and Software for a period of ninety days from the date the original end user received the Hardware and Software. The end user is responsible for the selection of hardware and software used in the end user’s systems. Given the wide range of third-party hardware and applications, SIEMENS does not warrant the compatibility or uninterrupted or error free operation of our Software with the end user’s system. 3. Exclusive Remedy. Your exclusive remedy and SIEMENS’s exclusive obligation for breach of this limited warranty is, in SIEMENS’s sole option, either (a) a refund of the purchase price paid for the Hardware/Software or (b) repair or replacement of the Hardware/Software with new or remanufactured products. Any replacement Hardware or Software will be warranted for the remainder of the original warranty period or thirty (30) days, which ever is longer. 4. Warranty Procedures. If a problem develops during the limited warranty period, the end user shall follow the procedure outlined below: A. Prior to returning a product under this warranty, the end user must first call SIEMENS at (888) 286-9375, or send an email to SIEMENS at [email protected] to obtain a return materials authorization (RMA) number. RMAs are issued between 8:00 a.m. and 5:00 p.m. Central Time, excluding weekends and holidays. The end user must provide the serial number(s) of the products in order to obtain an RMA. B. After receiving an RMA, the end user shall ship the product, including power supplies and cable, where applicable, freight or postage prepaid and insured, to SIEMENS at 4849 Alph…

Text truncated - open the document above for the full version.

SE567/SE568 Series Residential Gateway User’s Guide Gigaset Gateway Setup 26 Toolbar The Gateway has three primary toolbar buttons: Users, Devices, and Gateway. The options for all the toolbar buttons differ depending on the user login. The administrator has the most authority with all options enabled, while the user has limited options based on the user profile for the login. Please see the table below for more information. Users Button: This button provides access to user profiles and the User Profile Wizard. This wizard guides you through the steps required to set up and configure individual user profiles. Once configured, you can use this option to view a user’s profile. Devices Button: This button provides Access to network devices connected to the Gateway. You can use this option to view shared files and resources on other computers if they are shared via Windows File Sharing. Gateway Button: This button provides access to all Gateway configuration options, security settings, Gateway health monitoring, and Internet connection and network details. The settings available may differ depending upon your service provider. Logging into the Gateway There are two types of primary users that log into the Gateway: administrators and users. Administrators have rights to all of the configuration options available on the Gateway. Users have limited access based on what is set by the administrator for each user. To log on to the Gateway: 1. Select a user from the Log In drop-down menu in the upper-left corner of the “Home” window. 2. Select a user from the Username drop-down menu. 3. Type the user password in Password. 4. Click Go. This displays the “Home” window. Logging out of the Gateway To log out of the Gateway: 1. Click GO next to Log Out. The system responds by displaying the “Home” window. 27 Chapter 5 Configuring Users and Devices This chapter explains how to configure users and devices on the Gateway. This chapter contains details for configuring users and devices on the Gateway. This chapter is organized into two parts corresponding to the buttons in the toolbar: Users and Devices. Refer to Chapter 6, Configuring Gateway Options for details on configuring the features on the Gateway. Configuring Users Users are added and maintained from the “User Profiles” window accessed by clicking Users button on the toolbar. The “User Profiles” window provides details about all active user profiles if Enable User Profiling is selected. The Enable User Profiling option must be selected on the “User Profiles” window for the content filtering option to be operational. Adding a User This section describes how to add users to the Gateway to restrict their access to Gateway functions and to the Internet. You MUST be logged in as the administrator to add a user. To add a user: 1. From the “Users Profile” window, click the Add New User button in the left navigation pane. This displays the “Profile User Information” window. 5 SE567/SE568 Series Residential Gateway User’s Guide Configuring Users and Devices 28 2. Type a user name in Username. 3. Type a password in Password. 4. Re-type the password in Confirm. 5. Click Next. This displays the “Profile Content Filtering” window. (At any time during user configuration, you can click Finish to complete the user profile and accept the defaults for this user.) Content filtering restricts access to undesirable Web sites and Web content. The Enable User Profiling option must be selected on the “User Profiles ” window for the content filtering option to be operational. 6. Select one of the following content filtering options: • Disable all Content Filtering User has access to all Internet content without restrictions. • Allow access only to website addresses containing the following words User has access only to the specified Web addresses or to addresses containing specified word entries defined in the Website word/name table. • Deny all access to website addresses containing the following words User is denied access to all Web addresses specified as well as addresses that contain any words specified in the Website word/name table. 7. If the Allow access only... or Deny all access... option is selected, type a word or Web address in the box under the Website word/name table, then click Add Entry. The system responds by adding the word or Web address to the Website word/name table. Note: The entries in the Website word/name table may be either modified or deleted at any time by clicking either Edit or Delete next to the corresponding word or Web address. 8. Click Next. This displays the “Profile Configuration Access” window. SE567/SE568 Series Residential Gateway User’s Guide Configuring Users and Devices 29 Profile configuration access defines the access permission for a user controlling what functions and features are available to that user. 9. Select one of the following profiles and click. • Administrator User has access to the Internet and all of the configuration tools on the Gateway. • Gamer User has access to the Internet as well as the Gateway’s commonly used tools for gamers, including Port Configuration and DMZ. • Web Surfer Use has access only to the Internet, not to the Gateway’s configuration. 10. Click Next. This displays the “Profile Time Setting” window. Profile time settings are used to limit a user’s ability to use the Internet during certain times of the day or night. You can also define the amount of time a user stays logged on to the Internet without Web surfing activity (Idle Time). To use the time of day restrictions, you must have the Time Client enabled. Please see the Setup Wizard section for more information. 11. Select one of the following time of day options to control the time of day a user can access the internet: • No time of day restrictions The user can access the Internet at any time. SE567/SE568 Series Residential Gateway User’s Guide Configuring Users and Devices 30 • Only allowed from The user can only access the Internet at th…

Text truncated - open the document above for the full version.

SE567/SE568 Series Residential Gateway User’s Guide Configuring Advanced Features 56 Security Your Gateway provides broad security measures against unwanted users. Security also allows for the configuration of the Gateway firewall, administrator password, (NAT) Network Address Translation, and DMZ (Demilitarized Zone) configuration. To use the security option, click the Security button on the Gateway Options pane. This displays the “Security Options” window containing icons to access the security features. This section is organized into parts that correspond to the following buttons shown in the Gateway Options pane. Configure the network firewall. A firewall is a system designed to prevent unauthorized access to or from a private network. Change administrative password. Configure address translation. Address translation hides individual users/computers behind a single outward-facing address. Hiding internal addresses allows greater security for your network. SE567/SE568 Series Residential Gateway User’s Guide Configuring Advanced Features 57 Firewall Settings A firewall is a system designed to prevent unauthorized access to or from a private network. The firewall window provides a listing of options to be enabled or disabled as well as links to configure the more complex details of each feature. To configure the firewall: 1. From the “Security Options ” window, click Firewall Settings. This displays the "Firewall Settings" window. 2. Select the checkboxes for all Security options you wish to enable. This can be any of the following: • Level Enable security level access is from the Gateway to the Internet or other networks. Click Configure to configure Security Level feature. This displays the “Firewall Level Configuration ” window. • Attack Detection Enable protection from common hacker attacks to your computer/network from the Internet. Click Configure to configure the Attack Detection feature. This displays the “Attack Detection Configuration” window. • IP Filtering Configure inbound and outbound filter rules if your firewall Level setting is Custom. Click Configure to configure IP filter rules. This displays the “Firewall IP Filter Configuration Wizard ” window. 3. Select DMZ for the Gaming option if you want to enable DMZ. Click Configure to configure firewall DMZ option. This displays the “Firewall DMZ Configuration ” window. 4. Select the checkboxes for all Support options you wish to enable. This can be any of the following: • Firewall Snooze Control Bypass the firewall for a set amount of time so outside support personnel can access your Gateway or network or so you can run an application that conflicts with the firewall. Click Configure to configure the snooze control. This displays the “Firewall Snooze Control ” window. SE567/SE568 Series Residential Gateway User’s Guide Configuring Advanced Features 58 Security Level Security level refers to how much access is permitted from your Gateway to the Internet or other networks. To enable and configure the security level feature: 1. Select Level from the “Firewall Settings ” window. 2. Click the Configure hyperlink next to Level. This displays the “Firewall Level Configuration” window. 3. Select the firewall security level from the Select Firewall Level drop-down menu. This can be one of the following: • Off No firewall protection. Data can move freely both in and out of the Gateway. • Low Provides basic firewall protection. Attack detection is enabled and only ports well known to the Gateway can allow the flow of data. • High Provides maximum firewall protection. Only certain applications are allowed through the firewall or traffic that is already "in conversation" with an application from the host PC and host application. (ICSA 3.0a Compliant.) • Custom Set your own rules for firewall protection. This option should be used by advanced users only. If you select this option, you must set customized rules for both inbound and outbound traffic using the IP Filtering option. 4. Click Apply. SE567/SE568 Series Residential Gateway User’s Guide Configuring Advanced Features 59 Attack Detection If the Attack Detection System is enabled, the Gateway provides protection against the most common hacker attacks that attempt to access your computer/network from the Internet. Intrusion attempts can also be logged to provide a record of attempts and their source (when available). To enable and configure the attack detection feature: 1. Select Attack Detection from the “Firewall Settings ” window. 2. Click the Configure hyperlink next to Attack Detection option. This displays the “Attack Detection Configuration” window. 3. Select Enable Attack Detection. 4. Select Filter for each event in the list you want to filter or, if you want to filter all events, select Filter All. This provides maximum protection against malicious intrusion from outside your network. 5. Select Log for each event in the list you want to log or, if you want to log all events, select Log All. 6. Click Apply. Below is a description of each event that can be monitored. • Same Source and Destination Address An outside device can send a SYN (synchronize) packet to a host with the same source and destination address (including port) causing the system to hang. When the receiving host tries to respond to the source address in the packet, it ends up just sending it back to itself. This packet could ping-pong back and forth over 200 times (consuming CPU resources) before being discarded. • Broadcast Source Address An outside device can send a ping to your Gateway broadcast address using a forged source address. When your system responds to these pings, it is brought down by echo replies. • LAN Source Address on LAN An outside device can send a forged source address in an incoming IP packet to block trace back. • Invalid IP Packet Fragment An outside device can send fragmented data packets that can bring down your system. IP packets can be fairly large in size. If a link between two ho…

Text truncated - open the document above for the full version.

The label mounts on the bottom of the device. Due to venting required in the plastics, the label is too small to include the FCC Part 15 conditional statement. This statement is placed in the Safety and Regulatory Information Sheet provided to the user.

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:25.08(dBm) Maximum peak output power at antenna input terminal:322.1068791(mW) Antenna gain(typical):7(dBi) Maximum antenna gain:5.011872336(numeric) Time Averaging:100(%) Prediction distance:20(cm) Prediction frequency:2437(MHz) MPE limit for uncontrolled exposure at prediction frequency:1(mW/cm^2) Power density at prediction frequency:0.321166(mW/cm^2) Margin of compliance:-4.9(dB) 2 4R PG S π =

Nemko Test Report: 6L0424RUS1rev3 Applicant: Siemens Subscriber Networks 4849 Alpha Road Dallas, TX 75244 USA Equipment Under Test: Gigaset SE567/ Gigaset SE568 (E.U.T.) In Accordance With: FCC Part 15, Subpart C, 15.247 and RSS-210, Issue 6 Digital Transmission System Transmitter Tested By: Nemko USA Inc. 802 N. Kealy Lewisville, Texas 75057-3136 TESTED BY: DATE: 22 August 2006 David Light, Wireless Engineer APPROVED BY: DATE: August 23, 2006 Kevin Rose, Wireless Engineer Number of Pages: 50 Nemko USA, Inc. FCC PART 15, SUBPART C & RSS-210, Issue 6 Digital Transmission Systems EQUIPMENT: Gigaset SE567/ Gigaset SE568 Test Report No.: 6L0424RUS1 Page 2 of 50 Table of Contents Section 1. Summary of Test Results ......................................................... 3 Section 2. Equipment Under Test (E.U.T.) ................................................ 5 Section 3. Powerline Conducted Emissions .............................................. 7 Section 4. Occupied Bandwidth............................................................... 13 Section 5. Maximum Peak Output Power ................................................ 20 Section 6 Spurious Emissions at Antenna Terminals ............................. 21 Section 7. Radiated Emissions ................................................................ 30 Section 8. Peak Power Spectral Density ................................................. 33 Section 9. Test Equipment List ................................................................. 40 ANNEX A - TEST DETAILS ....................................................................... 41 ANNEX B - TEST DIAGRAMS ................................................................... 48 Nemko USA, Inc. FCC PART 15, SUBPART C & RSS-210, Issue 6 Digital Transmission Systems EQUIPMENT: Gigaset SE567/ Gigaset SE568 Test Report No.: 6L0424RUS1 Page 3 of 50 Section 1. Summary of Test Results Manufacturer: Siemens Subscriber Networks Model No.: Gigaset SE567/ Gigaset SE568 Serial No.: 00.13.A3.D4.E8.18 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C, Paragraph 15.247 and RSS-210, Issue 6 for Digital Transmission Systems. Radiated tests were conducted is accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. NONE See “ Summary of Test Data”. Nemko USA Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko USA, Inc. FCC PART 15, SUBPART C & RSS-210, Issue 6 Digital Transmission Systems EQUIPMENT: Gigaset SE567/ Gigaset SE568 Test Report No.: 6L0424RUS1 Page 4 of 50 Summary Of Test Data NAME OF TEST PARA. NO. RESULT Powerline Conducted Emissions 15.207(a) Complies Minimum 6 dB Bandwidth 15.247(a)(2) Complies Maximum Peak Power Output 15.247(b)(3) Complies Spurious Emissions (Antenna Conducted) 15.247(d) Complies Spurious Emissions (Restricted Bands) 15.247(d)/15.205 Complies Peak Power Spectral Density 15.247(e) Complies Footnotes: The sample tested was a Gigaset SE568. Model SE567 does not have USB capabilities. Nemko USA, Inc. FCC PART 15, SUBPART C & RSS-210, Issue 6 Digital Transmission Systems EQUIPMENT: Gigaset SE567/ Gigaset SE568 Test Report No.: 6L0424RUS1 Page 5 of 50 Section 2. Equipment Under Test (E.U.T.) General Equipment Information Frequency Band: 2400-2483.5 MHz Operating Frequencies of Sample: 2412-2462 MHz Standard Test Voltage: 120 Vac Channel Spacing: 5 MHz User Frequency Adjustment: Software controlled Nemko USA, Inc. FCC PART 15, SUBPART C & RSS-210, Issue 6 Digital Transmission Systems EQUIPMENT: Gigaset SE567/ Gigaset SE568 Test Report No.: 6L0424RUS1 Page 6 of 50 Description of EUT Siemens Gigaset SE567/568 ADSL2+ Wireless Gateways offer DSL and wireless performance tailored to the unique demands of service providers. WiFi performance is greatly improved through the Gateway’s advanced “Smart Antenna” design. Patented beam steering technology typically doubles signal strength and received sensitivity over conventional antenna solutions. This unprecedented antenna gain and wireless coverage pattern results from combining multiple antenna elements with rapid automatic antenna switching. …
