SNA-CFRCustom Fence Remote

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: SNA-CFR FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 10-0086.W03.45.A Manufacturer: Woodstream Corporation Model: 5144G-R Manual Instruction Manual Custom-Shape Wireless Dog Fence PRIOR TO INSTALLATION Fully Charge the System Controller for 6 hours. Congratulations and thank you for choosing the Custom-Shape Wireless Dog Fence from Havahart ® , the leader in safe, caring control for pets and wildlife for more than 60 years. Featuring breakthrough, patented, wireless technology, the Custom- Shape Wireless Dog Fence is designed to maximize the freedom and safety of your dog, with minimal effort, investment and impact on your property. It is the industry’s most-advanced, do-it-yourself, dog containment system. The Custom-Shape Wireless Dog Fence gives you all the advantages of a professionally-installed, underground wire fence system without all the hassles and costs. Our revolutionary technology allows you to shape the wireless fence to the specific configuration of your yard -- maximizing the space for your dog to roam. It also allows you to add custom Exclusion Zones thereby keeping your dog out of your garden or swimming pool. There are no wires to bury or break. No back pains from digging. No money wasted on trenching. Just a Fast & Easy Setup and Freedom to Roam! To ensure your complete satisfaction and your dog’s safety, please read and follow all of these instructions carefully. Should you need assistance, our Consumer Care Specialists are ready to help. Call 1-800-800-1819, and press “1”. Thank you for purchasing the Custom-Shape Wireless Dog Fence from Havahart ® ! Havahart ® Custom-Shape Wireless Dog Fence 1 Welcome 2 Table of Contents Table of Contents IMPORTANT SAFETY REMINDERS ............................................................................................................................................. 3 SYSTEM COMPONENTS .................................................................................................................................................................... 4 THE TECHNOLOGY BEHIND THE SYSTEM .......................................................................................................................... 5 Controller Bases Collar GETTING STARTED ............................................................................................................................................................................... 6 Quick Checklist Planning Your Wireless Fence System INSTALLING THE CUSTOM-SHAPE WIRELESS DOG FENCE ...................................................................................... 7 Setting Up the Bases........................................................................................................................................................ 7 - Installing the Bases - Activating the Bases Setting Up the Fence Boundary............................................................................................................................ 9 - Fence Boundary Flag Placement - Fence Boundary Activation - Removing a Flag - Removing a Fence Boundary Setting Up the Exclusion Zones (Optional) ................................................................................................... 12 - What are Exclusion Zones (Ex. Zones)? - Exclusion Zone Flag Placement - Exclusion Zone Activation - Removing an Exclusion Zone Flag - Removing an Exclusion Zone - Naming an Exclusion Zone - Deactivating /Reactivating an Exclusion Zone Setting Up the Collar(s).............................................................................................................................................. 18 - Activating a Collar - Naming a Collar - Adjusting the Correction Level of a Collar - Removing a Collar - Fitting a Collar TRAINING YOUR DOG ....................................................................................................................................................................... 22 WARRANTY INFORMATION ........................................................................................................................................................ 28 WIRELESS FENCE PLANNING GRID .......................................................................................................................................... 29 1 2 3 4 Havahart ® Custom-Shape Wireless Dog Fence To ensure the safe and effective operation of your Custom-Shape Wireless Dog Fence, please read and follow all safety guidelines and instructions: s The Custom-Shape Wireless Dog Fence is designed for dogs older than 6 months and weighing more than 8 pounds. s It is necessary to fully charge the system Controller for 6 hours PRIOR TO INSTALLATION. sAll Bases must be installed indoors and should not be exposed to inclement weather (e.g. rain or snow). sEach Base must be plugged into a properly grounded 120V AC outlet. sChanges or modifications to any system component may cause permanent system damage and void manufacturer warranties. sTo prevent system damage due to unexpected power surges, it is recommended that you unplug any devices from wall outlets during thunderstorms. Also, do not attempt to install the system during stormy weather. sTo help prevent skin irritation, do not leave the Collar on your dog for more than 12 consecutive hours. sAlways remove the Collar from your dog before adjusting any of the system components. sThe system is intended to provide safe containment of your dog. All components should be kept out of the reach of children. Important Safety Reminders Important Safety Reminders 3 Havahart ® Custom-Shape Wireless Dog Fence Controller USB cable Master Base 3 Bases 4 AC power adapter cords for Bases Removable wall-mount adhesive tape 4 Screws and 4 wall anchors Collar Other Items You May Need: s Scissors s Drill s Pen and Paper s Tape M…

Text truncated - open the document above for the full version.

5015 B. U. Bowman Dr. Buford, GA 30518 March 29, 2010 ACS TCB 5015 B.U. Bowman Drive Buford, GA 30518 Re: FCC ID: SNA-CFR To Whom It May Concern: The following application is submitted on behalf of our client, Woodstream Corporation, for evaluation of their model 5144G-R for certification under FCC Part 15.247. The Havahart® Custom Fence Remote model 5144G-R was tested in full to the requirements of the aforementioned rules and was found to be in compliance. The 5144G-R can be configured as a PC peripheral therefore the Declaration of Conformity (DoC) equipment authorization procedure was also applied and the 5144G-R labeled accordingly. Sincerely, Sam Wismer Vice President, Technology Advanced Compliance Solutions, Inc.

69 N. Locust Street P.O. Box 327 Lititz, PA 17543-0327 (717) 626-2125 C O R P O R A T I O N Fax: (717) 626-5350 www.woodstreamcorp.com March 25, 2010 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: CONFIDENTIALITY REQUEST Havahart® Custom Fence Remote (FCC ID: SNA-CFR) Dear Sir or Madam: Woodstream Corporation respectfully requests confidentiality of certain materials provided with the submission of the Havahart® Custom Fence Remote under FCC ID: SNA-CFR in accordance with FCC Regulations 0.459. The confidentiality request applies to the schematic diagrams, block diagram (including associated oscillator frequencies, block signal paths and frequencies, tuning ranges and intermediate frequencies), operational descriptions (including circuit functions, grounding system description, antenna and duty cycle details), parts list and tune up procedures contained in this filing and included in the following files. 10-0086.W03.45.A – Schematics.pdf 10-0086.W03.45.A – System Block Diagram.pdf 10-0086.W03.45.A – Theory of Operation.pdf The Havahart® Custom Fence Remote has been developed at considerable effort and expense by Woodstream Corporation. These items are considered as Trade Secrets and therefore public access to the proprietary material could possibly result in duplication of equipment that could severely damage the company's business advantage. I appreciate your assistance in this matter. Should you have any questions/need any additional information, I can be reached at (717) 626 – 2125 x426 or by email at [email protected] . Sincerely, Chad Mateer Regulatory Affairs Manager Woodstream Corporation

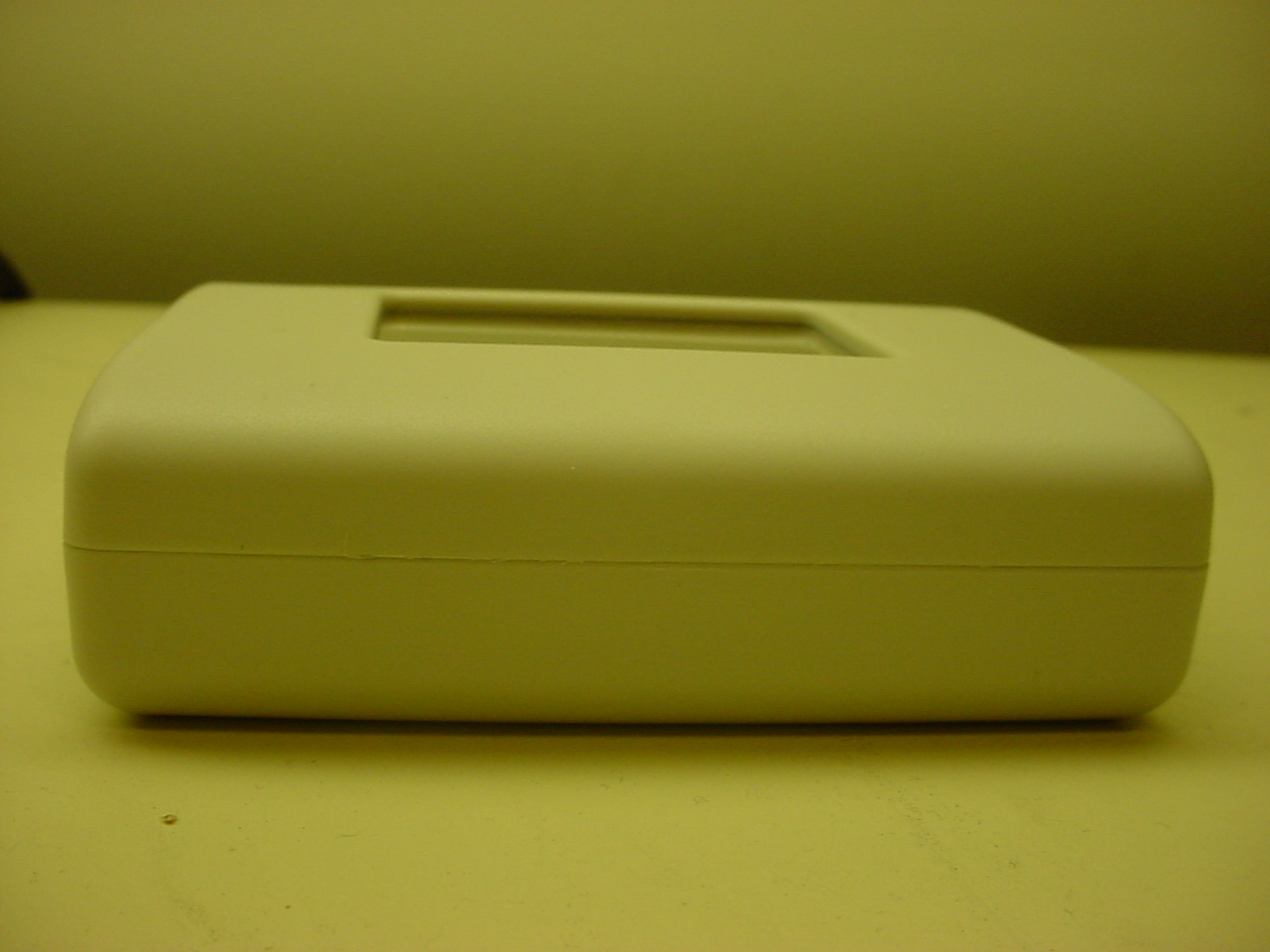

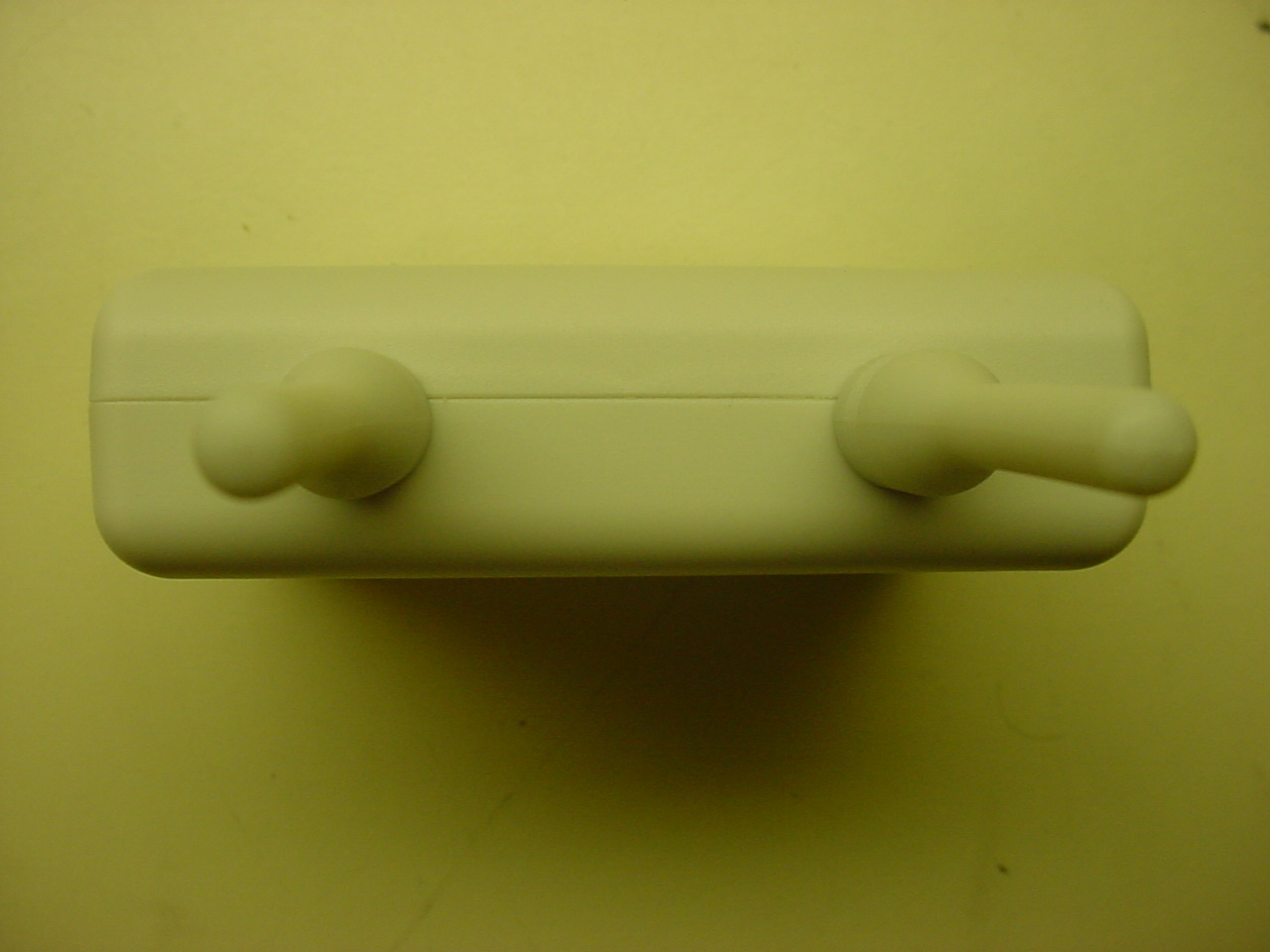

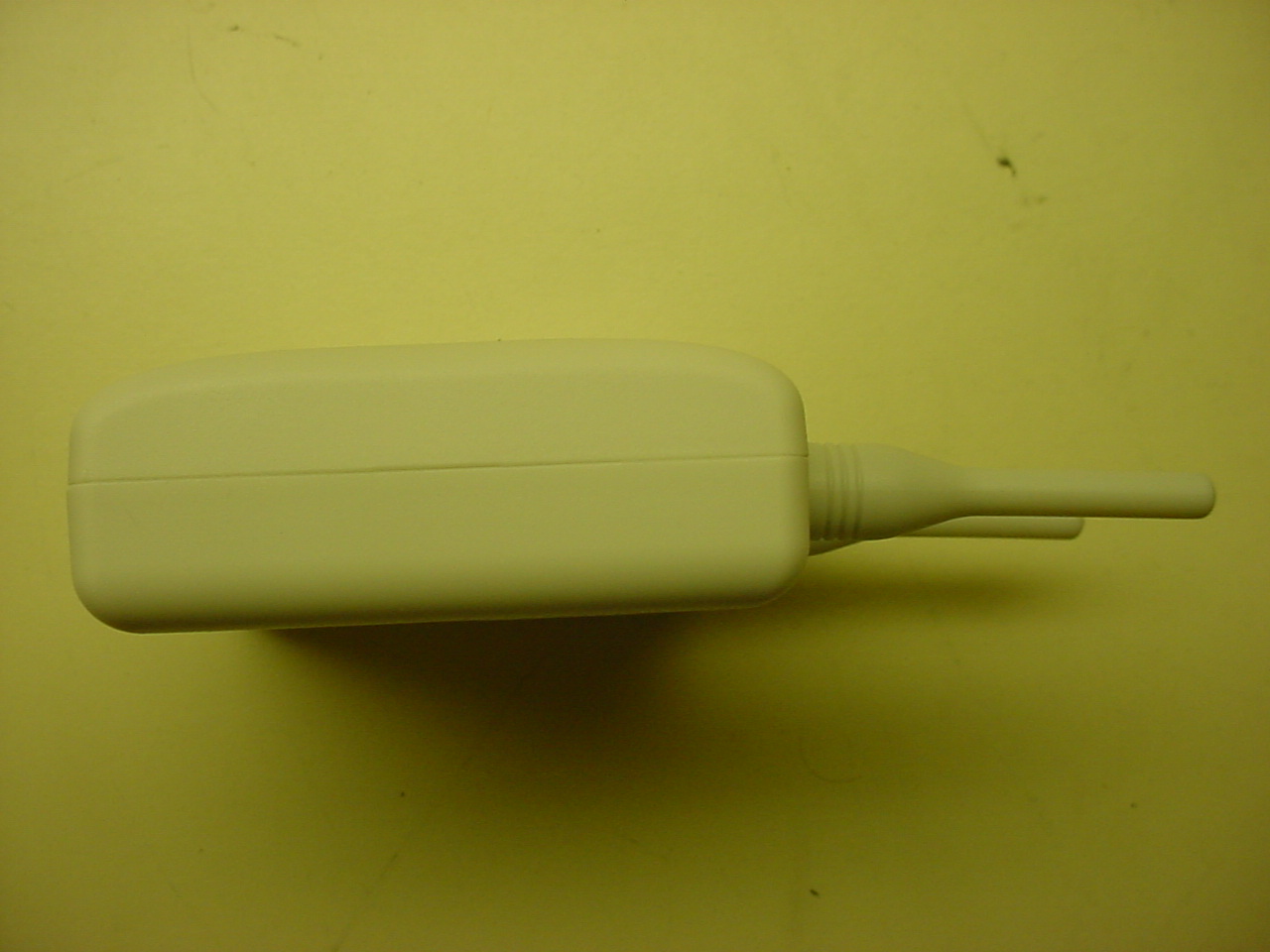

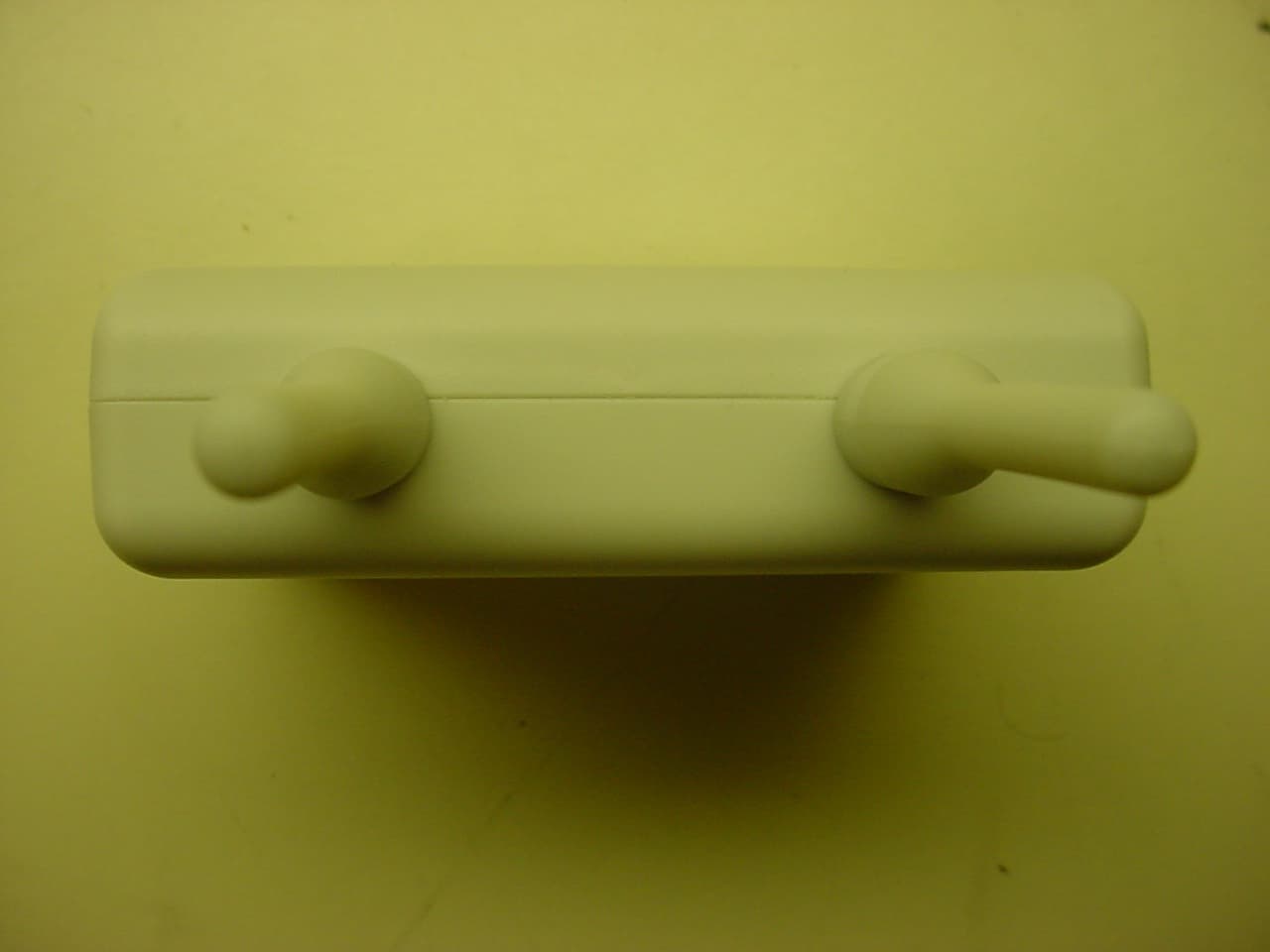

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: SNA-CFR FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 10-0086.W03.45.A Manufacturer: Woodstream Corporation Model: 5144G-R External Photos Model: 5144G-R FCC ID: SNA-CFR ACS Report: 10-0086.W03.45.A Advanced Compliance Solutions Page 2 Figure 1: Front View Model: 5144G-R FCC ID: SNA-CFR ACS Report: 10-0086.W03.45.A Advanced Compliance Solutions Page 3 Figure 2: Back View Model: 5144G-R FCC ID: SNA-CFR ACS Report: 10-0086.W03.45.A Advanced Compliance Solutions Page 4 Figure 3: Top View Model: 5144G-R FCC ID: SNA-CFR ACS Report: 10-0086.W03.45.A Advanced Compliance Solutions Page 5 Figure 4: Bottom View Model: 5144G-R FCC ID: SNA-CFR ACS Report: 10-0086.W03.45.A Advanced Compliance Solutions Page 6 Figure 5: Side View Model: 5144G-R FCC ID: SNA-CFR ACS Report: 10-0086.W03.45.A Advanced Compliance Solutions Page 7 Figure 6: Side View

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: SNA-CFR FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 10-0086.W03.45.A Manufacturer: Woodstream Corporation Model: 5144G-R Label Information ® Actual size of label is .75 in. X 2.25 in. and will be placed on the rear surface of the product. Actual size of label is .50 in. X 2.0 in. and will be placed on the rear surface of the product. Havahart Custom Fence Remote

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: SNA-CFR FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 10-0086.W03.45.A Manufacturer: Woodstream Corporation Model: 5144G-R Internal Photos Model: 5144G-R FCC ID: SNA-CFR ACS Report: 10-0086.W03.45.A Advanced Compliance Solutions Page 2 Figure 1: PCB with Shields - Front Model: 5144G-R FCC ID: SNA-CFR ACS Report: 10-0086.W03.45.A Advanced Compliance Solutions Page 3 Figure 2: PCB without Shields - Front Model: 5144G-R FCC ID: SNA-CFR ACS Report: 10-0086.W03.45.A Advanced Compliance Solutions Page 4 Figure 3: PCB - Back

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: SNA-CFR FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 10-0086.W03.45.A Manufacturer: Woodstream Corporation Model: 5144G-R RF Exposure Model: 5144G-R FCC ID: SNA-CFR ACS Report: 10-0086.W03.45.A Advanced Compliance Solutions Page 2 General Information: Applicant: Woodstream Corporation ACS Project: 10-0086.W03.45.A Device Category: Mobile / Portable Environment: General Population/Uncontrolled Exposure Operating Configuration: PC Peripheral / Handheld Technical Information: Antenna Type: Skywave dipole antenna part number 81-3000-A Antenna Gain: 3dBi Maximum Transmitter Conducted Power: 17.65dBm, 58.2mW Maximum System EIRP: 20.65dBm, 116.1mW RF Exposure Compliance Justification: For portable applications model 5144G-R operates in a handheld configuration only. There are no provisions or accessories for body-worn applications. Per KDB 447498 D01 V04 4(c)(iii), hand SAR is required for hand-held and hand-operated devices with output power > 1000ڄ[f(GHz)]^(-0.5)mW that are designed with the hand operating closer than 5 cm from the antenna during normal use. Model 5144G-R is exempt from SAR based on the output power (higher of conducted or EIRP) begin > 1000ڄ[f(GHz)]^(-0.5)mW. MPE calculations are provided below for satisfying mobile RF exposure conditions. MPE Calculation The Power Density (mW/cm 2 ) is calculated as follows: S = 2 4R PG  Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) MPE Calculator for Mobile Equipment Limits for General Population/Uncontrolled Exposure* 2441.717.651.0058.2131.995 200.023 Power Density (mW/cm^2) Distance (cm) Transmit Frequency (MHz) Radio Power (dBm) Power Density Limit (mW/Cm2) Radio Power (mW) Antenna Gain (dBi) Antenna Gain (mW eq.) Installation Guidelines The installation manual should contain text similar to the following advising how to install the equipment to maintain compliance with the FCC RF exposure requirements: RF Exposure In accordance with FCC requirements of human exposure to radio frequency fields, the radiating element shall be installed such that a minimum separation distance of 20 centimeters will be maintained. Conclusion This device complies with the MPE requirements by providing adequate separation between the device, any radiating structure and the general population.

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Test Report FCC ID: SNA-CFR FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 10-0086.W03.45.A Manufacturer: Woodstream Corporation Model: 5144G-R Test Begin Date: March 15, 2010 Test End Date: March 17, 2010 Report Issue Date: March 25, 2010 FOR THE SCOPE OF ACCREDITATION UNDER LAB Code 200612-0 This report is not be used to claim certification, approval, or endorsement by NVLAP, NIST or any government agency. Reviewed by: Kirby Munroe Director, Wireless Certifications ACS, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 21 pages 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 TABLE OF CONTENTS 1 GENERAL ............................................................................................................................................ 3 1.1 PURPOSE .......................................................................................................................................... 3 1.2 PRODUCT DESCRIPTION ................................................................................................................... 3 1.2.1 General ................................................................................................................................... 3 1.3 TEST METHODOLOGY AND CONSIDERATIONS ................................................................................. 3 2 TEST FACILITIES .............................................................................................................................. 4 2.1 LOCATION ....................................................................................................................................... 4 2.2 LABORATORY ACCREDITATIONS/RECOGNITIONS/CERTIFICATIONS ................................................ 4 2.3 RADIATED EMISSIONS TEST SITE DESCRIPTION .............................................................................. 5 2.3.1 Semi-Anechoic Chamber Test Site .......................................................................................... 5 2.3.2 Open Area Tests Site (OATS) ................................................................................................. 6 2.4 CONDUCTED EMISSIONS TEST SITE DESCRIPTION ........................................................................... 7 3 APPLICABLE STANDARD REFERENCES .................................................................................... 7 4 LIST OF TEST EQUIPMENT ............................................................................................................ 8 5 SUPPORT EQUIPMENT .................................................................................................................... 9 6 EQUIPMENT UNDER TEST SETUP BLOCK DIAGRAM ........................................................... 9 7 SUMMARY OF TESTS ..................................................................................................................... 10 7.1 ANTENNA REQUIREMENT – FCC: SECTION 15.203 ....................................................................... 10 7.2 POWER LINE CONDUCTED EMISSIONS – FCC: SECTION 15.207 IC: RSS-GEN 7.2.2 ...................... 10 7.2.1 Measurement Procedure ....................................................................................................... 10 7.2.2 Measurement Results ............................................................................................................ 10 7.3 RADIATED EMISSIONS – FCC: SECTION 15.109(UNINTENTIONAL RADIATION) IC: RSS-210 2.6 .. 12 7.3.1 Measurement Procedure ....................................................................................................... 12 7.3.2 Measurement Results ............................................................................................................ 12 TABLE 7.3.2-1: RADIATED EMISSIONS TABULATED DATA ....................................................................... 12 7.4 6DB / 99% BANDWIDTH – FCC: SECTION 15.247(A)(2) IC: RSS-210 A8.2(A) ............................. 13 7.4.1 Measurement Procedure ....................................................................................................... 13 7.4.2 Measurement Results ............................................................................................................ 13 7.5 PEAK OUTPUT POWER REQUIREMENT - FCC SECTION 15.247(B)(3) IC: RSS-210 A8.4(4) .......... 15 7.5.1 Measurement Procedure ....................................................................................................... 15 7.5.2 Measurement Results ............................................................................................................ 15 7.6 SPURIOUS EMISSIONS - FCC 15.247D IC:RSS-210 2.6, A8.5 ........................................................ 15 7.6.1 RF Conducted Spurious Emissions ....................................................................................... 15 7.6.1.1 Measurement Procedure ................................................................................................................... 15 7.6.1.2 Measurement Results ....................................................................................................................... 15 7.6.2 Radiated Spurious Emissions (Restricted Bands) - FCC Sec. 15.205 IC: RSS-210 2.6........ 18 7.6.2.1 Measurement Procedure ................................................................................................................... 18 7.6.2.2 Duty Cycle Correction ..................................................................................................................... 18 7.6.2.3 Measurement Results .....................................…

Text truncated - open the document above for the full version.

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: SNA-CFR FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 10-0086.W03.45.A Manufacturer: Woodstream Corporation Model: 5144G-R Test Setup Photos Model: 5144G-R FCC ID: SNA-CFR ACS Report: 10-0086.W03.45.A Advanced Compliance Solutions Page 2 Figure 1: Radiated Emissions Model: 5144G-R FCC ID: SNA-CFR ACS Report: 10-0086.W03.45.A Advanced Compliance Solutions Page 3 Figure 2: Radiated Emissions Model: 5144G-R FCC ID: SNA-CFR ACS Report: 10-0086.W03.45.A Advanced Compliance Solutions Page 4 Figure 3: Radiated Emissions Figure 4: Radiated Emissions Model: 5144G-R FCC ID: SNA-CFR ACS Report: 10-0086.W03.45.A Advanced Compliance Solutions Page 5 Figure 5: Radiated Emissions Model: 5144G-R FCC ID: SNA-CFR ACS Report: 10-0086.W03.45.A Advanced Compliance Solutions Page 6 Figure 6: Radiated Emissions Model: 5144G-R FCC ID: SNA-CFR ACS Report: 10-0086.W03.45.A Advanced Compliance Solutions Page 7 Figure 7: Radiated Emissions Model: 5144G-R FCC ID: SNA-CFR ACS Report: 10-0086.W03.45.A Advanced Compliance Solutions Page 8 Figure 6: AC Power Line Conducted Emissions Model: 5144G-R FCC ID: SNA-CFR ACS Report: 10-0086.W03.45.A Advanced Compliance Solutions Page 9 Figure 7: AC Power Line Conducted Emissions
