SNA-V400MR1LoRa Radio Connected Rodent Trap

VICTOR %INK START.U P GUIDE Latch Trough Power Button Bait Cup Chamber LED Indicator Light Button Outer Case Battery Compartment Victor'VL|NK" Mouse Trap Model:V450 I Victor'VLINK" Rat Trap Model:V46o FCC: this device complies with part t5 of the fcc rules. Operation is subject to the following two conditions: (t)this device may not cause harmful interference, and (2 this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this device not expressly approved by Woodstream Corporation could void the users authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part tS of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. lf this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: .Reorient or relocate the receiving antenna. . lncrease the separation between the equipment and receiver, .Connect.the equipment into an outlet on a circuit different from that to which the receiver is connected. .Consult the dealer or an experienced radio/TV technician for help. lC: This device complies with lndustry Canada's licence-exempt RSSs. Operation is subiect to the following two conditions: (1)This device may not cause interference; and Q)This device must accept any interference, including interference that may cause undesired operation of the device. RF Exposure: This equipment complies with FCC and lC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. WARNING: Electric Shock and Spark Hazards. lgnition: Do not use near unvented flammable vapors, liquids, or combustible solids. Do not use in barns, stables, or similar wet or dusty locations. High Voltage: Keep out of reach of children and pets. Use only dry hands or rubber gloves to handle. Power OFF and bait. Do not touch metal plates when device is powered on. Electromagnetic Waves: Keep pacemakers and life support devices at least one foot away. Consult your heart doctor if you receive a shock. Failure to read and heed all warnings and directions may cause electric shock, fire, or serious injury. Read and follow all label instructions. Manufactured for:Woodstream Corporation 69 N. Locust Street, Lititz, PA 17543.800-800-1819 Trap Lid Pak Before you start: Confirm you have a VLINK" account and are able to successfully log in at www.vlinkhq.com. t. Open the outer case to access components. When outer case lid is open, trap is disengaged. 2. Remove the kill chamber. 3. Slide out the power pak. 4. Open the battery compartment on the bottom side of the power pak and install the 4"AA" lithium batteries (included). 5. Using a Philips head screw driver secure the battery compartrnent lid to the power pak with the Z screws provided. 6. Reinstall the power pak. 7. Reinstall the kill chamber o"@ 2. BAITING Option A t. Remove bait cup. 2.Place your preferred solid bait in the bait trough located on the top side of the kill chamber. 3. Replace bait cup. Option B t. Open bait cup and insert sticky or liquid bait into designated bait area. z. Replace bait cup. t. Plug in the VLINKTM hub. lf you are planning to use your local network, plug your ethernet cable into the ethernet Port. For all other hub instructions, refer to the online setuP guide at www.vl inkhq.com/instructions. t. Download the VLlNK" app from the Apple or Google Play Store. 2. Launch the app and follow the on-screen instructions to connect your trap to the app. t. Once your trap has successfully connected, close the lid-and the trap is set! z. Place traps indoors or outdoors. 3.CONNECTING 4. DOWNLOADTHEAPP 6. GET ITON P googlePlay S.SETTRAP kill to remove any debris. 1. BATTERY I NSTALLATION \ tl -/ VLINK VICTOR GUIDE DE DEMARRAGE Loquet Couvercle de Piige Coupe i Appit Chambre de l.lise i Mort Bouton d'alimentation T6moin Lumineux LED Bouton LORA Boftier Ext6rieur D'alimentation Compartiment des Piles Victor@ VLINK" Piege a Souris Modele:V450 I Victors VLINK" Piege i rats Modele:V460 FCC: cet appareil est conforme i la partie 15 des reglementations de la fcc. L'utilisation est soumise aux deux conditions suivantes: (t) cet appareil ne doit pas causer d'interferences nuisibles, et 0) cet appareil doit accepter toute interference reeue, y compris les interferences qui peuvent causer un fonctionnement non desire. Avertissement: tout changement ou modification apport6 i cet appareil non expressement approuve par Woodstream Corporation peut entrainer la revocation de l'autorisation d'utiliser l'equipement. Remarque: cet equipement a ete teste et declare conforme aux limites d'un appareil numerique de classe B, conformement i la partie t5 des reglementations de la FCC. Ces limites sont conEues pour fournir une protection raisonnable contre les interferences nuisibles dans une installation r6sidentielle. Cet equipement genere, utilise et peut emettre de I'energie radio-electrique et, s'il n'est pas installe et utilis6 conformement aux instructions, peut causer des interferences nuisibles aux communications radio. Cependant, il n'y a aucune garantie que des interferences ne se produiront pas dans une installation particuliere. Si cet equipement cause des interferences nuisibles a la reception radio ou televisee, ce qui peut €tre determine en ete…

Text truncated - open the document above for the full version.

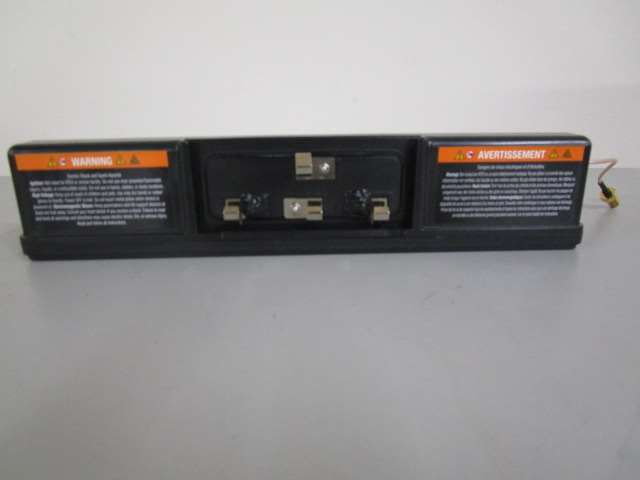

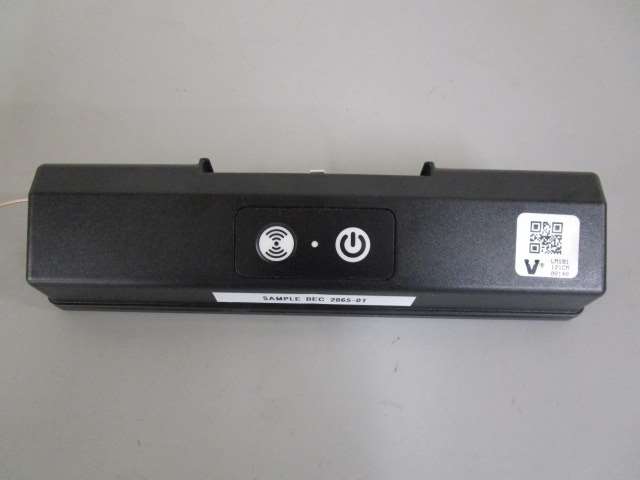

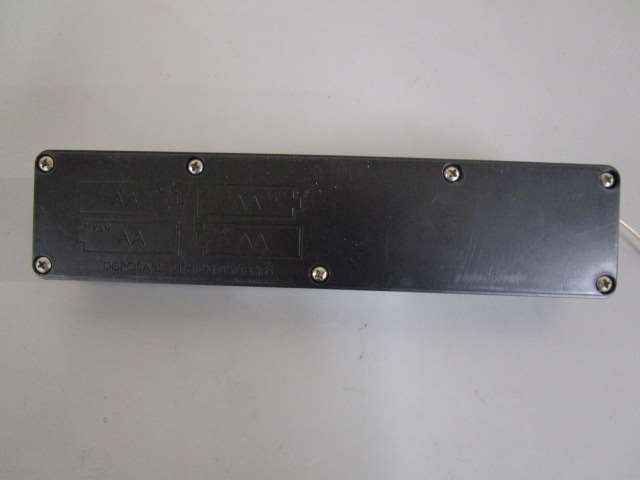

Appendix B External Photos Woodstream V400M WOODSTREAM V400M EXTERNAL PICTURES SAMPLE 2065-01 EUT MODIFIED WITH SMA CABLE ATTACHED TO ANTENNA WOODSTREAM V400M SAMPLE 2065-01 FRONT SIDE WOODSTREAM V400M SAMPLE 2065-01 REAR SIDE WOODSTREAM V400M SAMPLE 2065-01 LEFT SIDE WOODSTREAM V400M SAMPLE 2065-01 RIGHT SIDE WOODSTREAM V400M SAMPLE 2065-01 TOP SIDE WOODSTREAM V400M SAMPLE 2065-01 BOTTOM SIDE WOODSTREAM V400M EXTERNAL PICTURES SAMPLE 2065-02 EUT UNMODIFIED WOODSTREAM V400M SAMPLE 2065-02 FRONT SIDE WOODSTREAM V400M SAMPLE 2065-02 REAR SIDE WOODSTREAM V400M SAMPLE 2065-02 LEFT SIDE WOODSTREAM V400M SAMPLE 2065-02 RIGHT SIDE WOODSTREAM V400M SAMPLE 2065-02 TOP SIDE WOODSTREAM V400M SAMPLE 2065-02 BOTTOM SIDE

PHOTO OF LABEL LOCATION ON WOODSTREAM V400M

ANTENNA BOARD WITH AND WITHOUT SHIELDING PICTURES BOARD TOP WITH SHIELD BOARD SIDE WITH SHIELD BOARD WITH SHIELD REMOVED BOARD BOTTOM SIDE

B B E E C C I I N N C C O O R R P P O O R R A A T T E E D D SAR REPORT TEST STANDARDS: FCC Part 15 Subpart C Intentional Radiator KDB 447498 D01 Woodstream Corporation Model V400M LoRa Radio Module With Models V450 and V460 Connected Control Rodent Traps (DTS) FCC ID: SNA-V400MR1 ISED ID: 9458A-V400M REPORT BEC-2065-04 CUSTOMER: Woodstream Corporation 69 North Locust Street Lititz, PA 17543 PREPARED BY: Paul Banker, Test Engineer REVIEWED and APPROVED BY: Steve Fanella, Quality Manager The results described in this report relate only to the item(s) tested. This document shall not be reproduced except in full without prior written permission of BEC Incorporated Report # BEC-2065-04 Woodstream V400M DTS SAR Report Release Date: 03/05/2020 Page 2 of 6 TABLE OF CONTENTS Notice To Customer ...................................................................................................................... 3 Revision History ............................................................................................................................ 3 1.0 Administrative Information .............................................................................................. 4 1.1 General Information Table ............................................................................................... 4 2.0 SAR Test Exclusion Parameters and Justification ......................................................... 5 3.0 SAR Test Exclusion Calculation ....................................................................................... 6 Report # BEC-2065-04 Woodstream V400M DTS SAR Report Release Date: 03/05/2020 Page 3 of 6 Notice To Customer This report and any recommendations it contains represent the result of BEC’s testing and assessment on behalf of your company. Testing has been conducted according to accepted engineering standards and practices. This report reflects testing and assessment of product samples provided by your company and may not reflect the characteristics of other samples, especially those produced at different times. Therefore this report and its findings and recommendations, if implemented, should not be construed as an assurance or implied warranty for the continuing electromagnetic compatibility (EMC) of the product. BEC shall not be liable for incidental or consequential damages, even if advised of the possibility thereof. BEC will not disseminate this report to other parties without your express permission. You may reproduce this report in its entirety including this notice and the entireties of any supplemental test reports on the same product (e.g. reports on additional testing following modification). However ‘you may not reproduce portions of the report (except for the entirety of the summary section) or quote from it for any purpose without specific prior written permission from BEC’. Revision History Revision # Description of Changes Date of Changes Date Released 0 Test Report Initial Release N/A 03/05/2020 Report # BEC-2065-04 Woodstream V400M DTS SAR Report Release Date: 03/05/2020 Page 4 of 6 1.0 Administrative Information 1.1 General Information Table Project Number BEC-2065 Manufacturer Woodstream Corporation Chassis Model Numbers Connected Control Rodent Traps V450 (Small) and V460 (Large) Chassis Model Serial Numbers None LoRa Radio Module Model Number V400M LoRa Radio Module Type Modified with SMA connector on transmitter output port LoRa Radio Module Serial #s None LoRa Radio Module Sample Numbers 2065-01 FCC ID SNA-V400MR1 Radio Chip Manufacturer Semtech Corporation Radio Chip Model Number SX1272 Frequency of Operation 902 – 915 MHz FCC Classification DTS Date Samples Received 02/04/2020 Condition Samples Received Suitable for test Sample Type Production unit EUT Description Connected Control Rodent Traps with LoRa Radio Communication Applicable FCC Rules 47 CFR Part 2.1093, KDB 447498 D01 Report # BEC-2065-04 Woodstream V400M DTS SAR Report Release Date: 03/05/2020 Page 5 of 6 2.0 SAR Test Exclusion Parameters and Justification From KDB 447498 D01: 4.3. General SAR test exclusion guidance 4.3.1. Standalone SAR test exclusion considerations The Maximum Antenna Power used for the RF Exposure Threshold calculation is the highest measured output power shown in the following table. The table comes from the FCC Part 15C test report for this product. The separation distance used in the calculation is 20 centimeters. This distance is derived from the usage of the product. The rodent trap would normally be placed on the floor of a dwelling where rodents travel. People will not dwell within 20 cm of the device except to perform maintenance. The device would be powered off during maintenance because of shocking hazard. Report # BEC-2065-04 Woodstream V400M DTS SAR Report Release Date: 03/05/2020 Page 6 of 6 3.0 SAR Test Exclusion Calculation The table in Appendix B, SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and  50 mm does not include the frequency or separation distance. Therefore, the following calculation, from paragraph 4.3.1 (b), was used to determine the SAR Test Exclusion Threshold: {[Power allowed at numeric threshold for 50 mm in step a)] + [(test separation distance – 50 mm) x (f(MHz) / 150]} mW Results: The Woodstream Model V400M, using DTS transmission, complies with SAR Test Exclusion Thresholds shown in the tables. Therefore, SAR evaluation is not required.

B B E E C C I I N N C C O O R R P P O O R R A A T T E E D D CERTIFICATION APPLICATION TEST REPORT TEST STANDARDS: FCC Part 15 Subpart C, IC RSS-Gen, IC RSS-247 DTS Intentional Radiator Woodstream Corporation Model V400M LoRa Radio Control Unit With Models V450 and V460 Connected Control Rodent Traps FCC ID: SNA-V400MR1 ISED ID: 9458A-V400M REPORT BEC-2065-02 REV1 TEST DATES: 02/04/2020 – 02/26/2020 CUSTOMER: Woodstream Corporation 69 North Locust Street Lititz, PA 17543 PREPARED BY: Paul Banker, Test Engineer REVIEWED and APPROVED BY: Steve Fanella, Quality Manager The results described in this report relate only to the item(s) tested. This document shall not be reproduced except in full without prior written permission of BEC Incorporated Report # BEC- 2065-02 REV1 Woodstream V400M FCC Part 15.247 RSS-247 RSS-Gen DTS Test Report Release Date: 03/10/2020 Page 2 of 37 TABLE OF CONTENTS Revision History ............................................................................................................................ 4 1.0 Administrative Information .............................................................................................. 5 1.1 Project Details .................................................................................................................. 5 1.2 Preface .............................................................................................................................. 6 1.3 Laboratory and Customer Information ............................................................................. 6 1.4 Measurement Uncertainty ................................................................................................ 6 1.5 Test Result Summary Table ............................................................................................. 7 1.6 Condition of Received Sample ......................................................................................... 8 1.7 Climatic Environment ...................................................................................................... 8 1.8 Test Equipment ................................................................................................................ 8 2.0 Equipment Under Test ...................................................................................................... 9 2.1 EUT Description .............................................................................................................. 9 2.2 Product Category .............................................................................................................. 9 2.3 Product Classification ...................................................................................................... 9 2.4 Test Configuration............................................................................................................ 9 2.5 Test Configuration Rationale ........................................................................................... 9 2.6 Test Configuration Diagram (Transmitter Conducted Measurements).......................... 10 2.7 Test Configuration Diagrams (Radiated Measurements) ............................................... 10 2.8 EUT Information, Interconnection Cabling and Support Equipment ............................ 11 2.9 Test Signals and Test Modulation .................................................................................. 12 2.10 Grounding ................................................................................................................... 12 2.11 EUT Modifications ..................................................................................................... 12 2.12 EUT Pictures Woodstream Model V400M LoRa Radio Control Unit ...................... 12 3.0 Applicable Requirements, Methods, and Procedures .................................................. 13 3.1 Applicable Requirements ............................................................................................... 13 3.1.1 FCC Requirements ..................................................................................................... 13 3.1.2 Industry Canada Requirements ................................................................................... 13 3.1.3 Basic Test Methods and Test Procedures ................................................................... 13 3.2 Deviations or Exclusions from the Requirements .......................................................... 13 4.0 Test Results ....................................................................................................................... 14 4.1 Antenna Requirement (47 CFR 15.203)(RSS-GEN ANNEX A (10)(g)) ...................... 14 4.2 External RF power amps/antenna modifications (47 CFR 15.204)(RSS-GEN 8.3) ...... 14 4.3 Restricted Bands of Operation 30 MHz - 10 GHz (47 CFR 15.205)(RSS-GEN 8.9) .... 14 4.3.1 Restricted Bands Test Facility .................................................................................... 14 4.3.2 Restricted Bands Radiated Emissions Test Procedure ............................................... 15 4.3.4 Restricted Bands of Operation 1 – 10 GHz Test Results (02/04/2020 - 02/06/2020) 17 4.4. Spurious Radiated Emissions 30 MHz to 10 GHz (47 CFR 15.209)(RSS-GEN 8.10) . 19 4.4.1 Spurious Radiated Emissions 30 MHz to 1 GHz Test Results (02/11/2020 and 02/12/2020) ............................................................................................................................... 19 4.4.2 Spurious Radiated Emissions 1 to 10 GHz Test Results (02/04/2020 - 02/06/2020). 21 4.5 DTS 6 dB Occupied Bandwidth (FCC Section 15.247(a)(2) RSS-247 5.2(a)) ............. 23 4.5.1 6 dB Occupied Bandwidth – Test Procedure.............................................................. 23 4.5.2 DTS (6 dB) Occupied Bandwidth Test Results (02/13/2020) .................................... 23 4.6 Maximum Conducted Output Power and EIRP (FCC Part 15.247(b)(3), RSS-247 Sect…

Text truncated - open the document above for the full version.

Appendix C Test Setup Photos Woodstream V400M RADIATED TEST SETUP PHOTOS SHIELDED ROOM 3 METER 30-1000 MHZ SHIELDED ROOM 3 METER 1-18 GHZ OATS 3 METER 30-1000 MHZ CONDUCTED TEST SETUP PHOTO
