SNA-V440Bait Box Rodent Trap with LoRa Radio

1. Press the power button to turn on the bait box. 2. Wait for confirmation of connectivity. 3 BATTERY INSTALLATION DOWNLOAD THE APP CALIBRATION 2. Insert 4 AA alkaline batteries (provided). 3. Replace the battery compartment lid using the screws provided. These instructions appear step-by-step on the VLINK™ mobile app. 1. Download the VLINK™ app from the Apple or Google Play Store. Box Lid START-UP GUIDE Victor® VLINK™ Bait Box Model: V440 FCC: this device complies with part 15 of the fcc rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this device not expressly approved by WoodstreamCorporation could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. IC: This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. RF Exposure: This equipment complies with FCC and IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. Manufactured for: Woodstream Corporation 69 N. Locust Street, Lititz, PA 17543 • 800-800-1819 1. Open box lid and remove the screws on the battery compartment using a Phillips head screwdriver. 2. Launch the app and follow the on-screen instructions to connect your trap to the app. Battery Compartment Bait Post LED Light Power Button Calibration Button QR Code Key 3. Ensure the bait box is sitting on the ground/surface of the exact location for which you are deploying. 4. Press and hold the calibrate button for 2-4 seconds. Once a solid yellow LED light is displayed, ensure the bait posts are empty and close the lid. 5. Upon closing the lid, a yellow LED on the top of the box will start blinking and will begin to blink faster as calibration progresses. When complete, the yellow LED will turn off and a green LED will turn on. 6. Open the lid and bait the box. Place the bait in the two bait positions and close the lid tightly. 7. Upon closing the lid, a green LED on the top of the box will start blinking and will begin to blink faster as calibration progresses. When complete, the green LED will turn off and your bait box will be ready. DOCUMENTATION SERVICING THE BAIT BOX 1. Select the type of bait, quantity, and add notes into the app. 1. Once a notification is received and service is required, re-calibration will be necessary. 2. If necessary, remove any remaining bait on the bait posts. 3. Open the bait box and scan the device QR code. 4. Select the 'Re-Calibrate' button in the app. 5. Follow the above calibration instructions or follow the prompts within the mobile app. LED Guide: •A green LED light will flash to indicate the device is powering on •A blue LED light indicates connection is successful •Three short blinks of a red LED light indicates the bait box is powering down due to connection failure or from holding down the power button •Three long blinks of a red LED light indicates failure during calibration •Quick blinks of red LED light every four seconds indicate the bait box is powered off, but batteries are installed •Upon pressing the power button, one blink of red LED light following three blinks of green LED light indicates the bait box is powered on but battery level is below 10% 1. Appuyez sur le bouton d'alimentation pour allumer la boîte d'appât. 2. Attendez la confirmation de la connectivité. INSTALLATION DE LA BATTERIE TÉLÉCHARGER L'APPLICATION ETALONNAGE 2. Insérez quatre Batteries alcalines AA (fournies). 3. Remettez le couvercle du compartiment des batteries en place à l'aide des vis four. Ces instructions apparaissent étape par étape sur l'application mobile VLINK™. 1. Téléchargez l'application VLINK™ à partir de l'Apple Store ou du Google Play Store. COUVERCLE DE GUIDE DE DÉMARRAGE Boîte à appâts Victor ® VLINK ™ Modèle : V440 FCC : cet appareil est conforme à la partie 15 des règles de la FCC. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d'interférences nuisibles, et (2) cet appareil doit accepter toute interférence reçue, y compris les interférences pouvant causer un fonctionnement indésirable. Avertissement : Les changements ou modifications apportés à cet appareil sans l'approbation expresse de WoodstreamCorporation peuvent annuler le droit de l'utilisateur à utiliser l'équipement. Remarque : Cet équipement a été testé et déclaré conforme aux limites d'un appareil numérique de classe B, conformément à la partie 15 des règles de la FCC. Ces limites sont conçues pour f…

Text truncated - open the document above for the full version.

69 N. Locust Street Lititz, PA 17543 (800) 800-1819 www.woodstreamcorp.com Authority to Act as Agent Date: November 23, 2022 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: Steve Fanella from BEC Incorporated is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Thank you, Agency Agreement Expiration Date: 11/23/2023 By: __________________________ ________________________ (Signature 1 ) (Print name) Title: __________________________ On behalf of: __________________________ (Company Name) Telephone: ___________________________ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. Dwayne Arrighy Electronic Compliance Manager Woodstream Corporation 717-740-4600 Ext. 1294

69 N. Locust Street Lititz, PA 17543 (800) 800-1819 www.woodstreamcorp.com Request for Confidentiality Date: November 23, 2022 Subject: Confidentiality Request for: FCC ID: SNA-V440; IC: 9458A-V440 Pursuant to FCC 47 CFR 0.457(d) and 0.459 and/or IC RSP-100, Section 12.4, the applicant requests that a part of the subject application(s) be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☐Permanent Block Diagrams ☐ Short Term --------------------------- External Photos ☐ Short Term ☐Permanent * 1 Internal Photos ☐ Short Term ☐Permanent Operation Description/Theory of Operation ☐ Short Term ☐ Permanent Parts List & Placement/BOM ☐ Short Term ☐ Permanent Tune-Up Procedure ☐ Short Term ☐ Permanent Schematics ☐ Short Term --------------------------- Test Setup Photos ☐ Short Term ☐Permanent * 1 User’s Manual Woodstream Corporation has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality for FCC Applications: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __ (specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Short Term Confidentiality for Industry Canada Applications: Starting May 2022, ISED will recognize short term confidentiality on certain exhibits until the intended date of marketing. The applicant requests the exhibits selected above as short term confidential be withheld from public view until:(specify ISED expiration date / date of marketing) . Sincerely, By: __________________________ ________________________ (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to https://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. x x x x x Dwayne Arrighy Electronic Compliance Manager

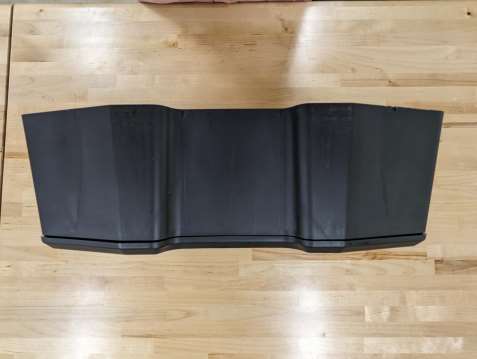

Appendix B Woodstream V440 Bait Box Rodent Trap with LoRa Radio External Photos

Labels are weatherproof, adhesive-backed polyvinyl

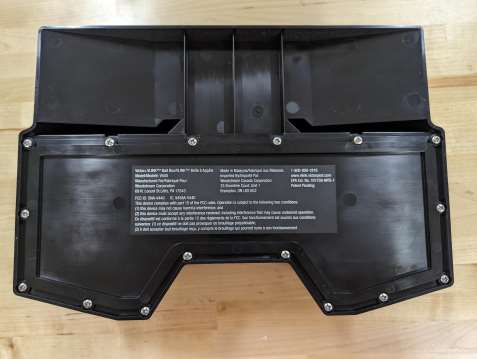

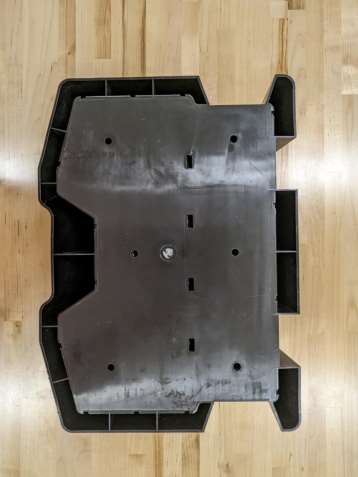

WOODSTREAM V440 LABEL LOCATION OUTTER CASING LEFT BOTTOM LABEL LOCATION INNER TRAY ASSEMBLY BOTTOM LABEL LOCATION

Appendix D Woodstream V440 Bait Box Rodent Trap with LoRa Radio Internal Photos PCB Antenna Board With Shielding PCB Antenna PCB Antenna Board With Shielding Removed From the Radio Section PCB Antenna Radio Section

B B E E C C I I N N C C O O R R P P O O R R A A T T E E D D SAR EXEMPTION REPORT TEST STANDARDS: FCC Part 15 Subpart C Intentional Radiator Woodstream Corporation Model V440 VLINK Bait Box Rodent Trap with LoRa Radio (DSS and DTS) FCC ID: SNA-V440 REPORT BEC-2224-06 CUSTOMER: Woodstream Corporation 69 North Locust Street Lititz, PA 17543 PREPARED BY: JR Fanella, Test Engineer REVIEWED and APPROVED BY: Steve Fanella, Quality Manager The results described in this report relate only to the item(s) tested. This document shall not be reproduced except in full without prior written permission of BEC Incorporated Report # BEC-2224-06 Woodstream V440 LoRa Rodent Trap DSS DTS SAR Test Report Release Date: 11/02/2022 Page 2 of 7 TABLE OF CONTENTS Notice to Customer ....................................................................................................................... 3 Revision History ............................................................................................................................ 3 1.0 Administrative Information .............................................................................................. 4 1.1 General Information Table ............................................................................................... 4 1.2 Separation Distance Rationale ......................................................................................... 5 1.3 Maximum Permissible Exposure Calculation .................................................................. 5 1.4 Maximum Permissible Exposure Calculation Results ..................................................... 7 Report # BEC-2224-06 Woodstream V440 LoRa Rodent Trap DSS DTS SAR Test Report Release Date: 11/02/2022 Page 3 of 7 Notice to Customer This report and any recommendations it contain represent the result of BEC’s testing and assessment on behalf of your company. Testing has been conducted according to accepted engineering standards and practices. This report reflects testing and assessment of product samples provided by your company and may not reflect the characteristics of other samples, especially those produced at different times. Therefore, this report and its findings and recommendations, if implemented, should not be construed as an assurance or implied warranty for the continuing electromagnetic compatibility (EMC) of the product. BEC shall not be liable for incidental or consequential damages, even if advised of the possibility thereof. BEC will not disseminate this report to other parties without your express permission. You may reproduce this report in its entirety including this notice and the entireties of any supplemental test reports on the same product (e.g. reports on additional testing following modification). However ‘you may not reproduce portions of the report (except for the entirety of the summary section) or quote from it for any purpose without specific prior written permission from BEC’. Revision History Revision # Description of Changes Date of Changes Date Released 0 Test Report Initial Release N/A 11/02/2022 Report # BEC-2224-06 Woodstream V440 LoRa Rodent Trap DSS DTS SAR Test Report Release Date: 11/02/2022 Page 4 of 7 1.0 Administrative Information 1.1 General Information Table Project Number BEC-2224 Manufacturer Woodstream Corporation Model Number V440 EUT Description VLINK Bait Box Rodent Trap with LoRa Radio Serial Number None Sample Type Modified with SMA connector on transmitter output port (Antenna Conducted Sample) Sample Number 2224-02 FCC ID SNA-V440 Radio Chip Manufacturer Semtech Corporation Radio Chip Model Number SX1272 Frequency of Operation 902 – 915 MHz Frequencies Tested Low (902.3 MHz) Middle (908.7 MHz) High (914.9 MHz) Low (903.0 MHz) Middle (909.4 MHz) High (914.2 MHz) Antenna Gain + 5.06 dBi Tune Up Tolerance +/- 2.0 dBm Antenna Type Inverted-F PCB Trace Antenna Modulation LoRa FCC Classification Digital Spread Spectrum (DSS) Digital Transmission System (DTS) Date Samples Received 09/23/2022 EUT Firmware Version FW Version 1.2.10 MCU: AVR32DA32 Condition Sample Received Production Unit Suitable for Test Device Type Portable Device Applicable FCC Rules 47 CFR Part 2.1093 KDB Guidance Document 447498 D04 Interim General RF Exposure Guidance v01 Report # BEC-2224-06 Woodstream V440 LoRa Rodent Trap DSS DTS SAR Test Report Release Date: 11/02/2022 Page 5 of 7 1.2 Separation Distance Rationale The V-Link LoRa Bait Box is a rodent trap designed to perform periodic measurements of the bait within the bait area of the bait box using a capacitive sensor. The trap will report this bait level in 25% increments to the Vlink app via LoRaWAN on a daily basis or whenever the bait level changes. A separation distance of 20 cm was selected due to the limited interaction with the device. This device is typically used in an outdoor setting and setup away from people. 1.3 Maximum Permissible Exposure Calculation §15.247 Operation within the bands 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. (i) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §1.1307(b)(1) of this chapter. §1.1307 Actions that may have a significant environmental effect, for which Environmental Assessments (EAs) must be prepared. (b)(1) The appropriate exposure limits in §§1.1310 and 2.1093 of this chapter are generally applicable to all facilities, operations and transmitters regulated by the Commission. §1.1310 Radiofrequency radiation exposure limits. (2) At operating frequencies less than or equal to 6 GHz, the limits for maximum permissible exposure (MPE), derived from whole-body Specific Absorption Rate (SAR) limits and listed in Table 1 of paragraph (e) of this section, may be used instead of whole-body SAR limits as set forth in paragraph (a) through (c) of this section to evaluate the environmental impact of human …

Text truncated - open the document above for the full version.

B B E E C C I I N N C C O O R R P P O O R R A A T T E E D D ANTENNA GAIN VALUE CALCULATION REPORT REFERENCE DOCUMENTS: KDB 789033 D02 ANSI C63.10 Woodstream Corporation Model V440 VLINK Bait Box Rodent Trap with LoRa Radio FCC ID: SNA-V440 REPORT# BEC-2224-07 CUSTOMER: Woodstream Corporation 69 North Locust Street Lititz, PA 17543 PREPARED BY: JR Fanella, Test Engineer REVIEWED and APPROVED BY: Steve Fanella, Quality Manager The results described in this report relate only to the item(s) tested. This document shall not be reproduced except in full without prior written permission of BEC Incorporated Report # BEC-2224-07 Woodstream Model V440 LoRa Bait Box Trap Antenna Gain Value Calculation Test Report Release Date: 11/02/2022 Page 2 of 8 TABLE OF CONTENTS Notice to Customer ....................................................................................................................... 3 Revision History ............................................................................................................................ 3 1.0 Administrative Information .............................................................................................. 4 1.1 General Information Table ............................................................................................... 4 1.2 Radiated EIRP (dBm) Test Method ................................................................................. 5 1.2.1 Radiated EIRP (dBm) Test Results (09/28/2022) ........................................................ 6 1.3 Maximum Conducted Output Power (dBm) Test Method ............................................... 7 1.3.1 Maximum Conducted Output Power (dBm) Test Results (10/12/2022) ...................... 7 1.4 Antenna Gain Value Calculation (EIRP Minus Maximum Conducted Output Power) ... 7 1.5 Test Setup Photograph for Radiated Measurement in Y-Axis ......................................... 8 1.6 Test Setup Photograph for Antenna Conducted Maximum Conducted Output Power.... 8 Report # BEC-2224-07 Woodstream Model V440 LoRa Bait Box Trap Antenna Gain Value Calculation Test Report Release Date: 11/02/2022 Page 3 of 8 Notice to Customer This report and any recommendations it contain represent the result of BEC’s testing and assessment on behalf of your company. Testing has been conducted according to accepted engineering standards and practices. This report reflects testing and assessment of product samples provided by your company and may not reflect the characteristics of other samples, especially those produced at different times. This report and its findings and recommendations, if implemented, should not be construed as an assurance or implied warranty for the continuing electromagnetic compatibility (EMC) of the product. BEC shall not be liable for incidental or consequential damages, even if advised of the possibility thereof. BEC will not disseminate this report to other parties without your express permission. You may reproduce this report in its entirety including this notice and the entireties of any supplemental test reports on the same product (e.g. reports on additional testing following modification). However ‘you may not reproduce portions of the report (except for the entirety of the summary section) or quote from it for any purpose without specific prior written permission from BEC’. Revision History Revision # Description of Changes Date of Changes Date Released 0 Test Report Initial Release N/A 11/02/2022 Report # BEC-2224-07 Woodstream Model V440 LoRa Bait Box Trap Antenna Gain Value Calculation Test Report Release Date: 11/02/2022 Page 4 of 8 1.0 Administrative Information 1.1 General Information Table Project Number BEC-2224 Manufacturer Woodstream Corporation Model Number Tested V440 EUT Sample Type FCC Test Code Radiated Sample EUT Serial Number None EUT Sample Number 2224-01 EUT Sample Type FCC Test Code Antenna Conducted Sample EUT Serial Number None EUT Sample Number 2224-02 EUT Firmware Version FW Version 1.2.10 MCU: AVR32DA32 Frequency of Operation 902 – 915 MHz FCC Band 902 – 928 MHz Antenna Gain Calculated Value + 5.06 dBi Antenna Type Inverted-F PCB Trace Modulation LoRa Date Samples Received 09/23/2022 Sample Type and Condition Received Production Unit Suitable for Test EUT Description Bait Box Rodent Trap FCC ID SNA-V440 ANSI and FCC KDB Guidance Documents KDB 789033 D02 General UNII Test Procedures New Rules v02r01 Section G 2(d) ANSI C63.10, Section 11.9: 2020 Report # BEC-2224-07 Woodstream Model V440 LoRa Bait Box Trap Antenna Gain Value Calculation Test Report Release Date: 11/02/2022 Page 5 of 8 1.2 Radiated EIRP (dBm) Test Method “EIRP” is calculated using the following KDB Guidance found in KDB 789033 D02 General UNII Test Procedures New Rules v02r01 Section G 2(d). The field strength for the Highest Peak Corrected Fundamental Tx Frequency was converted from dBuV/m at 3 meters to EIRP in (dBm) by subtracting 95.2. Per KDB 789033, Section G.2(d): EUT was set to transmit at 903 MHz with LoRa modulation using the following transmission settings of Power=20, Operating Bandwidth=500 kHz, Data Spread Factor=8. The Settings on the Measurement Analyzer for measuring the Fundamental Tx Frequency were: Sample Tested 2224-03 Under Battery Power with Tx 903.0 MHz, Power: 20, Bandwidth: 500 kHz, Spread Factor: 8 Frequency:903.0 MHz Span:3 MHz RBW1 MHz VBW 3 MHz Attenuation20 dB Ref Level120 dBuV DetectorPeak Highest Axis AmplitudeY Axis Measurement Analyzer Settings Report # BEC-2224-07 Woodstream Model V440 LoRa Bait Box Trap Antenna Gain Value Calculation Test Report Release Date: 11/02/2022 Page 6 of 8 1.2.1 Radiated EIRP (dBm) Test Results (09/28/2022) The Radiated Emissions data below reflect the peak measurement of the Fundamental Transmit frequency at 903.0 MHz. The EUT was maximized in the X, Y and Z axes with the receiving antenna in both horizontal and vertical polarity to find the worst-case amplitude. The Y-Axis was the highest amplitude for the tra…

Text truncated - open the document above for the full version.

B B E E C C I I N N C C O O R R P P O O R R A A T T E E D D CERTIFICATION APPLICATION TEST REPORT TEST STANDARDS: FCC Part 15 Subpart C, ISED RSS-Gen, ISED RSS-247 DTS Intentional Radiator Woodstream Corporation Model V440 Lora Radio Bait Box Rodent Trap FCC ID: SNA-V440 ISED ID: 9458A-V440 REPORT BEC-2224-01 TEST DATES: 09/27/2022 – 10/17/2022 CUSTOMER: Woodstream Corporation 69 North Locust Street Lititz, PA 17543 PREPARED BY: JR Fanella, Test Engineer REVIEWED and APPROVED BY: Steve Fanella, Quality Manager The results described in this report relate only to the item(s) tested. This document shall not be reproduced except in full without prior written permission of BEC Incorporated Report # BEC-2224-01 Woodstream V440 LoRa Radio FCC Part 15.247 RSS-247 RSS-Gen DTS Test Report Release Date: 11/10/2022 Page 2 of 53 TABLE OF CONTENTS Notice to Customer ....................................................................................................................... 4 Revision History ............................................................................................................................ 4 1.0 Administrative Information .............................................................................................. 5 1.1 Project Details .................................................................................................................. 5 1.2 Preface .............................................................................................................................. 6 1.3 Laboratory and Customer Information ............................................................................. 6 1.4 Measurement Uncertainty ................................................................................................ 7 1.5 Test Result Summary Table ............................................................................................. 8 1.6 Condition of Received Sample ......................................................................................... 9 1.7 Climatic Environment ...................................................................................................... 9 1.8 Test Equipment ................................................................................................................ 9 2.0 Equipment Under Test .................................................................................................... 10 2.1 EUT Description ............................................................................................................ 10 2.2 Product Category ............................................................................................................ 10 2.3 Product Classification .................................................................................................... 10 2.4 Test Configuration.......................................................................................................... 10 2.5 Test Configuration Rationale ......................................................................................... 10 2.6 Test Configuration Diagrams ......................................................................................... 11 2.7 EUT Information, Interconnection Cabling and Support Equipment ............................ 12 2.8 Test Signals and Test Modulation .................................................................................. 13 2.9 Antenna Gain.................................................................................................................. 13 2.10 Grounding ................................................................................................................... 13 2.11 EUT Modifications ..................................................................................................... 14 2.12 EUT Pictures Woodstream Model V440 LoRa Radio Bait Box Rodent Trap ........... 14 3.0 Applicable Requirements, Methods, and Procedures .................................................. 15 3.1 Applicable Requirements ............................................................................................... 15 3.1.1 FCC Requirements ..................................................................................................... 15 3.1.2 Innovation, Science and Economic Development Canada (ISED) ............................ 15 3.1.3 Basic Test Methods and Test Procedures ................................................................... 15 3.1.4 Deviations or Exclusions from the Requirements ...................................................... 15 4.0 Test Results ....................................................................................................................... 16 4.1 Antenna Requirement (47 CFR 15.203)(RSS-GEN ANNEX A (10)(g)) ...................... 16 4.2 External RF power amps/antenna modifications (47 CFR 15.204)(RSS-GEN 8.3) ...... 16 4.3 Duty Cycle of the DTS Fundamental Transmission ...................................................... 16 4.3.1 Duty Cycle Measurement Results (10/13/2022) ........................................................ 16 4.4 DTS Emissions in Non-restricted Frequency Bands (FCC Section 15.247(d), RSS-247 Sec.5) 17 4.4.1 DTS Emissions in Non-restricted Frequency Bands Test Procedure ......................... 17 4.4.2 DTS Emissions in Non-restricted Frequency Bands Reference Measurement Channel 0 (10/17/2022) ........................................................................................................................... 17 4.4.3 DTS Emissions in Non-restricted Frequency Bands Channel 0 Test Results (10/17/2022) .............................................................................................................................. 18 4.4.4 DTS Emissions in Non-restricted Frequency Bands Reference Measurement Channel 4 (10/17/2022) ........................................................................................................................... 21 …

Text truncated - open the document above for the full version.

Appendix C Woodstream V440 Bait Box Rodent Trap with LoRa Radio Test Setup Photos ANTENNA CONDUCTED TEST SETUP RADIATED EMISSIONS TEST SETUP 30-1000 MHZ SHIELDED ROOM RADIATED EMISSIONS TEST SETUP 30-1000 MHZ 3 METER OATS RADIATED EMISSIONS TEST SETUP 1-10 GHZ SHIELDED ROOM
