SNA-RFBRadial Fence Base

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: SNA-RFB FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 10-0086.W03.55.A Manufacturer: Woodstream Corporation Model: 5134G-B Manual Instruction Manual Radial-Shape Wireless Dog Fence Model 5134G Controller Congratulations and thank you for choosing the Radial-Shape Wireless Dog Fence from Havahart ® Wireless - the leading innovator of digital wireless fence solutions. Featuring breakthrough, patented wireless technology, the Radial- Shape Wireless Dog Fence is designed to provide maximum freedom and safety for your dog and peace of mind for you with minimal effort, investment and impact on your property. It is the industry’s most- advanced, do-it-yourself, INSTANT-CIRCULAR dog containment system. It is the first to offer a Roaming Area that can extend from 40 up to 400 feet in all directions with technology housed in a Controller that is smaller than a Frisbee. There are no wires to bury or break, no back pains from digging, and no wasted money on trenching — just a fast & easy setup and freedom for your dog to roam! Proper training of your dog is the most critical element in ensuring the successful operation of your wireless dog fence. Consult the training section of this manual once you have set up your wireless dog fence. To ensure your complete satisfaction and your dog’s safety, please read and follow all of these instructions carefully. Should you need assistance, our Consumer Care Specialists are ready to help. Call 1-800-800-1819, Option 1. Thank you for purchasing the Radial-Shape Wireless Dog Fence from Havahart ® Wireless! 1 Welcome Havahart ® Radial-Shape Wireless Dog Fence www.havahartwireless.com 2 Table of Contents Table of Contents IMPORTANT SAFETY REMINDERS .......................................................................................................................... SYSTEM COMPONENTS .............................................................................................................................................. KEY DEFINITIONS, TECHNOLOGY & HOW IT WORKS .................................................................................... - Roaming Area - Trigger Zone - Controller - Havahart ® Collar GETTING STARTED ........................................................................................................................................................ - Planning Your Wireless Fence System - Quick Checklist INSTALLING THE RADIAL-SHAPE WIRELESS DOG FENCE .............................................................................. Setting Up the Controller ......................................................................................................................... - Installing & Activating the Controller Setting Up the Collar ................................................................................................................................... - Installing a Battery - Checking Battery Status - Recharging a Battery - Activating a Collar - Adjusting the Correction Level of a Collar - Turning a Collar Off/On - Removing a Collar Setting Up the Fence Boundary/Trigger Zone ............................................................................... - Establishing the Fence Boundary/Trigger Zone Distance - Placing Training Flags - Turning the Trigger Zone Off/On - Display Options (Viewing Distance to Dog and Battery Status, Turning the Display Off/On, Setting Alarm Options) Fitting a Collar ................................................................................................................................................ TRAINING YOUR DOG ................................................................................................................................................... FREQUENTLY ASKED QUESTIONS ............................................................................................................................ FACTORS AFFECTING SIGNAL STRENGTH ............................................................................................................ TROUBLESHOOTING .................................................................................................................................................... TERMS OF USE AND LIMITATION OF LIABILITY ................................................................................................. WARRANTY INFORMATION ...................................................................................................................................... WIRELESS FENCE PLANNING GRID .......................................................................................................................... 1 2 3 4 Havahart ® Radial-Shape Wireless Dog Fence 1-800-800-1819, Option 1 3 4 5 7 9 9 11 14 18 20 27 32 33 36 37 38 To ensure the safe and effective operation of your Radial-Shape Wireless Dog Fence, please read and follow all safety guidelines and instructions: s The Radial-Shape Wireless Dog Fence is designed for dogs older than 6 months that weigh more than 8 pounds. s The Controller must be installed indoors and should not be exposed to moisture (e.g. rain or snow). sThe Controller must be plugged into a properly grounded 120V AC outlet. sChanges or modifications to any system component may cause permanent system damage and void manufacturer warranties. sTo prevent system damage due to unexpected power surges, it is recommended that you unplug the Controller from the wall outlet during thunderstorms. All settings will be retained in system memory. Also do not attempt to install the system during stormy weather. sTo help prevent skin irritation and increase battery life, do not leave the Collar on your dog for more than 12 consecutive hours. sAlways remove the Collar from your dog before adjusting any of the system components or settings. sThe system is intended to provide safe c…

Text truncated - open the document above for the full version.

5015 B. U. Bowman Dr. Buford, GA 30518 March 29, 2010 ACS TCB 5015 B.U. Bowman Drive Buford, GA 30518 Re: FCC ID: SNA-RFB To Whom It May Concern: The following application is submitted on behalf of our client, Woodstream Corporation, for evaluation of the Havahart® Radial Fence Base, model 5134G-B, for certification under FCC Part 15.247. The 5134G-B was tested in full to the requirements of the aforementioned rules and was found to be in compliance. Sincerely, Sam Wismer Vice President, Technology Advanced Compliance Solutions, Inc.

69 N. Locust Street P.O. Box 327 Lititz, PA 17543-0327 (717) 626-2125 C O R P O R A T I O N Fax: (717) 626-5350 www.woodstreamcorp.com March 25, 2010 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: Agent Letter of Authorization – Advanced Compliance Solutions, Inc. Havahart® Radial Fence Base (FCC ID: SNA-RFB) Dear Sir or Madam: I hereby appoint Sam Wismer at Advanced Compliance Solutions, Inc. to act as our agent in the preparation of an application for equipment authorization of FCC ID: SNA-RFB to the FCC Rules and Regulations. I certify that all exhibits contained within this filing properly describe the device or system for which authorization is sought. I further certify that appropriate arrangements have been made to assure that production units of this equipment bearing the name and FCC IDENTIFIER listed in this application will continue to comply with the Commission's requirements. I further certify by signature below that no party (per 47 CFR 1.2002(b)) to the application is subject to a denial of Federal benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Should you have any questions/need any additional information, I can be reached at (717) 626 – 2125 x426 or by email at [email protected] . Sincerely, Chad Mateer Regulatory Affairs Manager Woodstream Corporation

69 N. Locust Street P.O. Box 327 Lititz, PA 17543-0327 (717) 626-2125 C O R P O R A T I O N Fax: (717) 626-5350 www.woodstreamcorp.com March 25, 2010 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: CONFIDENTIALITY REQUEST Havahart® Radial Fence Base (FCC ID: SNA-RFB) Dear Sir or Madam: Woodstream Corporation respectfully requests confidentiality of certain materials provided with the submission of the Havahart® Radial Fence Base under FCC ID: SNA-RFB in accordance with FCC Regulations 0.459. The confidentiality request applies to the schematic diagrams, block diagram (including associated oscillator frequencies, block signal paths and frequencies, tuning ranges and intermediate frequencies), operational descriptions (including circuit functions, grounding system description, antenna and duty cycle details), parts list and tune up procedures contained in this filing and included in the following files. 10-0086.W03.55.A – Schematics.pdf 10-0086.W03.55.A – System Block Diagram.pdf 10-0086.W03.55.A – Theory of Operation.pdf The Havahart® Radial Fence Base has been developed at considerable effort and expense by Woodstream Corporation. These items are considered as Trade Secrets and therefore public access to the proprietary material could possibly result in duplication of equipment that could severely damage the company's business advantage. I appreciate your assistance in this matter. Should you have any questions/need any additional information, I can be reached at (717) 626 – 2125 x426 or by email at [email protected] . Sincerely, Chad Mateer Regulatory Affairs Manager Woodstream Corporation

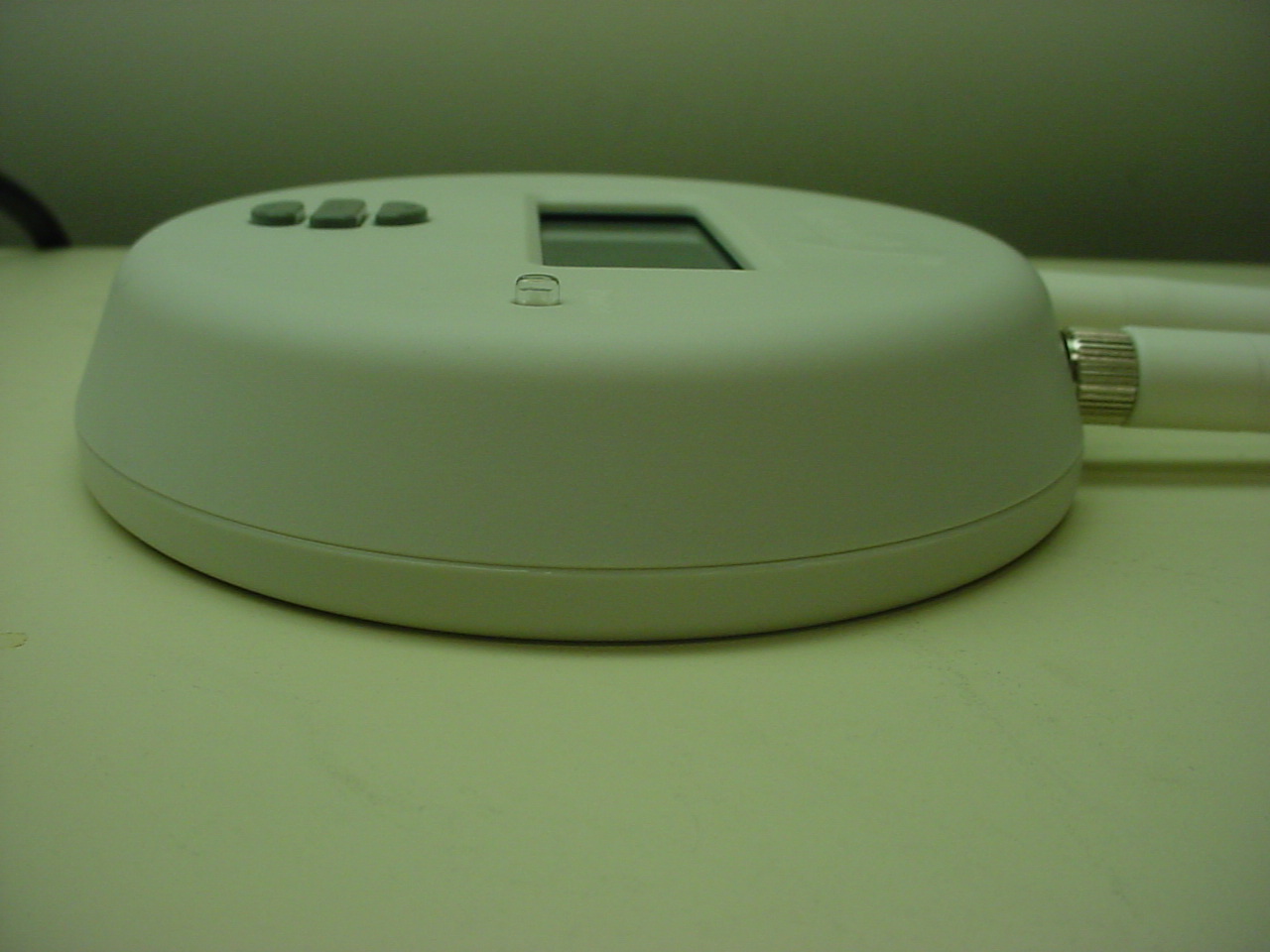

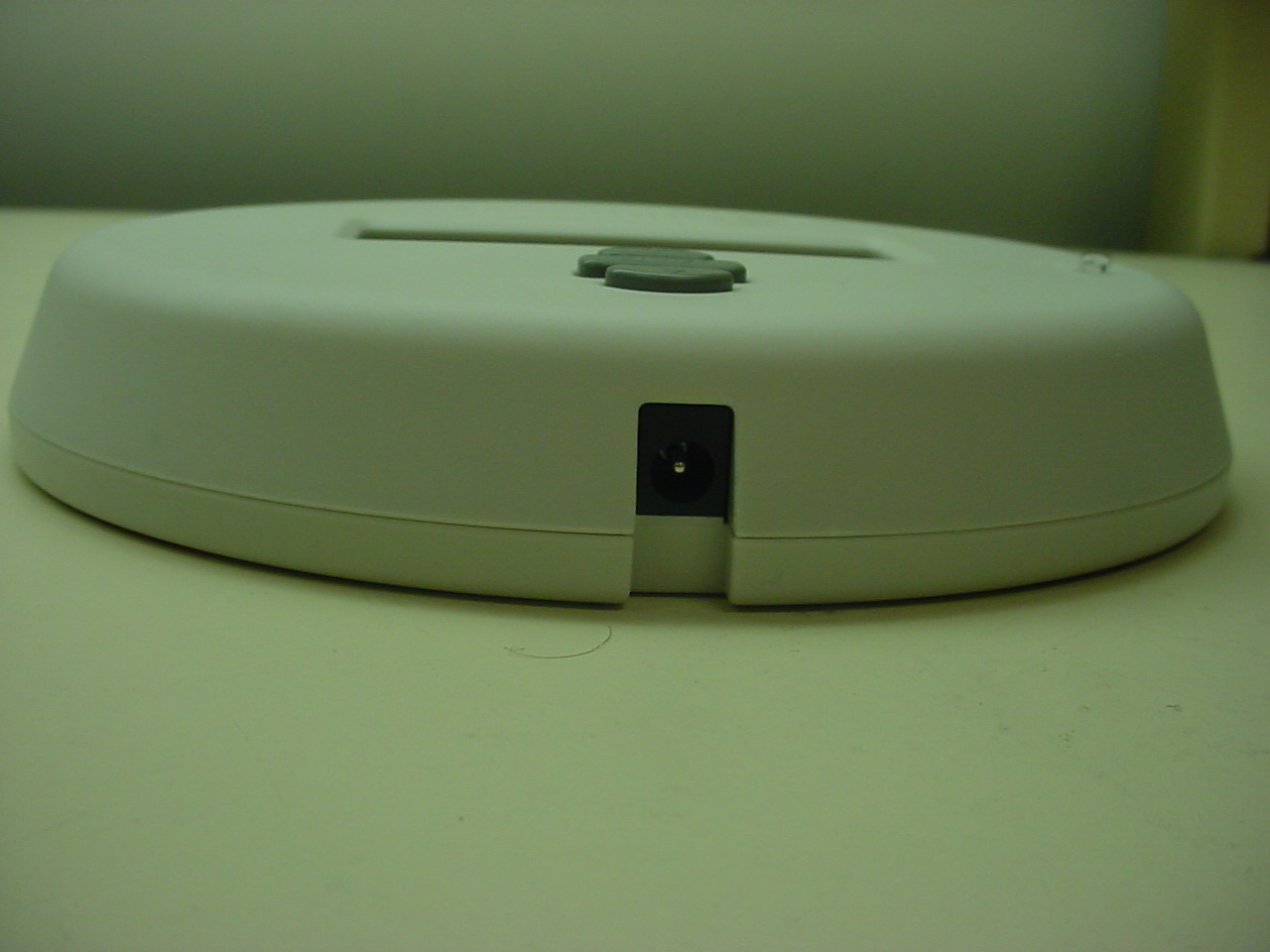

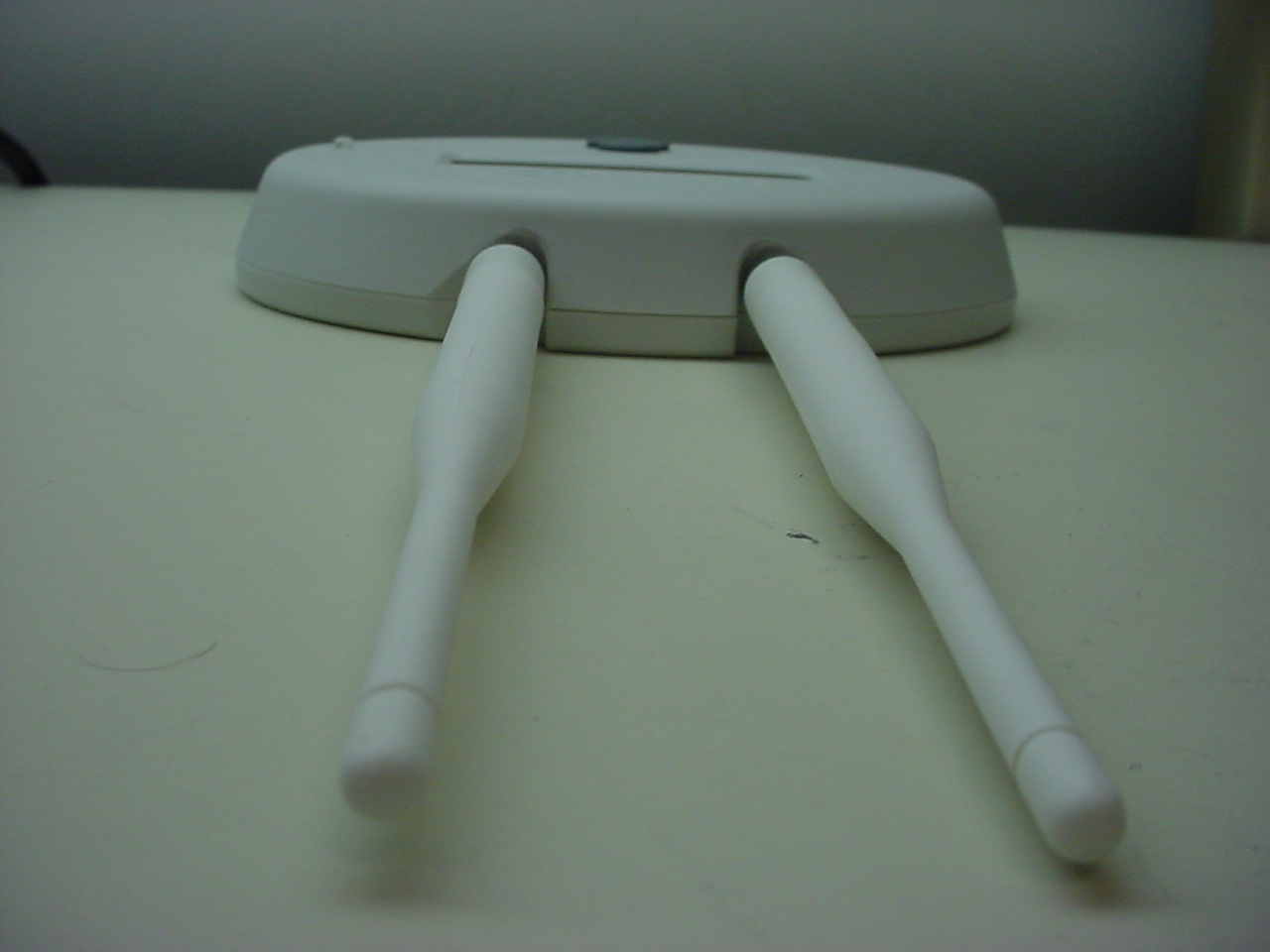

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: SNA-RFB FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 10-0086.W03.55.A Manufacturer: Woodstream Corporation Model: 5134G-B External Photos Model: 5134G-B FCC ID: SNA-RFB ACS Report: 10-0086.W03.55.A Advanced Compliance Solutions Page 2 Figure 1: Front View Model: 5134G-B FCC ID: SNA-RFB ACS Report: 10-0086.W03.55.A Advanced Compliance Solutions Page 3 Figure 2: Back View Model: 5134G-B FCC ID: SNA-RFB ACS Report: 10-0086.W03.55.A Advanced Compliance Solutions Page 4 Figure 3: Top View Model: 5134G-B FCC ID: SNA-RFB ACS Report: 10-0086.W03.55.A Advanced Compliance Solutions Page 5 Figure 4: Bottom View Model: 5134G-B FCC ID: SNA-RFB ACS Report: 10-0086.W03.55.A Advanced Compliance Solutions Page 6 Figure 5: Side View Model: 5134G-B FCC ID: SNA-RFB ACS Report: 10-0086.W03.55.A Advanced Compliance Solutions Page 7 Figure 6: Side View

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: SNA-RFB FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 10-0086.W03.55.A Manufacturer: Woodstream Corporation Model: 5134G-B Label Information Actual size of label is .75 in. X 2.25 in. and will be placed on the rear surface of the product. Havahart Radial Fence Base ®

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: SNA-RFB FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 10-0086.W03.55.A Manufacturer: Woodstream Corporation Model: 5134G-B Internal Photos Model: 5134G-B FCC ID: SNA-RFB ACS Report: 10-0086.W03.55.A Advanced Compliance Solutions Page 2 Figure 1: PCB - Front Model: 5134G-B FCC ID: SNA-RFB ACS Report: 10-0086.W03.55.A Advanced Compliance Solutions Page 3 Figure 2: PCB - Back Model: 5134G-B FCC ID: SNA-RFB ACS Report: 10-0086.W03.55.A Advanced Compliance Solutions Page 4 Figure 3: PCB without Shields - Back

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: SNA-RFB FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 10-0086.W03.55.A Manufacturer: Woodstream Corporation Model: 5134G-B RF Exposure Model: 5134G-R FCC ID: SNA-RFB ACS Report: 10-0086.W03.55.A Advanced Compliance Solutions Page 2 General Information: Applicant: Woodstream Corporation ACS Project: 10-0086.W03.55.A Device Category: Mobil Environment: General Population/Uncontrolled Exposure Technical Information: Antenna Type: Nearson Collinear Antenna part number S151AH-2450 Antenna Gain: 5dBi Maximum Transmitter Conducted Power: 12.73dBm, 18.8mW Maximum System EIRP: 17.73dBm, 59.3mW Exposure Conditions: Greater than 20 centimeters MPE Calculation The Power Density (mW/cm 2 ) is calculated as follows: S = 2 4R PG  Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) MPE Calculator for Mobile Equipment Limits for General Population/Uncontrolled Exposure* 2441.712.731.0018.7553.162 200.012 Power Density (mW/cm^2) Distance (cm) Transmit Frequency (MHz) Radio Power (dBm) Power Density Limit (mW/Cm2) Radio Power (mW) Antenna Gain (dBi) Antenna Gain (mW eq.) Installation Guidelines The installation manual should contain text similar to the following advising how to install the equipment to maintain compliance with the FCC RF exposure requirements: RF Exposure In accordance with FCC requirements of human exposure to radio frequency fields, the radiating element shall be installed such that a minimum separation distance of 20 centimeters will be maintained. Conclusion This device complies with the MPE requirements by providing adequate separation between the device, any radiating structure and the general population.

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Test Report FCC ID: SNA-RFB FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 10-0086.W03.55.A Manufacturer: Woodstream Corporation Model: 5134G-B Test Begin Date: March 15, 2010 Test End Date: March 17, 2010 Report Issue Date: March 29, 2010 FOR THE SCOPE OF ACCREDITATION UNDER LAB Code 200612-0 This report is not be used to claim certification, approval, or endorsement by NVLAP, NIST or any government agency. Reviewed by: Kirby Munroe Director, Wireless Certifications ACS, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 21 pages 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 TABLE OF CONTENTS 1 GENERAL ............................................................................................................................................ 3 1.1 PURPOSE .......................................................................................................................................... 3 1.2 PRODUCT DESCRIPTION ................................................................................................................... 3 1.2.1 General ................................................................................................................................... 3 1.3 TEST METHODOLOGY AND CONSIDERATIONS ................................................................................. 3 2 TEST FACILITIES .............................................................................................................................. 4 2.1 LOCATION ....................................................................................................................................... 4 2.2 LABORATORY ACCREDITATIONS/RECOGNITIONS/CERTIFICATIONS ................................................ 4 2.3 RADIATED EMISSIONS TEST SITE DESCRIPTION .............................................................................. 5 2.3.1 Semi-Anechoic Chamber Test Site .......................................................................................... 5 2.3.2 Open Area Tests Site (OATS) ................................................................................................. 6 2.4 CONDUCTED EMISSIONS TEST SITE DESCRIPTION ........................................................................... 7 3 APPLICABLE STANDARD REFERENCES .................................................................................... 7 4 LIST OF TEST EQUIPMENT ............................................................................................................ 8 5 SUPPORT EQUIPMENT .................................................................................................................... 9 6 EQUIPMENT UNDER TEST SETUP BLOCK DIAGRAM ........................................................... 9 7 SUMMARY OF TESTS ..................................................................................................................... 10 7.1 ANTENNA REQUIREMENT – FCC: SECTION 15.203 ....................................................................... 10 7.2 POWER LINE CONDUCTED EMISSIONS – FCC: SECTION 15.207 IC: RSS-GEN 7.2.2 ...................... 10 7.2.1 Measurement Procedure ....................................................................................................... 10 7.2.2 Measurement Results ............................................................................................................ 10 7.3 RADIATED EMISSIONS – FCC: SECTION 15.109(UNINTENTIONAL RADIATION) IC: RSS-210 2.6 .. 12 7.3.1 Measurement Procedure ....................................................................................................... 12 7.3.2 Measurement Results ............................................................................................................ 12 TABLE 7.3.2-1: RADIATED EMISSIONS TABULATED DATA ....................................................................... 12 7.4 6DB / 99% BANDWIDTH – FCC: SECTION 15.247(A)(2) IC: RSS-210 A8.2(A) ............................. 13 7.4.1 Measurement Procedure ....................................................................................................... 13 7.4.2 Measurement Results ............................................................................................................ 13 7.5 PEAK OUTPUT POWER REQUIREMENT - FCC SECTION 15.247(B)(3) IC: RSS-210 A8.4(4) .......... 15 7.5.1 Measurement Procedure ....................................................................................................... 15 7.5.2 Measurement Results ............................................................................................................ 15 7.6 SPURIOUS EMISSIONS - FCC 15.247D IC:RSS-210 2.6, A8.5 ........................................................ 15 7.6.1 RF Conducted Spurious Emissions ....................................................................................... 15 7.6.1.1 Measurement Procedure ................................................................................................................... 15 7.6.1.2 Measurement Results ....................................................................................................................... 15 7.6.2 Radiated Spurious Emissions (Restricted Bands) - FCC Sec. 15.205 IC: RSS-210 2.6........ 18 7.6.2.1 Measurement Procedure ................................................................................................................... 18 7.6.2.2 Duty Cycle Correction ..................................................................................................................... 18 7.6.2.3 Measurement Results .....................................…

Text truncated - open the document above for the full version.

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: SNA-RFB FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 10-0086.W03.55.A Manufacturer: Woodstream Corporation Model: 5134G-B Test Setup Photos Model: 5134G-B FCC ID: SNA-RFB ACS Report: 10-0086.W03.55.A Advanced Compliance Solutions Page 2 Figure 1: Radiated Emissions Model: 5134G-B FCC ID: SNA-RFB ACS Report: 10-0086.W03.55.A Advanced Compliance Solutions Page 3 Figure 2: Radiated Emissions Model: 5134G-B FCC ID: SNA-RFB ACS Report: 10-0086.W03.55.A Advanced Compliance Solutions Page 4 Figure 3: Radiated Emissions Model: 5134G-B FCC ID: SNA-RFB ACS Report: 10-0086.W03.55.A Advanced Compliance Solutions Page 5 Figure 4: AC Power Line Conducted Emissions Model: 5134G-B FCC ID: SNA-RFB ACS Report: 10-0086.W03.55.A Advanced Compliance Solutions Page 6 Figure 5: AC Power Line Conducted Emissions
