SNBDM1000CEHome Cellular Cordless Telephone

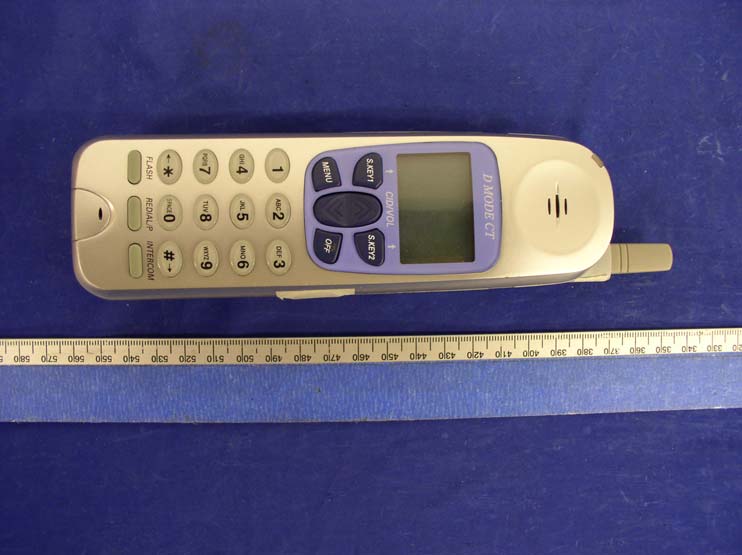

Waxess USA, Inc. DM1000 User Guide D Mode DM1000CB cover draft 1.fm Page i Friday, June 18, 2010 12:25 PM DM1000iiCopyright © 2010 Waxess USA Handset 1 Antenna 2 Betlclip attachment 3 Speaker for Ringer 4 Handset battery compartment 5 New Message LED 6 Handset Earpiece 7LCD Display 8Function Keys 9Up/Down keys 10 Menu and Off keys 11Í * Scroll Left 12 Flash/Delete key 13 Redial/Pause key 14 Headset Jack 15 #Î Scroll Right 16 Intercom 17 Handset Microphone 18 Handset Charging Contacts D Mode DM1000CB cover draft 1.fm Page ii Friday, June 18, 2010 12:26 PM DM1000iiiCopyright © 2010 Waxess USA Base 19 Base Speaker/Ringer 20 LCD Display 21 Function Keys 22 Up/Down Keys 23 Menu and Off Keys 24 Intercom Key 25 Speaker Phone Key 26 Speaker Phone ON LED 27 Redial/Pause Key 28 New Message LED 29 Flash Key 30 DC IN 9V Jack 31 TEL LINE Jack 32 Corded Handset Jack 33 Battery cover 34 Data Port Door (not for consumer use) 34 D Mode DM1000CB cover draft 1.fm Page iii Friday, June 18, 2010 12:26 PM DM1000ivCopyright © 2010 Waxess USA Contents Get ready . . . . . . . . . . . . . . . . . . . . . . 1 Choose Location . . . . . . . . . . . . . . . . . . . . . 1 Desk or Table . . . . . . . . . . . . . . . . . . . . . . . 2 Wall mount . . . . . . . . . . . . . . . . . . . . . . . . 3 Base power on . . . . . . . . . . . . . . . . . . . . . . 4 Power backup batteries (Optional) . . . . . . . . 4 Standby Screen . . . . . . . . . . . . . . . . . . . . . 6 Signal level meter . . . . . . . . . . . . . . . . . . . . 7 Optional antenna removal . . . . . . . . . . . . . . 7 Ready the cordless handset . . . . . . . . . . . . . 8 Get set . . . . . . . . . . . . . . . . . . . . . . . 11 Dialing mode . . . . . . . . . . . . . . . . . . . . . . 11 Time and date . . . . . . . . . . . . . . . . . . . . . 12 Set the ringer tone . . . . . . . . . . . . . . . . . . 14 Set the ringer volume . . . . . . . . . . . . . . . . 15 Key beep . . . . . . . . . . . . . . . . . . . . . . . . . 16 Area codes . . . . . . . . . . . . . . . . . . . . . . . . 16 Add/remove a 1 . . . . . . . . . . . . . . . . . . . . 17 Add/remove area code . . . . . . . . . . . . . . . 18 Language . . . . . . . . . . . . . . . . . . . . . . . . . 18 LCD contrast . . . . . . . . . . . . . . . . . . . . . . 19 Name . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Handset registration . . . . . . . . . . . . . . . . . 19 Register . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Deregister . . . . . . . . . . . . . . . . . . . . . . . . 20 GO! . . . . . . . . . . . . . . . . . . . . . . . . . 21 CDMA Activation . . . . . . . . . . . . . . . . . . . . 21 DM1000CB-CDMATOC.fm Page iv Friday, June 18, 2010 12:18 PM DM1000vCopyright © 2010 Waxess USA Make a wireless call . . . . . . . . . . . . . . . . . 21 Make a landline call . . . . . . . . . . . . . . . . . . 22 Set earpiece volume . . . . . . . . . . . . . . . . . 22 Calling options . . . . . . . . . . . . . . . . . . . . . 23 Speed dial . . . . . . . . . . . . . . . . . . . . . . . . 23 Redial . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Pause (for TEL line use only) . . . . . . . . . . . 24 Answer a wireless call . . . . . . . . . . . . . . . . 24 Answer a landline call . . . . . . . . . . . . . . . . 25 In-Call operations . . . . . . . . . . . . . . . . . . . 26 Place a call on Hold . . . . . . . . . . . . . . . . . . 26 Mute a call . . . . . . . . . . . . . . . . . . . . . . . . 26 Transfer a call . . . . . . . . . . . . . . . . . . . . . . 26 Set up a conference call . . . . . . . . . . . . . . . 29 Phone book . . . . . . . . . . . . . . . . . . . . . . . 29 Enter names and characters . . . . . . . . . . . . 30 Enter numbers directly . . . . . . . . . . . . . . . 31 Edit names or numbers . . . . . . . . . . . . . . . 32 Enter numbers from Caller ID . . . . . . . . . . . 32 Call from phone book . . . . . . . . . . . . . . . . 34 Speed dial . . . . . . . . . . . . . . . . . . . . . . . . 34 Messages . . . . . . . . . . . . . . . . . . . . . . . . . 34 Voice messages . . . . . . . . . . . . . . . . . . . . 34 Short Message Service (SMS) . . . . . . . . . . . 36 More features . . . . . . . . . . . . . . . . . . 42 Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . 42 Caller ID information . . . . . . . . . . . . . . . . . 42 Check the log . . . . . . . . . . . . . . . . . . . . . . 44 Dial a number . . . . . . . . . . . . . . . . . . . . . 44 Save a number . . . . . . . . . . . . . . . . . . . . . 44 DM1000CB-CDMATOC.fm Page v Friday, June 18, 2010 12:18 PM DM1000viCopyright © 2010 Waxess USA Delete a number . . . . . . . . . . . . . . . . . . . . 45 Call Forwarding . . . . . . . . . . . . . . . . . . . . . 46 Activate Call Forwarding . . . . . . . . . . . . . . 46 Deactivate Call Forwarding . . . . . . . . . . . . . 47 Page and Intercom . . . . . . . . . . . . . . . . . . 47 Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Intercom . . . . . . . . . . . . . . . . . . . . . . . . . 48 Two-line calling . . . . . . . . . . . . . . . . . . . . . 49 Quick reference chart . . . . . . . . . . . . . . . . 50 Make two separate calls . . . . . . . . . . . . . . . 51 Receive two separate calls . . . . . . . . . . . . . 51 Call waiting with two calls . . . . . . . . . . . . . 52 Barge-in . . . . . . . . . . . . . . . . . . . . . . . . . 52 Quick reference chart . . . . . . . . . . . . . . . . 54 Set up Barge-In . . . . . . . . . . . . . . . . . . . . 55 Use Barge-In . . . . . . . . . . . . . . . . . . . . . . 55 Cellular only . . . . . . . . . . . . . . . . . . . . . . . 56 Set up Cellular only . . . . . . . . . . . . . . . . . . 56 Turn off Cellular only . . . . . . . . . . . . . . . . . 56 CEL Phone Number . . . . . . . . . . . . . . . . . . 57 Power back-up . . . . . . . . . . . . . . . . . . . . . 57 Precautions . . . . . . . . . . . . . . . . . . . . 59 Rechargeable Nickel-Metal-Hydride Battery Warn- ing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Rechar…

Text truncated - open the document above for the full version.

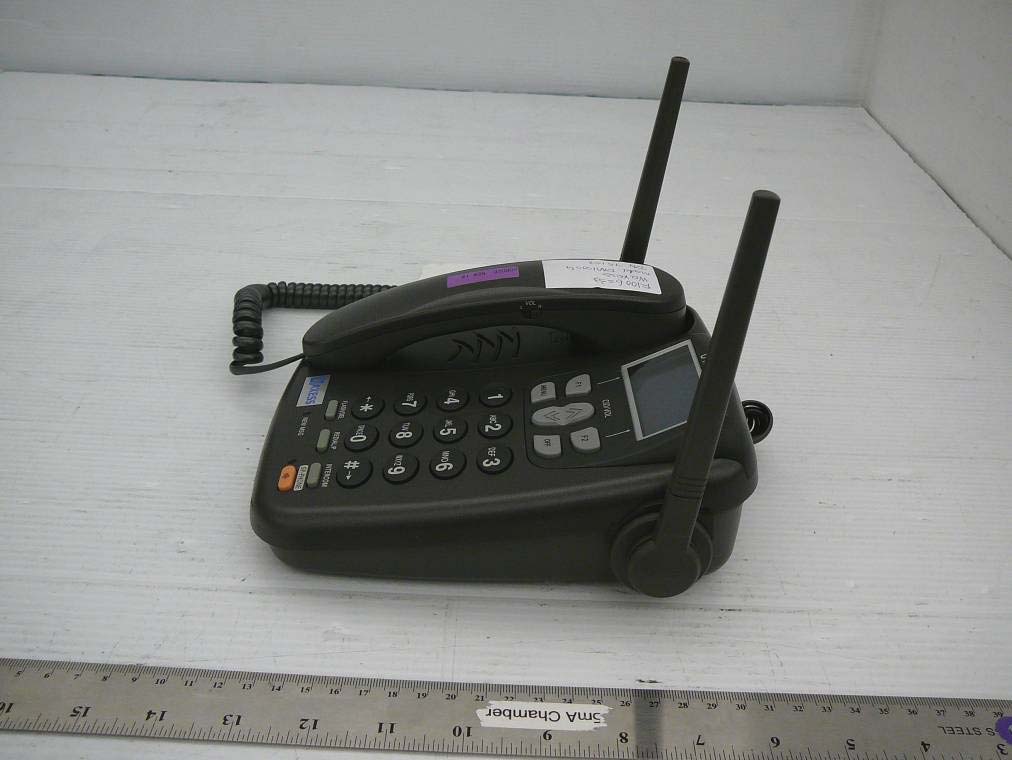

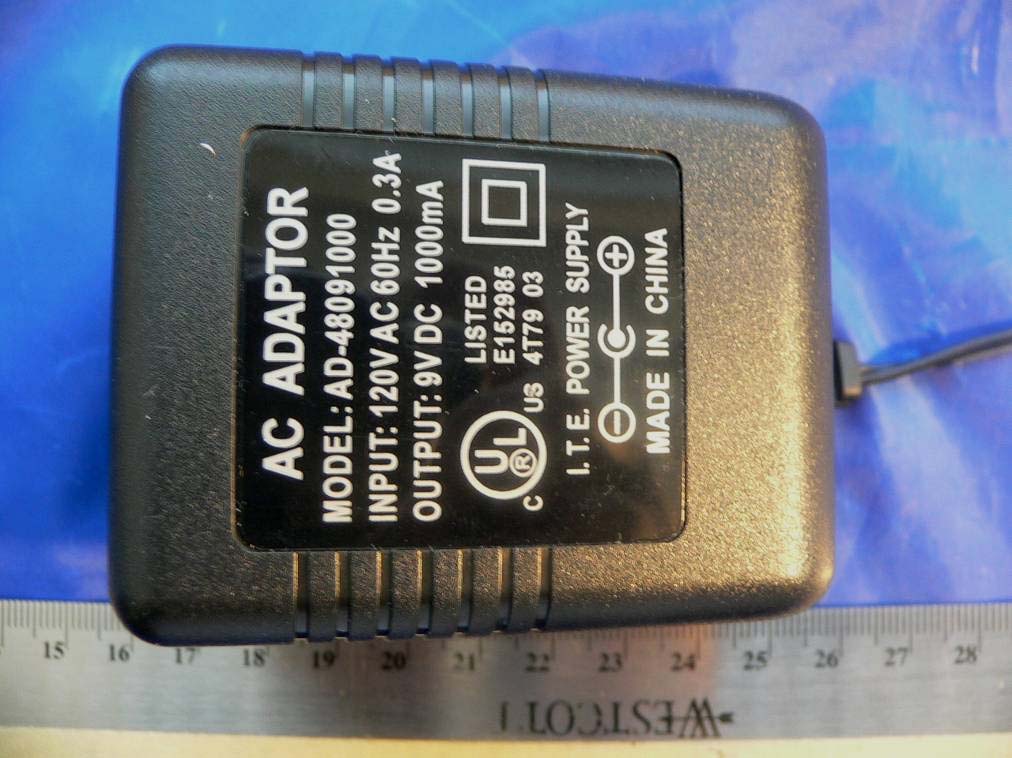

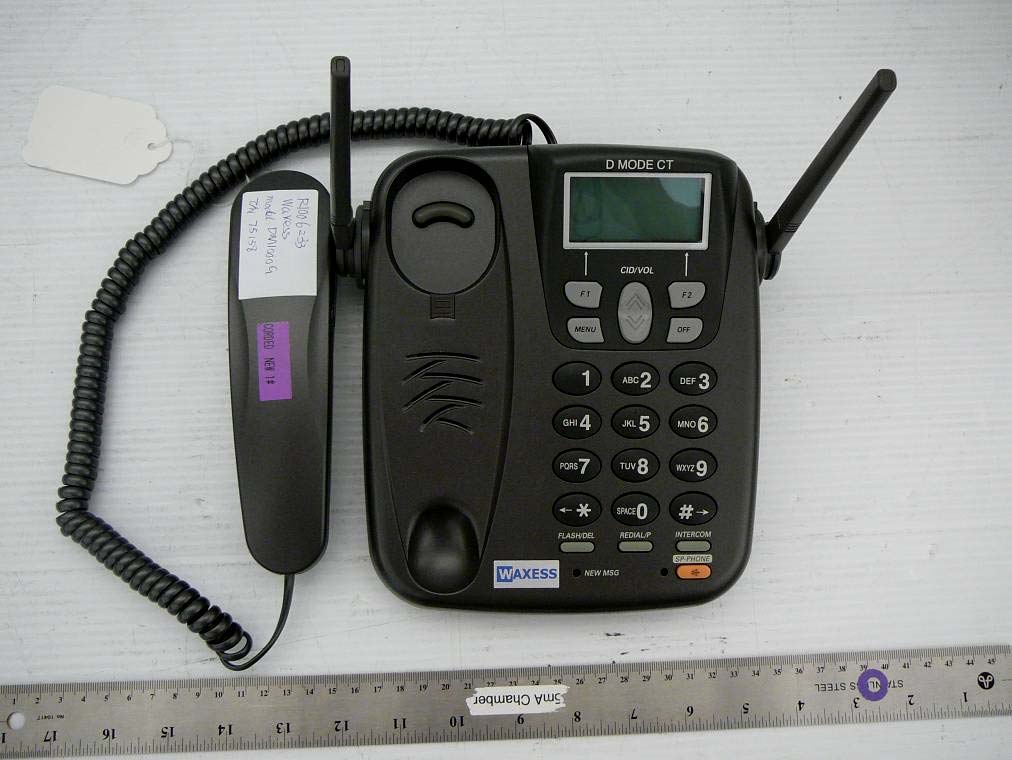

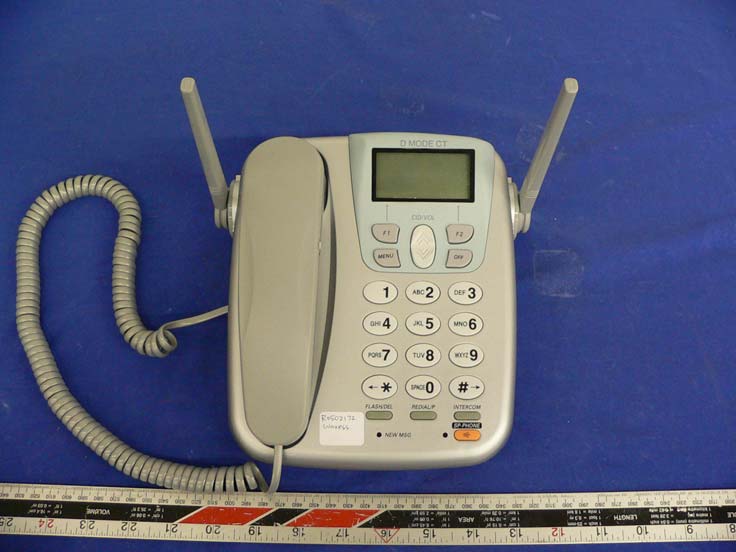

Waxess USA Inc. FCC ID: SNBDM1000CE Report Number: R1006233-2224 Page 25 of 31 FCC Part 22H/24E Test Report 14 EXHIBIT C – EUT PHOTOGRAPHS 14.1 EUT - Top View 14.2 EUT - Bottom View Waxess USA Inc. FCC ID: SNBDM1000CE Report Number: R1006233-2224 Page 26 of 31 FCC Part 22H/24E Test Report 14.3 EUT - Side View 14.4 EUT - Rear View Waxess USA Inc. FCC ID: SNBDM1000CE Report Number: R1006233-2224 Page 27 of 31 FCC Part 22H/24E Test Report 14.5 EUT – AC/DC Adapter View

Waxess USA Inc. FCC ID: SNBDM1000CE Report Number: R1006233-2224 Page 22 of 31 FCC Part 22H/24E Test Report 12 EXHIBIT A - FCC ID LABELING REQUIREMENTS 12.1 FCC ID Label Requirements FCC § 2.925 Identification of equipment (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID XXX123. XXX—Grantee Code 123—Equipment Product Code 12.2 FCC ID Label Content 12.3 FCC Label Location on EUT Label here

Waxess USA Inc. FCC ID: SNBDM1000CE Report Number: R1006233-2224 Page 28 of 31 FCC Part 22H/24E Test Report 14.6 EUT Case Open – Top View 14.7 EUT Main PCB Board – Top View Waxess USA Inc. FCC ID: SNBDM1000CE Report Number: R1006233-2224 Page 29 of 31 FCC Part 22H/24E Test Report 14.8 EUT CDMA RF Module Shielding Off – Top View 14.9 EUT Main PCB Board Shielding Off – Top View Waxess USA Inc. FCC ID: SNBDM1000CE Report Number: R1006233-2224 Page 30 of 31 FCC Part 22H/24E Test Report 14.10 EUT Main PCB Board – Bottom View 14.11 EUT Main PCB Board Shielding Off – Top View Waxess USA Inc. FCC ID: SNBDM1000CE Report Number: R1006233-2224 Page 31 of 31 FCC Part 22H/24E Test Report 14.12 EUT Keypad PCB Board – Top View 14.13 EUT Keypad PCB Board – Bottom View ***** END OF REPORT *****

DM1000Cb(WC01AGB) BOM LIST Elecrical BOM WC01AGB-EB001AB BASE MAIN No. Ref. No. Spec Category Remark Qty 1 A NTENNA FOR CVM 21+25+99+5 RG-178U Wonderful Cable Ass y 1 2 BATT HOUSING 1007#24LF+5264-02 2P P2.5 L=105RED+55BK Cable Ass y 1 3 BATT200 22-03-5025 2P P2.5 Connector 1 4 C1 C:CERAMIC 1.5 p 50V CH ±0.1 p 1608 CHIP CAPACITOR 1 5 C11 C:CERAMIC 20 p 50V CH ±5% 1608 CHIP CAPACITOR 1 6 C12 C225 C252 C:CERAMIC 22 p 50V CH ±5% 1608 CHIP CAPACITOR 3 7 C121-122 C136-137 C:TANTAL 2.2u 16V M A TANTALUM CAPACITO R 4 8 C129 C:CERAMIC 0.068u 16V X7R K 1608 CHIP CAPACITOR 1 9 C13-14 C100 C133-134 C142 C161 C195 C210 C112 C144 C155 C374 C156 C188 C192 C441-442 C203 C209 C217 C450 C231 C267 C282 C358 C:CERAMIC 33p 50V CH J 1608 CHIP CAPACITOR 26 10 C135 C254 C:TANTAL 47u 6.3V M A TANTALUM CAPACITO R 2 11 C138 C:TANTAL 4.7u 10V M A TANTALUM CAPACITO R 1 12 C148 C:CERAMIC 0.001u 50V X7R K 1005 CHIP CAPACITOR 1 13 C16 C17 C22 C24 C34 C26 C151-154 C160 C166 C230 C268 C295 C205 C344 C:CERAMIC 10p 50V CH ±5% 1608 CHIP CAPACITOR 17 14 C168-169 C486-487 DNP DNP CHIP CAPACITOR 4 15 C178-179 C207 C390 C407 C426 C460 C408 C423 C:CERAMIC 10p 50V CH ±0.5p 1005 CHIP CAPACITOR 9 16 C190 C199 C206 C411 C422 C:CERAMIC 39 p 50V CH J 1005 CHIP CAPACITOR 5 17 C19-20 C:CERAMIC 27 p 50V CH ±5% 1608 CHIP CAPACITOR 2 18 C200 C213 C373 C383 C:CERAMIC 0.001u 1kV X7R K 3216 CHIP CAPACITOR 4 19 C201 C290 C:CERAMIC 470 p 50V CH J 1608 CHIP CAPACITOR 2 20 C202 C307 C356 C:TANTAL 22u 6.3V M A TANTALUM CAPACITO R 3 21 C211 C:TANTAL 47u 10V M B TANTALUM CAPACITO R 1 22 C212 C215 C:CERAMIC 18 p 50V CH J 1608 CHIP CAPACITOR 2 23 C220 C:CERAMIC 100 p 50V CH J 1608 CHIP CAPACITOR 1 24 C221 C:CERAMIC 560 p 50V CH J 1608 CHIP CAPACITOR 1 25 C222 C229 C:CERAMIC DNP 16V X7R J 1005 CHIP CAPACITOR 2 26 C223 C:CERAMIC 1u 16V X7R K 1608 CHIP CAPACITOR 1 27 C241 C251 C253 C299 C314 C363 C:CERAMIC 1u 10V X7R K 2012 CHIP CAPACITOR 6 28 C243 C:CERAMIC 0.22u 10V X7R K 1608 CHIP CAPACITOR 1 29 C25 C37 C124 C139 C355 C377 C424 C418 C:TANTAL 100u 6.3V M B TANTALUM CAPACITOR 8 30 C250 C:CERAMIC 0.022u 16V X7R K 1608 CHIP CAPACITOR 1 31 C266 C:CERAMIC 820 p 50V CH J 1608 CHIP CAPACITOR 1 32 C279 C:CERAMIC 220 p 50V CH J 1608 CHIP CAPACITOR 1 33 C280 C:CERAMIC 0.0033u 50V X7R K 1608 CHIP CAPACITOR 1 1/9 DM1000Cb(WC01AGB) BOM LIST Elecrical BOM WC01AGB-EB001AB 34 C281 C292 C:CERAMIC 4.7u 6.3V X5R M 2012 CHIP CAPACITOR 2 35 C30 C61-62 C272 C324 C339 C123 C130 C461 C331 C:CERAMIC 0.001u 50V X7R K 1608 CHIP CAPACITOR 10 36 C302 C371 C415 C:TANTAL 100u 10V M C TANTALUM CAPACITO R 3 37 C306 C:CERAMIC 0.47u 250V X7R K 4532 CHIP CAPACITOR 1 38 C31 C325 C:CERAMIC 150 p 50V CH J 1608 CHIP CAPACITOR 2 39 C33 C:CERAMIC 47 p 50V CH J 1608 CHIP CAPACITOR 1 40 C35-36 C131 C214 C244 C315 C235 C:TANTAL 10u 6.3V M A TANTALUM CAPACITOR 7 41 C364 C:CERAMIC 0.033u 16V X7R K 1608 CHIP CAPACITOR 1 42 C375-376 C:CERAMIC 100 p 50V CH J 1005 CHIP CAPACITOR 2 43 C39 C378 C120 C228 C262 C:CERAMIC 0.047u 16V X7R K 1608 CHIP CAPACITOR 5 44 C4 C23 C29 C32 C38 C52 C60 C103 C106-107 C109 C145 C149 C159 C198 C224 C233 C238 C242 C248 C258 C264 C287 C293 C310 C334 C369 C379-380 C132 C126-127 C163 C177 C191 C204 C227 C234 C256 - 257 C261 C322 C:CERAMIC 0.1u 16V X7R K 1608 CHIP CAPACITOR 43 45 C400 C:ELEC 100u 25V M 6.3X11 P=2. 5 ELEC CAPACITO R 1 46 C40-41 C105 C108 C170 C289 C303 C:CERAMIC 1u 10V X5R M 1608 CHIP CAPACITOR 7 47 C42 - 51 C98 - 99 C104 C164 - 165 C173 C176 C182-185 C196-197 C370 C401-403 C409-410 C412-414 C430-431 C433-437 C439-440 C444-445 C447-449 C451-453 C458 C158 C174 C416 C438 C459 C:CERAMIC 33p 50V CH J 1005 CHIP CAPACITOR 55 48 C454 C:CERAMIC 0.022u 16V CH K 1005 CHIP CAPACITOR 1 49 C464 C:CERAMIC 0.027u 16V X7R K 1608 CHIP CAPACITOR 1 50 C467 C:CERAMIC 0.01u 16V CH K 1005 CHIP CAPACITOR 1 51 C480 C483 C:CERAMIC 10 p 3kV CH J 4520 CHIP CAPACITOR 2 52 C481-482 C:CERAMIC 33 p 3kV CH J 4520 CHIP CAPACITOR 2 53 C484-485 DNP DNP 2 54 C500 C:CERAMIC 0.33u 10V X7R K 1608 CHIP CAPACITOR 1 55 C7 C28 C:CERAMIC 2.2u 6.3V X5R ±20% 2012 CHIP CAPACITOR 2 56 C8 C10 C140 C143 C157 C180 C216 C219 C226 C236 C240 C245-246 C263 C270 C274 C277-278 C286 C288 C300 C304 C341-342 C367 C:CERAMIC 0.22u 10V X7R K 2012 CHIP CAPACITOR 29 57 C9 C27 C276 C285 C301 C:CERAMIC 0.01u 50V X7R K 1608 CHIP CAPACITOR 6 2/9 DM1000Cb(WC01AGB) BOM LIST Elecrical BOM WC01AGB-EB001AB 58 CEL Q26 _ ELITE CDMA Module Sierra Wireless 1 59 CEL RF CABLE U.FL-LP-066J1-A-80 HIROSE Cable Ass y 1 60 D206-207 D215-217 1N4007 M7 DO-214AC 5 61 D208,D218 SMAB33-RTK SM A SCHOTTKY DIODE 2 62 D220-222 D224-226 DNP DIODE 6 63 D227 KDS226/P DIODE SOT23 1 64 D228-229 KDS221E DIODE ESM 2 65 D2-8 D200-201 D203-205 MM4148 DIODE SOD-80 12 66 FUSE1 FUSE,350mA/250V FUSE 1 67 HS1 F400-0001E HOOK SWITCH Toneluck 1 68 IC1 8051F126 FLASH 128K TQFP100 SL CPU 1 69 IC2 SC14CVM2.4R6C2N NS CVM Module Sitel 1 70 IC202 A K2301 IC Codec A KM 1 71 IC204 TEA1062/AN IC SO16 1 72 IC205 LTV-817S-TA-C IC Photocou p ler 1 73 IC206 LP3876ES-ADJ TO263-5 1 74 IC207 KIA78R05F DPAK-5 1 75 IC208 KIA278R06PI-U/C TO-220IS-4 1 76 IC4 HT9200B IC SOP-14 HOLTEK 1 77 J1 CON2 _ S PIE2.0 1 78 JTAG1 3302-03019 4PINX2 P=2.54 1 79 KEYCON1 LCDCON1 53014-1410 14PIN P=2.0 2 80 L205-208 MLF1608A1R0KT 1u Inductor 4 81 MIC HOUSING UL1007 #24 2+94+2 BK+WHITE +MOLEX Cable Ass y 1 82 MIC201 SPK200 22-05-7025 2P P=2.5 RIGHT ANGLE 2 83 MJ200 5162-G21 623PCB-2C-15U 1 84 MJ201 5444-G11 616PCB-4C-15U 1 85 PE1 FR4 t=1.6mm 4LAYERS PCB 1 86 Q200 MPSA44 Transistor TO-92 1 87 Q207 MPSA94 Transistor TO-92 1 88 Q2-4 Q202-206 Q208 Q212 Q218 Q230-233 NPN2 Transistor SOT23 15 89 R10 R4 5 R49 R 5 2 R99 R101 R104 R130 R149-150 R152-153 R172 R174 R177 R210 R213 R217 R221 R249 R260 R270 R283 R295 R317 R335 R350-351 R356 R383 R422- 423 R429 R164 R421 R:CARBON 10k 1/16W J 1608 CHIP RESISTOR 35 90 R105 R:CARBON 22k 1/16W F 1608 CHIP RESISTO R 1 91 R108 R167 R230 R266 R292 R:CARBON 56k 1/16W J 1608 CHIP RESISTO R 5 92 R1-2 R11-13 R24 R38-39 R50 R55 R127 R155 R171 R200-201 R218-219 R303 R322 R325 R341 R40…

Text truncated - open the document above for the full version.

Waxess USA Inc. FCC ID: SNBDM1000CE Report Number: R1006233-2224 Page 20 of 31 FCC Part 22H/24E Test Report 11 FCC §1.1307(b)(1) & §2.1091 - RF EXPOSURE 11.1 Applicable Standard According to FCC §1.1310 and §2.1091 (Mobile Devices) RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density 11.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna CDMA – Cellular Band Maximum peak output power at antenna input terminal (dBm):24.38 Maximum peak output power at antenna input terminal (mW): 274.16 Prediction distance (cm): 20 Prediction frequency (MHz): 824.7 Maximum Antenna Gain, typical (dBi): 0 Maximum Antenna Gain (numeric): 1 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.0545 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 0.5498 Waxess USA Inc. FCC ID: SNBDM1000CE Report Number: R1006233-2224 Page 21 of 31 FCC Part 22H/24E Test Report CDMA – PCS Band Maximum peak output power at antenna input terminal (dBm):23.85 Maximum peak output power at antenna input terminal (mW): 242.66 Prediction distance (cm): 20 Prediction frequency (MHz): 1880 Maximum Antenna Gain, typical (dBi): 0 Maximum Antenna Gain (numeric): 1 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.048 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 11.3 Test Result The device is compliant with the requirement MPE limit for uncontrolled exposure at the distance of 20 cm.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 22H, 24E TEST AND MEASUREMENT REPORT For Waxess USA, Inc. 4533 MacArthur Blvd, Suite 276, NewPort Beach, CA 92660, USA FCC ID: SNBDM1000CE Report Type: Original Report Product Type: Dual Mode 850/1900 CDMA & 2.4 GHz FHSS Test Engineer: Dennis Huang Report Number: R1006233-2224 Report Date: 2010-08-06 Reviewed By: Victor Zhang Test Engineer, RF Lead Prepared By: (84) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Waxess USA Inc. FCC ID: SNBDM1000CE Report Number: R1006233-2224 Page 2 of 31 FCC Part 22H/24E Test Report TABLE OF CONTENTS 1 GENERAL INFORMATION ............................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)........................................................................... 5 1.2 MECHANICAL DESCRIPTION.............................................................................................................................. 5 1.3 OBJECTIVE......................................................................................................................................................... 5 1.4 RELATED SUBMITTAL(S)/GRANT(S)................................................................................................................... 5 1.5 TEST METHODOLOGY........................................................................................................................................ 5 1.6 MEASUREMENT UNCERTAINTY.......................................................................................................................... 6 1.7 TEST FACILITY................................................................................................................................................... 6 2 SYSTEM TEST CONFIGURATION .................................................................................................................. 7 2.1 JUSTIFICATION................................................................................................................................................... 7 2.2 EUT EXERCISE SOFTWARE................................................................................................................................7 2.3 EQUIPMENT MODIFICATIONS............................................................................................................................. 7 2.4 POWER SUPPLY AND LINE FILTERS.................................................................................................................... 7 2.5 INTERNAL CONFIGURATION...............................................................................................................................7 2.6 INTERFACE PORTS AND CABLING...................................................................................................................... 7 3 SUMMARY OF TEST RESULTS........................................................................................................................ 8 4 FCC §2.1046, §22.913(A) & §24.232 – RF OUTPUT POWER .......................................................................... 9 4.1 APPLICABLE STANDARD.................................................................................................................................... 9 4.2 TEST PROCEDURE.............................................................................................................................................. 9 4.3 TEST ENVIRONMENTAL CONDITIONS................................................................................................................. 9 4.4 TEST EQUIPMENT LIST AND DETAILS.............................................................................................................. 10 4.5 TEST RESULTS................................................................................................................................................. 10 5 FCC §2.1047 - MODULATION CHARACTERISTIC..................................................................................... 12 5.1 APPLICABLE STANDARD.................................................................................................................................. 12 5.2 TEST RESULT................................................................................................................................................... 12 6 FCC §2.1049, §22.917 & §24.238 - OCCUPIED BANDWIDTH...................................................................... 13 6.1 APPLICABLE STANDARD.................................................................................................................................. 13 6.2 TEST PROCEDURE............................................................................................................................................ 13 6.3 TEST RESULTS................................................................................................................................................. 13 7 FCC §2.1053, §22.917 & §24.238 - SPURIOUS RADIATED EMISSIONS.................................................... 14 7.1 APPLICABLE STANDARD.................................................................................................................................. 14 7.2 TEST PROCEDURE.....................................................................................................................................…

Text truncated - open the document above for the full version.

Waxess USA Inc. FCC ID: SNBDM1000CE Report Number: R1006233-2224 Page 23 of 31 FCC Part 22H/24E Test Report 13 EXHIBIT B - TEST SETUP PHOTOGRAPHS 13.1 Radiated Emissions - Front View (Below 1 GHz) 13.2 Radiated Emissions - Rear View (Below 1 GHz) Waxess USA Inc. FCC ID: SNBDM1000CE Report Number: R1006233-2224 Page 24 of 31 FCC Part 22H/24E Test Report 13.3 Radiated Emissions - Front View (Above 1 GHz) 13.4 Radiated Emissions - Rear View (Above 1 GHz)
