SNBDM1200E2.4 GHz FHSS cordless phone

Dual Mode Communication Terminal DM1200E/DM1250E (CDMA-EVDO) User Guide D mode EVDO draft 1.book Page i Friday, January 12, 2007 8:18 PM D Mode CT User GuideiiCopyright © 2007 Waxess Handset 10 Antenna 2 Betlclip attachment 3 Speaker for Ringer 4 Handset battery compartment 5 New Message LED 6 Handset Earpiece 7LCD Display 8Function Keys 9Up/Down keys 10 Menu and Off keys 11Í * Scroll Left 12 Flash/Delete key 13 Redial/Pause key 14 Headset Jack 15 #Î Scroll Right 16 Intercom 17 Handset Microphone 18 Handset Charging Contacts D mode EVDO draft 1.book Page ii Friday, January 12, 2007 8:18 PM D Mode CT User GuideiiiCopyright © 2007 Waxess Base 19 Base Speaker/Ringer 20 LCD Display 21 Function Keys 22 Up/Down Keys 23 Menu and Off Keys 24 Intercom Key 25 Speaker Phone Key 26 Speaker Phone ON LED 27 Redial/Pause Key 28 New Message LED 29 Flash Key 30 DC IN 9V Jack 31 TEL LINE Jack 32 Corded Handset Jack 33 Battery cover 34 Data Access Port (for use with DM120UB Data Accessory Kit) 34 D mode EVDO draft 1.book Page iii Friday, January 12, 2007 8:18 PM D Mode CT User GuideiCopyright © 2007 Waxess Contents Get ready . . . . . . . . . . . . . . . . . . . . . . 1 Choose Location . . . . . . . . . . . . . . . . . . . . . 1 Get set . . . . . . . . . . . . . . . . . . . . . . . 11 Dialing mode . . . . . . . . . . . . . . . . . . . . . . 11 Time and date . . . . . . . . . . . . . . . . . . . . . 12 Set the ringer tone . . . . . . . . . . . . . . . . . . 14 Key beep . . . . . . . . . . . . . . . . . . . . . . . . . 16 Area codes . . . . . . . . . . . . . . . . . . . . . . . . 16 Language . . . . . . . . . . . . . . . . . . . . . . . . . 18 LCD contrast . . . . . . . . . . . . . . . . . . . . . . 19 Name . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Handset registration . . . . . . . . . . . . . . . . . 19 GO! . . . . . . . . . . . . . . . . . . . . . . . . . 22 Make a wireless call . . . . . . . . . . . . . . . . . 22 Make a landline call . . . . . . . . . . . . . . . . . . 23 Calling options . . . . . . . . . . . . . . . . . . . . . 24 Answer a wireless call . . . . . . . . . . . . . . . . 25 Answer a landline call . . . . . . . . . . . . . . . . 26 In-Call operations . . . . . . . . . . . . . . . . . . . 27 Phone book . . . . . . . . . . . . . . . . . . . . . . . 30 Messages . . . . . . . . . . . . . . . . . . . . . . . . . 35 More features . . . . . . . . . . . . . . . . . . 43 Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . 43 Page and Intercom . . . . . . . . . . . . . . . . . . 47 Two-line calling . . . . . . . . . . . . . . . . . . . . . 49 Barge-in . . . . . . . . . . . . . . . . . . . . . . . . . 52 Cellular only . . . . . . . . . . . . . . . . . . . . . . . 56 CEL Phone Number . . . . . . . . . . . . . . . . . . 57 Power back-up . . . . . . . . . . . . . . . . . . . . . 57 D mode EVDO draft 1.book Page i Friday, January 12, 2007 8:18 PM D Mode CT User GuideiiCopyright © 2007 Waxess Precautions . . . . . . . . . . . . . . . . . . . . 59 Important safety instructions . . . . . . . . . . . 60 I.C. Notice . . . . . . . . . . . . . . . . . . . . . . . . 71 General information . . . . . . . . . . . . . . 73 D Mode CT Menu map . . . . . . . . . . . . 75 Index . . . . . . . . . . . . . . . . . . . . . . . . 76 D mode EVDO draft 1.book Page ii Friday, January 12, 2007 8:18 PM D Mode CT User GuideiiiCopyright © 2007 Waxess Notes D mode EVDO draft 1.book Page iii Friday, January 12, 2007 8:18 PM Get ready D Mode CT User Guide1Copyright © 2007 Waxess 1 1Get ready Optional: Data Accessory Kit (DM120UB, sold separately) available to connect with your PC for data communication. •Choose Location Some important considerations: • Charge the handset for 12–15 hours before use it. • Locate the base near both a phone jack and a power outlet which is not controlled by a switch. • Keep the base and handset away from sources of electrical noise, such as motors and fluorescent lighting. • Leave enough room to raise both base antennas fully vertical. Included items • Base• Belt clip • Cordless handset• Wall mount bracket • AC adaptor for base• Telephone cord • AC adaptor for cordless handset •User guide • Rechargeable battery for cordless handset D mode EVDO draft 1.book Page 1 Friday, January 12, 2007 8:18 PM D Mode CT User Guide2Copyright © 2007 Waxess 1 Desk or Table 1Connect the telephone line cord to the TEL LINE jack and to a telephone jack. 2Set the base on a desk or table and place the handset on the base. 3Connect the handset cord to the jacks on the handset and the base, then set the handset in the cradle. 4Raise both antennas to a vertical position. 5Find the base AC adaptor (the larger adaptor, Model number AD-48091000), and connect it to the DC IN 9V jack and to a standard 120V AC. D mode EVDO draft 1.book Page 2 Friday, January 12, 2007 8:18 PM Get ready D Mode CT User Guide3Copyright © 2007 Waxess 1 Wall mount 1Attach the wall mount adaptor to the base. 2Find the base AC adaptor (the larger adaptor, Model number 48091000), plug the connector into the DC IN 9V jack, then plug the telephone line cord to the TEL LINE jack. 3Wrap the AC adaptor inside the molded wiring channel, then wrap the cord around the strain relief notch. 4Raise the antennas to a vertical position. 5Align the mounting slots on the base with the mounting posts on the wall plate. Then push in and down until the phone is firmly seated. 6Connect the handset cord to the jacks on the handset and base, then set the corded handset in the cradle. 7On the base, remove the handset retainer, flip it over, then replace it. D mode EVDO draft 1.book Page 3 Friday, January 12, 2007 8:18 PM D Mode CT User Guide4Copyright © 2007 Waxess 1 Base power on When powered on for the first time, the base goes through an initialization sequence. Note:Do not use the phone until the initialization sequence is complete. Power backup batteries (Optional) The optional back-up batteries provide a reserve power supply so the base can operate for up…

Text truncated - open the document above for the full version.

――――――――――――――――――――――――――――――――――――――――――――― Waxess, Inc. 34 Executive Park, Suite 250, Irvine, CA 92614 Tel: (949) 955-9542; Fax: (949) 955-2470 FCC Authorization Date: January 7, 2007 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Waxess Inc. , the undersigned, Hereby authorizes Bay Area Compliance Laboratory Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Typed or Printed Name: Hideyuki Kanakubo Title: CEO Company Name: Waxess Inc.

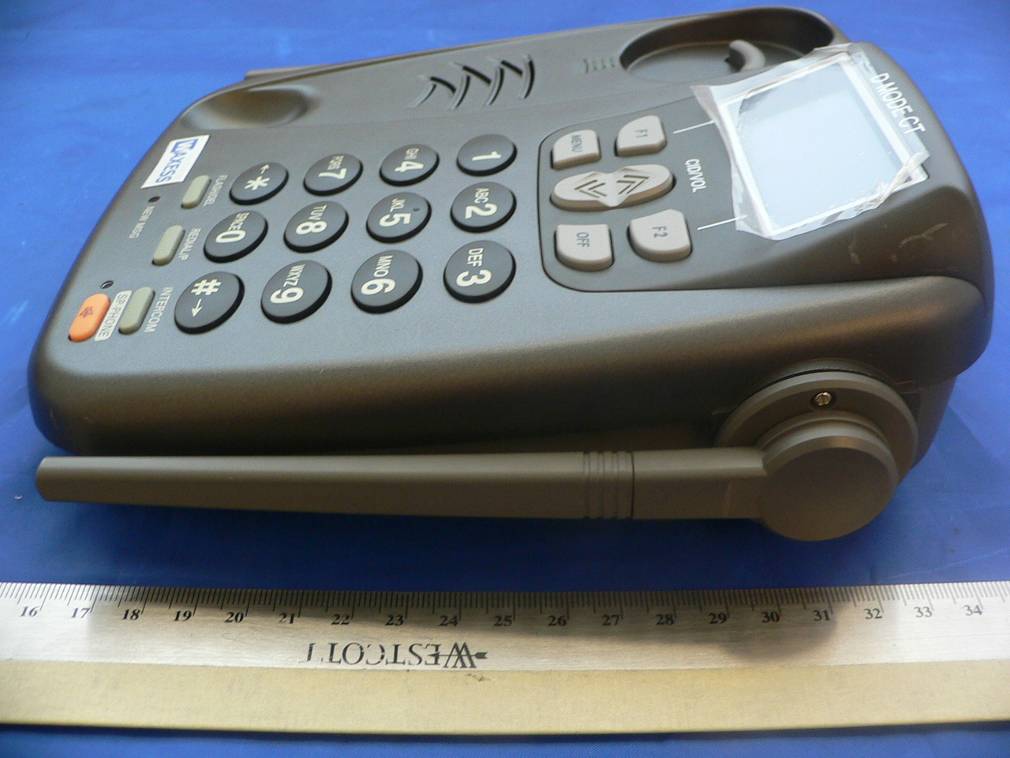

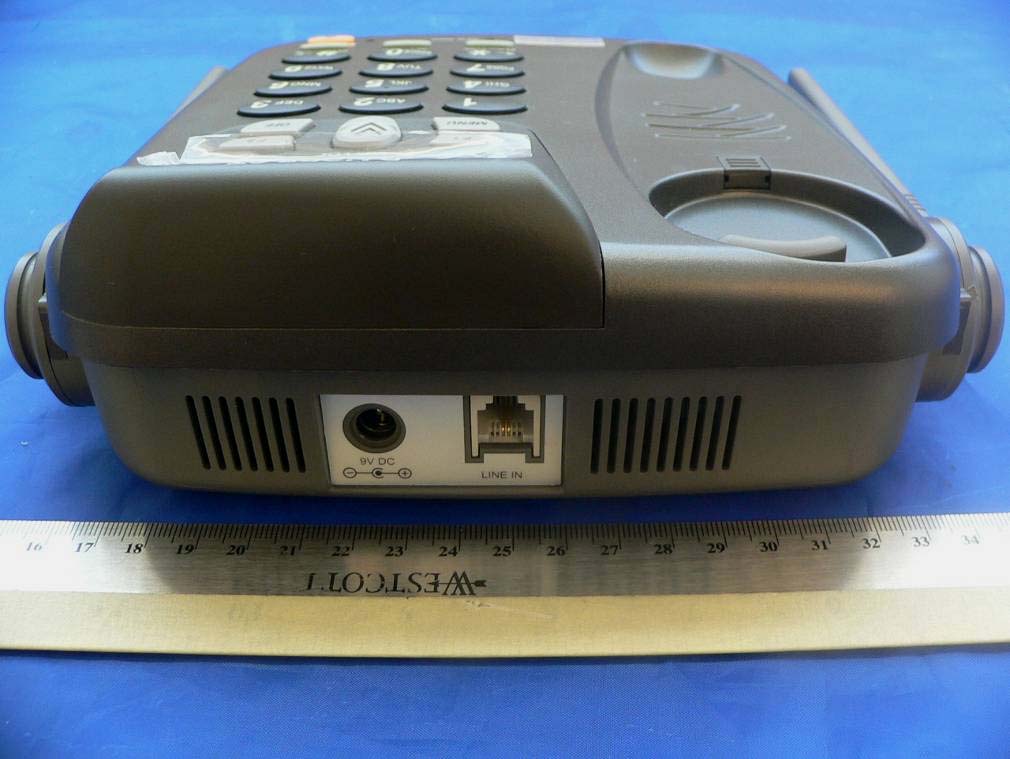

EXHIBIT C - EUT EXTERNAL PHOTOGRAPHS Base – External Front View Base – External Rear View Base – Port View Base – Side View CDMA Antenna Side View Corded Handset Side View AC Adapter (for base)

Proposed Label Location on EUT Back View of EUT / Proposed FCC ID Location

FCC ID Labeling

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Base – Chassis off View Base – Component View Base – Solder Side View Base – 2.4GHz transceiver RF shield off View 1 Base – 2.4GHz transceiver RF shield off View 2 Base – RF shield off View 1 Base –RF shield off View 2 Internal CDMA Board- Top View

Tune up procedure To set up transmit power before shipping, AnyDATA uses a manufacturing process which is called “Calibration of Rx and Tx power over the dynamic range, temperature and frequency”. CDMA technical standard requires AnyDATA’s CDMA module to transmit more than +23dBm output power when it is required to transmit its maximum power. Therefore, AnyDATA sets the maximum power of the module to +24.5dBm (+1dB, -1.5dB) By adjusting Tx AGC Amplifier built in the CDMA module, transmit power can be limited to +24.5dBm (+1dB,-1.5dB) Transmit power calibration consists of transmit linearizer calibration, and power compensation calibration over the temperature and frequency. During the transmit linearizer calibration, the module searches for 16 AGC adjust values for the 16 power levels within the dynamic range including the maximum output power and saves these AGC adjust values in the memory device in the module. These searched AGC adjust values (TX_LIN_MASTER) set the maximum power of the module. To prevent the variation in maximum power over the frequency, the transmit circuit is calibrated over the frequency and compensation values (TX_LIM_VS_FREQ) are found. These values are also used to limit the maximum output power to +24.5dBm (+1dB,-1.5dB) Also to prevent the variation in maximum power over the temperature, the transmit circuit is calibrated over the temperature and compensation values (TX_LIM_VS_TEMP) are found. These are also used to limit the maximum output power to +24.5dBm (+1dB,-1.5dB) when there is variation in temperature..

14 - § 15.247 (i) and § 2.1091 - RF EXPOSURE 14.1 Applicable Standard According to §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density 14.2 MPE Prediction Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 22.50(dBm ) Maximum peak output power at antenna input terminal: 117.83 (mw) Prediction distance: 20 (cm) Predication frequency: 2442(MHz) Antenna Gain (typical): 0.0 (dBi) Antenna gain: 1 (numeric) Power density at predication frequency at 20 cm: 0.0235(mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: 1.00 (mW/cm 2 ) 14.3 Test Result The power density level at 20 cm is 0.0235 mW/cm², which is below the uncontrolled exposure limit of 1.00mW/cm² at 2442 MHz.

Note: This test report is for the customer shown above and their specific product only. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government (REV.1) FCC PART 15.247 MEASUREMENT AND TEST REPORT For Waxess Inc. 34 Executive Park, Suite 250, Irvine, CA 92614 FCC ID: SNBDM1200E This Report Concerns: Original Report Equipment Type: CDMA phone with FHSS Test Engineer: Oscar Au/ Dan Coronia Report No.: R0701043-247 Report Date: 2007-01-15 Reviewed By: Test Engineer: Daniel Deng Prepared By: (ct) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Ave. Sunnyvale, CA 94089 Tel: (408) 732-9162 Fax: (408) 732-9164 Waxess Inc. FCC ID: SNBDM1200E Report # R0701043-247 Page 2 of 47 FCC Part 15.247 Test Report TABLE OF CONTENTS 1 - GENERAL INFORMATION .................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ...............................................................................4 1.2 MECHANICAL DESCRIPTION...................................................................................................................................4 1.3 EUT PHOTO...........................................................................................................................................................4 1.4 OBJECTIVE.............................................................................................................................................................4 1.5 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................4 1.6 TEST METHODOLOGY.............................................................................................................................................4 1.7 MEASUREMENT UNCERTAINTY..............................................................................................................................5 1.8 TEST FACILITY.......................................................................................................................................................5 2 - SYSTEM TEST CONFIGURATION ....................................................................................................................6 2.1 JUSTIFICATION.......................................................................................................................................................6 2.2 SPECIAL ACCESSORIES...........................................................................................................................................6 2.3 EQUIPMENT MODIFICATIONS.................................................................................................................................6 2.4 POWER SUPPLY AND LINE FILTERS........................................................................................................................6 2.5 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS...................................................................................................6 2.6 INTERFACE PORTS AND CABLING...........................................................................................................................6 3 - SUMMARY OF TEST RESULTS FOR FCC PART 15 ......................................................................................7 4 - §15.203 - ANTENNA REQUIREMENT ................................................................................................................8 4.1 APPLICABLE STANDARD.........................................................................................................................................8 4.2 ANTENNA CONNECTED CONSTRUCTION.................................................................................................................8 5 - §15.207 – CONDUCTED EMISSIONS..................................................................................................................9 5.1 APPLICABLE STANDARD.........................................................................................................................................9 5.2 EUT SETUP............................................................................................................................................................9 5.3 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................9 5.4 TEST PROCEDURE.................................................................................................................................................10 5.5 SUMMARY OF TEST RESULTS...............................................................................................................................10 5.6 CONDUCTED EMISSIONS TEST PLOTS AND DATA.................................................................................................11 6 - §15.205 & §15.209 - RADIATED EMISSIONS...................................................................................................13 6.1 APPLICABLE STANDARD: FCC §15.205 RESTRICTED BANDS OF OPERATION........................................................13 6.2 APPLICABLE STANDARD: FCC §15.209 RADIATED EMISSION LIMITS, GENERAL REQUIREMENTS. ........................13 6.3 TEST SETUP..........................................................................................................................................................14 6.4 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................14 6.5 TEST SETUP DIAGRAM........................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT B TEST SETUP PHOTOS Radiated Emissions – Front View Radiated Emissions – Rear View
